Product Description

Line Circle

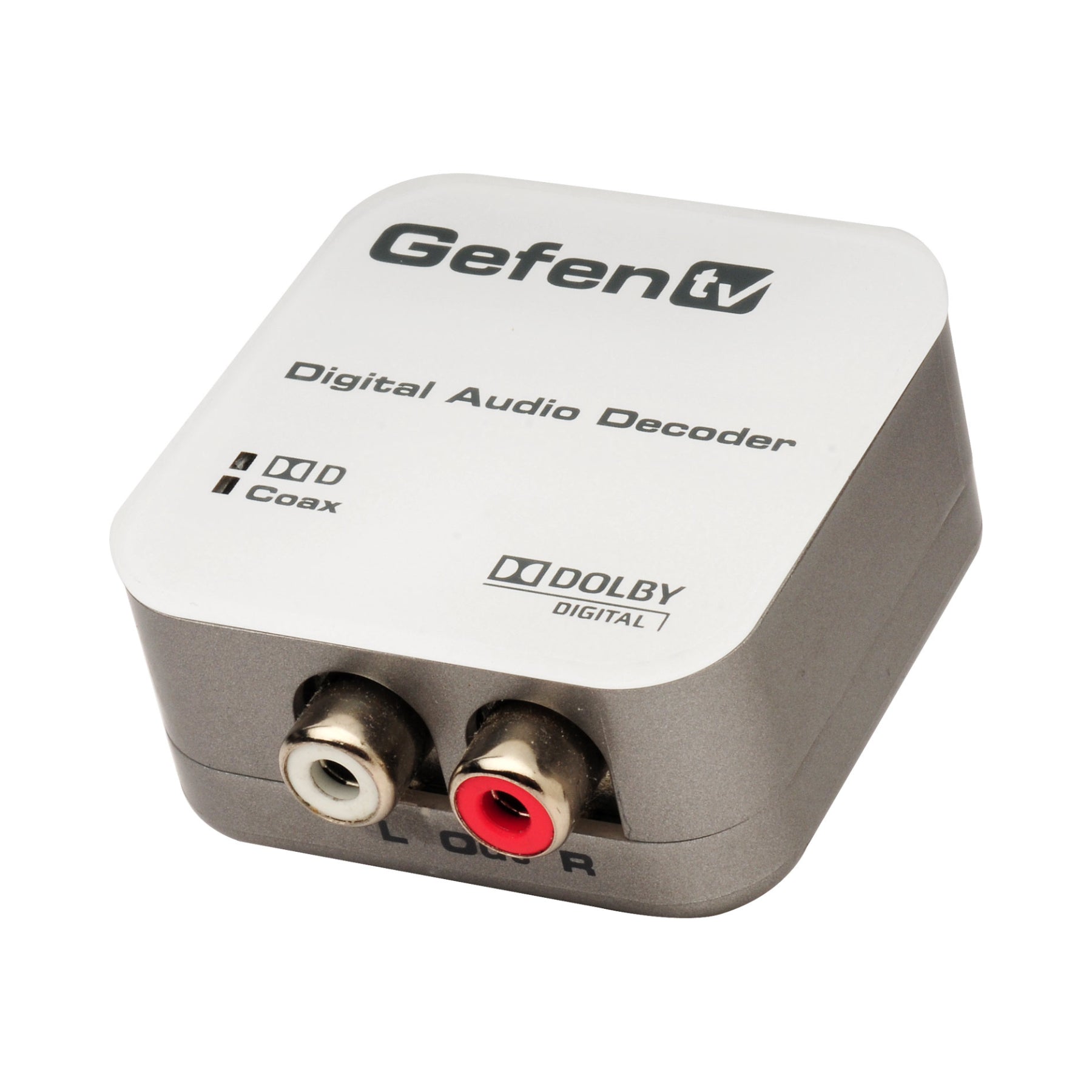

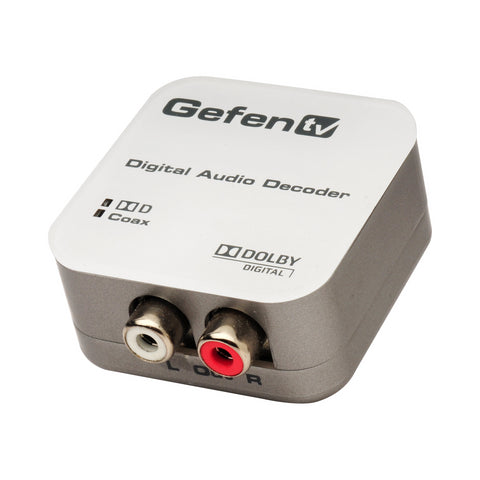

The GefenTV Digital Audio Decoder takes audio encoded in Dolby Digital (at up to 5.1 channels) from your multichannel S/PDIF or TOSLINK digital audio source and converts it to L/R analog audio without the need for any other external equipment!

Features & Specs Line Circle

OUTPUTS

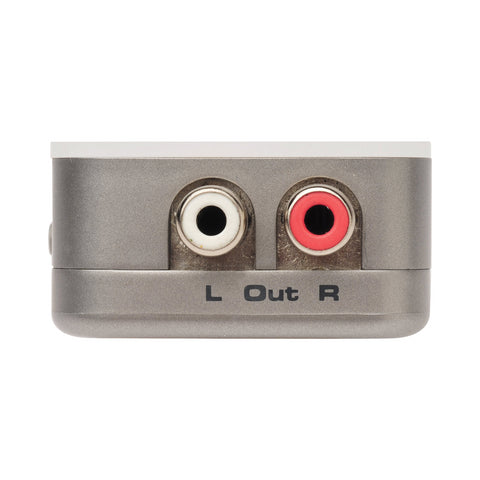

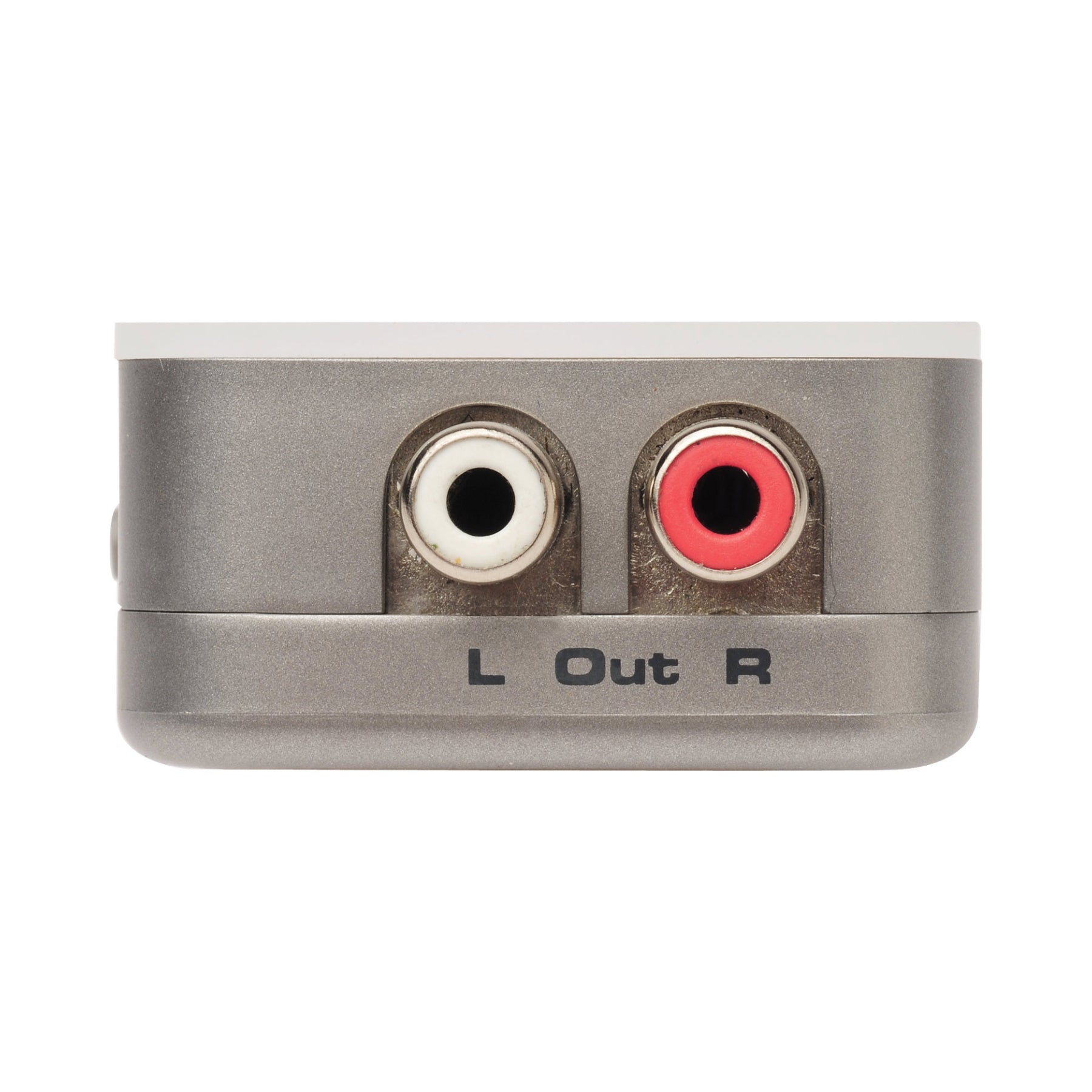

Right and Left RCA-type Stereo analog output ports
INPUTS

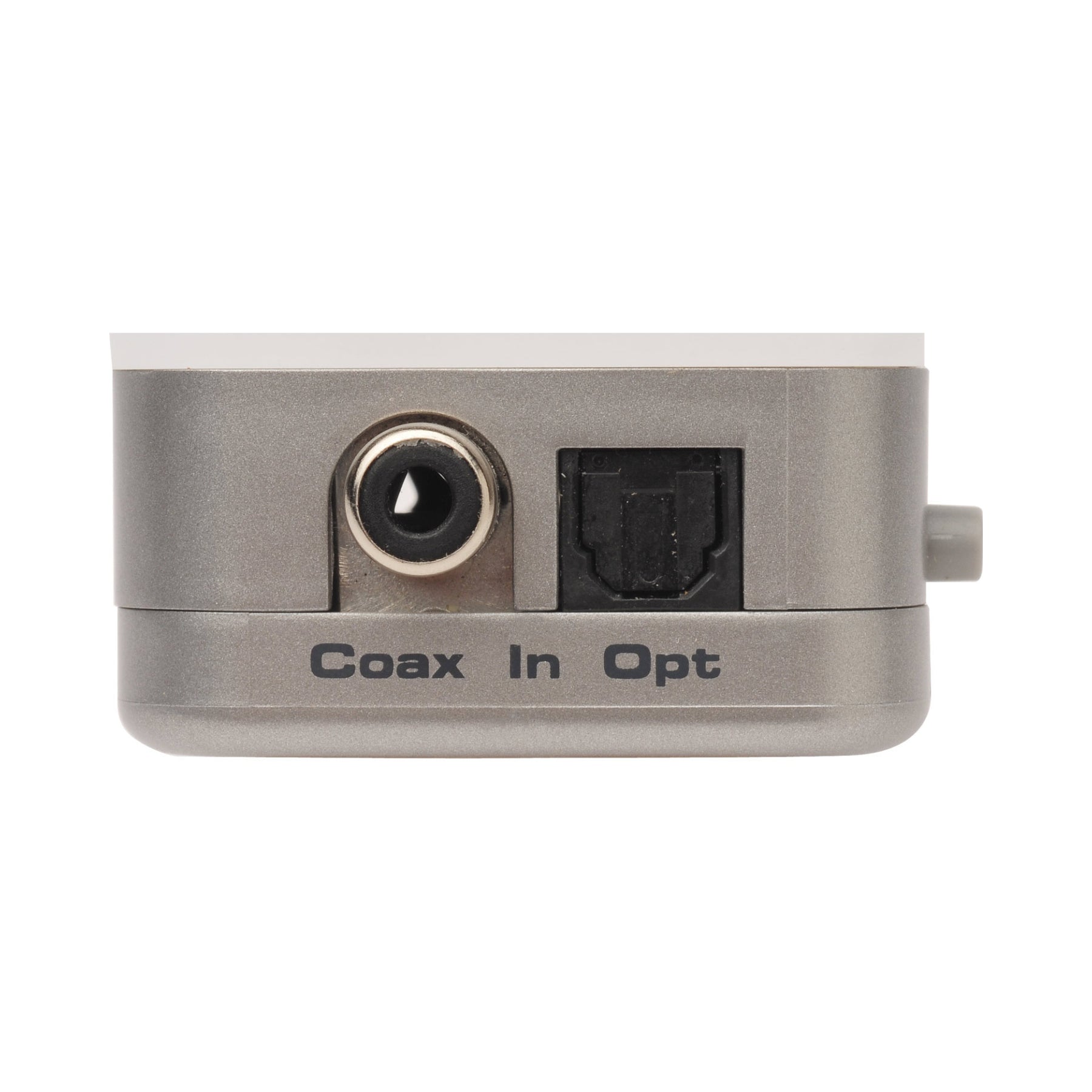

Coaxial and Optical digital audio ports
OUTPUT IMPEDANCE
500 Ohms
FREQUENCY RESPONSE
<+/-0.5dB
SIGNAL TO NOISE RATIO
>90dB (20Hz - 20kHz A Weighting)
DIMENSIONS & SHIPPING WEIGHT
1.8" W x 1.8" H x 0.9" D & 1 lb.
OUTPUTS
Right and Left RCA-type Stereo analog output ports
INPUTS
Coaxial and Optical digital audio ports
OUTPUT IMPEDANCE
500 Ohms
FREQUENCY RESPONSE
<+/-0.5dB
SIGNAL TO NOISE RATIO
>90dB (20Hz - 20kHz A Weighting)
DIMENSIONS & SHIPPING WEIGHT
1.8" W x 1.8" H x 0.9" D & 1 lb.
Expert Insights Coming Soon
Line Circle

Details

Line Circle

GTV-DD-2-AA

Convert up to 5.1-channel audio encoded in Dolby Digital Surround to L/R analog audio - without additional costly equipment.

The GefenTV Digital Audio Decoder takes audio encoded in Dolby Digital (at up to 5.1 channels) from your multichannel S/PDIF or TOSLINK digital audio source and converts it to L/R analog audio - without the need for any other external equipment!

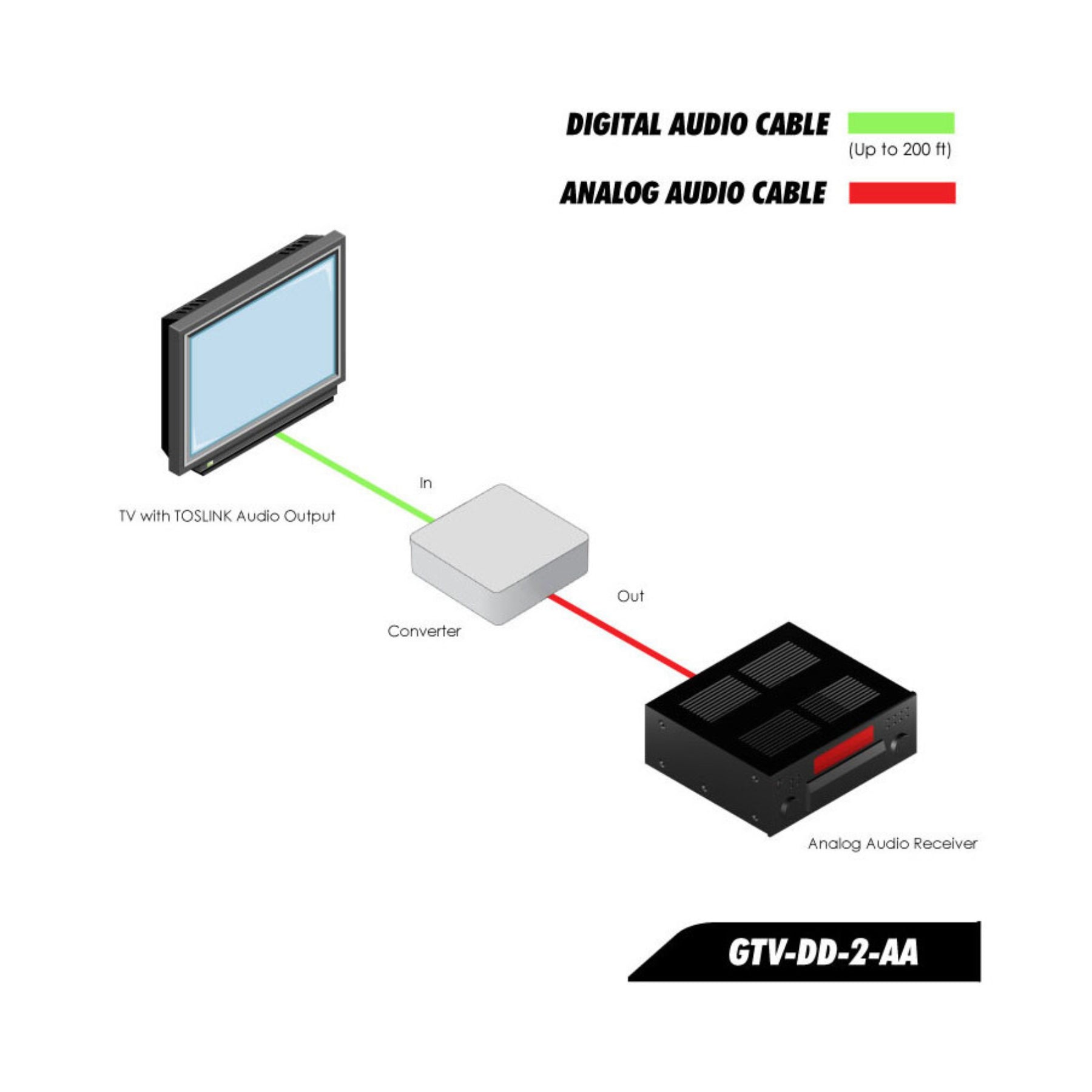

With the GefenTV Digital to Analog Decoder you can listen to digital audio sources such as DVD and CD players or digital computer audio on your legacy analog sound system, preserving your current investment.

Features:

  • Converts S/PDIF or TOSLINK digital audio to L/R analog audio
  • Digital interpolation filter and digital to analog converter (DAC)
  • Supports up to 6 channels (up to 5.1 Surround) of audio encoded in Dolby Digital
  • Auto samples at frequencies of 32, 44.1, 48 KHz
  • 24-bit incoming bitstream on left and right channels
  • Allows listening to digital audio sources on legacy analog sound systems

Datasheet

Manual

Reviews

Line Circle
Product Descriptiondown arrow

Product Description

Line Circle
The GefenTV Digital Audio Decoder takes audio encoded in Dolby Digital (at up to 5.1 channels) from your multichannel S/PDIF or TOSLINK digital audio source and converts it to L/R analog audio without the need for any other external equipment!
Features & Specsdown arrow

Features & Specs Line Circle

OUTPUTS
Right and Left RCA-type Stereo analog output ports
INPUTS
Coaxial and Optical digital audio ports
OUTPUT IMPEDANCE
500 Ohms
FREQUENCY RESPONSE
<+/-0.5dB
SIGNAL TO NOISE RATIO
>90dB (20Hz - 20kHz A Weighting)
DIMENSIONS & SHIPPING WEIGHT
1.8" W x 1.8" H x 0.9" D & 1 lb.
OUTPUTS
Right and Left RCA-type Stereo analog output ports
INPUTS
Coaxial and Optical digital audio ports
OUTPUT IMPEDANCE
500 Ohms
FREQUENCY RESPONSE
<+/-0.5dB
SIGNAL TO NOISE RATIO
>90dB (20Hz - 20kHz A Weighting)
DIMENSIONS & SHIPPING WEIGHT
1.8" W x 1.8" H x 0.9" D & 1 lb.
Expert Insightdown arrow
Expert Insights Coming Soon
Line Circle
Detailsdown arrow

Details

Line Circle

GTV-DD-2-AA

Convert up to 5.1-channel audio encoded in Dolby Digital Surround to L/R analog audio - without additional costly equipment.

The GefenTV Digital Audio Decoder takes audio encoded in Dolby Digital (at up to 5.1 channels) from your multichannel S/PDIF or TOSLINK digital audio source and converts it to L/R analog audio - without the need for any other external equipment!

With the GefenTV Digital to Analog Decoder you can listen to digital audio sources such as DVD and CD players or digital computer audio on your legacy analog sound system, preserving your current investment.

Features:

  • Converts S/PDIF or TOSLINK digital audio to L/R analog audio
  • Digital interpolation filter and digital to analog converter (DAC)
  • Supports up to 6 channels (up to 5.1 Surround) of audio encoded in Dolby Digital
  • Auto samples at frequencies of 32, 44.1, 48 KHz
  • 24-bit incoming bitstream on left and right channels
  • Allows listening to digital audio sources on legacy analog sound systems
