Product Description

Line Circle

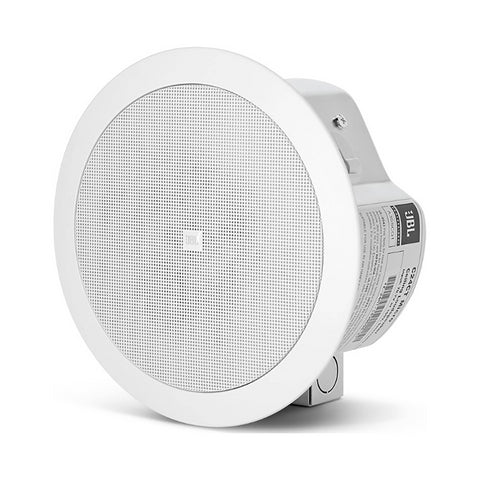

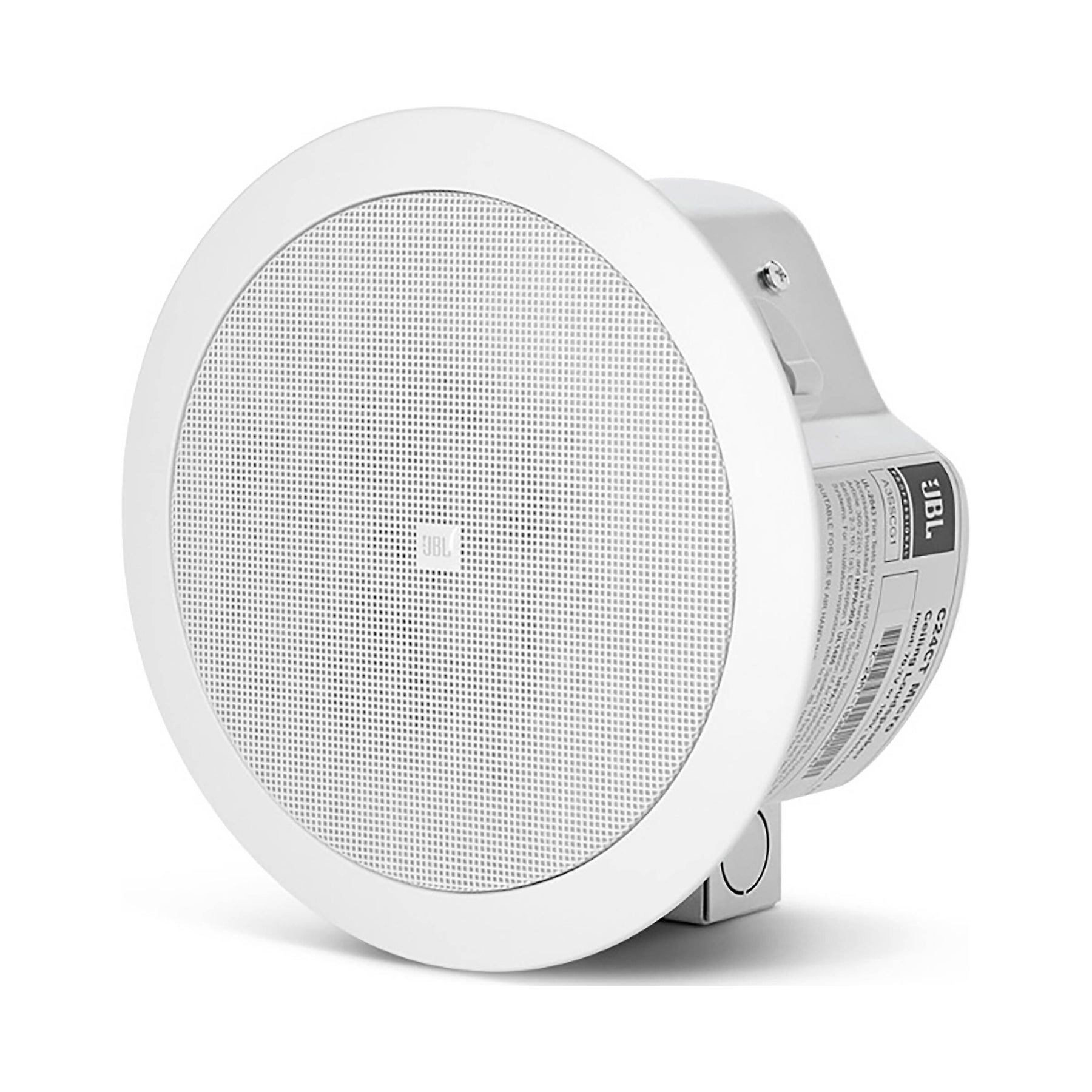

JBL Control® 24CT Micro 4-1/2" commercial in-ceiling speakers

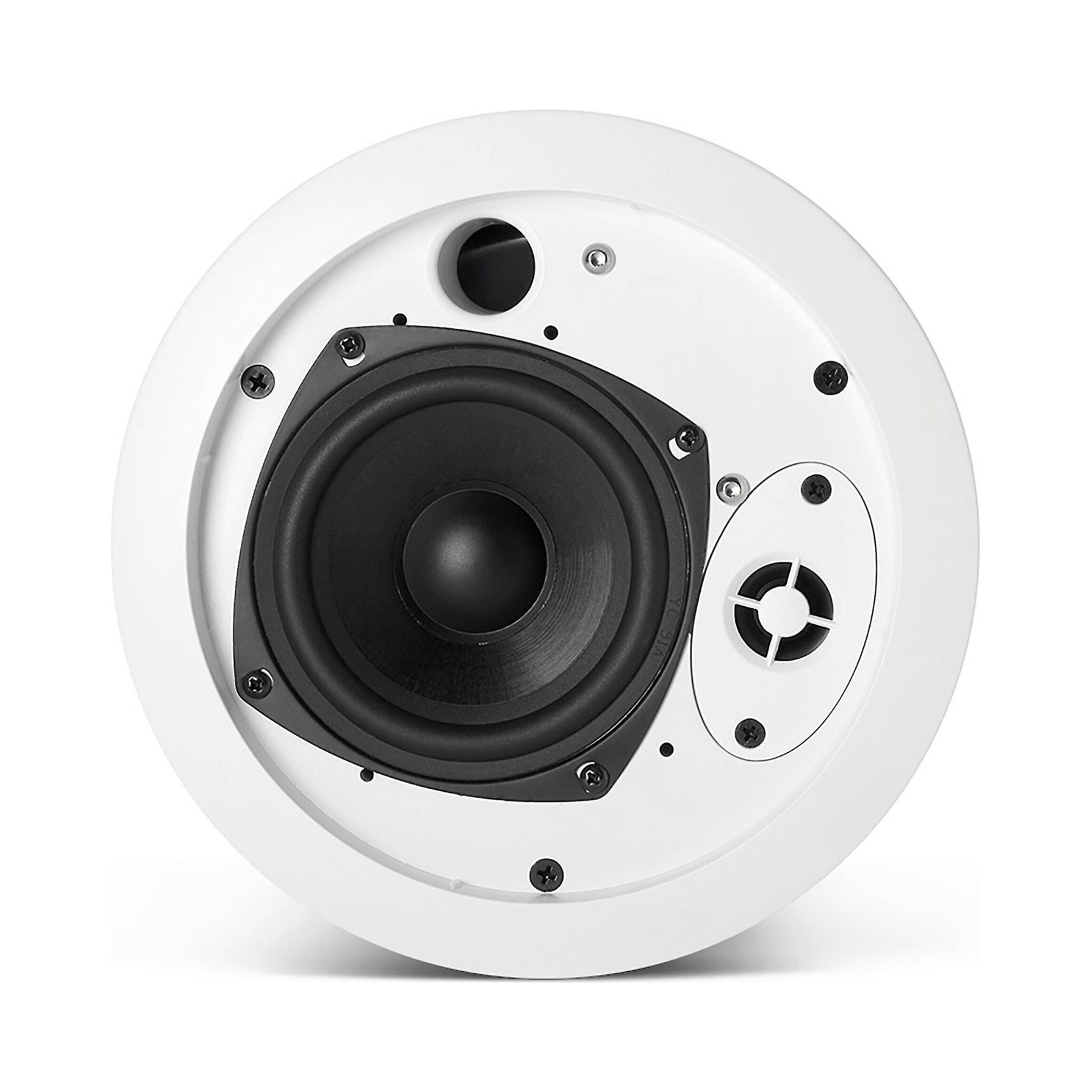

JBL Control 24CT Micro speakers are compact and relatively shallow, so you can mount them in ceilings that might not accommodate a larger speaker. Each features a 4-1/2" injection molded graphite cone woofer with butyl rubber surround and 1/2" polycarbonate tweeter for clear, audible background music and announcements in your place of business. A built-in power tap lets you incorporate multiple speakers into a 70-volt commercial audio system.

Product highlights (each):

  • 4-1/2" injection molded graphite cone woofer with butyl rubber surround
  • 1/2" polycarbonate tweeter
  • handle up to 30 watts continuous program power
  • wide 150° conical dispersion
  • frequency response: 85-25,000 Hz
  • sensitivity: 86 dB
  • 70V taps at .5, 1, 2, 4 and 9 watts
  • 100V taps at 1, 2, 4 and 9 watts
  • formed steel back enclosure
  • includes supporting brackets and 2 tile rails
  • step-by-step mounting instructions included
Dimensions
  • 6-5/8" cutout diameter
  • 4-1/8" mounting depth
  • weight: 4.4 lbs. each

What's in the box:

  • 2 In-ceiling speakers
  • 2 Grills
  • 2 C-ring support backing plates
  • 2 Connector cover-plates (installed on speakers)
  • Four 26" Support rails
  • 2 Clear plastic paint shields
  • Four 1/2" Phillips-head screws
  • 2 Cable strain-relief clips
  • 2 Cardboard cutout-templates
  • Owner's manual

Features & Specs Line Circle

DRIVE COMPLEMENT
4-1/2" injection molded graphite cone woofer with butyl rubber surround with 1/2" polycarbonate tweeter
POWER HANDLING
handle up to 30 watts continuous program power
OHM RATING
70V taps at .5, 1, 2, 4 and 9 watts, 100V taps at 1, 2, 4 and 9 watts
DIAMETER
6-5/8" cutout diameter
MOUNTING DEPTH
4-1/8" mounting depth
DRIVE COMPLEMENT
4-1/2" injection molded graphite cone woofer with butyl rubber surround with 1/2" polycarbonate tweeter
POWER HANDLING
handle up to 30 watts continuous program power
OHM RATING
70V taps at .5, 1, 2, 4 and 9 watts, 100V taps at 1, 2, 4 and 9 watts
DIAMETER
6-5/8" cutout diameter
MOUNTING DEPTH
4-1/8" mounting depth

Expert Insight

Line Circle

Its low profile and high output makes it a easy choice for background music and announcements in your place of buisness.
