Product Description

Line Circle
Sonus Faber Palladio PC-562 P is a Two-way point In-ceiling system which offers discreet and effective solution for any listening environment.

Features & Specs Line Circle

DRIVERS
TWEETER - DADTM DRIVER: 29 mm / 1.1 in
MIDWOOFER - 165 mm / 6.5 in
FREQUENCY RESPONSE
50 – 25,000 Hz
SENSITIVITY (2.83 Vrms @ 1m)
90 dBspl
NOMINAL IMPEDANCE
4 Ω
SUGGESTED AMPLIFIER POWER OUTPUT
40 – 200W without clipping
DIMENSIONS & WEIGHT
FRAME OUTER: Ø 265.2 mm / 10.4 in
CUT OUT: Ø 244 mm / 9.6 in
DEPTH BEHIND SURFACE: 170 mm / 6.70 in
PROTRUSION: 10 mm / 0.40 in
NET WEIGHT: 3.2 Kg / 7 lb
DRIVERS
TWEETER - DADTM DRIVER: 29 mm / 1.1 in
MIDWOOFER - 165 mm / 6.5 in
FREQUENCY RESPONSE
50 – 25,000 Hz
SENSITIVITY (2.83 Vrms @ 1m)
90 dBspl
NOMINAL IMPEDANCE
4 Ω
SUGGESTED AMPLIFIER POWER OUTPUT
40 – 200W without clipping
DIMENSIONS & WEIGHT
FRAME OUTER: Ø 265.2 mm / 10.4 in
CUT OUT: Ø 244 mm / 9.6 in
DEPTH BEHIND SURFACE: 170 mm / 6.70 in
PROTRUSION: 10 mm / 0.40 in
NET WEIGHT: 3.2 Kg / 7 lb
Expert Insights Coming Soon
Line Circle

Details

Line Circle

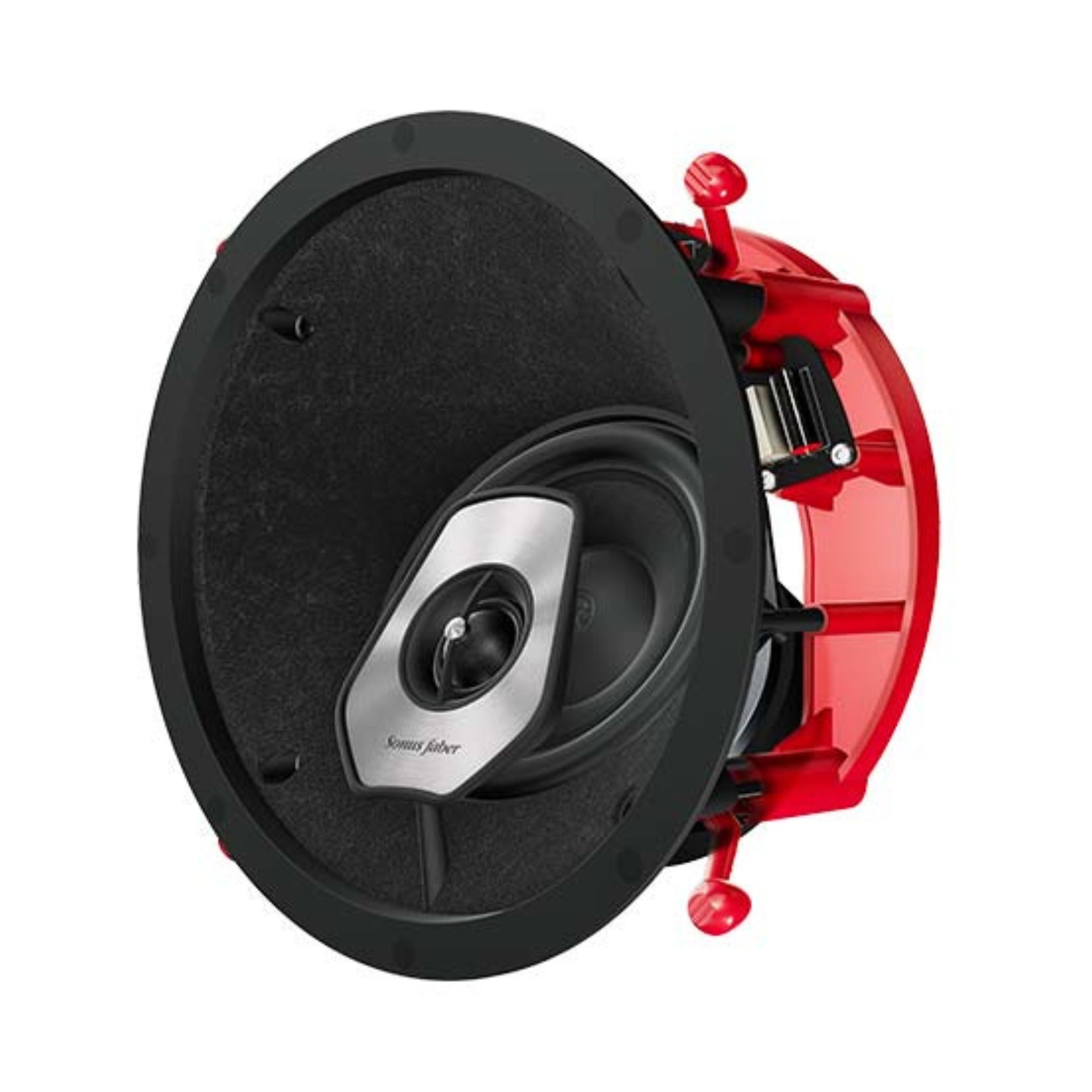

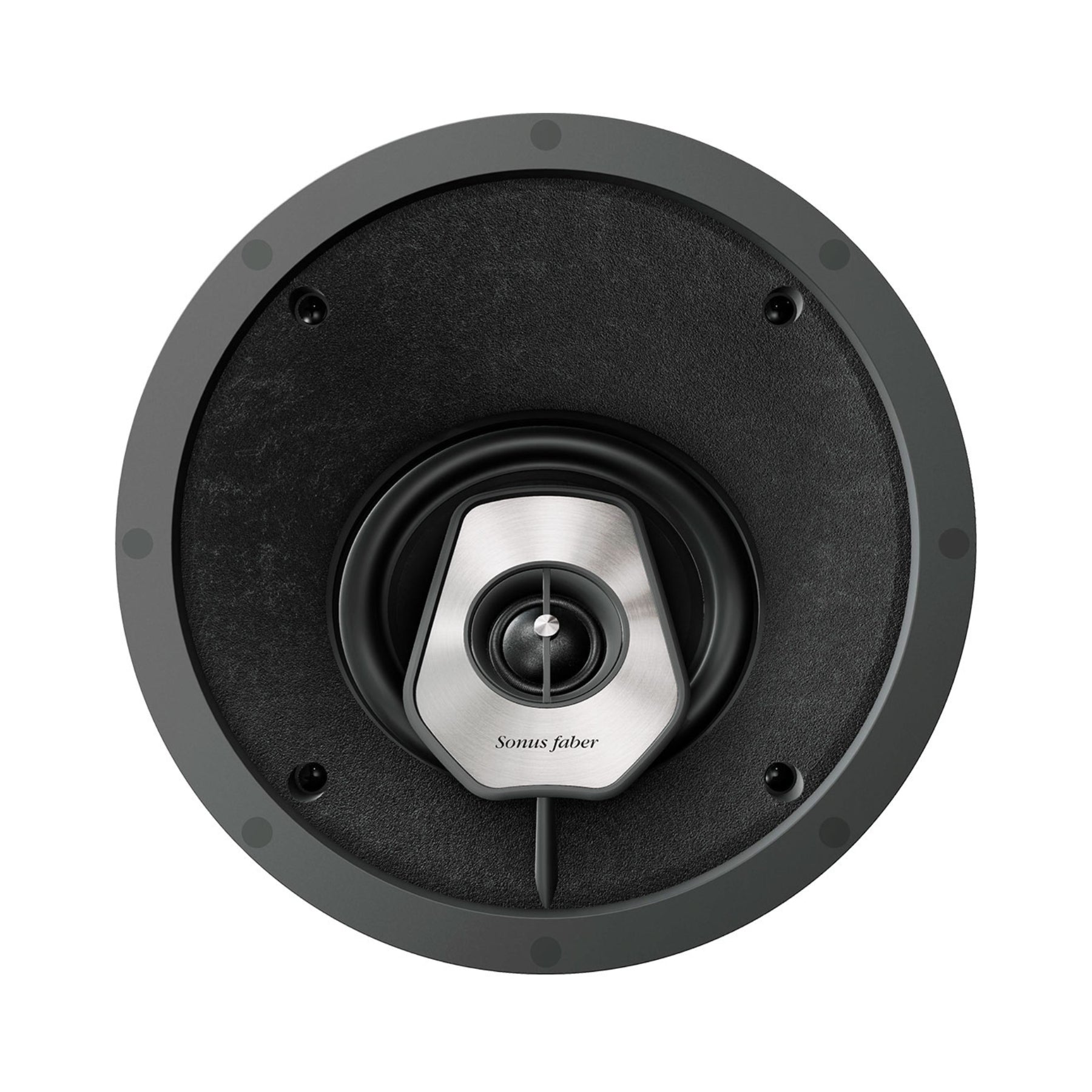

PC-562 P: Palladio Custom installation Point In-ceiling speaker

  • 2 way Point In-ceiling loudspeaker system
  • Open design
  • DAD (Damped Apex Dome) silk dome tweeter
  • Paracross Topology circuitry

Palladio is a full line of Custom installation speakers in-wall and in-ceiling that inherits design and technical solutions from the entry level collection of Sonus faber, the Sonetto collection. Discreet and effective solution for any listening environment.

The Palladio collection was developed as a solution to the lack of high-quality craftsmanship and warmth of sound in modern architectural speakers, it works to expand the spaces of the listening experience, beyond the boundaries of traditional listening rooms. Palladio custom installation speakers guarantees a total sound immersion with versatile models, also aesthetically pleasing in design.

FAMILY FEELING
The PC-562 P directly refers to the Sonetto Collection for the choice of materials, the electroacoustic project and design. The satin aluminum trim that frame the tweeter recalls the aesthetic of the “Voice of Sonus faber”.

SOUND POINTING
Whenever front speakers cannot be placed on walls, this model is made to be mounted in the ceiling. By positioning drivers to be angled to the surface, the sound emission aims to the direction of the listening position.

MAGNETIC GRILLES

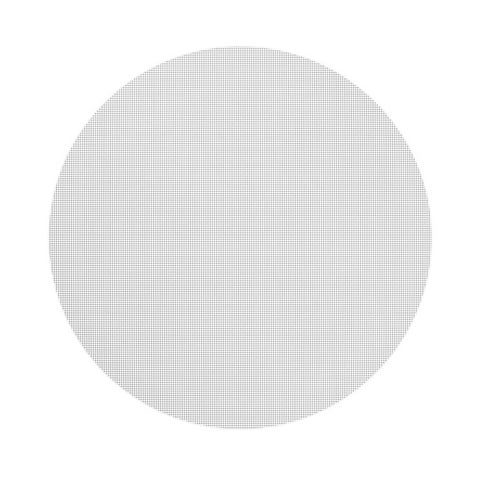

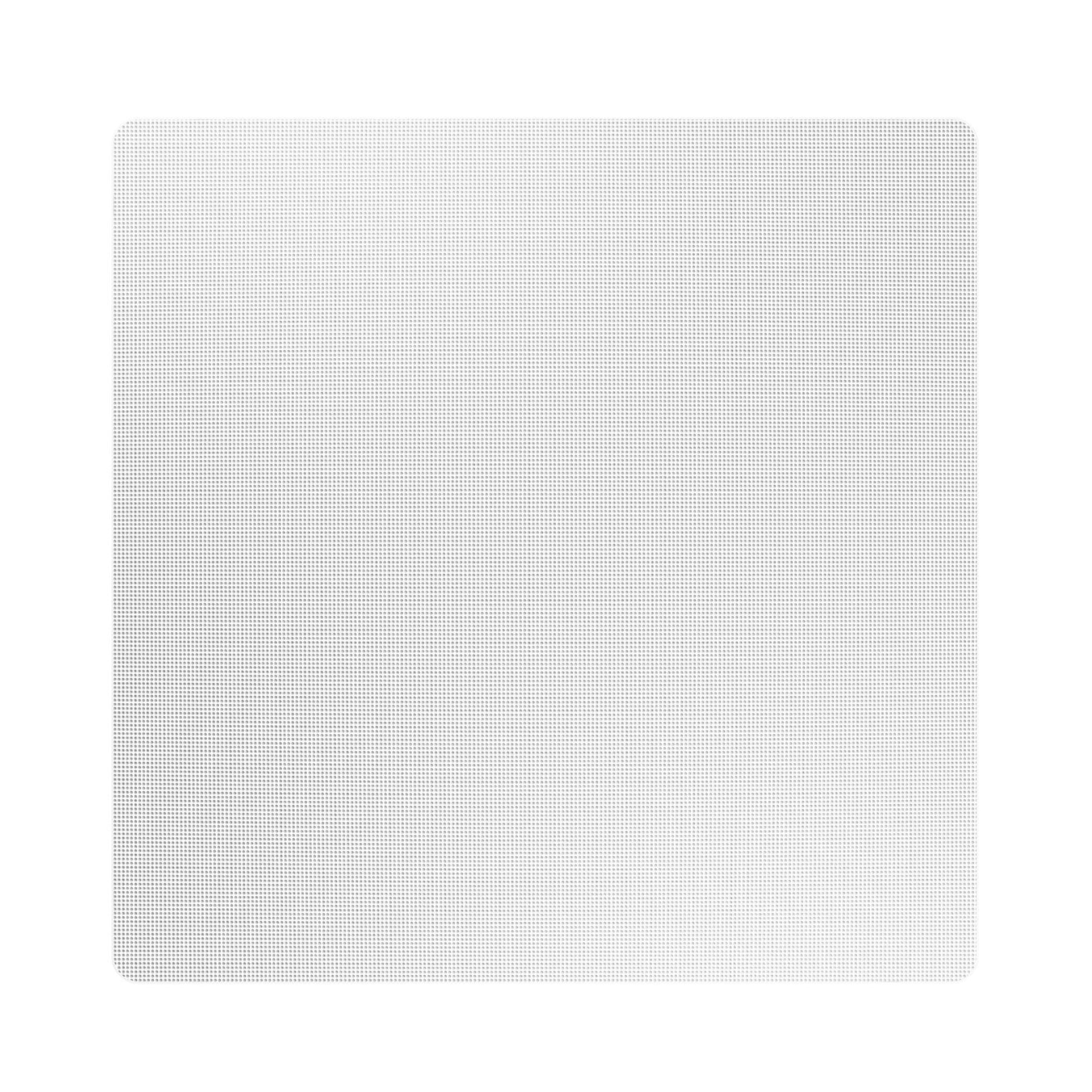

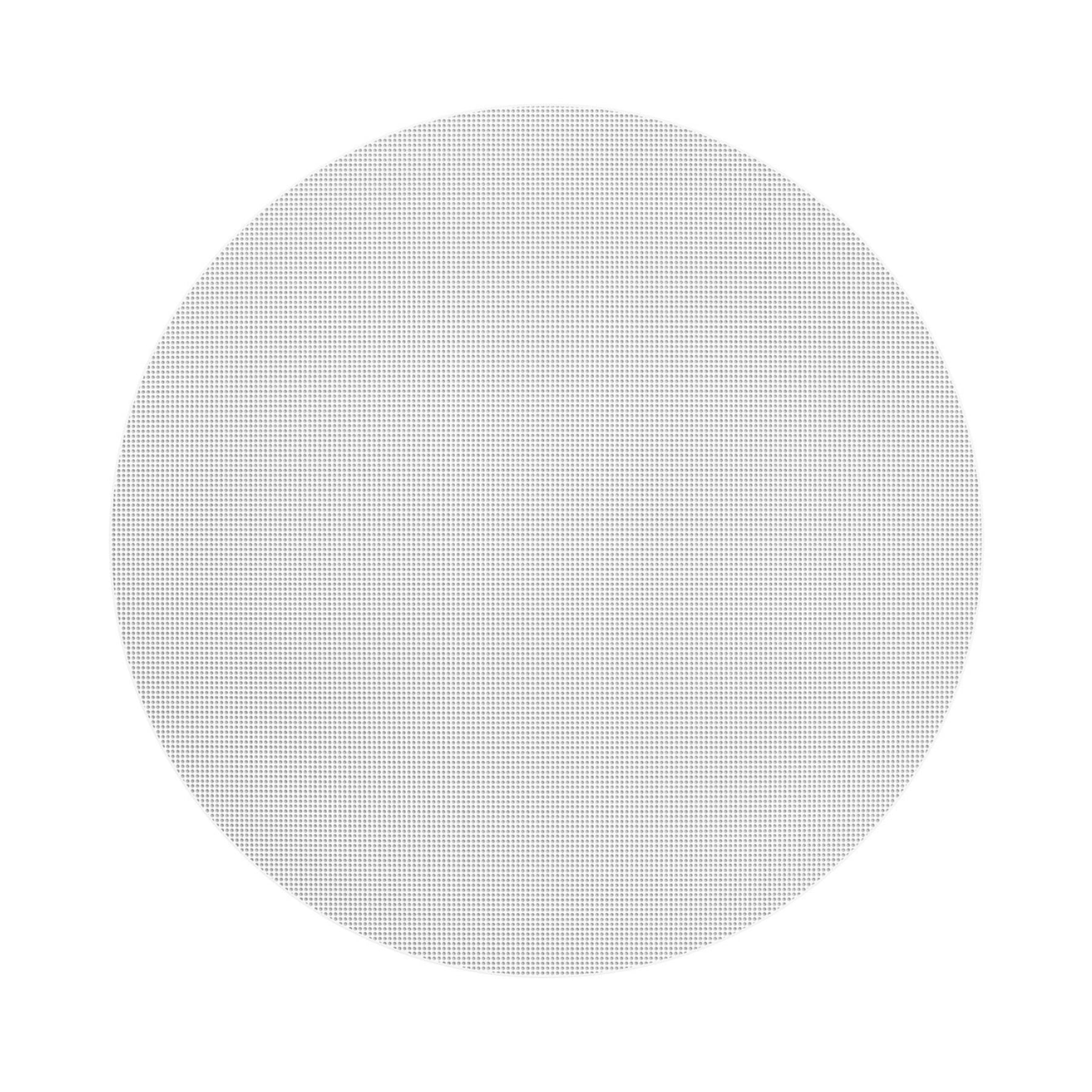

The PC-562 P is equipped with a magnetic edgeless round metal grille, ready to be painted. The square metal grille is optionally available.

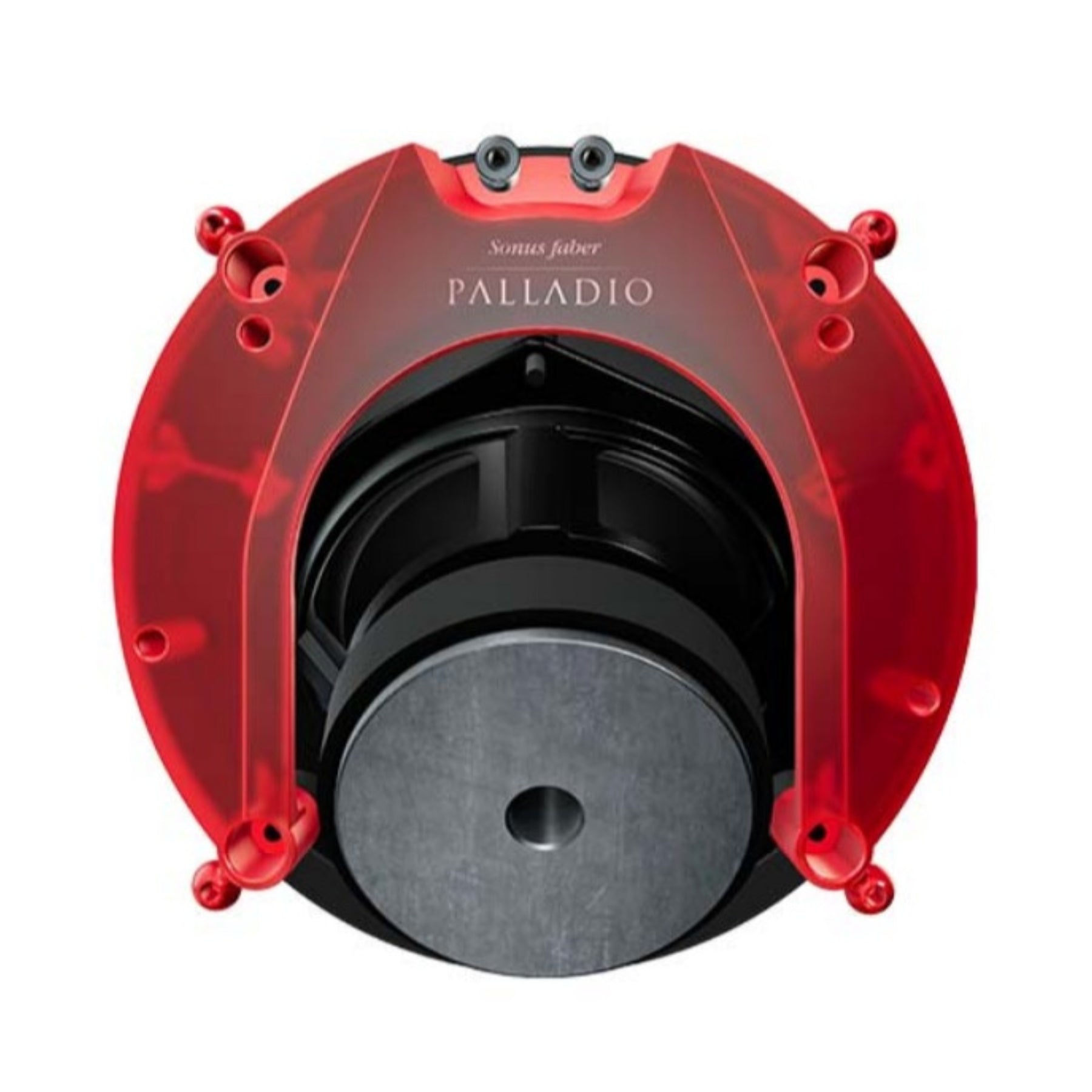

MID-WOOFER
The custom diaphragm is made in natural fiber and cellulose pulp, according to the most natural sound.

PARACROSS TOPOLOGY
The anti-resonant design of the x-over network features the Paracross Topology circuitry, to guarantee a better definition and purity of sound.

THE VOICE OF SONUS FABER
It's timbre of Sonus Faber's loudspeakers systems, especially in the mid-high frequencies section: a warm and fascinating sound obtained by means of design solution that identify the DNA of the brand. As for their line of passive loudspeakers, the 29 mm silk dome tweeters are characterized by DAD (Damped Apex Dome) technology and mid-ranges and mid-woofers are equipped with custom diaphragms made in natural fiber and cellulose pulp, a special Sonus faber receipt. The crossover network or the entire line is designed for better definition and purity of sound featuring the Paracross Topology circuitry.

LEVEL 5 AND SONETTO: HARMONIC INTEGRATION
The characterization of Level 5 front panels is the same of the Sonetto collection. The satin aluminum trims that frame both tweeter and mid-woofer, create the “Voice of Sonus faber” aesthetic. The string pattern explicitly references the Sonetto bookshelves stand design, where the motif ideally referred to the use of the elastic strings of the first Guarneri stands (1993).

EASY TO INSTALL AND CUSTOMIZE
All Palladio series models are equipped with a magnetic, edgeless metal grille, designed to make each model as discreet as possible. All models grilles are ready to be painted and all in-ceilings models include an additional square grille, to further increase the freedom of listener’s choice. Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard.
