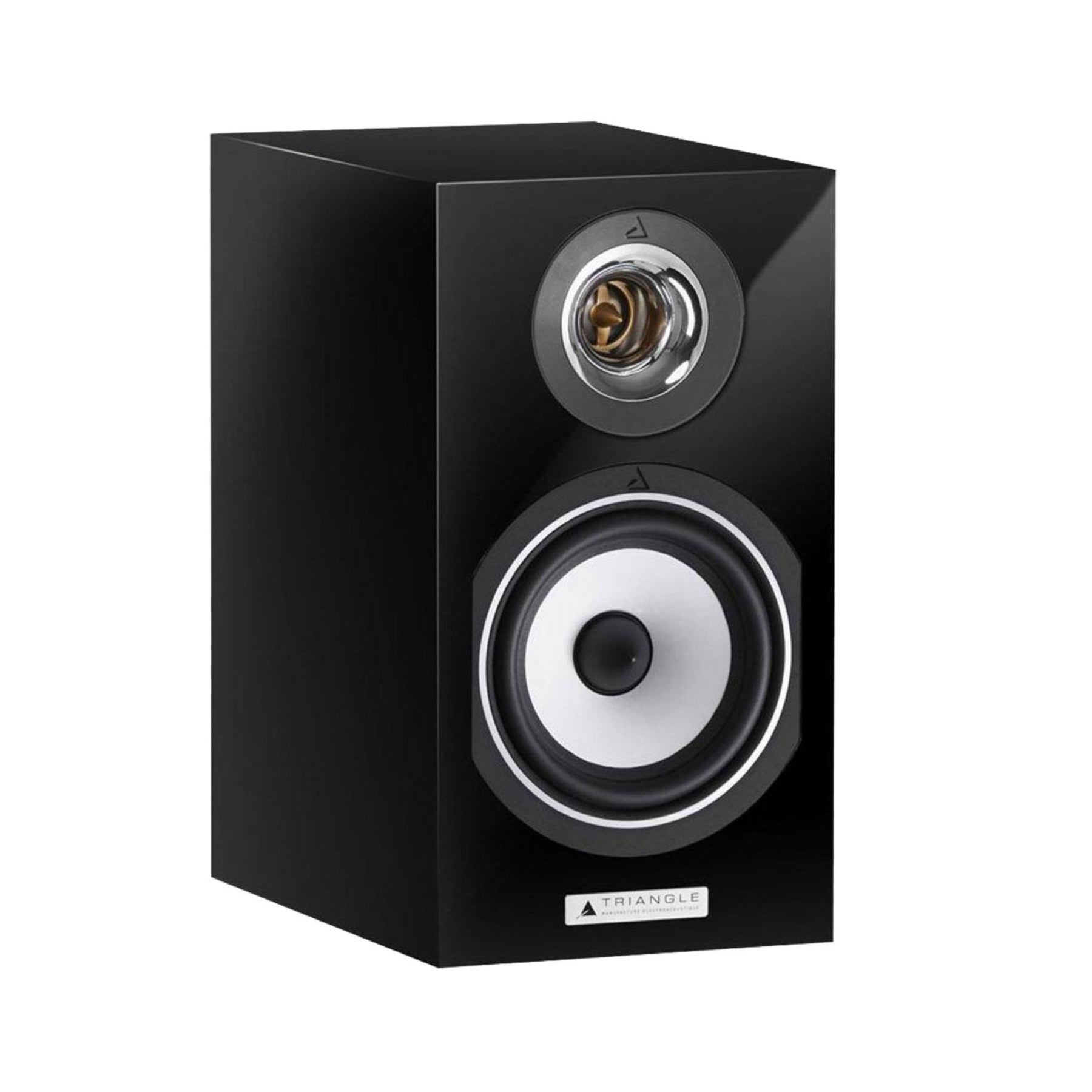

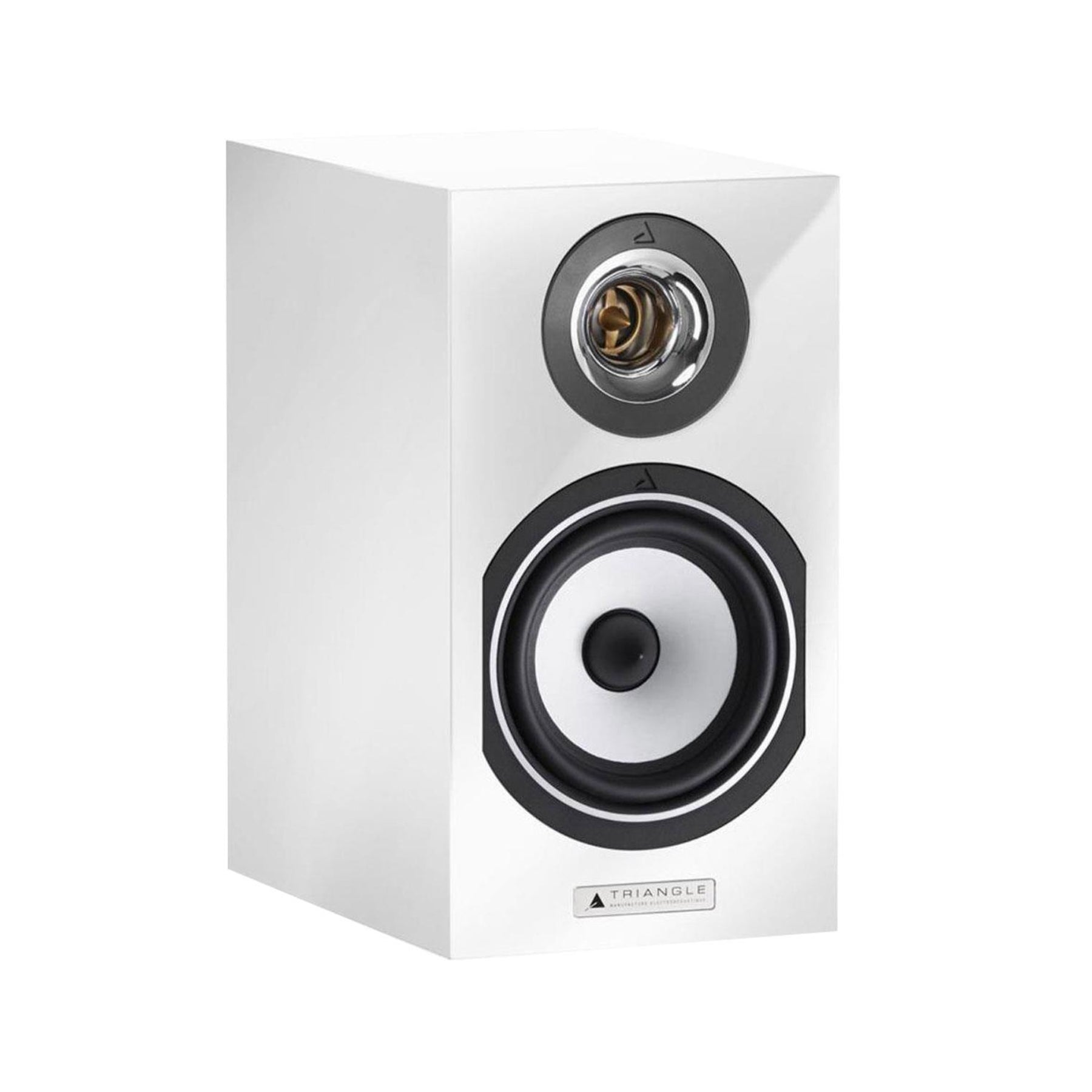

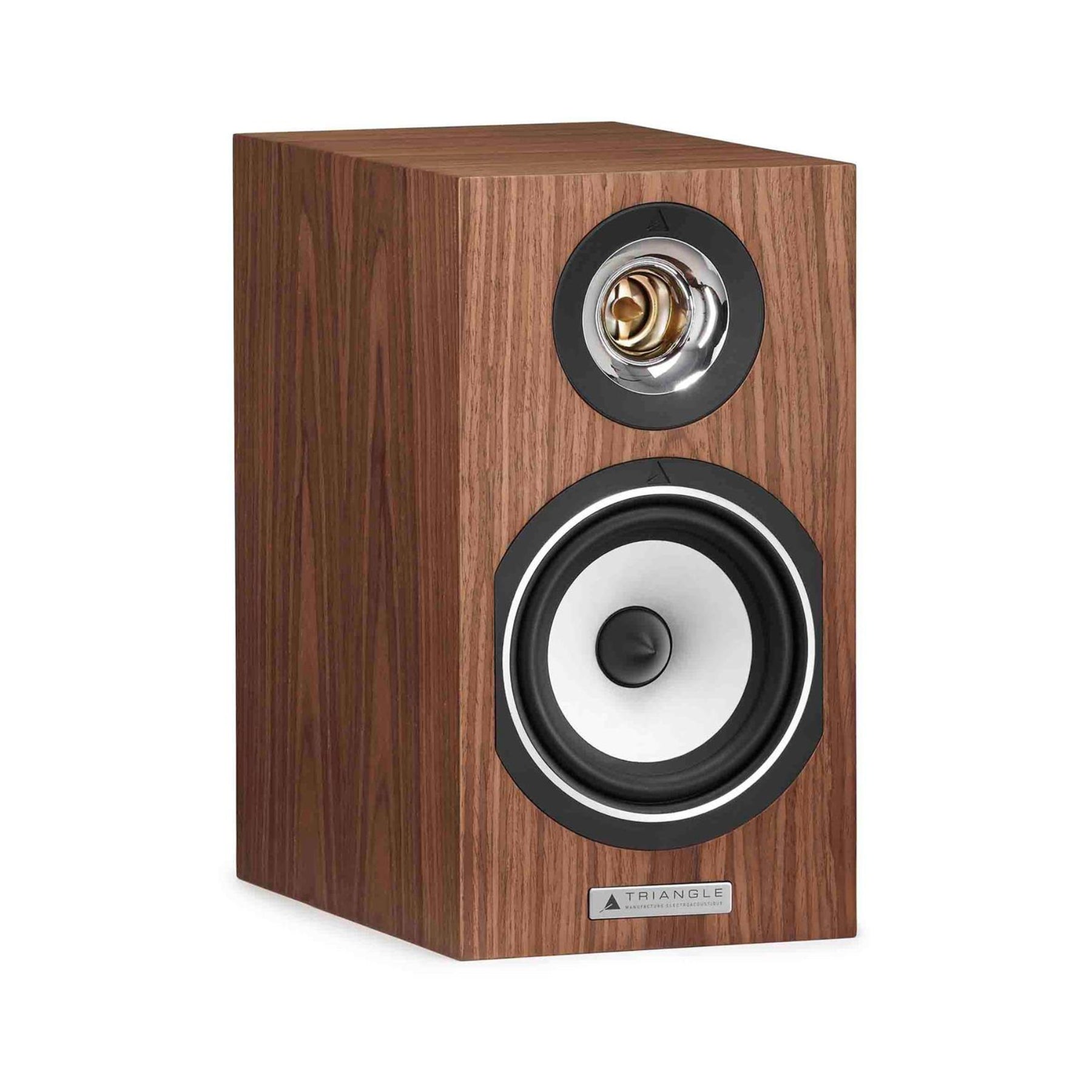

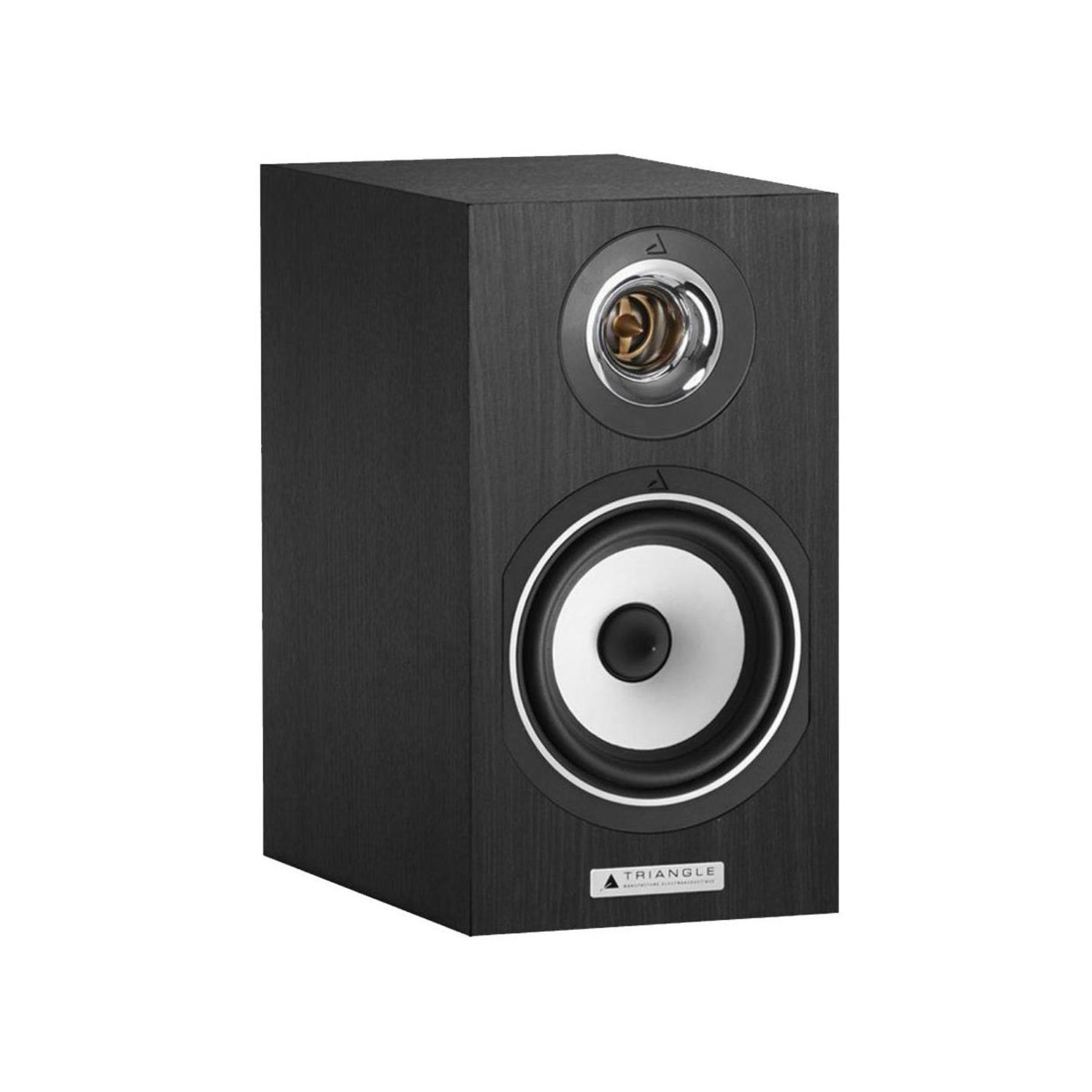

The Titus Ez bookshelf speaker earns its reputation as one the best ‘ambassadors’ of the Triangle sound. This 30cm tall and 17cm wide compact speaker is an excellent introduction to audiophile sound and includes TRIANGLE’s key technologies.
Easily blending to its surroundings, and easy on the eye, this discreet and elegant speaker masterfully fills a room with high quality sound. The speaker offers outstanding musical intensity and a powerful bass for a product of its size.
The Titus Ez uses the Esprit Ez horn loaded Tweeter and one 13cm (5.25 inch) mid-woofer with the 100% natural cellulose diaphragm. The low frequencies are extended with a rear located port. The Titus Ez surprises from the very first listening with its details and huge sound stage.
The performance of the Titus Ez will entice music lovers looking for a very compact speaker, offering liveliness and detail on each with a wide range of music. It is recommended for rooms of between 8m2 to 20m2.
A real TRIANGLE trademark of technology and performance, the TZ2510, is the latest incarnation of a titanium dome in combination with a compression chamber. This technology provides high efficiency with low distortion and excellent directivity.
Studies from the Esprit project helped to develop a new profile of the horn and also improved the phase plug. It reduces the directivity and provides almost the same sound level throughout the room.
We have developed a compact engine with high magnetic power, by using a neodymium ring combined with an absorption chamber. The latter has been designed in view of stopping the propagation of the back sound wave and of reducing distortions. As a result, the high-pitched frequencies offer a more natural listening experience.
The phase plug reduces the directivity of the high frequencies and assures an almost identic sound level throughout the room.
Natural cellulose paper cone
Made out of 100% natural cellulose paper, white membrane is used to avoid any coloration. It is combined with a small pleat peripheral suspension to increase the emissive surface area.
Special attention has been paid to a number of details in the development of the midrange: the profile of the membrane, the shape of the suspension, and the new dust cap, are directly inspired from the MAGELLAN project.
With the new ANTAL Ez, the mid-range driver increases to 165 mm to provide an even more open sound.
Overlay of textile material and fiberglass
The MAGELLAN program showed the importance of how the bass driver influences the behaviour of the medium driver. We control the cone so it efficiently muffles any resonance in the «upper bass» area.
Fiberglass was selected for its excellent affect on the lower midrange / higher bass.An ESPRIT Ez innovation is the overlay of textile material and fiberglass, which improves the rigidity of the membrane.
The speaker is equipped with a new chassis, which quickly dissolves the heat generated by the coil, and with a double ferrite to improve sensitivity.
WOOFER / MIDRANGE
To sustain the TRIANGLE midrange quality, while providing deep bass, we have developed a half-roll suspension made of foam and treated rubber. It provides a dynamic performance due to the low inertia combined with the cellulose pulp cone. The profile of the cone was also redesigned and now provides an extended frequency response.
Thanks to the new suspension, the bookshelf speakers in the ESPRIT Ez range provide a generous bass, all the while remaining dynamic.
CROSSOVER & CABLES
All components used in the crossover have been selected due to their quality: copper coils with a diameter of 1mm and met capacitors. The signal is transferred by a TRIANGLE OFC cable, which assures resistance and quality over time.

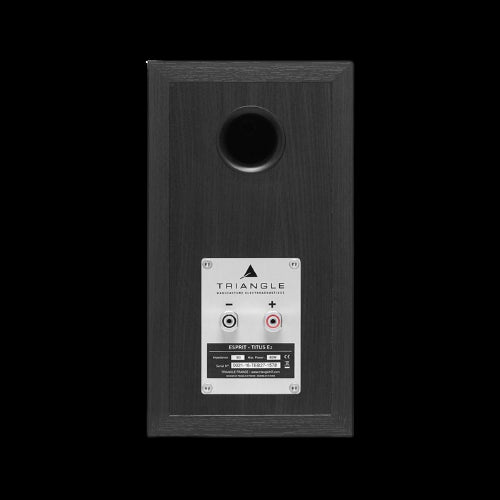

BRUSHED ALUMINUM TERMINAL
Specially designed for ESPRIT Ez, the terminal is created in brushed aluminium, providing ease of use and extraordinary visual quality. The material prevents vibrations and seals the cabinet. Each terminal is equipped with high quality cooper binding posts with a self-locking system for banana plugs.
They can also accommodate a number of other cable choices.
