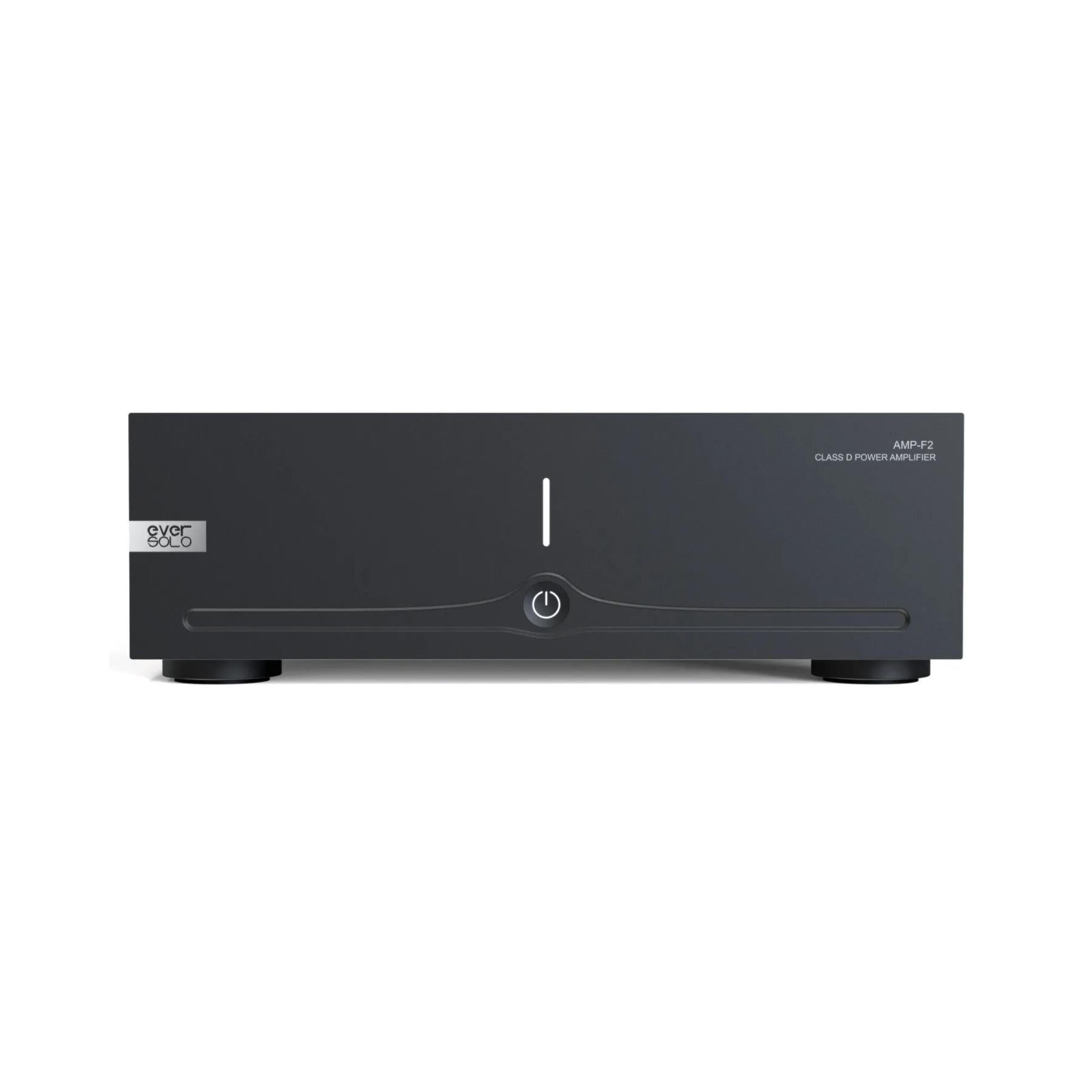

Eversolo AMP-F2 Audio Power Amplifier
The Eversolo AMP-F2 is a compact, high-current 2-channel Class D power amplifier built to deliver serious control and clean headroom in modern hi-fi systems. With up to 250W RMS per channel at 4Ω (or 145W RMS per channel at 8Ω), it’s engineered to drive demanding speakers confidently while staying composed at higher listening levels. For systems that need even more output, Bridge Mode unlocks 450W RMS at 2Ω, making the AMP-F2 a flexible choice for stereo setups, dual-mono configurations, or powering a single high-power channel.
Connectivity is equally practical: choose RCA for straightforward integration or balanced XLR for cleaner long-run cabling and lower noise in complex racks. A >110 dB SNR (A-weighted) helps preserve detail and dynamics, while low 0.09Ω output impedance (1kHz) and a damping factor of 100 support tight bass, stable imaging, and controlled speaker movement. Finishing touches like custom beryllium copper binding posts by Starke Sound round out an amplifier that’s designed to look sharp, install easily, and sound authoritative.
What It's Good At:
- Delivering high power in a compact chassis (up to 250W RMS/ch @ 4Ω)
- Driving demanding speakers with strong current capability (16.5A per channel)
- Running ultra-clean and quiet with >110 dB SNR (A-weighted)
- Flexible system matching with both RCA and balanced XLR inputs
- Configuring for higher-output systems using Bridge Mode (450W RMS @ 2Ω)
- Maintaining tight bass control with low output impedance and damping factor 100
Eversolo AMP-F2 Full Specifications:
-
Model: Eversolo AMP-F2
-
Type: Audio Power Amplifier
-
Channels: 2 Channels
-
Amplifier Type: Class D
-
Output Power:
-
250W RMS at 4Ω (1% THD, per channel)
-
145W RMS at 8Ω (1% THD, per channel)
-
Bridge Mode Output Power: 450W RMS at 2Ω (Bridge Mode)
-
Frequency Response: 10Hz–20kHz (-1.2dB)
-
Maximum Output Current: 16.5A (per channel) / 33A (Bridge)
-
Signal-to-Noise Ratio (SNR): >110dB, A-weighted, 4Ω 260W
-
Input Terminals: 2-Channel RCA Input; 2-Channel XLR Input
-
Input Impedance: RCA 10.5K ohm / XLR 21.7K ohm
-
Output Terminals: 2 pairs beryllium copper binding post, custom made by Starke Sound
-
Output Impedance: 0.09 ohm (1kHz)
-
Damping Coefficient: 100
-
Dimensions (Full size): W 270 mm x D 228 mm x H 90 mm (w/ foot)
-
Weight: 3.65Kg
Eversolo AMP-F2 Q&A:
- How much power does the Eversolo AMP-F2 deliver in stereo mode?
- In stereo, it outputs 250W RMS per channel at 4Ω or 145W RMS per channel at 8Ω (both rated at 1% THD).
- Does the AMP-F2 support Bridge Mode, and what does it output when bridged?
- Yes. In Bridge Mode, the AMP-F2 can deliver 450W RMS at 2Ω, ideal for higher-output single-channel use.
- What inputs does the AMP-F2 have—RCA, XLR, or both?
- It includes both: 2-channel RCA and 2-channel XLR inputs for easy integration with a wide range of preamps and sources.
- What is the amplifier class, and why does it matter?
- The AMP-F2 is a Class D amplifier, designed for strong power delivery in a compact form factor.
- Is this amplifier suitable for hard-to-drive speakers?
- It’s built for confident speaker control, with 16.5A maximum output current per channel (and 33A in Bridge Mode).
- How quiet is the AMP-F2 for critical listening?
- It’s rated at >110 dB SNR (A-weighted), supporting low noise and clean detail in quiet passages.
- What size is the AMP-F2, and will it fit in a compact setup?
- It measures 270 mm (W) x 228 mm (D) x 90 mm (H) (with feet), making it easy to place on shelves or in racks.
- What kind of speaker terminals does it use?
- The AMP-F2 uses two pairs of custom beryllium copper binding posts made by Starke Sound for solid, reliable speaker connections.
Eversolo AMP-F2 Downloads:
Eversolo AMP-F2 User Manual
