Product Description

Line Circle

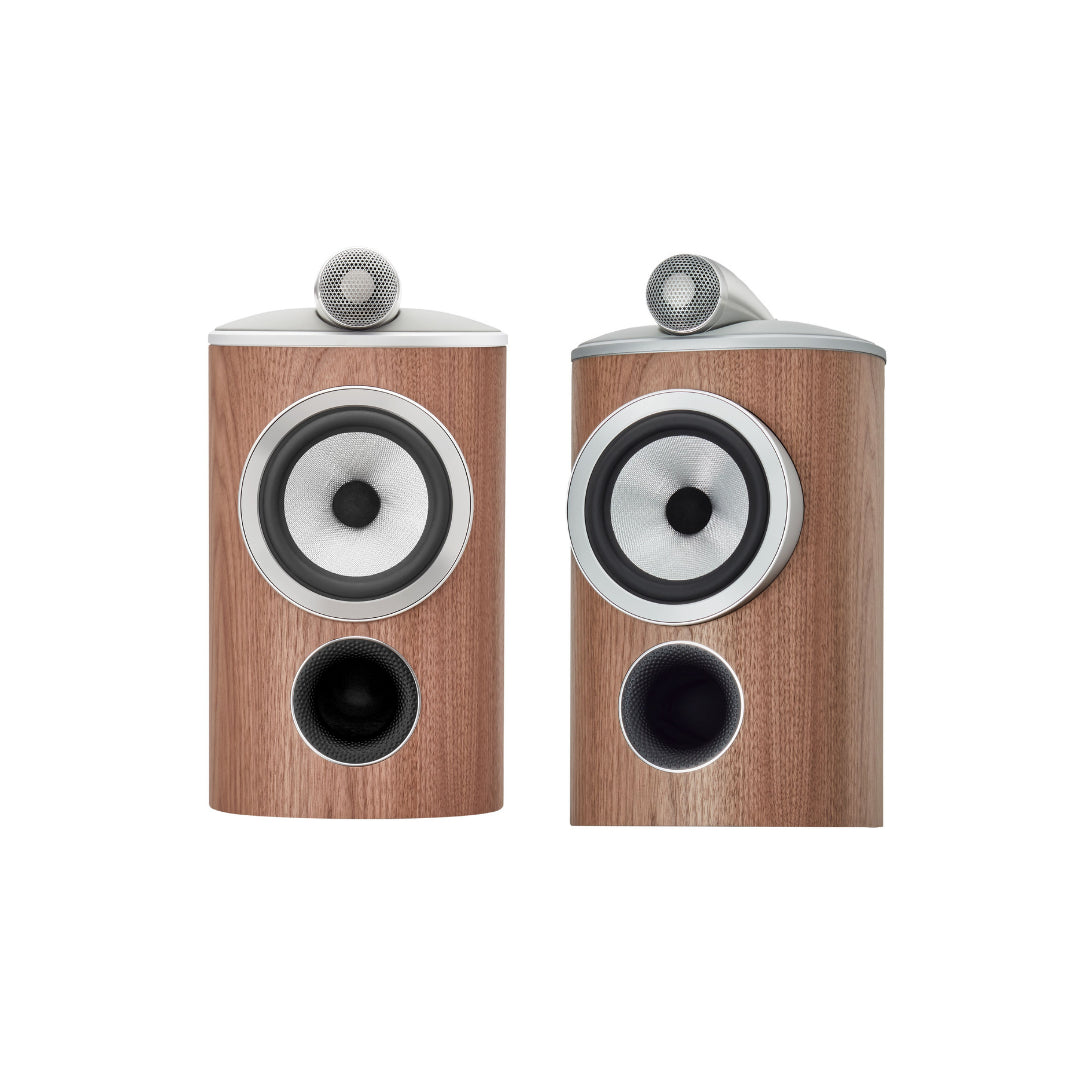

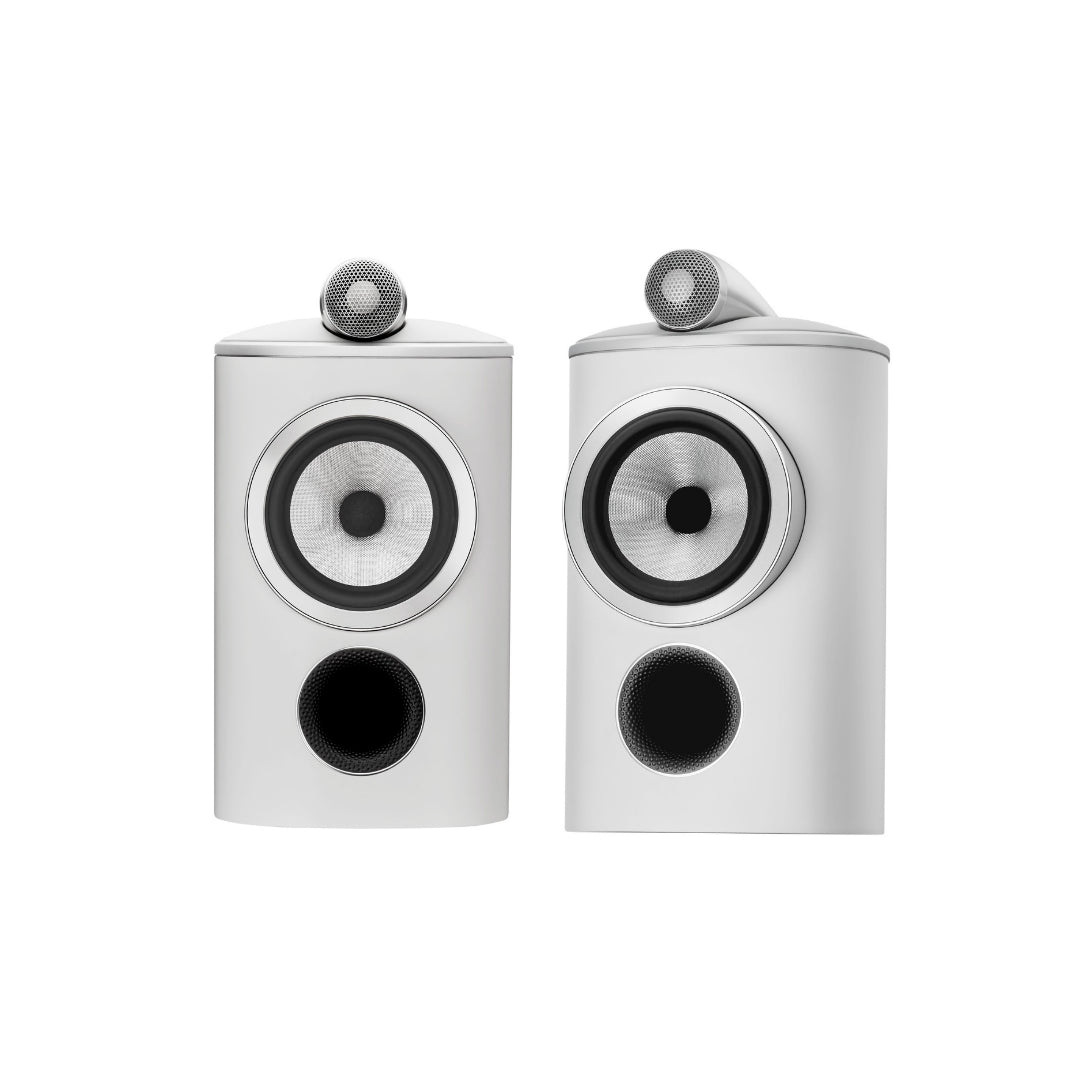

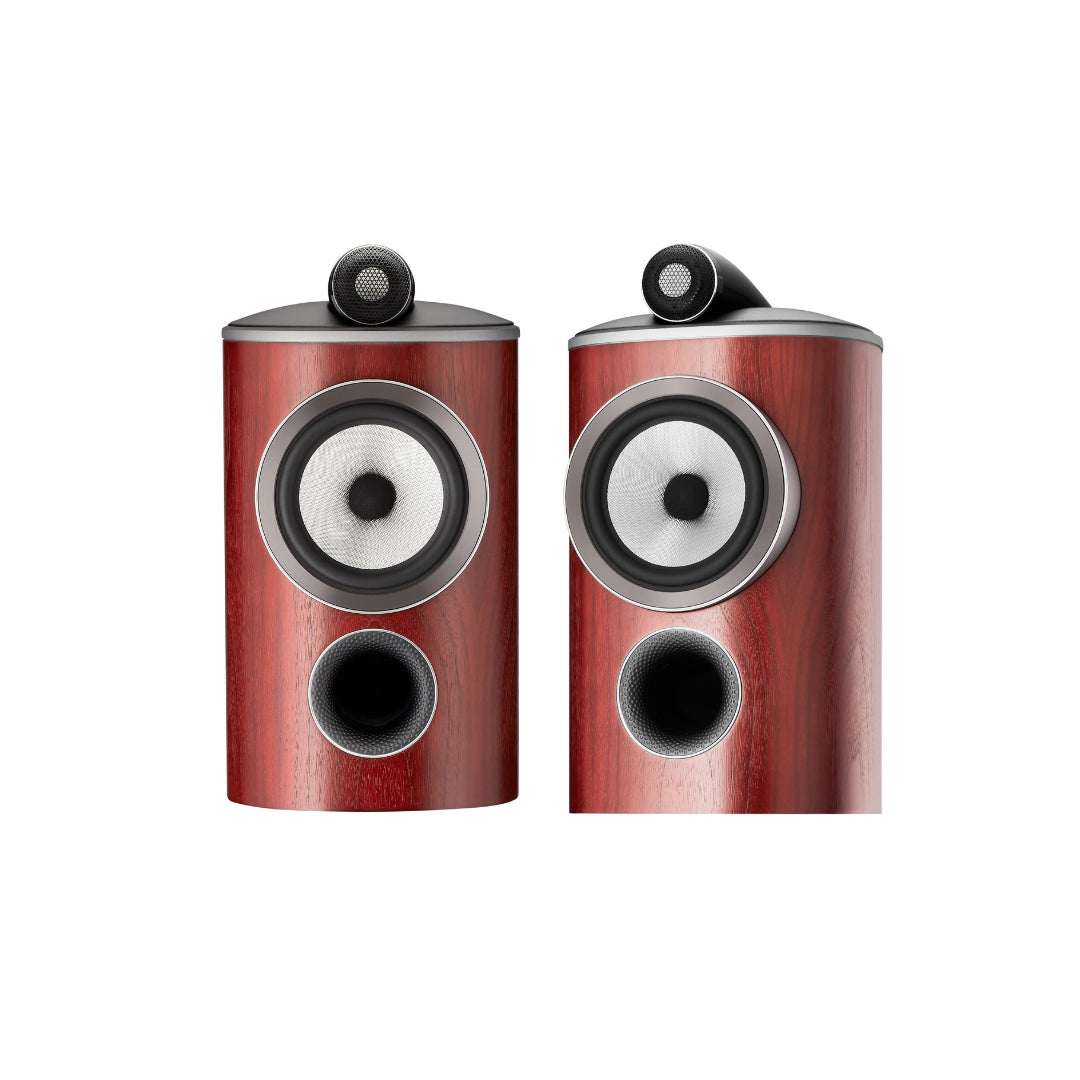

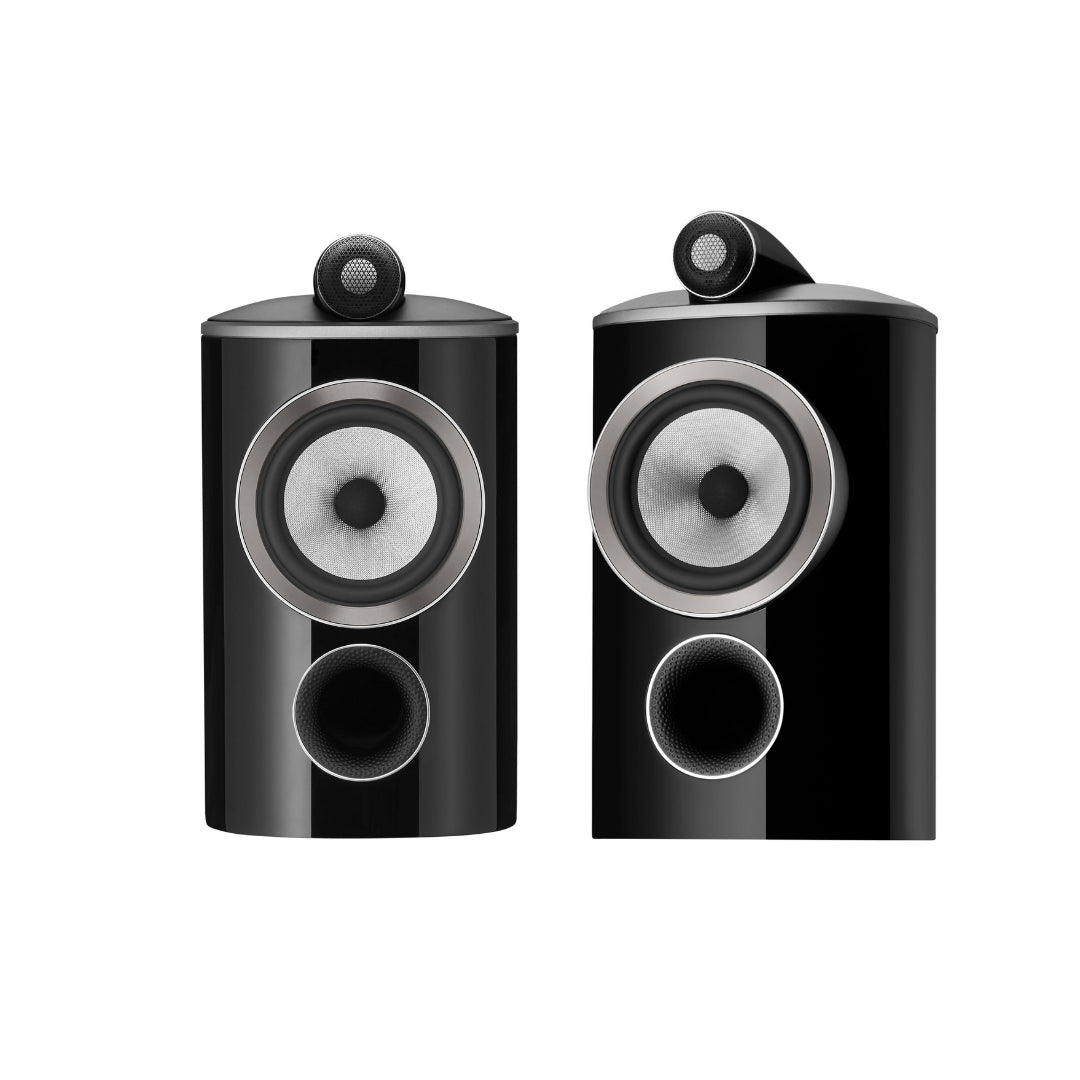

The 805 D4 standmount loudspeaker is the most compact model in the 800 Series Diamond range, but it’s still packed with advanced technologies, including that all-important Diamond dome tweeter and Solid Body Tweeter-on-Top. It’s proof positive that small can still be beautiful.
Get the Details

Features & Specs Line Circle

FREQUENCY RESPONSE
42Hz to 28kHz (+/-3dB from reference axis)
SENSITIVITY
88dB (on axis at 2.83Vrms at 1m)
NOMINAL IMPEDANCE
8Ω (minimum 4.6Ω)
DIMENSIONS
9.45 x 17.32 x 14.69 inches
WEIGHT
34.28 lbs each
RECOMMENDED AMPLIFIER POWER
50W – 120W into 8Ω on unclipped programme
FREQUENCY RESPONSE
42Hz to 28kHz (+/-3dB from reference axis)
SENSITIVITY
88dB (on axis at 2.83Vrms at 1m)
NOMINAL IMPEDANCE
8Ω (minimum 4.6Ω)
DIMENSIONS
9.45 x 17.32 x 14.69 inches
WEIGHT
34.28 lbs each
RECOMMENDED AMPLIFIER POWER
50W – 120W into 8Ω on unclipped programme

Expert Insight

Line Circle

The Bowers & Wilkins 805 D4 standmount speakers, despite being the most compact in the 800 Series Diamond line, boast exceptional audio quality through advanced technologies like the Diamond dome tweeter for unmatched detail and a Continumm cone for natural sound. These speakers also feature a reinforced cabinet design to minimize resonance and improve sound dispersion, making them ideal for audiophiles seeking a superior listening experience.

Expert Img
Sarah T
Brand Manager

Details

Line Circle

Bowers & Wilkins 805 D4 Standmount Loudspeakers: Experience Excellence, Evolved

The Bowers & Wilkins 805 D4 standmount loudspeaker represents the culmination of Bowers & Wilkins' expertise in crafting high-fidelity audio experiences. Each generation of the 800 Series Diamond marks a significant advancement, and the 805 D4 is no exception. Despite being the most compact model in the series, it integrates an array of cutting-edge technologies to deliver exceptional sound quality.

Unmatched Sonic Performance

  • Solid Body Tweeter-on-Top™: This innovation creates an incredibly free and open soundscape, particularly in the high frequencies. The meticulously decoupled housing, milled from a solid block of aluminum, minimizes resonance for pristine audio.
  • Matrix™: This bracing system utilizes interlocking panels to reinforce the cabinet walls internally in all directions. This significantly reduces resonance and fosters a more realistic soundstage.
  • Diamond Dome Tweeter: The exceptional stiffness-to-lightness ratio of diamond makes it the ideal tweeter material. B&W's diamond domes deliver unparalleled acoustic detail, unmatched naturalism, and a spacious sound character.
  • Continuum™ cone: This innovative cone avoids the abrupt performance shifts that can plague conventional drive units. The result is a more open, neutral performance that reproduces voices and instruments with remarkable precision and transparency.

Advanced Engineering for Uncompromised Audio

  • Aluminum Top-Plate: Every 800 Series Diamond speaker boasts a significantly upgraded cabinet design, featuring a completely new aluminum top section for enhanced rigidity. This design also provides a perfect platform for the luxurious black leather or light gray leather cabinet detailing by Connolly.
  • Rear-Mounted Crossover: The 800 Series Diamond line now features rear-mounted crossovers, housed on sturdy aluminum spines. This isolates sensitive capacitors from air pressure variations within the enclosure and functions as a highly effective heatsink for optimal performance during use.
  • Reverse Wrap Cabinet: Instead of a conventional flat-fronted speaker with a curved back, Bowers & Wilkins utilizes a single, continuous curve cabinet design secured by a solid aluminum spine. This minimizes junctions for a more rigid and inert structure. The curved front minimizes baffle diffraction around the drive units, resulting in improved sound dispersion and reduced cabinet reflection.

The Bowers & Wilkins 805 D4 standmount loudspeakers are the embodiment of cutting-edge technology and acoustic mastery. They are a perfect choice for discerning audiophiles seeking an unparalleled listening experience.

Bowers & Wilkins 805 D4 Specifications

Net Weight:

  • 15.55 kg (34.3 lb)

Dimensions:

  • Height: 440mm (17.3 in)
  • Width: 240mm (9.4 in)
  • Depth: 373mm (14.7 in)

Technical Details:

  • Technical Features:

    • Diamond tweeter
    • Solid body Tweeter-on-Top
    • Continuum™ cone bass/mid
    • Matrix™
    • Anti-Resonance plug
    • Flowport
  • Description:

    • 2-way vented-box system
  • Drive Units:

    • 1x ø25mm (1in) Diamond dome high-frequency
    • 1x ø165mm (6.5in) Continuum cone bass midrange
  • Frequency Range:

    • 34Hz to 35kHz
  • Frequency Response:

    • 42Hz to 28kHz (+/-3dB from reference axis)
  • Sensitivity:

    • 88dB (on axis at 2.83Vrms at 1m)
  • Harmonic Distortion:

    • 2nd and 3rd harmonics (90dB, 1m on axis)
      • <1% 90Hz – 20kHz
      • <0.3% 120Hz – 20kHz
  • Nominal Impedance:

    • 8Ω (minimum 4.6Ω)
  • Recommended Amplifier Power:

    • 50W – 120W into 8Ω on unclipped programme
  • Max Recommended Cable Impedance:

    • 0.1Ω
  • Stands (Not Included):

B&W 804 & 805 Manual

B&W 805 D4 Info Sheet

Reviews

Line Circle
Customer Reviews
5.0 Based on 1 Reviews
5 ★
100%
1
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
S
01/13/2023
Steven
United States United States

Great speaker

This speaker had a really solid build adds great looks to any room. The sound these speakers give off are holographic and casts a spacious soundstage. Lots of space between the instruments and being able to locate positions in the recording feel very natural with this speaker. The diamond dome tweeter in the D4 has been improved over the D3 and tames the issues that series had in the past. Highly recommended
