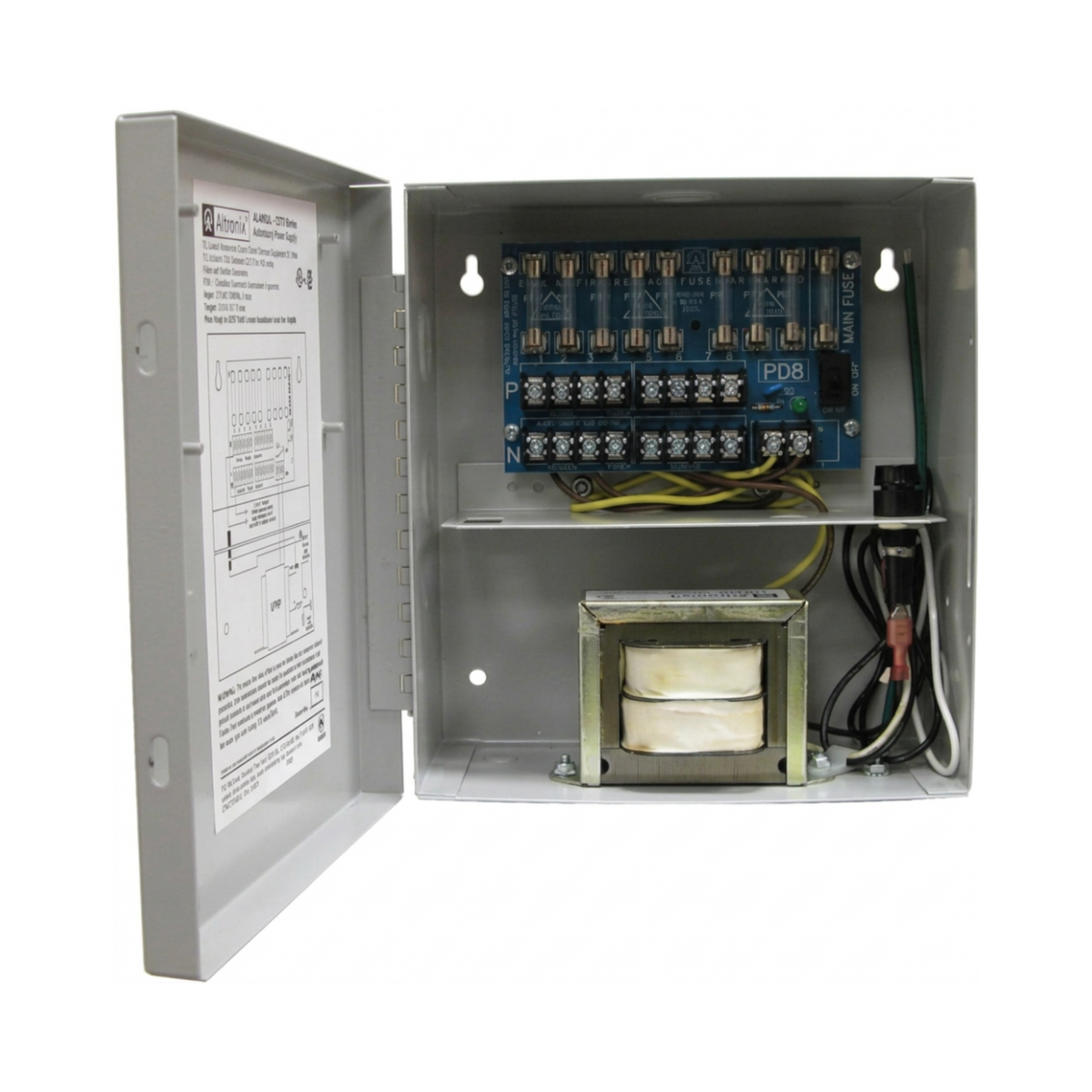

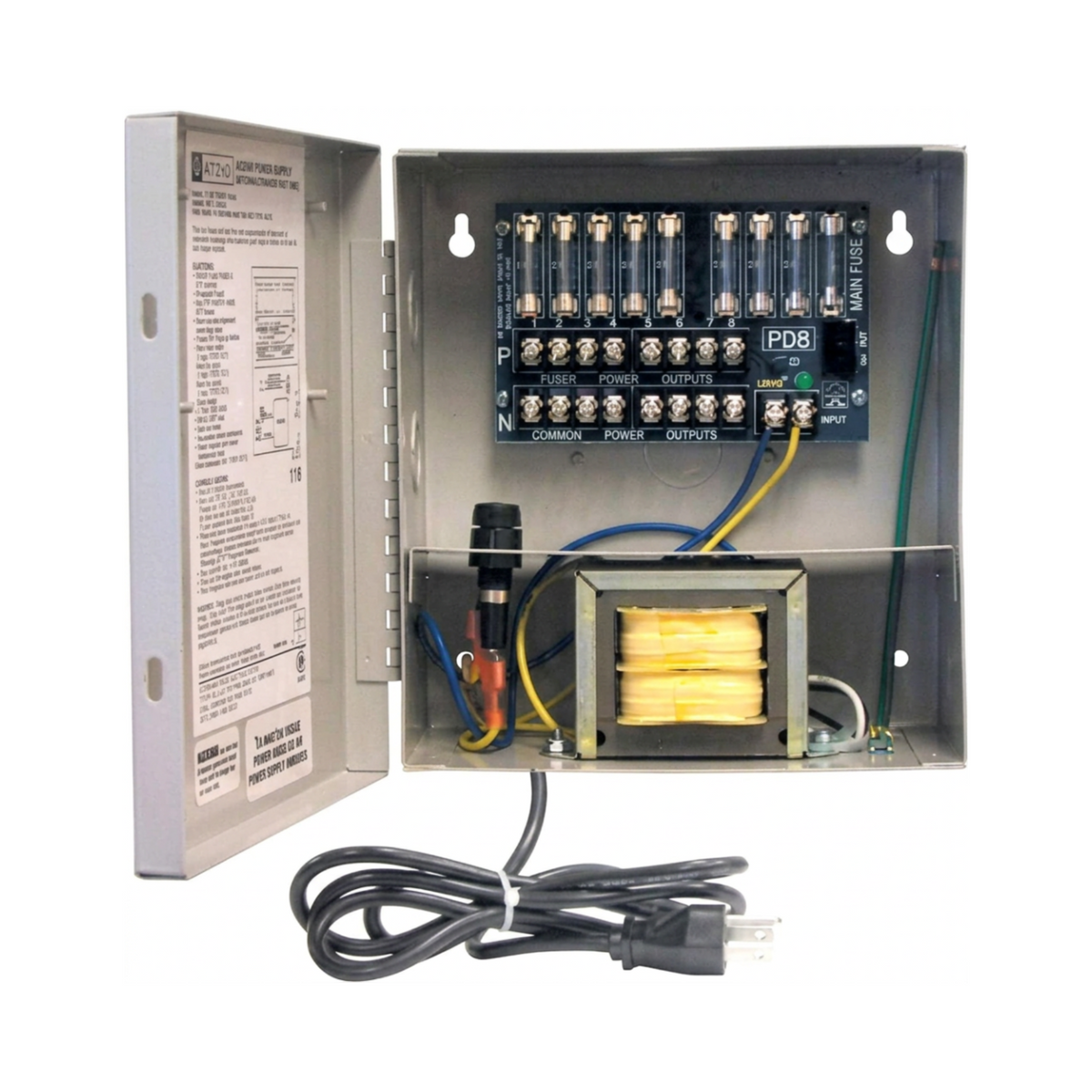

Altronix ALTV248UL CCTV Power Supply, 8 Fused Outputs, 24VAC/28VAC Multi-Voltage - Clearance / Open Box
Altronix ALTV248UL CCTV Power Supply, 8 Fused Outputs, 24VAC/28VAC Multi-Voltage - Clearance / Open Box
$189.00
$215.00
In Stock
Back Order
Out of Stock
Ships within 24 hours
Notify Me When In Stock
We’ll be happy to e-mail you when this item is available. Just fill in your name and e-mail address
Notify Me When In Stock
We’ll be happy to e-mail you when this item is available. Just fill in your name and e-mail address
Product Description
The ALTV248UL provides 24VAC or 28VAC distributed via Eight (8) fuse protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Get the Details
Get the Details
Features & Specs
8 Fuse-Protected Outputs:
Distributes power cleanly across 8 individually protected circuits using standard glass fuses (rated at 3.5A).
Field-Selectable Multi-Voltage:
Easily configure the unit via internal jumpers for either 24VAC @ 3.5A or 28VAC @ 3.0A (85VA total supply current).
115VAC Main Input:
Operates on standard US utility power (115VAC, 50/60Hz, 0.9A input).
Visual LED Diagnostics:
Features an integrated AC power LED indicator on the board for instant status monitoring and troubleshooting.
Heavy-Duty Enclosure:
Housed in a durable gray metal wall-mount enclosure (Model BC100) with convenient 1/2" and 3/4" knockouts for clean conduit piping.
Expert Insights Coming Soon
Details
ALTV248UL Series AC CCTV Power Supplies
Altronix ALTV248UL series CCTV power supplies provide 24VAC or 28VAC distributed via eight (8) fuse or PTC protected outputs for powering CCTV cameras, heaters, and other video accessories.
- Eight (8) fuse or PTC ptotected outputs
- 24VAC or 28VAC outputs
- Surge protection
- AC Power LED
- Power ON/OFF switch (ALTV248UL and ALTV248ULCB)
- Illuminated power disconnect circuit breaker with manual reset for all other models
- Models with factory installed 3-wire linecord are available
- Spare fuses provided (all models with primary and/or secondary fuses)
- UL Listed in the U.S. and Canada
- CE European Conformity
Specifications
- Input: 115VAC, 50/60Hz, 0.9A.
- Output:
- Eight (8) fuse protected outputs.
- 24VAC @ 3.5A (85VA) supply current (0.438A per device, 3.5A max.) or 28VAC @ 3A (85VA) supply current (0.375A per device, 3.5A max.).
- Outputs are rated @ 3.5A.
- Surge suppression.
- Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 43 BTU/Hr.
- System AC input VA requirement: 103.5VA.
- Features
- Secondary fuse rated @ 5A/250V.
- AC power LED.
- Power ON/OFF switch.
- Spare fuses provided. (all models w/primary and/or secondary fuses).
- Dimensions and Weight
- Enclosure:
- Wall mount enclosure for indoor use.
- Dimensions 7.4"W x 8.125"H x 3.55"D (188 mm W x 206.4 mm H x 90.2 mm D).
- Combination knockouts accommodate 1/2" and 3/4" conduits.
- Weights (approximate):
- Product Weight: 6 Lbs. (2.7 kg).
- Shipping Weight: 7 Lbs. (3.2 kg).
- Enclosure:
