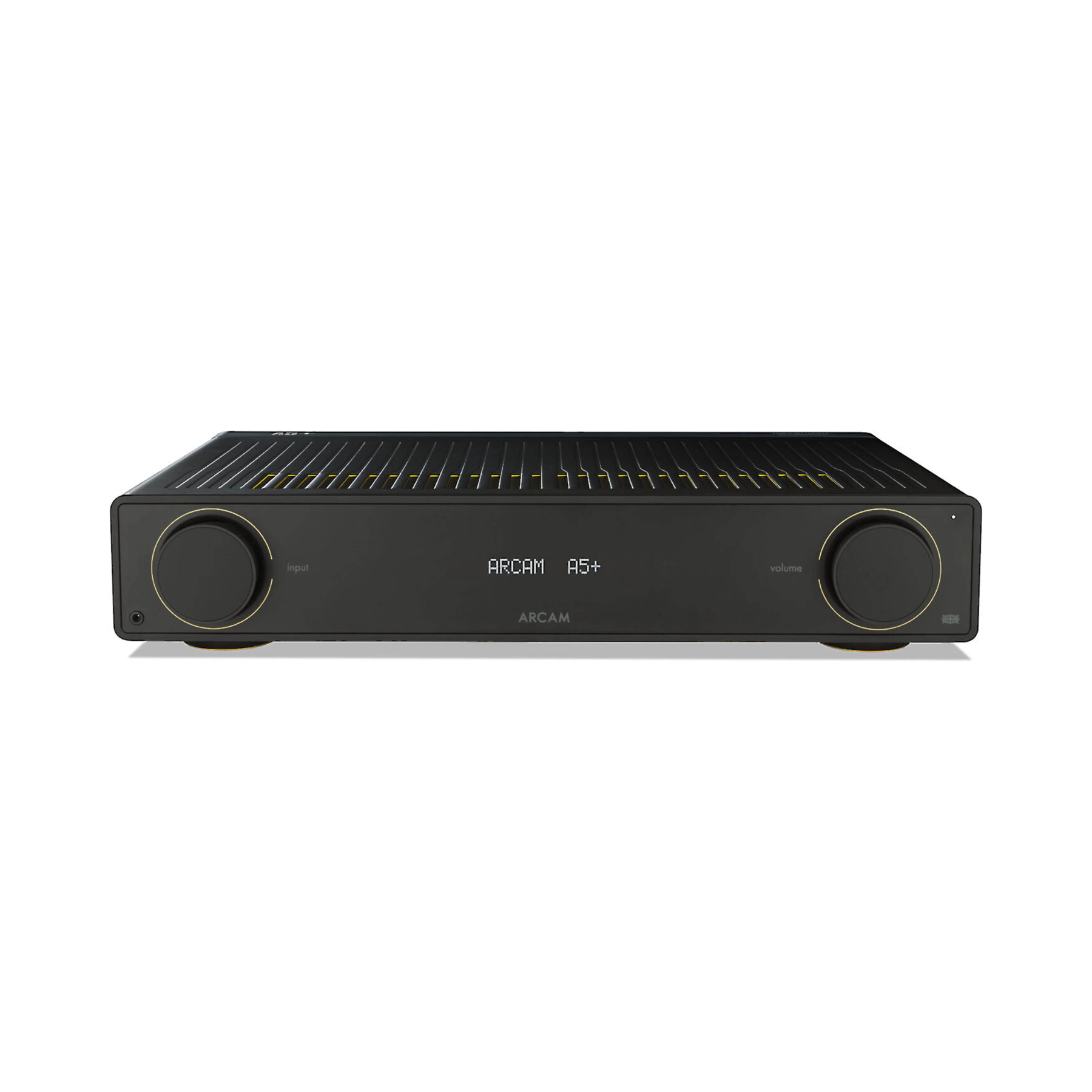

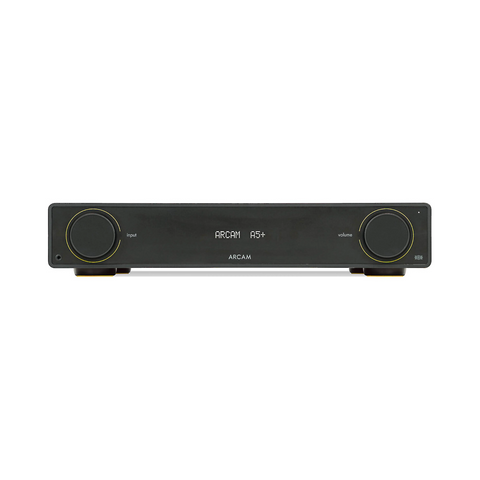

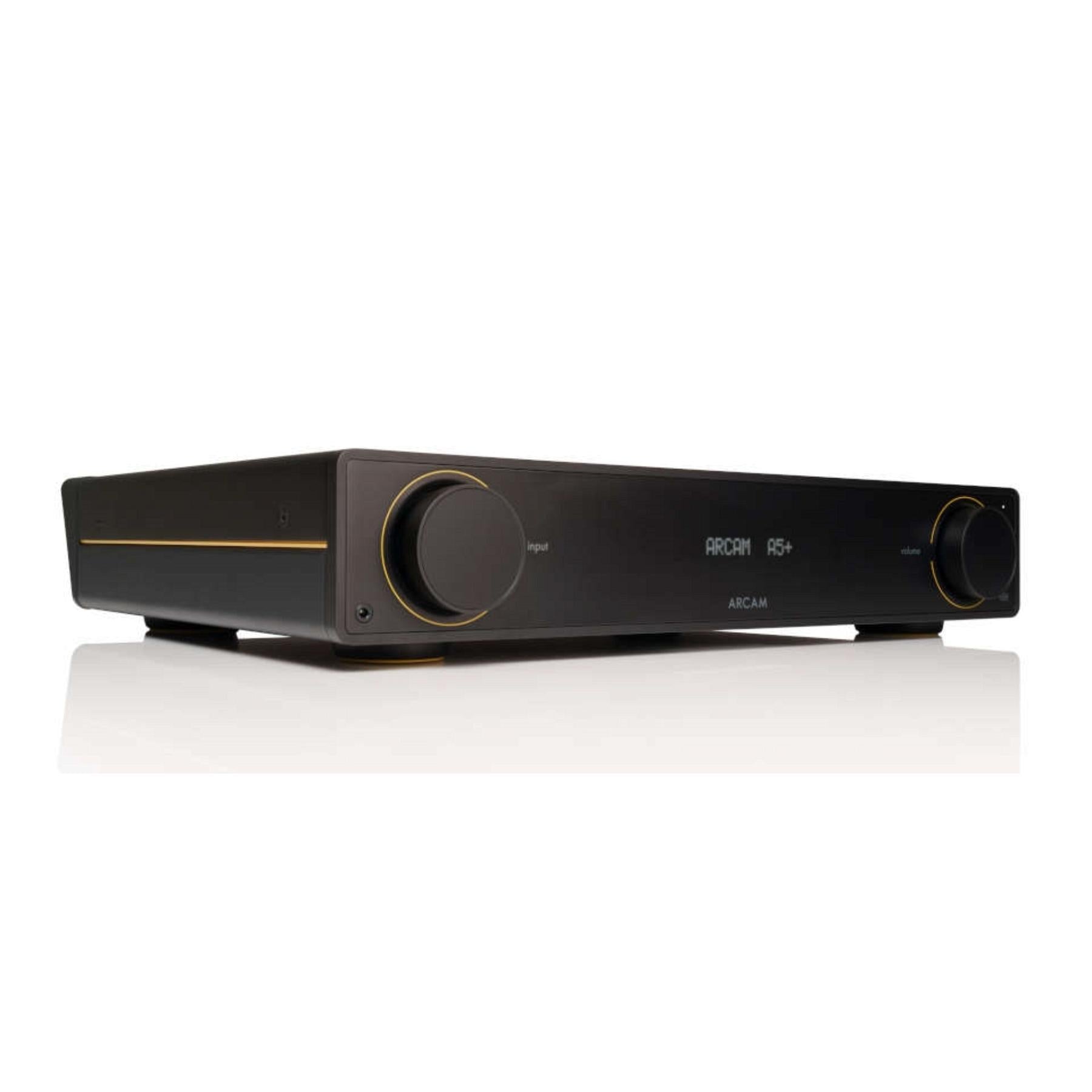

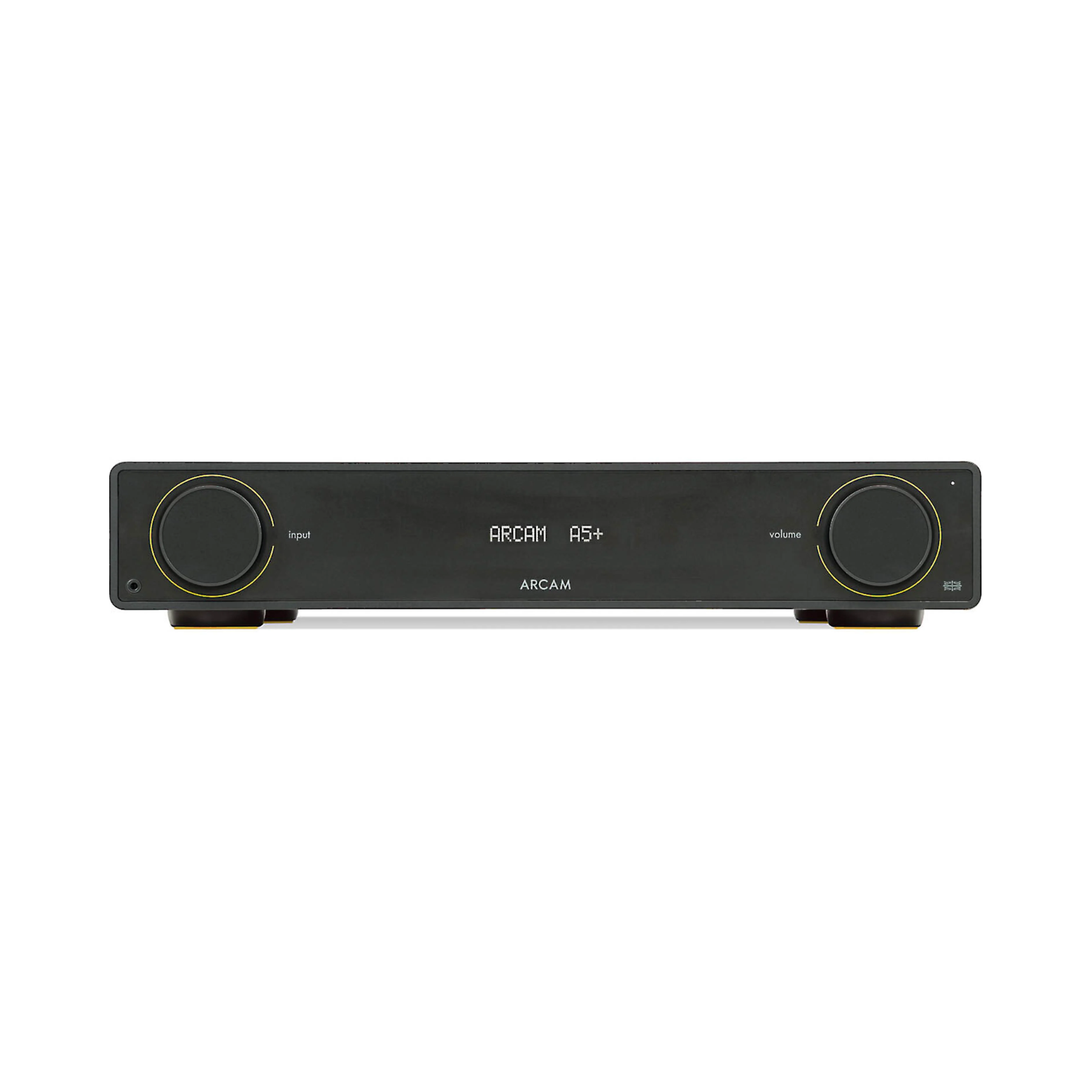

Arcam A5+ Integrated Amplifier – Bluetooth 5.4, Auracast

Meet the Arcam A5+ - a modern, musical 50W/ch Class AB integrated amplifier that makes hi-fi effortless, whether you spin vinyl, stream digitally, or share wirelessly. Inside is an ESS ES9018 DAC for clean, detailed conversion, hi-res optical/coaxial inputs, and a meticulously tuned MM phono stage that treats records with the care they deserve. The latest Bluetooth 5.4 with Snapdragon Sound brings aptX Lossless and Auracast broadcast, so you can listen in true CD-quality over wireless and share to multiple compatible headphones or speakers without pairing. Finished with solid aluminum panels and quality dials—and practical touches like pre-outs and a dedicated headphone output—A5+ is the compact centerpiece for a serious two-channel system.

Why Buy The Arcam A5+

• Modern wireless done right — Bluetooth 5.4 with Snapdragon Sound brings aptX Lossless and Auracast broadcast for CD-quality wireless and easy multi-listener sharing.
• Serious analog & digital — ESS ES9018 DAC for clean, detailed digital plus a tuned MM phono stage for vinyl that sounds alive.
• Real power, real control — 50W/ch Class AB with ultra-low distortion for confident drive with bookshelf or efficient floorstanders.

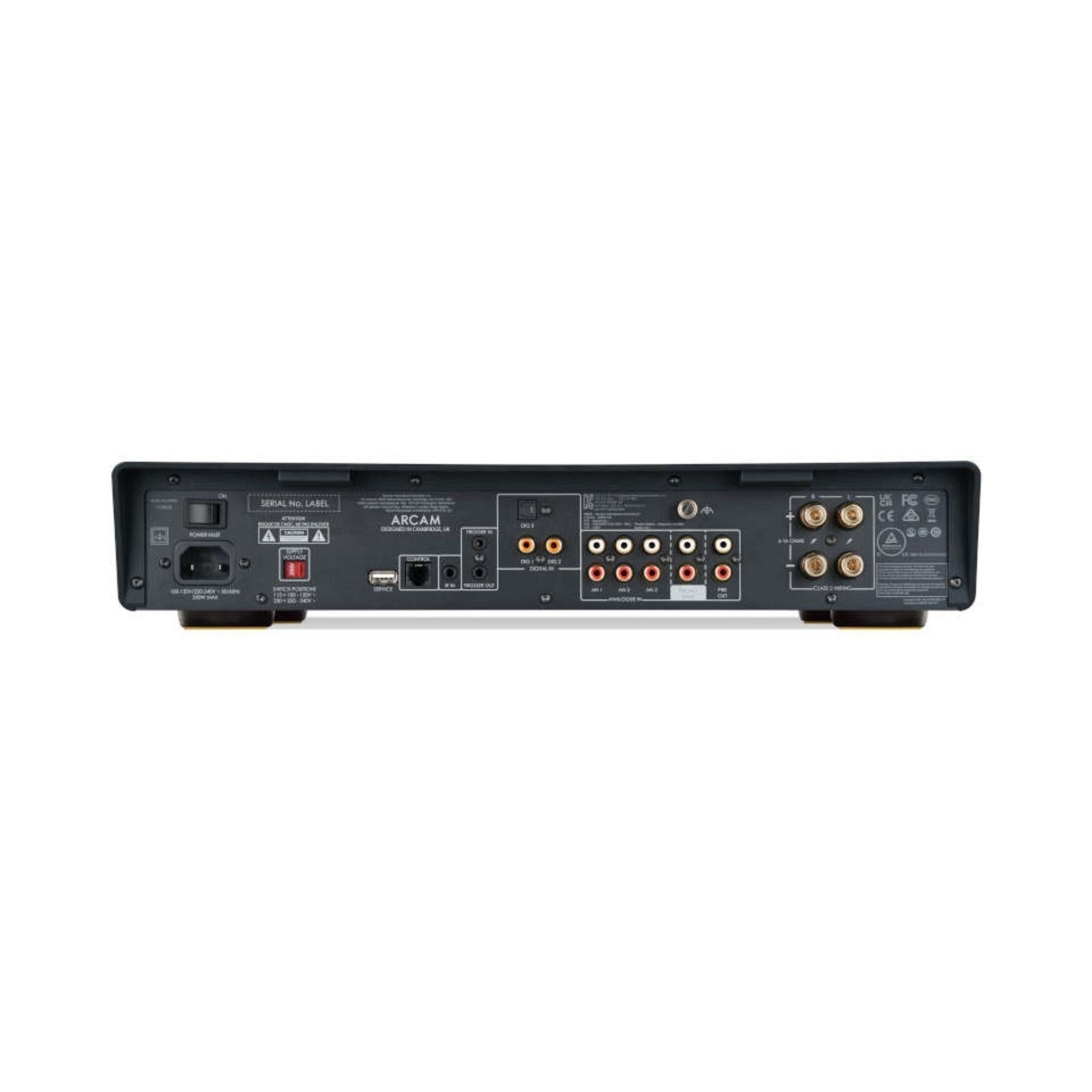

• System-friendly I/O — Hi-res optical/coaxial inputs, three RCA line inputs, dedicated headphone out, and pre-outs for adding a sub or power amp.
• Built to last — Solid aluminum panels and quality dials, plus plastic-free packaging.
• Perfect partner options — Seamlessly pairs with Arcam’s ST5 network streamer for a slick, matching two-box system.

What It’s Great At:

• Wireless sharing — Stream lossless over Bluetooth and broadcast to multiple compatible headphones/speakers via Auracast for movie nights or quiet listening.
• Vinyl playback — The MM phono stage preserves dynamics and tone, so records sound weighty and engaging.
• Digital clarity — ESS conversion with hi-res SPDIF inputs reveals detail and space from streamers and TVs with optical out.
• Headphone listening — Quality headphone output for late-night sessions without waking the house.
• Expandable systems — Pre-outs make it easy to add a subwoofer or external power amp as your system grows.
• Small-to-medium rooms — 50 clean watts per channel deliver effortless volume and control in typical living spaces.

Everyday Usability (quick wins):

• One-tap Bluetooth — Fast pairing and rock-solid range make casual listening painless.
• Auracast party trick — Share audio to multiple compatible headphones without re-pairing each time.
• Turntable-ready — Plug your MM cartridge directly into the phono input—no extra box required.
• TV-friendly — Feed your TV’s optical output into the A5+ for dramatically better sound than a soundbar.
• Easy upgrades — Add the ST5 streamer later for app-based hi-res playback and a matching look.
• Simple controls — Clear front-panel layout and compact remote keep day-to-day use intuitive.

Radia A5+ Full Product Specifications:

• Amplifier & Power
  • Class AB amplification
  • 50 W/ch (8 Ω, 20 Hz–20 kHz, 0.5% THD)
  • 75 W/ch (4 Ω, 1 kHz, 0.5% THD)
  • THD: 0.003% (80% power, 8 Ω @ 1 kHz)
• Digital Audio
  • DAC: ESS ES9018K2M
  • Inputs: Coaxial & Optical (rear)
  • Sample rates: 44.1/48/88.2/96/176.4/192 kHz
  • Bit depth: 16-/24-bit
  • Freq. response: 20 Hz–20 kHz ±0.2 dB
  • S/N (A-wtd, ref. 50 W, 0 dBFS): 109 dB
  • USB-C, HDMI: Not fitted
• Analogue Audio
  • 3 × RCA line inputs
  • Line S/N (A-wtd, ref. 50 W, 1 V): 106 dB
  • Line freq. response: 20 Hz–20 kHz ±0.2 dB
  • MM phono: 47 kΩ + 100 pF; RIAA ±1 dB
  • Pre-amp outputs: Stereo RCA
• Headphones
  • Max output: 2.5 V (32 Ω) / 5 V (300 Ω)
  • Load range: 16 Ω–2 kΩ
• Wireless
  • Bluetooth 5.4 with Snapdragon Sound, LE Audio & Auracast
  • Profiles/codecs: A2DP Sink/Source, AVRCP, BLE, SBC, AAC, aptX, aptX HD, aptX Lossless
  • TX: 2.4 GHz, <20 dBm
• Controls & Connectivity
  • Control Input (ARCAM Radia system link)
  • Loudspeaker binding posts (stereo)
• Design & Build
  • Aluminum front/top/sides/rear; solid aluminum dials
  • Plastic-free packaging
• Power & Dimensions
  • Mains: 100 V / 110–120 V / 220–240 V, 50–60 Hz
  • Max power: 350 W; Standby: <0.5 W; Network standby: <2 W
  • Dimensions (W × D × H): 431 × 344 × 83 mm (incl. feet/terminals)
  • Weight: 8.14 kg (net); 11.36 kg (packed)
• Included Accessories
  • Remote control (2 × AAA batteries)
  • Mains lead(s)
  • Quick Start Guide
  • Important Safety Instructions

Radia A5+ Product Q&A:

Does the A5+ include HDMI eARC?

No. HDMI eARC is not fitted on the A5+; it’s available on higher models (A15+/A25+).

What Bluetooth features does it support?

Bluetooth 5.4 with Snapdragon Sound, Auracast, LE Audio, and codecs including SBC, AAC, aptX, aptX HD, and aptX Lossless; operates as receiver and transmitter.

How much power does it deliver?

50 W/ch into 8 Ω (20 Hz–20 kHz, 0.5% THD) and 75 W/ch into 4 Ω at 1 kHz.

Which digital inputs are provided?

Coaxial and optical inputs, supporting up to 24-bit/192 kHz.

What DAC is used?

ESS ES9018K2M.

Is there a phono input for turntables?

Yes, a moving-magnet (MM) input with 47 kΩ + 100 pF loading and RIAA accuracy of ±1 dB.

Can I use wired and wireless headphones?

Yes. There’s a dedicated headphone output (2.5 V into 32 Ω / 5 V into 300 Ω) and Auracast broadcasting for compatible wireless headphones.

What are the dimensions and weight?

431 × 344 × 83 mm; 8.14 kg (net).

Radia A5+ Downloads

Arcam Radia A5+ User Manual
Arcam Radia A5+ Quick Start Guide
Arcam Radia A5+ Specification Sheet
