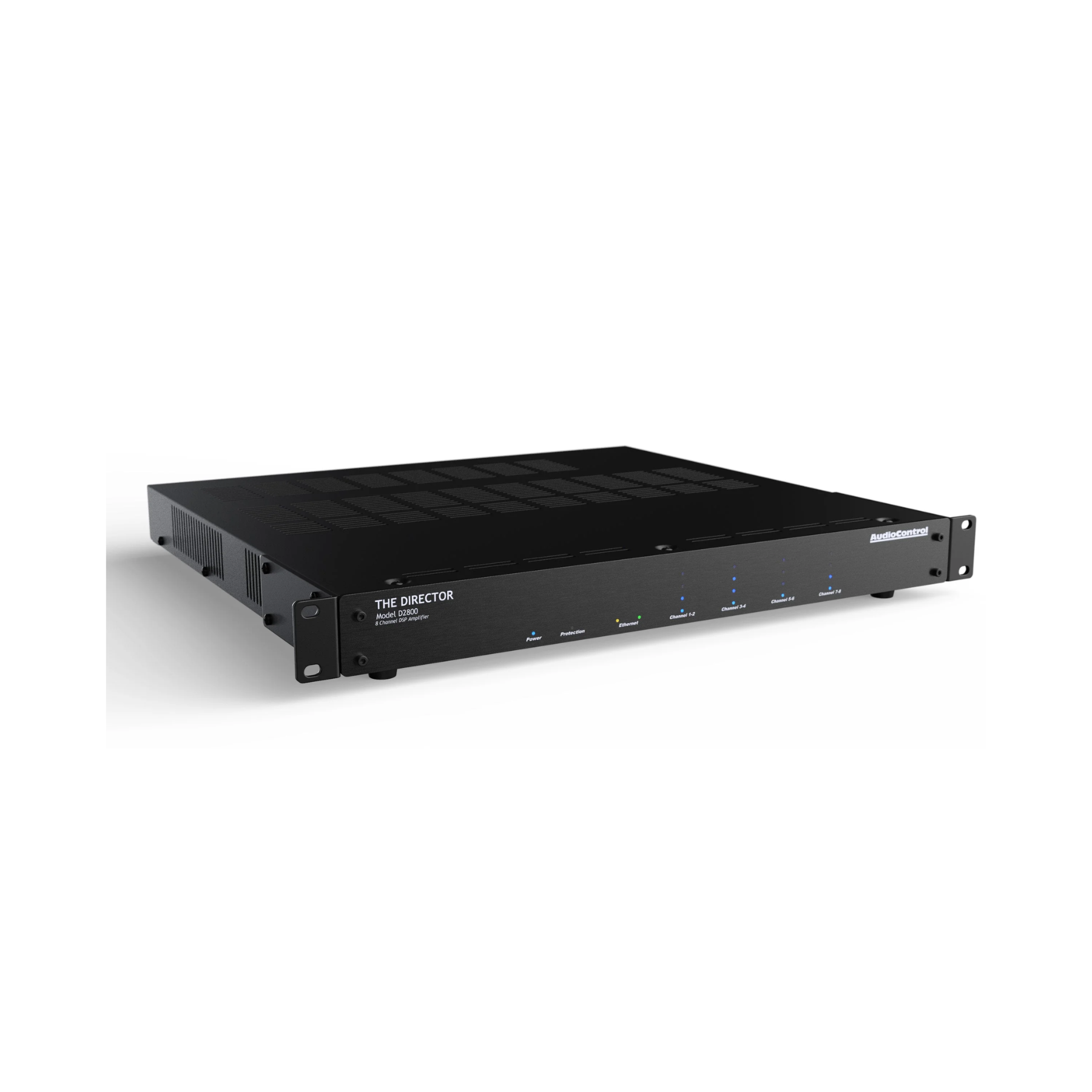

Director D2800

In the most demanding applications for all system amplification and IP programmable signal processing tasks, the Director D Series Model D2800 has the power and flexibility to operate as a standalone DSP amplifier or partnered with 3rd party over-control systems from companies such as Control4, Crestron, RTI and Savant. Configure graphic and parametric equalization, crossover points, volume settings, zone grouping, network monitoring, and more using the onboard DSP.

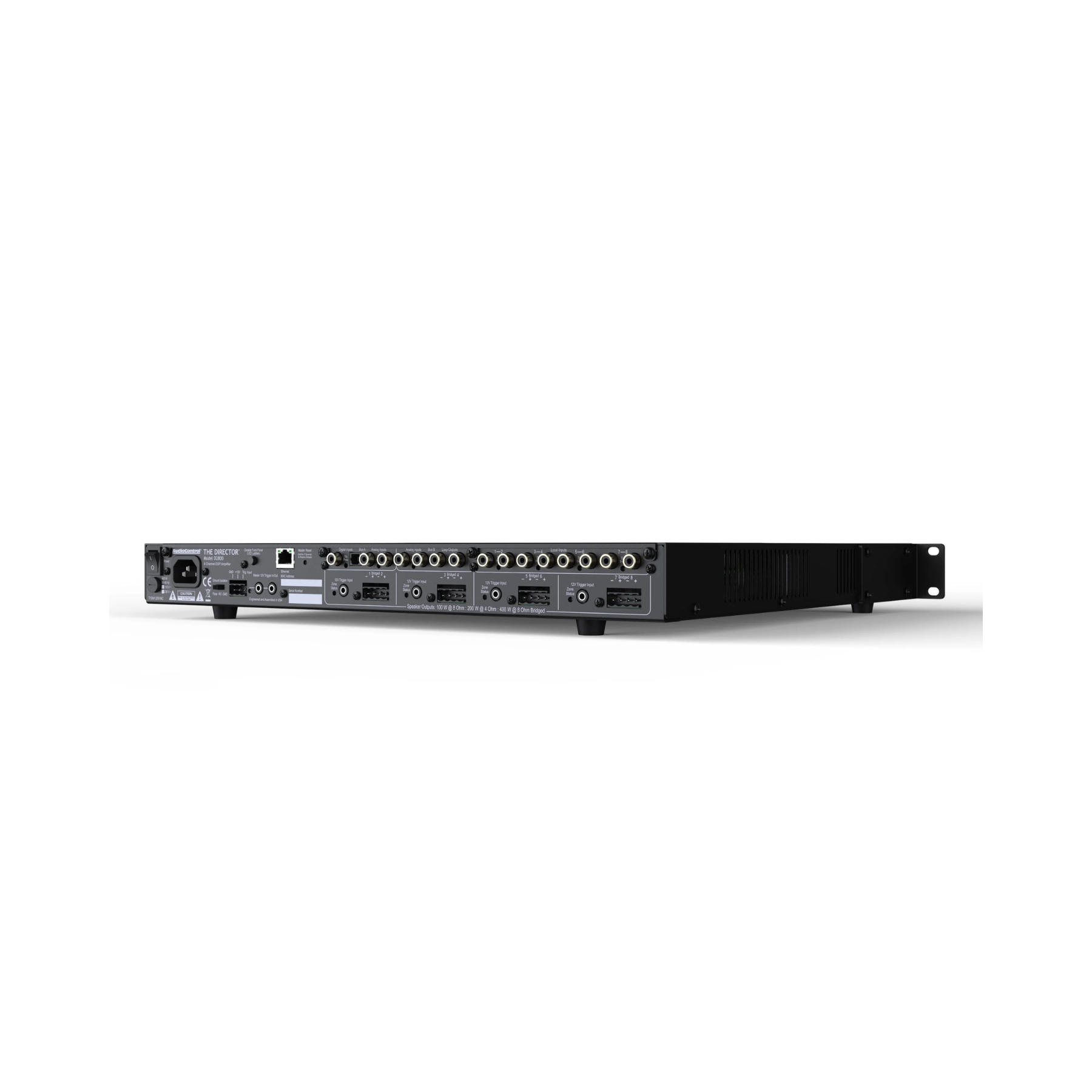

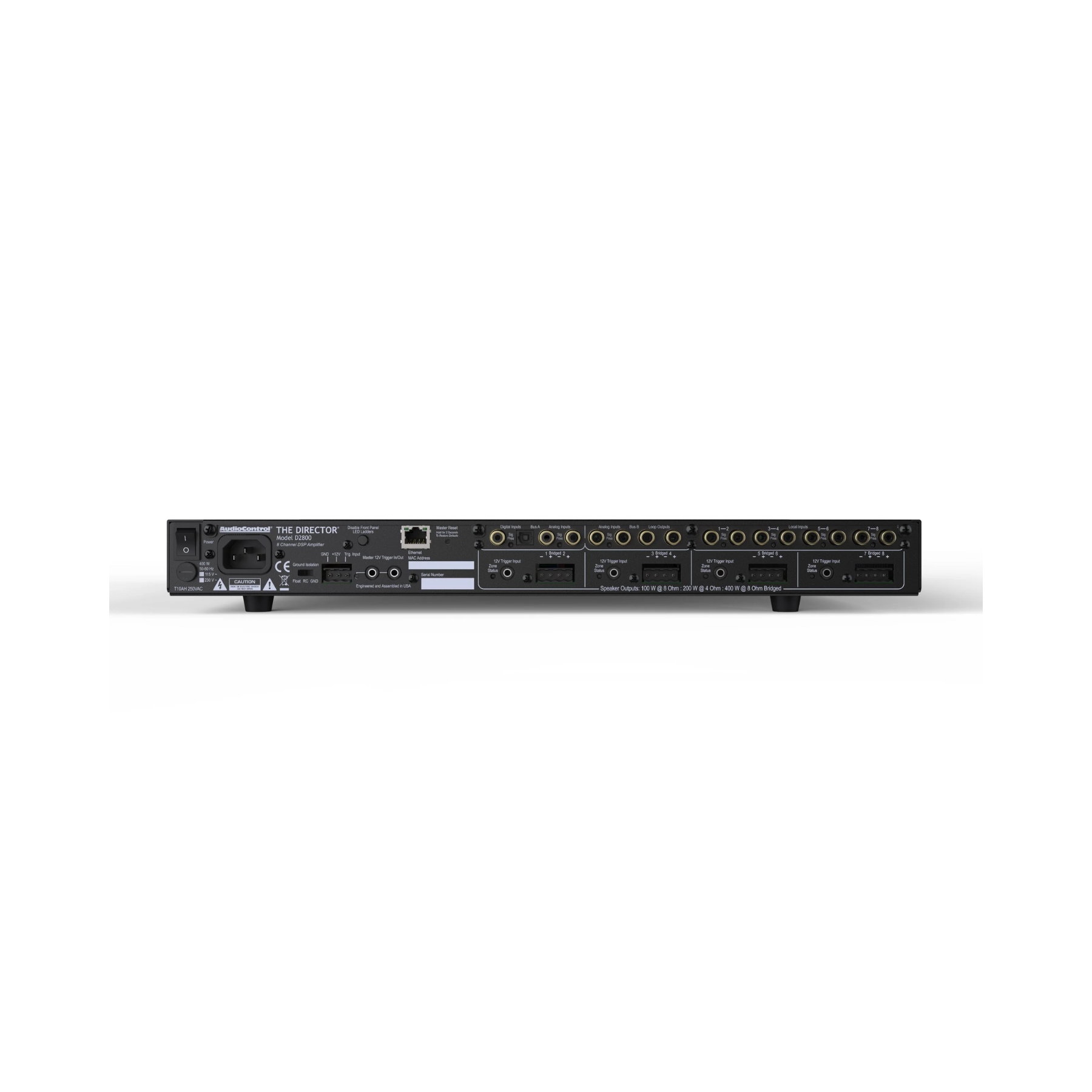

Bus A inputs on the Director Model D2800 are selectable between Stereo Coaxial, TOSLINK Digital, and Analog. Bus B is Stereo Analog with loop-through outputs. Helpful system interface features include a global 12 VDC in/out trigger and zone-independent 12 VDC triggers.

8, 100-watt channels into 8 Ohms become 200 watts per channel with 4-Ohm loudspeaker loads. When two channels bridge outputs, that single channel produces 400 watts into 8 Ohms, more than enough power for even the most demanding loudspeaker configurations. Popular in the M Series, the D Series now features built-in speaker profiles from members of AudioControl’s Sound Partners program, offering DSP-optimized speaker calibrations from a growing list of prominent loudspeaker manufacturers.

Discover for yourself the countless critical ways in which AudioControl D series amplifiers contribute to successful commercial, residential, and Pro Audio systems.

FEATURES:

• Network DSP Amplifier With Volume Control
• 8 Channels x 100 Watts into 8 Ohms (All Channels Driven)
• 8 Channels x 200 Watts into 4 Ohms (All Channels Driven)
• 4 Bridgeable Channels of 400 Watts into 8 Ohms
• Built-In Speaker Optimization Profiles
• Ethernet Port for Status Monitoring, Source Switching, and 12 Volt Trigger Control
• Network Programmable Graphic & Parametric Equalization with User Memories
• Assignable Names Amplifiers & All Zones
• Digital Signal Sense
• Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
• AudioControl LightDrive™ Anti-Clipping Speaker Protection
• Local Inputs with Pass Through/Loop Outputs
• Coaxial and TOSLINK Digital Inputs
• Compact 1U Rack Space (Includes Rack Mount Brackets)
• Commercial, Residential, and Pro Audio Compatible

SPECIFICATIONS

INPUTS

• Inputs: 4 Stereo Local Inputs, 1 Stereo Bus Input
• Inputs: Selectable Coaxial Digital/TOSLINK Digital/Analog Bus Input
• Input Sensitivity: 1 Vrms for full output, level at maximum
• Input Gain: 30 dB

OUTPUTS

• Amplifier Channels: 8
• Power Output (8 Ω): 100 W per channel
• Power Output (4 Ω): 200 W per channel
• Power Output (8 Ω Bridged Mono): 400 W
• Minimum Speaker Load: 4 Ω
• Preamp Audio Outputs: 4 Stereo Local Loop Outputs, 1 Stereo Bus Loop Output

PERFORMANCE

• Signal to Noise: >97 dB, A-wtd, ref full output
• Crosstalk: > 80 dB @ 1 kHz
• Damping Factor: >300

CONTROL

• Remote Power Trigger: +12 VDC or Dry Contact Closure
• Network Connection/Protocol: 10Base-T Ethernet TCP/IP
• Communication Protocol: HTTP or Telnet

WEIGHT & DIMENSIONS

• Dimensions: 17" W x 15.5” D x 1.75” H (1 U)
• Weight: 14.2 lbs. (6.4 kg)

IN THE BOX

• The Director Model D2800, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty
