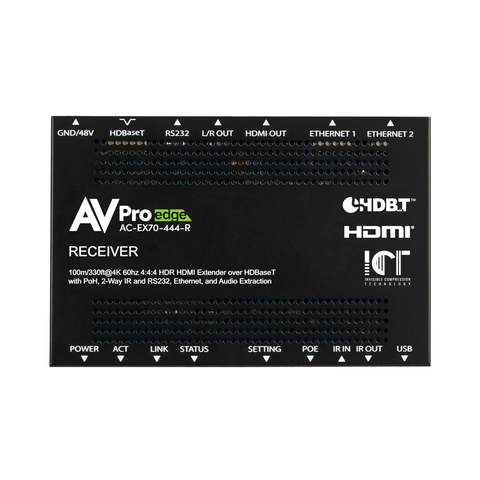

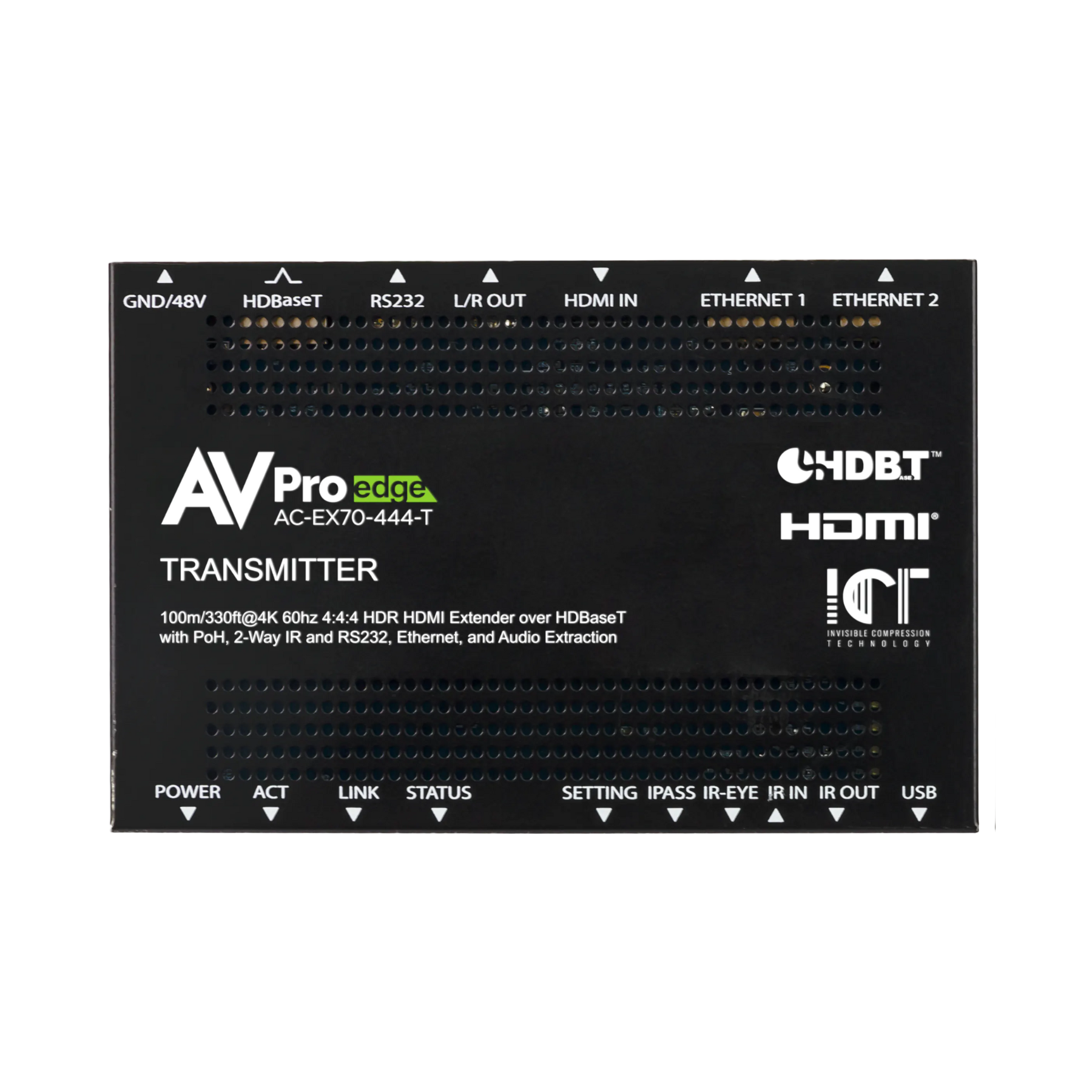

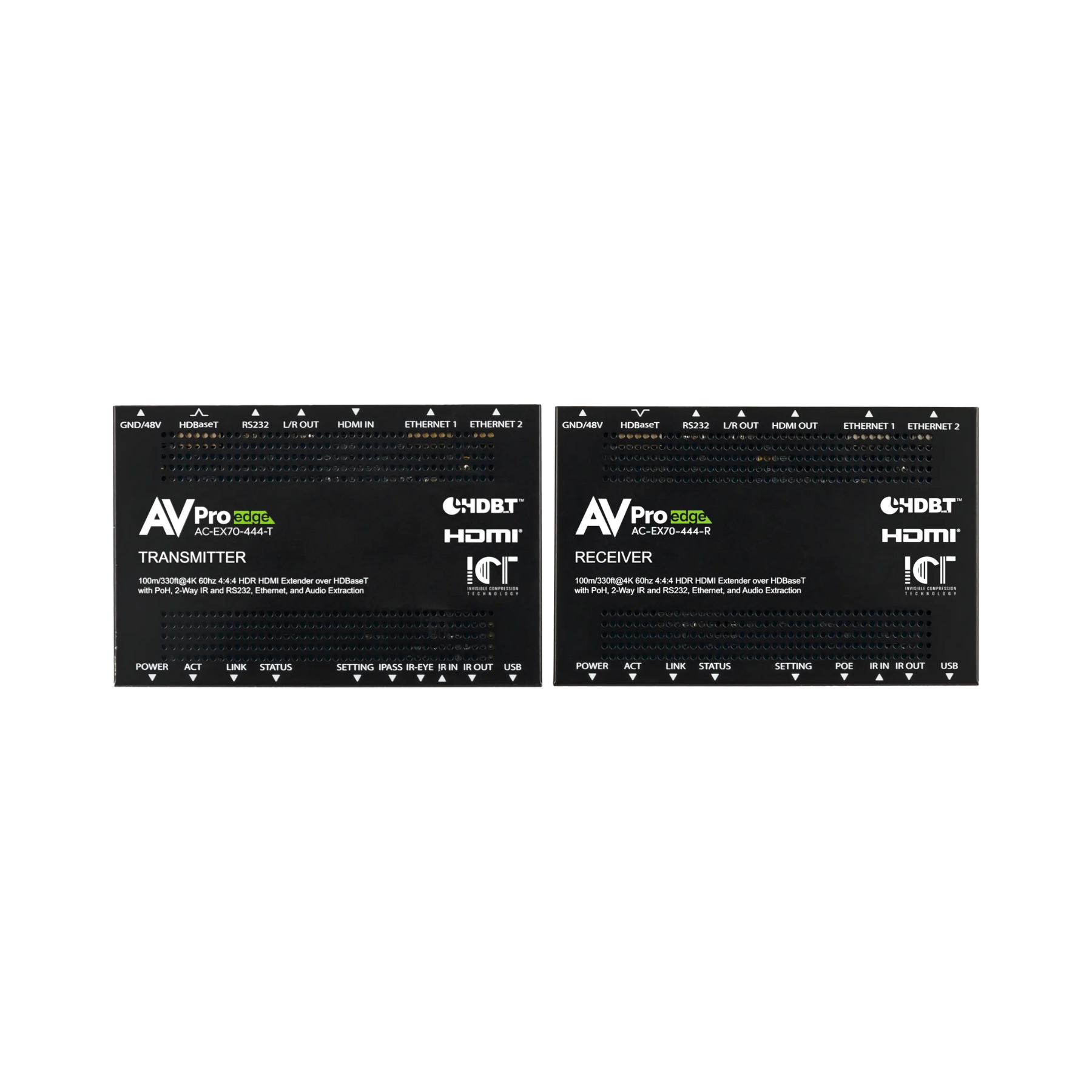

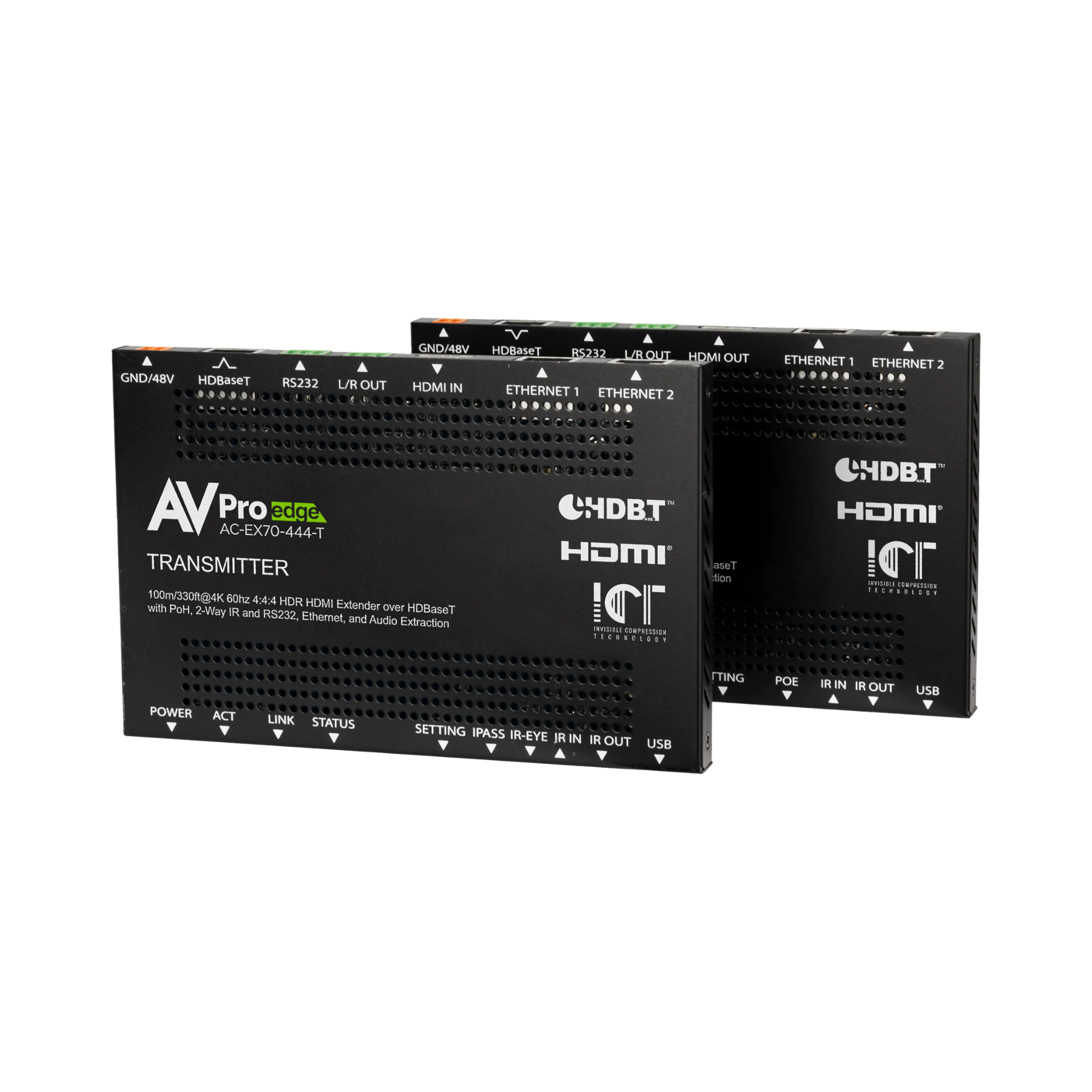

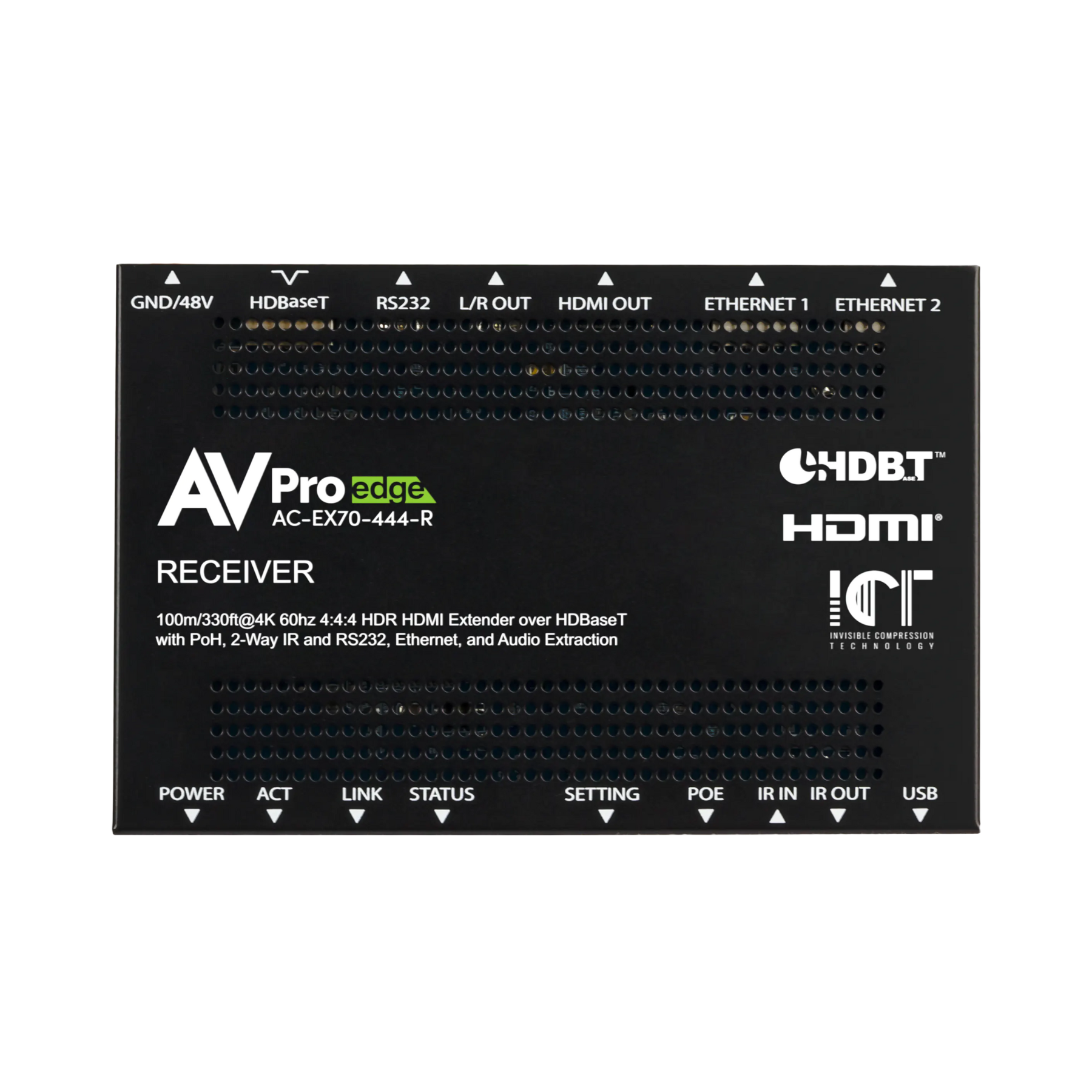

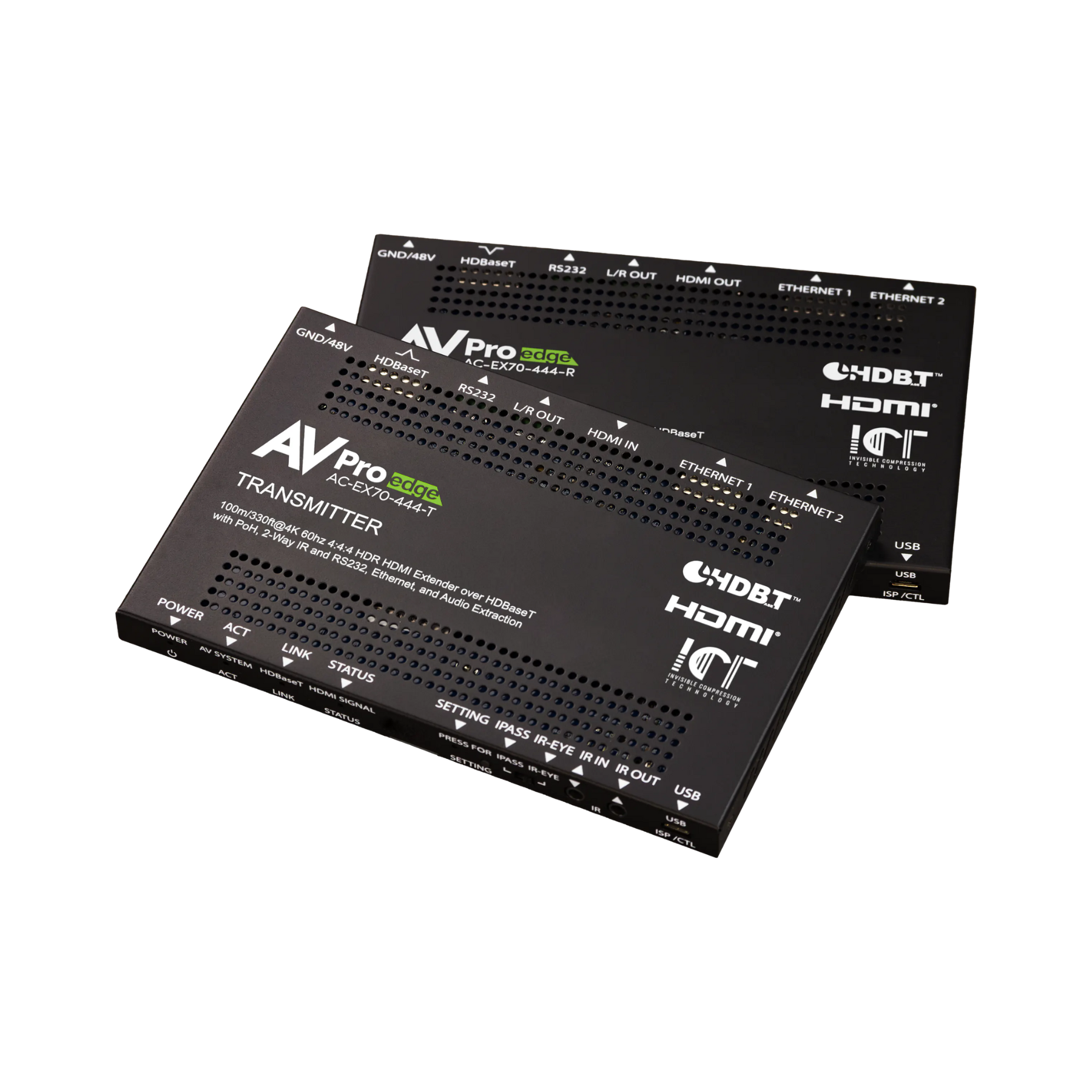

AVPro Edge AC-EX70-444-KIT - 70M 18Gbps HDBaseT Extender Kit - Clearance / Open Box

AVPro

AVPro Edge AC-EX70-444-KIT - 70M 18Gbps HDBaseT Extender Kit - Clearance / Open Box

$399.00
$1,462.00
HAVE SOMETHING TO TRADE? CLICK HERE
In Stock
In Stock
Back Order
Back Order
Back Order
Out of Stock
Delivery
Ships within 24 Hours
Delivery
- +
Notify Me When Available
Buy now
Notify Me When In Stock

We’ll be happy to e-mail you when this item is available. Just fill in your name and e-mail address

View Products
Notify Me When In Stock

We’ll be happy to e-mail you when this item is available. Just fill in your name and e-mail address

Notify Me

Product Description

Line Circle
The AC-EX70-444-KIT is an Ultra Slim 48Gbps 70M HDMI via HDBaseT Extension Kit with Full EDID management and Compact placement depth (.47 inches / 12mm).
Get the Details

Features & Specs Line Circle

Invisible Compression Technology:
ICT revolutionized HDMI extension technology implemented into HDBaseT. Bandwidth limitations with 4K signals sent through copper category 5E, 6, and 6A cabling are overcome by our proprietary algorithm. Compatible with all HDR and high-bitrate audio codec metadata, the highest quality display devices remain artifact-free when accepting ICT signals.
Long-Range Mode:
Extend your reach with the AC-EX70-444-KIT. When Long-Range Mode is enabled, the transmitter automatically downscales 4K signals to 1080p, allowing transmission distances of up to 150 meters (492 feet)—perfect for getting to those hard-to-reach displays without compromising reliability.
Downscaling:
Scaling circuitry in the transmitter can step down 4K (including HDR metadata) to 1080p for legacy displays, especially useful in mixed resolution systems where native signal resolution is preserved for optimum performance system-wide.
EDID Management:
Interoperability issues between displays and problematic AVRs or sources are easily resolved with EDID options available on the kit. EDID bypass and EDID copy simplify troubleshooting.
Test Pattern Generation:
Leave your Fox & Hound at the shop? 4K and 1080p test patterns aid in rapidly identifying connectivity or EDID problems. The TX and RX units separately generate patterns to verify infrastructure integrity and system signal pass-through.
IR & RS232 Management:
Infrared and RS-232 signals pass through the AC-EX70-444-KIT bidirectionally to effectively enable device control at each point. The Transmitter I-PASS port accepts a mono 3.5mm control system cable providing a secure connection for IR pass-through.
Invisible Compression Technology:
ICT revolutionized HDMI extension technology implemented into HDBaseT. Bandwidth limitations with 4K signals sent through copper category 5E, 6, and 6A cabling are overcome by our proprietary algorithm. Compatible with all HDR and high-bitrate audio codec metadata, the highest quality display devices remain artifact-free when accepting ICT signals.
Long-Range Mode:
Extend your reach with the AC-EX70-444-KIT. When Long-Range Mode is enabled, the transmitter automatically downscales 4K signals to 1080p, allowing transmission distances of up to 150 meters (492 feet)—perfect for getting to those hard-to-reach displays without compromising reliability.
Downscaling:
Scaling circuitry in the transmitter can step down 4K (including HDR metadata) to 1080p for legacy displays, especially useful in mixed resolution systems where native signal resolution is preserved for optimum performance system-wide.
EDID Management:
Interoperability issues between displays and problematic AVRs or sources are easily resolved with EDID options available on the kit. EDID bypass and EDID copy simplify troubleshooting.
Test Pattern Generation:
Leave your Fox & Hound at the shop? 4K and 1080p test patterns aid in rapidly identifying connectivity or EDID problems. The TX and RX units separately generate patterns to verify infrastructure integrity and system signal pass-through.
IR & RS232 Management:
Infrared and RS-232 signals pass through the AC-EX70-444-KIT bidirectionally to effectively enable device control at each point. The Transmitter I-PASS port accepts a mono 3.5mm control system cable providing a secure connection for IR pass-through.
Expert Insights Coming Soon
Line Circle

Details

Line Circle

70M 18Gbps HDBaseT Extender Kit

The AC-EX70-444-KIT was one of the first HDMI-over-HDBaseT extension kits on the market to transmit 4K/60fps 4:4:4 video signals. HDR10, plus dynamic metadata formats such as Dolby Vision, HDR10+, and Hybrid Log Gamma, are transported over Cat6A copper cabling at 18Gbps, as image fidelity remains damage-free from source to display. Employing AVPro Edge’s proprietary Invisible Compression Technology algorithm, ICT, 4K/60fps signals containing high dynamic range video enhancements, with high-bitrate audio codecs, remain unaltered and artifact-free from the transport process.

It is not unusual for other products in the marketplace to use algorithms designed for use by applications accustomed to significantly lower data amounts. As a consequence, combined with category cable use, image information must be forfeited to achieve sending the signal to the display. What is typically discarded is color information supporting smooth transitions between colors with very close hues. This results in harsh delineation points, called “banding”, which are readily detectable by even casual viewers. Additional artifacts, not present in the source, are introduced, such as color shifts and motion alterations, which disturb the artistic intent of the content.

The AC-EX70-444-KIT is augmented by resourceful features such as EDID management, resolution downscaling, bidirectional IR and RS-232 signal control, onboard test pattern generation, dual 10/100 ethernet ports for LAN extension, and Left/Right audio extraction from PCM 2-channel input signals.

Features:

  • 100M 4K/60fps 4:4:4 through CAT6A with AVPRo Edge ICT
  • 150M Long Range Mode for 1080p option
  • HDR10 and all Dynamic Metadata video formats supported
  • Full EDID management
  • Compact placement depth (.47 inches / 12mm)

Specifications:

Video:

Video Resolutions: Up to 4K 60Hz 4:4:4

HDR Formats/Resolutions: 420, 422, 444 (10 AND 12 DEEP COLOR) HDR10, HDR10+, DOLBY VISION, HLG

Color Space: YUV (Component), RGB

                       (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)

Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 Supported

Deep Color: Up to 16 bit (1080), Up to 12 bit (4K)

Down Scaling: 4k to 1080p

Audio:

Audio Formats Supported HDMI: PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos

Audio Formats Supported Extracted (2CH Port): PCM 2 CH

Distance:

HDBaseT (CAT) Distance (4K): 100 Meters / 330 Feet (Cat 6a)

HDMI In/Out (4k60 4:4:4): Up to 50 feet (Using Bullet Train HDMI)

HDMI In/Out (W/ AOC Cable) (4k60 4:4:4): Up to 130 feet (Using Bullet Train AOC)

Other:

Bandwidth: 18 Gbps (Uses ICT above 10.2 Gbps signals)

HDCP: HDCP 2.3 and Earlier

Ports:

HDMI (TX & RX): Type A

HDBaseT: RJ45 w/ PoH for HDBaseT Receivers

Audio (Extracted Analog) (TX & RX): 5 PIN Terminal Block (Balanced)

IR TX (TX & RX): 3.5MM Mono (2 Conductor)

IR RX (TX & RX): 3.5mm Stereo (3 Conductor)

RS232 (TX & RX): 3 Pin Terminal Block Each

Power (TX & RX): 2 Pin Terminal Block Each

Ethernet (TX & RX): 2x RJ45 Connections Each (10/100)

Firmware (TX & RX): USB C

Environmental:

Operating Temperature: 23 to 125°F (-5 to 51°C)

Storage Temperature: -4 to 140°F (-20 to 60°C)

Humidity Range: 5-90% RH (No Condensation)

Power:

Power Consumption (Total): 12 Watts Max

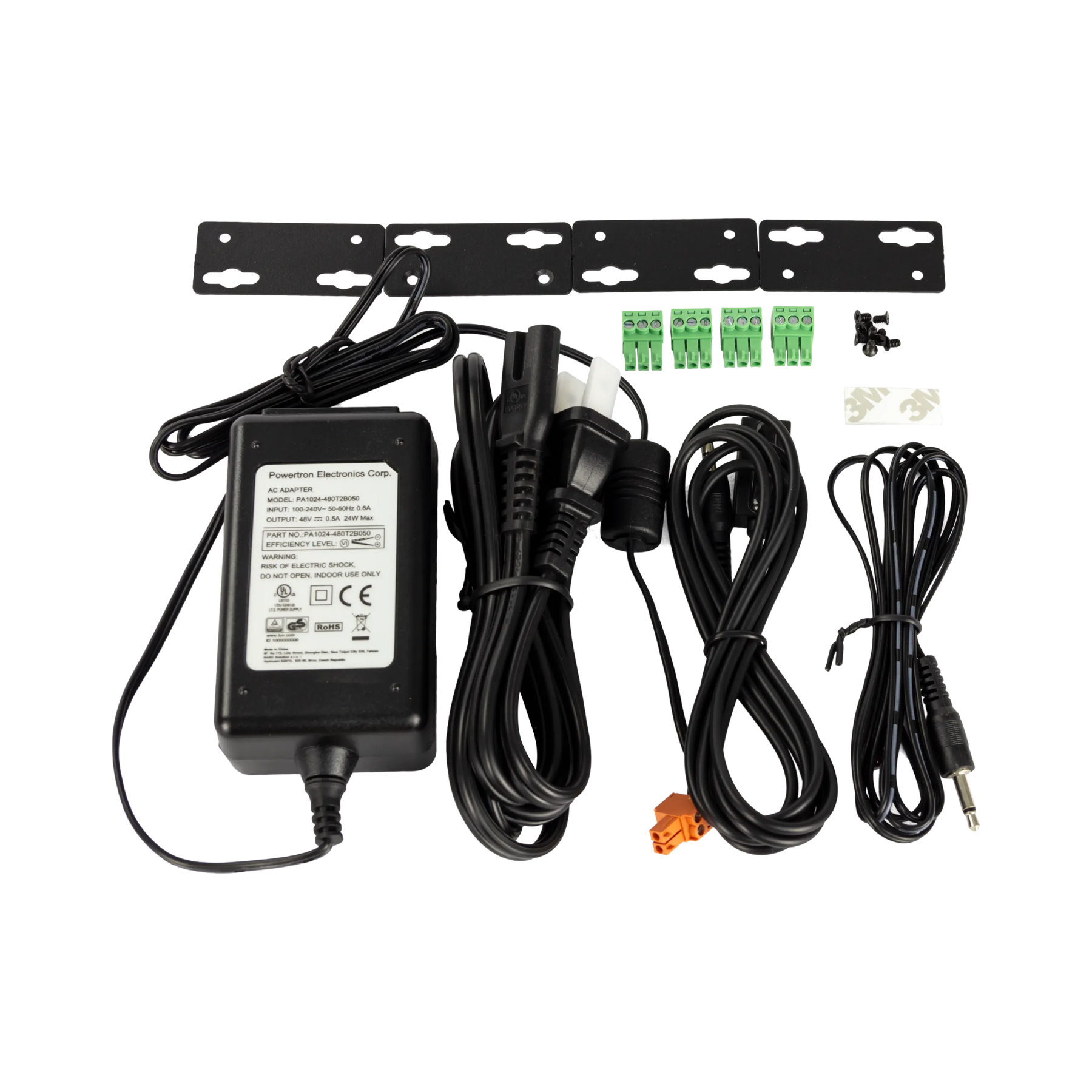

Power Supply Input: AC 100-240V ~ 50/60Hz Output: DC 48V 0.5A

Dimensions:

Dimensions (Unit Only Length/Width/Height): mm: 103 x 157 x 12 / inch: 4.04 x 6.18 x 0.47

Dimensions (Packaged Length/Width/Height) (Kit): mm: 165 x 203 x 91 / inch: 6.5 x 8 x 3.6

Weight (Unit): 0.4 lbs (0.13 kg)

Weight (Packaged): 2 lbs (0.90 kg)
