4K 4x1 Multi-viewer

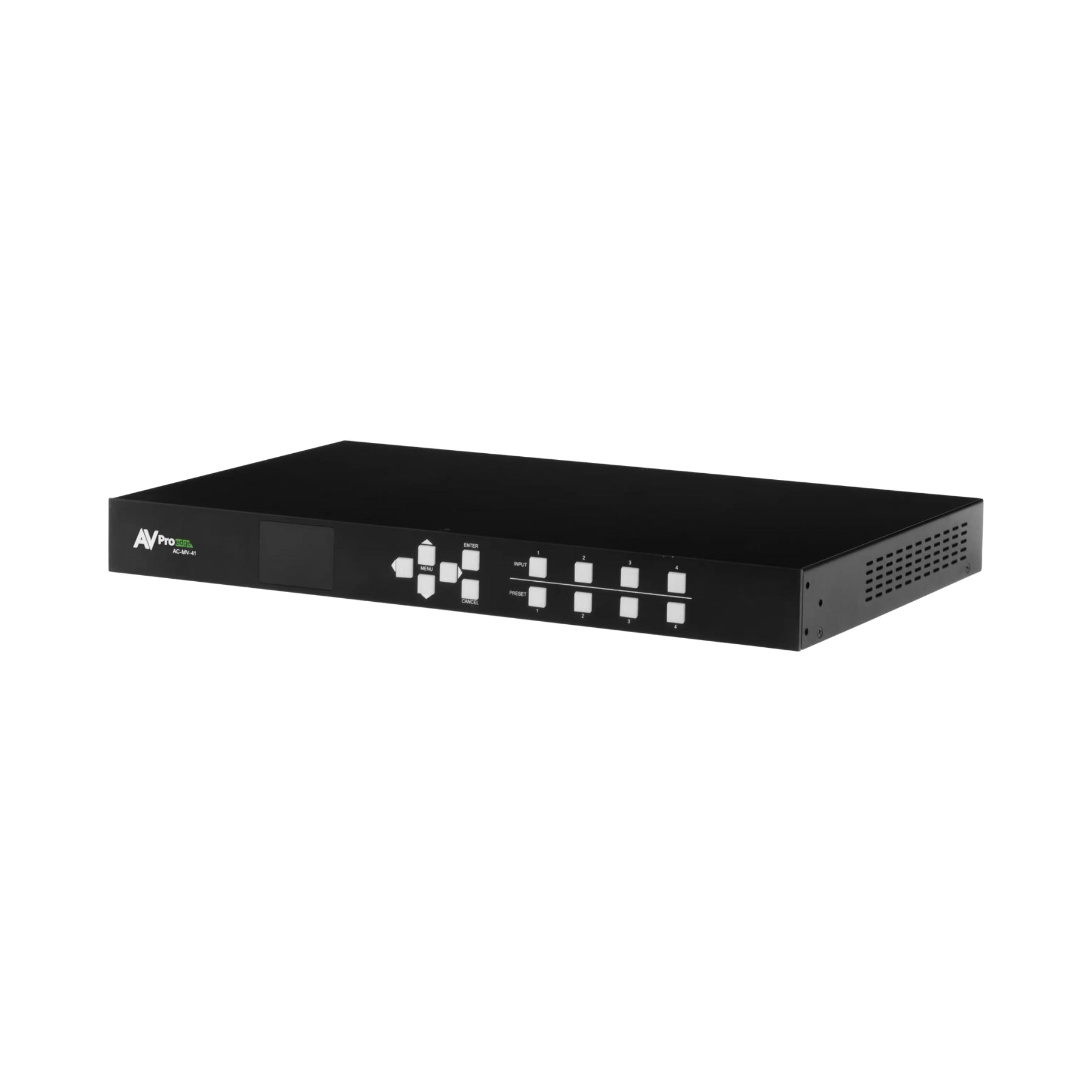

From a single HDMI 2.0 output, the AVPro Edge AC-MV-41 Multi-View video processor simultaneously displays as many as four separate sources on any size monitor, television, or projector. This versatile Multi-Viewer/Tiler may be used stand-alone, enabling four directly connected sources to be viewed as a composite image, video wall style, or independently full-size, with input switching controlled by the STILE app.
Recallable presets may feature all inputs equally in a traditional quad view or customized to highlight one source in a larger window, with others tiled in an endless variety of patterned layouts.

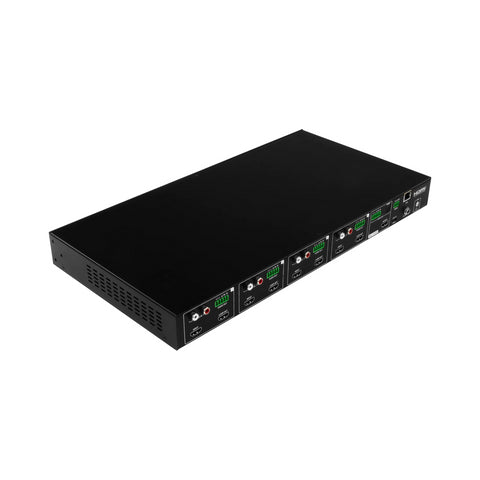

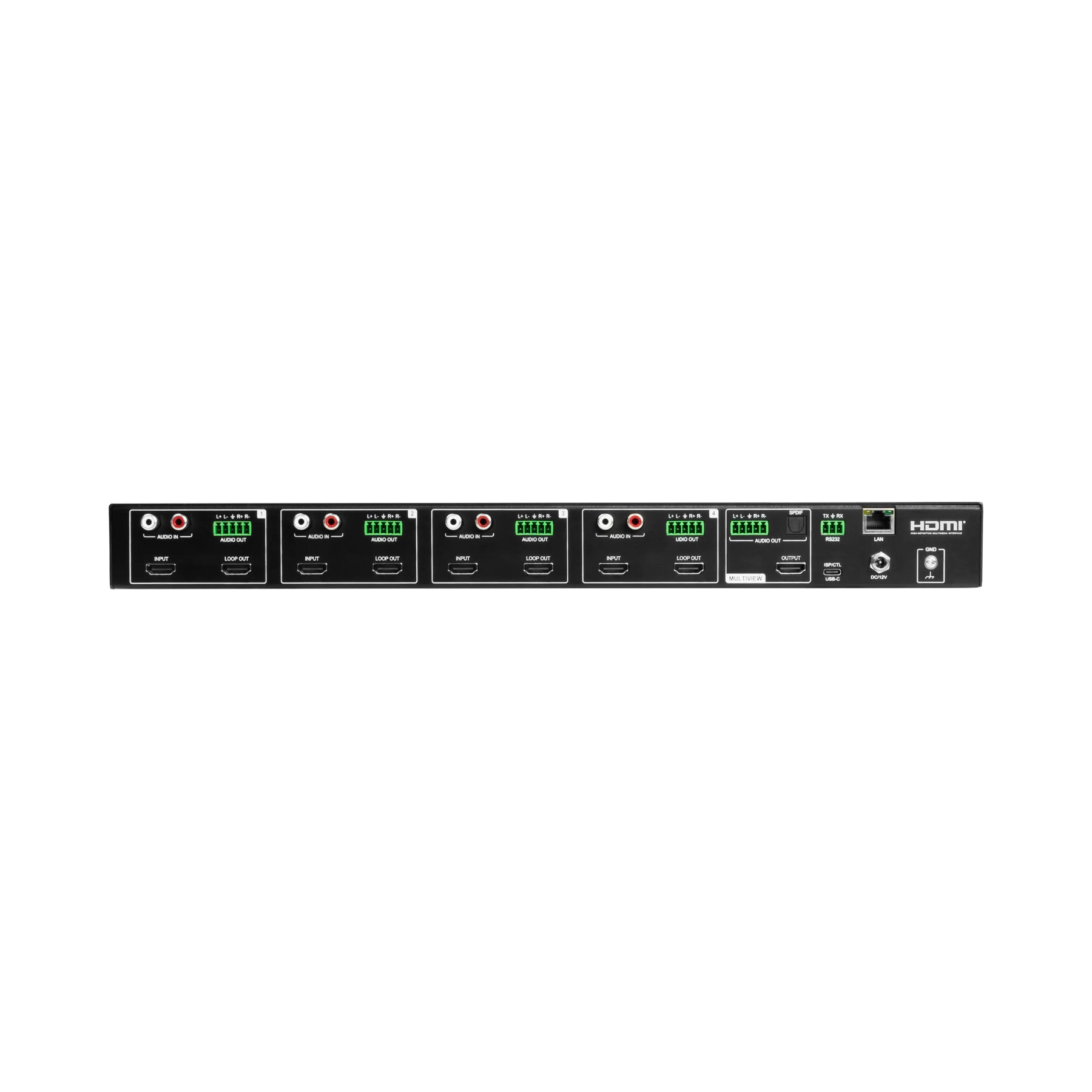

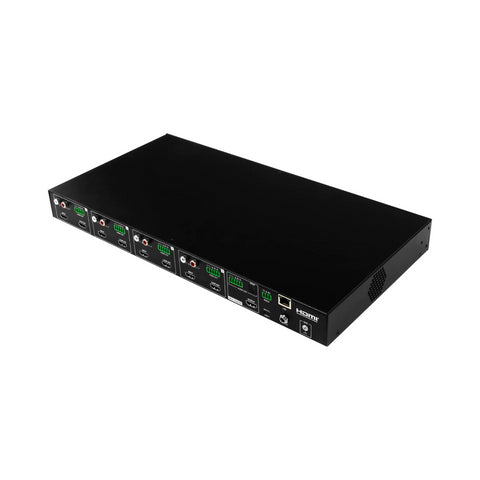

With flat panels now well over 100 inches and laser projectors comfortably tripling that, game day becomes a brand-new experience for sports enthusiasts. Installing the AC-MV-41 provides the capability to keep tabs on four different games or even four different sports! Each input features an HDMI loop-out to provide creative expansion capabilities with additional AC-MV-41 units or to pass source signals through for broader distribution, such as AVPro Edge MXnet ecosystems.
The AC-MV-41 is designed to be equally well-suited for high-resolution industrial applications, such as security, vehicular traffic, or factory robotics monitoring, with superb image fidelity benefiting from the performance-oriented AVPro video heritage upon which the AC-MV-41 is built.
Stereo analog RCA audio inputs enable assignable alternate companion audio to HDMI signals, and 5-pin stereo audio outputs provide extracted audio from any audio format. (Note: This is not Downmixed audio. Front left and right channel content from multichannel audio codecs will playback as encoded and may not contain dialogue information).
IP and RS-232 commands from control systems are processed through the LAN and RS-232 ports, with Control 4 driver available for immediate use.
Bring the Sports Bar Home: With one to as many as four sources displayed simultaneously on a single screen, Game Day will never be the same. Be a broadcast coordinator and catch every crucial game-changing moment.
Full HDR Compatibility: The AC-MV-41 features AVPro Edge’s unique ability to strip away HDR metadata (post-loop out circuitry) converting the signal into RGB, and enabling mixed dynamic range input sources to be combined by the AC-MV-41 multi-viewer for flawless display.
HDMI Input Loop out: Each HDMI input has a companion HDMI loop output for pass-along integration with additional system devices. The loop-out circuitry is positioned in the signal chain before metadata is stripped away (described above) and is preserved for playback on other system displays, or another input of the main display used by the AC-MV-41.
Customized Layouts with STILE: Remember the days when Picture-in-Picture was a typical TV feature? The digital era made that too complex. Bring it back, and more, with the AC-MV-41. Whether the classic main picture/keep tabs box in the corner, quad view with four equally sized windows, or custom layouts featuring window tiling imaginatively crafted by your creativity, the AC-MV-41 lets your TV remote control take a well-earned time out.
HDMI 2.0 Support: The AC-MV-41 is HDMI 2.0 compliant, with HDCP 2.3, for all four inputs and the solo HDMI output. Sources may include SD, HD, and Ultra HD up to 4K/60 fps and safely be combined into a single image for playback on the dedicated display. AVPro Edge’s renowned EDID management eliminates interface headaches so systems function reliably with complete repeatability.
Driver Support: Control 4 driver are available for immediate deployment. The API is robustly fortified, and full command is capable by nearly every major third-party overcontrol provider.
Analog inputs and Outputs: Alternate audio from an HDMI source (for example, audio from HDMI outputs from some laptops that will not pass through) may be assigned to follow the video via the RCA input.
A 5-pin block connector passes extracted left and right channel audio for site-wide distribution if desired. (Note: This is not Downmixed audio. Front left and right channel content from multichannel audio codecs will playback as they were encoded and may not contain dialogue information).
- Four Scalable 4K/60 fps Capable Source Window Channels
- Mix SD, HD, and Ultra HD HDMI Sources in Any Combination
- All Inputs Feature Source-sharing HDMI 2.0 Loop-through Outputs
- Multiple layouts using our STILE app including Picture-in-Picture and Quad
