AVPro Edge AC-SC1-AUHD - 18 Gb 4K Scaler, EDID Manager, Audio De-Embedder & Image Enhancer - Clearance / Open Box

AVPro Edge AC-SC1-AUHD - 18 Gb 4K Scaler, EDID Manager, Audio De-Embedder & Image Enhancer - Clearance / Open Box

$328.90 $119.00
Interested in trading something in? Learn More

Why You'll Love It.

The AVPro Edge AC-SC1-AUHD is a HDMI 2.0a w/HDR & HDCP 2.2 4K Up/Down Scaler with Audio De-Embedder & Image Enhancer designed for high-end integrators and users who need the ability to distribute a 18Gbps signal to a wide range of displays while maintaining optimal picture quality.

Technical Specifications

Inputs / Outputs Video Inputs:- 1 x HDMI (HDMI 2.0)
Audio Inputs:- 1 x 1/8" / 3.5 mm TS Stereo
Video Outputs:- 1 x HDMI (HDMI 2.0)
Other I/O:- 1 x Mini-USB Input/Output
Format Support Input Video Format:- HDMI (4:4:4/4:2:2/4:2:0); UHD 4K
Output Video Format:- HDMI (4:4:4/4:2:2/4:2:0); UHD 4K
Standards HDCP Support:- Version 2.2
EDID Support:- Manual Control
Operating Temperature 23 to 125°F / -5 to 51°C
Dimensions 3.72 x 2.64 x 0.65"

Reviews

Product Details

AVPro Edge AC-SC1-AUHD

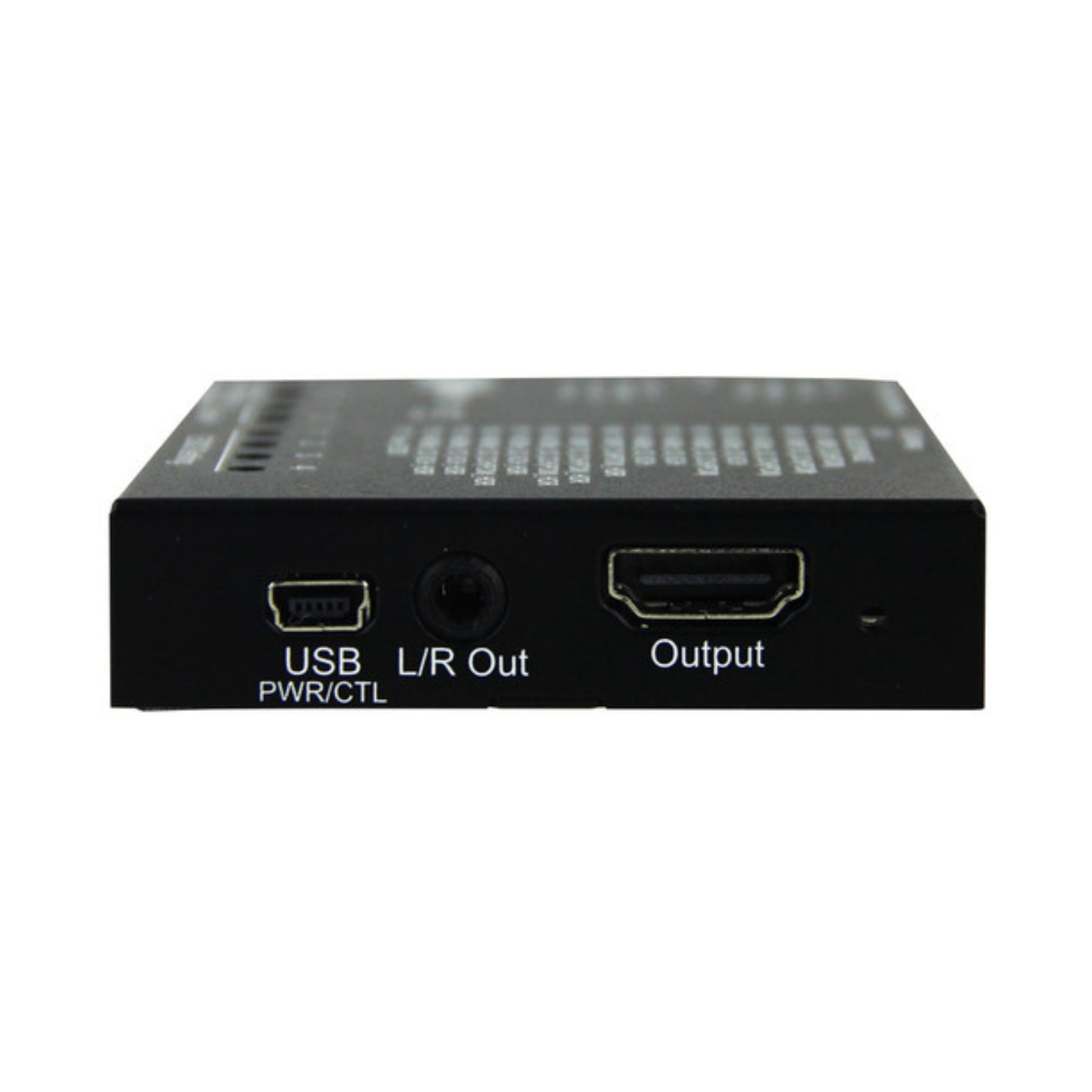

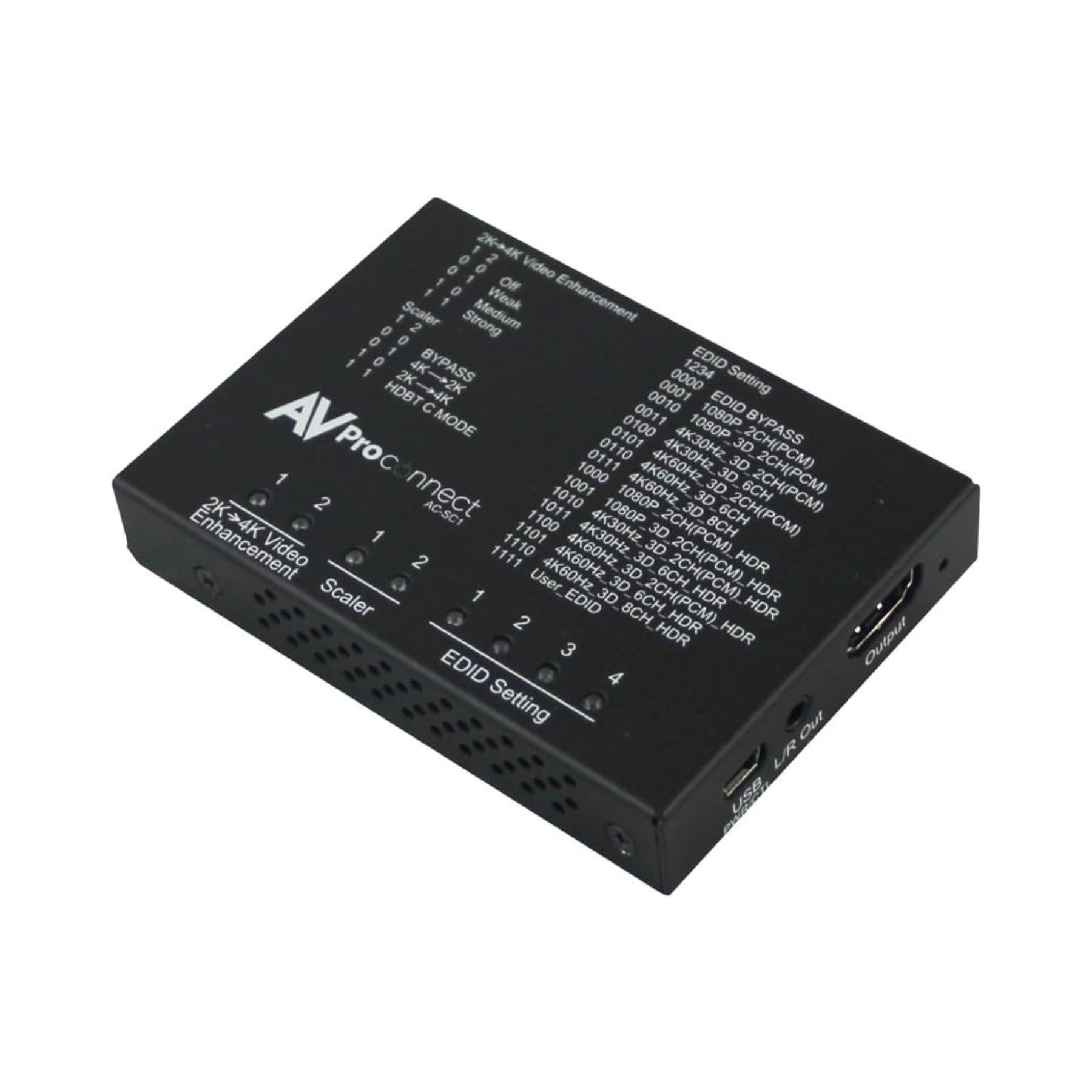

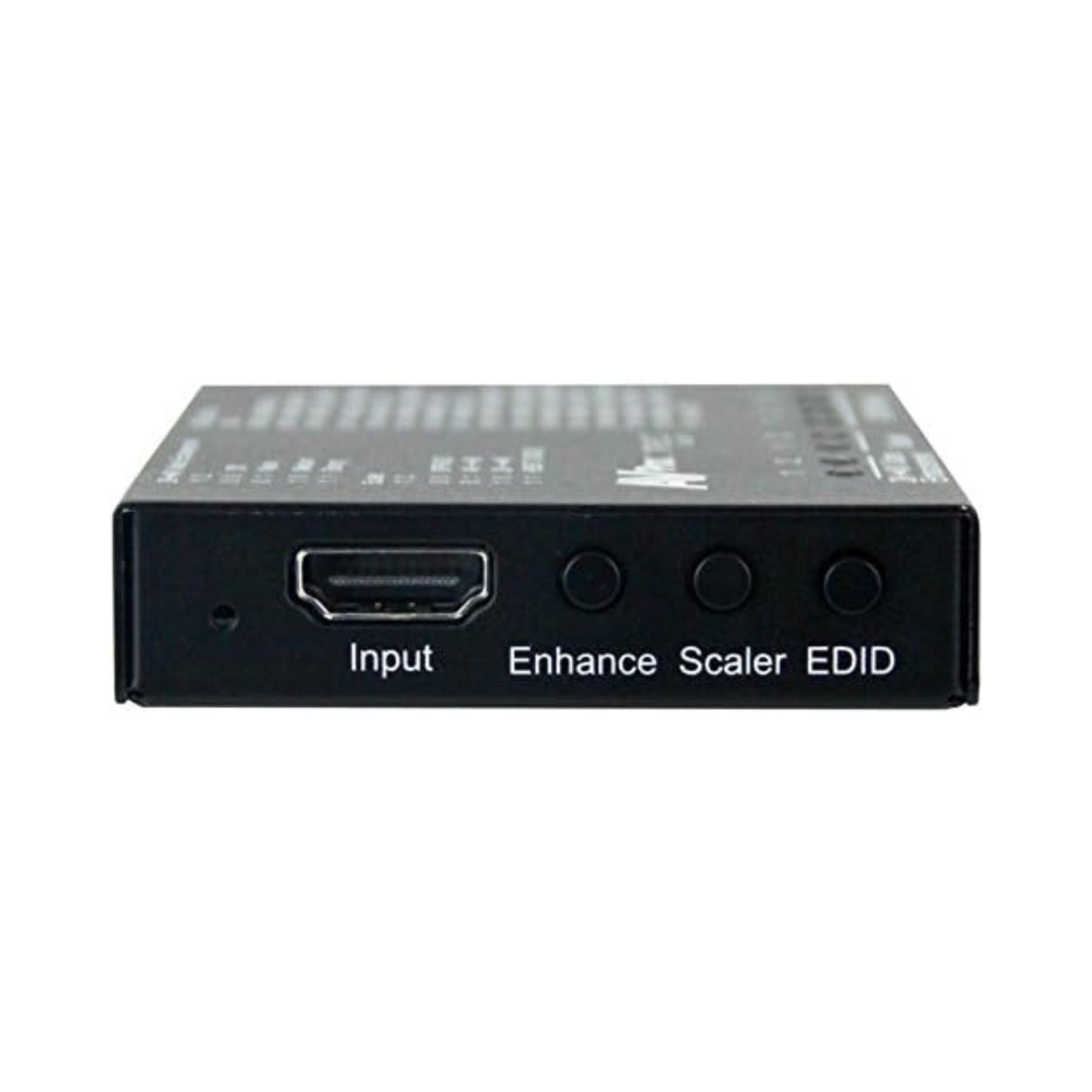

The AC-SC1-AUHD by AVPro Edge is a HDMI 2.0a w/HDR & HDCP 2.2 4K Up/Down Scaler with Audio De-Embedder & Image Enhancer. It is a comprehensive unit combining an 18 Gb/s scaler, EDID manager, audio de-embedder and image enhancer. The unit allows you to upscale 1080p signals to 4K signals and downscale 4K signals to 1080p signals. It is suitable for systems which integrate SD, HD, and UHD displays in a matrix.

The EDID management setting allow you to manage the source devices and set a certain output. This unit includes 16 preset EDID options, and a complete user-customizable option.

The audio de-embedding works with the L/R audio port and is compatible with PCM 2.0 CH, LPCM 5.1 and 7.1, Dolby Digital/Plus, DTS 5.1, Dolby TrueHD, DTS-HD Master Audio, DTS-X, and Dolby Atomos formats.

Features:

  • 18 Gb/s Scaler
  • HDMI 2.0 with HDR & HDCP 2.2 Support
  • 4K / 1080 Upscaling / Downscaling
  • Plug & Play Auto Scaling and EDID
  • 16 EDID settings so you can fix virtually all EDID issues
  • Custom User EDID Options for complete customization
  • L/R Audio De-Embedding
  • Test Pattern Generator
  • Lock Function
  • Simple, 3 button on-device operation
  • Mini USB for firmware and control

AVPro Edge AC-SC1-AUHD - 18 Gb 4K Scaler, EDID Manager, Audio De-Embedder & Image Enhancer - Clearance / Open Box Specifications
