Product Description

Line Circle
The Bowers & Wilkins CCM632 In-Ceiling Speaker boasts a single 75mm (3") full-range driver for exceptional sound quality in limited ceiling space, eliminating coloration issues found in traditional two-way speakers. Its innovative ZipDogs fixing method allows for streamlined installation, while the sealed enclosure minimizes sound bleed into adjoining rooms. Magnetically attached grilles, available in round and square shapes, offer a customizable aesthetic to seamlessly blend into your ceiling design.
Get the Details

Features & Specs Line Circle

DRIVE UNITS
1x Ø75mm (3 in)
paper cone full-range
FREQUENCY RESPONSE
112Hz - 16kHz
RECOMMENDED AMPLIFIER POWER
10W – 60W
SENSITIVITY
84dB (2.83V, 1m)
NOMINAL IMPEDANCE
PRE-MOUNT KIT
PMK C3
DRIVE UNITS
1x Ø75mm (3 in)
paper cone full-range
FREQUENCY RESPONSE
112Hz - 16kHz
RECOMMENDED AMPLIFIER POWER
10W – 60W
SENSITIVITY
84dB (2.83V, 1m)
NOMINAL IMPEDANCE
PRE-MOUNT KIT
PMK C3

Expert Insight

Line Circle

Experience exceptional sound quality without sacrificing limited ceiling space with the Bowers & Wilkins CCM632 In-Ceiling Speaker.

Expert Img
Sarah T
Brand Manager

Details

Line Circle

Deliver immersive sound in limited ceiling space with the Bowers & Wilkins CCM632 In-Ceiling Speaker.

This single driver design incorporates a 75mm (3") full-range driver for exceptional sonic balance, eliminating the coloration issues common with traditional two-way speakers in compact enclosures.

The innovative ZipDogs fixing method ensures streamlined installation and accommodates a variety of mounting panel thicknesses. Each CCM632 speaker comes equipped with a sealed enclosure to minimize sound bleed into adjoining rooms, while the magnetically attached grilles, available in round and square shapes, offer a customizable aesthetic to seamlessly blend into your ceiling design.

Key Features:

  • Single 75mm (3") full-range driver for well-balanced sound
  • ZipDogs fixing method for fast and easy installation
  • Sealed enclosure minimizes acoustic bleed

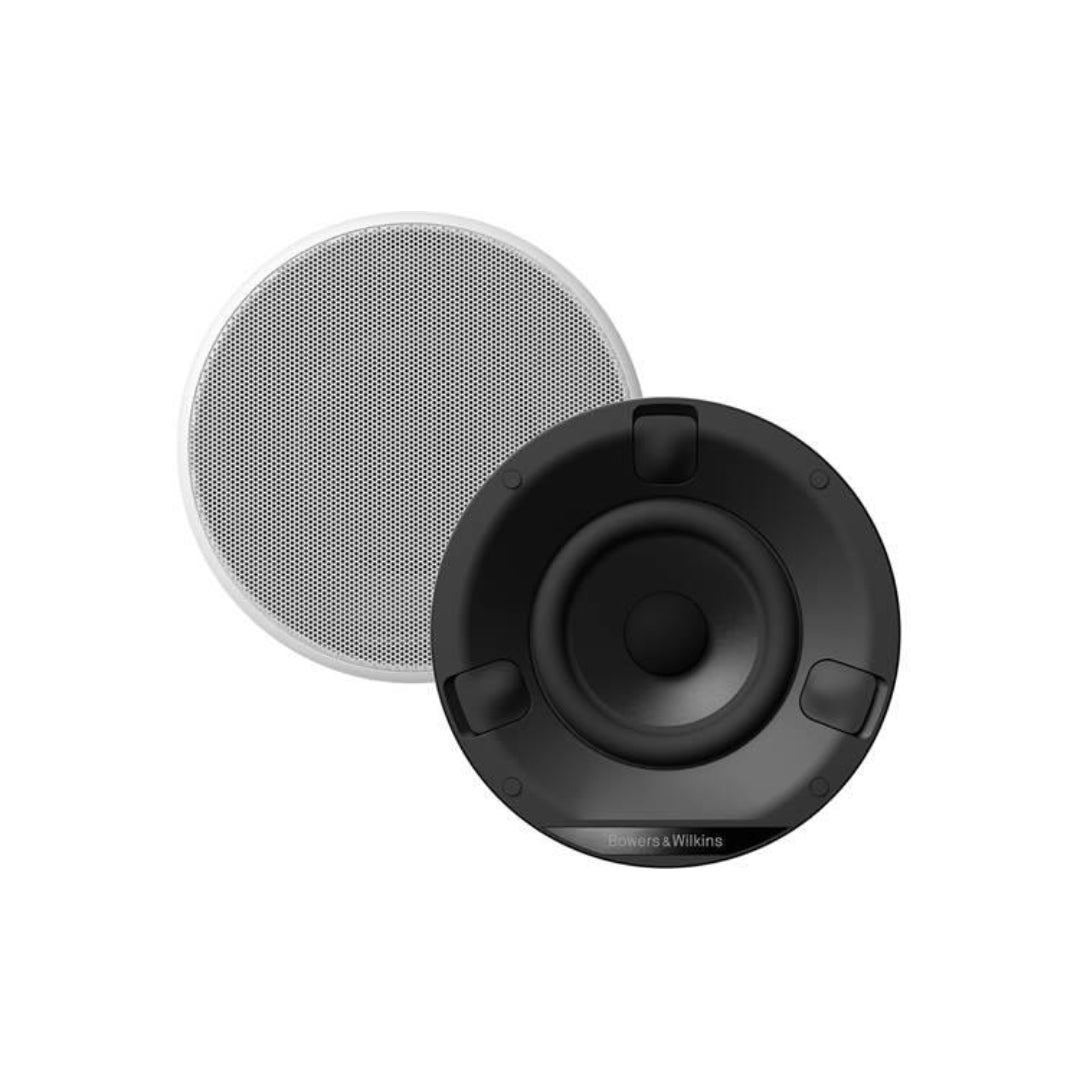

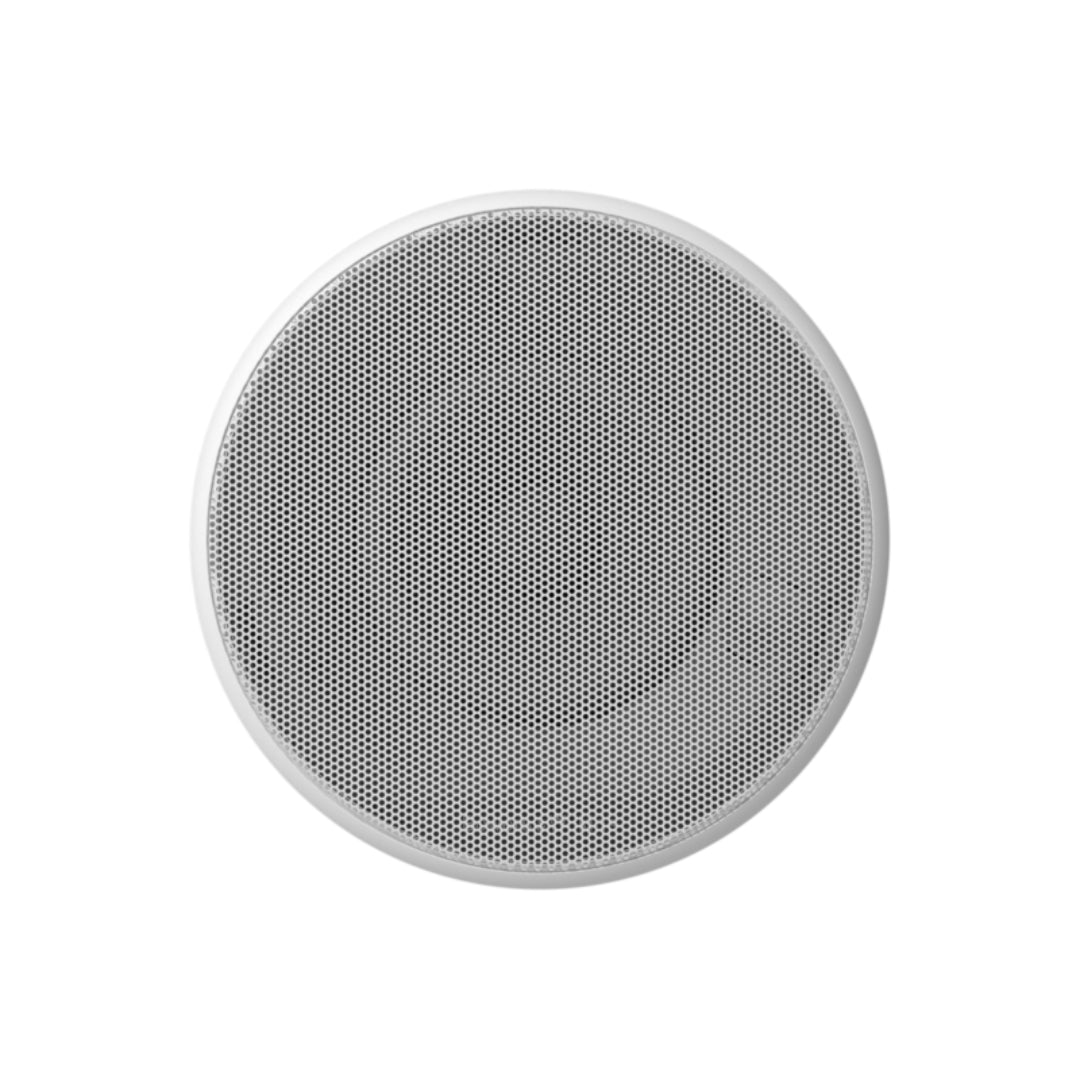

  • Magnetically attached grilles in round and square shapes for design flexibility
  • Sold as a pair

Ideal for applications where space is at a premium, the Bowers & Wilkins CCM632 In-Ceiling Speaker delivers high-fidelity audio without sacrificing valuable real estate.

Bowers & Wilkins CCM632 Specifications

Technical Specifications

  • Description

    • Single driver in-ceiling system
  • Drive Units

    • 1x Ø75mm (3 in) black glass fiber cone, full-range
  • Frequency Range

    • (-6dB): 100Hz – 17kHz
    • Frequency Response (+/-3dB): 112Hz - 16kHz
  • Recommended Amplifier Power

    • 10W – 60W
  • Sensitivity

    • 84dB (2.83V, 1m)
  • Nominal Impedance

    • 8Ω (5Ω minimum)
  • Dimensions

    • Frame Diameter: Ø147mm (5.8 in)
    • Cut-out Diameter: Ø120mm (4¾ in)
    • Depth Behind Surface: 100mm (4 in)
    • Protrusion: 5.5mm (0.22 in)
  • Pre-mount Kit

    • PMK C3
  • Back Box

    • Integral
  • Grille Options

    • Square and round grilles included

B&W CCM632 Manual

B&W CCM632 Info Sheet

B&W CCM632 Drawing
