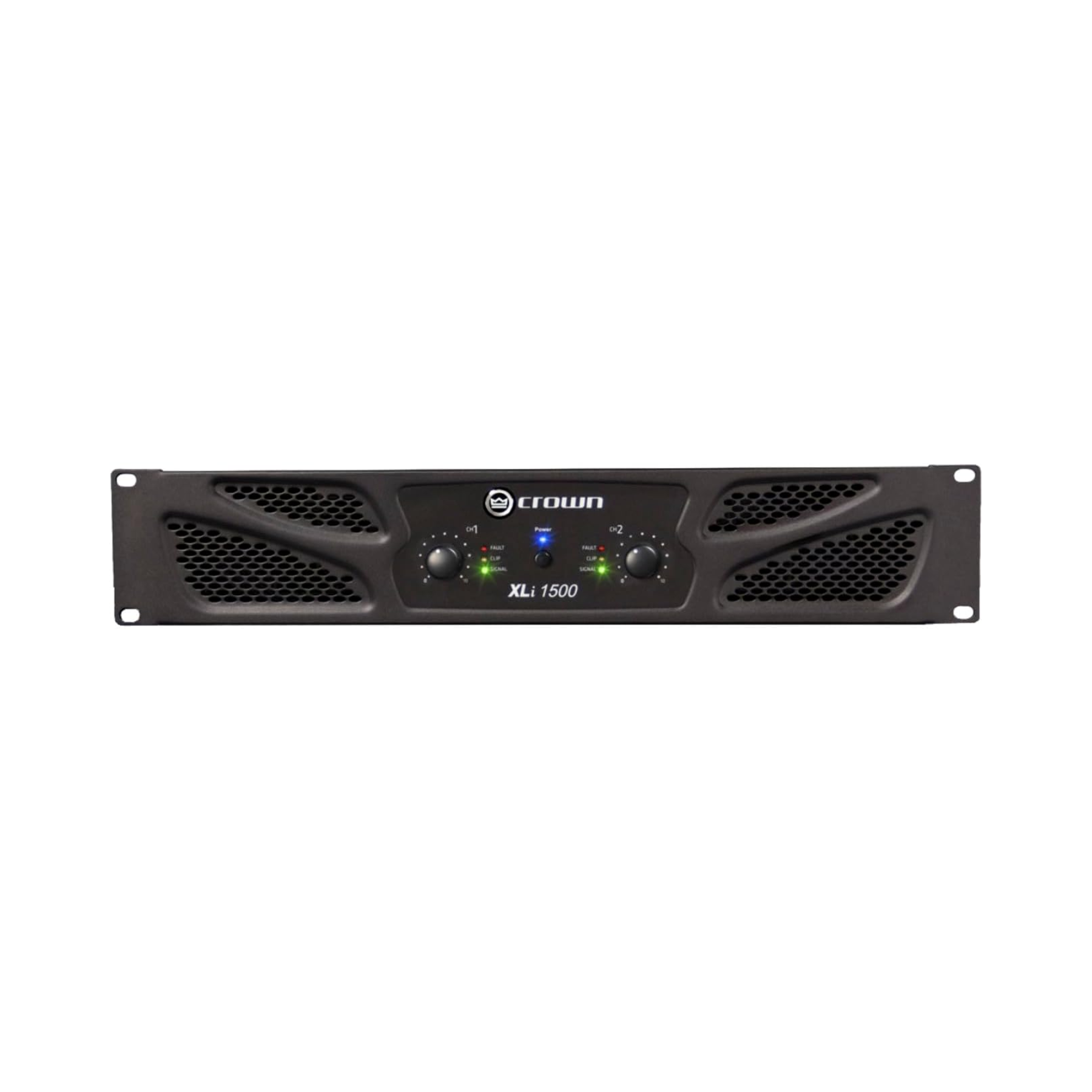

Crown XLi 1500

The XLi Series of power amplifiers from Crown represents a new era in affordable, quality power amplification. All four models in the series are powerful, rugged and reliable. They are suited for musicians, DJs, and entertainers as well as houses of worship, discos, and pubs.

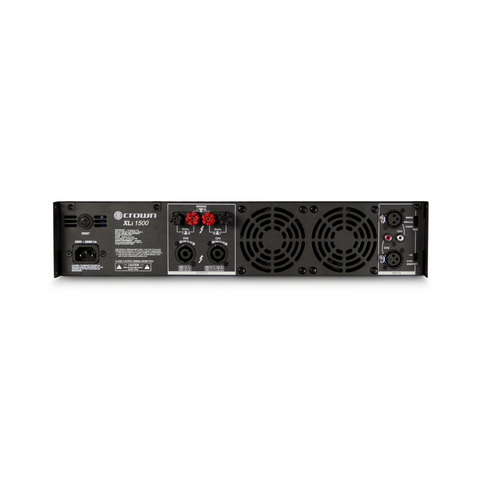

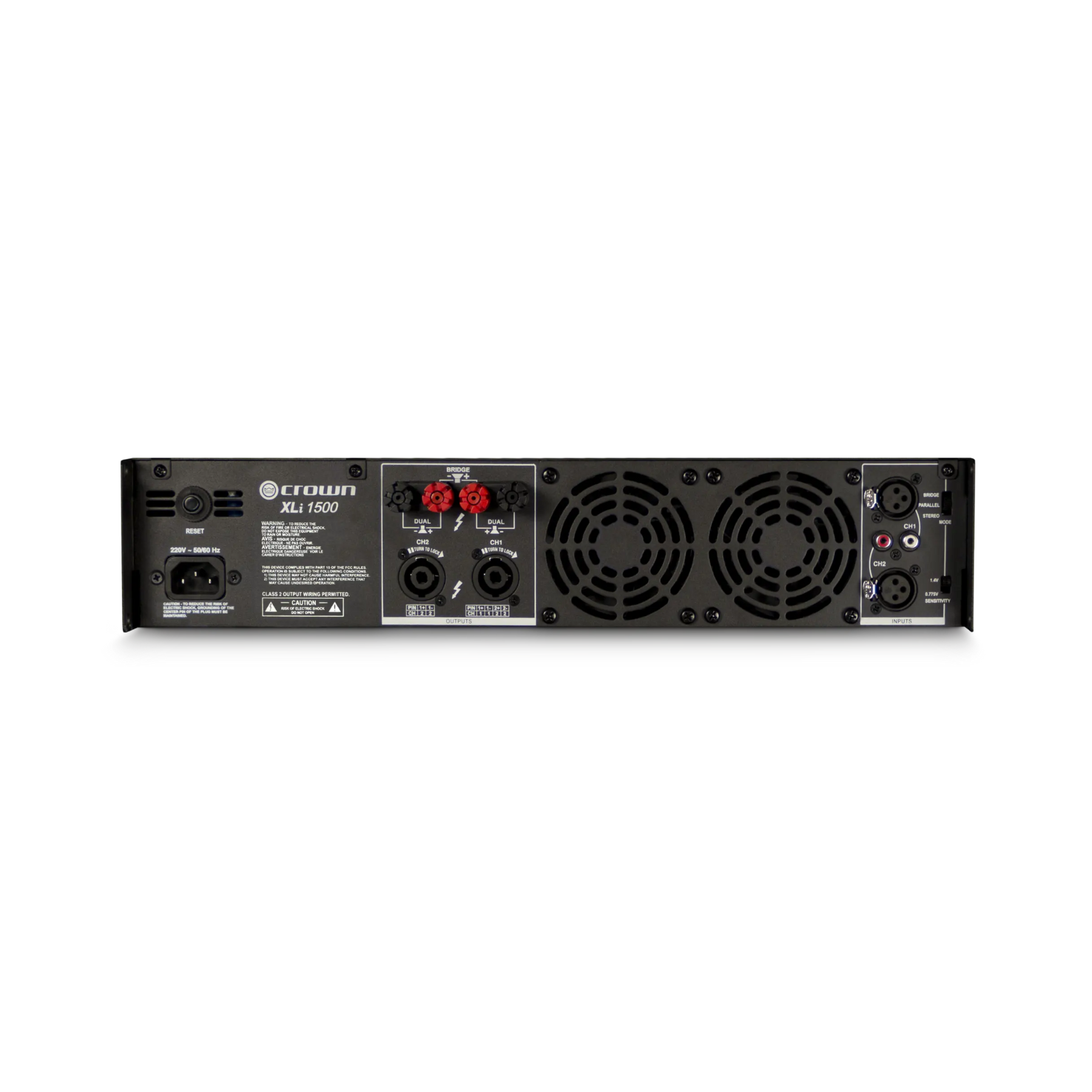

The Crown XLi 1500 Stereo Power Amplifier features both RCA and XLR inputs as well as Speakon and binding post outputs. The amplifier includes a user selectable input sensitivity of 0.755V or 1.4V, stereo/parallel-bridge-mono modes, power/fault/signal presence/clip LED indicators, forced air cooling, and protection against shorts, no-load, on/off thumps, and interference from radio frequencies in the environment.

Specifications

Frequency Response: 20 Hz - 20 kHz, +0/-1 dB (at 1 watt)

THD: <0.5%, 20 Hz - 20 kHz

Intermodulation Distortion: =/ <0.35% (60 Hz and 7 kHz at 4:1 from full rated ouput to -30 dB)

Slew Rate: >10V/us

Voltage Gain: 31 dB

Damping Factor: (8 ohms, 10 Hz to 400 Hz) >200

Signal To Noise Ratio (A-weighted): >100 dB

Crosstalk (below rated power) 20 Hz to 1 kHz: -75 dB, -59 dB

Input Sensitivity: (for full rated power at 8 ohms) 0.775V or 1.4V

Input Impedance (nominal balanced, unbalanced): 20kΩ, 10kΩ

AC Line Voltage and Frequency Configurations Available: (+10%) 120V~60 Hz; 220V~50/60 Hz; 230-240V~50/60 Hz

Dimensions: 19" x 3.5" x 12.4" (48.3cm x 8.9cm x 31.5cm)

Weight: 28lbs (12.7kg)

IEC Power Connector: 15A
