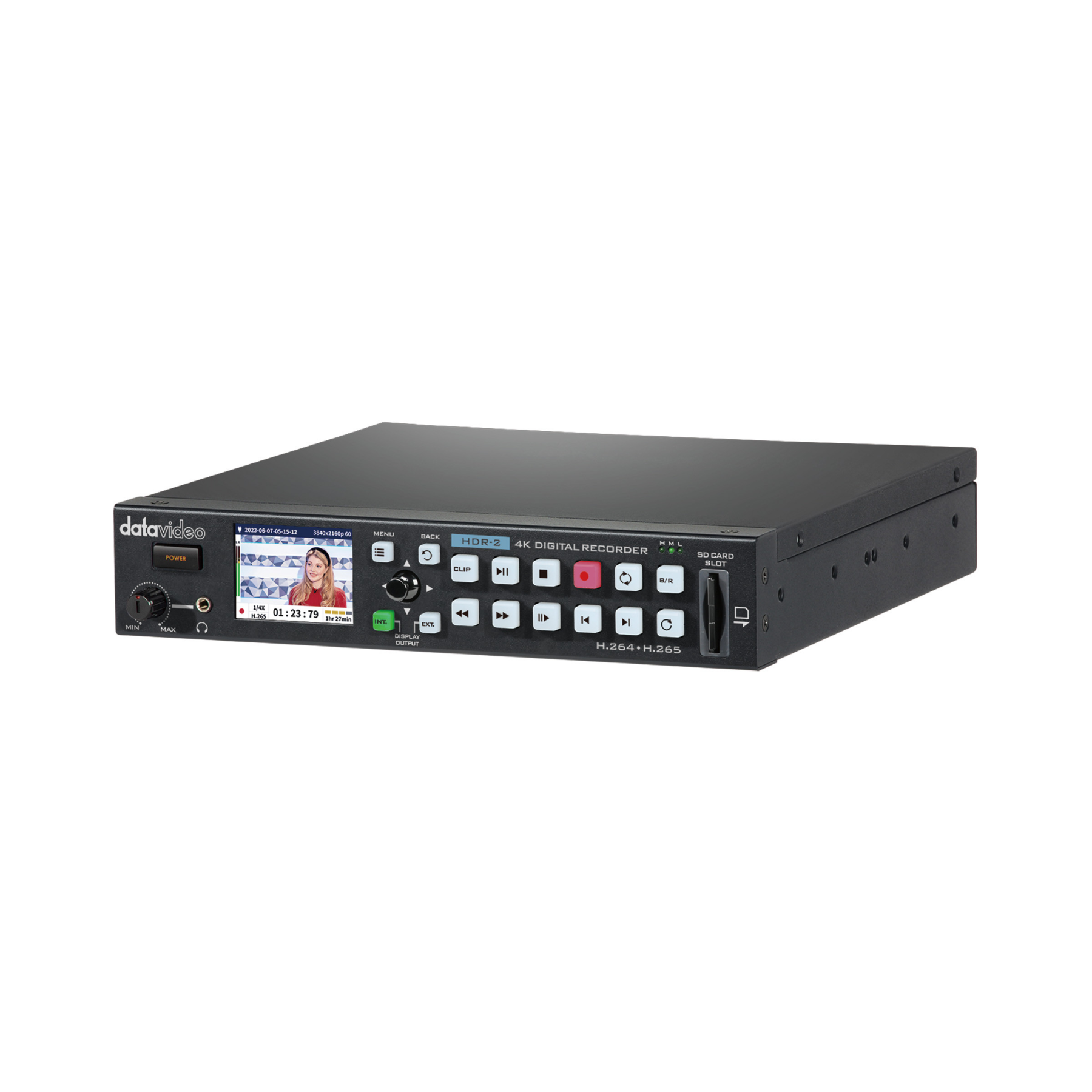

4K Recorder - HDR-2

HDR-2 is a 4K50/60P SD card recorder with H.265/ H.264 encoding capabilities, allowing users to set different video formats and bitrates according to various application scenarios.

It enables the recording and playback of 4K videos without a computer, making it convenient for using as a recording device in on a live production site.

• Supports UHD 4K (3840 x 2160) resolution
• HDMI 2.0 input, output, and loop-through output
• 2" LCD for monitoring
• Supports H.265/H.264 and SD card recording
• Can be powered by a mobile power supply via USB interface
• Supports DVIP, RS-422/RS-232, and GPI remote control

UHD 4K Resolution (3840 x 2160)

Immerse your audience in breathtaking clarity with HDR-2's support for ultra-high-definition 4K resolution, ensuring every detail is captured with stunning realism and precision.

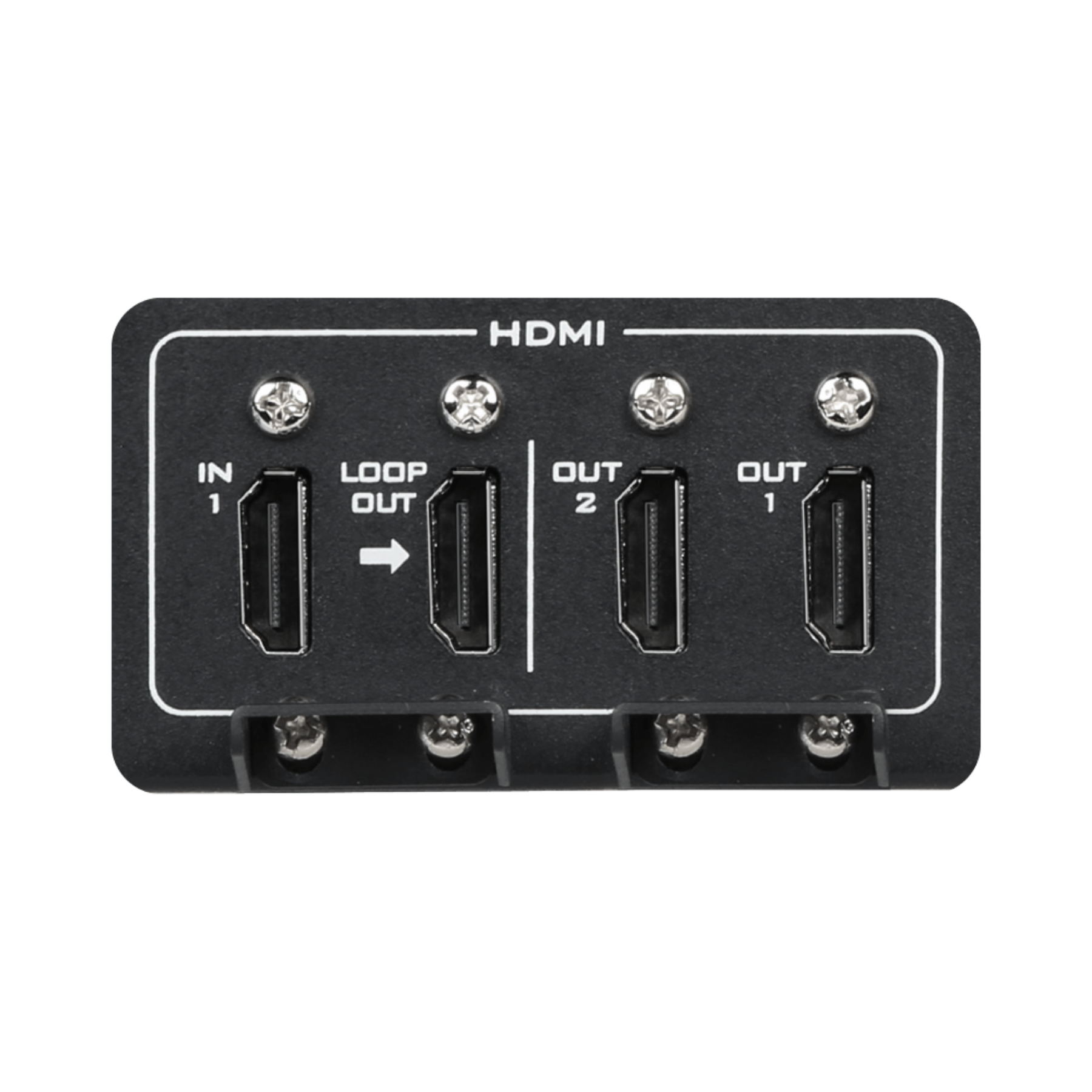

HDMI 2.0 Connectivity

Seamlessly integrate your equipment with HDR-2's HDMI 2.0 input, output, and loop-through features, ensuring compatibility with a wide range of devices for fluid video transfer and monitoring.

2" LCD Monitor

Stay in control of your production with the built-in 2" LCD screen, offering real-time visual feedback and vital information at your fingertips, enhancing your recording precision.

Advanced Encoding Capabilities (H.265/H.264)

Elevate your video quality and efficiency with H.265 and H.264 encoding, enabling you to capture stunning visuals while optimizing storage space for extended recording sessions.

Convenient SD Card Recording

Free yourself from the constraints of a computer setup with the HDR-2's autonomous SD card recording, allowing you to effortlessly capture 4K content on the go, whether on location or during live events.

Mobile Power Supply Compatibility

Harness the flexibility of the HDR-2 by powering it through a mobile power supply via the USB interface, granting you mobility and freedom to record virtually anywhere without compromise.

Versatile Remote Control Options (DVIP, RS-422/RS-232, GPI)

Take command of your recording experience with a variety of remote control options, including DVIP, RS-422/RS-232, and GPI, ensuring precision and ease of use during demanding productions.

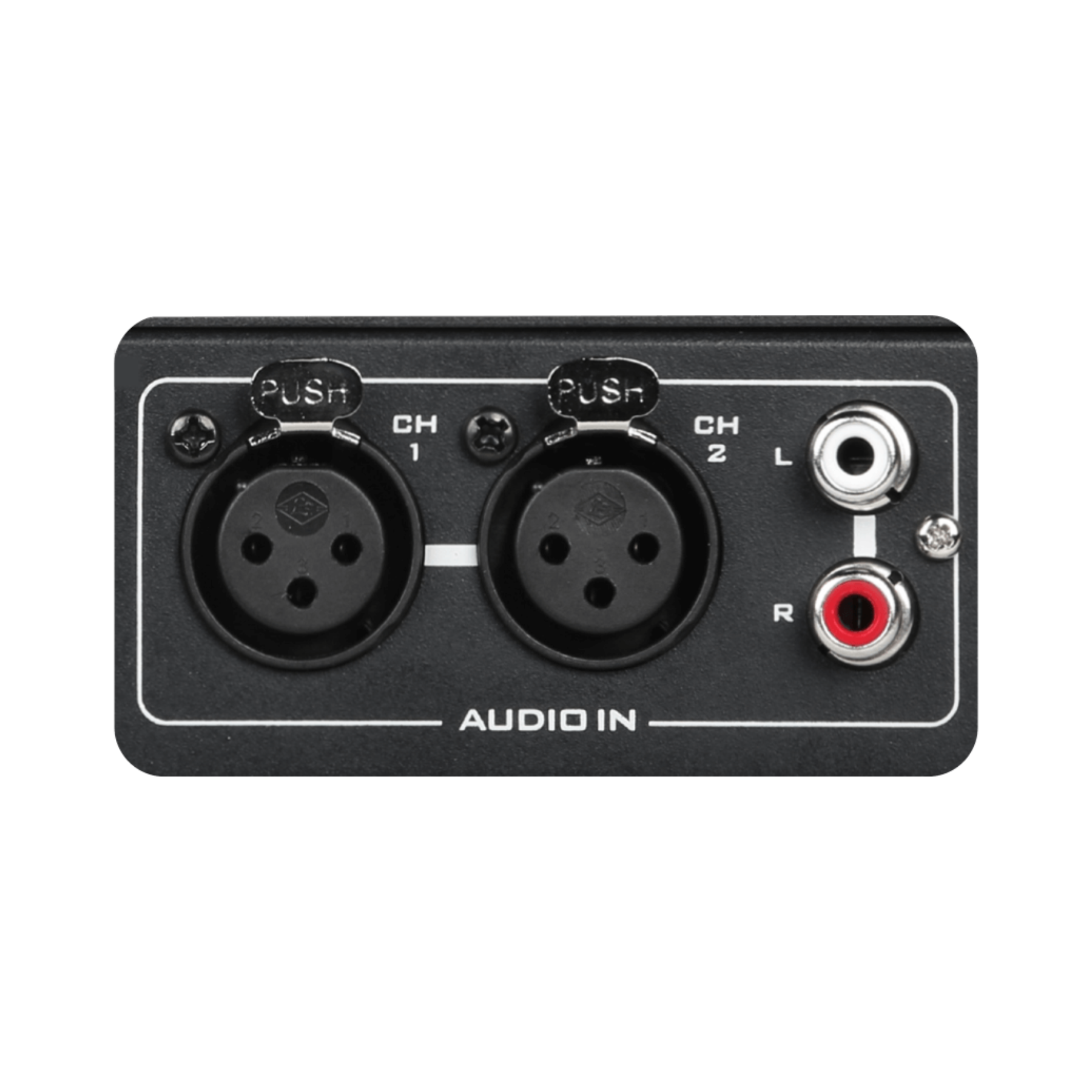

Audio Source Flexibility

Craft an immersive audio experience by selecting your preferred audio source, whether it's embedded HDMI audio, XLR microphones, RCA external audio, or a seamless blend of all sound sources, giving you complete control over the auditory dimension of your content.

SPECIFICATIONS

• Model Number: HDR-2
• Video Standard: 4K & HD
• Video Format:
  • 3840x2160p: 60/59.94/50 (H.265 Only)
  • 3840x2160p: 30/29.97/25/24/23.98
  • 1080p: 60/59.94/50/30/29.97/25/24/23.98
  • 720p: 60/59.94/50
• Supported Video Input Signal: 1 x HDMI 2.0 Type A
• Video Output:
  • 2 x HDMI 2.0 Type A
  • 1 x HDMI 2.0 Type A Loop out
• Analog Audio Input:
  • 2 x 3 Pin XLR Socket
  • 1 x Stereo RCA set (L/R)
• Analog Audio Output: 3.5mm earphone jack
• Embedded Audio:
  • De-embedded Digital Audio (2 CH) Input
  • Embedded Digital Audio (2 CH) Output
• Storage Medium:
  • SD Card Slot x 1
  • Supports SD, SDHC and SDXC card (UHS-I) (U3 above)
  • Max.: 128GB
• Multi-channel Recording: 1-CH HDMI 4K & HD
• Estimated Record Time (min per 10GB):
  • HD 32GB: 56Hr (1Mbps)~ 7Hr (8Mbps)
  • FHD 32GB: 28Hr (2Mbps)~ 3.5Hr (16Mbps)
  • UHD 32GB: 7Hr (8Mbps)~ 1.7Hr (32Mbps)
• Recording Media: 1 x SD Card
• Storage File System: exFAT
• Recorded File Format: MP4(H.265+ AAC) or (H.264+ AAC)
• Video Recording Bit Rate / Color Sampling:
  • YUV 4:2:0 / 8bit
  • bitrate:1Mbps~50Mbps
• Audio Recording Format:
  • AAC 2CH,
  • 16bit 48KHz 192Kbps
• Encode Supported:
  • H.264: MAX RES: 4K@30 420 8bit codec
  • H.265: MAX RES: 4K@60 420 8bit codec
• Video Bitrate: H.265: 50Mbps / H.264: 50Mbps
• Preview Display: 2” LCD (MENU)
• External Control:
  • DVIP, RS-422/ RS-232
  • GPI Input: 3.5Ø phone jack (Pulse trigger: Record Start/Stop)
  • Front Key Buttons
• Power Failure Protection: Redundant USB power supply (not included)
• Chassis: 1RU, Half-rack Width
• Dimension (LxWxH): 220 x 237 x 47 mm
• Weight: 1.4 kg
• Operating Temp. Range: 0~40 °C
• Power: DC 12V, 2A
• What's in the Box:
  • 1 x HDR-2 product
  • 1 x AD Switch DC 12V
