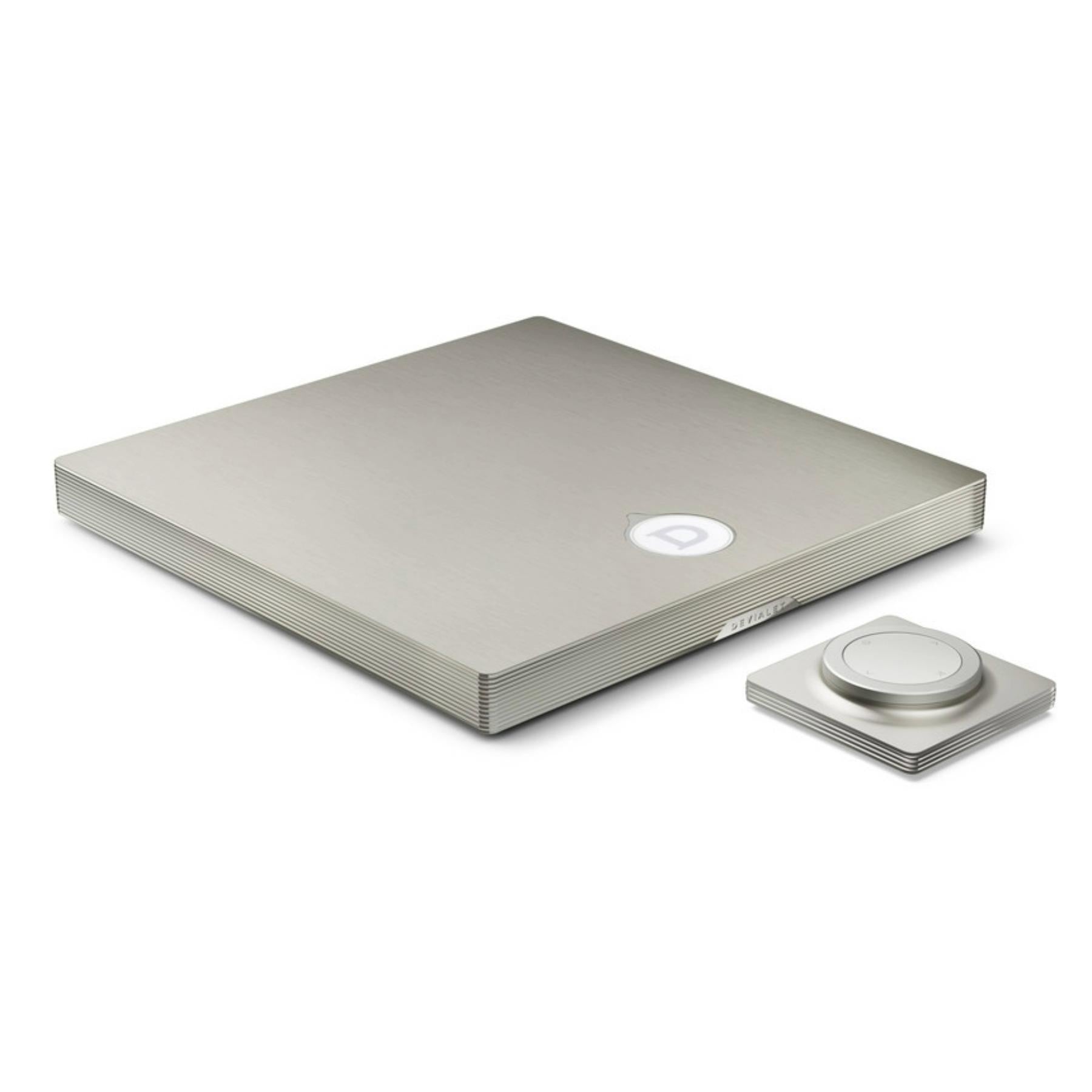

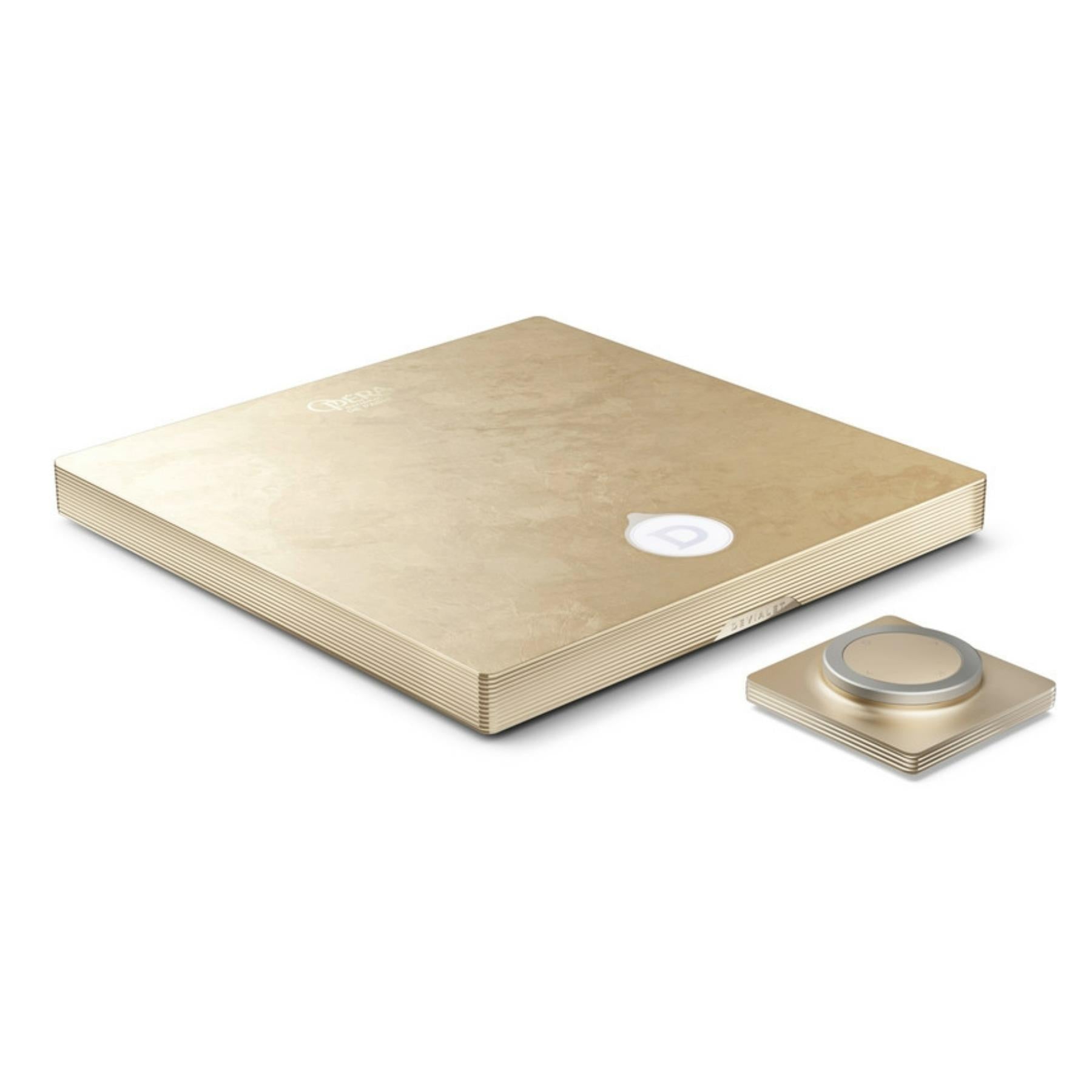

Devialet Astra Integrated Amplifier

Experience elite French audio engineering with the Devialet Astra, a luxury all-in-one integrated amplifier designed for uncompromising performance, refined craftsmanship, and modern high-resolution streaming. Combining a preamplifier, amplifier, DAC, streamer, and advanced MM/MC phono stage in one ultra-compact aluminum chassis, the Devialet Astra delivers powerful 2x300 Wrms output under 4 ohms, pristine clarity, ultra-low distortion, and flexible connectivity for audiophile music systems.

Specifications

• Brand: Devialet
• Model: Devialet Astra
• Product Type: All-in-one integrated amplifier, preamplifier, DAC, streamer, phono stage
• Range: Stereo
• Output Power: 2x300 Wrms under 4 ohms, 2x150 Wrms under 8 ohms
• Peak Power: 1000 W peak for 1 ms
• Core Functions: Preamplifier, amplifier, DAC, streamer, phono stage
• Exclusive Technologies: ADH next-gen, SAM, RAM, DAC Magic Wire
• DSP: 192kHz / 32-bit audio processing
• Digital Inputs Support: Up to 192kHz / 24-bit
• Network Input Support: Up to 192kHz / 24-bit
• USB Input Support: Up to 384kHz / 24-bit
• Streaming Services: AirPlay, Google Cast, Spotify Connect, TIDAL Connect, UPnP, Roon Ready RAAT, Qobuz Connect
• Daisy Chaining: Up to 8 devices
• Phono Stage: Advanced MM / MC phono stage
• Phono Equalization: 13 equalization curves
• Cartridge Loading: Extensive cartridge loading possibilities
• Pre-Amplified Output: Yes, mono / stereo
• Bluetooth: Bluetooth 5.3
• Bluetooth Codecs: AAC and SBC
• Wi-Fi: WiFi 6, b/g/n/ac/ax, 2x2 WPA3

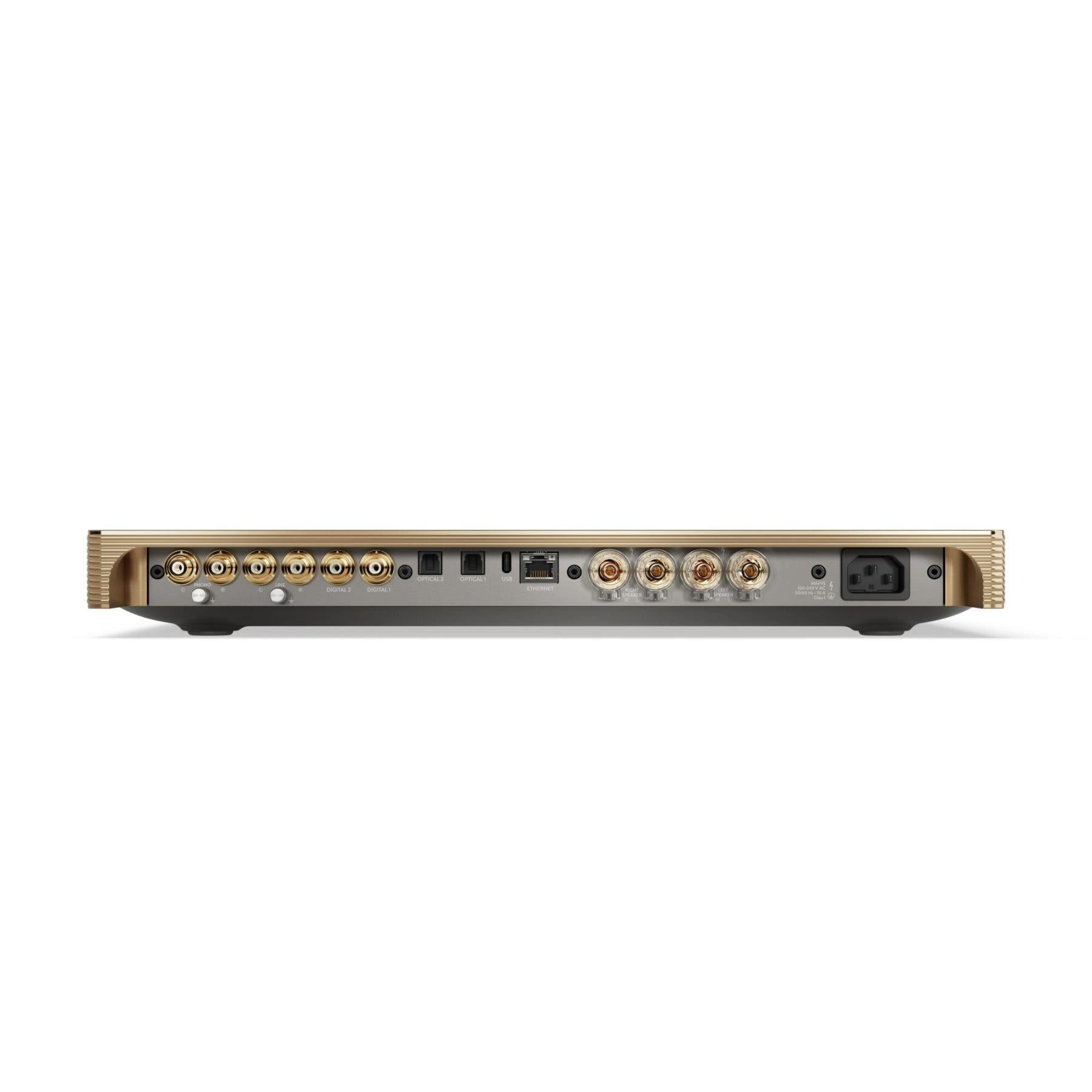

• Ethernet: RJ45 Ethernet 100/1000 Mbps
• USB: USB-C 2.0 data port
• Digital Coaxial Inputs: Up to 4x RCA 75 ohms
• Digital Optical Inputs: 2x TOSLINK
• Analog Inputs: Up to 2x RCA stereo
• Speaker Output: Compatible with 4mm banana plugs, spade connectors, or stripped cables
• Speaker Compatibility: Compatible with speakers from 8 ohms to 2 ohms
• Speaker Protection: Short-circuit protection
• Active Filtering: Available
• Distortion at 10V: 0.001% at 10 Wrms, 4 ohms, 1kHz; 0.0006% at 100 Wrms, 4 ohms, 1kHz
• Signal-to-Noise Ratio: -117dB
• Output Impedance: 0.004 ohms at 1kHz
• Damping Factor: 2000 at 1kHz
• Bandwidth: +/-0.1dB from DC to 20kHz; +/-2.3dB from DC to 80kHz; DC to 56.9kHz +/-1dB; DC to 88kHz +/-3dB
• Crosstalk: -100dB at 300 Wrms, 4 ohms, 1kHz
• Power Supply: 100-240Vac, 50/60Hz
• Maximum Continuous Power: 750 W
• Power Cable: Supplied and adapted to country
• Casing: Machined from a single aluminum block
• Casing Finish: Anodized, laser-engraved, brushed, and shot-peened
• Dimensions: 386 mm wide x 386 mm deep x 47 mm high
• Weight: 7.2 kg

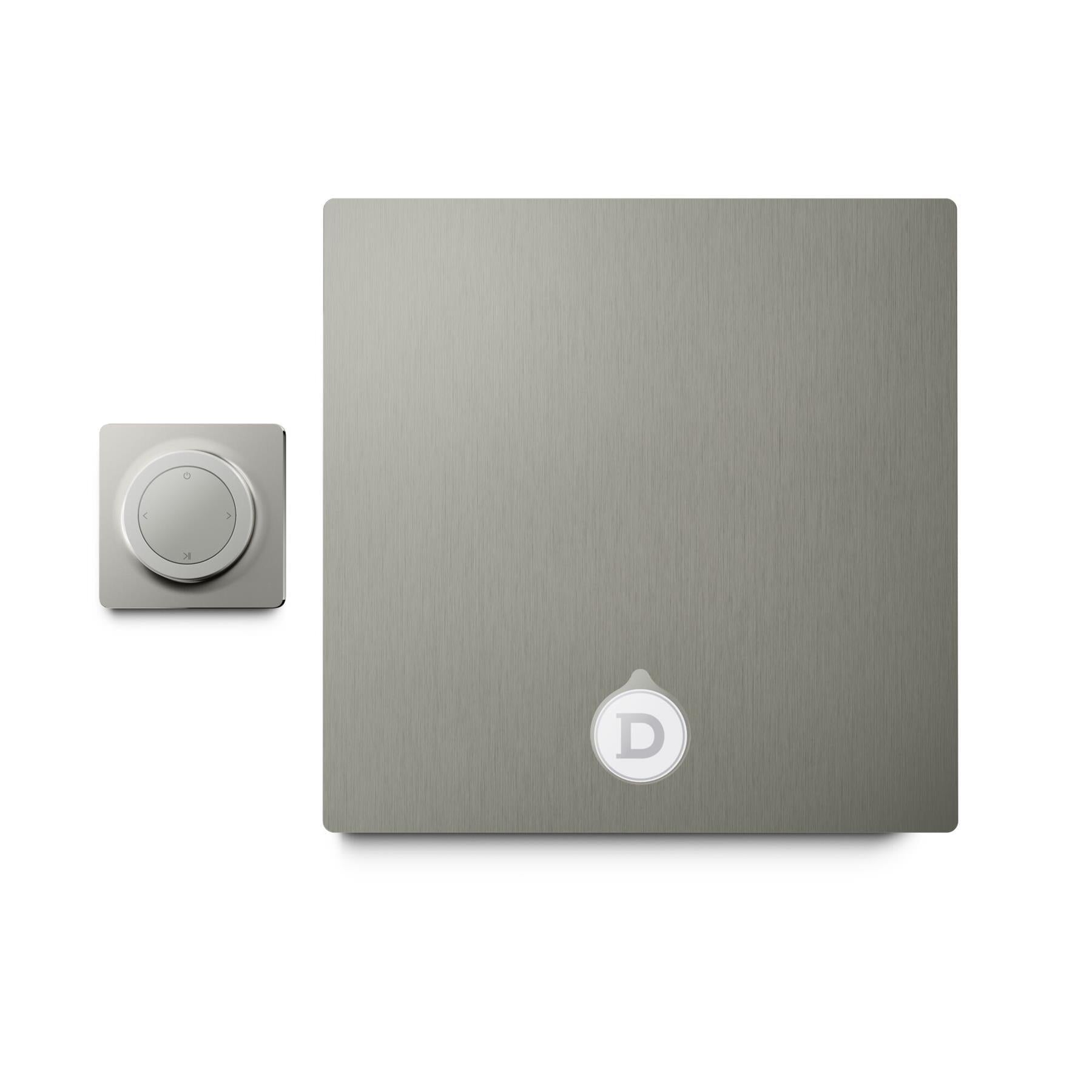

• Remote: Battery-powered redesigned remote with built-in screen
• Remote Charging: USB-C
• Volume Control: Central knob with 1 dB increments
• Manufacturing: Made in France
• Warranty: 5-year warranty

What It's Great At

• Delivering powerful, ultra-clear audiophile sound from a compact all-in-one amplifier system.
• Combining a preamp, power amplifier, DAC, streamer, and phono stage into one elegant component.
• Streaming high-resolution music through AirPlay, Google Cast, Spotify Connect, TIDAL Connect, Roon Ready RAAT, UPnP, and Qobuz Connect.
• Supporting vinyl playback with an advanced MM/MC phono stage, 13 equalization curves, and extensive cartridge loading options.
• Driving demanding speakers with 2x300 Wrms under 4 ohms and compatibility from 8 ohms to 2 ohms.
• Scaling into larger systems with Dual configuration and daisy chaining for up to 8 Devialet Astra units.

Expanded Key Features List

• All-in-One Audiophile Design: Integrates a preamplifier, amplifier, DAC, streamer, and advanced phono stage in one ultra-compact unit to simplify premium HiFi system building.
• Powerful Stereo Amplification: Delivers 2x300 Wrms under 4 ohms and 2x150 Wrms under 8 ohms for confident control of demanding loudspeakers.
• Devialet Exclusive Technologies: Uses ADH next-gen, SAM, RAM, and DAC Magic Wire technologies to achieve precise amplification, speaker optimization, and clean signal conversion.
• High-Resolution Streaming: Supports AirPlay, Google Cast, Spotify Connect, TIDAL Connect, UPnP, Roon Ready RAAT, and Qobuz Connect for flexible modern music playback.
• Advanced Vinyl Playback: Includes an MM/MC phono stage with 13 equalization curves and extensive cartridge loading possibilities for refined turntable integration.
• Extensive Connectivity: Offers WiFi 6, Ethernet, USB-C, up to 4 coaxial RCA inputs, 2 TOSLINK optical inputs, up to 2 RCA stereo analog inputs, Bluetooth 5.3, and speaker outputs.
• Precision Remote Control: Includes a redesigned battery-powered remote with a built-in screen, USB-C charging, and precise 1 dB volume adjustment.
• Scalable System Architecture: Allows Dual configuration and daisy chaining of up to 8 Devialet Astra units for expanded performance and larger audio installations.
• Premium Aluminum Chassis: Uses a casing machined from a single aluminum block with anodized, laser-engraved, brushed, and shot-peened finishing for durability and elegance.

FAQ Section

Q: What is the Devialet Astra?
A: It is a luxury all-in-one integrated amplifier that combines a preamp, amplifier, DAC, streamer, and phono stage in one compact high-performance system.

Q: How much power does the Devialet Astra deliver?
A: It delivers 2x300 Wrms under 4 ohms and 2x150 Wrms under 8 ohms, with up to 1000 W peak power for 1 ms.

Q: Does the Devialet Astra support music streaming?
A: Yes, it supports AirPlay, Google Cast, Spotify Connect, TIDAL Connect, UPnP, Roon Ready RAAT, and Qobuz Connect.

Q: Can I connect a turntable?
A: Yes, it includes an advanced MM/MC phono stage with 13 equalization curves and extensive cartridge loading possibilities for vinyl playback.

Q: What speakers are compatible with Devialet Astra?
A: It is compatible with speakers from 8 ohms to 2 ohms and supports banana plugs, spade connectors, or stripped speaker cables.

Q: Can I expand the system later?
A: Yes, Devialet Astra can be used in Dual configuration and daisy chained with up to 8 devices for expanded performance.

Q: Does the Devialet Astra include wireless connectivity?
A: Yes, it includes WiFi 6, Bluetooth 5.3, and Ethernet for flexible wireless and wired network playback.

Q: Where is the Devialet Astra made?
A: The Devialet Astra is made in France and backed by a 5-year warranty.

Devialet Astra Dual Downloads:

Devialet Astra Dual Quick Start Guide
