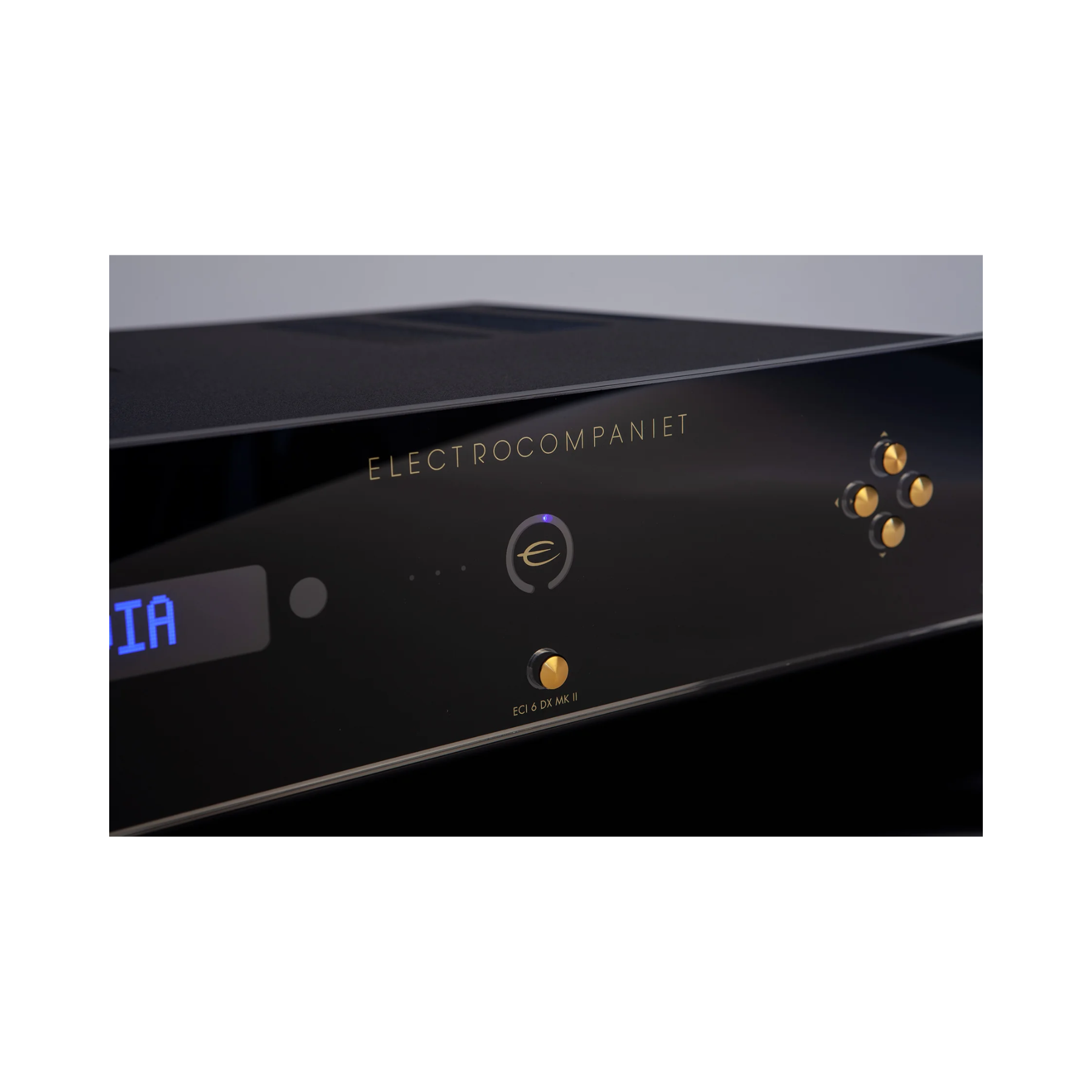

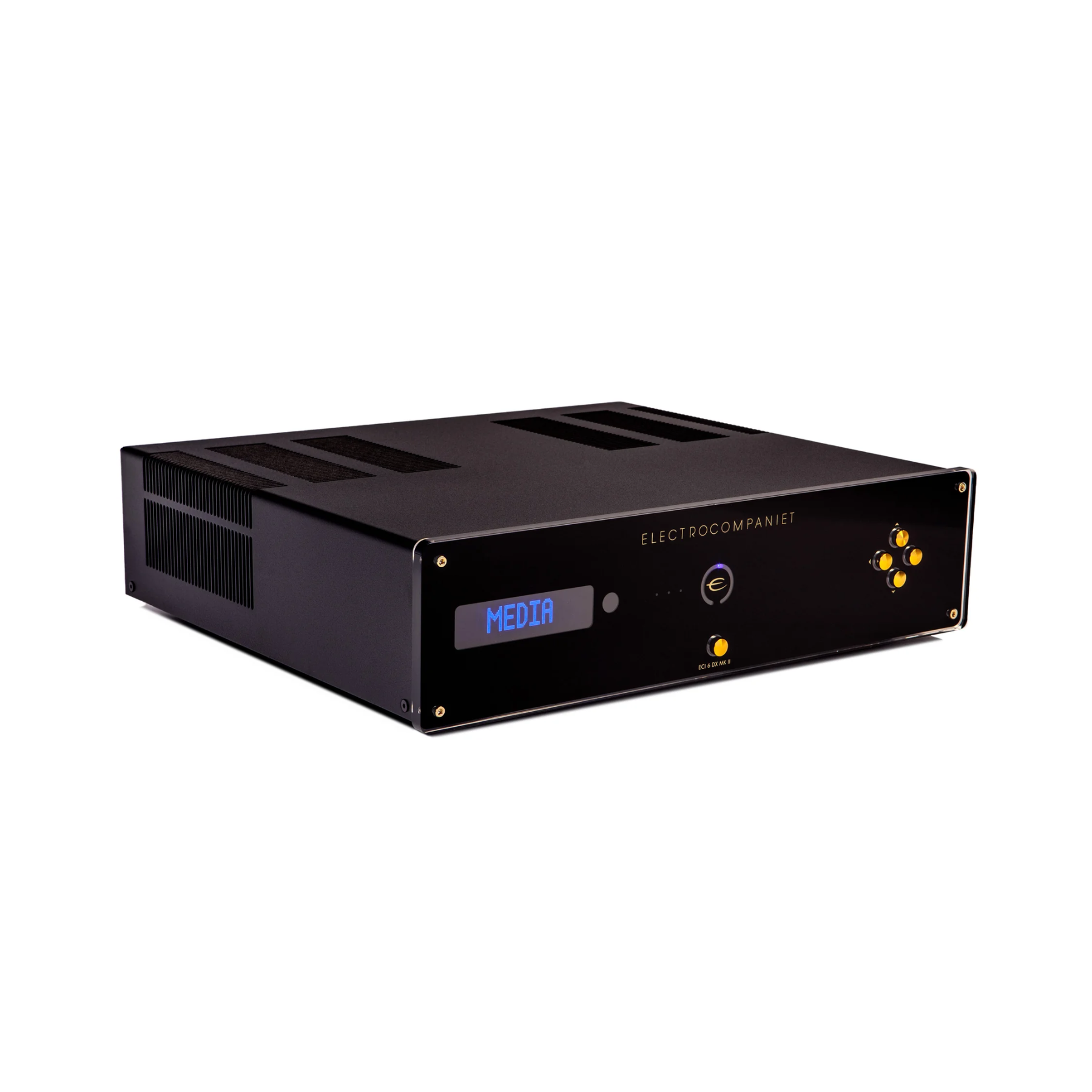

Electrocompaniet ECI 6DX MKII Integrated Amplifier With DAC & Steamer

The new ECI 6 DX MKII combines a best-in-class feature set with cutting-edge audio technology and true Electrocompaniet sound. This single unit can play any audio source, making music sound exactly as it was meant to be heard.

Roon Ready

With Roon, you’ll rediscover old favorites and find new music tailored to your tastes.

Tidal Connect

TIDAL Connect allows seamless streaming of your favorite music directly from the cloud to connected devices, delivering uninterrupted, lossless quality.

Bluetooth-Enabled

The ECI 6 DX MKII now includes Bluetooth support, enabling streaming from any phone or tablet.

Improved EC Software Engine Streamer

Featuring an extremely powerful built-in streamer, it can directly play from services like Tidal, Qobuz, and Spotify, and index your own music collection stored on your network.

Improved Construction

The ECI 6 DX MKII features design upgrades from the MKII series, including a new front plate design and a more rigid chassis.

EC Play App Control: Operate the ECI 6 DX MKII through an intuitive app on iOS or Android, a universal web interface, or a straightforward IR remote.

Review & Awards

The ECI 6 DX MKII has received accolades, including the "Excellent Award 2022" and a Highly Recommended Award in Scandinavia. Reviewers praise its power delivery, low noise, and ability to handle various speaker loads, making it a state-of-the-art amplifier in every respect.

Specs

• All measurements are made at 120V / 240V // 50Hz / 60Hz
• Digital section
  • D/A converter: 24 bit/192 kHz
  • Sample rate converter: 24 bit / 192 kHz
  • Inputs: SPDIF, 2x Toslink, 1x USB
  • USB: asynchronous up to 24 bit / 192 kHz supported
  • SPDIF: 24 bit / 192 kHz
  • Toslink: 24 bit / 96 kHz
• Streamer section
  • Advanced 802.11 AC WiFi with MIMO
  • 1x Gigabit Ethernet (1000 Mbps)
  • 1x USB for external storage
  • iOS, Android, and web app
• Streaming services
  • AirPlay 2®
  • Spotify® Connect
  • Qobuz®
  • Plays with Audirvāna
  • TIDAL® Connect
  • Roon Ready
  • DLNA
  • Internet Radio
  • Bluetooth streaming from any Bluetooth-enabled device
• Supported formats
  • All popular formats including: WAV/WAVE, MP3, AAC+, Vorbis, ALAC, FLAC, APE, WMA, up to 192 kHz / 24 bit, DSD, up to DSD 128 (5.6 MHz)
• Preamplifier section
  • Input impedance (Balanced input): 47 kΩ
  • Maximum input level: 10 Volt RMS
  • Noise floor (1 Vrms, 20 - 20 kHz, balanced): -135 dB
  • THD + N (1 Vrms, 20 - 20 kHz, balanced): < 0.004%
  • Gain (Balanced): 0 dB
• Amplifier section
  • Output impedance: < 0.02 Ω
  • Frequency response: 1 – 150 kHz
  • Channel separation: > 120 dB
  • THD (20 - 20 kHz): < 0.004%
  • Maximum peak current: > 100 A
  • Damping factor (8 ohm load): > 350
  • Input sensitivity (120W output): 1.3 Vrms
  • Input sensitivity (HT 120W output): 1 Vrms
  • Gain HT Input: x36 (31 dB)
  • Rated output power:
    • 8 ohms: 2 x 125 W
    • 4 ohms: 2 x 200 W
    • 2 ohms: 2 x 370 W
  • Power consumption: 110 W
  • Standby (no load or signal): 1 W
• Weight & dimensions
  • Weight: 20.5 kg / 45 lbs
  • Width: 470 mm / 18.3 inches
  • Depth: 430 mm / 16.9 inches
  • Height: 128 mm / 5 inches
