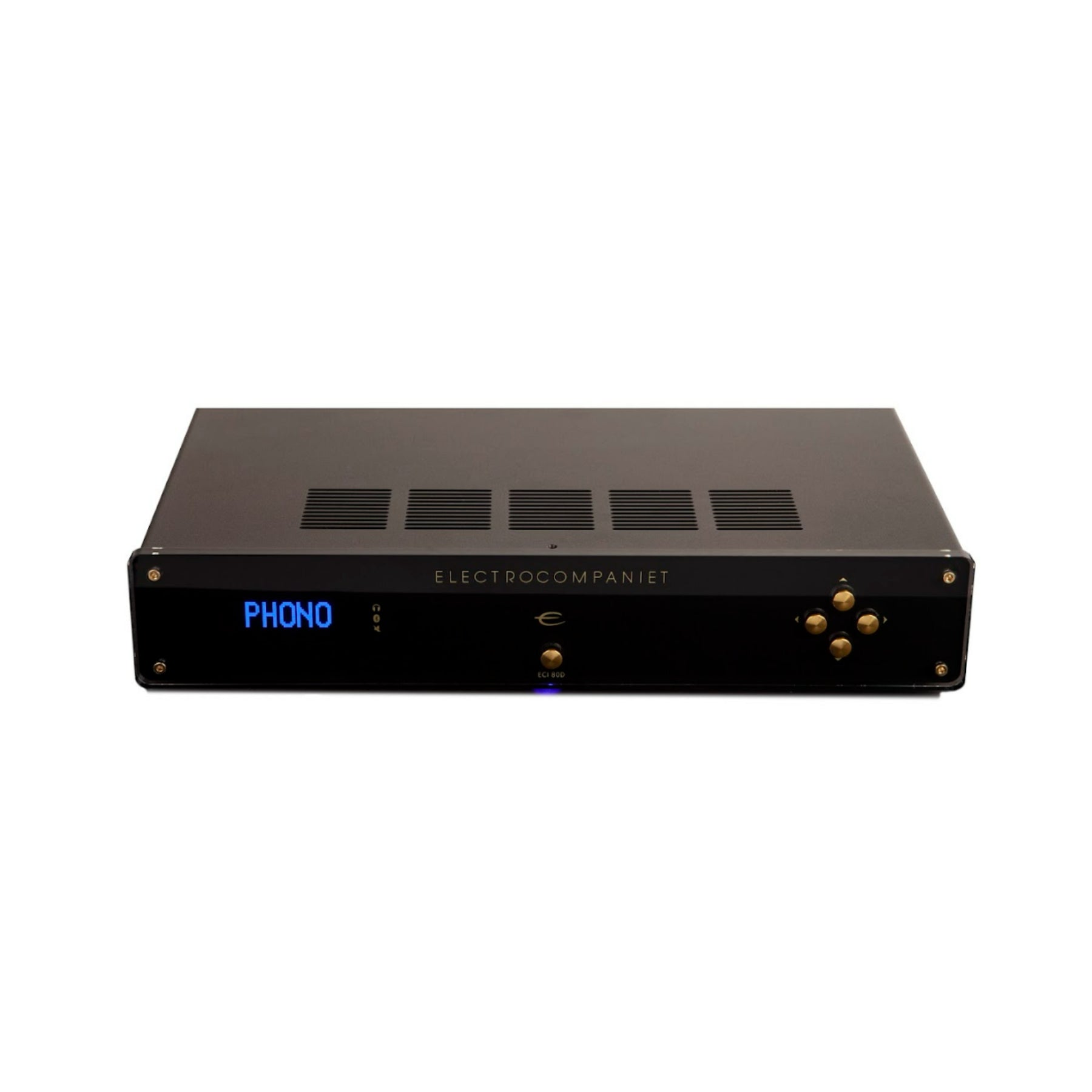

Electrocompaniet ECI 80D Integrated Amplifier
The ECI 80D is our brand new integrated amplifier, offering 2 x 80 watts into 8 ohms through an in-house developed Class A/B amplifier. It includes a built-in RIAA pre-amplifier for LP players (with MM cartridge support), 2-way HD Bluetooth streaming for both playback from your devices and streaming to high-end headphones, as well as a 5-input DAC with 3 Toslink and 2 COAX inputs.
Works with Turntable
The built-in phono preamplifier with MM cartridge support allows you to connect your LP player directly to the ECI 80D and enjoy your vinyl collection.
Headphones-Out
The ECI 80D features a built-in double headphones amplifier, allowing two sets of wired headphones to be used simultaneously for personal listening.
HD Bluetooth Streaming
The ECI 80D supports HD Bluetooth streaming from your phone, tablet, PC, or MAC, and also enables streaming to HD wireless Bluetooth headphones.
Take Control
The ECI 80D comes with a remote control, enabling you to adjust all functions easily from the comfort of your seat.

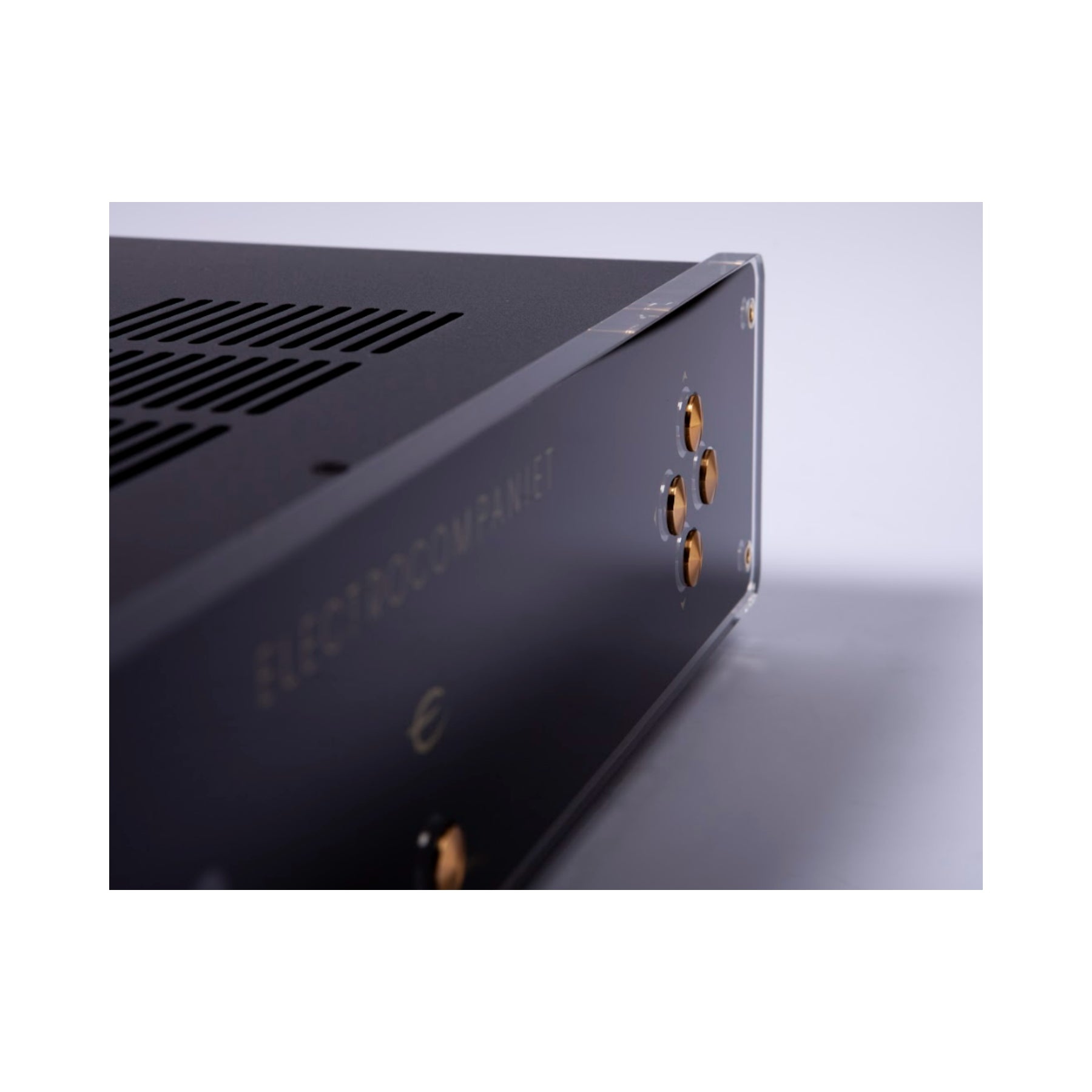

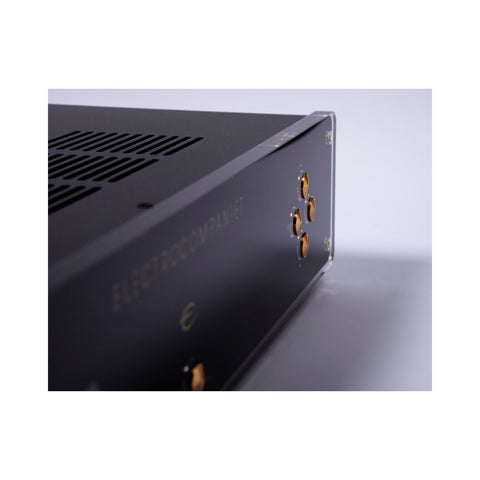

Attractive Form-Factor
This powerful and dynamic integrated amplifier offers an elegant form factor, capable of driving a wide range of speakers available on the market.
Specifications
Preamplifier
- Input impedance: 75 kOhms
- Noise floor: < -130dB
- THD+N: < 0.002%
- Frequency response (-3dB): 1 – 150 kHz
- Volume adjustment range: -110dB to +15 dB
Output Amplifier
- THD+N: < 0.005%
- Output power (into 8 Ohms): 2 x 80W
- Output power (into 4 Ohms): 2 x 150W
- Damping factor (8 Ohms load): > 300
- Frequency response (-3dB): 1 – 150kHz
- SNR (input shorted, ref 1W into 8 ohms, A-weighted): 102 dB
- Gain: 25 dB
- Protection: DC, overload, temperature
RIAA Phono
- Pickup support: Moving Magnet
- Gain: 40 dB @ 1kHz
- Input impedance: 47 kOhms || 100pF
- RIAA correction accuracy: +/-0.1dB, 25-20kHz
- Subsonic filter: -3 dB @ 14 Hz
- THD: < 0.001%
- SNR: 83 dB (A-weighted)
- Overload margin: 30dB @ 1kHz
Headphone Amplifier
- THD+N: < 0.001%
- Load impedance (single output in use): > 16 Ohms
- Load impedance (both outputs in use): > 32 Ohms
- Max output power (into 16 Ohms load): 0.4W
- Max output voltage swing: +/-8V peak
- Output impedance: 10 Ohms
- Protection: DC, overload
Digital & Streaming
- Optical input: PCM: 44.1kHz/16bit up to 192kHz/24bit
- Coaxial input: PCM: 44.1kHz/16bit up to 192kHz/24bit
- Bluetooth support: BT5.0, A2DP, SBC, AAC, aptX-HD

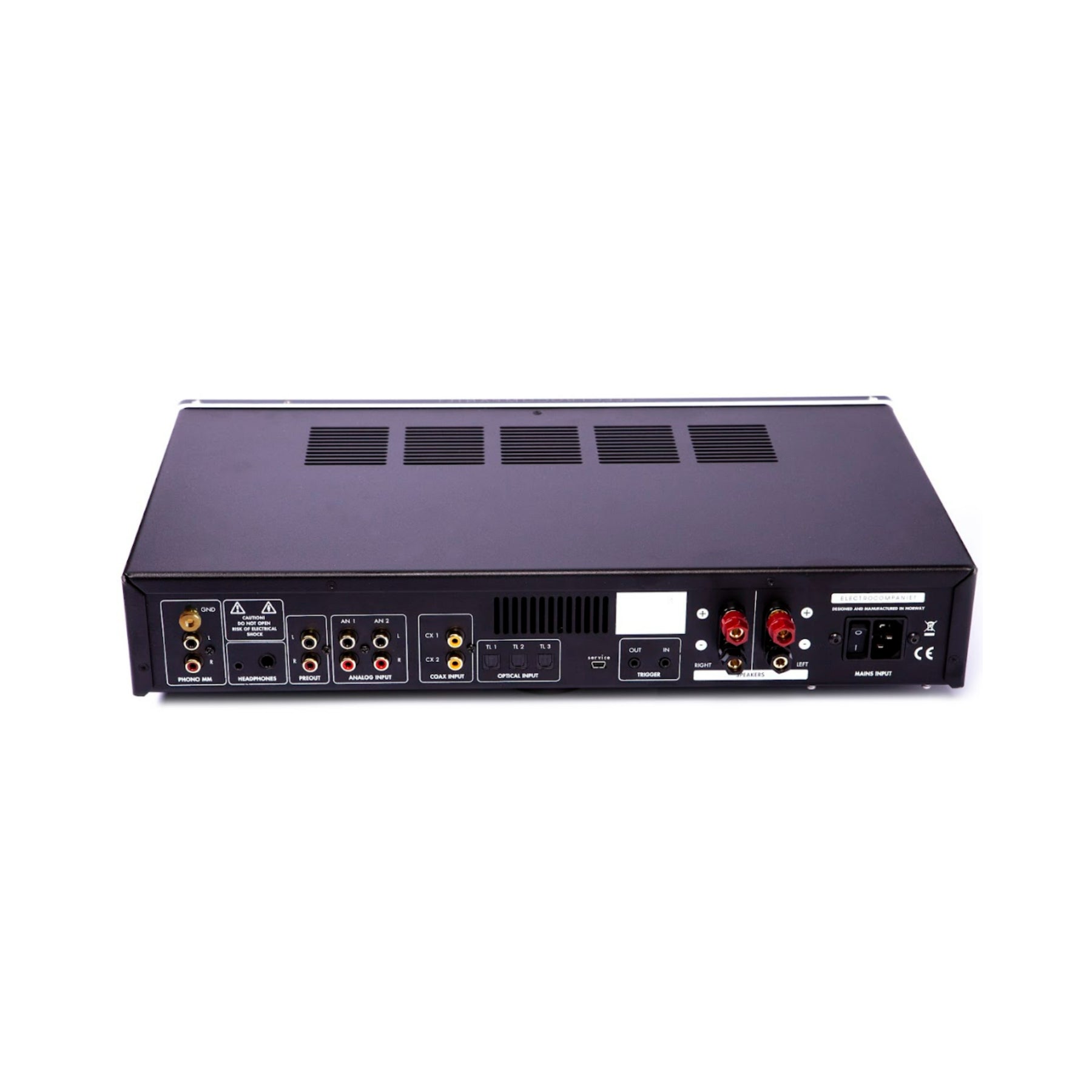

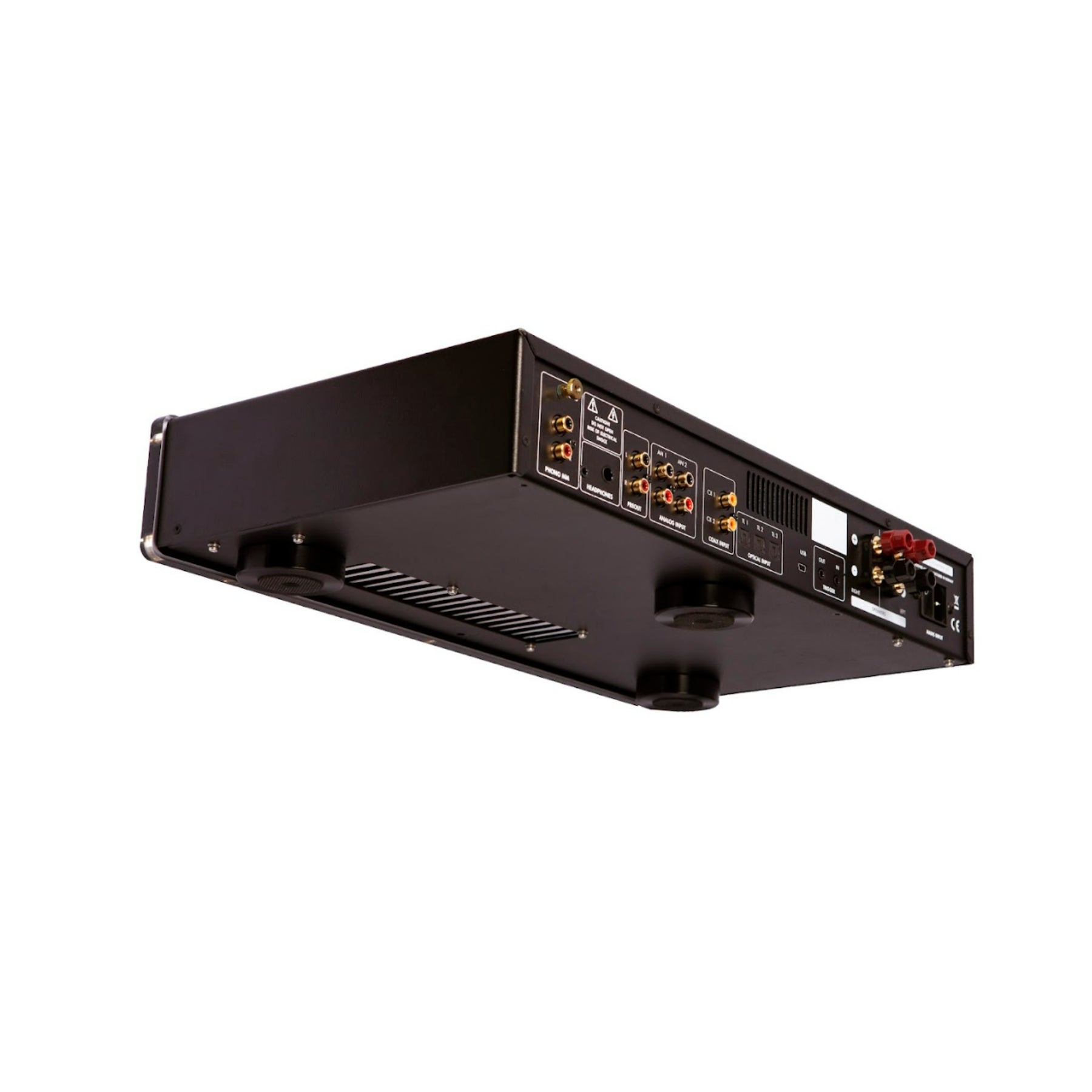

Connectivity
- Digital inputs: 2 coaxial, 3 optical
- Analog inputs: 2 RCA
- Analog preamplifier output: 1 RCA
- Service port: 1 USB
- 12V trigger: 1 input, 1 output
- Phono MM: 1 RCA
- Headphone outputs: 3.5mm jack + 6.35mm jack
- Speaker outputs: 1 pair binding posts
Weight & Dimensions
- Weight: 8 kg – 17.6 lbs
- Width: 470 mm – 18.5 inches
- Depth: 262 mm – 10.3 inches
- Height: 90 mm – 3.5 inches
Voltage & Power Consumption
- Mains input voltage: 100-240VAC, 50/60Hz, 3A
- Idle (no load or signal): 30 W
- Standby: < 0.5 W
- OFF (main switch OFF): 0 W
