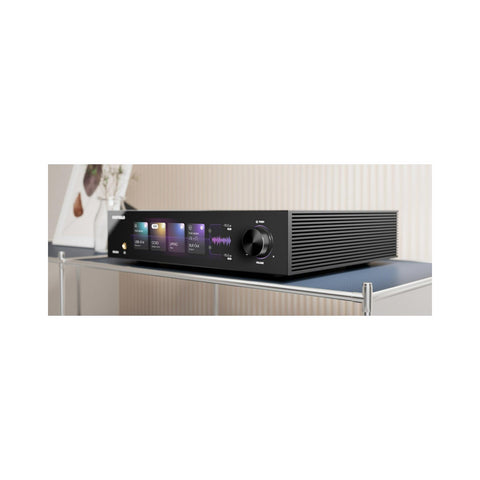

Eversolo DAC-Z10 High-Precision DAC & Headphone Amplifier
Experience the perfect harmony of digital precision and analog warmth with the new Eversolo DAC-Z10. Designed to "rediscover the true sound," this flagship DAC and headphone amplifier blends high-resolution audio processing with innovative analog architecture. Built around Eversolo’s proprietary Fully Isolated Architecture (FIA™), the DAC-Z10 ensures pristine signal purity by fully separating digital and analog domains. With dual AKM decoding modules, precision R2R analog volume control, and the Precision Core™ clock system, it delivers ultra-low distortion and lifelike dynamics. Whether you're enjoying DSD512 playback, connecting to external clocks, or driving planar headphones, the DAC-Z10 offers an uncompromising listening experience powered by precision engineering and refined design.
Specifications
-
DAC Architecture: Dual AKM AK4191 + AK4499EX decoding modules (1 set per channel)
-
Volume Control: Dual-channel R2R resistor ladder volume control
-
Distortion: THD+N 0.00008%
-
Dynamic Range: 130 dB DNR
-
Clock System: Precision Core™ with OCXO oscillator, PLL technology, FPGA clock shaping
-
External Clock Support: 10 MHz / 25 MHz input (50 Ω and 75 Ω impedance)
-
Headphone Amp: 6.35 mm output, 1 W @ 16 Ω / 1 W @ 32 Ω, auto gain detection
-
Analog I/O: Balanced XLR and unbalanced RCA input/output, +10 dB analog gain
-

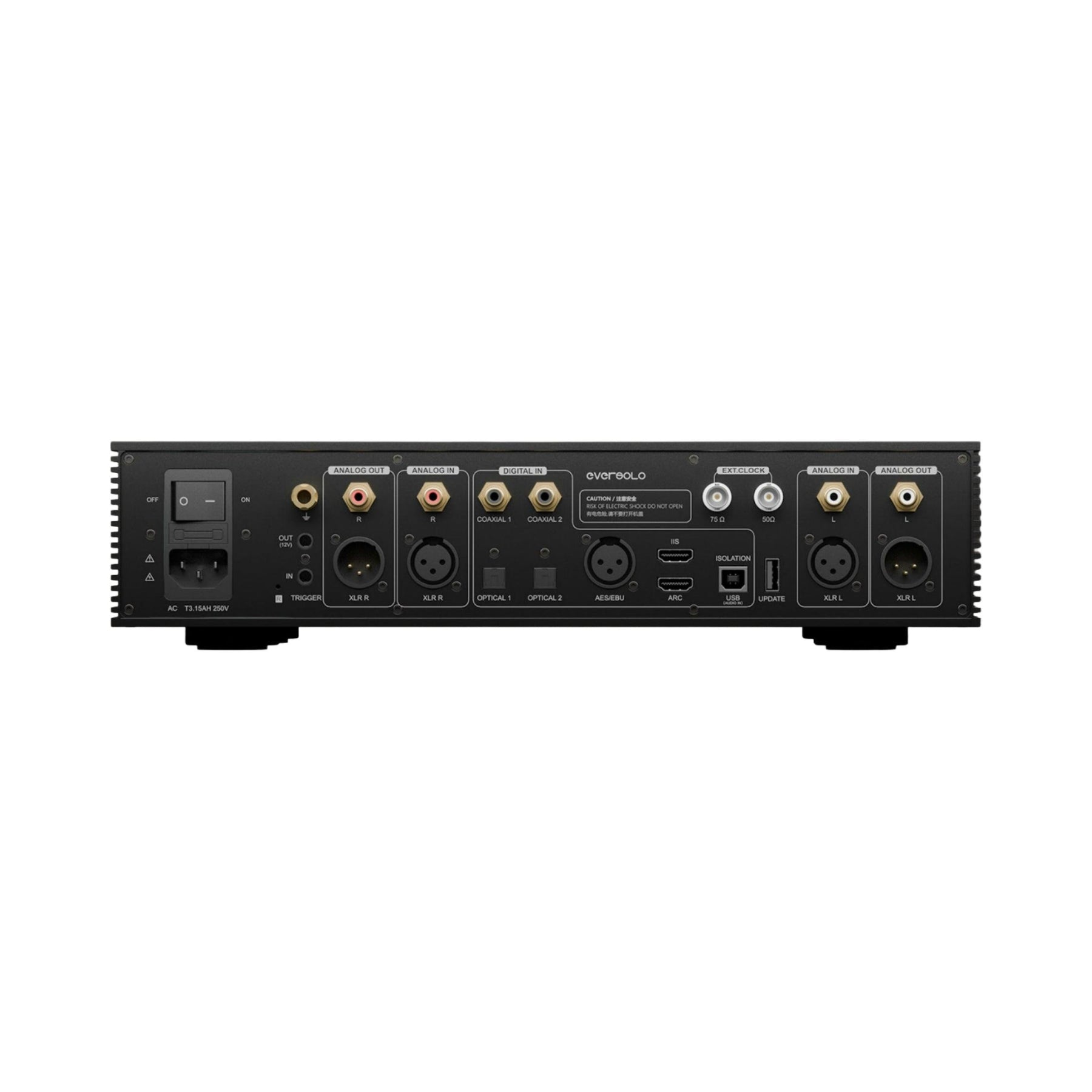

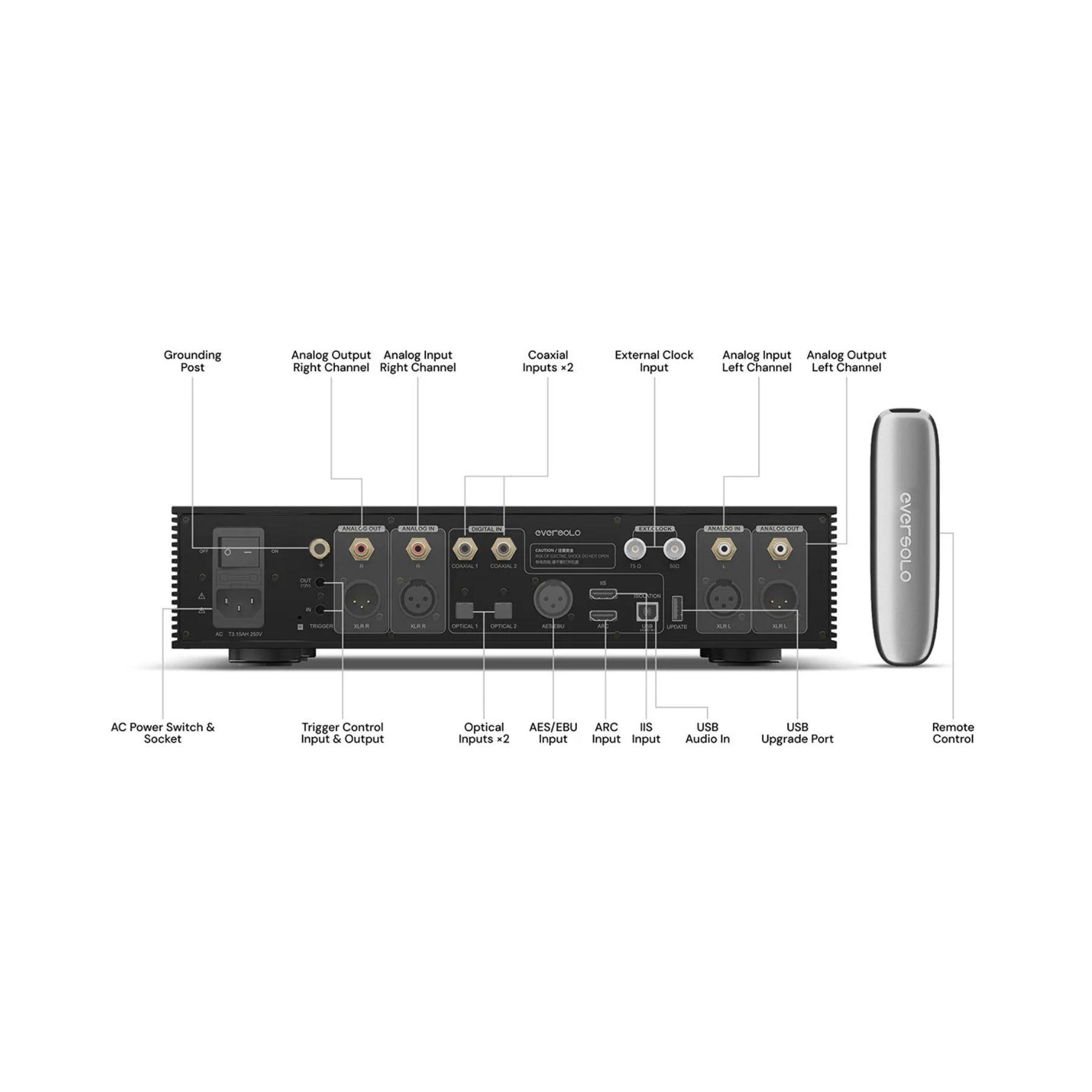

Digital Inputs: USB Audio, 2× Coaxial, 2× Optical, IIS, AES/EBU, HDMI ARC/eARC
-
Wireless: Qualcomm QCC5125 Bluetooth with high-res codec support
-

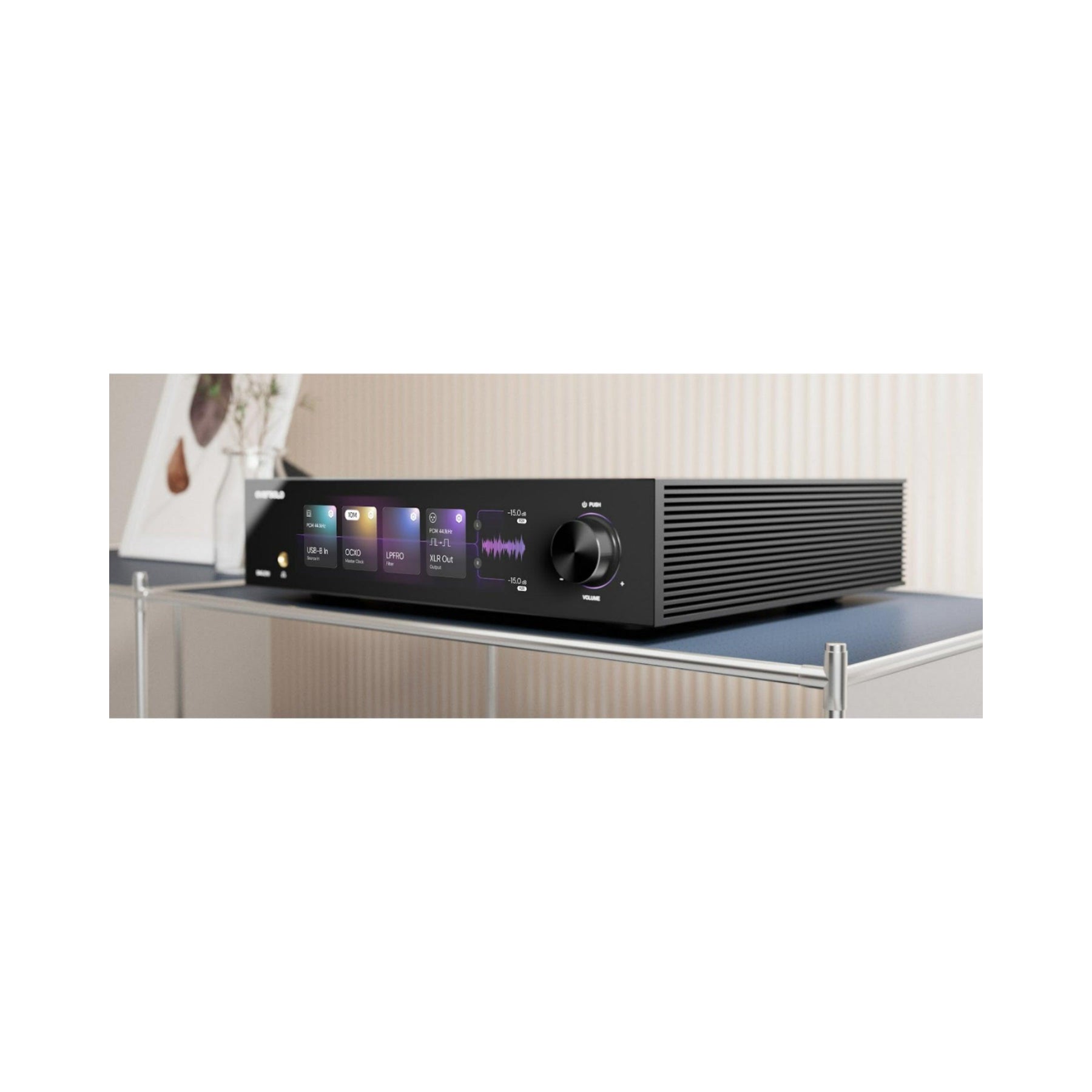

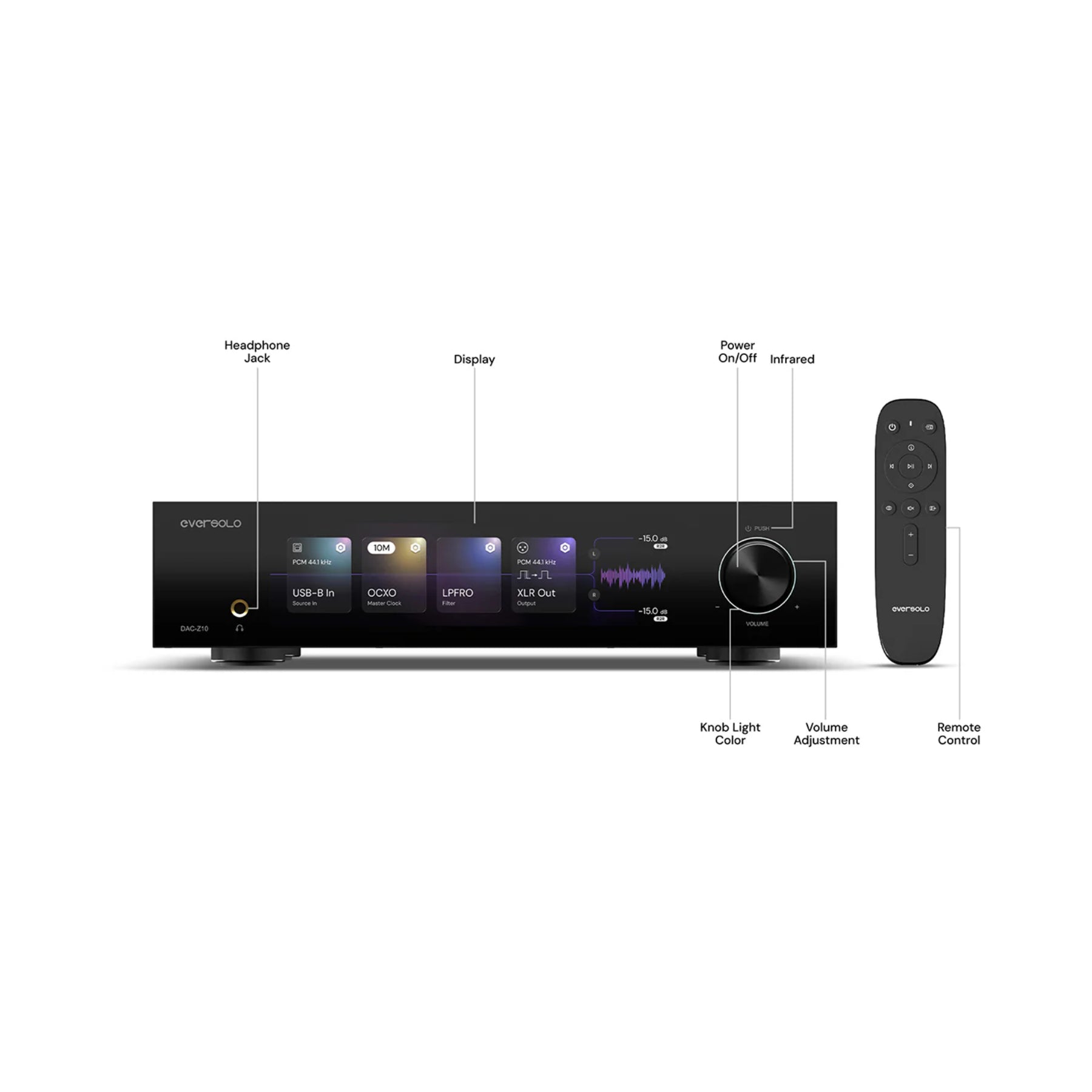

Touchscreen: 8.8" IPS display with customizable VU meters and knob colors
-
App Control: Eversolo Control App for mobile operation
-
Power Supply: 3 fully isolated linear power supplies (L channel, R channel, system)
-
Construction: Fully shielded enclosure with electromagnetic isolation
-
Compatibility: PCM 768 kHz/32-bit, DSD512 Native
-
Retail Price: $1980 / €1980
Expanded Key Features List
-

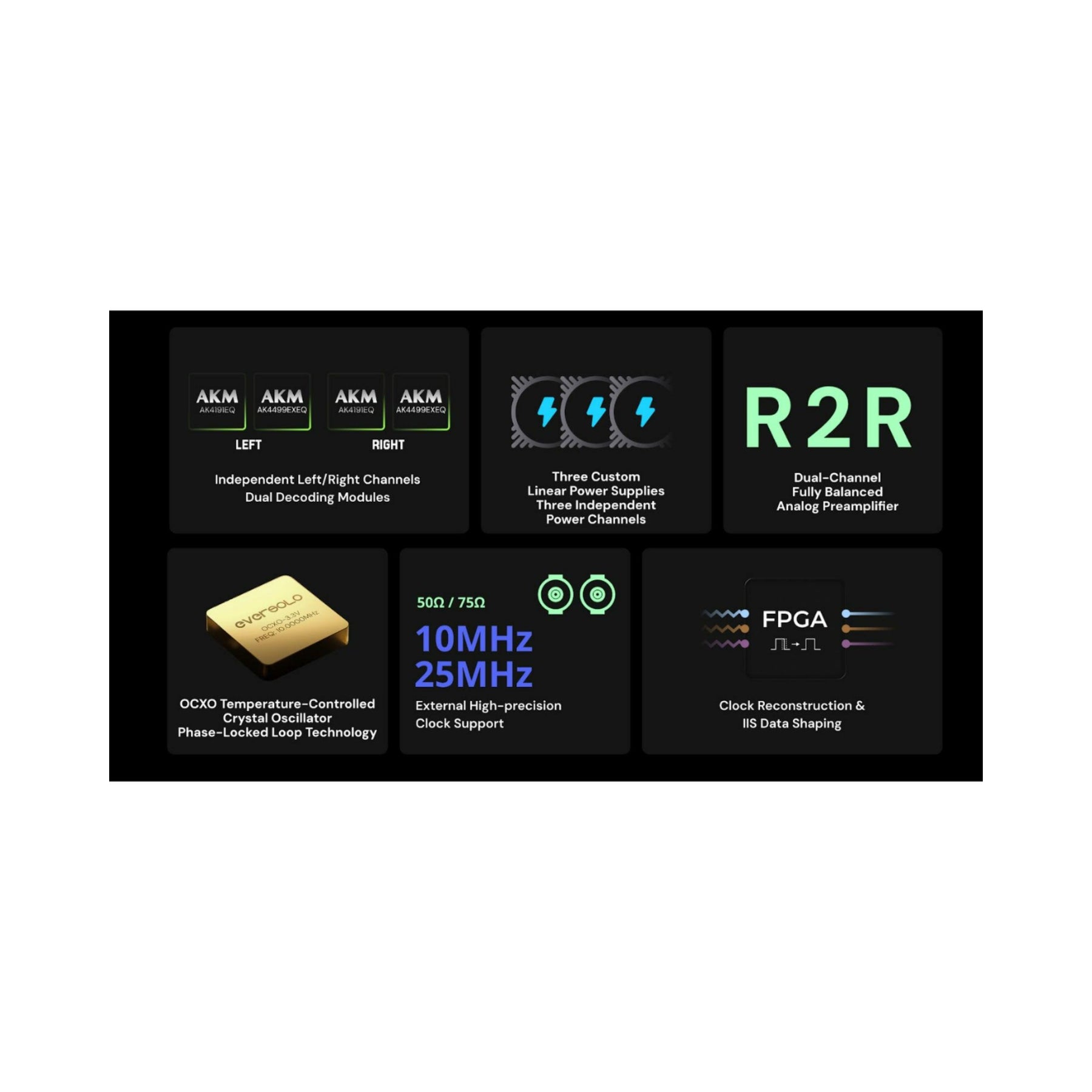

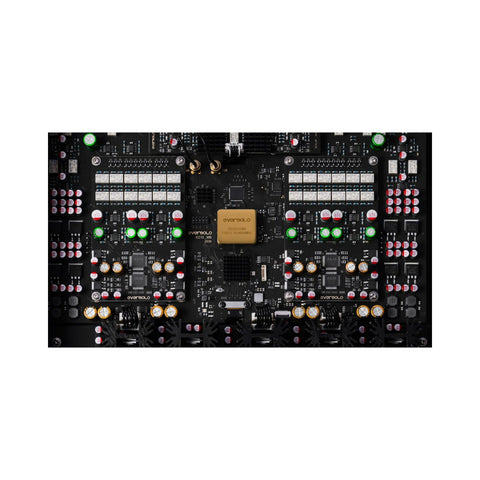

Fully Isolated Architecture (FIA™): Digital and analog sections are completely separated to eliminate interference and preserve signal purity.
-

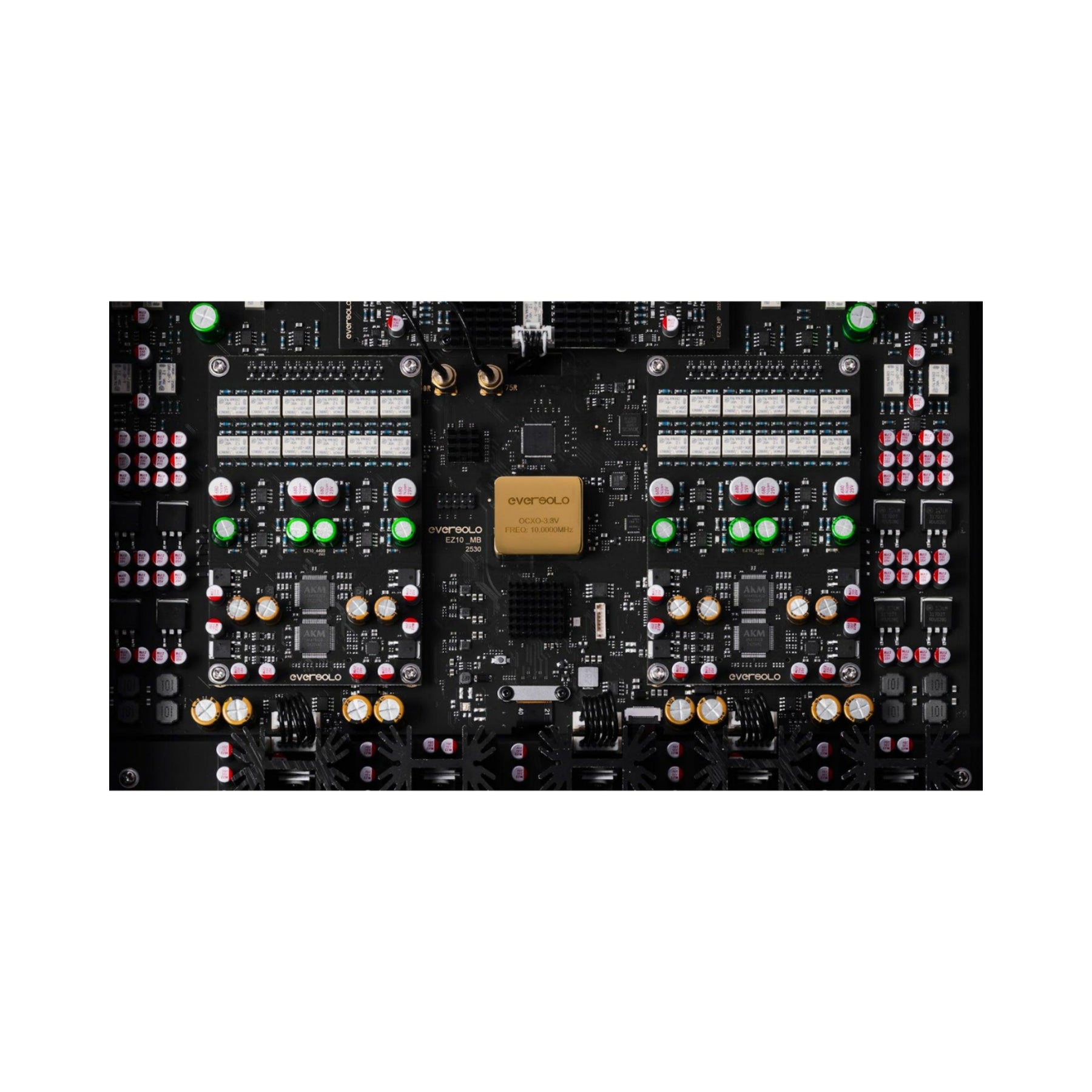

Dual AKM DAC Modules: AK4191 + AK4499EX per channel for independent, crosstalk-free high-resolution decoding.
-
R2R Analog Volume Control: Dedicated ladder resistor network for each channel offers lossless analog-level volume adjustment.
-
Precision Core™ Clock System: OCXO oscillator, PLL technology, and FPGA clock alignment ensure femtosecond-level timing accuracy.
-
External Clock Compatibility: Supports both 10 MHz and 25 MHz inputs with selectable impedance for seamless integration into master-clock systems.
-

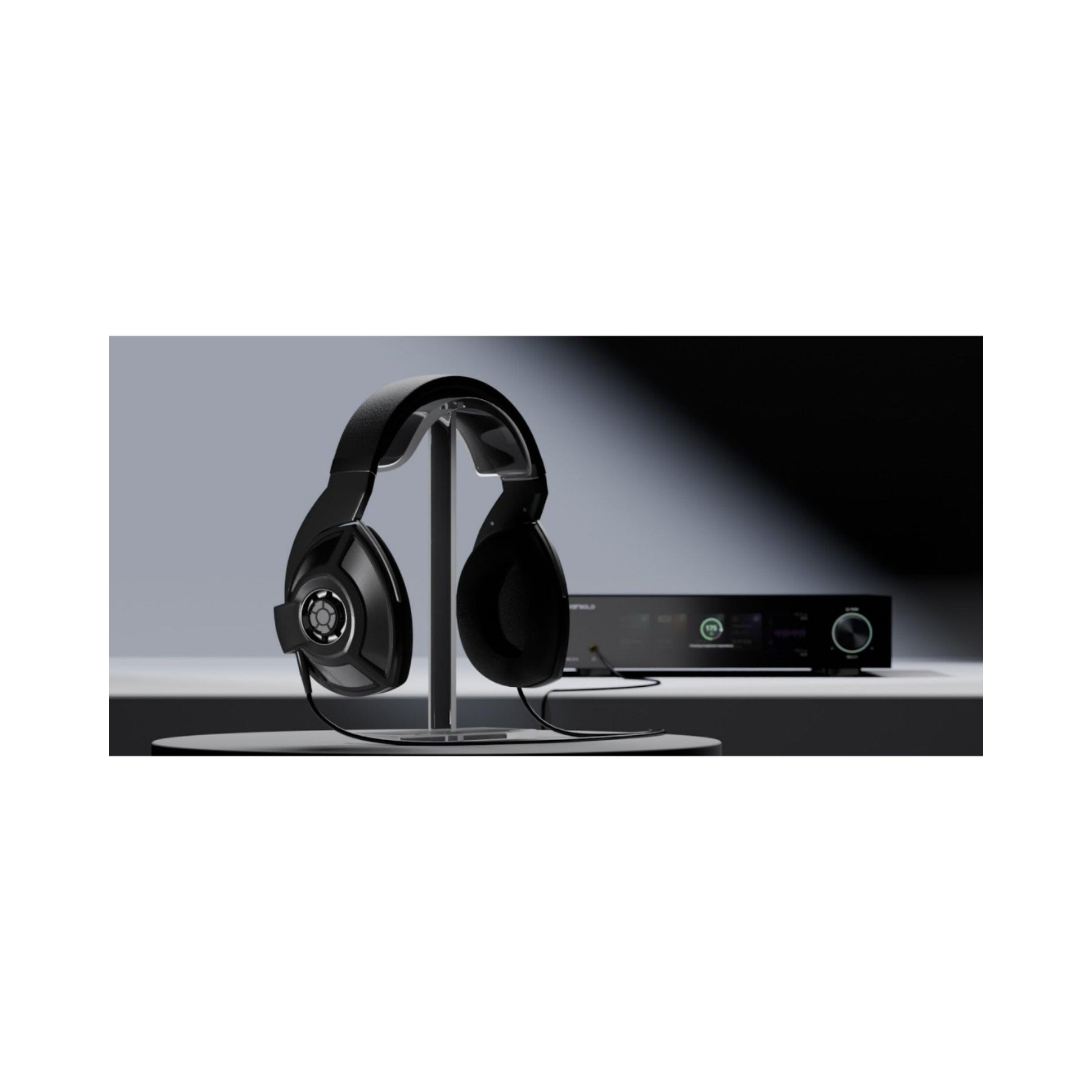

High-Performance Headphone Amp: Auto gain adjustment with 1W output at 16/32Ω to drive a wide range of headphones.
-
Balanced Preamp Capabilities: Fully balanced XLR and RCA I/O with +10 dB gain and ultra-low distortion output stage.
-
Hi-Res Input Versatility: USB, IIS, HDMI ARC, AES/EBU, and more, with full electrical isolation to prevent ground loop interference.
-
Wireless Streaming with Bluetooth: Qualcomm QCC5125 module supports high-resolution wireless audio streaming.
-

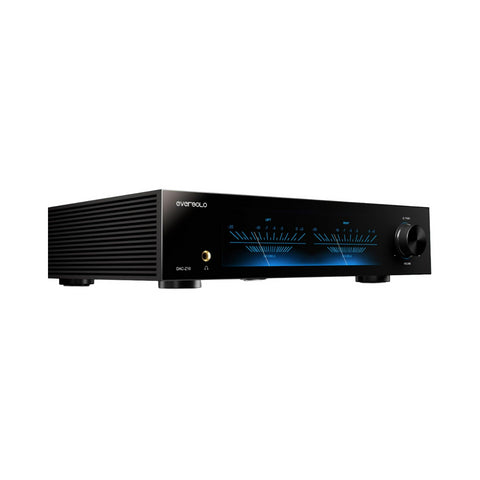

8.8-Inch IPS Display: Customizable VU meters, modern UI, and intuitive operation on a glare-free touchscreen.
-
Mobile App Control: Adjust volume, inputs, and settings directly from your smartphone or tablet.
-
DSD512 & PCM 768 kHz Support: Handles ultra-high resolution audio formats for a true audiophile experience.
Q&A Section
Q: What makes the Eversolo DAC-Z10 different from other high-end DACs?
A: The DAC-Z10 features Fully Isolated Architecture (FIA™), dual AKM DAC modules per channel, and analog R2R volume control for unmatched clarity and separation.
Q: Does the DAC-Z10 support native DSD playback?
A: Yes, it supports Native DSD512 playback and PCM up to 768 kHz/32-bit through its USB and IIS inputs.
Q: Can the DAC-Z10 be used as a standalone preamp?
A: Absolutely. It includes balanced XLR and RCA outputs, analog gain control, and ultra-low distortion output suitable for direct connection to power amps or active speakers.
Q: What kind of clock system does it use?
A: The DAC-Z10 features the Eversolo Precision Core™, combining a temperature-controlled OCXO oscillator, PLL tech, and FPGA-based digital clock reconstruction.
Q: Is it compatible with external master clocks?
A: Yes, it supports 10 MHz and 25 MHz external clocks with both 50Ω and 75Ω impedance options for studio or high-end system integration.
Q: Does the headphone amp support planar magnetic headphones?
A: Yes, its high-gain mode delivers up to 1W at 32Ω, making it capable of driving high-impedance or planar headphones with ease.
Q: How is volume adjusted on the DAC-Z10?
A: It uses a dual-channel R2R resistor network for analog volume control, ensuring no digital loss or quantization artifacts at any level.
Q: Can I control it from my phone?
A: Yes, the Eversolo Control App allows full control over volume, inputs, settings, and display modes via mobile devices.
