Eversolo T10 Streaming Transport

Product Description

The Eversolo T10 Streaming Transport is a flagship digital audio source built for high-performance Hi-Fi systems using an external DAC. Designed to deliver a cleaner, more stable digital signal, the T10 combines precision OCXO clocking, low-noise PLL clock management, advanced electrical isolation, a custom O-type linear power supply, and versatile digital outputs for serious audiophile playback. With support for high-resolution music up to DSD512 Native and PCM 768kHz/32-bit, 2.5G Ethernet, SFP fiber networking, dual NVMe SSD storage expansion, and a large 8.6-inch touchscreen, the Eversolo T10 is engineered to be the centerpiece of a modern digital music system.

Specifications

• Product Type: Dedicated network streaming transport
• DAC: No onboard DAC; designed for use with an external DAC

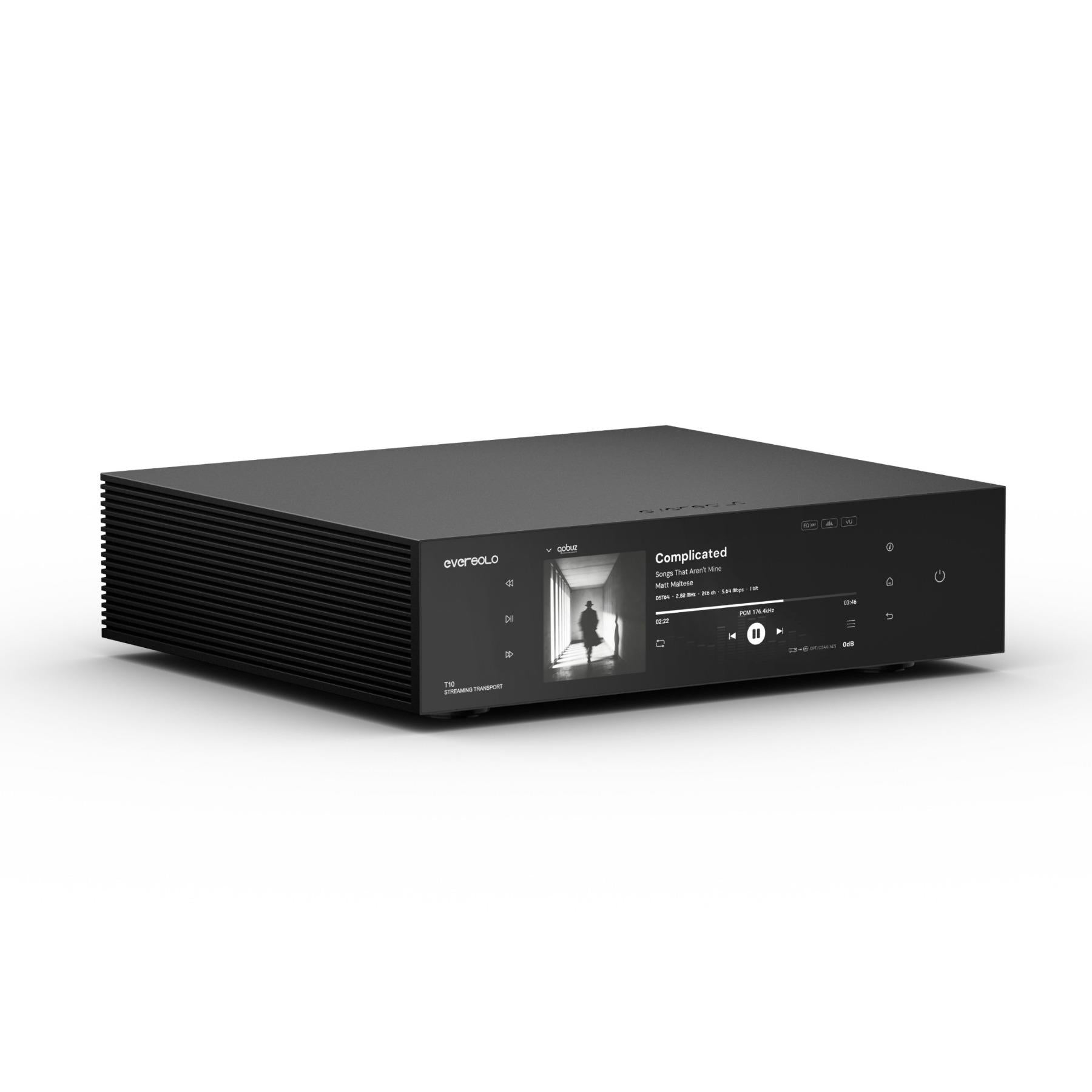

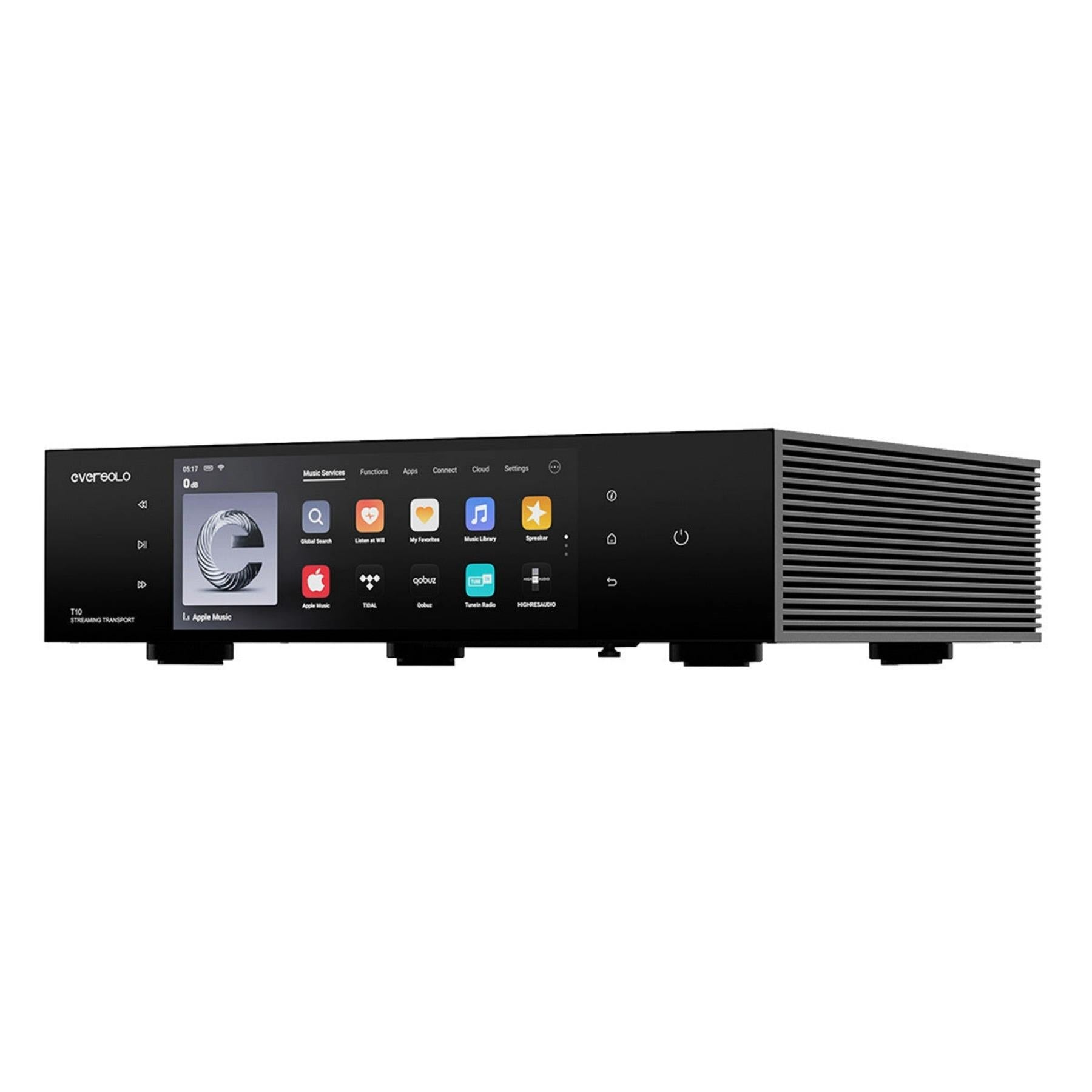

• Display: 8.6-inch LCD touchscreen
• Processor: 64-bit octa-core processor
• Memory: 8GB DDR4 RAM
• Internal Storage: 64GB eMMC onboard storage
• Expandable Storage: Dual M.2 NVMe 3.0 2280 SSD slots supporting up to 16TB total storage expansion

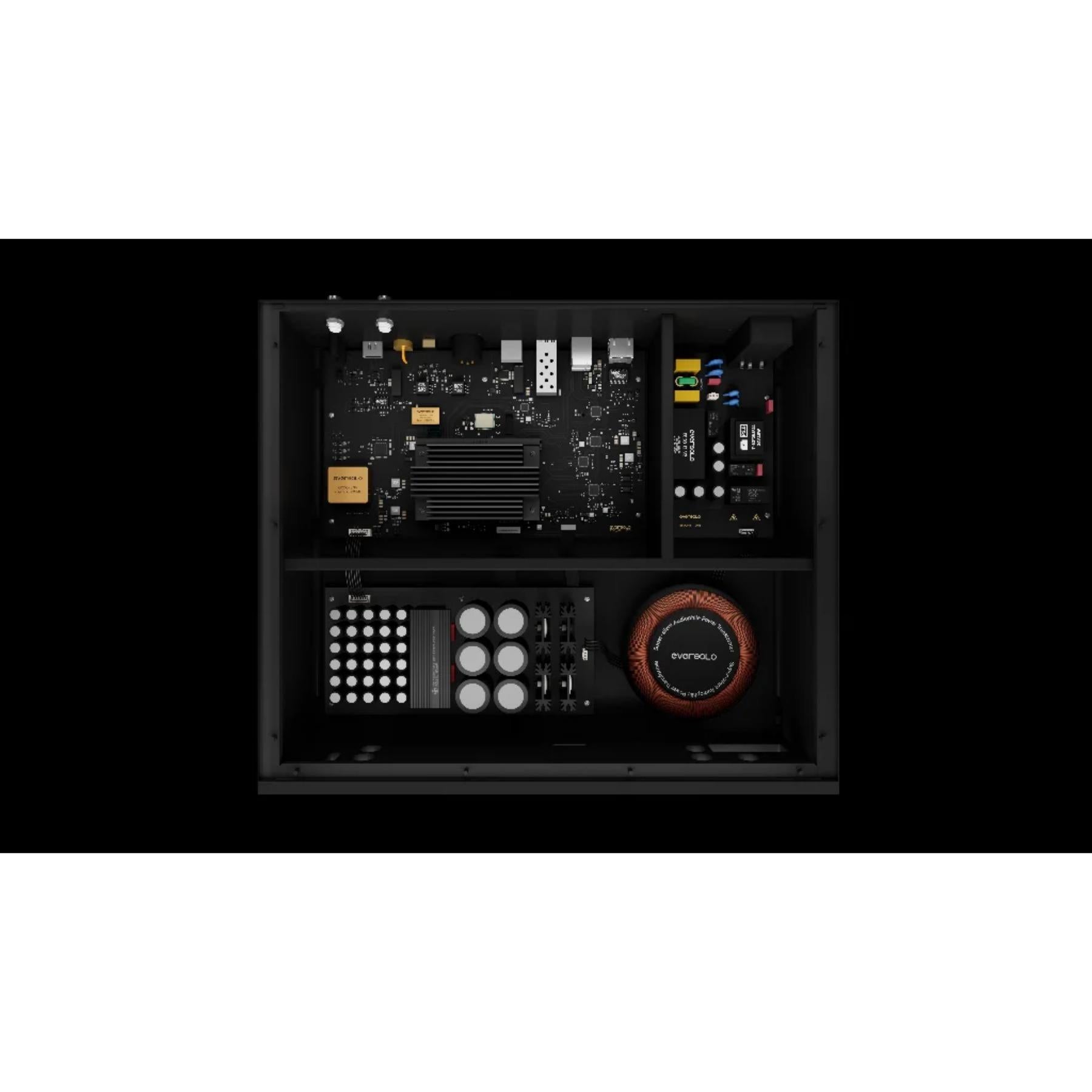

• Power Supply: Custom O-type linear power supply / toroidal transformer design
• System Clock: Femtosecond clock
• Audio Clock: OCXO clock system with Phase-Locked Loop technology
• External Clock Input: 10MHz / 25MHz external clock input with 50-ohm / 75-ohm impedance support
• USB-A Ports: 2 USB 3.0 ports
• Network Connectivity: RJ45 2.5G Ethernet, 10/100/1000/2500Mbps
• Fiber Network Connectivity: SFP fiber network port supporting Gigabit single-mode single-fiber and single-mode dual-fiber optical modules; SFP module not included
• Wireless Connectivity: Dual-band Wi-Fi 6, 2.4GHz and 5GHz

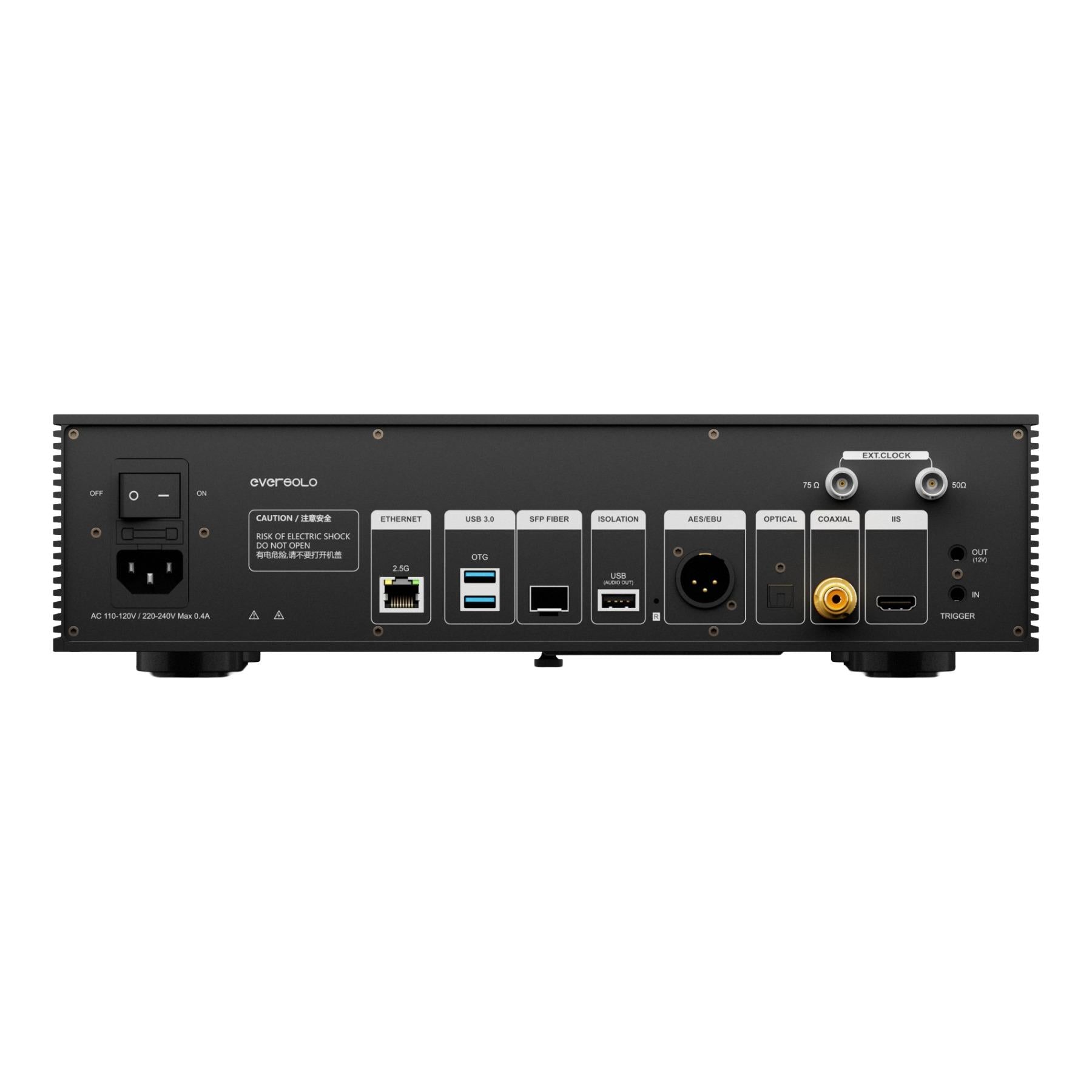

• Digital Outputs: USB Audio, IIS, AES/EBU, coaxial, and optical
• IIS Output: 8 selectable IIS output modes for DAC compatibility
• USB Audio Output Support: Up to stereo DSD512 Native and PCM 768kHz/32-bit
• IIS Audio Output Support: Up to stereo DSD512 Native and PCM 768kHz/32-bit
• Optical Output Support: Up to stereo PCM 192kHz/24-bit and DoP64
• Coaxial Output Support: Up to stereo PCM 192kHz/24-bit and DoP64
• AES/EBU Output Support: Up to stereo PCM 192kHz/24-bit and DoP64
• Music Playback Support: Up to stereo DSD512 Native and PCM 768kHz/32-bit
• Music Services: TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, IDAGIO, Calm Radio, Internet Radio, TuneIn, Radio Paradise, Deezer, SoundCloud, Presto Music, Apple Music, and more
• Streaming Protocols: Spotify Connect Lossless, TIDAL Connect, Qobuz Connect, DLNA, and more

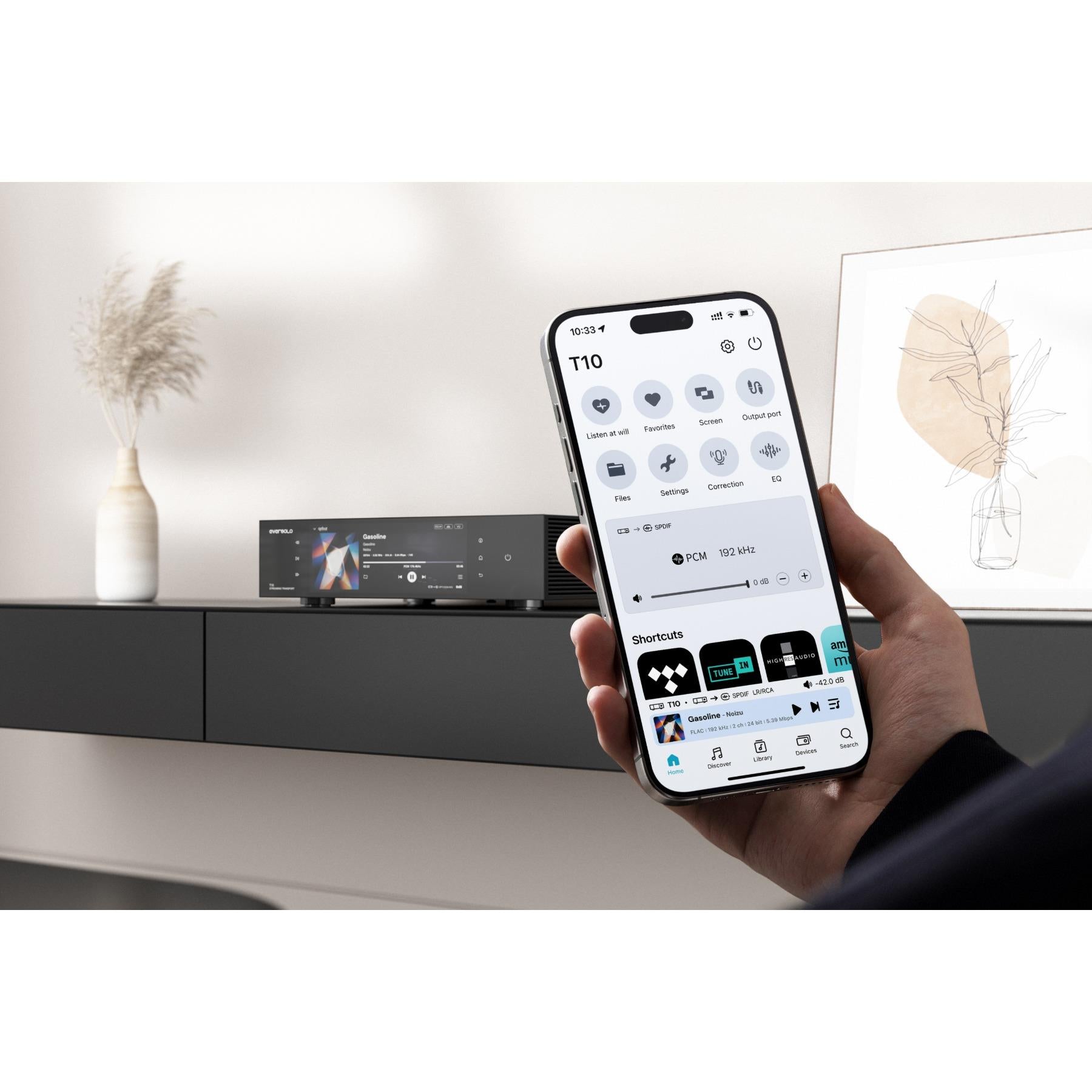

• Control Methods: Touchscreen, Android app, iPhone app, iPad app, TV app, remote control, and Trigger Out
• Room Correction: evotune Pro room correction with acoustic compensation profile support
• EQ: 20-band PEQ with expanded bass control
• CD Playback and Ripping: Enhanced CD playback and ripping system with metadata retrieval
• Audio Upsampling: Up to 16x upsampling
• Library Management: Intelligent music library system with fast scanning, global search, cross-platform playlist creation, and full-library shuffle playback

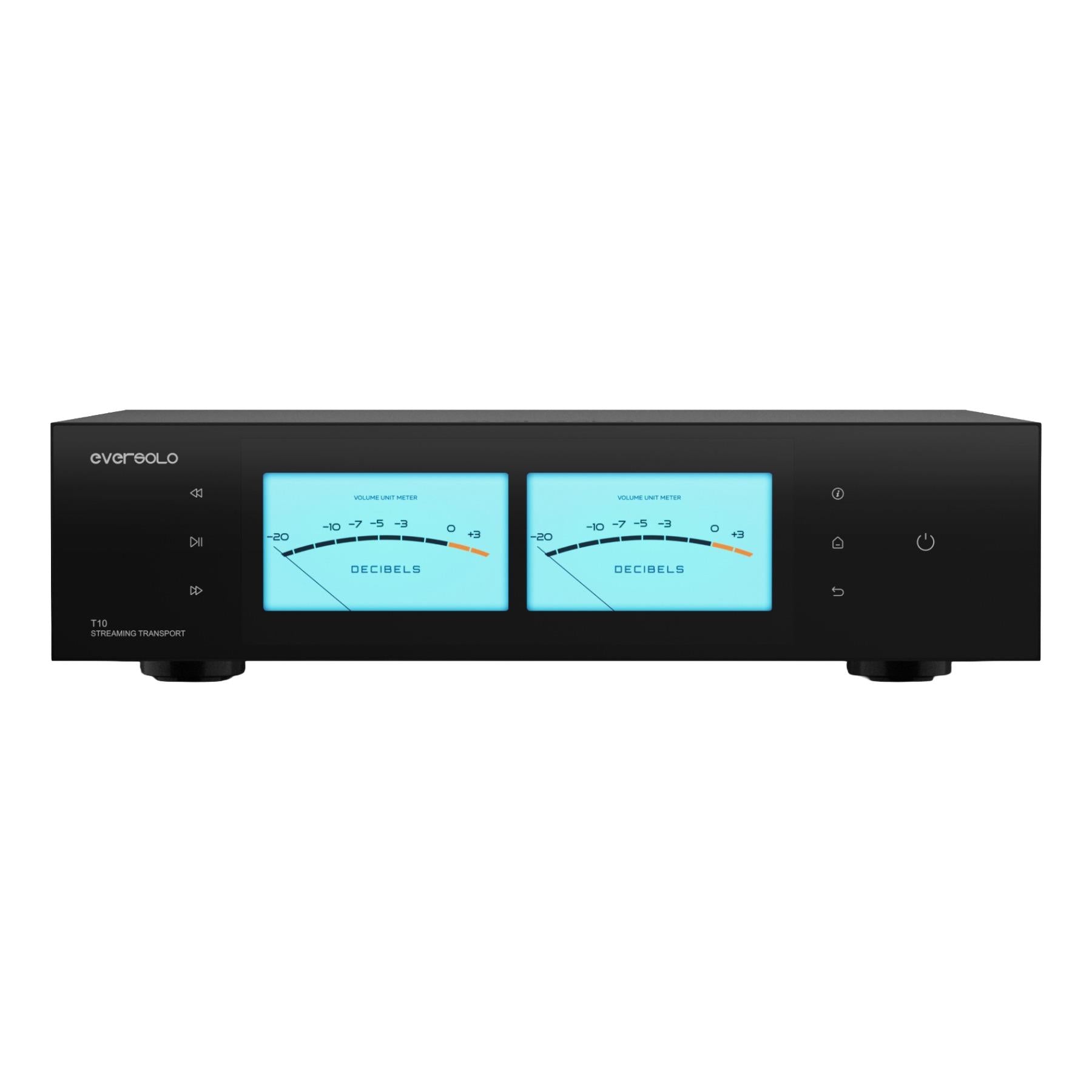

• Visual Display Modes: VU meters, spectrum visualizations, and dynamic ambient display modes
• Remote: V16 remote with built-in rechargeable battery
• Dimensions: 14.37" W x 3.46" H x 12.2" D / 365 x 88 x 310mm
• Product Weight: 6.3kg
• Packaged Weight: 9kg
• Carton Dimensions: 493 x 426 x 205mm, 1 unit per carton
• EAN / UPC: 6975200360237

What It's Great At

• Delivering a pure, stable digital signal to a high-quality external DAC.
• Reducing jitter, noise, and interference through advanced clocking and isolation.
• Managing large high-resolution music libraries with fast processing and expandable SSD storage.
• Integrating into advanced audiophile systems with USB Audio, IIS, AES/EBU, coaxial, optical, and external clock support.
• Providing flexible network performance with 2.5G Ethernet, Wi-Fi 6, and SFP fiber connectivity.
• Creating an engaging user experience with a large touchscreen, visual meters, ambient displays, and app-based control.

Expanded Key Features List

• Dedicated Streaming Transport: Sends high-quality digital audio to an external DAC, allowing your DAC to handle conversion while the T10 focuses on clean source delivery.
• OCXO Clock with PLL Technology: Improves timing stability and helps reduce jitter for more precise imaging, smoother playback, and greater musical clarity.
• External Master Clock Support: Accepts 10MHz / 25MHz clock input with 50-ohm / 75-ohm compatibility for advanced system synchronization.
• Advanced Electrical Isolation: Separates critical digital signal paths and internal circuits to help reduce noise, interference, and crosstalk.
• Custom O-Type Linear Power Supply: Provides a stable, low-noise power foundation designed to support cleaner digital audio performance.
• High-Resolution Digital Outputs: USB Audio and IIS support up to DSD512 Native and PCM 768kHz/32-bit for premium Hi-Res Audio playback.
• Comprehensive DAC Compatibility: Includes USB Audio, IIS with eight selectable modes, AES/EBU, coaxial, and optical outputs for easy system matching.
• 2.5G Ethernet and SFP Fiber Networking: Offers fast wired network performance and fiber-based isolation options for cleaner, more reliable streaming.
• Dual NVMe SSD Expansion: Supports up to 16TB of total local storage, making it ideal for large high-resolution music collections.
• 64-Bit Octa-Core Performance: Combines an octa-core processor, 8GB RAM, and 64GB onboard storage for responsive navigation and library management.
• 8.6-Inch Touchscreen Interface: Provides intuitive browsing, playback control, VU meters, spectrum visualizers, and dynamic ambient display options.
• Integrated Streaming Services: Supports popular platforms including TIDAL, Qobuz, Amazon Music, Apple Music, Deezer, SoundCloud, TuneIn, and more.
• Flexible Control Options: Operates from the touchscreen, mobile apps, TV app, remote control, or Trigger Out integration.
• evotune Pro Room Correction: Creates acoustic compensation profiles to help optimize playback for different listening environments.
• Enhanced Library Tools: Supports fast scanning, global search, cross-platform playlists, and full-library shuffle for easier music discovery.

FAQ Section

Q: What is the Eversolo T10 designed to do?
A: The Eversolo T10 is a dedicated streaming transport that sends high-quality digital audio to an external DAC for premium music playback.

Q: Does the Eversolo T10 have a built-in DAC?
A: No. The T10 is a digital transport only, making it ideal for systems that already use a separate high-performance DAC.

Q: What digital outputs does the Eversolo T10 include?
A: It includes USB Audio, IIS, AES/EBU, coaxial, and optical digital outputs for broad compatibility with DACs and digital audio systems.

Q: What is the highest audio resolution supported by the T10?
A: USB Audio and IIS outputs support up to stereo DSD512 Native and PCM 768kHz/32-bit, while optical, coaxial, and AES/EBU support up to stereo PCM 192kHz/24-bit and DoP64.

Q: Can I add internal music storage to the Eversolo T10?
A: Yes. The T10 includes two M.2 NVMe SSD slots that support up to 16TB of total storage expansion for large music libraries.

Q: Does the Eversolo T10 support streaming services?
A: Yes. It supports services and protocols including TIDAL, Qobuz, Amazon Music, Apple Music, Deezer, Spotify Connect Lossless, TIDAL Connect, Qobuz Connect, DLNA, and more.

Q: Why does the T10 include OCXO clocking?
A: The OCXO clock and PLL system help improve digital timing accuracy and reduce jitter, supporting cleaner and more stable signal transmission to your DAC.

Q: Is the Eversolo T10 good for advanced audiophile systems?
A: Yes. With isolated digital outputs, external clock input, 2.5G Ethernet, SFP fiber networking, IIS output modes, and high-resolution playback support, the T10 is built for serious DAC-based systems.
