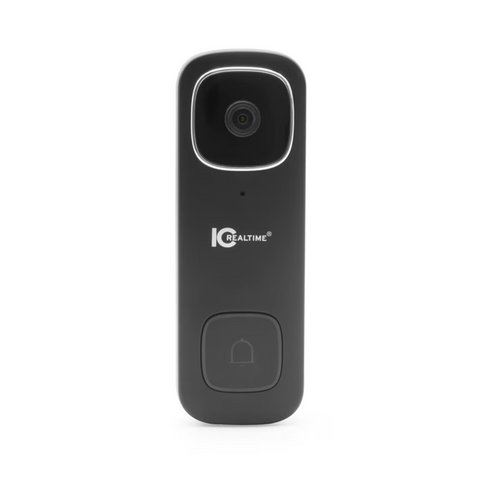

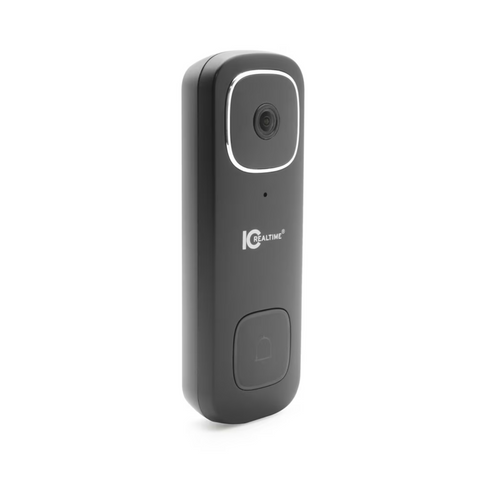

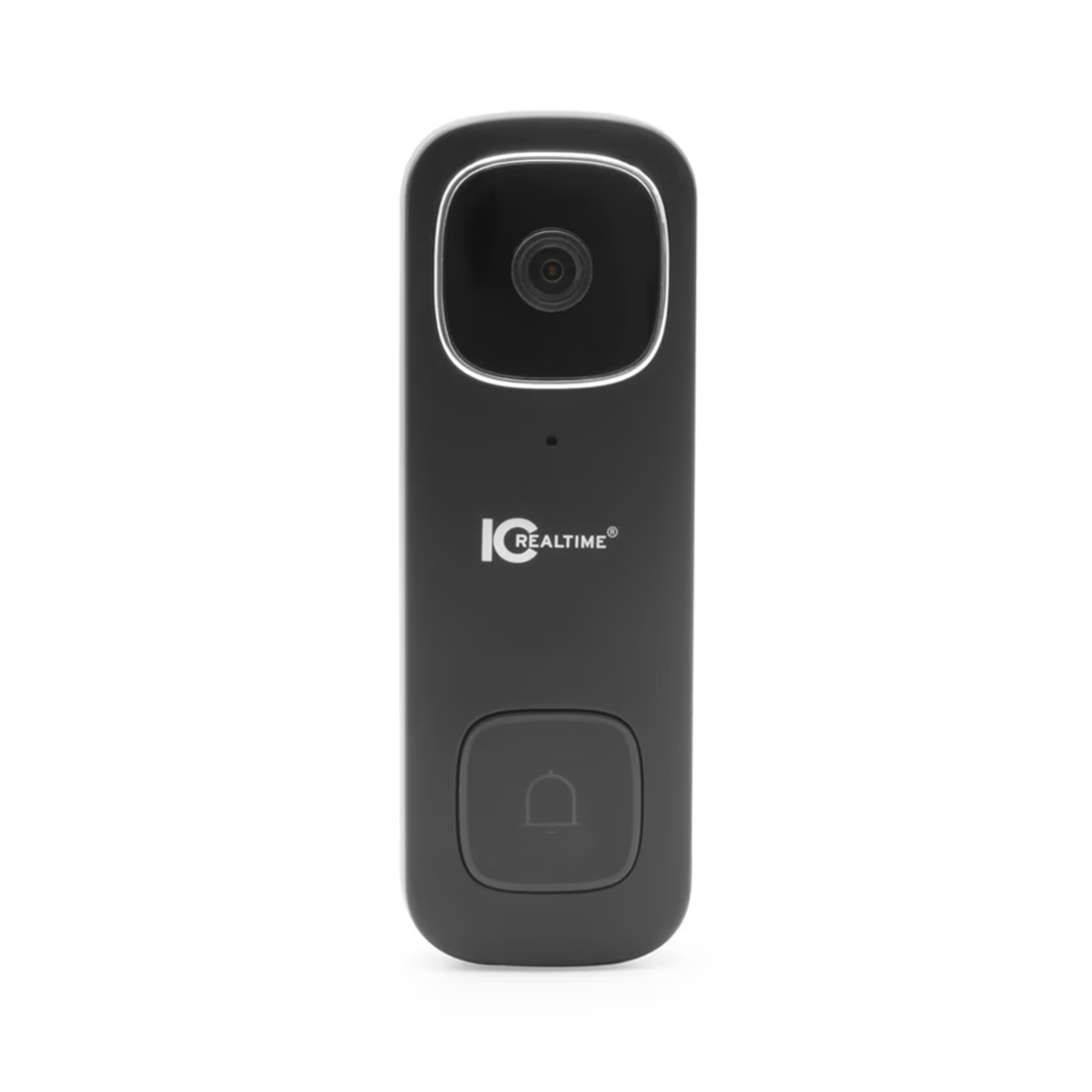

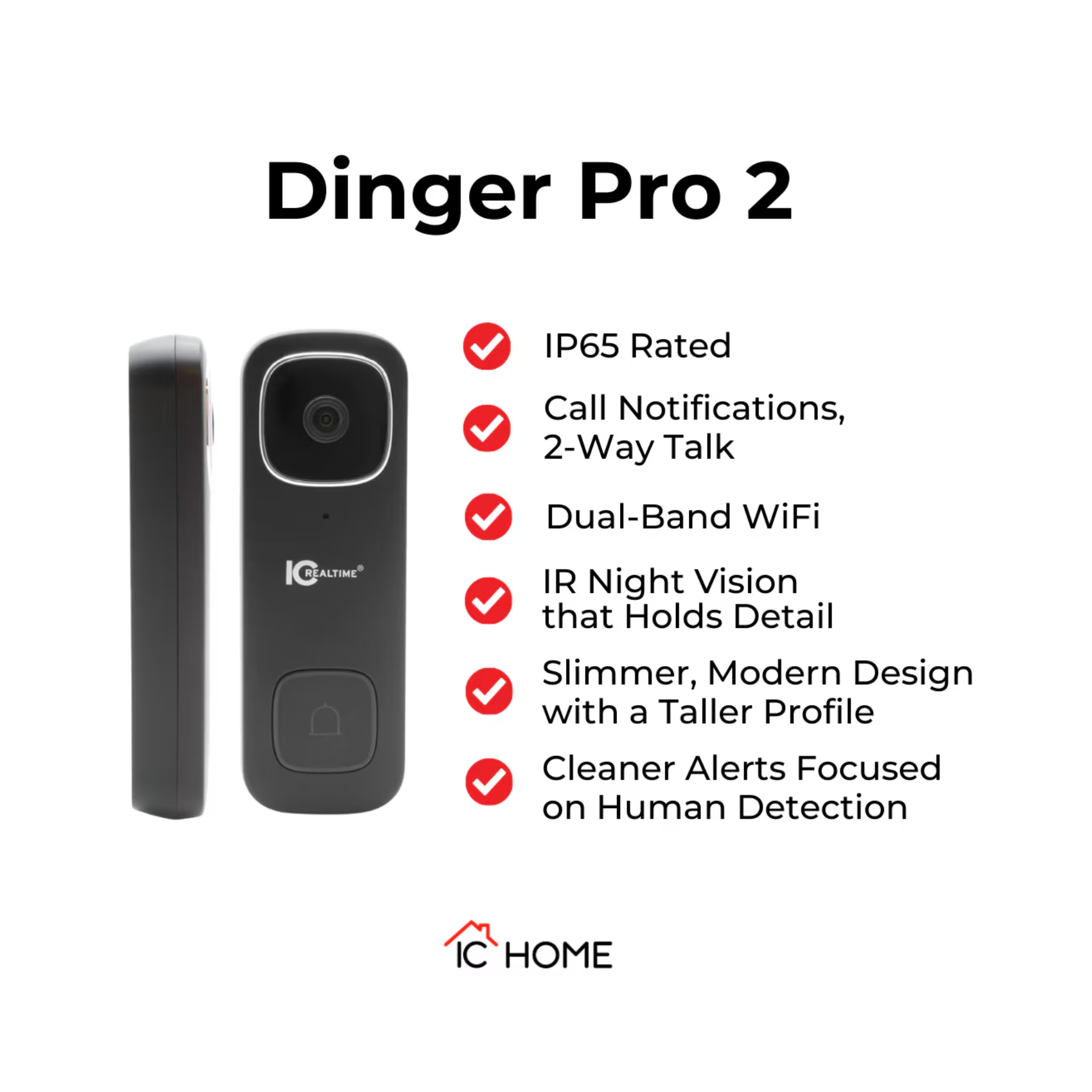

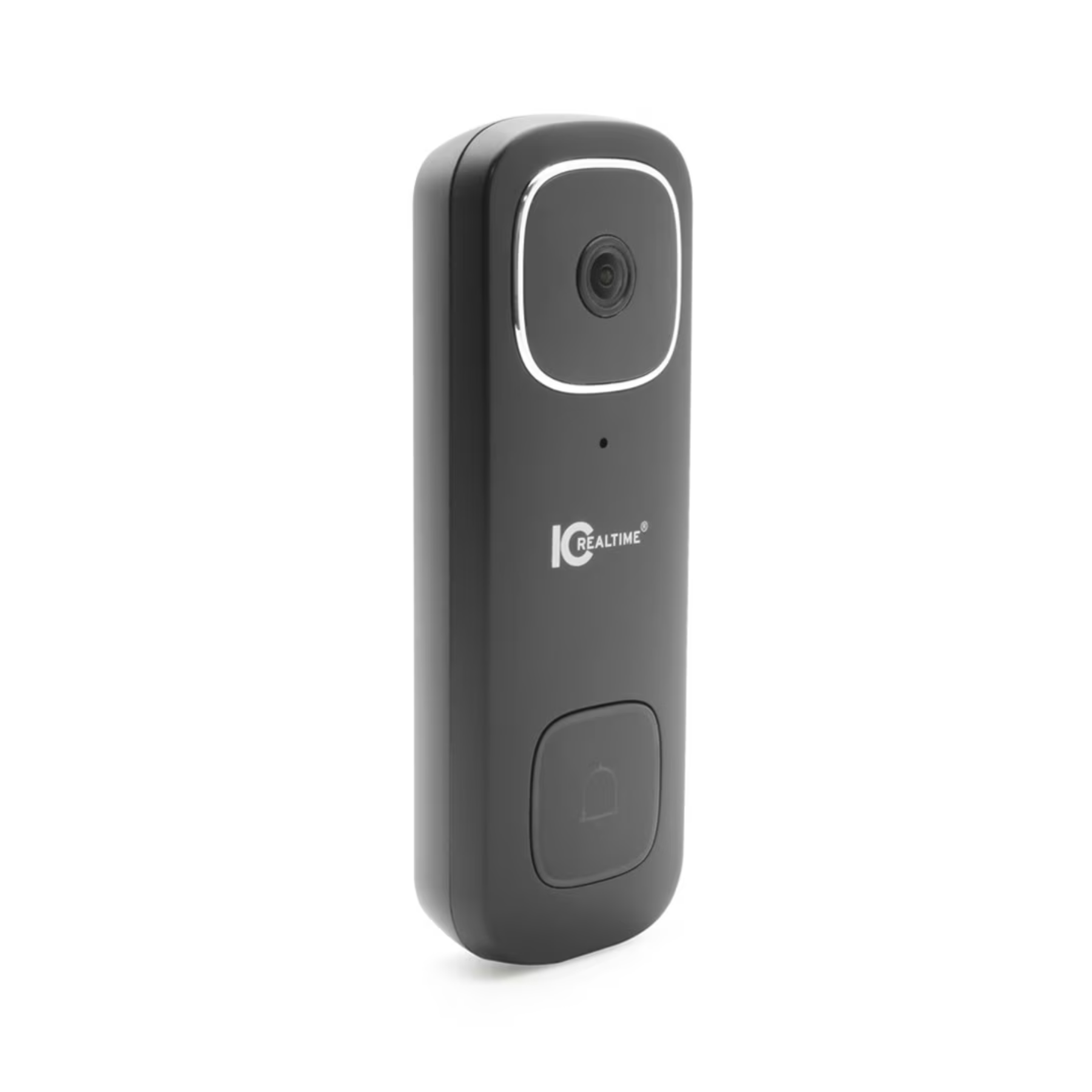

Dinger Pro 2 — 5MP Smart Video Doorbell
Pro-grade Wi-Fi doorbell with 5MP clarity, smarter human detection, improved IR night vision, and full IC View+ integration for a unified IC Realtime experience.
The Dinger Pro 2 redefines professional smart entry monitoring with sharper video, smarter alerts, better Wi-Fi stability, and a unified integration experience. With its major platform enhancement, the Dinger Pro 2 now connects directly through IC View+, the same app used for IC Realtime’s full surveillance lineup. Dealers no longer need a separate consumer app—this doorbell is now part of the main IC Realtime ecosystem.
Featuring 5MP resolution and a 124° ultra-wide viewing angle, it captures clear, detailed video of visitors, deliveries, and activity at the door. Upgraded IR night vision provides cleaner nighttime footage, while enhanced motion + human detection filters out movement that doesn’t matter. Improved two-way audio allows clear communication even when noise is present at the entry. Dual-band Wi-Fi and flexible AC/DC wiring make the Dinger Pro 2 easy to install, reliable in daily use, and ideal for homes, offices, and small businesses.
- 5MP Dual Band Wi-Fi Video Doorbell.
- Fixed 2.2mm Lens (164°).
- Maximum IR LED Length of 16.50 ft.
- 12-24VDC, 16-24VAC.
- 5MP (2560 x 1920) @15 FPS | H: 124°, D: 164° FoV
- 16.5ft IR Distance
- Dual-band WiFi Support
- Human Detection
- H.265 Support

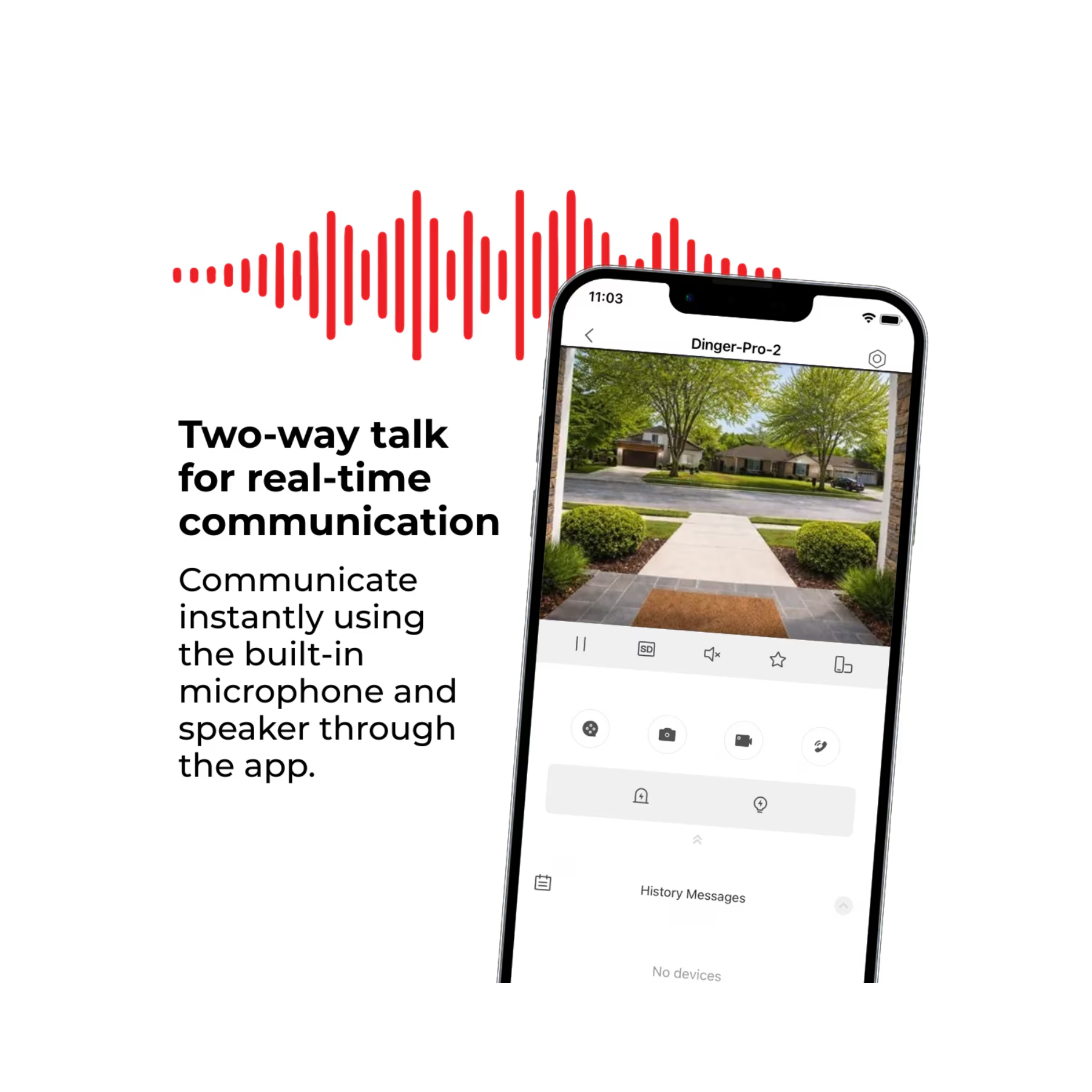

- Built-In Mic & Speakers | 2-Way Talk
- 256GB Micro SD Support (memory card not included)
- Pairs with mechanical chime or Singer 2
Quick Specs:
Resolution: 5MP (2560 × 1920)
Field of View: 124°
Night Vision: IR up to 16.5 ft
Wi-Fi: Dual-band 2.4 GHz + 5 GHz
Audio: Two-way talk
Storage: microSD up to 256GB
Power: AC 16–24V or DC 12–24V
Weather Rating: IP65
App Platform: IC View+
Applications:
- Front doors and side entries
- Package drop zones
- Small business entryways
- Rental property monitoring
- Vacation homes and remote-access installs
Specifications:
Camera
Image Sensor: 1/2.7-in. CMOS
Effective Pixels: 5MP (2560 x 1920)
RAM/Rom: 128 MB / 256 MB
Scanning System: Progressive
Illumination Distance: 16.5ft (5m)
Illumination On/Off Control: Programmable, Auto
Illumination LEDs: 2

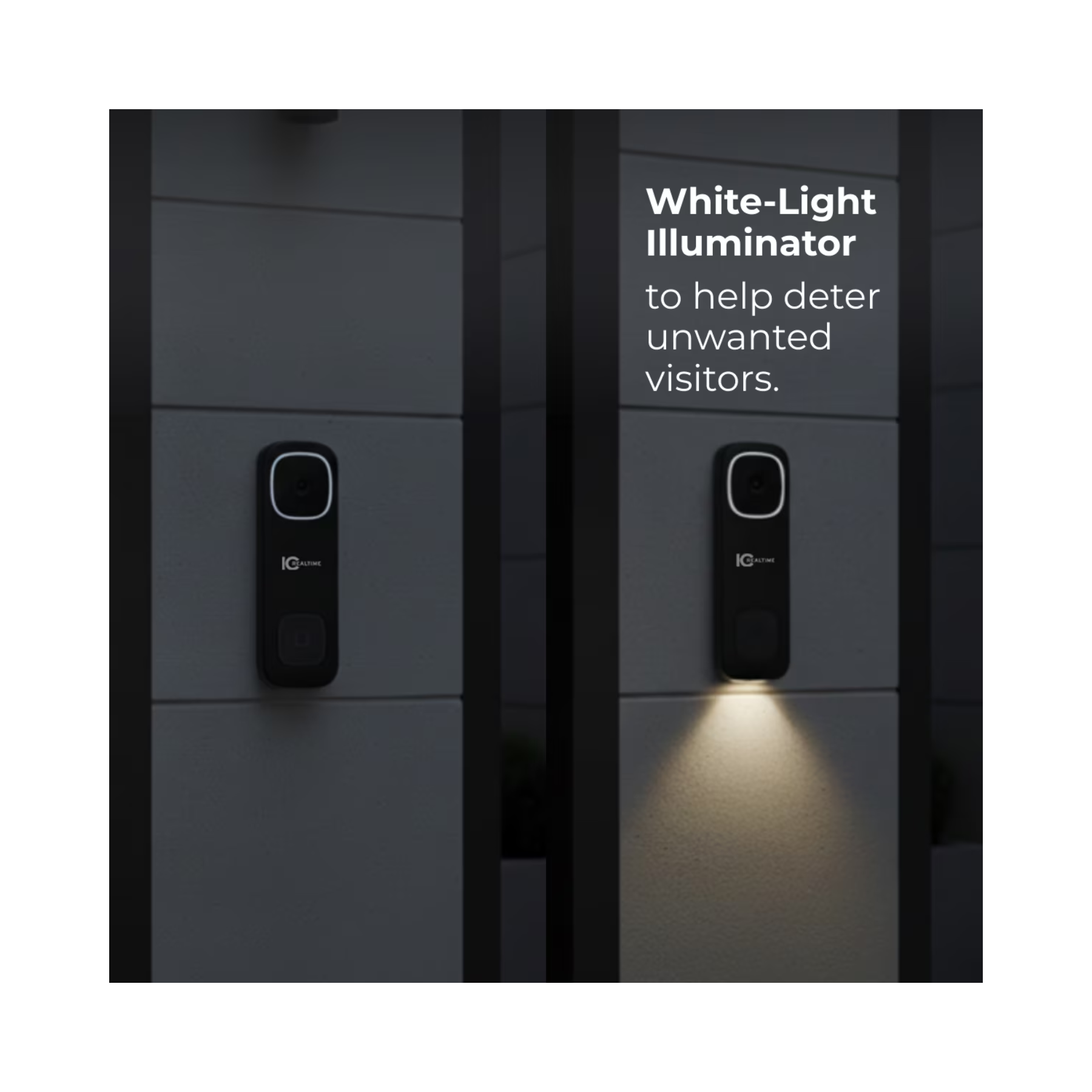

Camera Illumination Type: IR and White Light
Lens
Lens Type: Fixed lens
Focal Length: 2.2 mm
Max. Aperture: F2.0
Angle of View: H: 124°, V: 92°, D: 164°
DORI - Detect: 144.36ft (44.0 m)
DORI - Observe: 57.74ft (17.6 m)
DORI - Recognize: 28.87ft (8.8 m)
DORI - Identify: 14.44ft (4.4 m)
Intelligence
IVS: Human Detection
Advanced Intelligent Functions: Call Notification
Video
Compression: H.265, H.264
Resolution: 2560 x 1920, 1440 x 1080, 640 x 480
Frame Rate: Main Stream: 2560 x 1920 at 15 fps
Sub Stream: 640 x 480 at 15 fps
Bit Rate: H.264: 32 kbps to 8192 kbps
H.265: 32 kbps to 8192 kbps
Day/Night: Auto (ICR), Color, B/W
Noise Reduction: 3D NR
Motion Detection: On, Off
Iris Control: Fixed
WDR: DWDR
Audio
Compression: G.711A, G.711Mu, PCM
Network
Ethernet: N/A
Protocol: RTSP, CGI
Wifi: 2.4 GHz: IEEE802.11b/g/n • 2400 to 2483.5 MHz, RF POWER ≤30 dBm
5 GHz: IEEE802.11a/n/ac • 5150 to 5350 MHz, 5470 to 5725 MHz, RF POWER ≤24 dBm • 5725 to 5850 MHz, RF POWER ≤30 dBm
Interoperability: CGI, P2P
Edge Storage: IC Realtime NVR’s and HDVR’s
Web Viewer: N/A
Management Software: IC Now
Smart Phone: IC View Pro App (iOS, Android)
Interface
Audio I/O: Built-in Mic & Speakers
Memory Slot: Supports up to 256GB Micro SD Card
Electrical
Power Supply: 12 VDC to 24 VDC or 16 VAC to 24 VAC, 0.8 A USB (5 VDC±5%, 2 A)²
Power Consumption: 5 VDC: 2.3 W, Maximum: 3.3 W
12-24 VDC: 2.9 W, Maximum: 4.8 W
16-24 VAC: 2.9 W, Maximum: 4.9 W
Environmental
Operating Conditions: –4° F to 122° F (–20° C to +50° C),
Less than 95% RH
Ingress Protection: IP65
Construction
Casing: Plastic
Dimensions: 5.12 in. x 1.77 in. x 0.88 in. (130.0 mm x 45.0 mm x 22.50 mm)
Gross Weight: 1.12 lb (0.51 kg)
