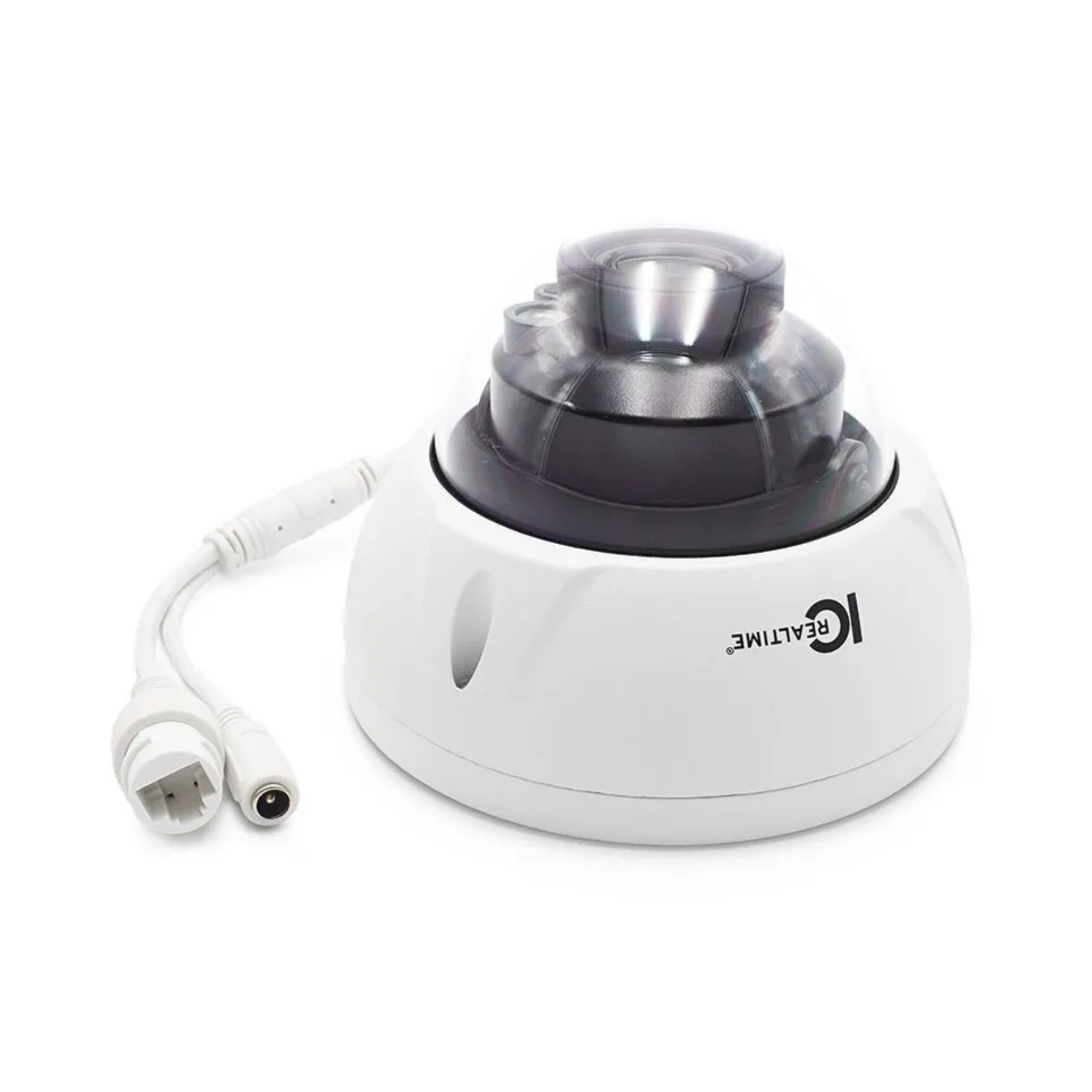

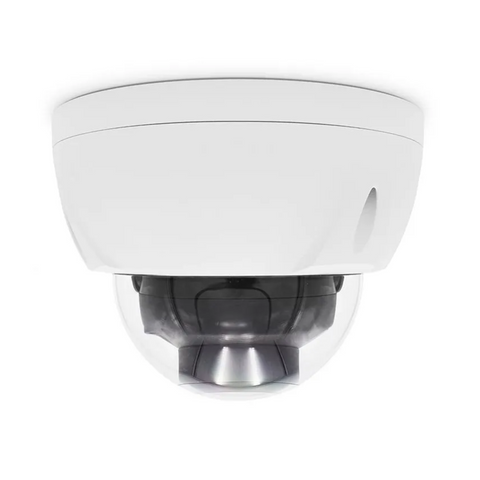

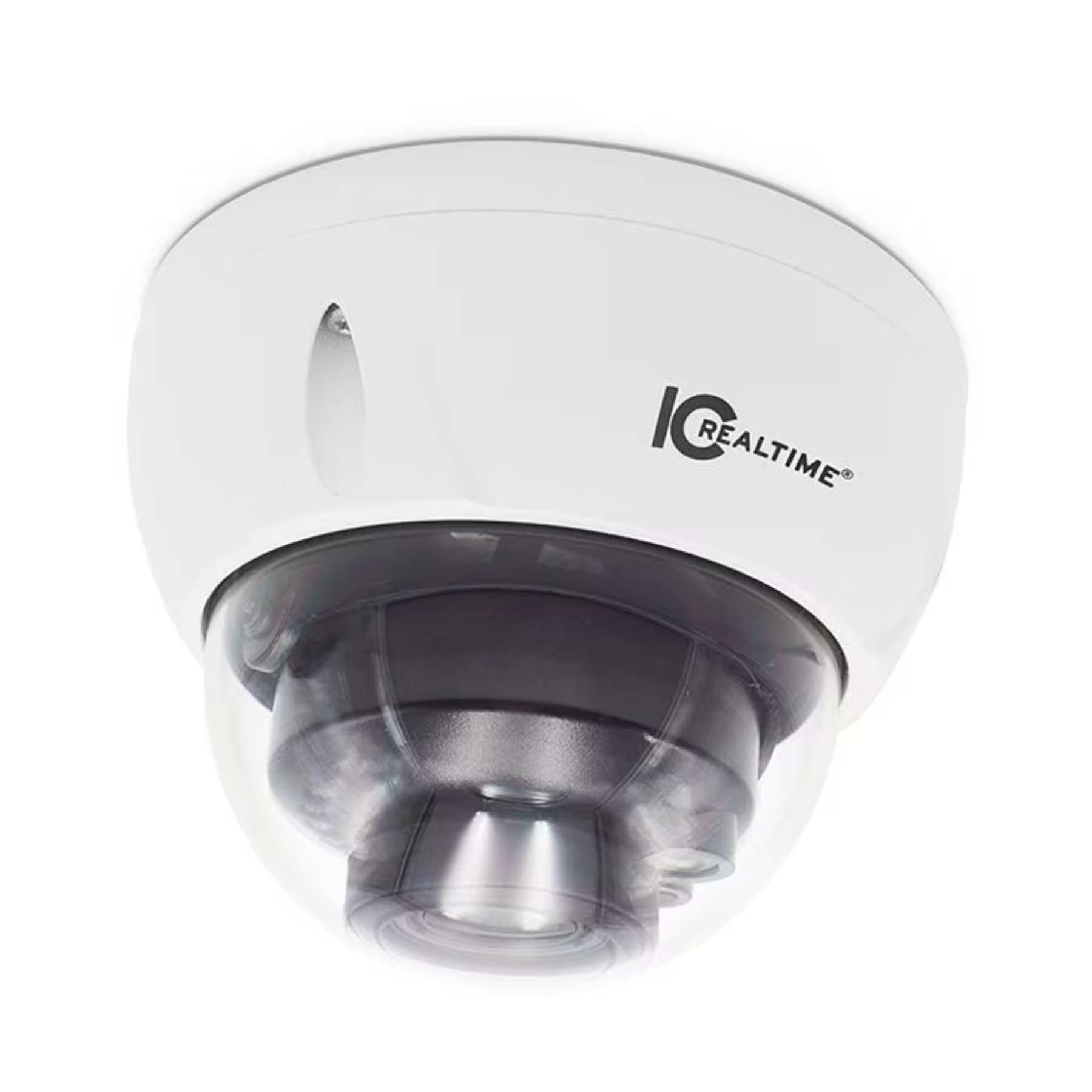

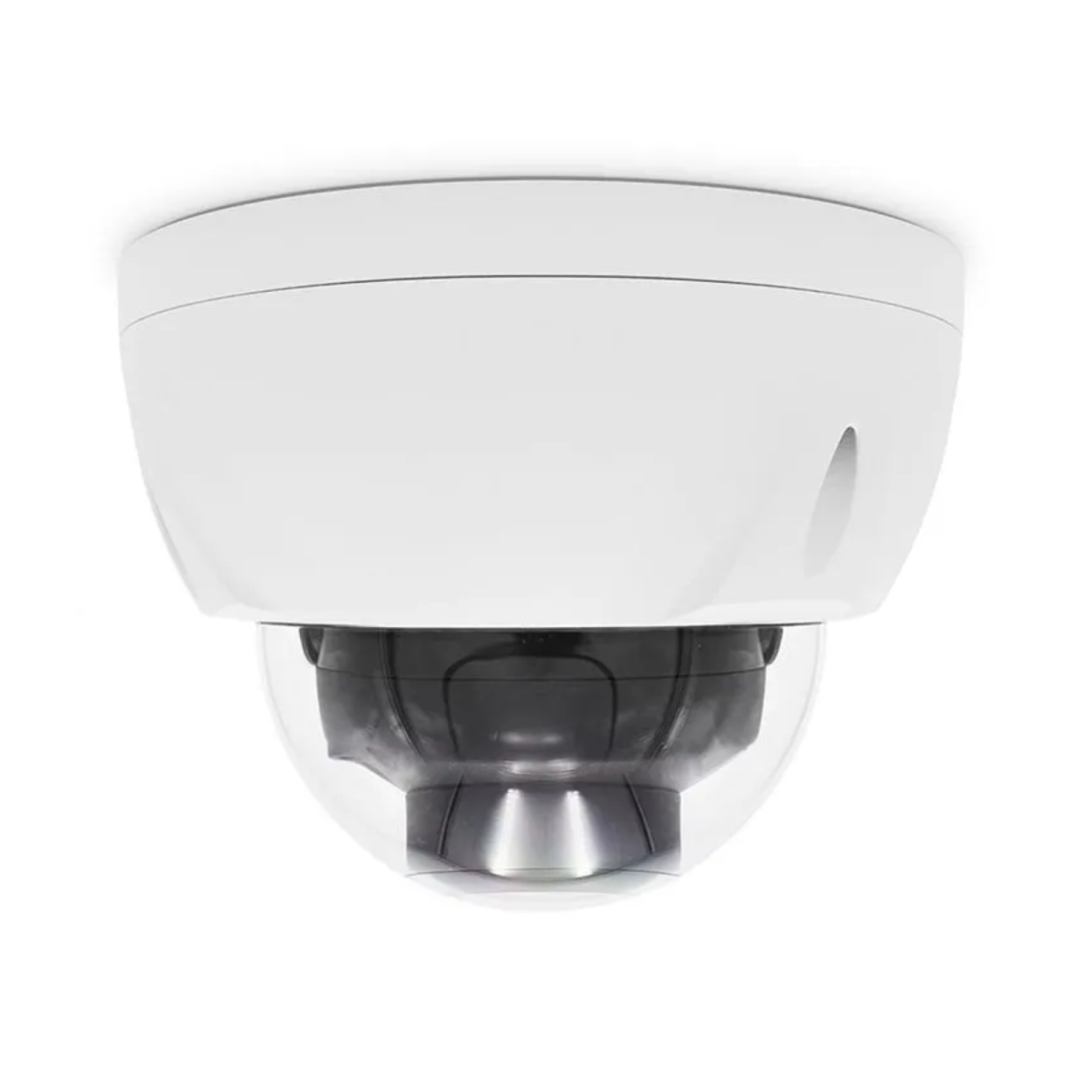

IC Realtime IPFX-D80V-IRW1 - 8MP WDR IR Dome Network Camera - Clearance / Open Box

IC Realtime

IC Realtime IPFX-D80V-IRW1 - 8MP WDR IR Dome Network Camera - Clearance / Open Box

$799.00
$1,020.00
HAVE SOMETHING TO TRADE? CLICK HERE
In Stock
In Stock
Back Order
Back Order
Back Order
Out of Stock
Delivery
Ships within 24 Hours
Delivery
- +
Buy now
Notify Me When In Stock

We’ll be happy to e-mail you when this item is available. Just fill in your name and e-mail address

View Products
Notify Me When In Stock

We’ll be happy to e-mail you when this item is available. Just fill in your name and e-mail address

Notify Me

Product Description

Line Circle
The IPFX-D80V-IRW1 is a 8MP dome camera featuring IC Realtime's latest generation of 1/2.5’’ CMOS sensors. It adopts our vandal proof dome style housing, and supports IR illumination up to ~164’ and also supports extended PoE (ePOE).
Get the Details

Features & Specs Line Circle

Smart (H.265+ & H.264+)
Deliver high quality video without straining the network, Smart H.265+ is the optimized implementation of H.265. The Smart H.265+ encoding technology includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing saving of up to 70% of
Protection (IP67, IK10, wide voltage)
The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 2KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), The camera complies with an IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.)
Smart IR Technology
With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 50m (164ft).
Intelligent Video Analysis (IVS)
With built-in intelligent video analytics, the camera has the ability to detect and analyze moving objects for improved video surveillance. The camera provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as Tripwire analytics, allowing the camera to detect when a predetermined line has been crossed, ideal for business intelligence, workforce optimization, and actionable intelligence.
ePOE Technology
ePOE technology adopts advanced 2D-PAM3 coding modulation from the physical layer and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. It supports PoE and PoC power supply technology, which has greatly simplified construction and wiring. ePoE technology offer a new way to accomplish long distance transmission between IP cameras and network switches. It allows for a more flexible surveillance system design, improves reliability, and saves on construction and wiring costs.
Wide dynamic range (WDR)
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Smart (H.265+ & H.264+)
Deliver high quality video without straining the network, Smart H.265+ is the optimized implementation of H.265. The Smart H.265+ encoding technology includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing saving of up to 70% of
Protection (IP67, IK10, wide voltage)
The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 2KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), The camera complies with an IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.)
Smart IR Technology
With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 50m (164ft).
Intelligent Video Analysis (IVS)
With built-in intelligent video analytics, the camera has the ability to detect and analyze moving objects for improved video surveillance. The camera provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as Tripwire analytics, allowing the camera to detect when a predetermined line has been crossed, ideal for business intelligence, workforce optimization, and actionable intelligence.
ePOE Technology
ePOE technology adopts advanced 2D-PAM3 coding modulation from the physical layer and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. It supports PoE and PoC power supply technology, which has greatly simplified construction and wiring. ePoE technology offer a new way to accomplish long distance transmission between IP cameras and network switches. It allows for a more flexible surveillance system design, improves reliability, and saves on construction and wiring costs.
Wide dynamic range (WDR)
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Expert Insights Coming Soon
Line Circle

Details

Line Circle

IPFX-D80V-IRW1 - 8MP WDR IR Dome Network Camera

IC Realtime's IPFX-D80V-IRW1 is one of those cameras that prove 4K Ultra High Definition is the perfect use for video security. This FlexSmartAi UHD power zoom dome camera represents the tipping point where Ultra High Definition moves from amusing to amazing, and security video rises from HD excellent to incredibly spectacular.

  • 1/2.5” 8 Megapixel progressive scan STARVIS™ CMOS
  • H.265 & H.264 triple-stream encoding
  • 15fps@4K(3840×2160),25/30fps@3M(2304×1296)
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Micro SD card slot, up to 128GB
  • 2.7mm ~12mm motorized lens
  • Max IR LEDs Length 164ft
  • IP67, IK10, ePOE Support

ULTRA DEFINITION + POWER ZOOM

A sensor chip like this deserves a great lens, and the D80V delivers big-time with a power zoom varifocal 2.7mm – 13.5mm autofocus lens system that gives a zoom dependent 110°–40° wide field of view. to take it all in. The IPFX-D80V also comes equipped with IC Realtime's industry-leading 120db WDR and 3D Digital Noise Reduction auto exposure and video management systems to keep all the details UHD sharp. Outside or indoors, D80V's darkness dominating 0.05 Lux@F1.5 low-light video sensor is supplemented by 160+ feet of auto-activated Smart IRs.

SEE & STREAM SMARTER

FlexSmartAi's deep learning algorithm enables enhanced IVS motion detection, perimeter control, and business intelligence and dependably recognizes human and vehicle intrusions with high accuracy, frame-by-frame analysis. This helps eliminate false alarms, triggering alerts only when The AI detects an actual intrusion and ignores irrelevant pixel-change motion like leaves in the wind for a 90% reduction in false detection alerts.

With 4K pixel density, stream management becomes even more vital, so the D80V utilizes IC Realtime's H.265+ video stream compression. This part of the FlexSmartAi system uses a scene-adaptive video codec that uses adjacent multi-frame references and applies intelligent noise reduction to fill in missing pixels for the complete video picture while simultaneously managing streaming bit rates. This level of frame-by-frame video management and high-speed analysis & compression means storage requirements are reduced by up to 70% compared to standard H.265 and less network load.

AUDIO SUPPORT & SOUND TRIPWIRE

For complete forensic evidence recording & post-incident review capabilities and UHD security gate or entryway live observations, the IPFX-D80V also includes a line-in audio to input an audio source in its output stream. That same audio pickup can enable audio triggering of D80V's IVS detection alerts when defined in its IVS "tripwire" rules and makes for court-admissible forensic video when digital watermarking is enabled.

That audio detection triggering is part of our new FlexSmartAi system that adds built-in brains to D80V's 4K UHD turret dome camera design. This built-in intelligence also makes D80V the perfect camera for our new FlexSmartAi recorders. They will automatically use IPFX-D80V's UHD pixel density and tripwire & intrusion capabilities to max out recorder-based FlexSmartAi detection & recognition capabilities.

VERSATILE, FUTURE PROOF & SECURE

Beyond its audio & UHD video features, IPFX-D80V's physical features include 12VDC power capability in case 7.3w of PoE isn't available and support a 256Gb mSD card for onboard video storage. Of course, the D80V is ONVIF (Profile S/ G/P/T) P2P and CGI compatible and is UL listed.

All IC Realtime cameras & recorders are protected by multiple layers of authorizations & password protections to ensure security on both the device & network levels. Network traffic is always encrypted in both directions and IC Realtime's IP security devices meet or exceed UL CAP certification standards.

Specifications:

Camera
Image Sensor: 1/2.5” 8 Megapixel progressive scan CMOS
Effective Pixels: 3840(H)x2160(V)
RAM/Rom: 512MB/32MB
Scanning System: Progressive
Electronic Shutter Speed: N/A
Minimum Illumination: 0.05Lux/F1.4 (Color,1/3s,30IRE)
                                          0.2Lux/F1.4 (Color,1/30s,30IRE)
                                          0Lux/F1.4(IR on)
S/N Ratio: More than 50dB
Illumination Distance: Distance up to 50m (164ft)
Illumination On/Off Control: Auto/ Manual
Illumination LEDs: 2
IR Wavelength: 850 nm
Camera Illumination Type: IR

Lens
Lens Type: Motorized/ Auto Iris(DC)
Mount Type: Board-in
Focal Length: 2.7mm~12mm
Max. Aperture: F1.4
Angle of View: H:110°~40° , V:58°~23°
Optical Zoom: 4x
Focus Control: Motorized
Close Focus Distance: 0.3m
DORI - Detect: 85m(280ft) - 228m(748ft)
DORI - Observe: 34m(112ft) - 91m(299ft
DORI - Recognize: 17m(56ft) - 46m(151ft)
DORI - Identify: 8.5m(28ft) - 23m(75ft)

Intelligence
IVS: Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions: Face Detection

Video
Compression: H.265+/H.265/H.264+/H.264
Resolution: 4K(3840×2160)/ 6M(3072×2048)/5M(3072x1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048x1536)/ 3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280x960)/ 720P(1280×720)/ D1(704×576/704×480)/
VGA(640×480)/ CIF(352×288/352×240)
Frame Rate: Main Stream: 4K(1~15fps)/3M(1~25/30fps)
                       Sub Stream: D1(1~25/30fps)
                       Third Stream: 720P(1~25/30fps)
Bit Rate: H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR
White Balance: Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control: Auto/Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zone, Rectangle)
Region of Interest: Off / On (4 Zone)
Electronic Image Stabilization (EIS): N/A
Smart IR: Support
Digital Zoom: 16x
Flip: 0°/90°/180°/270° (90°/ 270° only supported at 4MP or less)
Mirror: Off / On
Privacy Masking: Off / On (4 Area, Rectangle)

Audio
Compression: G.711a/ G.711Mu/ AAC/ G.726

Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Interoperability: ONVIF, PSIA, CGI, Milestone
Streaming Method: Unicast / Multicast
Max. User Access: 10 Users /20 Users
Edge Storage: NAS
                         Local PC for instant recording
                         Mirco SD card 128GB
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: SmartICRSS, ICRSS Pro,
Smart Phone: IOS, Android

Interface
Video Interface: N/A
RS485: N/A
Audio I/O: 1/1 channel In/Out
Alarm I/O: 1 channel In: 5mA 5VDC
                    1 channel Out: 300mA 12VDC
Memory Slot: Mirco SD card 128GB

Electrical
Power Supply: DC12V, PoE(802.3af)(Class 0)
                          E-PoE Support
Power Consumption: <8.5W


Environmental
Operating Conditions: -30° C ~ +60° C (-22° F ~ +140° F)
Operating Humidity: Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10


Construction
Casing: Metal
Dimensions: Φ122mm×88.9mm (4.8”×3.5”)
Gross Weight: 0.58kg (1.29lb)

Reviews

Line Circle
Product Descriptiondown arrow

Product Description

Line Circle
The IPFX-D80V-IRW1 is a 8MP dome camera featuring IC Realtime's latest generation of 1/2.5’’ CMOS sensors. It adopts our vandal proof dome style housing, and supports IR illumination up to ~164’ and also supports extended PoE (ePOE).
Get the Details
Features & Specsdown arrow

Features & Specs Line Circle

Smart (H.265+ & H.264+)
Deliver high quality video without straining the network, Smart H.265+ is the optimized implementation of H.265. The Smart H.265+ encoding technology includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing saving of up to 70% of
Protection (IP67, IK10, wide voltage)
The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 2KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), The camera complies with an IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.)
Smart IR Technology
With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 50m (164ft).
Intelligent Video Analysis (IVS)
With built-in intelligent video analytics, the camera has the ability to detect and analyze moving objects for improved video surveillance. The camera provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as Tripwire analytics, allowing the camera to detect when a predetermined line has been crossed, ideal for business intelligence, workforce optimization, and actionable intelligence.
ePOE Technology
ePOE technology adopts advanced 2D-PAM3 coding modulation from the physical layer and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. It supports PoE and PoC power supply technology, which has greatly simplified construction and wiring. ePoE technology offer a new way to accomplish long distance transmission between IP cameras and network switches. It allows for a more flexible surveillance system design, improves reliability, and saves on construction and wiring costs.
Wide dynamic range (WDR)
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Smart (H.265+ & H.264+)
Deliver high quality video without straining the network, Smart H.265+ is the optimized implementation of H.265. The Smart H.265+ encoding technology includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing saving of up to 70% of
Protection (IP67, IK10, wide voltage)
The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 2KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), The camera complies with an IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.)
Smart IR Technology
With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 50m (164ft).
Intelligent Video Analysis (IVS)
With built-in intelligent video analytics, the camera has the ability to detect and analyze moving objects for improved video surveillance. The camera provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as Tripwire analytics, allowing the camera to detect when a predetermined line has been crossed, ideal for business intelligence, workforce optimization, and actionable intelligence.
ePOE Technology
ePOE technology adopts advanced 2D-PAM3 coding modulation from the physical layer and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. It supports PoE and PoC power supply technology, which has greatly simplified construction and wiring. ePoE technology offer a new way to accomplish long distance transmission between IP cameras and network switches. It allows for a more flexible surveillance system design, improves reliability, and saves on construction and wiring costs.
Wide dynamic range (WDR)
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Expert Insightdown arrow
Expert Insights Coming Soon
Line Circle
Detailsdown arrow

Details

Line Circle

IPFX-D80V-IRW1 - 8MP WDR IR Dome Network Camera

IC Realtime's IPFX-D80V-IRW1 is one of those cameras that prove 4K Ultra High Definition is the perfect use for video security. This FlexSmartAi UHD power zoom dome camera represents the tipping point where Ultra High Definition moves from amusing to amazing, and security video rises from HD excellent to incredibly spectacular.

  • 1/2.5” 8 Megapixel progressive scan STARVIS™ CMOS
  • H.265 & H.264 triple-stream encoding
  • 15fps@4K(3840×2160),25/30fps@3M(2304×1296)
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Micro SD card slot, up to 128GB
  • 2.7mm ~12mm motorized lens
  • Max IR LEDs Length 164ft
  • IP67, IK10, ePOE Support

ULTRA DEFINITION + POWER ZOOM

A sensor chip like this deserves a great lens, and the D80V delivers big-time with a power zoom varifocal 2.7mm – 13.5mm autofocus lens system that gives a zoom dependent 110°–40° wide field of view. to take it all in. The IPFX-D80V also comes equipped with IC Realtime's industry-leading 120db WDR and 3D Digital Noise Reduction auto exposure and video management systems to keep all the details UHD sharp. Outside or indoors, D80V's darkness dominating 0.05 Lux@F1.5 low-light video sensor is supplemented by 160+ feet of auto-activated Smart IRs.

SEE & STREAM SMARTER

FlexSmartAi's deep learning algorithm enables enhanced IVS motion detection, perimeter control, and business intelligence and dependably recognizes human and vehicle intrusions with high accuracy, frame-by-frame analysis. This helps eliminate false alarms, triggering alerts only when The AI detects an actual intrusion and ignores irrelevant pixel-change motion like leaves in the wind for a 90% reduction in false detection alerts.

With 4K pixel density, stream management becomes even more vital, so the D80V utilizes IC Realtime's H.265+ video stream compression. This part of the FlexSmartAi system uses a scene-adaptive video codec that uses adjacent multi-frame references and applies intelligent noise reduction to fill in missing pixels for the complete video picture while simultaneously managing streaming bit rates. This level of frame-by-frame video management and high-speed analysis & compression means storage requirements are reduced by up to 70% compared to standard H.265 and less network load.

AUDIO SUPPORT & SOUND TRIPWIRE

For complete forensic evidence recording & post-incident review capabilities and UHD security gate or entryway live observations, the IPFX-D80V also includes a line-in audio to input an audio source in its output stream. That same audio pickup can enable audio triggering of D80V's IVS detection alerts when defined in its IVS "tripwire" rules and makes for court-admissible forensic video when digital watermarking is enabled.

That audio detection triggering is part of our new FlexSmartAi system that adds built-in brains to D80V's 4K UHD turret dome camera design. This built-in intelligence also makes D80V the perfect camera for our new FlexSmartAi recorders. They will automatically use IPFX-D80V's UHD pixel density and tripwire & intrusion capabilities to max out recorder-based FlexSmartAi detection & recognition capabilities.

VERSATILE, FUTURE PROOF & SECURE

Beyond its audio & UHD video features, IPFX-D80V's physical features include 12VDC power capability in case 7.3w of PoE isn't available and support a 256Gb mSD card for onboard video storage. Of course, the D80V is ONVIF (Profile S/ G/P/T) P2P and CGI compatible and is UL listed.

All IC Realtime cameras & recorders are protected by multiple layers of authorizations & password protections to ensure security on both the device & network levels. Network traffic is always encrypted in both directions and IC Realtime's IP security devices meet or exceed UL CAP certification standards.

Specifications:

Camera
Image Sensor: 1/2.5” 8 Megapixel progressive scan CMOS
Effective Pixels: 3840(H)x2160(V)
RAM/Rom: 512MB/32MB
Scanning System: Progressive
Electronic Shutter Speed: N/A
Minimum Illumination: 0.05Lux/F1.4 (Color,1/3s,30IRE)
                                          0.2Lux/F1.4 (Color,1/30s,30IRE)
                                          0Lux/F1.4(IR on)
S/N Ratio: More than 50dB
Illumination Distance: Distance up to 50m (164ft)
Illumination On/Off Control: Auto/ Manual
Illumination LEDs: 2
IR Wavelength: 850 nm
Camera Illumination Type: IR

Lens
Lens Type: Motorized/ Auto Iris(DC)
Mount Type: Board-in
Focal Length: 2.7mm~12mm
Max. Aperture: F1.4
Angle of View: H:110°~40° , V:58°~23°
Optical Zoom: 4x
Focus Control: Motorized
Close Focus Distance: 0.3m
DORI - Detect: 85m(280ft) - 228m(748ft)
DORI - Observe: 34m(112ft) - 91m(299ft
DORI - Recognize: 17m(56ft) - 46m(151ft)
DORI - Identify: 8.5m(28ft) - 23m(75ft)

Intelligence
IVS: Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions: Face Detection

Video
Compression: H.265+/H.265/H.264+/H.264
Resolution: 4K(3840×2160)/ 6M(3072×2048)/5M(3072x1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048x1536)/ 3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280x960)/ 720P(1280×720)/ D1(704×576/704×480)/
VGA(640×480)/ CIF(352×288/352×240)
Frame Rate: Main Stream: 4K(1~15fps)/3M(1~25/30fps)
                       Sub Stream: D1(1~25/30fps)
                       Third Stream: 720P(1~25/30fps)
Bit Rate: H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR
White Balance: Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control: Auto/Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zone, Rectangle)
Region of Interest: Off / On (4 Zone)
Electronic Image Stabilization (EIS): N/A
Smart IR: Support
Digital Zoom: 16x
Flip: 0°/90°/180°/270° (90°/ 270° only supported at 4MP or less)
Mirror: Off / On
Privacy Masking: Off / On (4 Area, Rectangle)

Audio
Compression: G.711a/ G.711Mu/ AAC/ G.726

Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Interoperability: ONVIF, PSIA, CGI, Milestone
Streaming Method: Unicast / Multicast
Max. User Access: 10 Users /20 Users
Edge Storage: NAS
                         Local PC for instant recording
                         Mirco SD card 128GB
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: SmartICRSS, ICRSS Pro,
Smart Phone: IOS, Android

Interface
Video Interface: N/A
RS485: N/A
Audio I/O: 1/1 channel In/Out
Alarm I/O: 1 channel In: 5mA 5VDC
                    1 channel Out: 300mA 12VDC
Memory Slot: Mirco SD card 128GB

Electrical
Power Supply: DC12V, PoE(802.3af)(Class 0)
                          E-PoE Support
Power Consumption: <8.5W


Environmental
Operating Conditions: -30° C ~ +60° C (-22° F ~ +140° F)
Operating Humidity: Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10

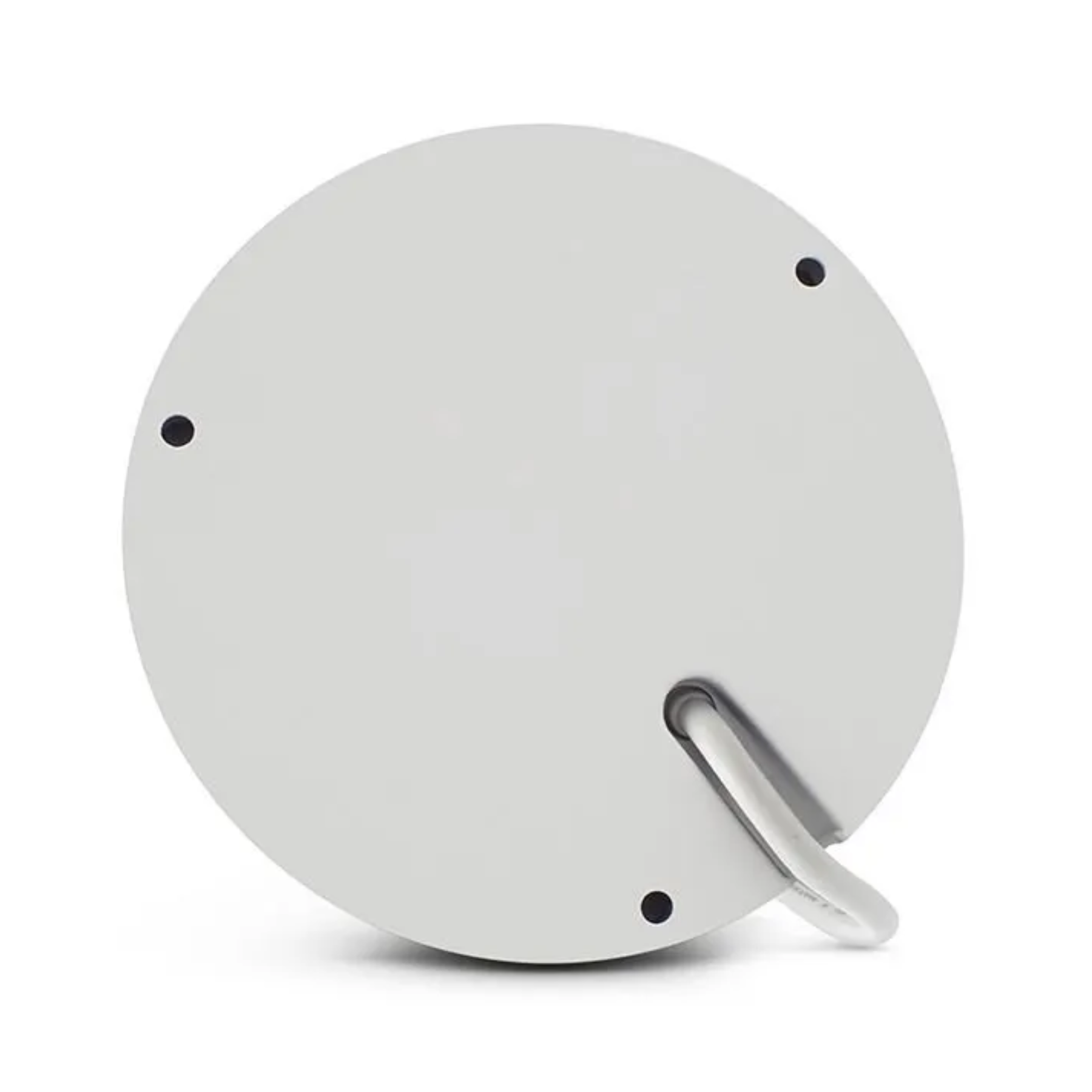

Construction
Casing: Metal
Dimensions: Φ122mm×88.9mm (4.8”×3.5”)
Gross Weight: 0.58kg (1.29lb)

Reviewsdown arrow

Reviews

Line Circle
Similar Products
View More
