iFi iDSD Phantom Reference Streaming DAC & Headphone Amp
Step into a new dimension of sonic realism with the iFi iDSD Phantom — a flagship-grade streaming DAC, headphone amplifier, and preamp meticulously engineered for audio purists. Merging native DSD2048 decoding, studio-grade remastering, and versatile analog and digital outputs, this all-in-one powerhouse is built to vanish into the music. Whether you're diving into high-resolution streaming via Qobuz Connect, switching between solid-state precision and warm NOS tube tones, or exploring iFi’s proprietary XBass Pro and XSpace Pro enhancements, the iDSD Phantom is designed to reveal every layer of your favorite recordings with unmatched fidelity.
What Makes It Great
The iDSD Phantom sets a new benchmark in audio playback by combining uncompromising sonic quality with unmatched versatility. At its core is the world's first native DSD2048 remastering engine, delivering detail and texture beyond standard high-res formats. Its triple-mode analog architecture — Solid-State, Tube, and Tube+ — provides a level of tonal flexibility previously only possible with multiple separate systems. Studio-quality streaming support, professional-grade connectivity, and proprietary enhancements like XBass Pro and XSpace Pro mean it adapts effortlessly to both headphone and speaker setups. Whether you're mastering tracks, conducting critical listening, or indulging in your favorite albums, the Phantom elevates every moment into a reference-level experience.
iFi iDSD Phantom Specifications
-
Headphone Output Power: ≥4,676mW/17.3V @ 64Ω (Balanced); ≥564mW/18.4V @ 600Ω (Balanced)
-
Line Output Voltage: 0–4.5V (Hi-Fi), 0–18V (Pro)
-

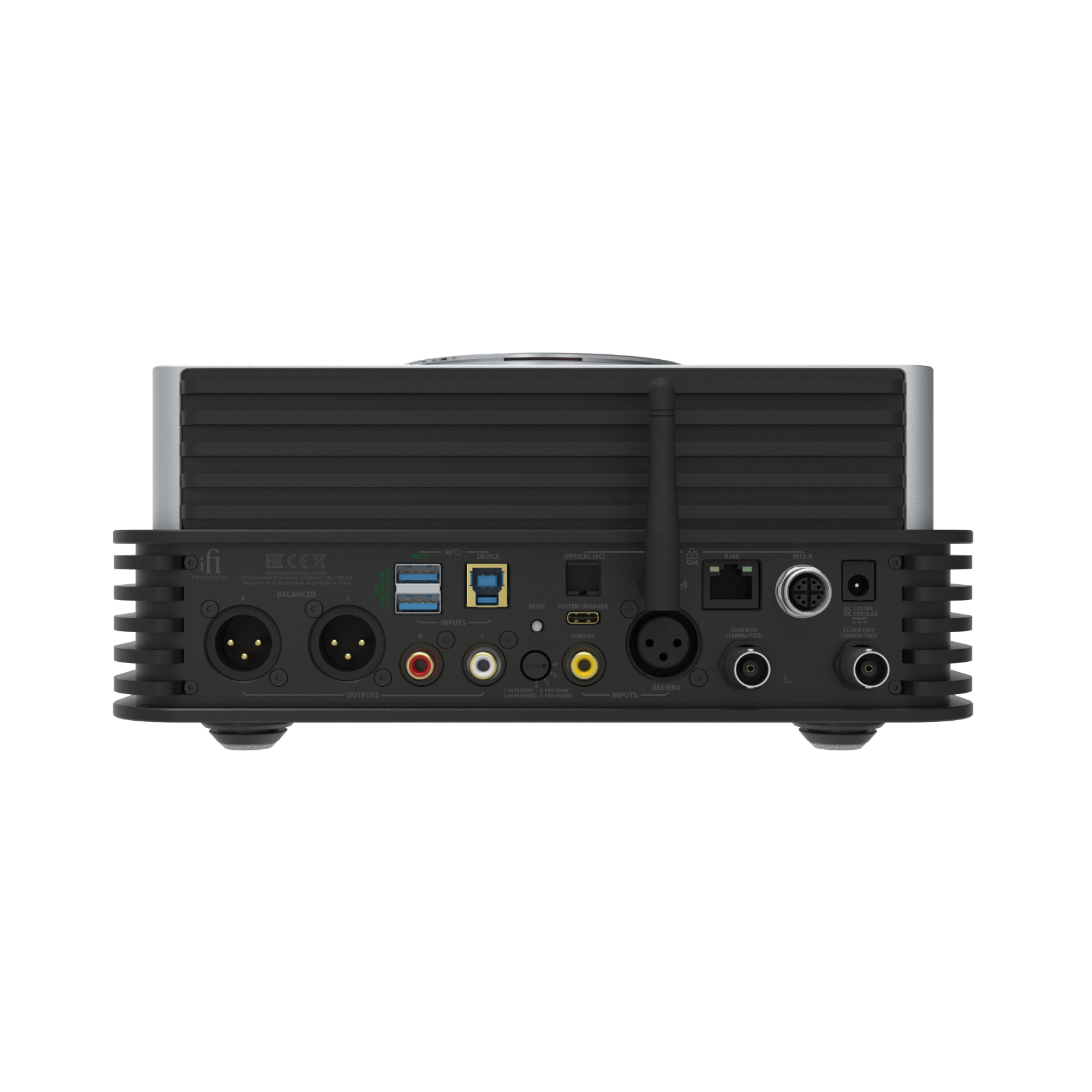

Digital Inputs: USB-B 3.0, 2x USB-A (Host), 1x USB-C (Host), 1x S/PDIF Coaxial, 1x AES3 (XLR), 1x RJ45, 1x M12, 1x Optical (SC), 1x BNC (Sync In)
-

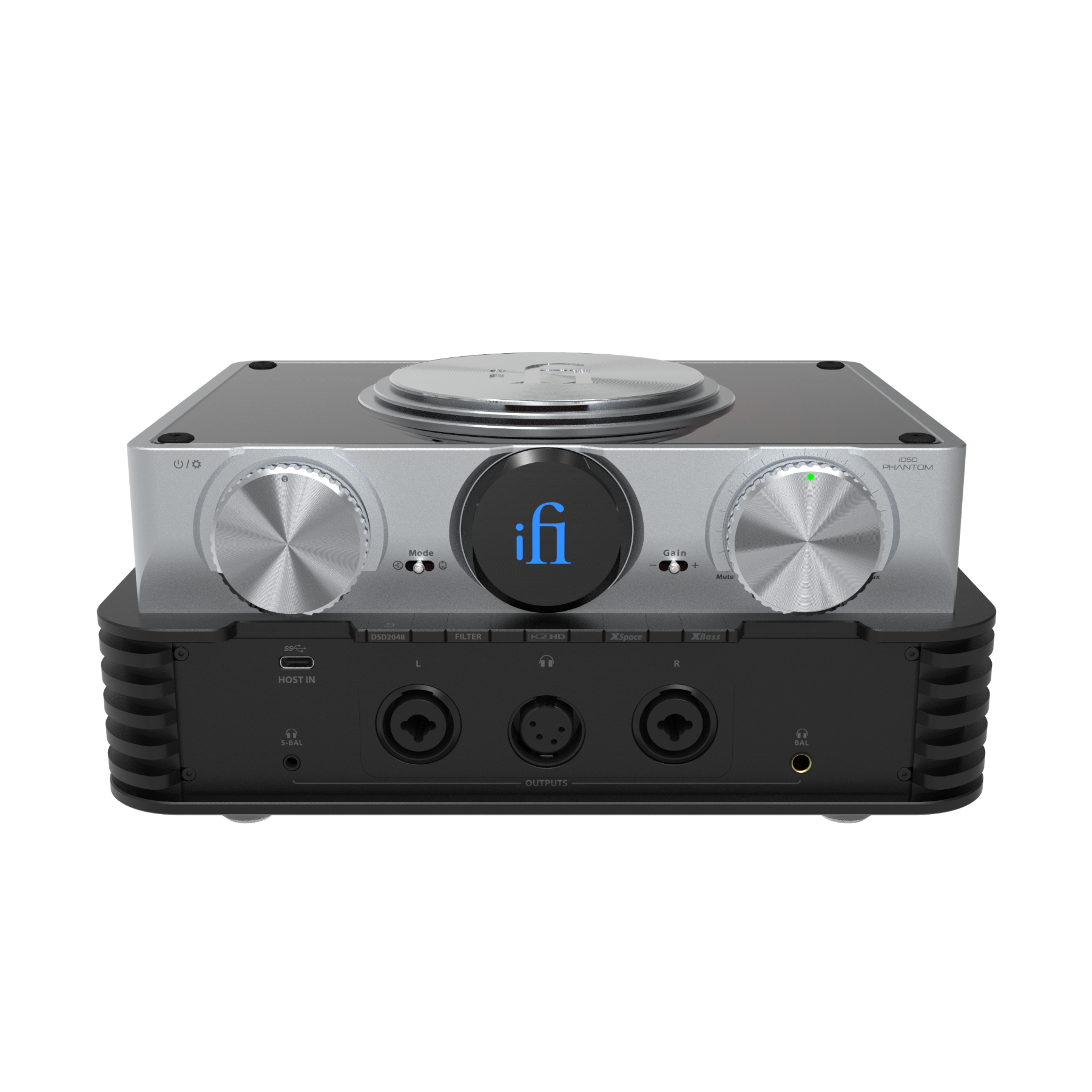

Headphone Output Types: 3.5mm S-Balanced, 4.4mm Balanced, 4-pin XLR, 3-pin XLR (L/R), 6.3mm (positive and inverted phase)
-
Remastering: Native DSD2048 via Crysopeia FPGA Engine with 4x Burr-Brown DSD1793 DACs
-
Streaming Support: Qobuz Connect, TIDAL Connect, Spotify Connect, Apple AirPlay 2
-
EQ Features: XBass Pro (10Hz/20Hz/40Hz), XSpace Pro (30°/60°/90°)
-
Audio Modes: Solid-State, Tube, Tube+
-
Signal-to-Noise Ratio: ≥116dBA @ 600Ω Balanced; ≥115dBA @ 600Ω Single-Ended
-
Dimensions: 256 x 185 x 120mm
-
In the Box: iDSD Phantom, iPower Elite 15V, Infrared Remote, Optibox, RCA Cable, USB3.0 A-to-B Cable, Quick Start Guide, 1-Year Warranty Card
Expanded Key Features List
-
Native DSD2048 Decoding: Utilizes 4x Burr-Brown DSD1793 DACs and iFi’s Crysopeia FPGA engine for ultra-high-resolution playback.
-
Triple Listening Modes: Choose between Solid-State, Tube, and Tube+ to tailor your sound signature with precision or warmth.
-
Studio-Grade Streaming: Access Qobuz, TIDAL, Spotify, and AirPlay 2 via a redesigned ultra-resolution streaming engine.
-
K2 & K2HD Harmonic Restoration: Revives harmonics lost during recording or digital compression using JVCKENWOOD mastering tech.
-
XBass Pro Analog EQ: Enhances low-end with selectable 10Hz, 20Hz, or 40Hz boost while keeping mids clear and uncolored.
-
XSpace Pro Spatial Enhancement: Emulates speaker-like soundstage with selectable stereo imaging (30°, 60°, 90°).
-
Versatile Output Options: Supports multiple headphone connectors, line-outs, and professional-grade balanced outputs.
-
Pro-Grade Feedback System: Constant impedance feedback and common-mode servo ensure stable performance across all EQ modes.
Q&A Section
Q: What makes the iDSD Phantom unique compared to other DAC/amps?
A: It’s the world’s first DAC to offer native DSD2048 remastering, combined with streaming, tube/solid-state switching, and studio-grade EQ — all in one flagship chassis.
Q: Can I stream directly from services like Qobuz or TIDAL?
A: Yes, the Phantom supports Qobuz Connect, TIDAL Connect, Spotify Connect, and AirPlay 2 for seamless hi-res streaming.
Q: What is the difference between Solid-State, Tube, and Tube+ modes?
A: Solid-State delivers clean precision; Tube adds smooth musical warmth; Tube+ enhances harmonic richness for a vintage analog feel.
Q: Does the iDSD Phantom work with all headphone types?
A: Yes, it offers multiple output types including 3.5mm, 4.4mm, XLR, and dual 6.3mm to support everything from IEMs to high-impedance headphones.
Q: What is XBass Pro and how does it work?
A: XBass Pro is an analog EQ with three selectable bass lift levels that enhance low frequencies without muddying mids, perfect for bass-shy headphones.
Q: How does XSpace Pro improve soundstage?
A: It widens stereo imaging with selectable spatial presets to mimic speaker listening, ideal for headphones with narrow soundstage.
Q: Can I use the Phantom as a standalone streamer/DAC for my speakers?
A: Absolutely. With balanced and unbalanced line outputs, it integrates into any two-channel or studio system as a high-end source.
Q: Is the Phantom compatible with professional gear?
A: Yes, its 0–18V Pro-level outputs, AES3 input, and BNC sync make it suitable for studio-grade or mastering setups.
