Power to the people
Our audiophile extension block brings super quiet mains power to your system.

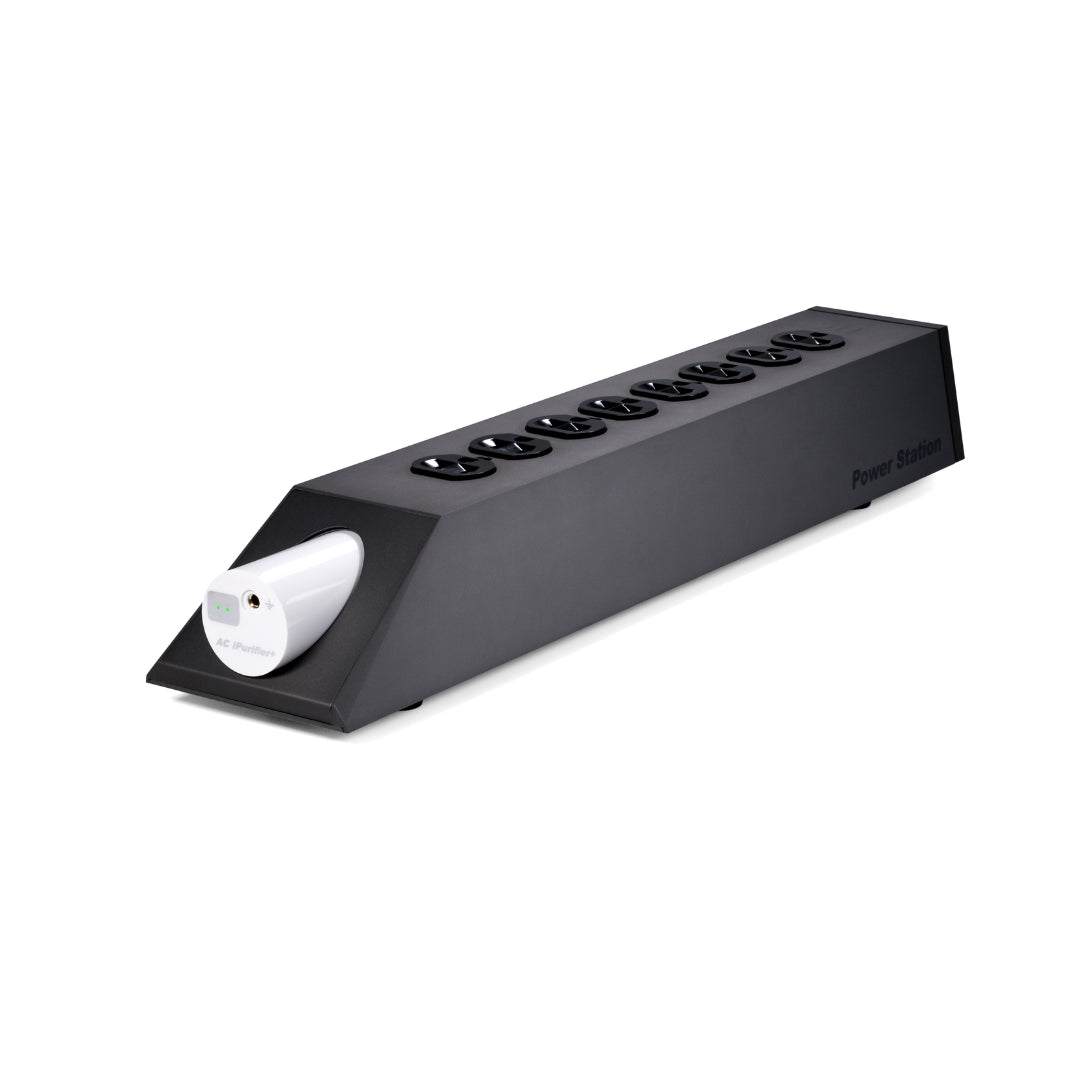

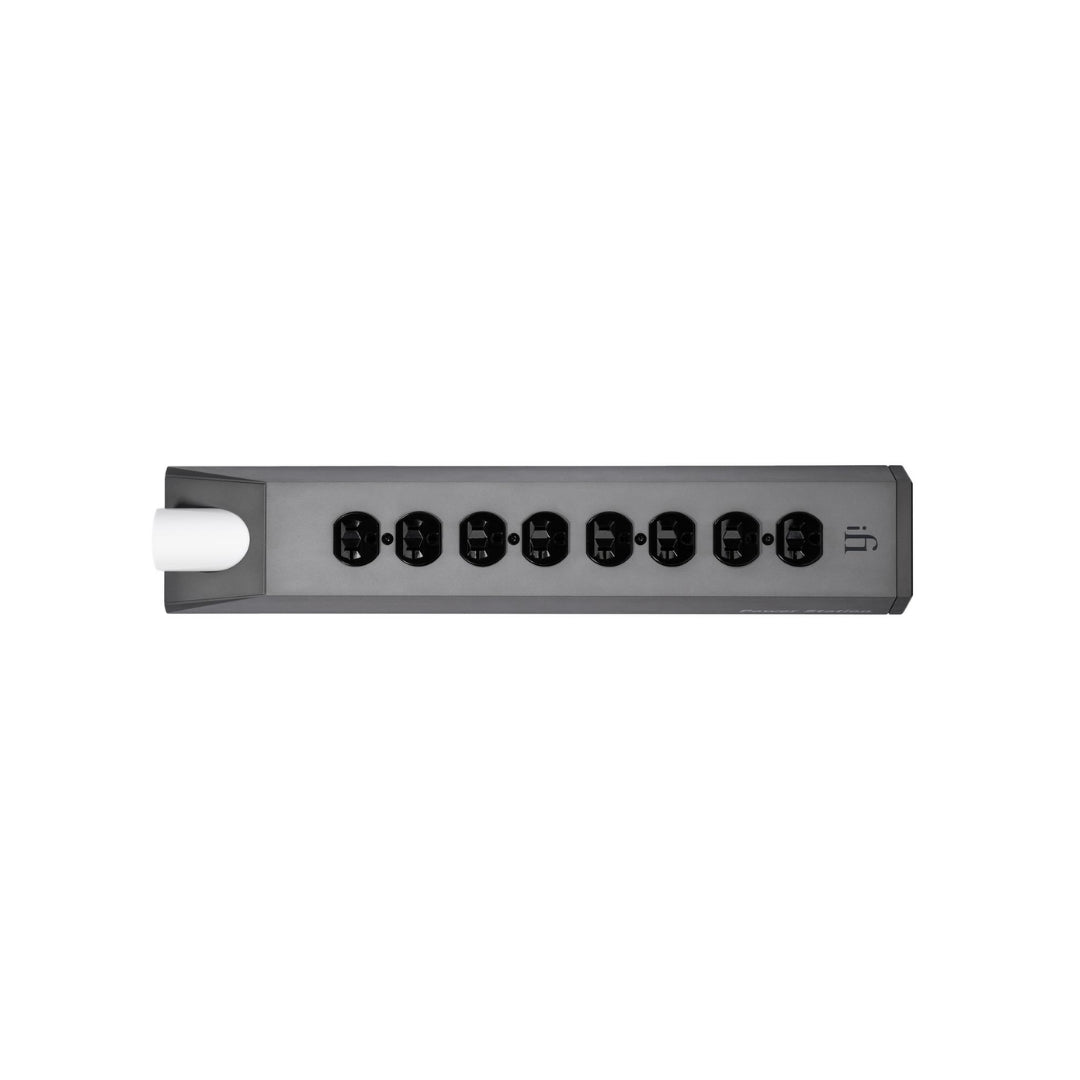

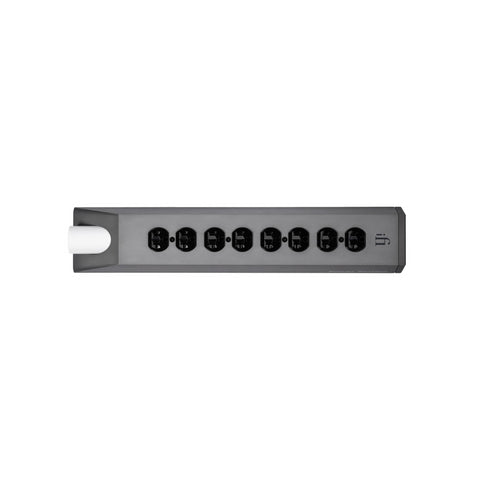

Whatever your set-up, digital, analogue or both, the PowerStation will ensure your system receives super quiet mains.
The iFi PowerStation is for everyone who likes their audio interference free.
Put a stop to RFI or EMIspan> noise and enjoy pain-free audio – all from one solid, snazzy dark anodised aluminium power block.
Ready, steady, go.
The PowerStation uses iFi’s Active Noise Cancelation II to ACTIVELY eliminates noise across the frequency range, even across the lower frequencies.
Each outlet has added passive filters to also eradicate noise from the very highest frequencies.
Nothing left to chance…
Each outlet is independently isolated in its own chamber to prevent cross-contamination, with the addition of vibration-damping EVA (ethylene-vinyl acetate).
We use PurCopper – a form of 99.9999 per cent pure OFHC (oxygen-free high-conductivity) continuous-cast copper – for its superior conductivity.
Gives you the earth…
The PowerStation has inbuilt earth/ground and polarity detection.
No earth/ground can lead to annoying buzzes and hums – the scourge of audio.
We’ve added a 4mm banana socket to the PowerStation so a grounding cable can be used to create a ground/earth when one isn’t present.
Bingo, the sound is gone.
…but keeps you grounded
And the PowerStation is smart. The supplementary ground/earth connection will NOT introduce a ground loop EVEN if the system is already earthed.
More than one earth would also create a ground loop leading to more buzzing and humming and we don’t want that.
Polarity detection is vital if you don’t want to hamper the quality of your audio mains. With the PowerStation, this is built-in.
And never fear, max. 30,000A @ 1,000V/10uS surge protection is also here. If it detects a power surge or a mains short, the PowerStation will shut down, protecting your downstream equipment from peril.
Not so humble beginnings
The PowerStation doesn’t forget where it came from – the original AC iPurifier.
You can still use your original AC iPurifier with the PowerStation – use them to separate your digital and analogue devices for even less noise contamination.
This is an active not a passive product. As can be seen from the graph, it cancels far more noise across the frequency range than a passive product.
Active filtration is MUCH better in the lower frequencies, at -40dB. Passive filtration is only truly effective in the very top-end of the frequency range.
Discover more about passive v active filtration and noise contamination here.
PurCopper – a form of 99.9999 per cent pure OFHC (oxygen-free high-conductivity) continuous-cast copper – is used extensively for its superior conductivity.
This includes 13 AWG, heavy-gauge internal wiring with multi-layered polymer insulation, solid PurCopper busbars and the conductive elements of the outlets themselves.
Our Wireless Purification System (WPS) is a complex circuit that reduces power line noise without audible or measured side-effects.
This is important because other solutions while attempting to curb noise, also hamper dynamics.
The LED indicators show Polarity and Earth detection. As usual, green is good, red signifies an issue.
There are four possible combinations and these can be found in a brief table in the User Manual. This tells you what the issue is and suggests how to remedy it.
The Over-voltage Surge Protection (OSP) is an auto detection and cut-off circuit.
Should it detect an excessive power surge or short in the mains electricity it will automatically cut off. If this issue persists, it will not reboot and will protect your equipment from harm.
It is effective to max. 30,000A @ 1,000V/10uS.
Our Intelligent Ground is a smart diagnostic tool. It will only actively provide an earth/ground connection if your system needs one. It will NOT create a ground loop if the system is already earthed/grounded.
You can use AC iPurifiers in the PowerStation.
The more AC iPurifiers you use, the cleaner the overall power. If the AC iPurifier is placed in the middle of the PowerStation it will also act as a noise shield. Noise is reduced, isolated and confined to the respective left/right sections of the AC iPurifier.
Use it to separate your analogue and digital devices.
Based on military tech, our improved Active Noise Cancellation II® actively cancels all incoming noise.
It does this in a similar way to active noise-cancelling headphones – it generates a signal identical to that of the incoming electrical noise but in the opposite phase, actively cancelling it out. This is highly effective at removing low- and mid-frequency noise, while passive insulating filters deal with higher frequency interference. This combination is measurably more effective at eradicating noise corrupting the USB signal than devices relying solely on passive filtering.
