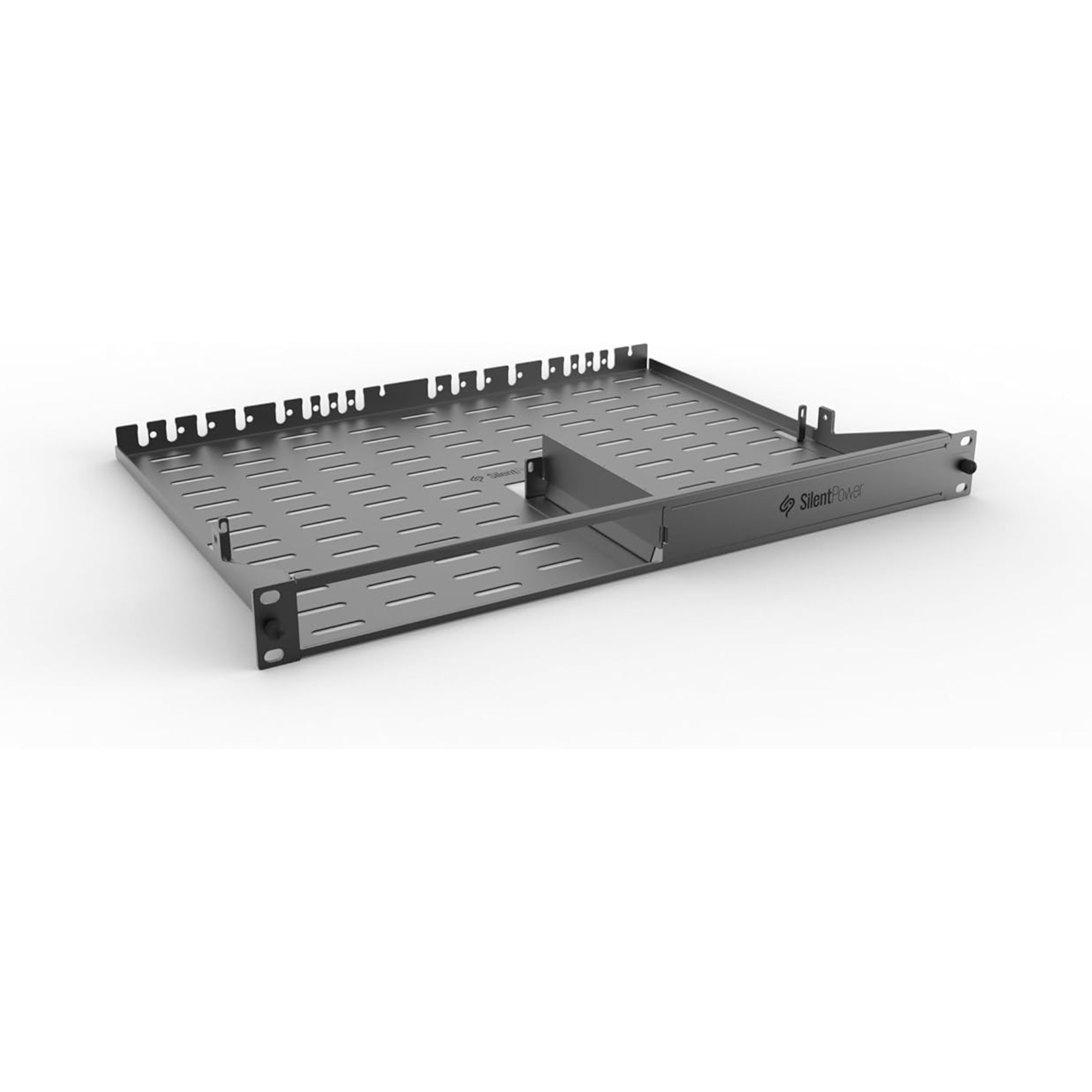

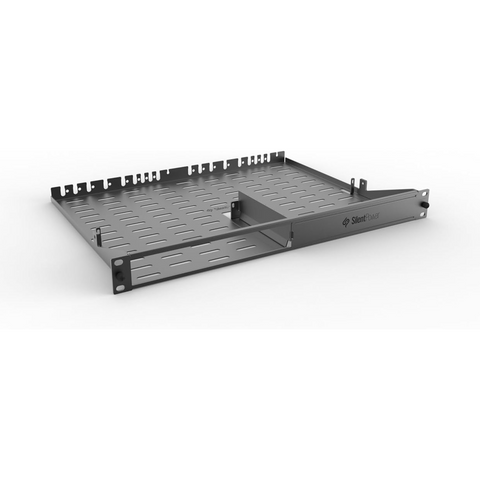

iFi OMNI RACK Mount Kit
The SilentPower OMNI RACK Mount Kit is a purpose-built 1U, 19-inch rack solution designed to securely mount SilentPower OMNI devices and iFi audio NEO series components in professional AV racks, server racks, and custom home theatre installations. Built from durable cold-rolled steel with airflow-optimized ventilation, it keeps equipment stable, cool, and neatly integrated in demanding systems. Support for single or dual-device configurations lets you mount one unit with a clean blanking plate or install two units side-by-side for dense rack layouts—ideal when expanding an OMNI setup (including building out a 24-port switch arrangement when using two OMNI LAN units). With front or rear mounting options, plus cable-routing slots for tidy runs and easier port access, it’s a clean, installation-friendly upgrade for any rack-based OMNI/NEO system.

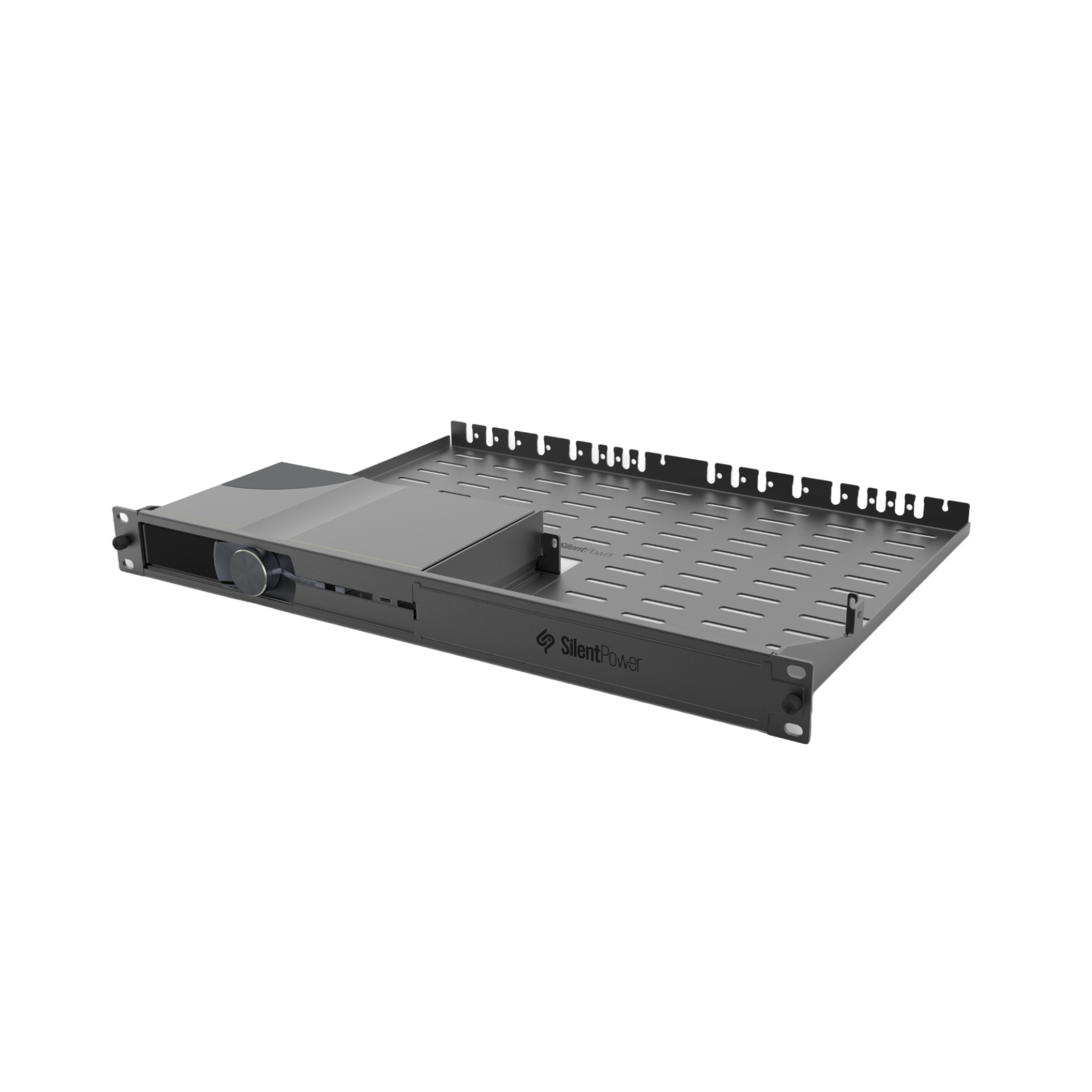

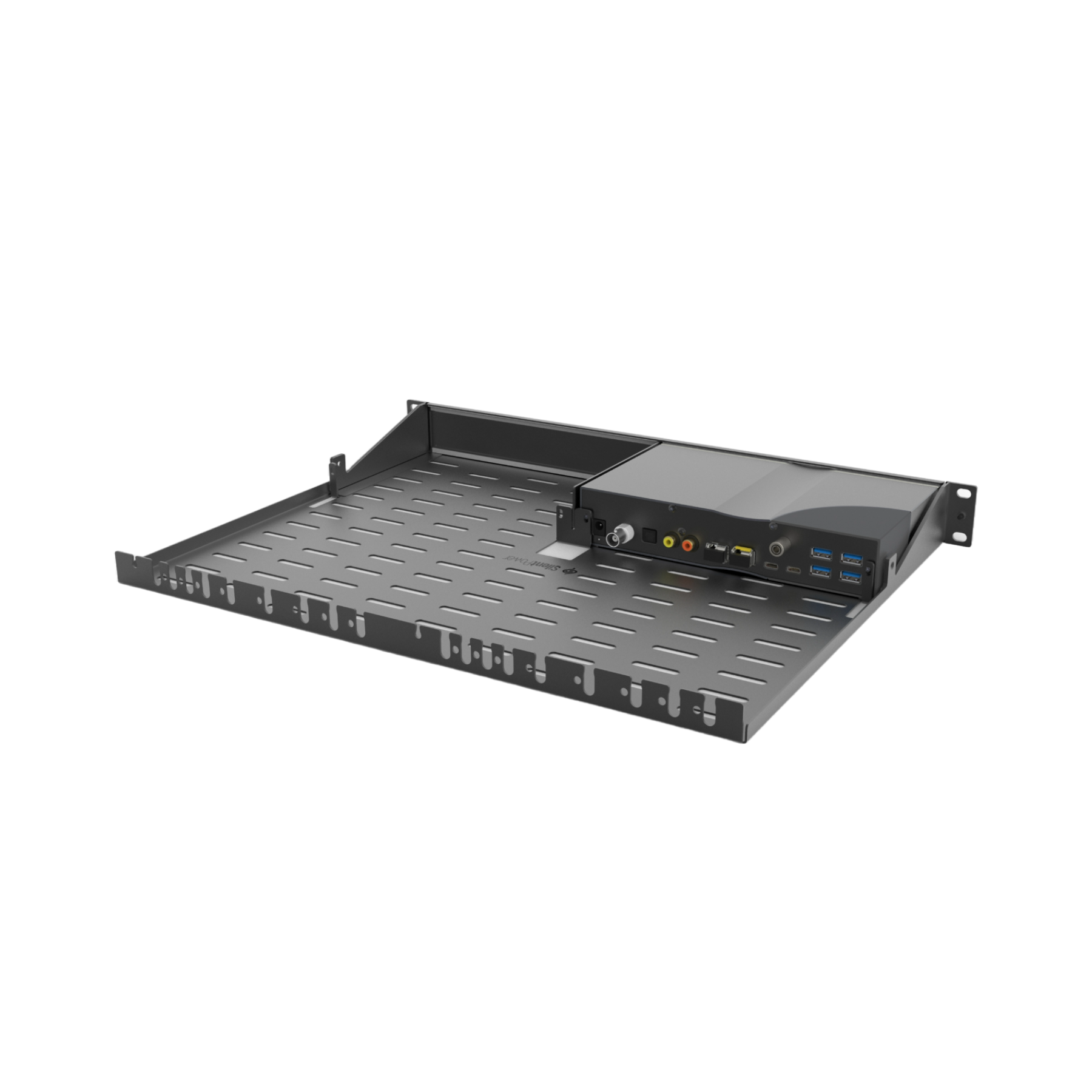

Mount your OMNI LAN with on the OMNI Rack. Put the Neo Stream on the rack as well to have all your devices in one place.
What It's Good At:
- Clean 1U rack integration for OMNI and NEO devices in home theatre, smart home, and pro AV installs
- Flexible layouts: mount one device (with blanking plate) or two devices side-by-side
- Front or rear device orientation to suit access, airflow direction, and cable routing needs
- Rock-solid stability with integrated damping for improved device support in racks
- Airflow-friendly chassis with ventilation to help reduce heat buildup in dense racks
- Installer-ready cable management with routing slots and included ties for an organized finish
iFi OMNI RACK Mount Kit Full Specifications:
-
Product Name: OMNI RACK Mount Kit
-
SKU: 03-20-005-0001-00
-
Rack Size / Form Factor: 19" rack width, 1U height
-
Supported Configurations:
- Single-device mounting
- Dual-device mounting (side-by-side)
- Front or rear mounting/orientation options
-
Compatibility / Supported Models:
- SilentPower OMNI series
- iFi audio NEO series (includes NEO-series components such as NEO iDSD 2)
-
Construction / Material: Cold-rolled steel
-
Ventilation: Optimized for airflow (vented chassis)
-
Stability Feature: Integrated damping to improve stability
-
Cable Management: Cable routing slots for clean organization
-
Dimensions: 482 x 347.4 x 44.4 mm (18.98" x 13.68" x 1.75")
-
Net Weight: 1.65 kg (3.64 lbs)
-
What’s in the Box:
- 1 × OMNI 19” Rack Mount
- 4 × M3×8 round head screws
- 2 × M3×70 round head screws
- 2 × M3×8 countersunk head screws
- 4 × M6 cabinet snap nut + screw combination
- 10 × Nylon ties (3×150 mm)
- 1 × H2.0 Allen wrench (17×50 mm)
-
Note: Product image colour may vary due to lighting; refer to the product for accuracy.
-
Note (Installation Context): OMNI/NEO devices are not included with the rack kit.
iFi OMNI RACK Mount Kit Q&A:
- Which devices does the OMNI Rack Mount Kit support?
- It’s compatible with the full SilentPower OMNI series and the iFi audio NEO series, allowing a consistent rack solution across both product families.
- Can I mount two devices in the same rack space?
- Yes. The kit supports dual-device installation in a single 1U space, ideal for expanding systems and dense rack builds.
- Can I mount a device facing the rear instead of the front?
- Yes. The design supports front or rear mounting/orientation, making it easier to position ports where you need them.
- What rack size does this kit fit?
- It’s built for a standard 19-inch rack and occupies 1U of height.
- Does the rack mount help with heat management?
- Yes. The chassis is vented and airflow-optimized to support cooling in tightly packed AV or network racks.
- What’s included for installation?
- The kit includes the rack mount plus required fasteners, snap nuts/screws, nylon ties, and an H2.0 Allen wrench to simplify assembly.
- Is this kit suitable for professional AV and custom installs?
- Absolutely. It’s designed specifically for serious home theatre and custom AV installations, focusing on stability, neat cabling, and flexible orientation.
- Does the kit include the OMNI or NEO device itself?
- No. The rack mount kit is the mounting hardware only; the OMNI/NEO device is purchased separately.
