iFi SilentPower OMNI LAN High Performance Network Switch

Step into the world of pristine, noise-free networking with the SilentPower OMNI LAN, a premium audiophile-grade network switch engineered for high-performance audio and professional AV installations. Designed with triple-stage isolation—featuring advanced optical galvanic separation—and ultra-precise femto-grade clocking, the OMNI LAN delivers unmatched signal purity and timing accuracy. With 13 high-spec ports, configurable grounding, and rack-mount capability, this plug-and-play unit effortlessly integrates into complex systems, ensuring jitter-free, interference-free data flow to streamers, DACs, servers, and media players. Whether you’re fine-tuning a home audio setup or deploying in a demanding commercial AV environment, the OMNI LAN ensures your digital signal remains untouched, accurate, and optimally timed.

Specifications

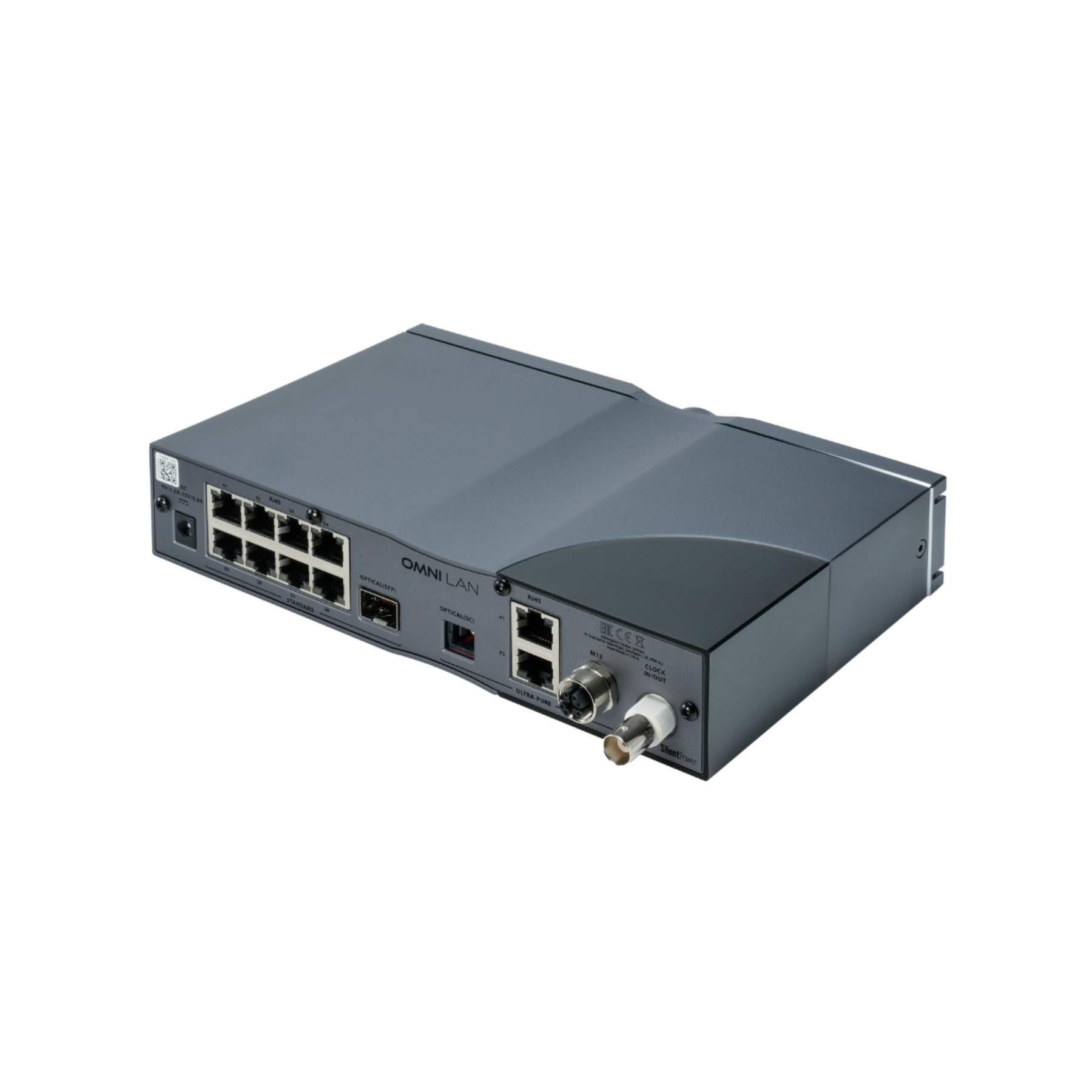

• Standard Ports: 8x RJ45, 1x Optical SFP, 1x BNC Clock In/Out

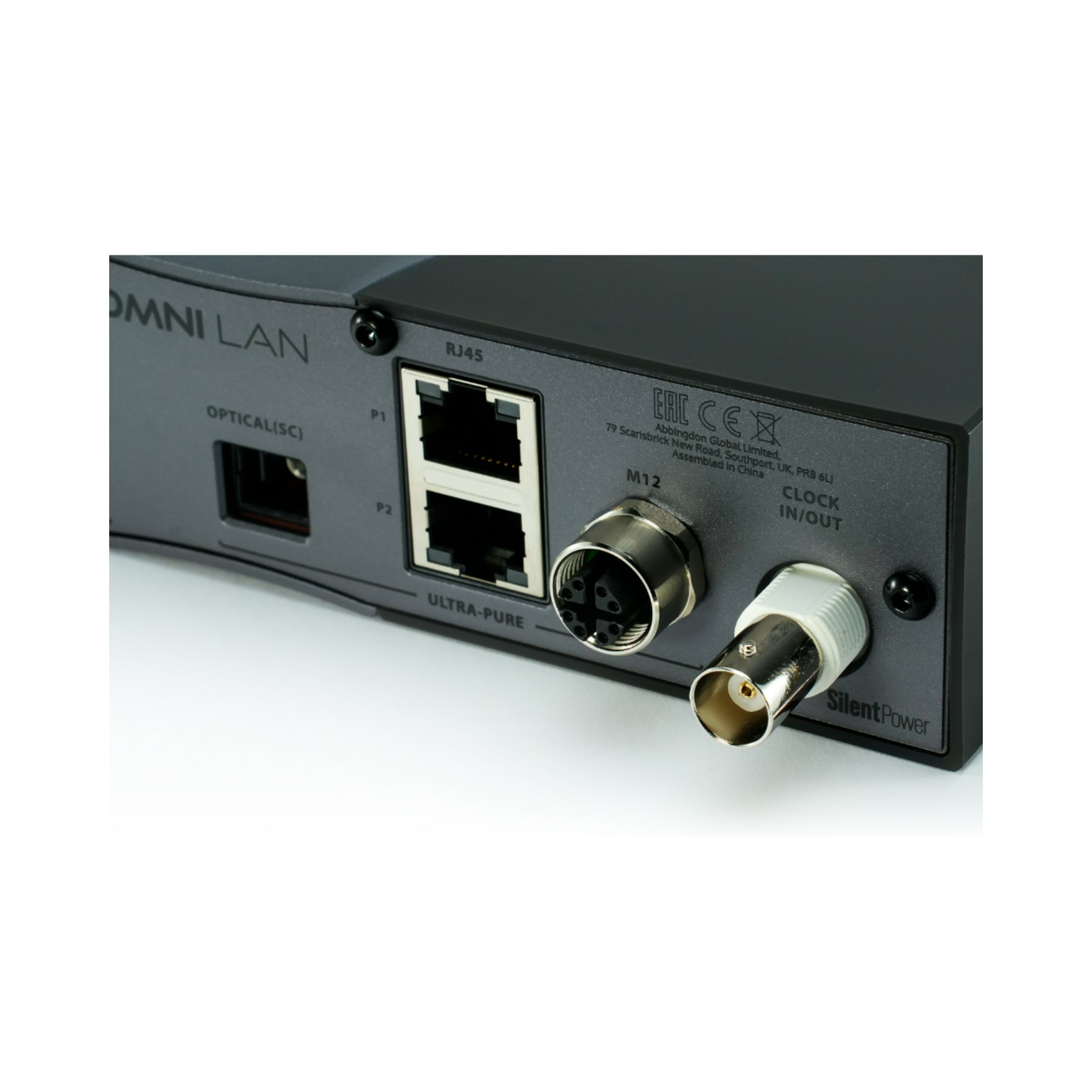

• Ultra-Pure Ports: 2x RJ45, 1x Optical SC, 1x Industrial M12
• Bandwidth: 1000Mbps
• Jitter: <0.05ms
• Lost Data-Bag Ratio: <0.09%
• Clocking: Femto-grade Global Master Timing (GMT) internal clock

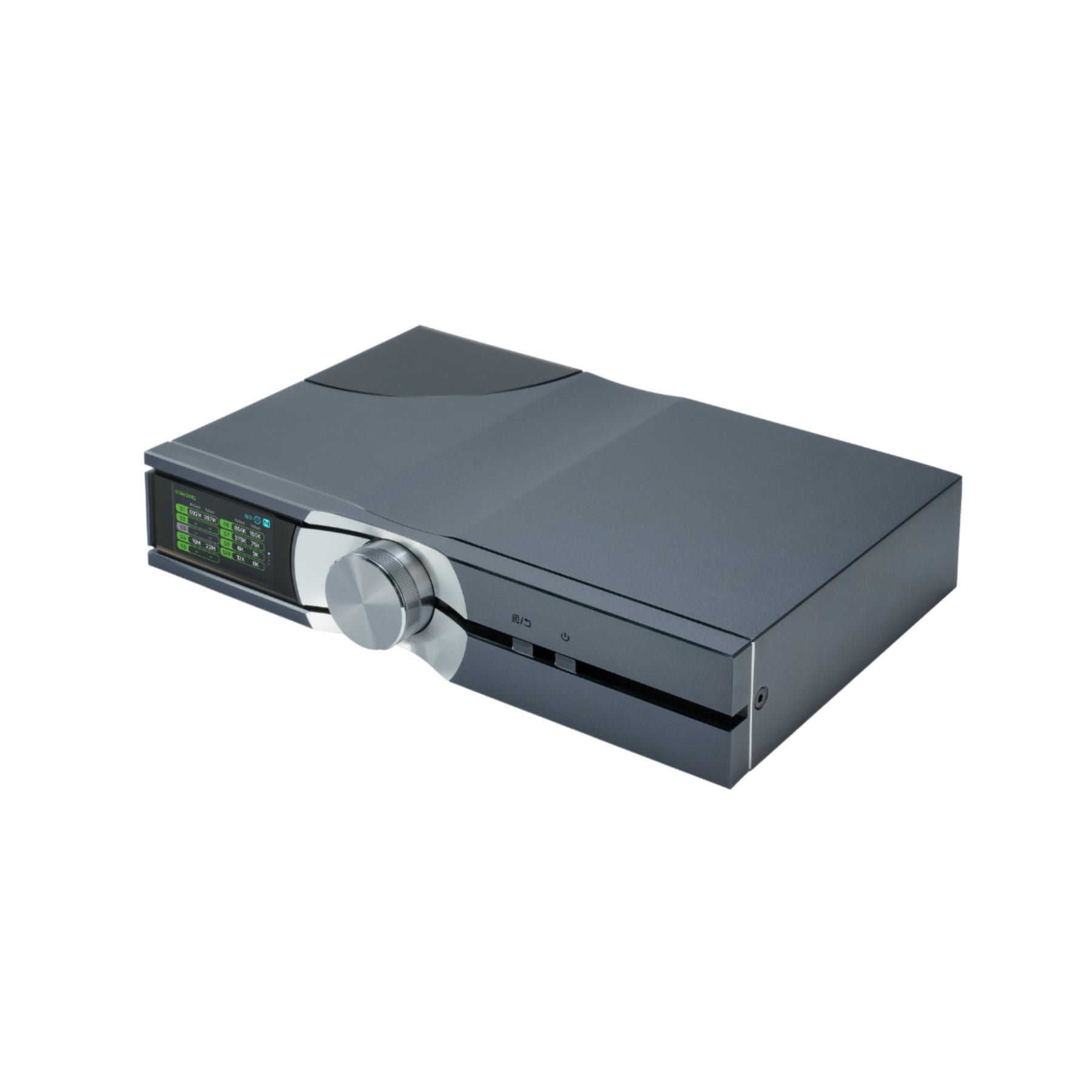

• Display: High-resolution TFT for real-time bandwidth monitoring
• Grounding Modes: Configurable (DC-RF, RF, ISO)
• Dimensions: 214 x 157 x 41mm
• Net Weight: 1.06kg
• Mounting: Rack-mountable (with optional Rack Mount Kit)
• Power Supply: 15V adapter included
• Included Accessories: Vertical stand, RJ45 cable (0.5m), anti-slip pads
• Warranty: 12 months
• Rack Mount Kit (Optional)
  • Dimensions: 482 x 347.4 x 44.4 mm
  • Net Weight: 1.65kg (3.64lbs)
  • Compatibility: SilentPower OMNI series, iFi Audio NEO series

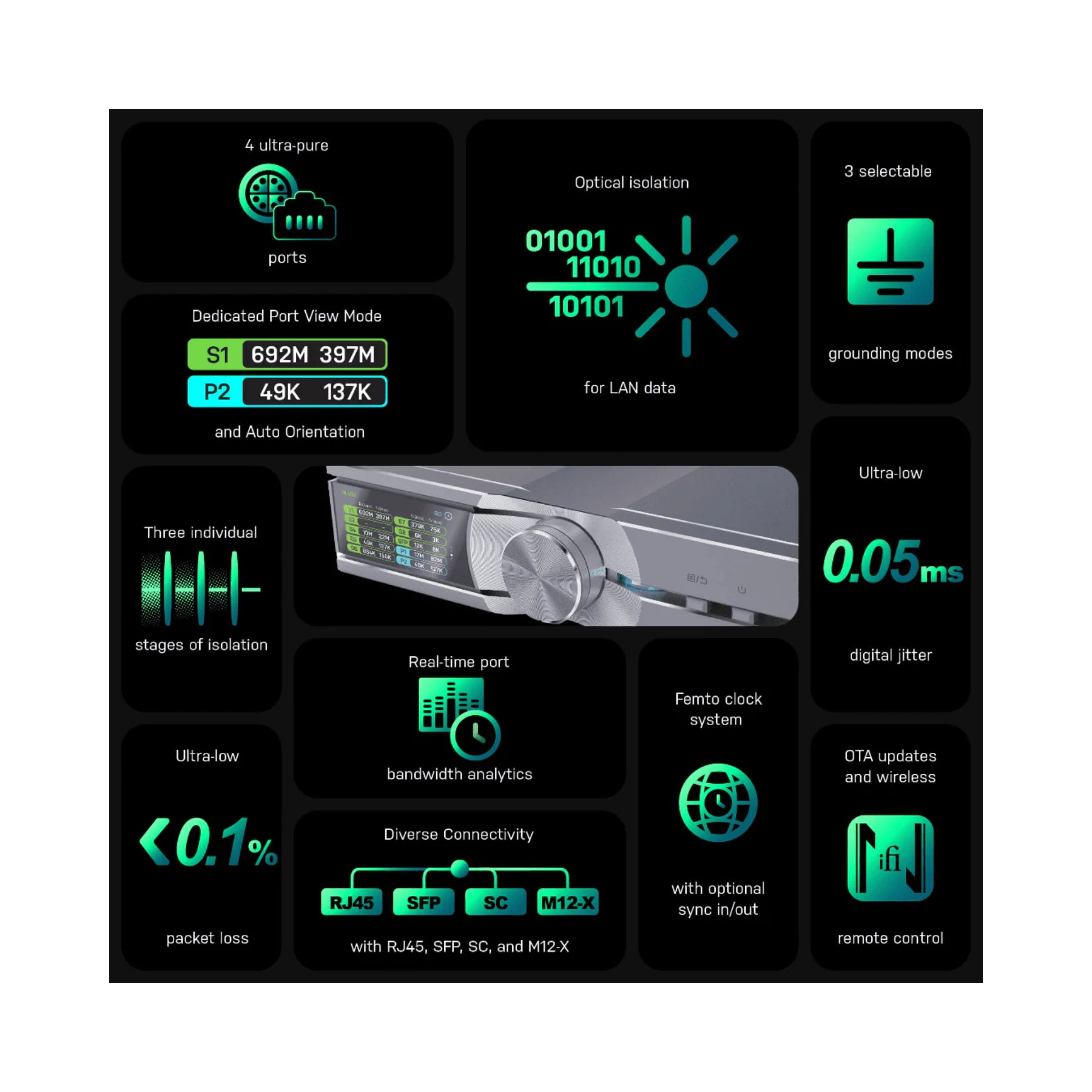

Key Features List

• Triple-Stage Isolation: Converts data to light and back again using optical isolation, completely decoupling input and output to eliminate electrical interference and signal contamination.
• Femto-Precision GMT Clocking: Ultra-accurate internal clock ensures impeccable data timing, reducing jitter and preserving audio integrity across your entire network.
• Versatile 13-Port Layout: Includes 8 standard RJ45 ports, 4 Ultra-Pure outputs (RJ45, SC, M12), and Optical SFP and BNC Clock In/Out for flexible, high-quality connections.
• Dynamic Bandwidth Display: High-resolution TFT screen displays real-time data traffic on each port, allowing for easy diagnostics and system optimization.
• Advanced Grounding Options: Multiple modes (DC-RF, RF, ISO) allow precise grounding configuration, helping to isolate and minimize noise in sensitive setups.
• Rack Mount-Ready: Supports front and rear mounting, single or dual units, and optimized ventilation—ideal for complex AV racks or studio environments.

Q&A Section

Q: What makes the OMNI LAN different from standard network switches?
A: Unlike typical switches, the OMNI LAN uses optical isolation and femto-grade clocking to eliminate jitter and noise, ensuring pure, uninterrupted signal for audiophile and AV systems.

Q: How many devices can I connect?
A: The OMNI LAN has 13 ports, including 8 standard RJ45 ports and 4 Ultra-Pure ports (RJ45, SC, M12, Optical SFP), offering versatile connectivity for various high-performance devices.

Q: Is the OMNI LAN plug-and-play?
A: Yes, it’s designed for easy setup. Just power on the unit and connect your devices—Ultra-Pure ports for sensitive playback equipment and standard ports for general devices.

Q: Can I use the OMNI LAN with a rack mount?
A: Absolutely. An optional rack mount kit is available for front or rear mounting, supporting up to two units for a 24-port configuration.

Q: Does it work with external clocks or power supplies?
A: Yes, it supports a 10MHz BNC master clock in/out and is compatible with audiophile-grade external power supplies for enhanced performance.

Q: What kind of display does it have?
A: The unit features a high-resolution TFT screen that shows real-time bandwidth data for each connected port, helping with monitoring and diagnostics.

Q: Can I monitor or control it remotely?
A: Yes, the OMNI LAN can be monitored and controlled via a smartphone application for added convenience in professional setups.

Q: What’s included in the box?
A: The OMNI LAN comes with a vertical stand, 15V power supply, 0.5m RJ45 cable, and four anti-slip pads—everything you need to get started right away.

Omni Lan Quick Start Guide
