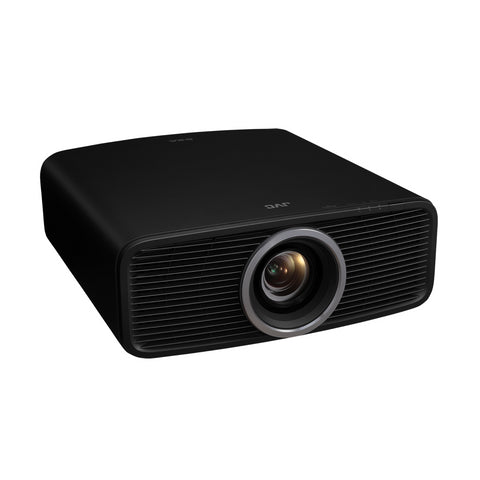

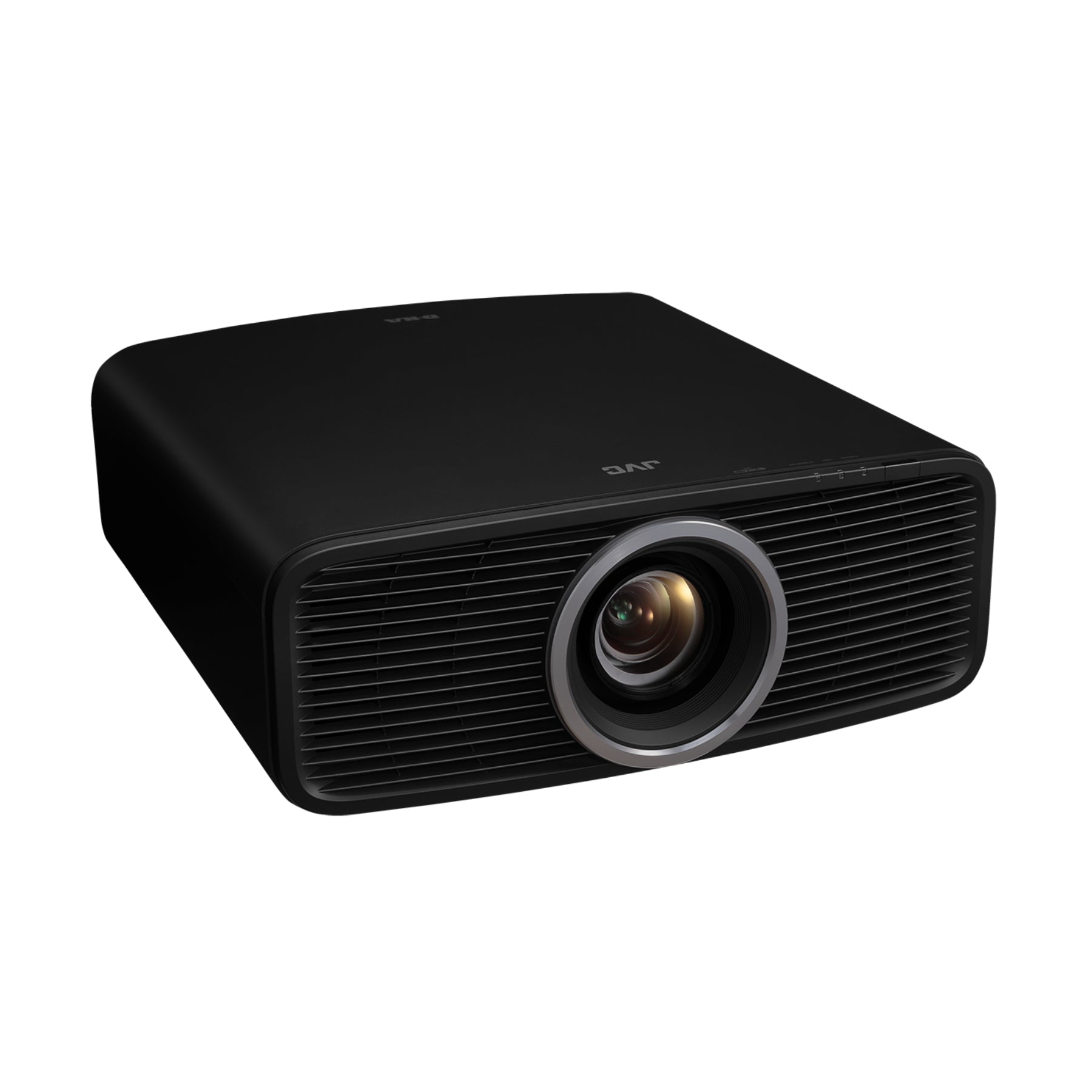

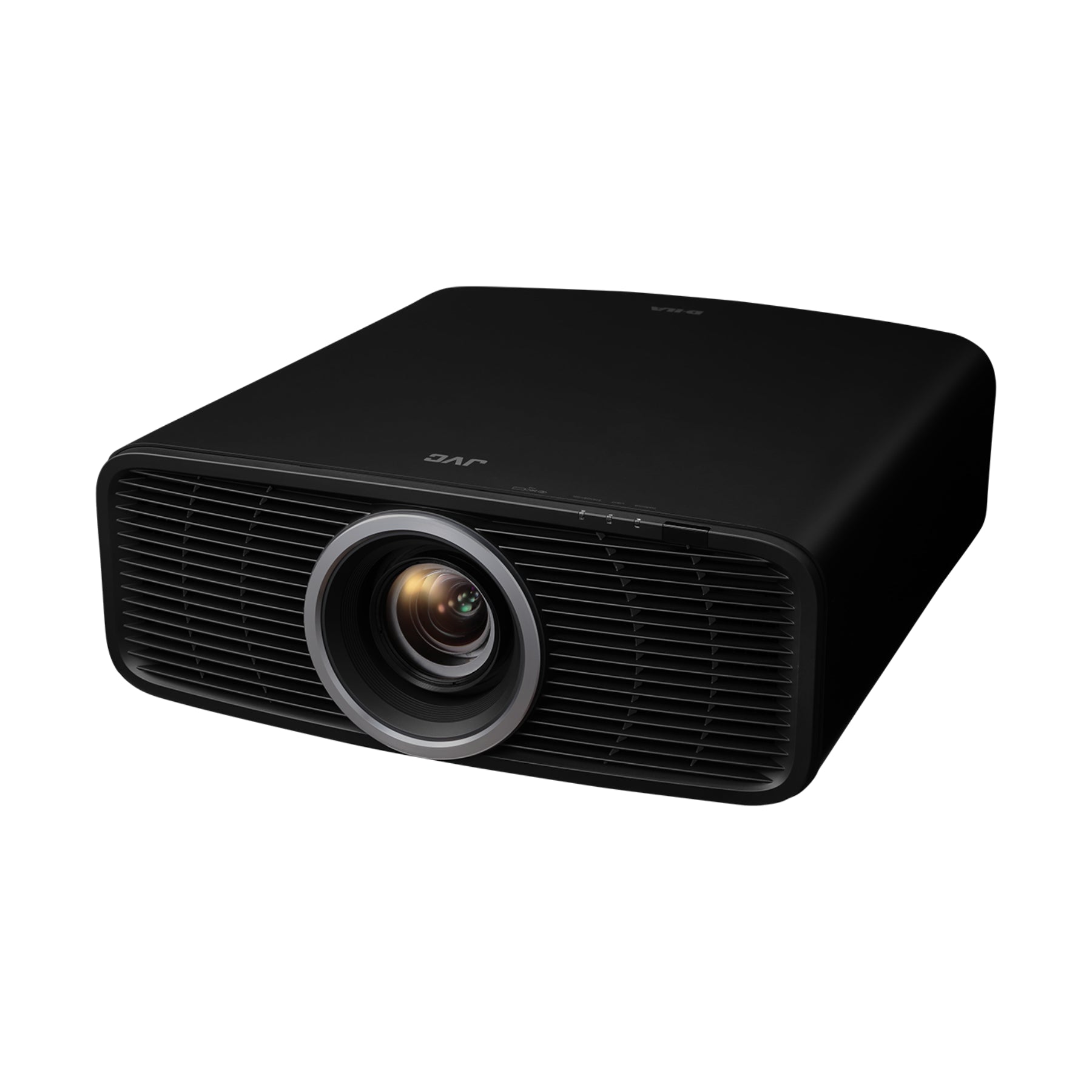

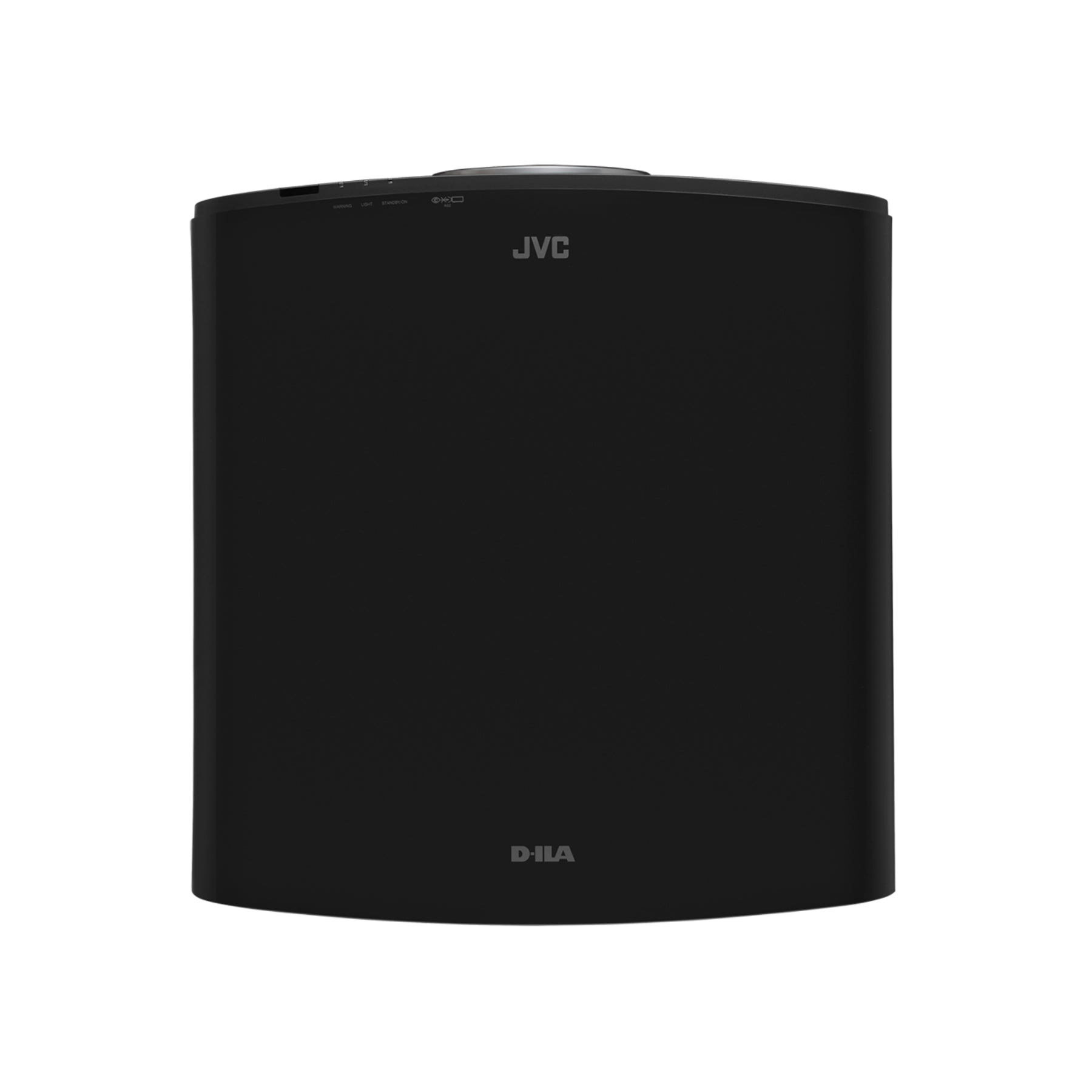

JVC DLA-NZ500 4K D-ILA Home Theater Projector

Experience true cinematic immersion at home with the JVC DLA-NZ500, the world's most compact native 4K projector. Featuring JVC’s proprietary BLU-Escent laser technology, this projector delivers 2,000 lumens of brightness, a native 4K resolution of 4096x2160, and a powerful 40,000:1 native contrast ratio for breathtaking detail and realism. With support for HDR10+, HLG, Frame Adapt HDR Gen2, and Filmmaker Mode™, the DLA-NZ500 brings your favorite content to life with ultra-precise tone mapping and vibrant color. Its newly redesigned optics, motorized lens, and comprehensive calibration tools make it ideal for home theater perfectionists and professional installers alike.

Specifications

• Display Technology: 0.69-inch Native 4K D-ILA (x3)
• Resolution: 4096 x 2160 (True 4K)
• Brightness: 2,000 lumens
• Native Contrast: 40,000:1
• Light Source: BLU-Escent Laser Diode, 20,000-hour life
• HDR Formats: HDR10, HDR10+, HLG, Frame Adapt HDR Gen2, DML support
• Lens: Motorized 80mm diameter, 1.6x zoom, ±70% vertical / ±28% horizontal shift
• Lens Structure: 15 elements in 11 groups
• Projection Size: 60"–200" diagonal
• Picture Modes: Natural, Cinema, Vivid, Filmmaker, HDR10+, HLG, Frame Adapt HDR, 4 user modes
• Color Management: 6-axis CMS, ISFccc Certified, 12-bit color depth

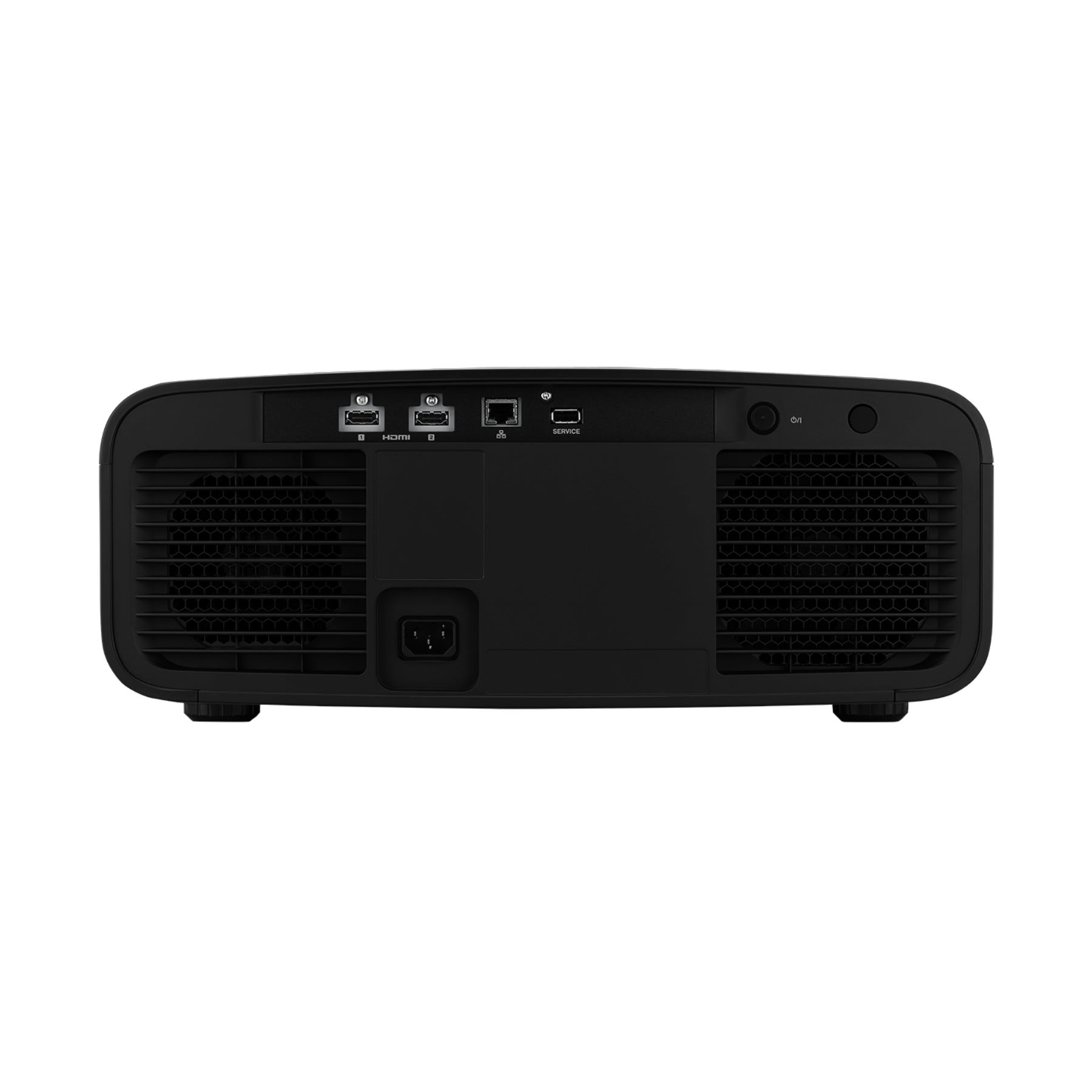

• HDMI Inputs: 2 (HDCP 2.3, 32 Gbps), supports 4K60P
• Control: Control4 SDDP, LAN, USB-A (firmware/update/backup)
• Fan Noise: 23 dB (low noise mode)
• Power Consumption: 280W operating, 0.3W standby (eco)
• Dimensions: 17.72" x 7.13" x 18.88"
• Weight: 32.2 lbs
• Included Accessories: Remote (RM-MH27), Power Cord, 2 AAA Batteries, Quick Guide

Key Features List

• True Native 4K Resolution: 0.69" D-ILA chips deliver uncompromised 4096 x 2160 pixel clarity across the screen.
• BLU-Escent Laser Light Source: Long-life 20,000-hour blue laser diode ensures high brightness and reduced maintenance.
• HDR10+ & Frame Adapt HDR Gen2: Advanced tone mapping with scene-by-scene analysis for more lifelike visuals.
• High Native Contrast Ratio: Achieve rich blacks and subtle shadow detail with 40,000:1 native contrast.
• Fully Motorized 80mm Lens: Offers 1.6x zoom and ±70% vertical/±28% horizontal shift for optimal placement.
• Filmmaker Mode™ Certified: Preserves original creative intent for Hollywood-level accuracy in your home theater.

Q&A Section

Q: Is the DLA-NZ500 truly native 4K?
A: Yes, it uses three 0.69-inch D-ILA chips to produce a true native 4K resolution of 4096 x 2160 without pixel shifting.

Q: How long does the laser light source last?
A: The BLU-Escent laser diode has a rated lifespan of approximately 20,000 hours, ensuring years of performance with minimal maintenance.

Q: What HDR formats are supported?
A: The DLA-NZ500 supports HDR10, HDR10+, HLG, and Gen2 Frame Adapt HDR for dynamic tone mapping.

Q: Can I calibrate the projector myself?
A: Yes, with JVC’s downloadable software and a compatible optical sensor, you can perform Auto Calibration to fine-tune the picture to your environment.

Q: Does it support Filmmaker Mode™?
A: Yes, Filmmaker Mode™ is included for accurate color and frame rate playback as intended by creators.

Q: How flexible is installation?
A: Very flexible—the projector includes motorized zoom, focus, and lens shift (±70% vertical, ±28% horizontal), plus five customizable installation modes.

Q: Is the projector quiet during operation?
A: Yes, the DLA-NZ500 runs at a low 23 dB in eco mode, making it whisper-quiet for home theater use.

Q: Can I use this projector with home automation systems?
A: Absolutely. It supports Control4 SDDP for seamless integration into smart home environments.
