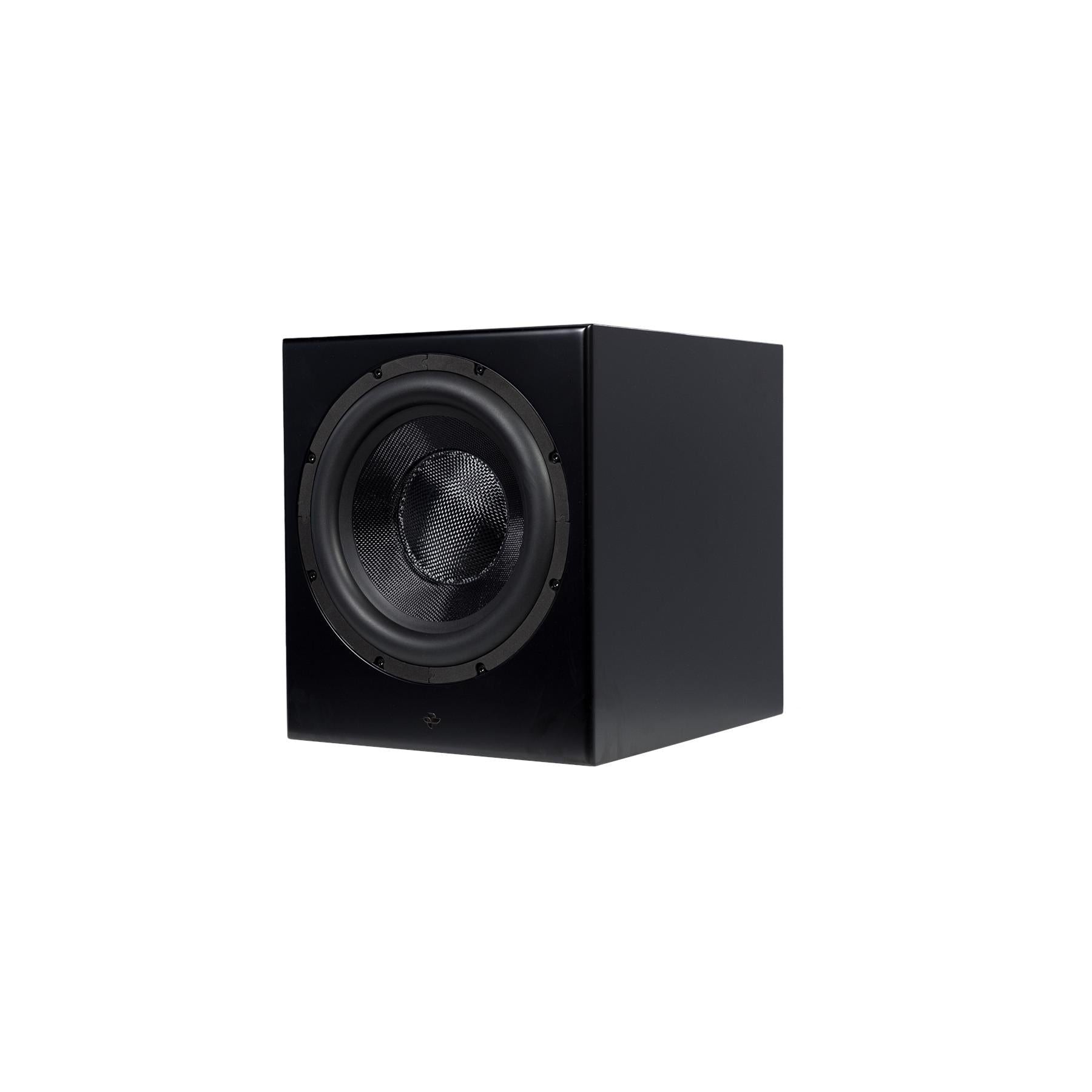

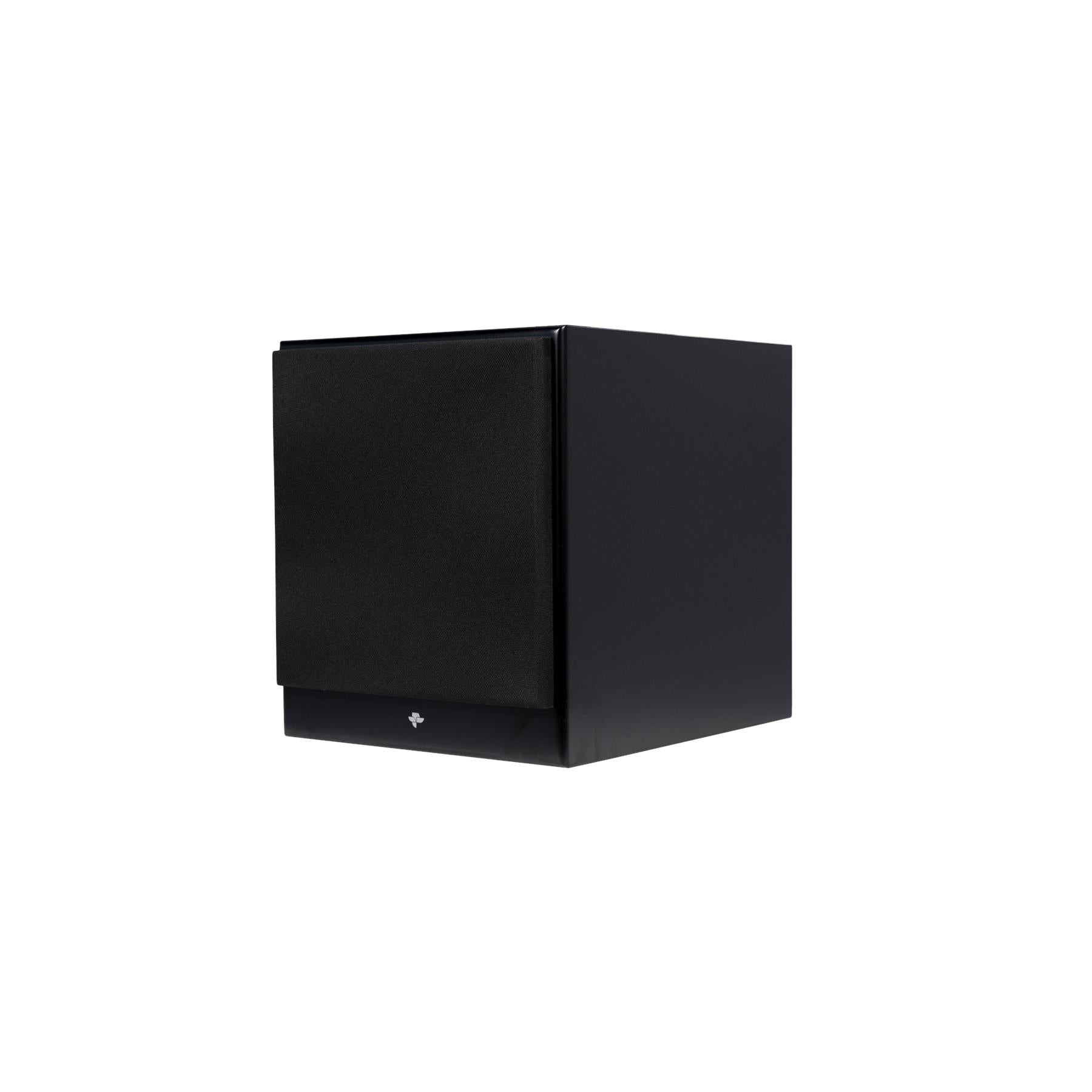

Totem KIN Sub 10 Powered Subwoofer
The Totem KIN Sub 10 adds deep, articulate bass to any audio system. Its 10″ high‑tensile spun fiberglass cone with butyl rubber surround is powered by a 300 W Class‑D amplifier housed in a sealed enclosure, producing tight, controlled bass down to 27 Hz. Variable volume, crossover (50–150 Hz) and phase (0–180°) controls let you blend the sub seamlessly with your main speakers.
Unique BASS EQ settings offer Natural and enhanced modes, allowing you to tailor the low‑frequency output to your taste. The Sub 10 can connect wirelessly using the KIN Link to the KIN Play Soundbar or via stereo RCA and LFE inputs to any receiver. Its satin‑finished cabinet includes a magnetic grille, and the supplied adhesive feet ensure secure placement on any surface.
What It's Good At
-

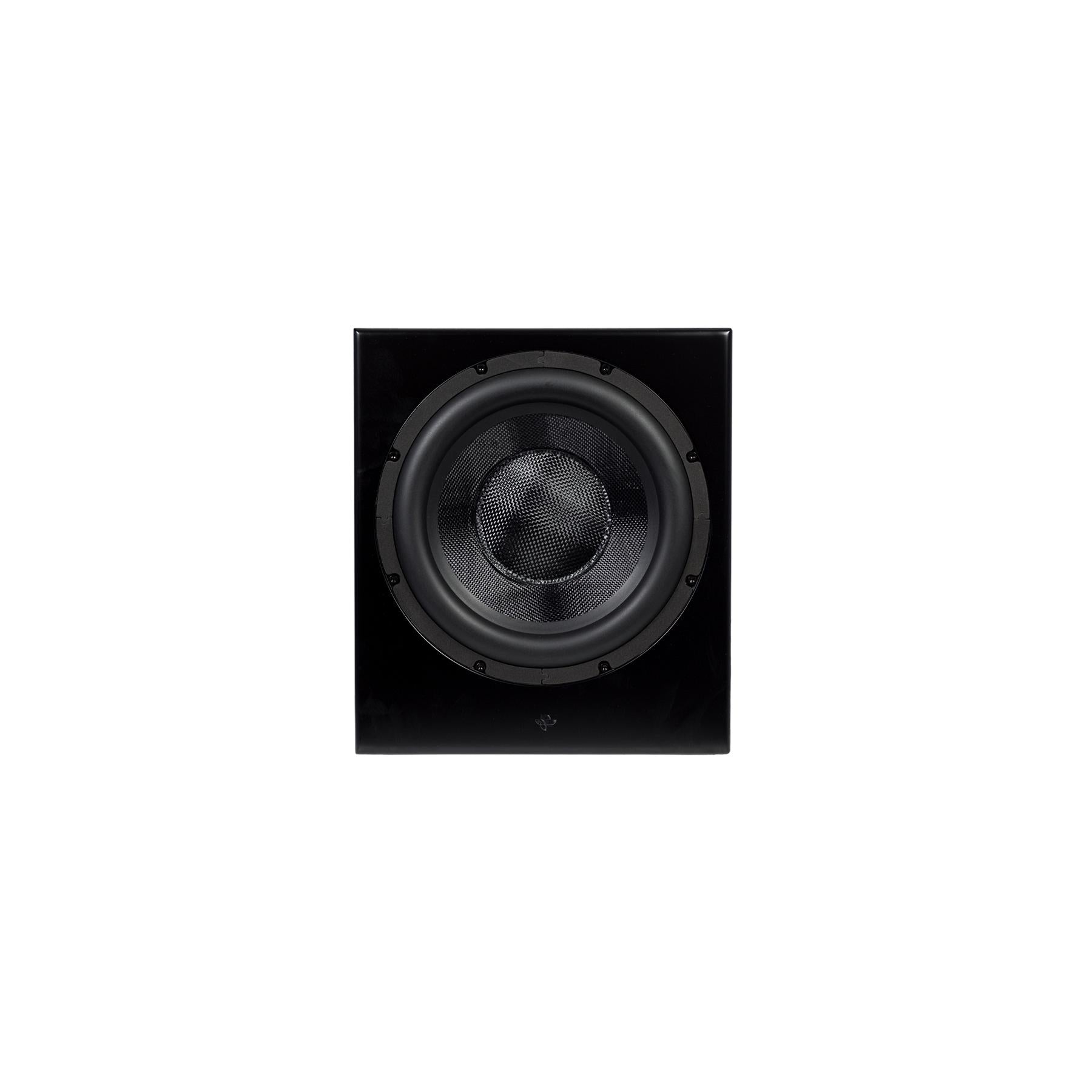

High‑tensile 10″ driver: A rigid spun fiberglass cone with butyl rubber surround and enamel‑coated voice coil delivers powerful, low‑distortion bass.
-
300 W Class‑D amplifier: Provides abundant power and tight control, driving the sealed enclosure to 27 Hz with precision.
-
Adjustable controls: Variable volume, crossover (50–150 Hz) and phase (0–180°) controls allow perfect integration with different speakers and rooms.
-
BASS EQ modes: Select Natural or Enhanced settings to fine‑tune bass response for music, movies or gaming.
-
Wireless & wired inputs: Accepts stereo RCA, LFE and wireless signals, making it compatible with KIN Play Soundbar and other systems.
-

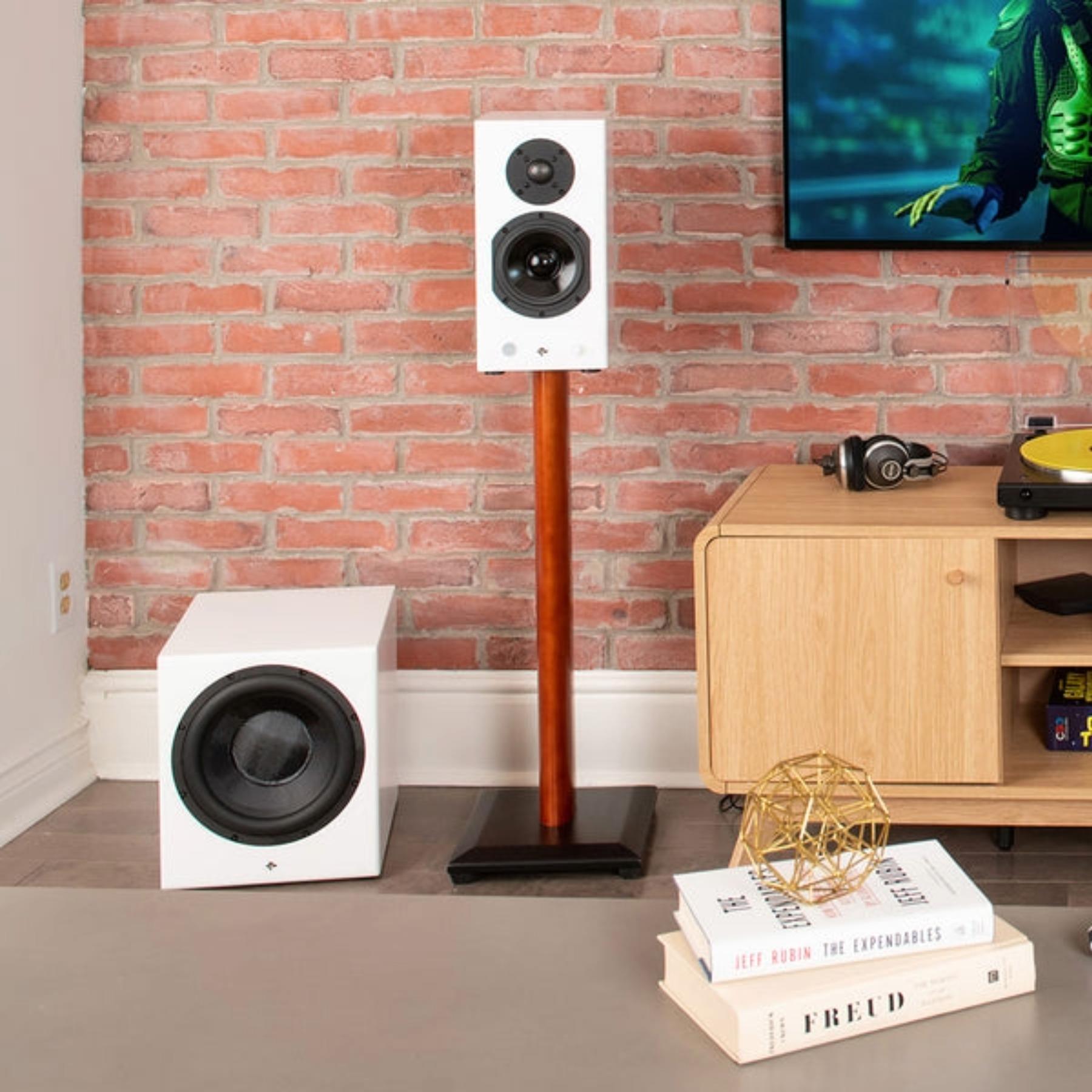

Sleek satin cabinet: Available in satin black or white with a magnetic grille and adhesive feet for stable, discreet placement.
Totem KIN Sub 10inch Powered Subwoofer Full Specifications:
-
Design: Powered subwoofer with sealed enclosure
-
Amplifier: Class‑D 300 W
-

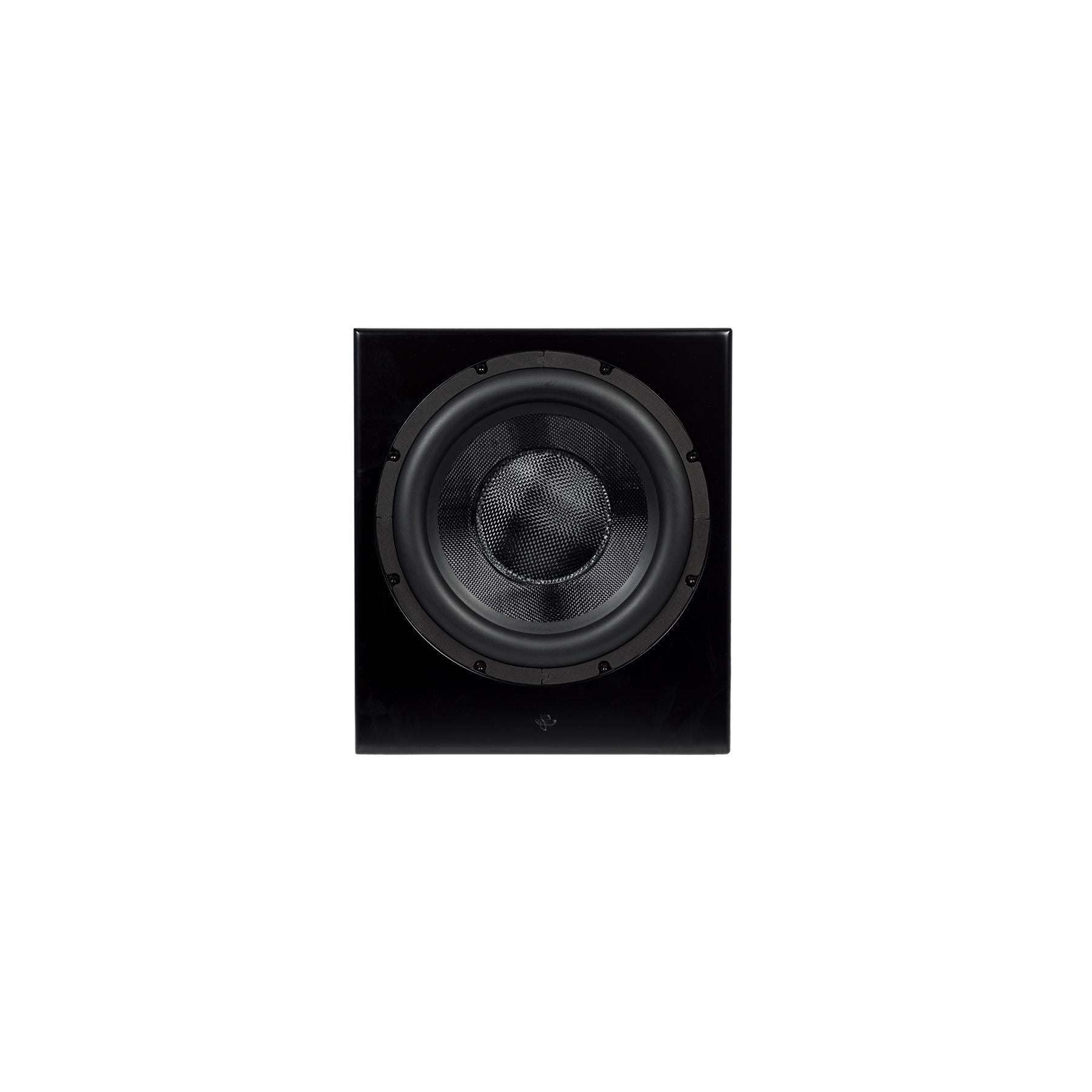

Driver: 10″ high‑tensile spun fiberglass cone with butyl rubber surround
-
Voice Coil: High‑temperature enamel resin‑coated copper wire
-
Frequency Response: 27 Hz – 200 Hz
-
Crossover: Variable 50–150 Hz (24 dB/octave)
-
Phase Control: Variable 0°–180°
-

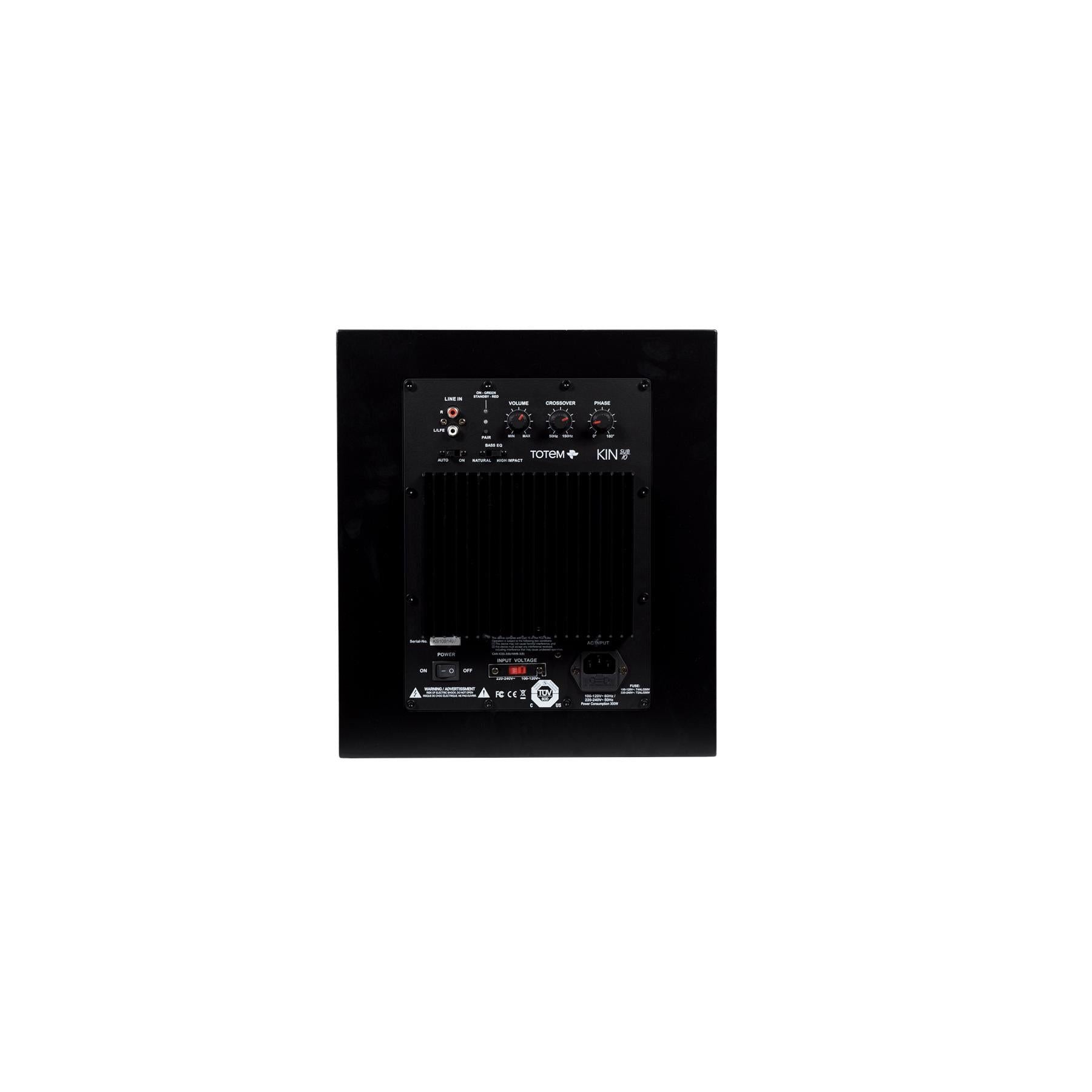

Inputs: Stereo RCA / LFE / Wireless KIN Link
-
Power Modes: Auto / On
-
Dimensions (H × W × D): 13 × 11.5 × 13.5 inches (330 × 292 × 345 mm)
-

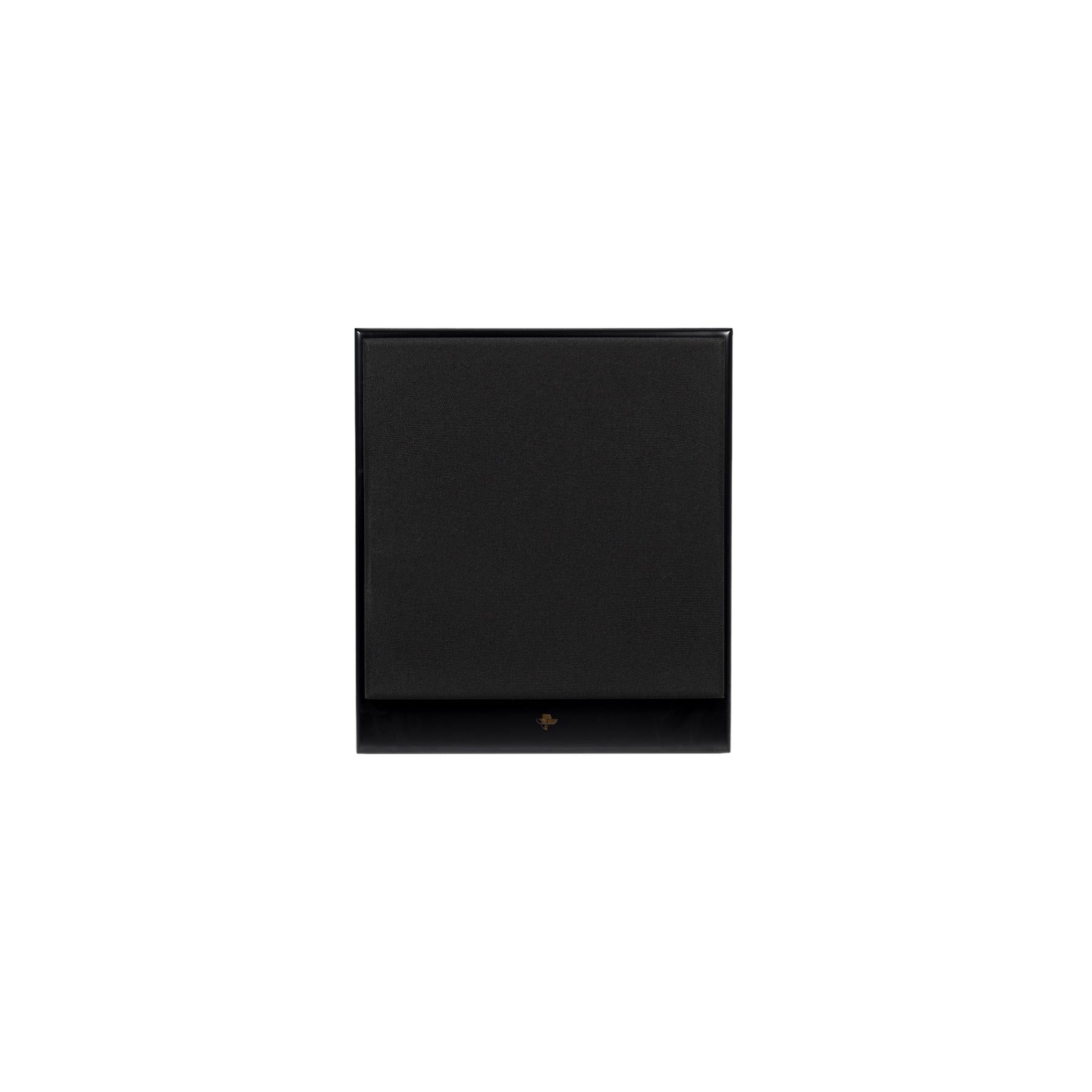

Included Accessories: Magnetic grille, power cord, adhesive feet
-
Finishes: Satin black (UPC 744142530819) or satin white (744142530826)
Totem KIN Sub 10inch Powered Subwoofer Q&A:
- Q: What type of driver does the Sub 10 use?
- A: It features a 10″ spun fiberglass cone with a butyl rubber surround and enamel‑coated voice coil for powerful, controlled bass.
- Q: How much power does the amplifier provide?
- A: A built‑in Class‑D amplifier delivers 300 watts of continuous power for deep, dynamic bass.
- Q: Can I adjust the crossover and phase?
- A: Yes. Variable crossover and phase controls allow you to fine‑tune integration with your main speakers and room acoustics.
- Q: What is the BASS EQ feature?
- A: BASS EQ offers two settings—Natural for linear bass and Enhanced for greater impact—so you can tailor the low‑end to your preference.
- Q: Does it support wireless connectivity?
- A: Yes. The Sub 10 can pair wirelessly using the KIN Link with the KIN Play Soundbar or connect via stereo RCA and LFE inputs to other systems.
- Q: What finishes are available?
- A: Satin black and satin white finishes with a magnetic grille provide a discreet, stylish look.
- Q: What accessories are included?
- A: The subwoofer includes a magnetic grille, power cord and adhesive feet for secure placement.
Totem KIN Sub 10inch Powered Subwoofer Downloads:
Totem KIN Sub 10 Powered Subwoofer – 300W 10″ - User Manual
Totem KIN Sub 10 Powered Subwoofer – 300W 10″ - Specifications Sheet
