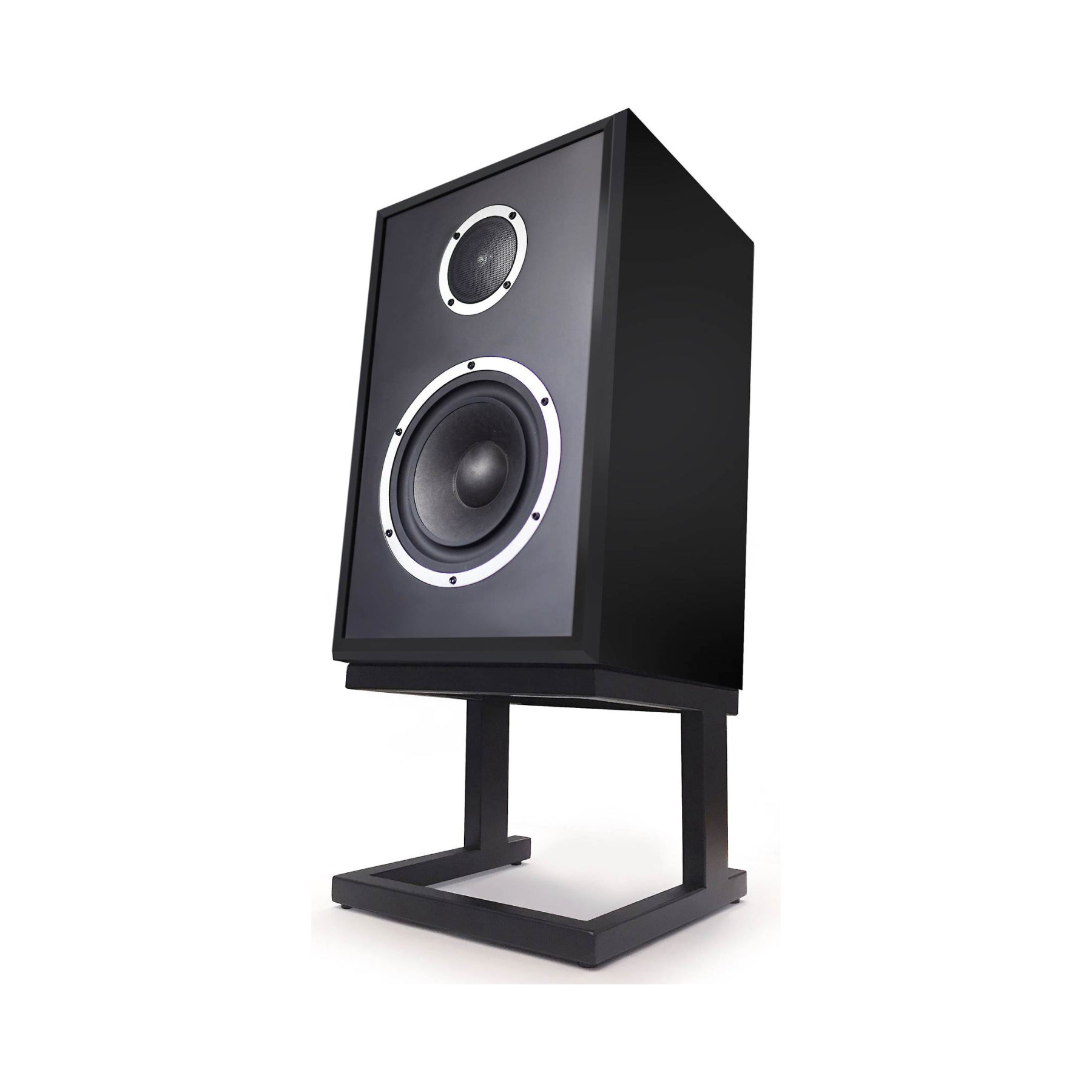

Second in the KLH Model Collection, the Model Three continues the KLH acoustic suspension legacy of accurate audiophile-quality performance. This charming stand-mounted bookshelf speaker is designed to articulate high-fidelity sound anywhere, in any room. The gorgeous Model Three is made with genuine wood veneers, cast aluminum frames, and sustainable materials to achieve a mid-century modern aesthetic appeal. With this new addition to the Model Collection, KLH provides the perfect soundstage solution for music enthusiasts with smaller listening spaces. The Model Three guarantees to bring you a jaw-dropping low-bass extension, surprising mid-bass detail, and high-frequency accuracy, all from a small enclosure.

• Iconic Mid-Century Modern Styling
• Acoustic Suspension Design – The most accurate and linear enclosure design available today
• Three-Position Acoustic Balance Control to tailor the loudspeaker’s output for the most difficult acoustic environments
• Non-Resonant Die-Cast Aluminum Woofer Frame
• Machined Aluminum 1” tweeter faceplate
• KLH cabinetry featuring a structurally reinforced 3⁄4” MDF Enclosure
• Thirteen Component network using high quality iron-core inductors & Mylar capacitors
• Each speaker includes its own 8 ̊ slant riser base made of powder coated 14-gauge steel
• Low-Profile Magnet Attached Grille

Accurate, Transparent KLH Sound

The KLH Model Three’s two-way design competes with the largest loudspeakers. Its 8-inch woofer reduces distortion, allowing low-frequency performance to remain controlled even at the highest excursions. The Model Three’s aluminum tweeter combines the virtues of accurate frequency response and dispersion characteristics that are smooth and natural.

Modern-Day, Retro Design

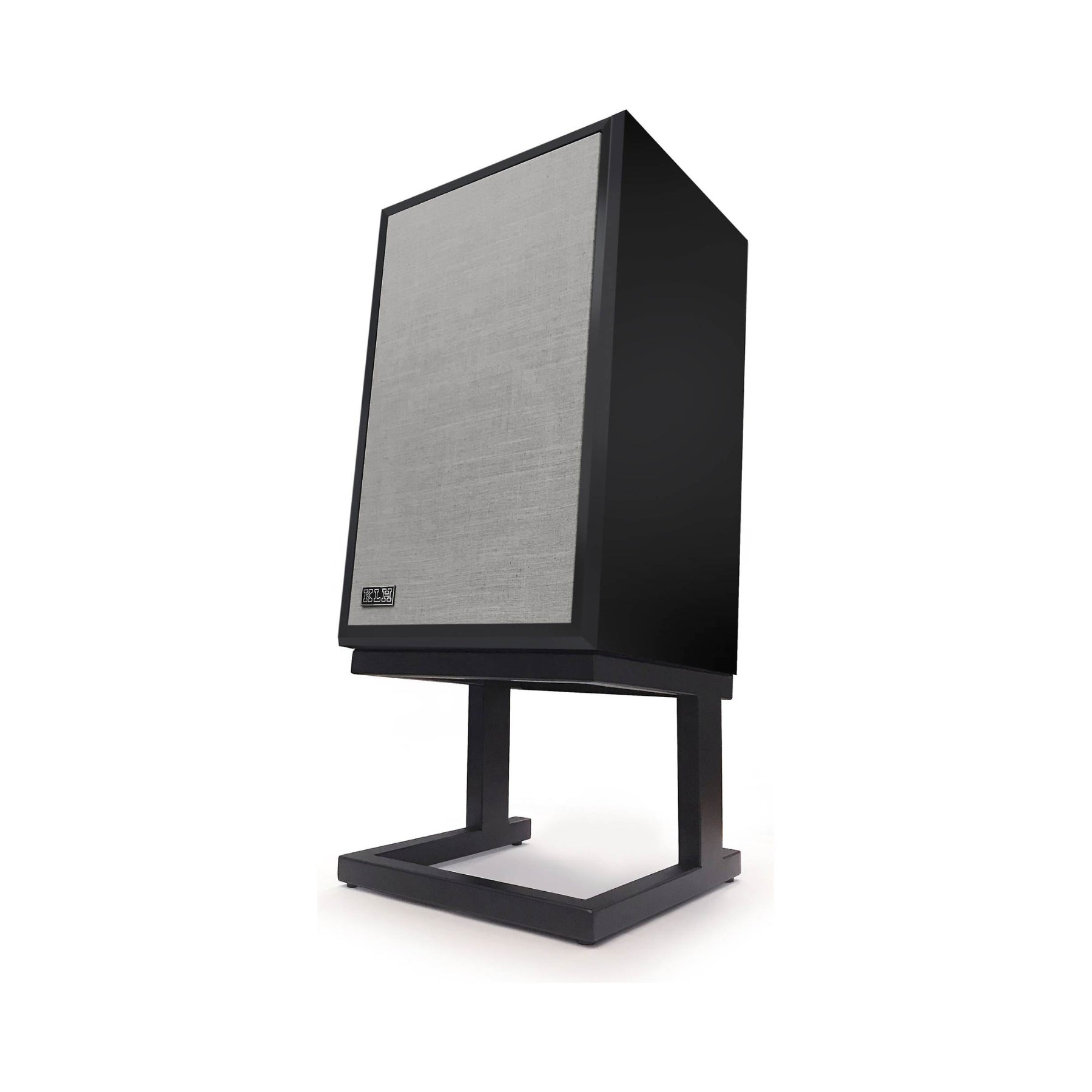

The English Walnut Model Three bookshelf speaker comes with a beautiful Stone Wash Linen grille cloth that magnifies the rich finish of the real wood veneers. The West African Mahogany finish is complemented by the gorgeous Old-World Linen grille cloth that never fails to make a striking statement. You can also purchase the Old-World Linen, Stone Wash Linen, and the stunning Basalt Black Knit grille separately to customize your Model Three bookshelf speaker for your listening space!

Superior Acoustic Performance, Anywhere

The Model Three’s aluminum input panel on the back incorporates a 3-position acoustic balance selector to optimize the loudspeaker’s output in the most difficult acoustic environments.  Whether your listening room is too “live” or too “dead”, the Model Three gives you the ability to rebalance the loudspeaker so it provides the best fidelity sound in any space. The Model Three also has the flexibility to be placed closer to the wall than the average tower speaker.

Unique Speaker Base

Standing strong on an 8-degree slant riser base, the Model Three’s upward angular stance ensures the sound is directed accurately toward the listener. The riser is made from powder-coated 14-gauge steel, guaranteeing it to be a very solid and non-resonant speaker base. Every Model Three purchase comes with a riser base included.

KLH Model Three Specifications

• Frequency Response: 46Hz – 20,000Hz +/- 3dB
• Low Frequency Extension: -10dB @ 35Hz
• In-Room Sensitivity: 88dB @2.83V / 1M
• Free-field Sensitivity: 85dB @ 2.83V / 1M
• Power Handling: 150 Watts / 600 Watts Peak
• Recommended Amplification: 30 Watts to 150 Watts
• In-Room Maximum SPL: 108dB
• Maximum Output @45Hz: 101dB
• Impedance: 6 Ohms (3.7 ohm minimum @320 Hz)
• Horizontal Dispersion: 140° Degrees
• Features: Three-Position Acoustic Balance Control
• Crossover Frequency: 1,600Hz
• High Frequency Driver: 1" Aluminum Dome with Soft Rubber Suspension
• Low Frequency Driver: 8" Pulp-Paper Cone with Reverse Roll Rubber Suspension, 1.5" Diameter Flat-Wire Voice Coil
• Enclosure Material: Structurally Reinforced ¾" Medium Density Fiberboard
• Inputs: Five-Way Gold-Plated Binding Posts
• Height: 28.25" (71.8cm) w/ Included Riser Base
  • 19.0" (48.2cm) w/o Riser Base
• Width: 12.25" (31.1cm)
• Depth: 11.5" (29.2cm) w/ Included Riser Base
  • 10.5" (26.7cm) w/o Riser Base
• Weight: 29Ibs. (13.2kg) w/o Riser Base
  • 36Ibs. (16.4kg) w/ Included Riser Base
• Included Accessories: 8° Slant Riser Base
