90° X 90° SILICON COMPOSITE HYBRID TRACTRIX HORN
Horn loading maximizes efficiently and increases detail while focusing high frequencies towards the listening area. Proprietary Tractrix® geometry provides
the most efficient transfer of high frequency waves into the listening area. The phase plug and compressed molded silicon face ensure smooth frequency response. When combined, the cleanest, most natural sound possible is created. The second generation increases horn size for a larger soundstage and enhanced directivity.
LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.
VENTED TWEETER DESIGN
The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high frequency reproduction.

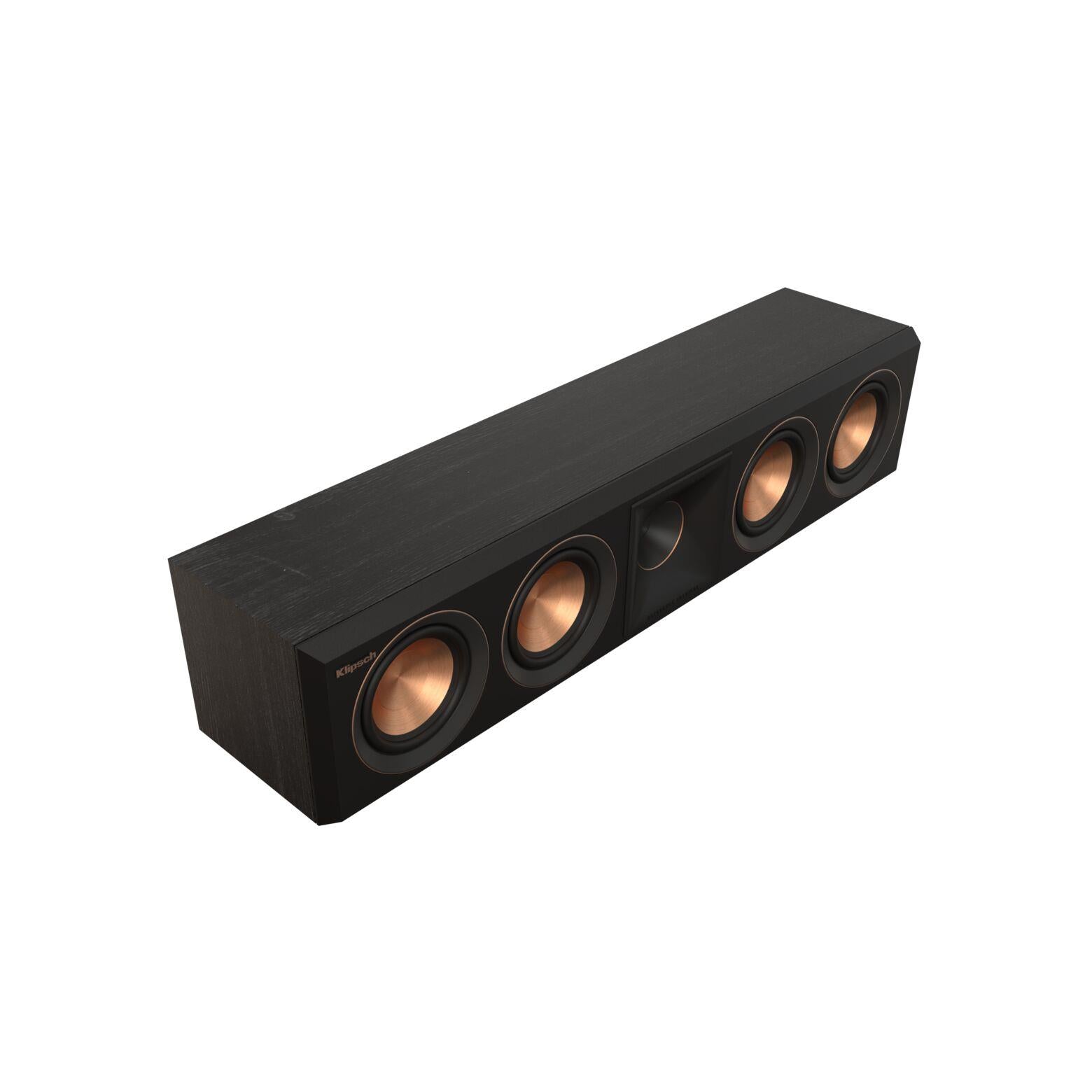

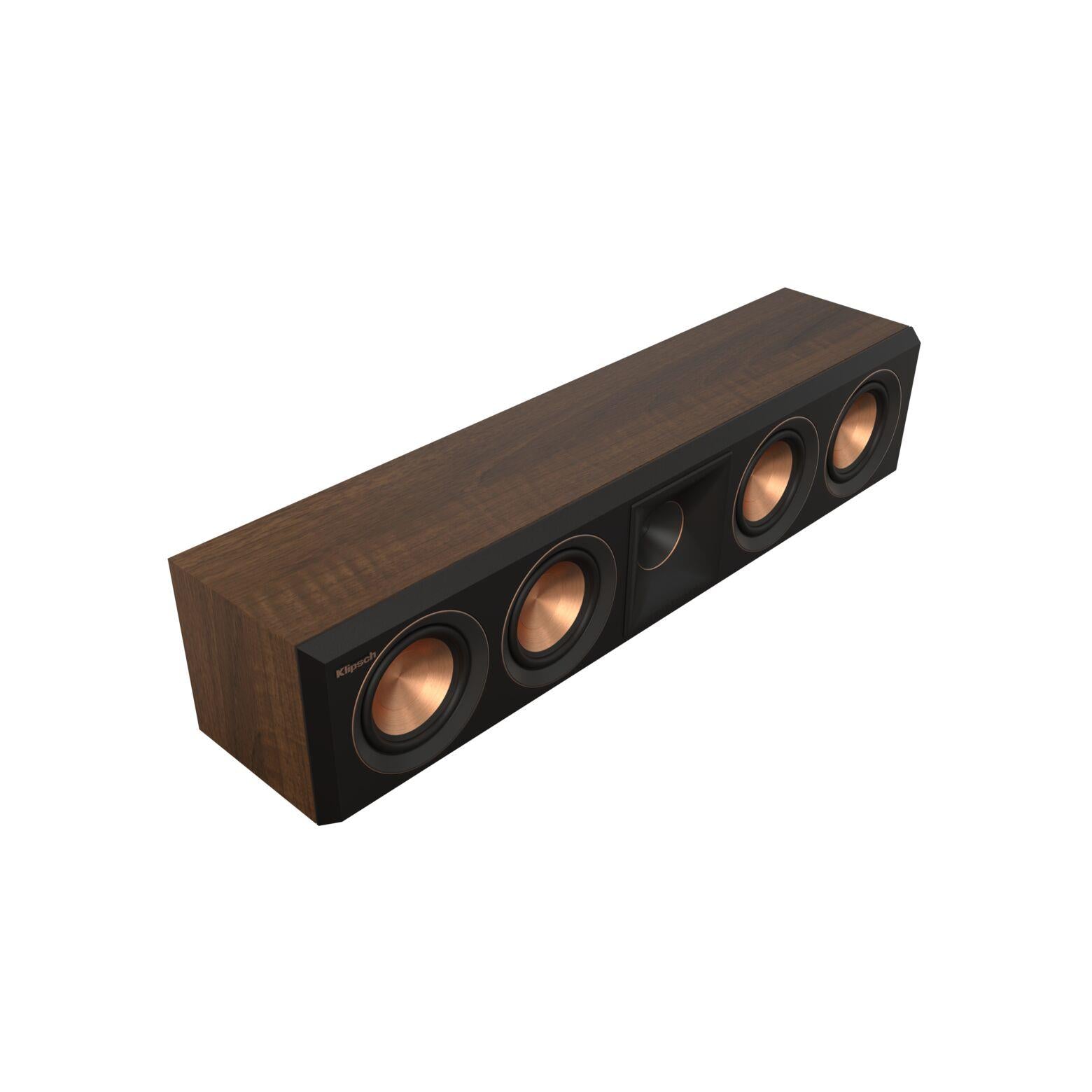

CERAMETALLIC WOOFERS – ALL NEW DESIGN
A signature feature on the Reference Premiere series, Cerametallic™ woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. New voice coils are 70% larger in diameter resulting in improved power handling and greater cone control for greater linearity and flawless reproduction. New aluminum shorting rings reduce distortion as well as increased power handling and the new motor structure improve transit response with more control with greater speed and accuracy.
SEALED DESIGN
An all-new shallow-depth sealed design allows for this center channel speaker to be used for in-wall placement and prevents bass-loading against a back wall
in tight spaces like fireplace mantles. The result is crisp, clear vocals in a small and versatile package.

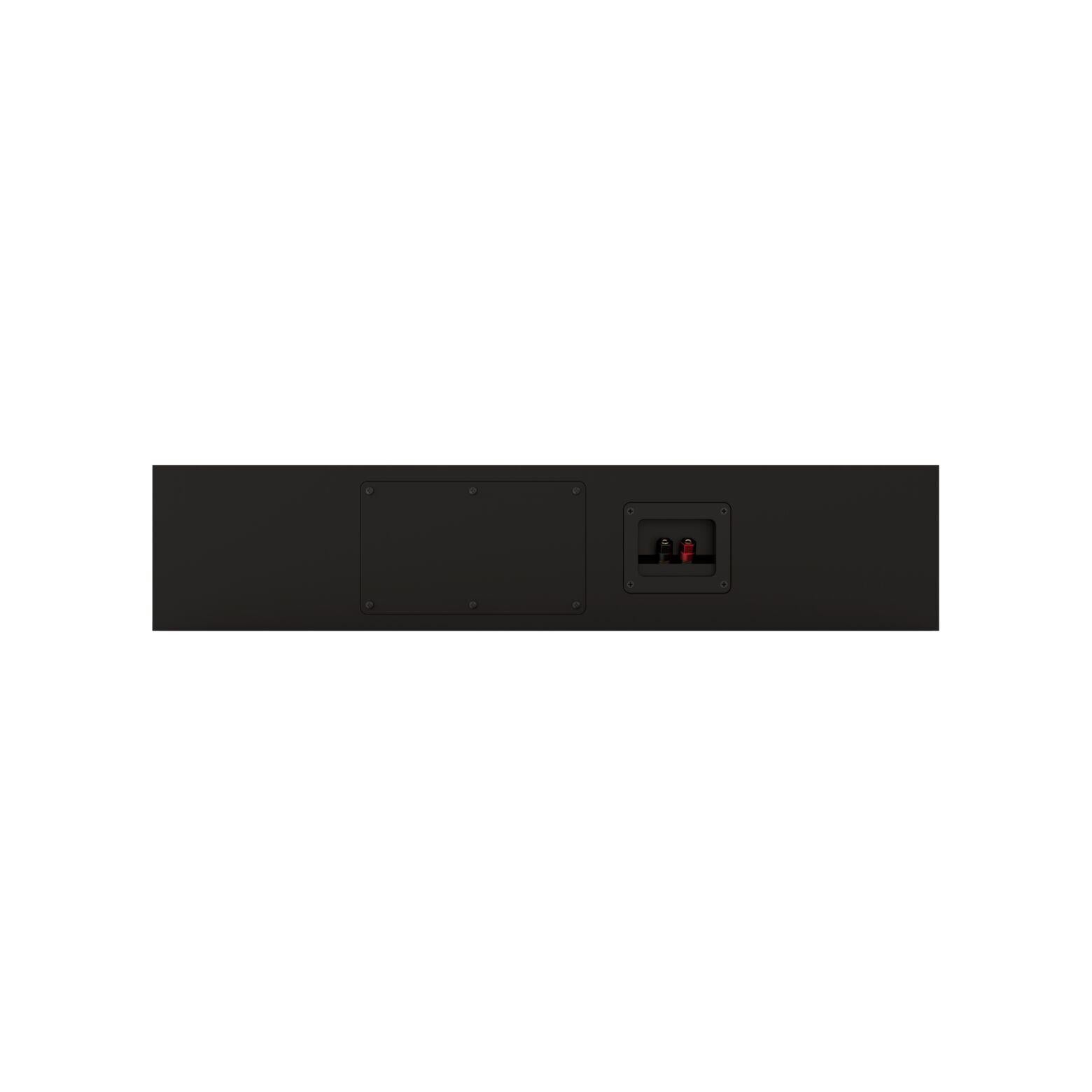

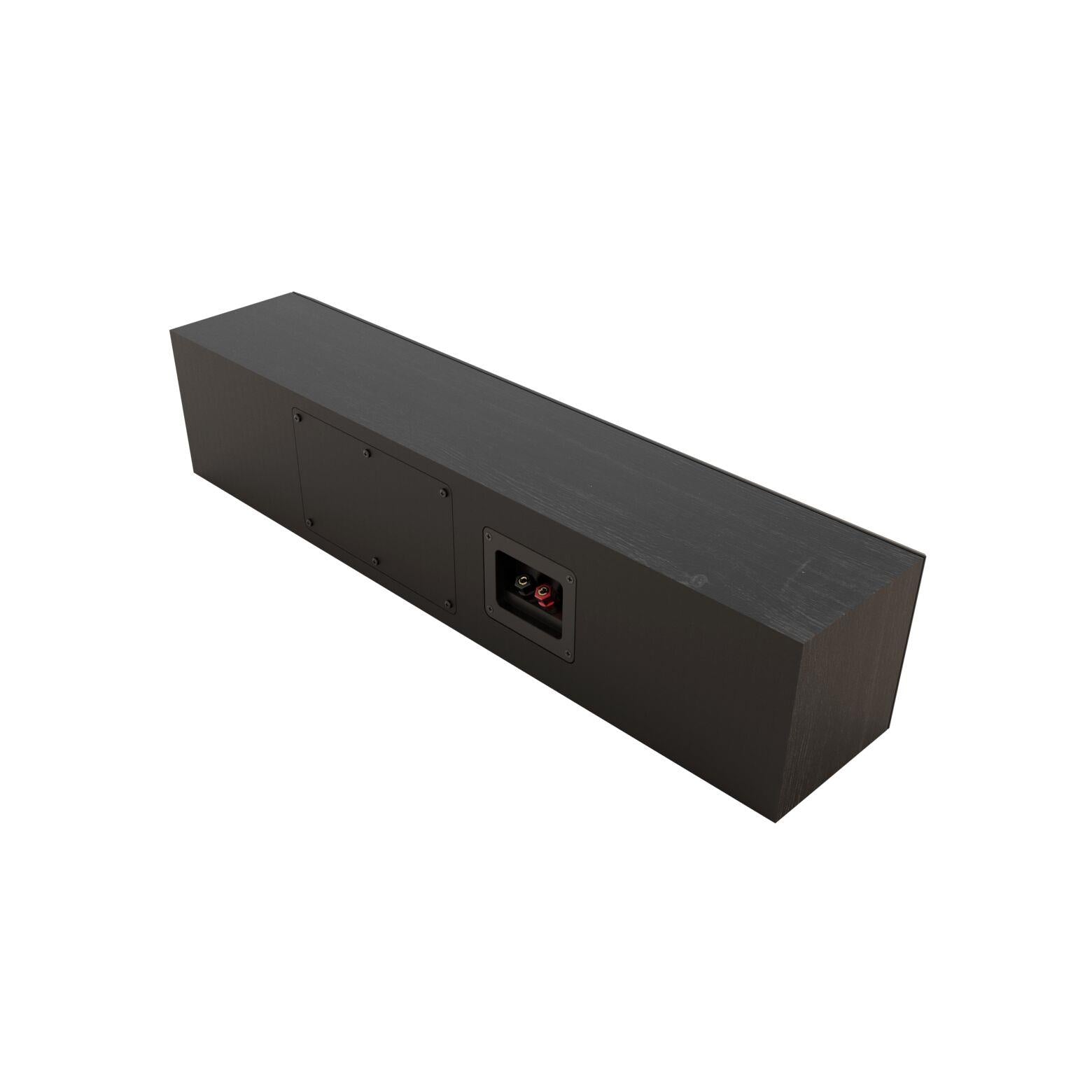

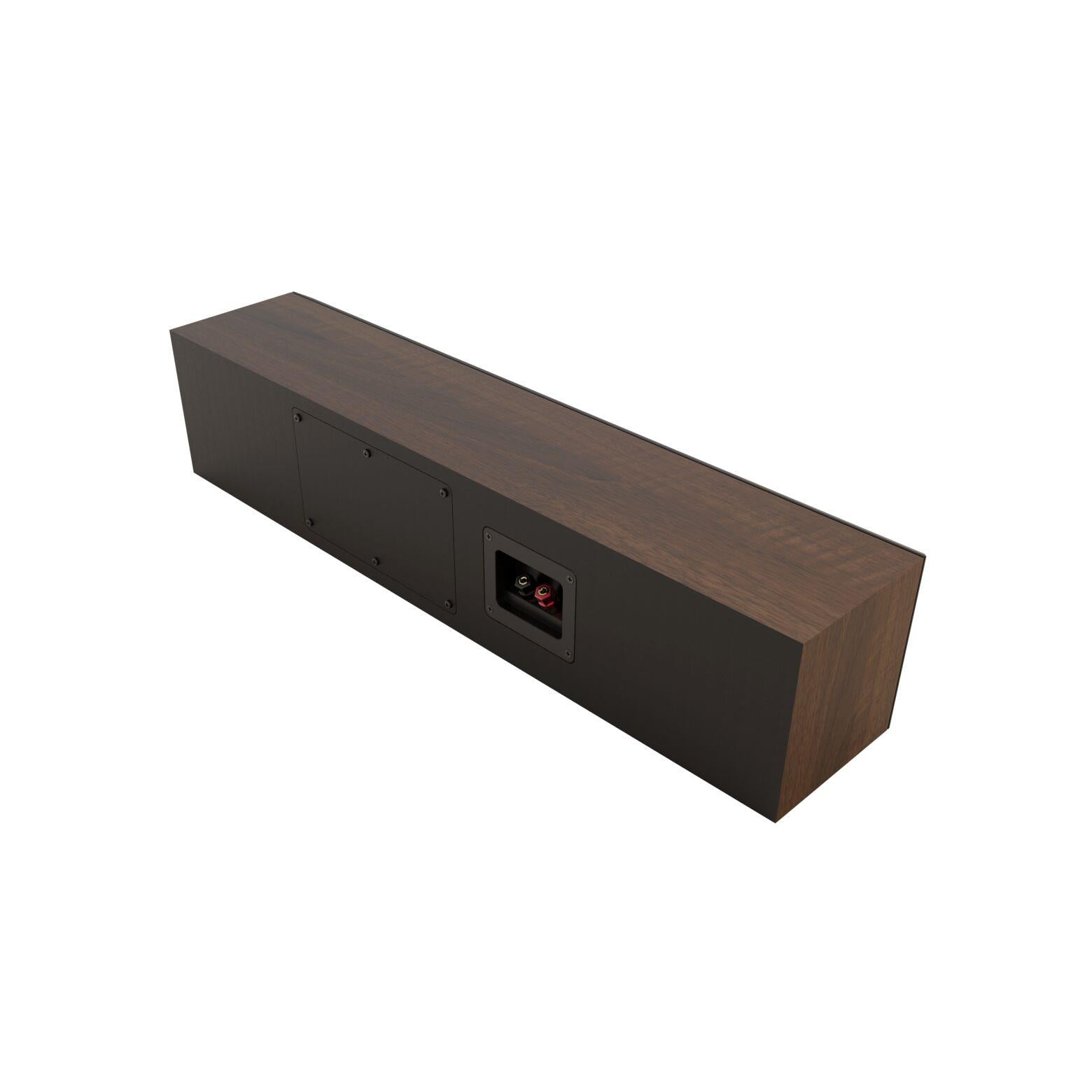

NEW AND IMPROVED INPUT PANEL
Featuring audiophile-grade wire and easily accessible aluminum binding posts for any connection type.
FURNITURE GRADE MATERIALS AND FINISHES
Finishes include ebony vinyl and walnut vinyl that boast satin painted baffles with a scratch resistant finish.

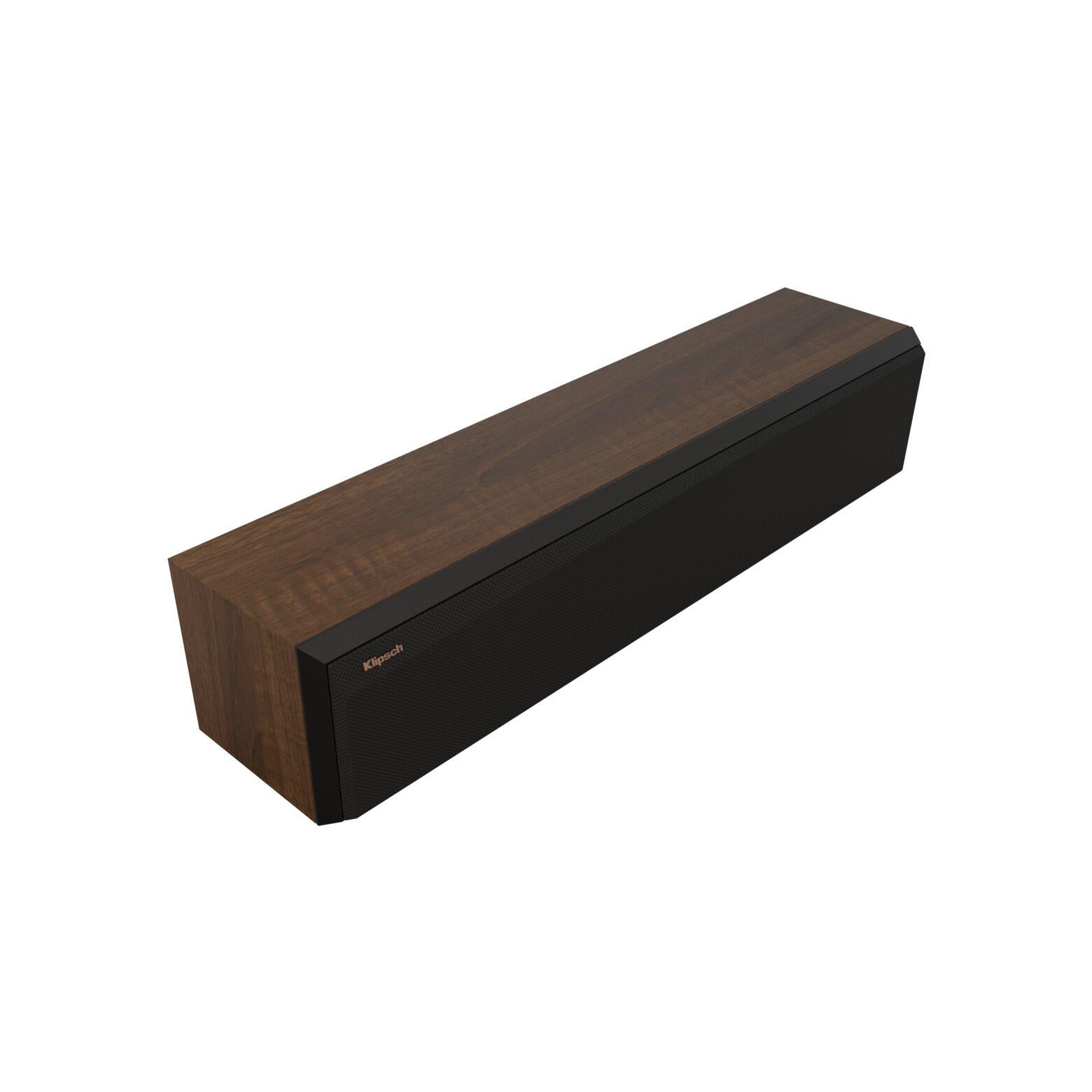

STRONG, FLEXIBLE, REMOVABLE GRILLE
Attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece.
CORK PADS
Cork pads replace rubber bumpers for security on a stand or table.
FREQUENCY RESPONSE - 87-25kHz +/- 3dB
SENSITIVITY* - 94dB @ 2.83V / 1m*
POWER HANDLING (CONT/PEAK) - 125W/500W
NOMINAL IMPEDANCE - 8 Ohms Compatible
CROSSOVER FREQUENCY - 650Hz/1900Hz
HIGH FREQUENCY DRIVER - 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn
LOW FREQUENCY DRIVER - Quad 4" Cerametallic™ Cone Woofers with Faraday rings
ENCLOSURE MATERIAL - MDF (Internally Braced)
ENCLOSURE TYPE - Sealed
INPUTS - Single aluminum binding posts
HEIGHT INCHES (MM) - 5.72" (14.5 cm)
WIDTH INCHES (MM) - 26.85" (68.2 cm)
DEPTH INCHES (MM) - 6.47" (16.4 cm)
PRODUCT WEIGHT LBS (KG) - 20.3lb (9.25kg)
FINISH - Ebony, Walnut
ACCESSORIES - Angle screw
Klipsch brings the boom with a huge upgrade to the Reference Premiere lineup. Reference Premiere II speakers feature new internal bracing, new crossovers, and new drivers delivering massive sound to your home. If you're asking if it's worth it to upgrade, the answer is a resounding YES!
Overall the center cannel speaker performs excellent with my Klipsch tower speakers, adds volume and dept to the music!
