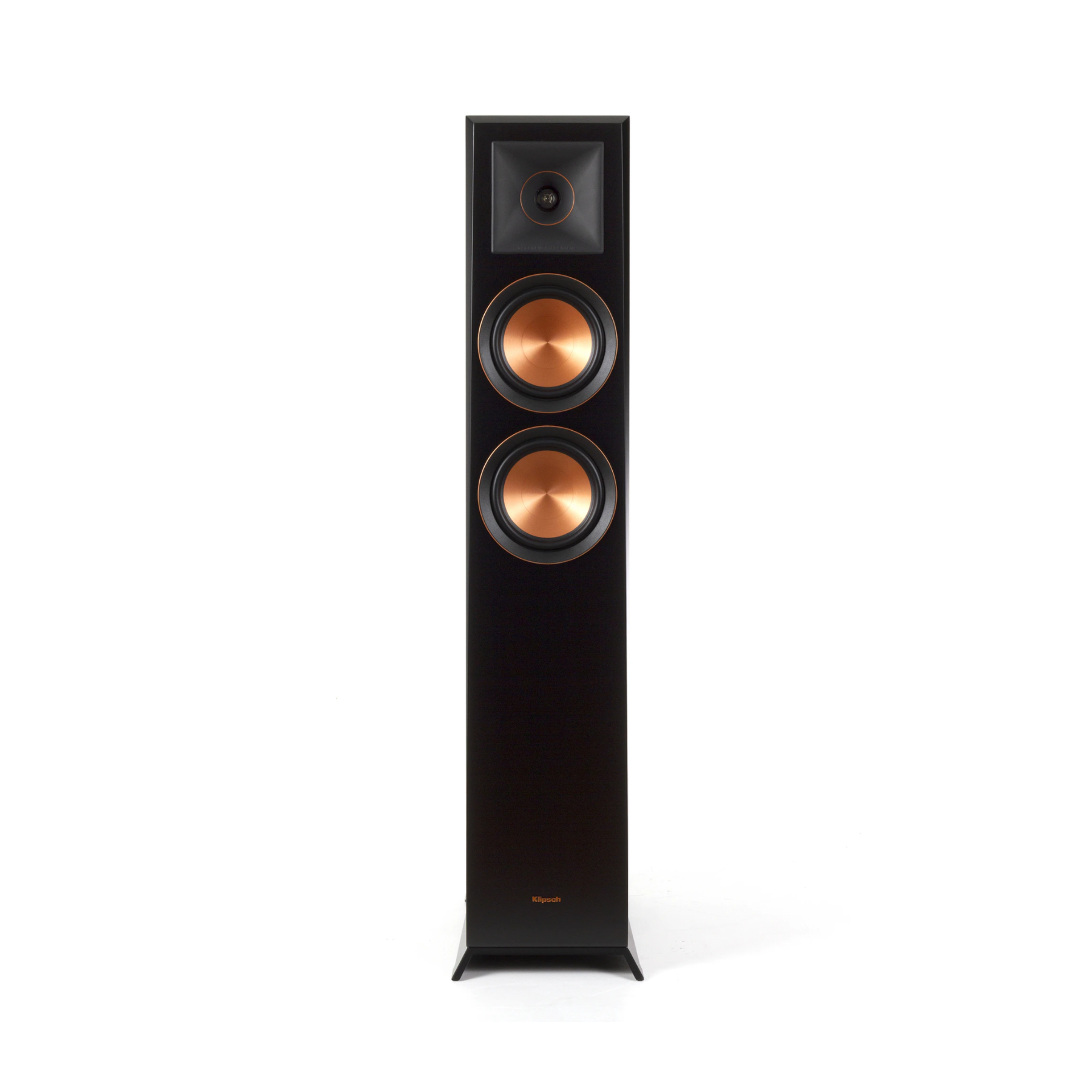

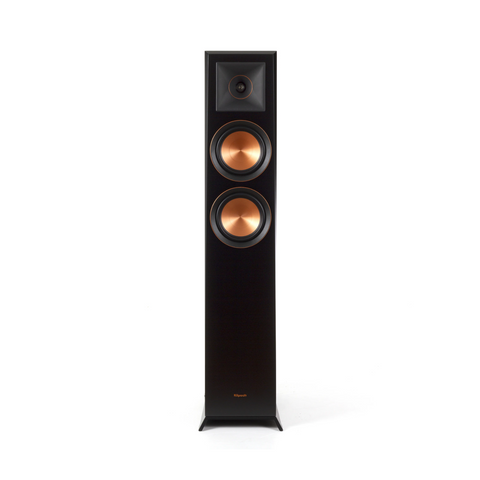

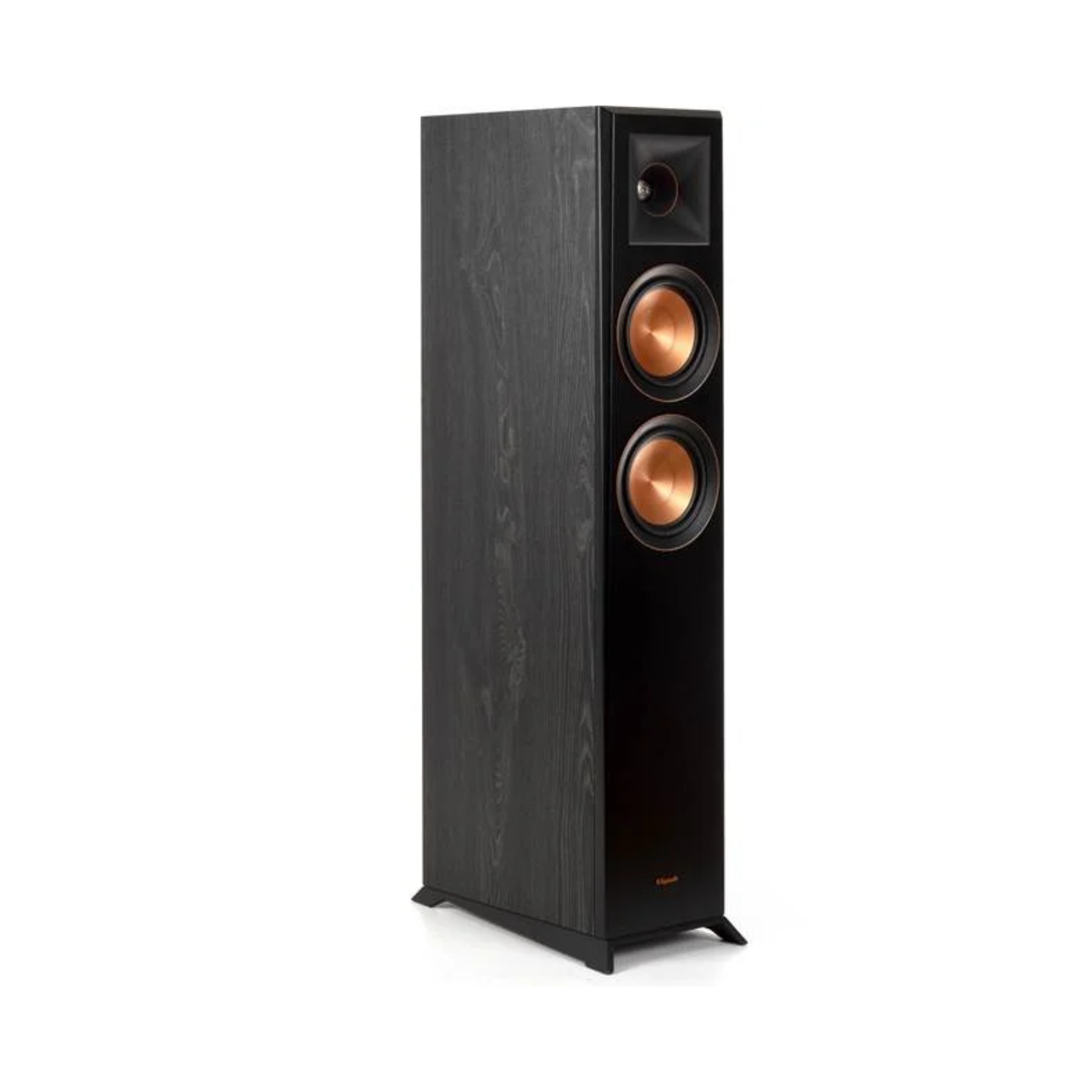

Klipsch RP-5000F Reference Premiere Floorstanding Speakers

HYBRID TRACTRIX HORN TECHNOLOGY

Klipsch proprietary Tractrix horn-loaded technology ensures the high-frequency energy of the RP-5000F floorstanding speaker is aimed directly at the listener and reduces unwanted, artificial reverb caused by indirect sound bouncing off walls - meaning you experience the most clear, detailed, lifelike sound possible.

HORN ANATOMY

Klipsch Reference Premiere series speakers feature a compressed molded silicon face thats matted to the 90x90 Tractrix horn to reduces horn resonance for a smoother frequency response. Klipsch computer modeled phase plugs acts as a mechanical filter to further ensure a smooth, flat frequency response while protecting the tweeter from damage.

ALL-NEW VENTED TWEETER

• A vented tweeter design reduces standing waves behind the tweeter diaphragm for a smoother high frequency reproduction.
• The titanium tweeter diaphragm's light weight yet rigid composition exceeds the performance of aluminum, polymer or silk tweeters.
• Klipsch award-winning Linear Travel Suspension technology leverages a piston motion of the titanium diaphragm that lowers distortion and delivers real-to-life sound.
• A ceramic magnet housing provides premium performance, Klipsch Reference Premiere tweeters set the standard in acoustic reproduction.

CERAMETALLIC WOOFERS

Klipsch Proprietary Cerametallic woofers are the RP-5000F floorstanding speaker signature statement for both sound and aesthetics. This extremely light, rigid materials holds its shape while being able to deliver lower frequencies with maximum efficiency.

WOOFER ANATOMY

Klipsch Cerametallic cones are matted to a dual-layer, copper-wound voice coil for exceptional conductivity.
Reference Premiere woofers are housed in a non-resonating, stamped-steel basket that’s secured to a large magnet motor for exceptional efficiency and low distortion, and matched to our horn-loaded tweeters for optimal acoustic execution.

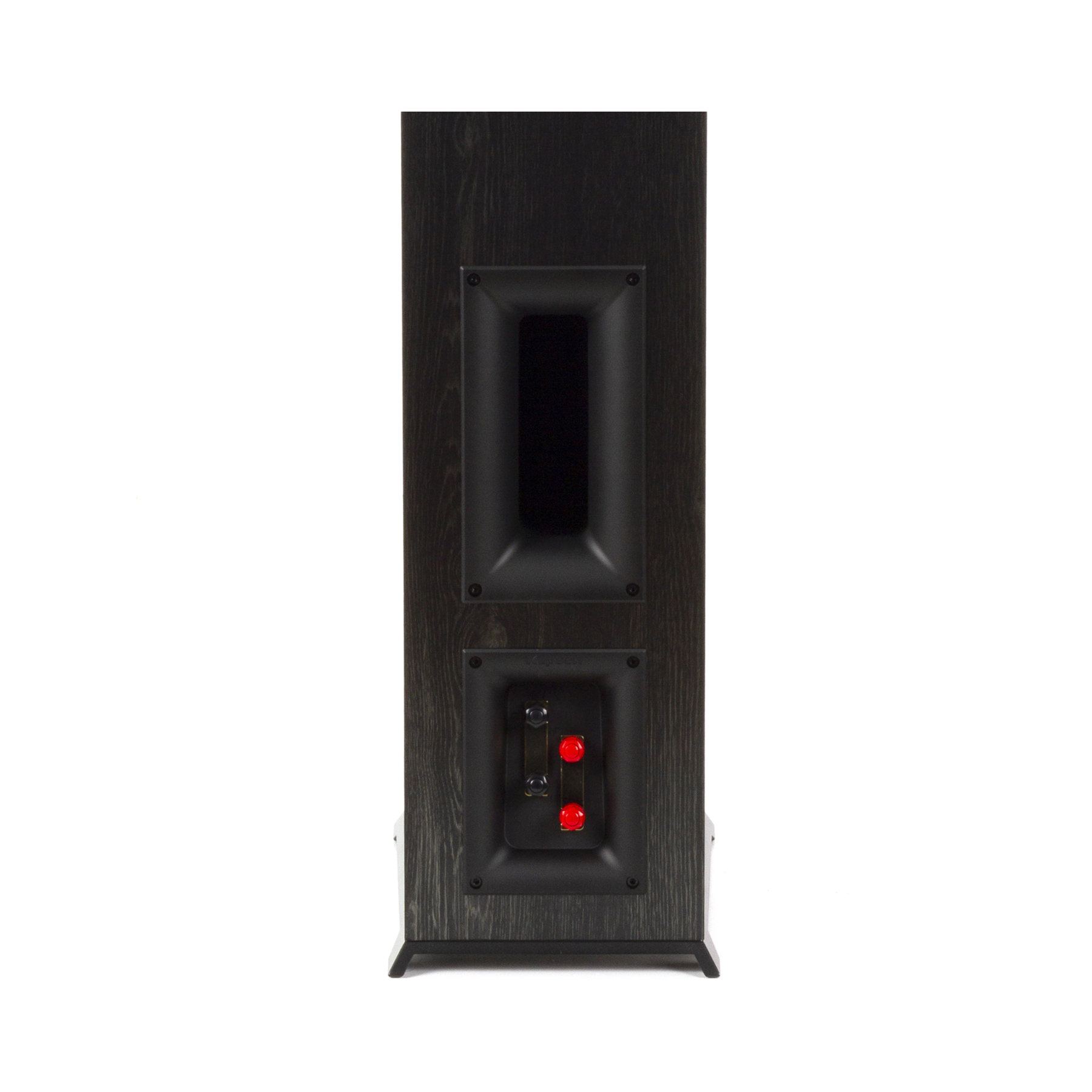

TRACTRIX PORT + DUAL TERMINALS

The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.
The RP-5000F floorstanding speaker features dual input terminals so you can bi-wire or bi-amp your speakers for a custom, high-performance experience.

FINISHED TO PERFECTION

The RP-5000F ebony and walnut finishes boast satin painted baffles with a scratch resistant design. The cast aluminum feet provides a modern look with less resonance than MDF or ABS plastic. It is mechanically designed to minimize surface area in contact with the floor, decoupling the speaker for faster, tighter low frequencies and more detail.

90° x 90° SILICON COMPOSITE HYBRID TRACTRIX HORN

Horn loading maximizes efficiently and increases detail while focusing high frequencies towards the listening area. Proprietary Tractrix geometry provides the most efficient transfer of high frequency waves into the listening area. The phase plug and compressed molded silicon face ensure smooth frequency response. When combined, the cleanest, most natural sound possible is created.

LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER

The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.

VENTED TWEETER DESIGN

The new vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high frequency reproduction.

SPUN COPPER CERAMETALLIC WOOFERS

A signature feature on the Reference Premiere series, Cerametallic woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. When paired with the Tractrix horn-loaded LTS tweeter, it provides the highest speaker efficiency in its class.

TRACTRIX PORTS

Utilizing Tractrix geometry, the Reference Premiere ports allow for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies. Klipsch Tractrix ports have custom designed inner flares that help reduce air turbulence entering the port. Less turbulent air helps reduce port noise for cleaner, more powerful bass.

BI-WIRING / BI-AMPING CAPABILITY

Dual input terminals for bi-wiring / bi-amping capabilities. Bi-wiring separates high and low frequency current into separate speaker cables, reducing intermodulation distortion, for clearer midrange. Bi-amping allows for customization using outboard crossovers when using separate amplifiers.

FURNITURE GRADE MATERIALS AND FINISHES

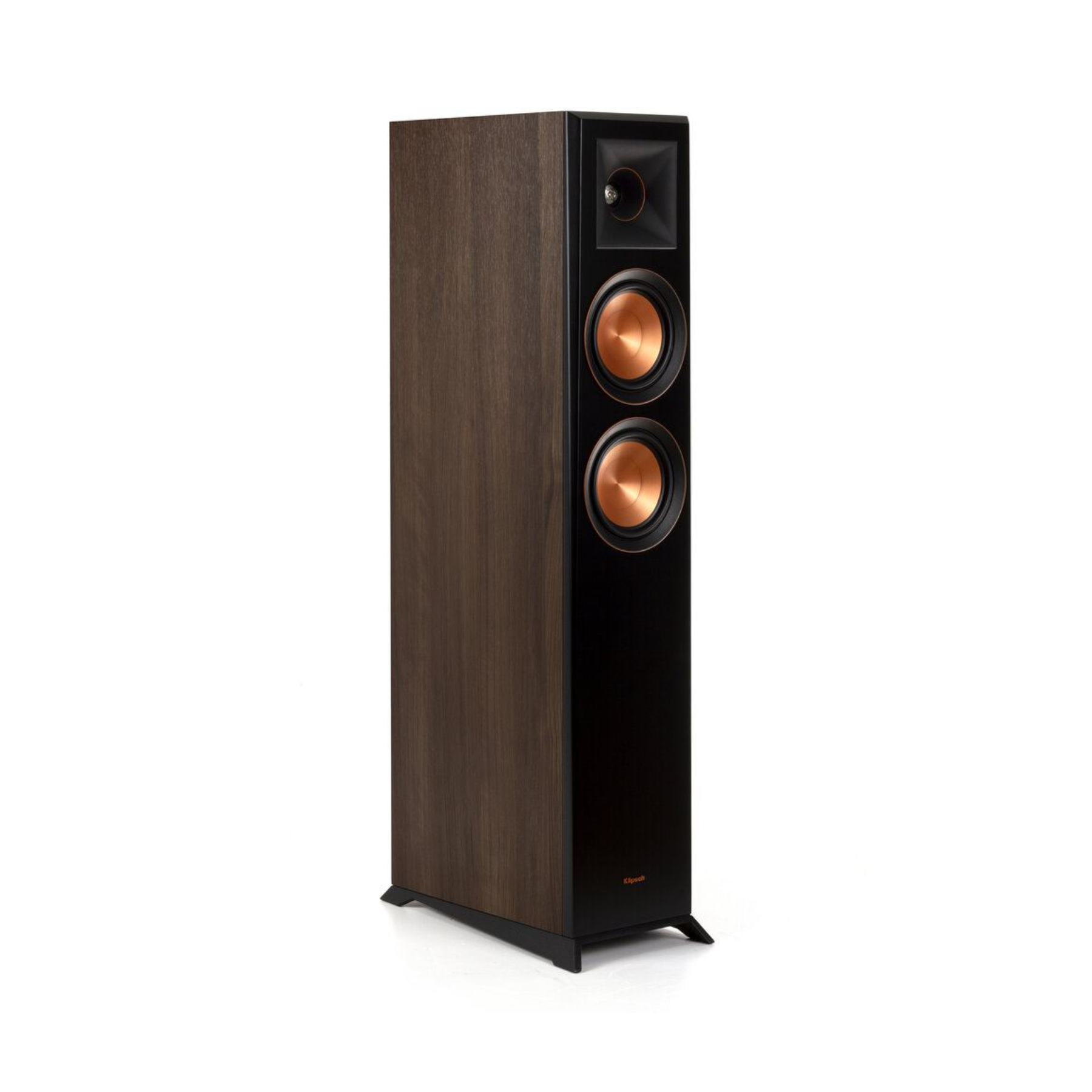

Finishes include ebony vinyl, walnut vinyl and piano gloss. Ebony and walnut models boast satin painted baffles with a scratch resistant finish, while the premium piano gloss cabinet is hand-sanded for a clear, mirror-like finish. The mirror-life piano gloss finish is seamless due to the meticulous hand sanded and hand polished process.

CAST ALUMINUM FEET

Provides a more modern look with less resonance than MDF or ABS plastic. It is mechanically designed to minimize surface area in contact with floor, decoupling the speaker for faster, tighter low frequencies and more detail.

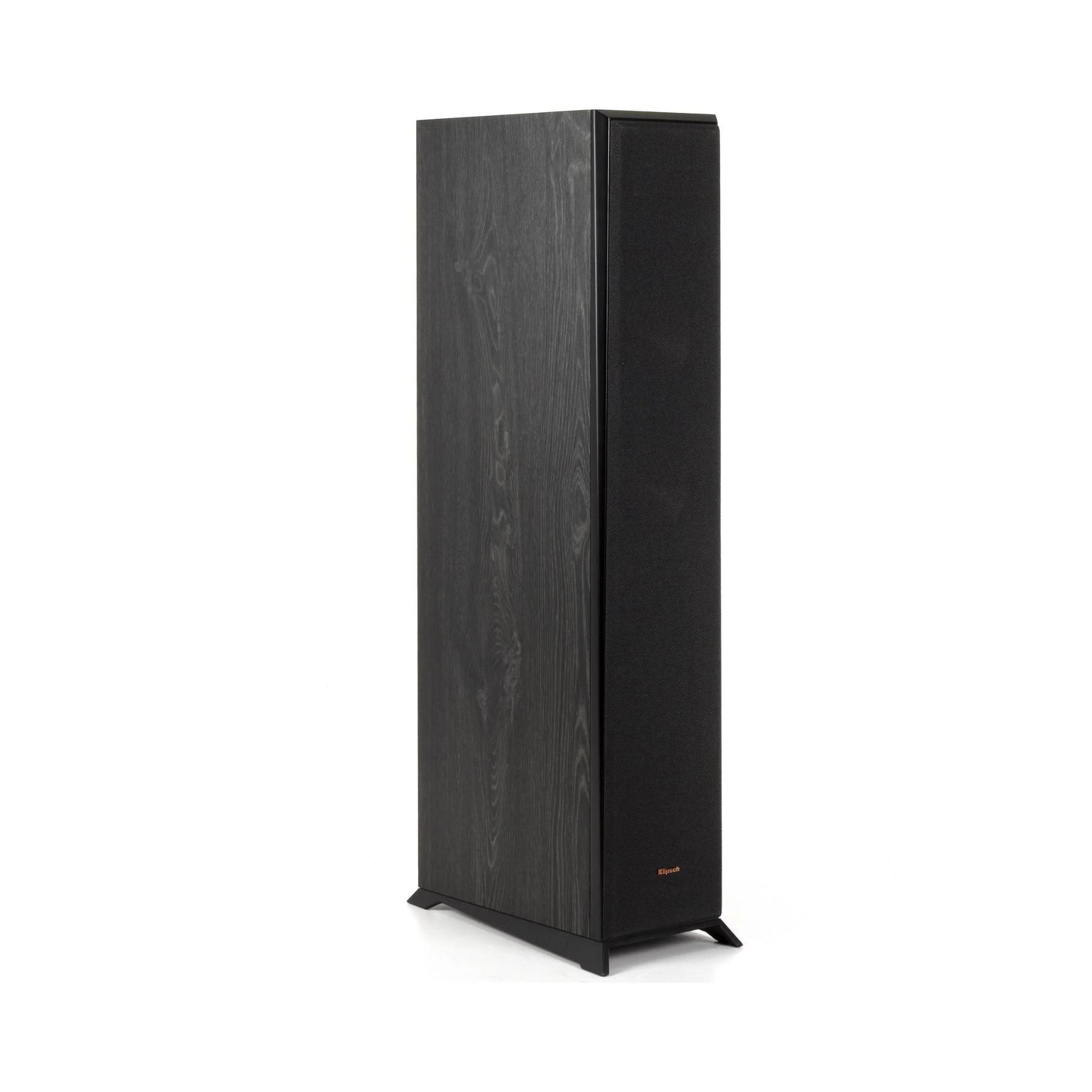

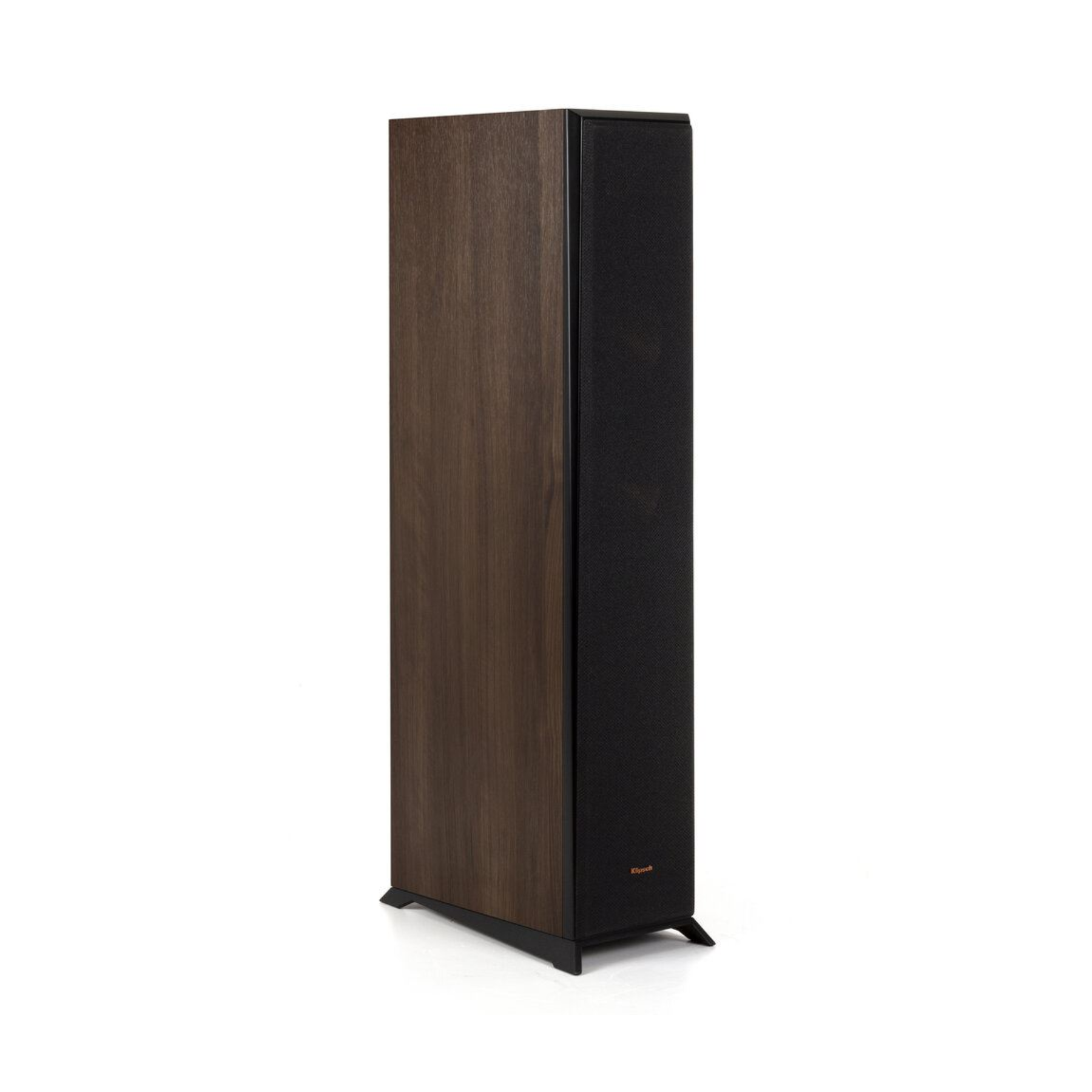

STRONG, FLEXIBLE, REMOVABLE GRILLE

Attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece.

DRAMATIC DETAILS

Copper anodized trim rings, cast aluminum feet, satin painted baffles and a laser etched logo treatment give the Reference Premiere II series a modern, premium look.

Klipsch RP-5000F Specs:

Klipsch RP-5000F FREQUENCY RESPONSE 35-25kHz +/- 3dB
Klipsch RP-5000F SENSITIVITY 96dB @ 2.83V / 1m
Klipsch RP-5000F POWER HANDLING (CONT/PEAK) 100W / 400W
Klipsch RP-5000F NOMINAL IMPEDANCE 8 Ohms Compatible
Klipsch RP-5000F CROSSOVER FREQUENCY 1800Hz
Klipsch RP-5000F HIGH FREQUENCY DRIVER 1” Titanium LTS Vented Tweeter with Hybrid Cross-Section Tractrix® Horn
Klipsch RP-5000F LOW FREQUENCY DRIVER Dual 5.25” Cerametallic Cone Woofers
Klipsch RP-5000F ENCLOSURE MATERIAL MDF
Klipsch RP-5000F ENCLOSURE TYPE Bass Reflex via rear-firing Tractrix® Port
Klipsch RP-5000F INPUTS Dual binding posts / bi-wire / bi-amp
HEIGHT 36.12” (91.7 cm)
WIDTH 8.21” (20.8 cm)
DEPTH 14.38” (36.5 cm)
WEIGHT 37 lb (16.8 kg)
