With Luma Surveillance recorders, you can capture real-life moments in real time, and access your feed from anywhere. You can even set your system to start and stop recording at pre-determined times, capturing moments you want, and avoiding footage you don’t.
Get the Details

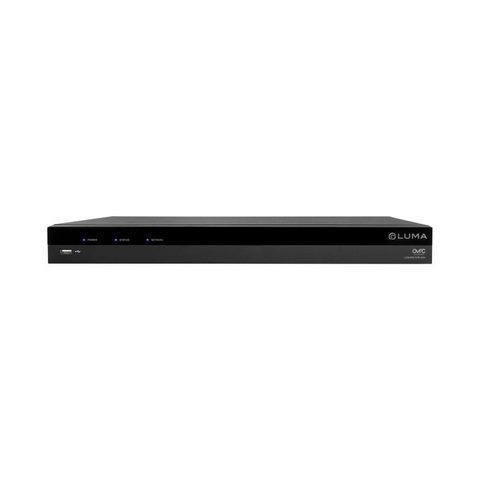

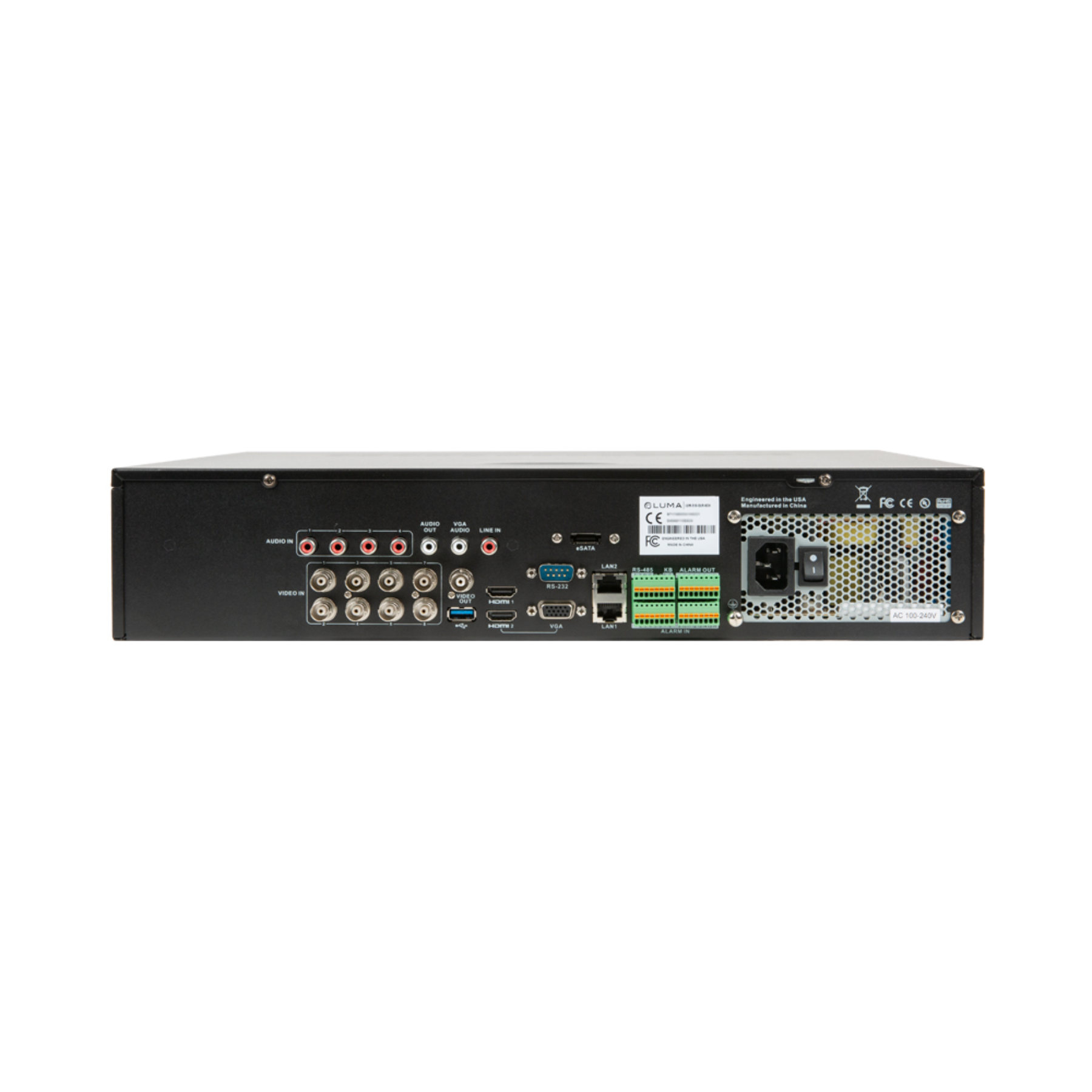

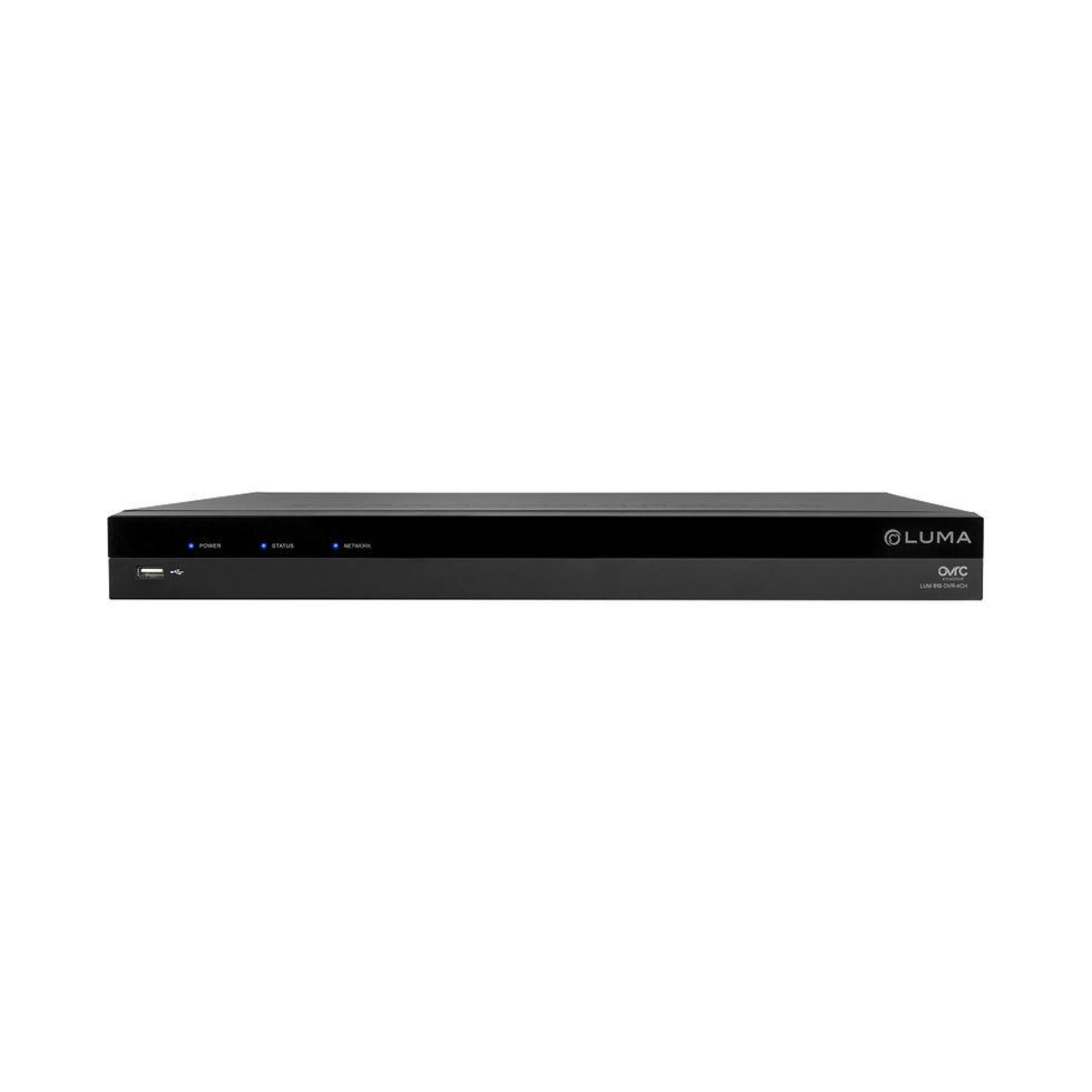

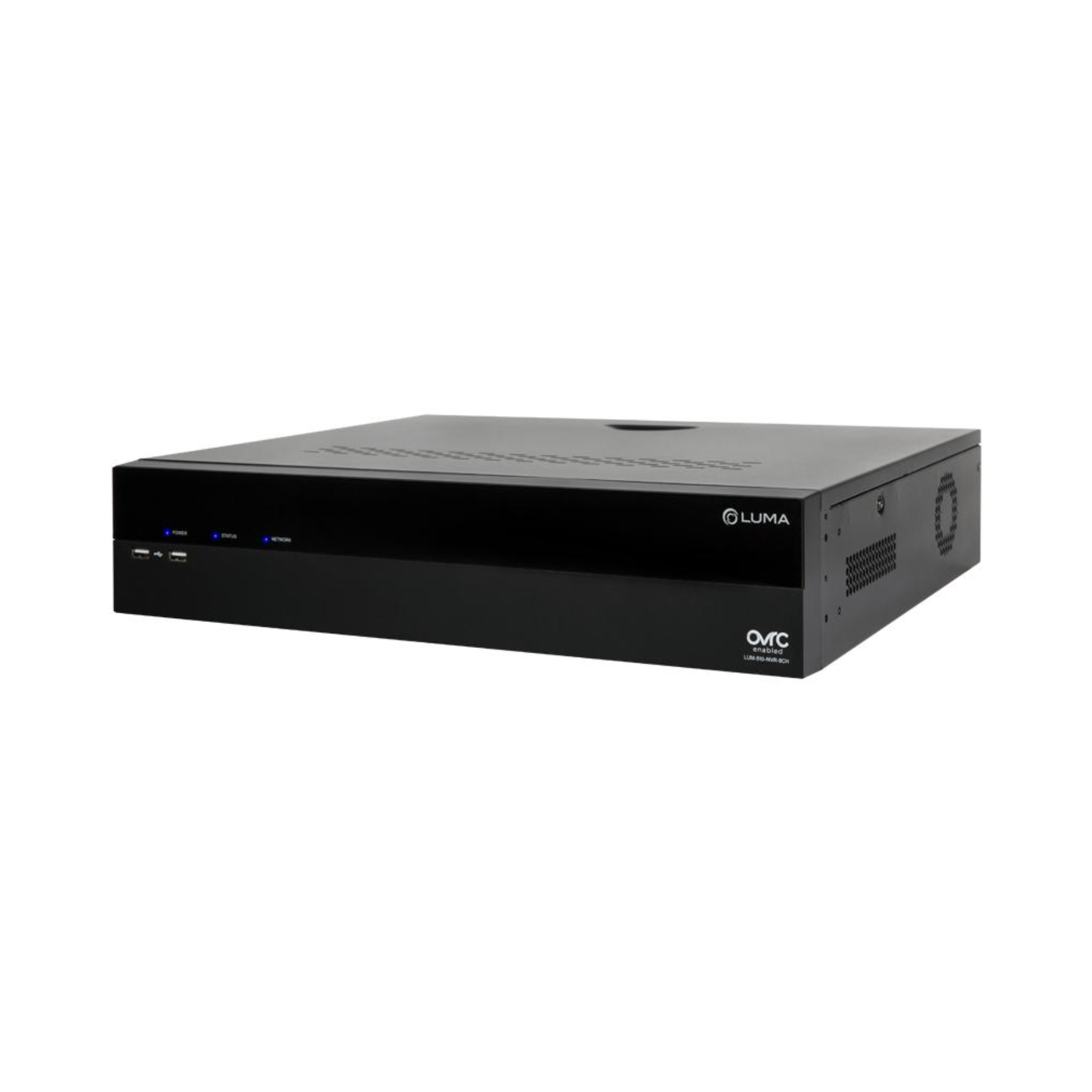

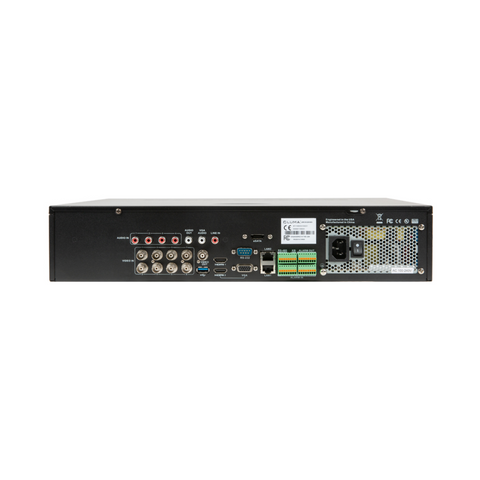

Luma Surveillance™ 510 Series DVR

Luma’s 510 Series DVR provides solid all-around performance in any analog surveillance system. It supports higher-resolution cameras up to 5MP, 4K TV output, and advanced Smart Search capabilities.

SUPPORTS CAMERAS UP TO 5MP

Updated HD-TVI technology enables this DVR to support sharper image quality than ever before. Our 510 recorder works with cameras up to 5MP. All Luma recorders are backwards compatible with traditional analog cameras up to 960H.

SMART SEARCH

Locating an event after it’s been recorded is simple. Each event now shows separately on the timeline, with all event triggers (line cross or intrusion boxes) are
set at the time of search.

4K TV OUTPUT

An included 4K HDMI output allows you to hook up your DVR to a television to view any image from the live feed.

INTUITIVE USER INTERFACE & DEDICATED APP

Rewind and fast forward, jump backward or forward 15 seconds, pause, take a snapshot, playback, and zoom to your heart’s content. All of these options are
easily controlled with a tap or swipe.

RACK-MOUNTABLE DESIGN

Luma's sleek DVRs mount easily in popular racks, so you can keep cables or other connected devices neat and tucked out of the way.

SPECIFICATIONS:

• Rack Size: 2U
• Max. Camera Resolution: Up to 5MP
• H.265 Support: Yes
• Smart Search: Yes
• HDMI Out: 4K
• Channels: 8
• Max. # of HDDs: Up to 4
• Max. HDD size: 6 TB
• LumaLink Support: Yes
• OvrC Support: Yes
