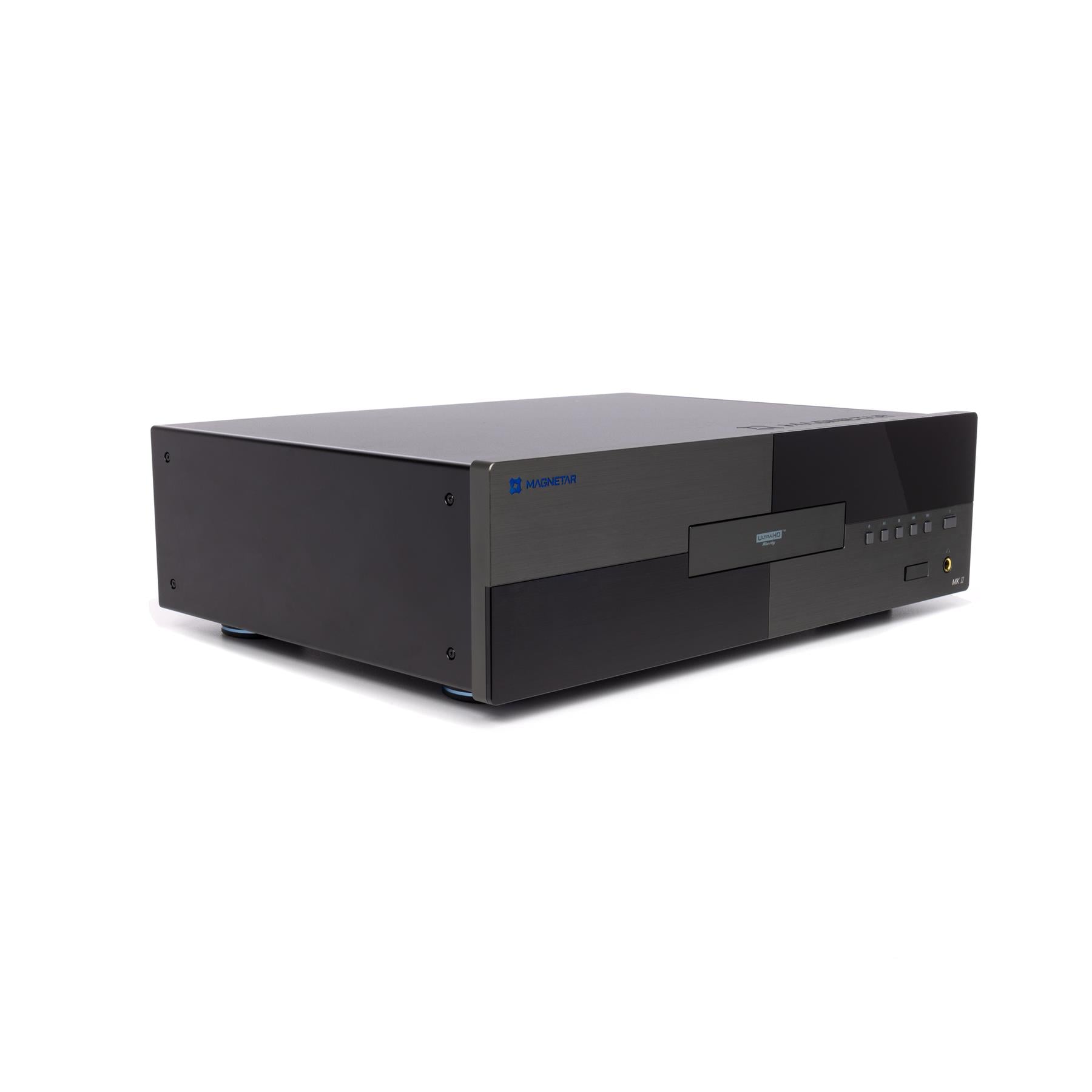

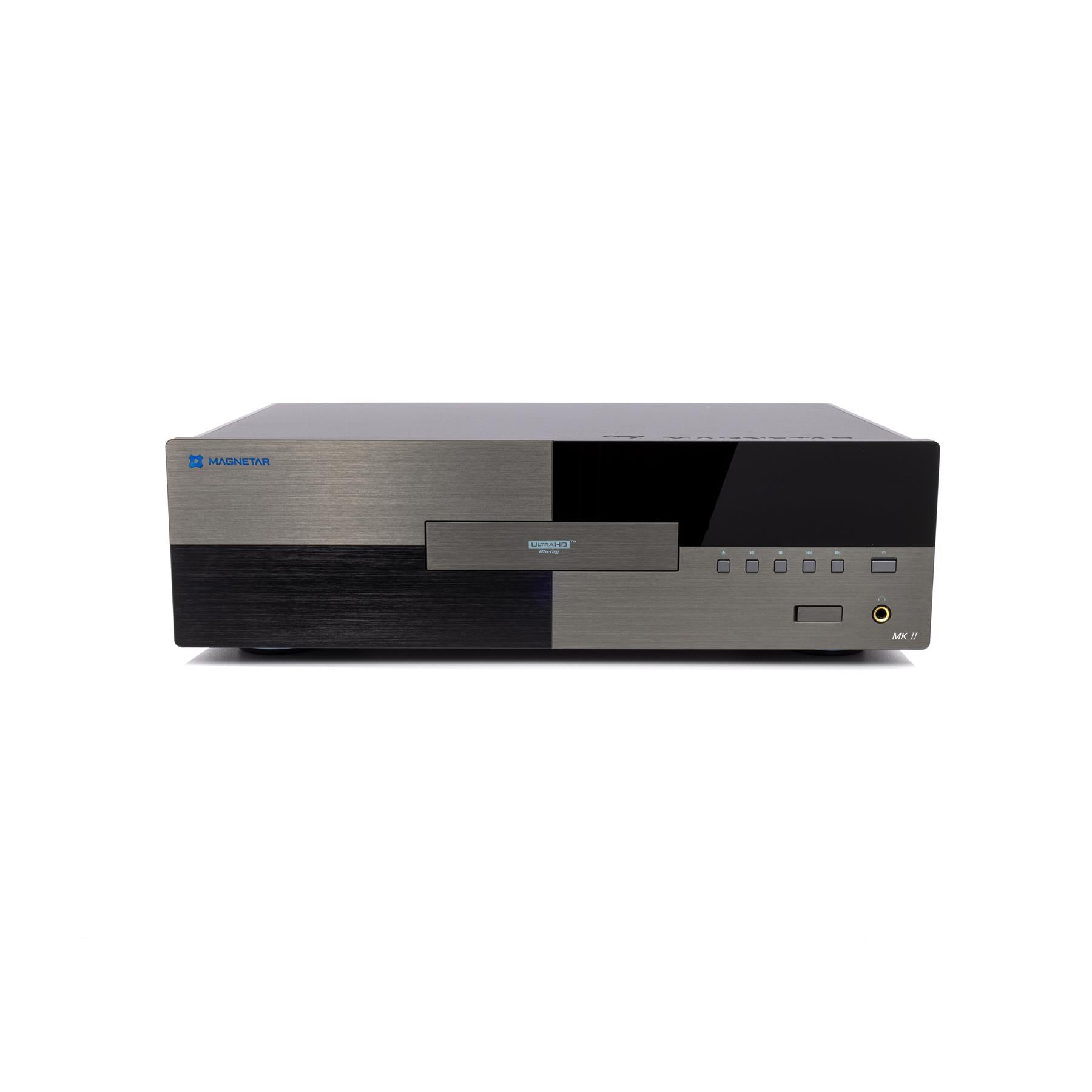

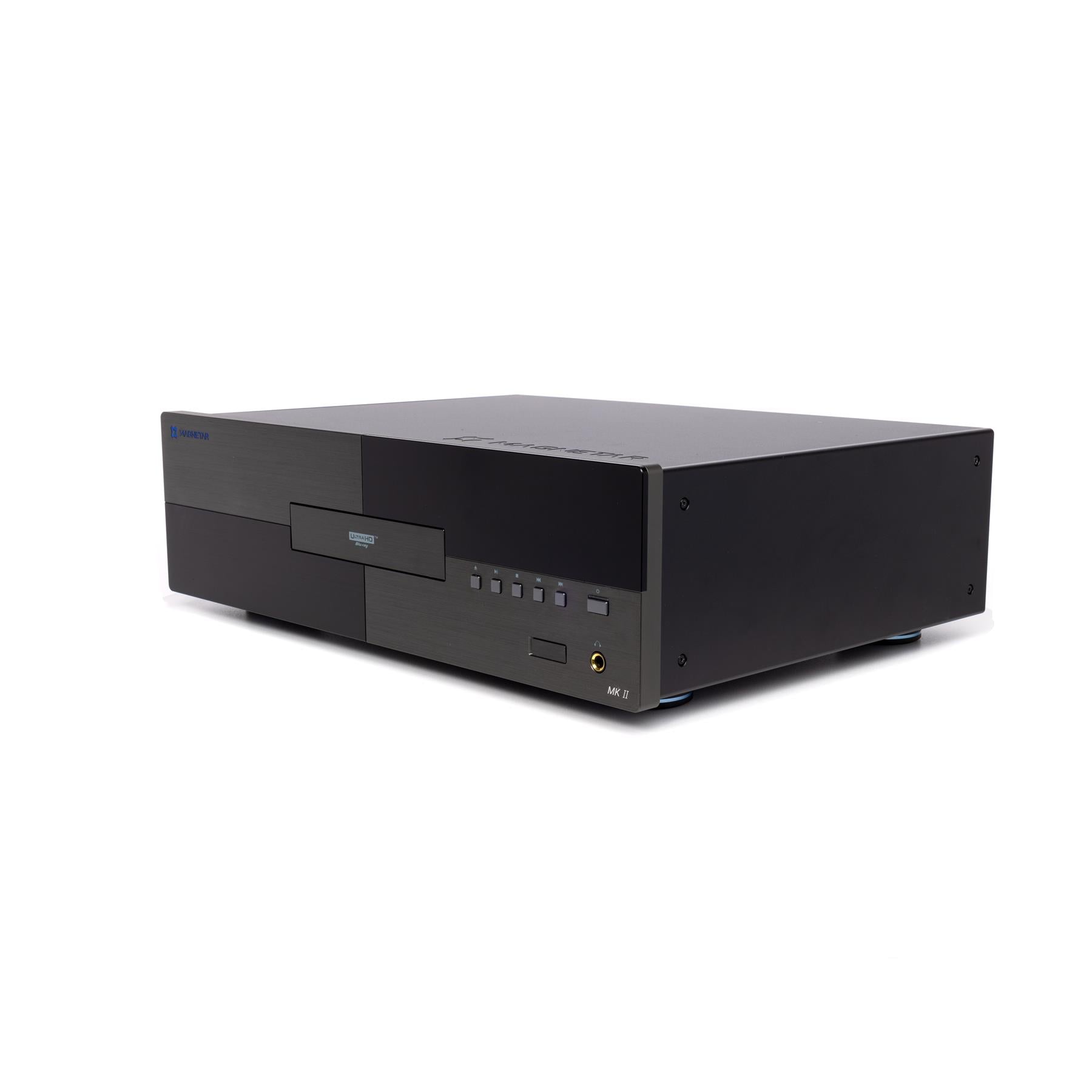

Magnetar UDP900 MKII 4K Blu-Ray Player

The Magnetar UDP900 MKII is a flagship universal disc and media player engineered for serious home theater and high-fidelity audio systems. Designed for enthusiasts who want premium 4K UHD Blu-ray playback, reference-grade analog audio, and broad media compatibility, this high-end player combines advanced video processing, dual ESS9038PRO DAC architecture, and a refined low-noise power design in one uncompromising component. With support for Dolby Vision, HDR10+, Dolby Atmos, DTS:X, SACD, DVD-Audio, and high-resolution USB audio up to PCM 768kHz and DSD512, the UDP900 MKII is built to extract exceptional performance from both physical media and digital file libraries.

Its upgraded MKII platform features a redesigned 6-layer gold-immersion main PCB, improved JST and Amphenol connectors, upgraded copper internal wiring, high-precision TCXO clocking, and optimized power delivery for cleaner signal integrity. A rigid all-aluminum alloy chassis, reinforced dual-layer construction, isolated internal shielding, and separate digital and analog power sections help minimize vibration, interference, and noise. Whether used as a premium 4K Blu-ray player, audiophile SACD/CD source, or networked media hub, the UDP900 MKII delivers a refined, stable, and immersive audio-video experience for reference home cinema and music playback systems.

What It's Good At:

• Delivering reference-level 4K UHD Blu-ray playback with Dolby Vision and HDR10+ support
• Producing audiophile-grade stereo and multichannel sound with dual ESS9038PRO DAC processing
• Handling nearly every major disc, music, video, and image format in one universal player
• Reducing vibration, electrical noise, and interference with a rigid aluminum chassis and isolated shielding
• Supporting high-resolution USB audio playback up to PCM 768kHz and DSD512 through XMOS USB input
• Integrating easily into premium systems with balanced XLR, RCA, HDMI, optical, coaxial, LAN, RS232C, and USB connectivity

Magnetar UDP900 MKII Full Specifications:

• Product type: Reference level universal disc/media player
• Model: UDP900 MKII
• Design highlights: 6-layer gold-immersion main PCB; upgraded JST and Amphenol connectors; upgraded copper internal wiring; high-precision TCXO oscillator; LDO power-supply processing; Murata capacitors; TDK magnetic devices; NCC electrolytic capacitors; 4-layer audio boards with independent wiring; independent linear power and supply module; dual-power-supply design
• DAC architecture: Dual ESS9038PRO D/A decoding
• Analog stage components: OPA1602 op-amps; ELNA, NCC, WIMA, and SILMIC II capacitors
• Clocking: 1 ultra-low-noise 100MHz TCXO temperature-compensated crystal oscillator
• Op-amps: 7 x 1602OPA op-amps
• HDMI enhancement: HDMI 2 TMDS retiming on HDMI audio port
• Supported media formats: 4K UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD-SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE, BD-Live/BONUSVIEW, M2TS, MP4, MKV, MOV, AVI, TP, TRP, TS, 3GP, ASF, OMG, WMV/WMW, H264/AVC, H265/HEVC, MPEG-1/2/4, VC-1, VP-8, VP-9, FLAC, M4A, MP3, OGG, AIF/AIFF, APE, DSF, AAC, ALAC, JPG, TIFF
• Multi-channel audio support: Dolby Atmos, DTS:X, LPCM, DVD-A, SACD, Blu-ray Audio
• Supported disc types: UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE
• USB audio capability: XMOS USB audio input supports PCM 768kHz and DSD512
• External storage support: USB 3.0 with support for external storage up to 16TB
• Network/media sharing support: DLNA, SMB, NFS
• Analog audio outputs: 2-channel RCA, 2-channel balanced XLR, 7.1-channel RCA
• Digital audio outputs: Optical, coaxial, HDMI
• HDMI audio output: Supports up to 7.1-channel 192kHz PCM, 5.1-channel DSD, Dolby Atmos / DTS:X via bitstream
• HDMI video output / source direct: UHD 23.976/25/30/50/59.94/60Hz; 1080i/p; 720p; 576i/p; 480i/p; source direct
• 2-channel frequency range: 20Hz to 50kHz (±0.01dB)
• Multichannel frequency range: 20Hz to 50kHz (±0.01dB)
• Signal-to-noise ratio: ≥120dB (2CH RCA); ≥130dB (2CH XLR)
• Distortion plus noise / THD+N: ≤0.0005%
• Output level: RCA ±3Vrms; XLR listed as ±0.6Vrms on the product page and ≤6Vrms on the product sheet
• Dynamic range: ≥120dB (2CH RCA); ≥130dB (2CH XLR)
• Channel resolution / separation: ≥110dB (2CH RCA); ≥130dB (2CH XLR)
• Circuit board details: 6-layer PCM circuit board; independent wiring for each channel

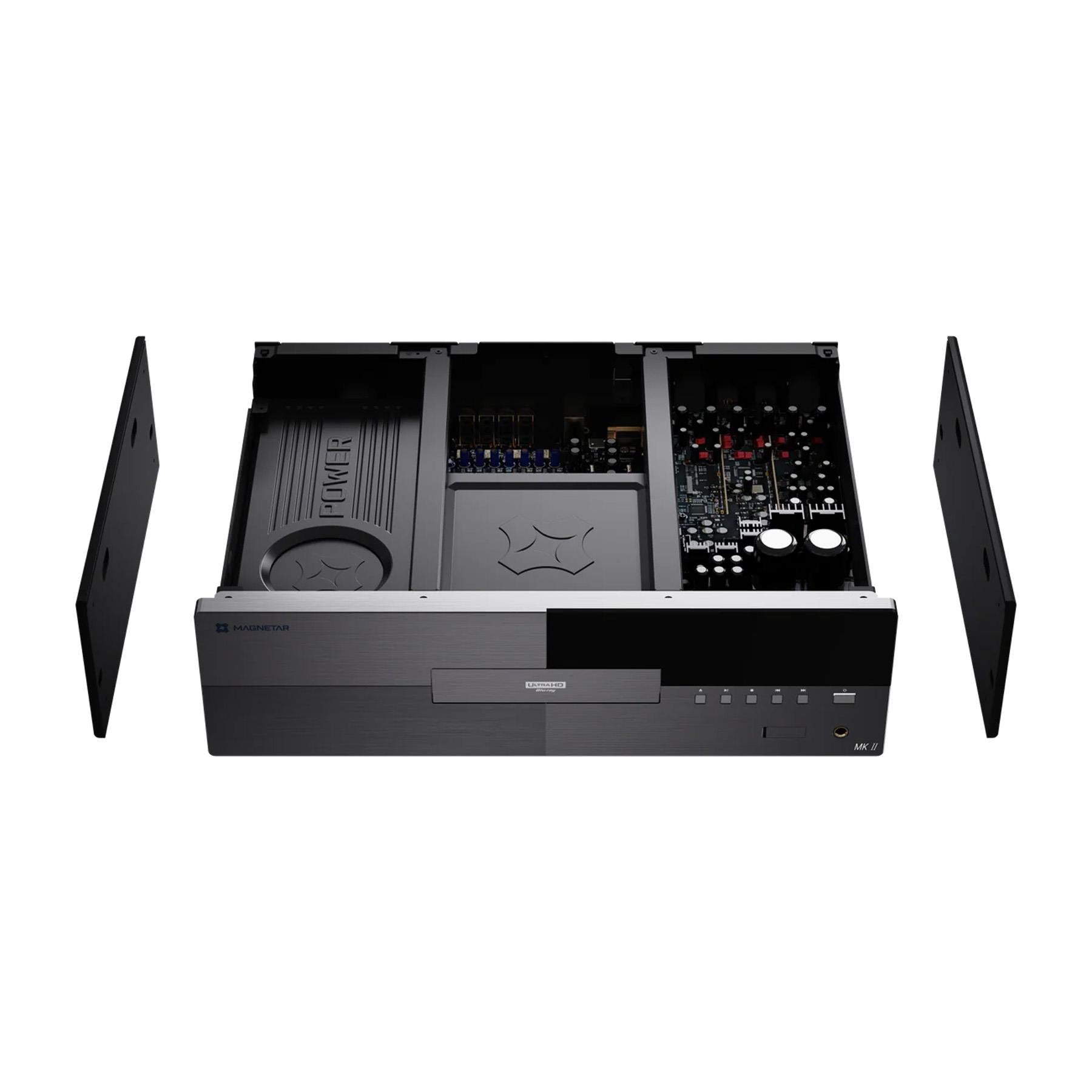

• Chassis construction: All-aluminum alloy body; reinforced dual-layer chassis; individually shielded internal metal casings; solid high-rigidity metal body
• Power supply: High-power switching power supply for digital main board; dedicated 60W low-noise toroidal transformer for analog audio; two-stage filter design; imported magnetic core; oxygen-free copper windings; metal shielding; full epoxy damping; Rubycon electrolytic capacitors
• AC power supply: AC 110-120V ~ 50/60Hz / AC 220-240V ~ 50/60Hz
• Power consumption: <40W
• Standby power consumption: <0.5W
• Dimensions: 17.51 x 12.64 x 5.23 inches (445 x 321 x 133 mm)
• Weight: 34.17 lbs (15.5 kg); product sheet also lists unit weight as 15.4 kg
• Unit packing dimensions: 550 x 470 x 265 mm
• Unit packing gross weight: 18.9 kg
• Operating temperature: 41°F to 95°F (5°C to 35°C)
• Operating humidity: 15% to 75%
• What’s in the box: Remote control, power cord, owner’s manual

Magnetar UDP900 MKII Q&A:

What kind of player is the Magnetar UDP900 MKII?

The UDP900 MKII is a reference-level universal disc and media player designed for premium home theater and audiophile systems. It combines high-end 4K video playback, advanced disc support, and premium stereo and multichannel audio performance in one chassis.

Does the UDP900 MKII support 4K UHD Blu-ray and HDR formats?

Yes. It supports 4K UHD Blu-ray playback and is built to handle Dolby Vision and HDR10+ for high-dynamic-range picture performance.

Which disc formats can it play?

It supports a wide range of disc types, including UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, and BD-R/RE.

Is the UDP900 MKII a good choice for high-end audio systems?

Yes. It uses dual ESS9038PRO DAC processing, balanced XLR and RCA analog outputs, a low-noise analog power supply, and upgraded analog-stage components for refined stereo and multichannel sound quality.

Does it support Dolby Atmos and DTS:X?

Yes. The player supports Dolby Atmos and DTS:X through compatible HDMI bitstream output, along with LPCM, SACD, DVD-A, and Blu-ray Audio playback support.

Can it play music and video files from USB drives or a home network?

Yes. The optimized USB 3.0 port supports external storage up to 16TB, and network playback is supported through DLNA, SMB, and NFS for broad file access across connected media libraries.

What high-resolution USB audio formats are supported?

Through XMOS USB audio input, the UDP900 MKII supports high-resolution playback up to PCM 768kHz and DSD512.

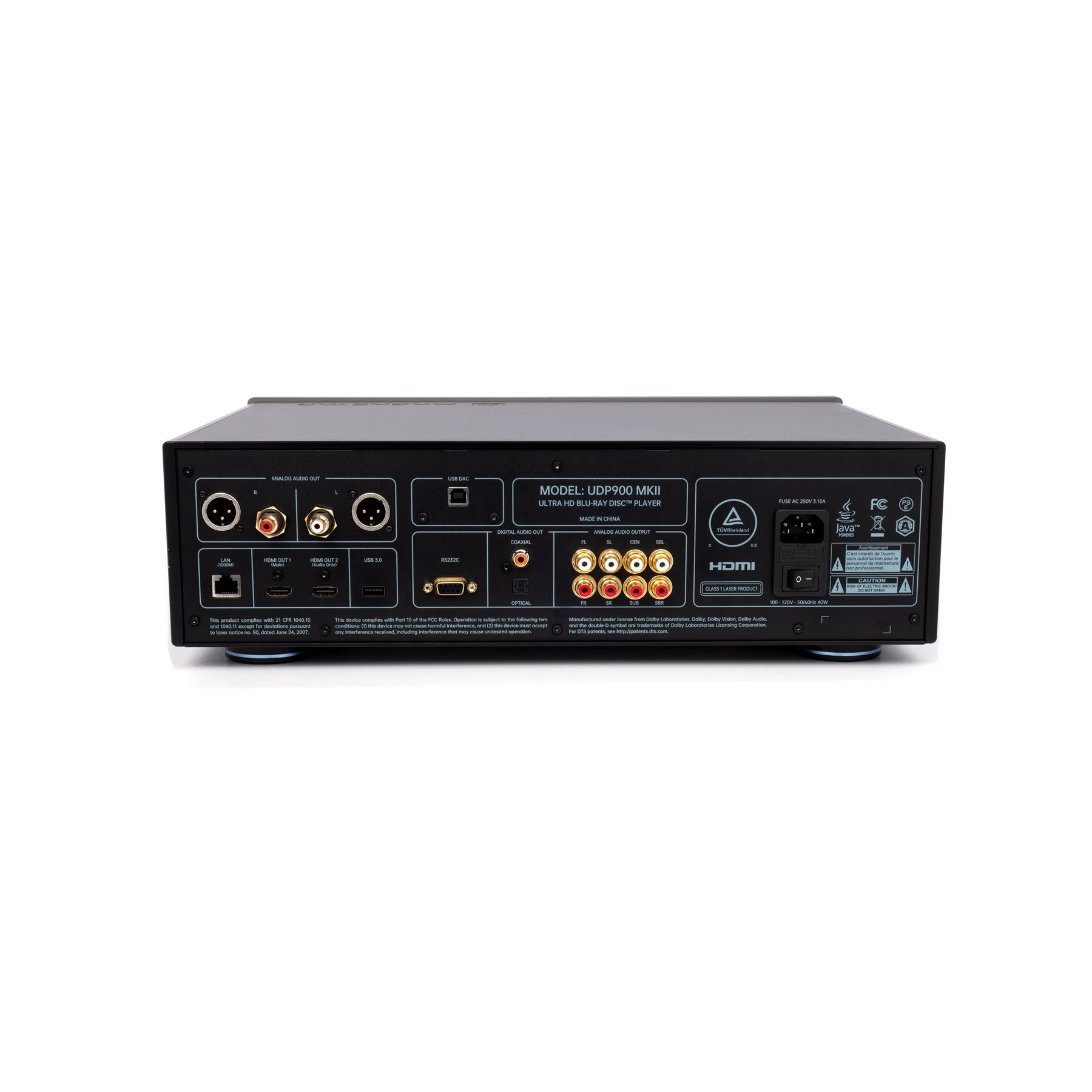

What connections are available on the rear panel?

The player includes balanced XLR and RCA analog audio outputs, 7.1-channel RCA output, optical and coaxial digital audio outputs, dual HDMI outputs, LAN, USB DAC, USB 3.0, and RS232C for system integration.
