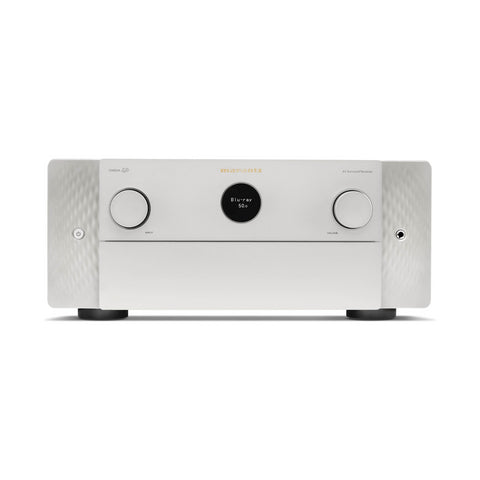

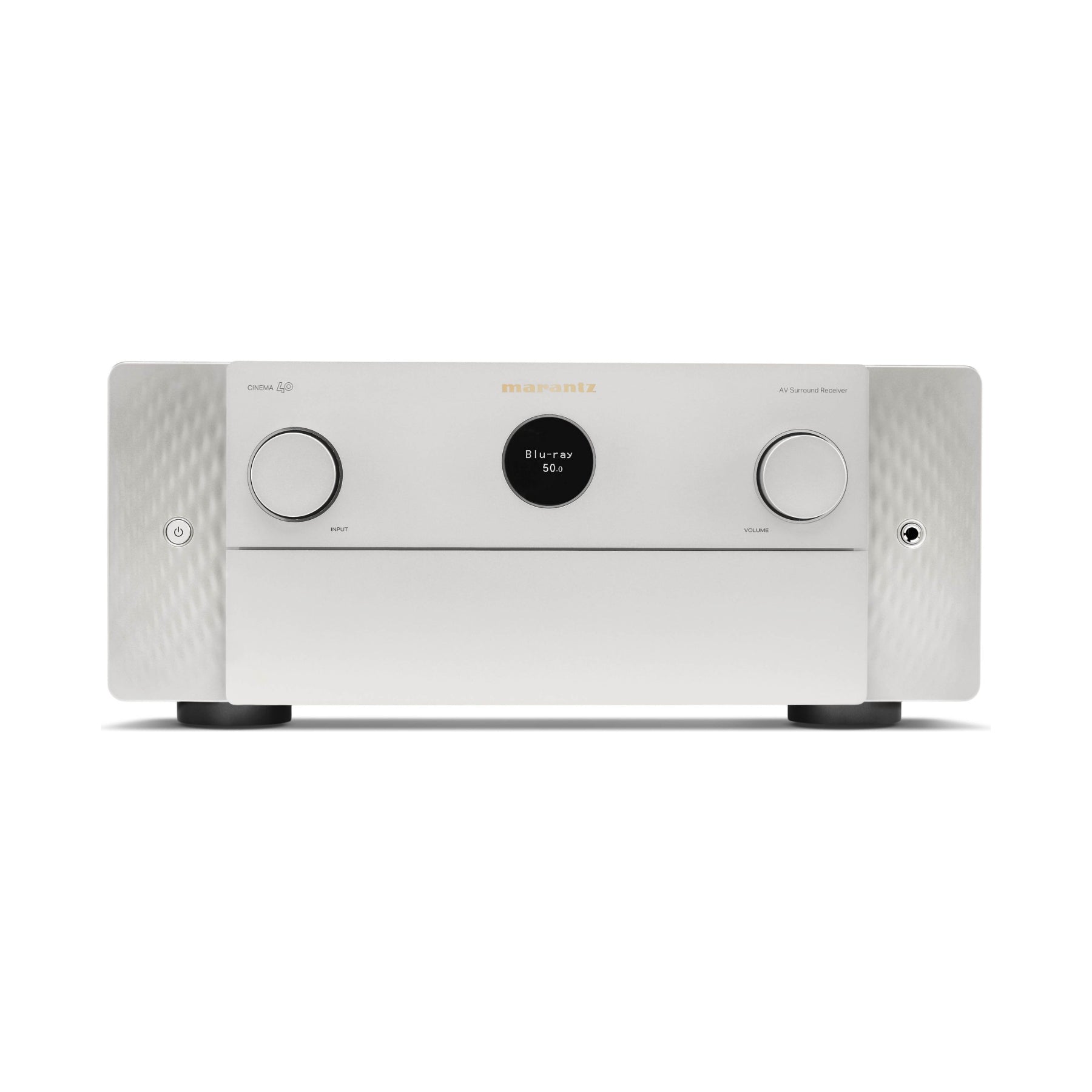

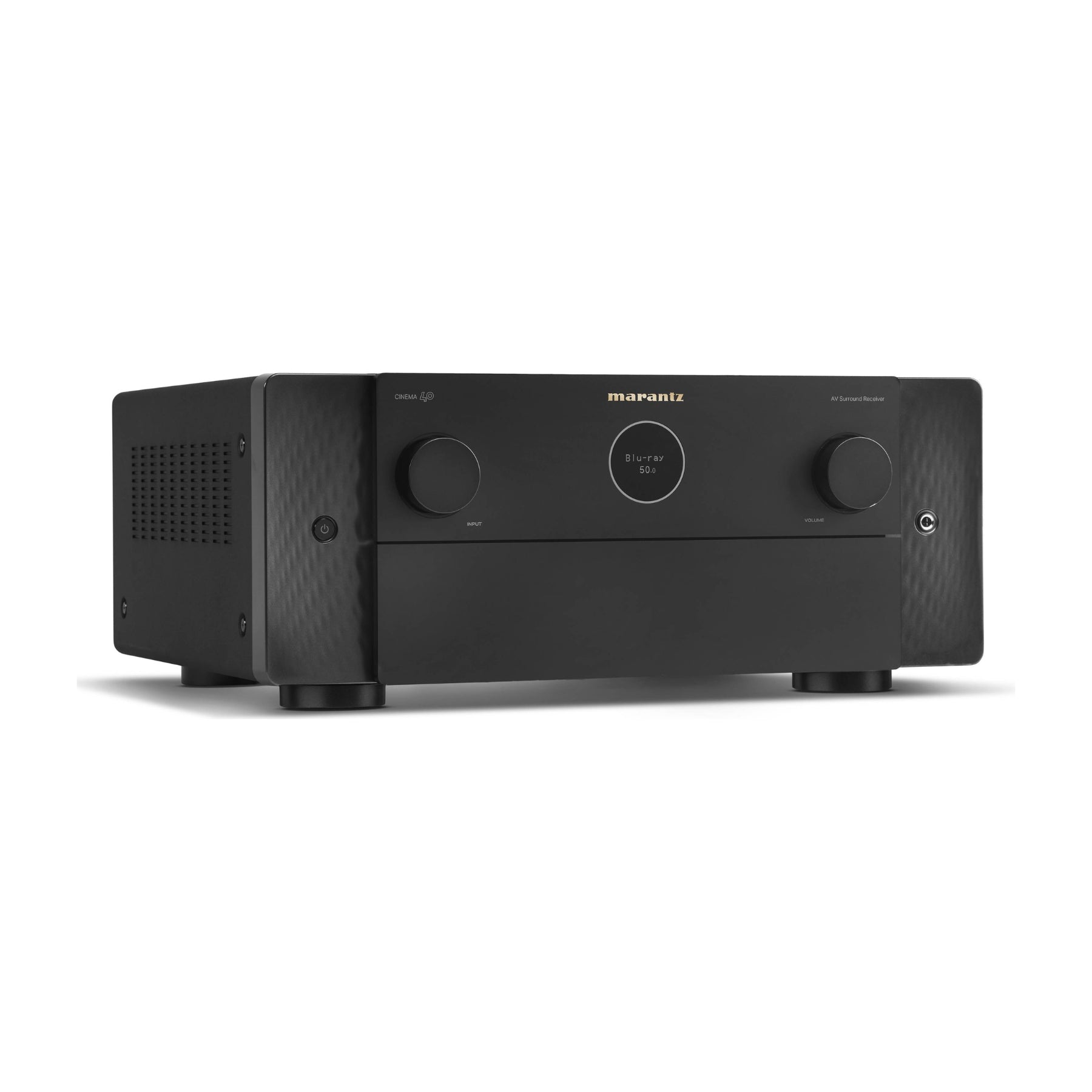

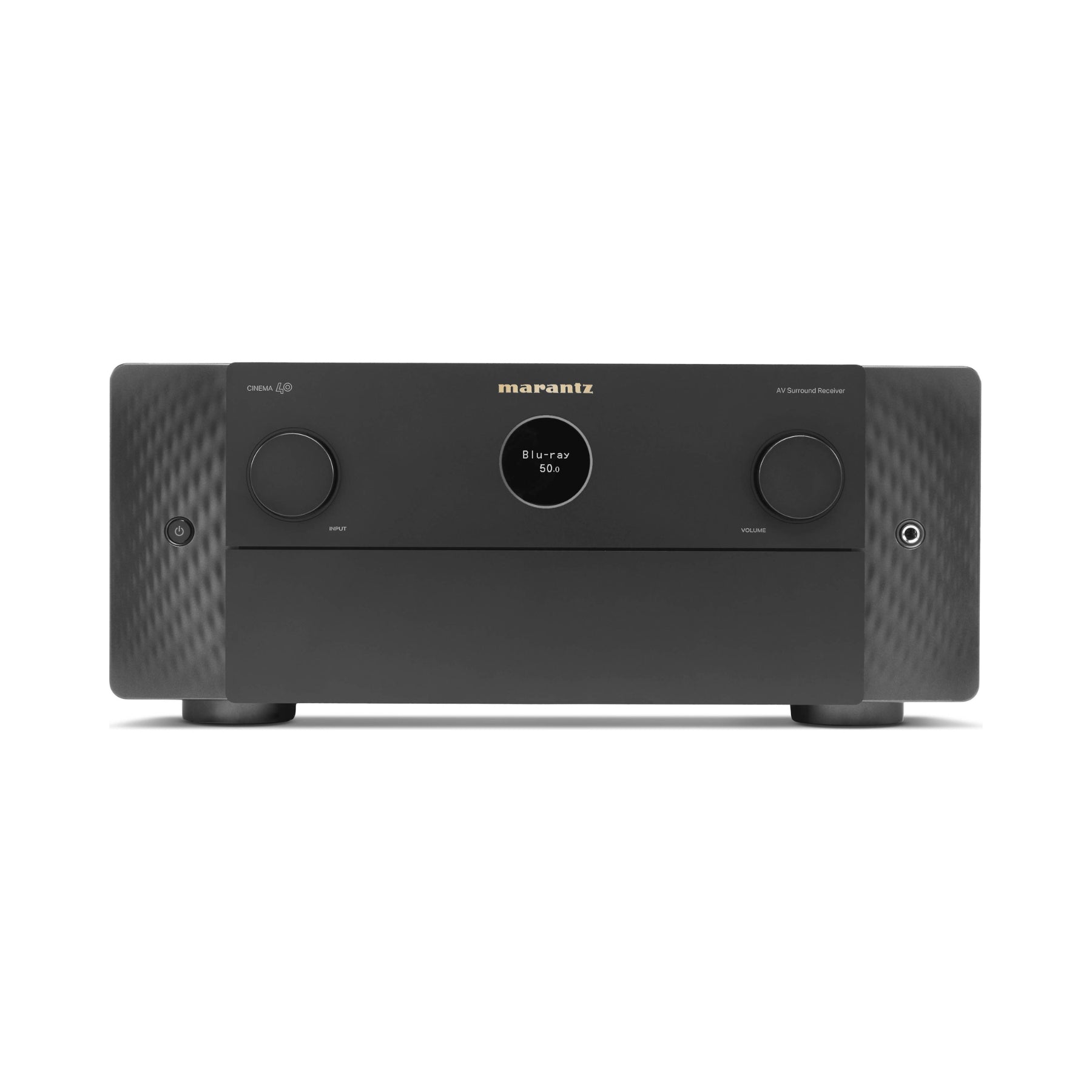

Cinema 40: Redefining Your Home Entertainment

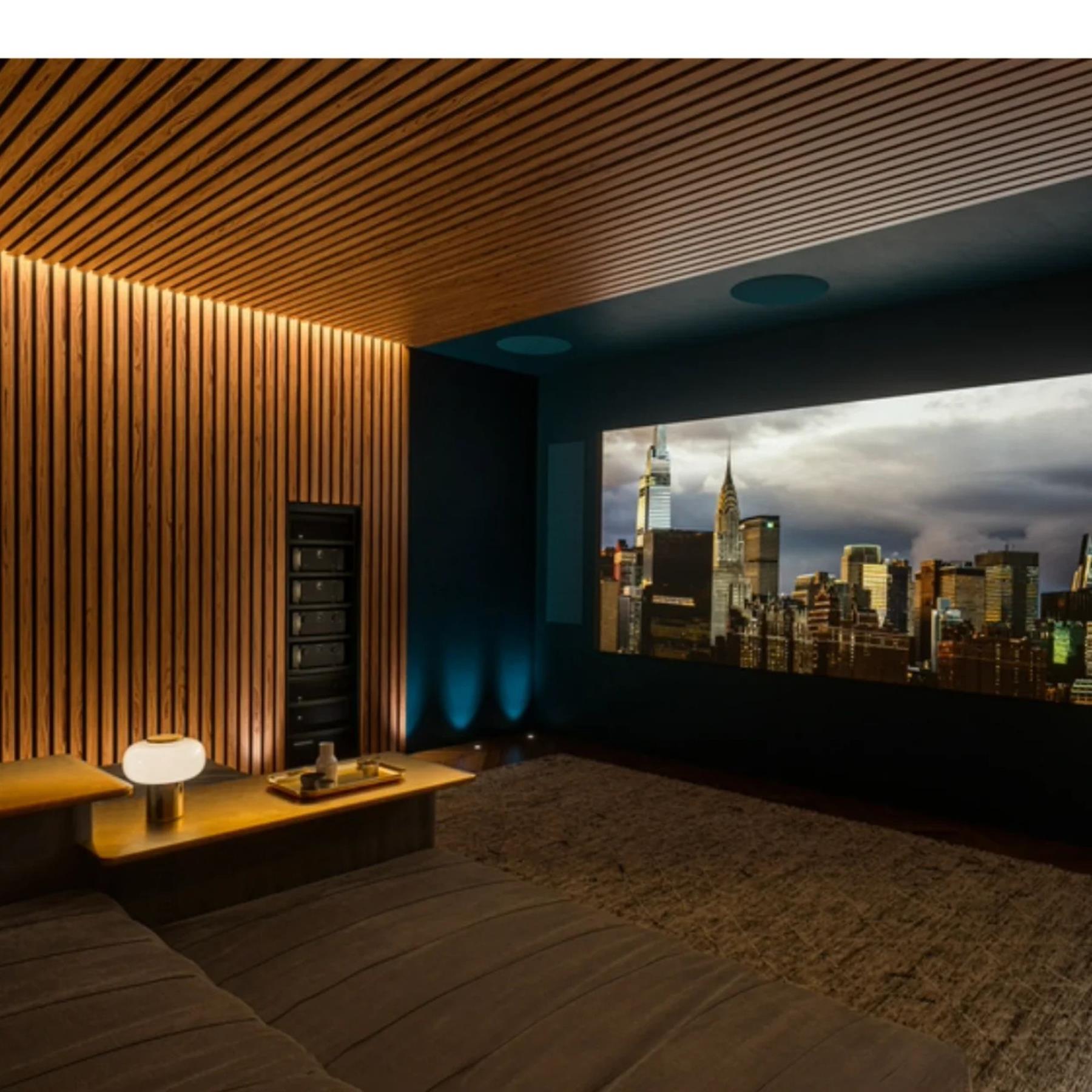

Welcome to an elevated audio experience with Cinema 40, a versatile and powerful AV receiver designed for both multi-use rooms and dedicated home theaters. Packed with 9x125 watts of Marantz's iconic amplification, seven HDMI inputs compatible with 8K UHD, built-in HEOS® streaming, and advanced room correction using Audyssey MultEQ XT32, this AV receiver immerses you in exceptional audio for your favorite movies and music.

Exceptional Performance

Combining art and science, Marantz Sound Masters meticulously select and balance components, creating the distinctive warm and dynamic Marantz sound. Cinema 40, incorporating Discrete Hyper Dynamic Amplifier Modules and current feedback amplification, takes your theater experience beyond expectations, delivering unparalleled audio quality.

Timeless Elegance

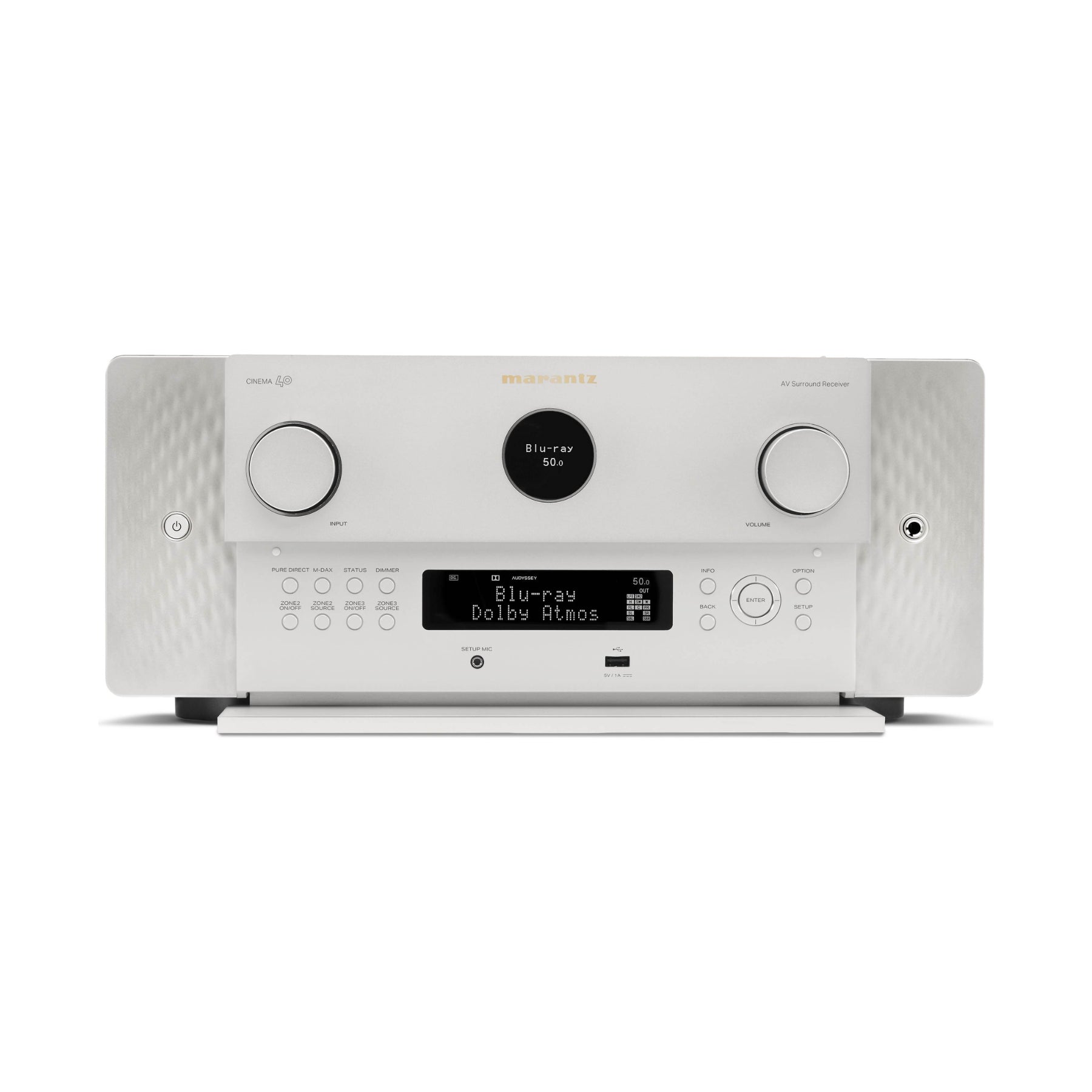

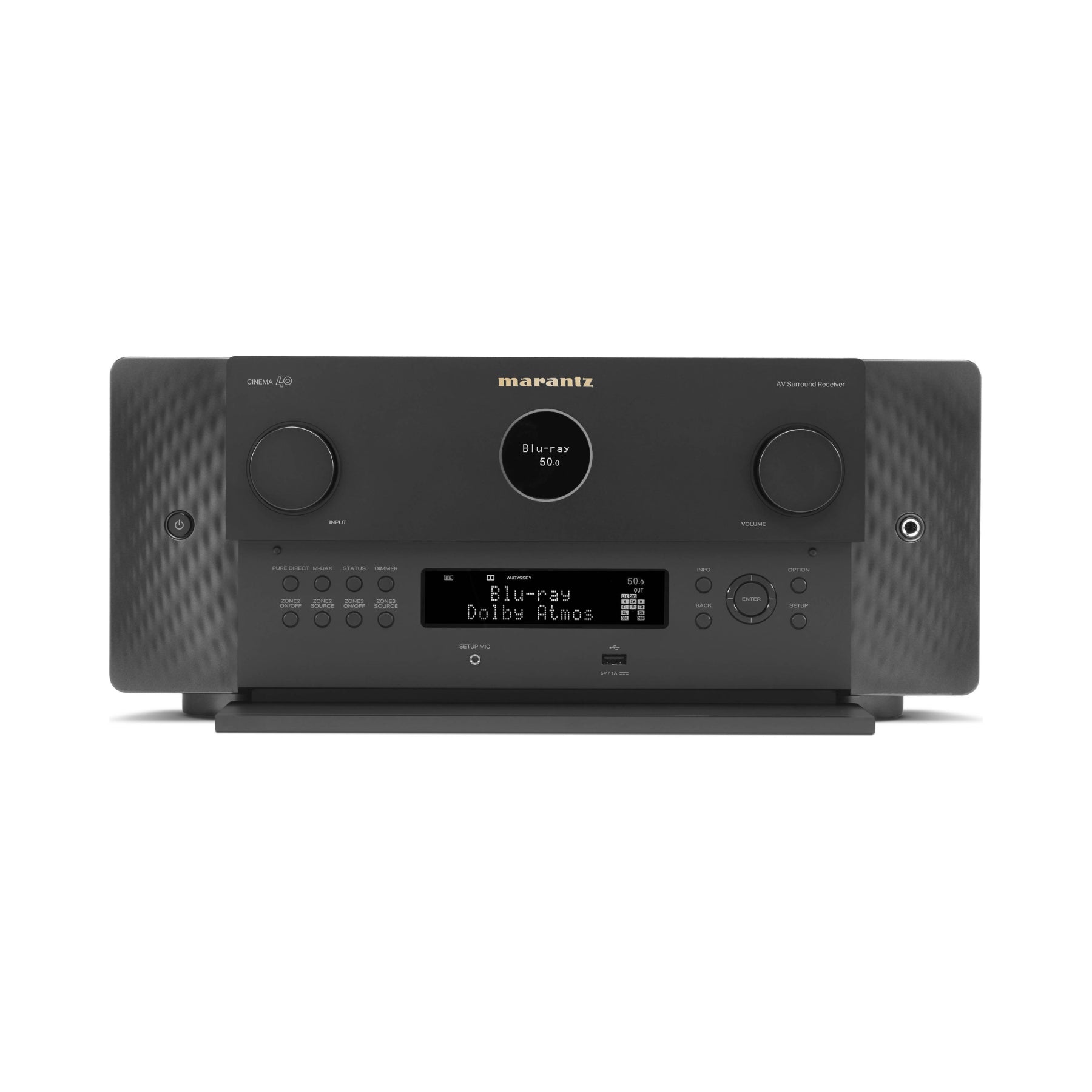

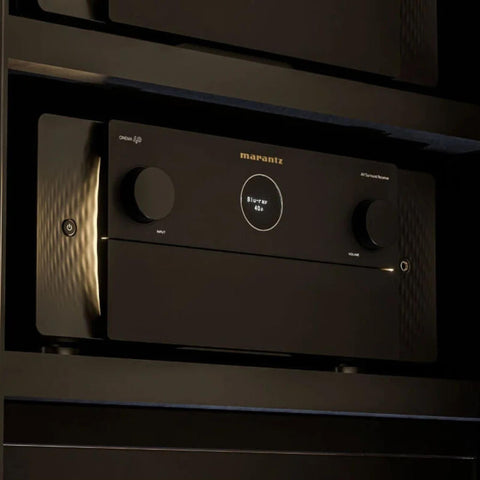

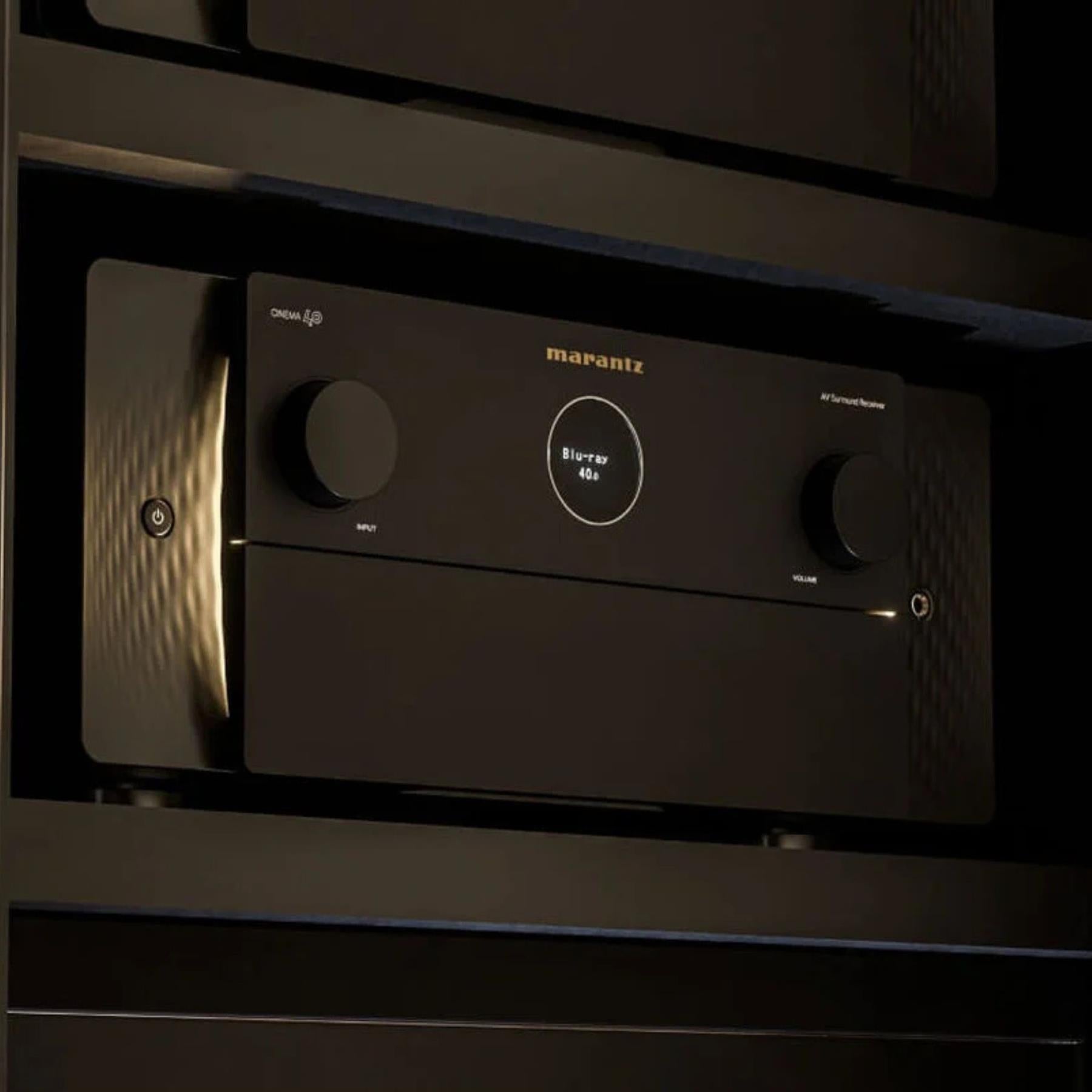

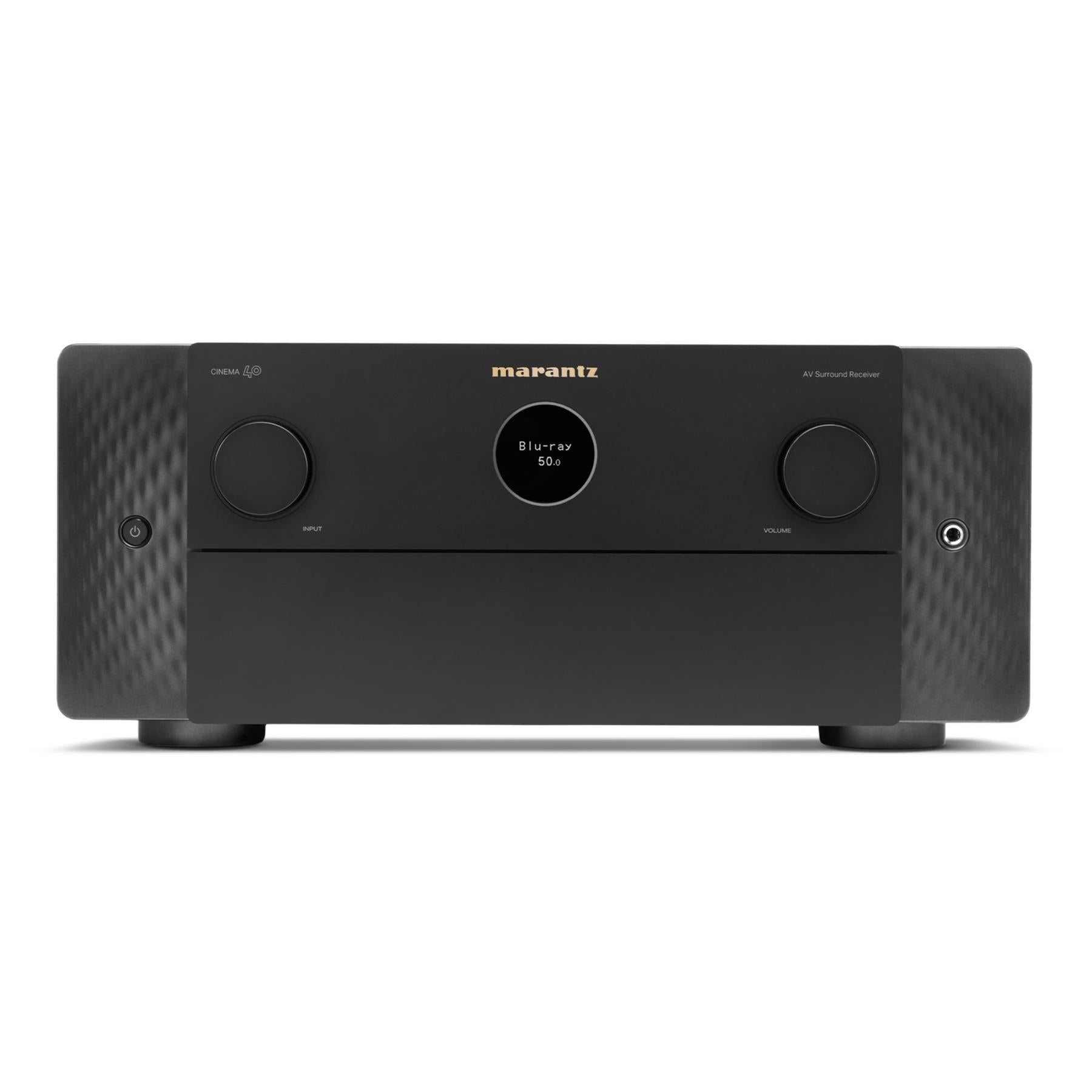

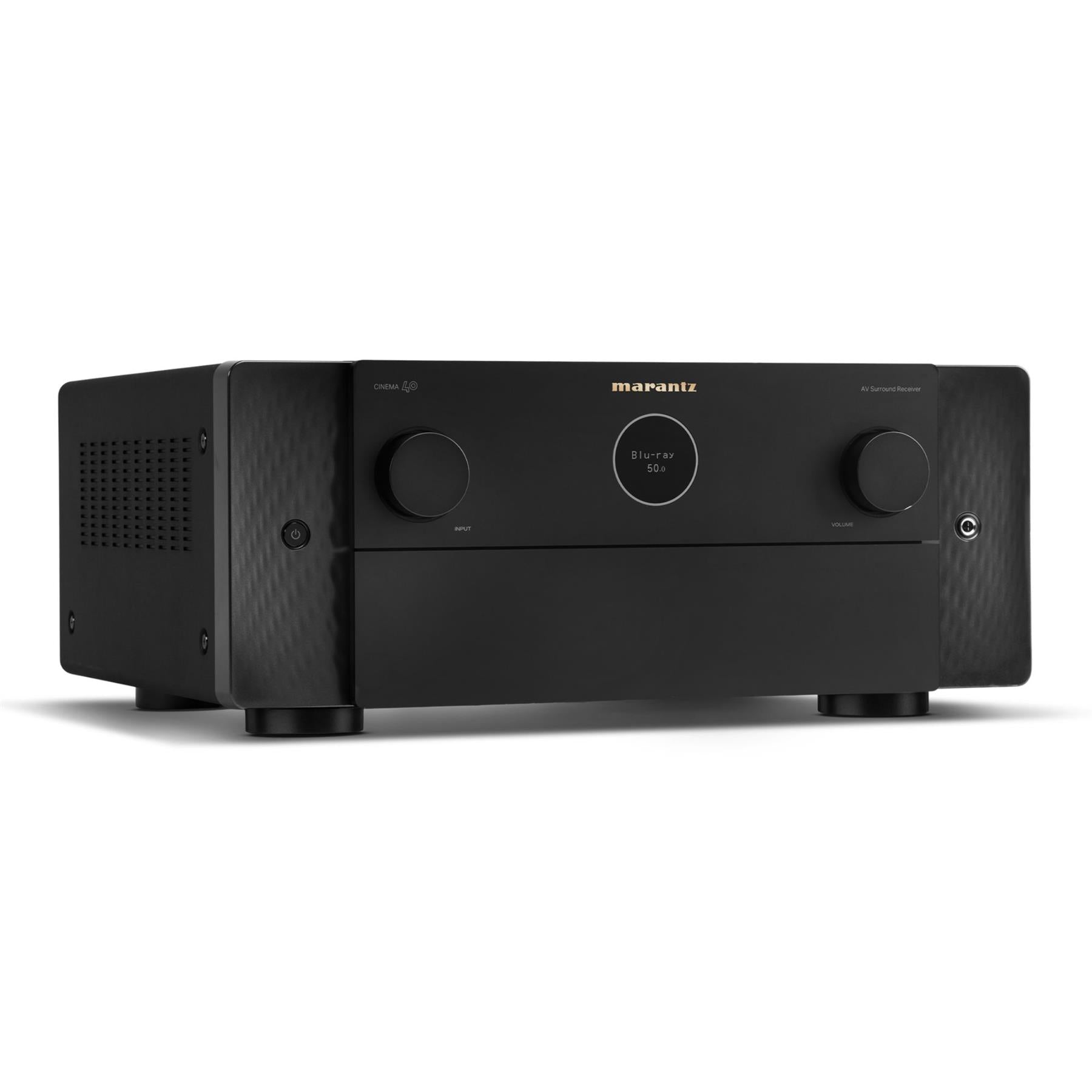

Marantz is renowned for timeless elegance, reflecting the musical landscapes their products unveil. Cinema 40 embodies this ethos, boasting an elegantly constructed design featuring steel and aluminum casework and knobs. The subtly textured front panel, illuminated by soft sidelights, adds a touch of sophistication.

Tailored for You

Your home cinema should mirror your unique style, and Marantz understands this. Cinema 40 offers an array of connection options, allowing you to tailor it to your preferences. Utilize Audyssey MultEQ XT32 to optimize your loudspeakers, ensuring exceptional audio quality in any acoustic setting.

Seamless Integration

Despite its advanced features, Cinema 40 is designed for ease of use. The quick start guide and on-screen setup procedure simplify configuration. The included metal backlit remote provides easy access to frequently used features, and seamless HDMI connectivity lets you control power and volume with your TV remote. It effortlessly integrates with popular voice assistants like Hey Google, Alexa, and Siri.

Versatile Compatibility

At the heart of your home entertainment, Cinema 40 is a hub of connectivity. Its seven 8K-compatible HDMI inputs allow seamless integration with various devices. HD and 4K sources can be upscaled to 8K, while traditional analog and digital inputs, including turntable compatibility, make it a versatile audio companion.

Future-Ready Flexibility

Investing in home cinema is an investment in long-term enjoyment. Cinema 40, with its extensive connectivity and technological prowess, is ready for the future. Expand your system with 11.4 channel pre-amp outputs, enabling the addition of outboard amplification and expanding your loudspeaker layout for years to come. Experience entertainment on your terms, evolving with your needs.

Marantz Cinema 40 Specifications

Power Amplifier

• Number of Powered Channels: 9
• Power Output (8 Ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive):
• Power Output (8 Ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive): 125 W
• Power Output (6 Ohm, 1 kHz, 0.7% 2ch Drive): 165 W
• Power Output (6 Ohm, 1 kHz, 10% 1ch Drive): 235 W
• 70% Guarantee: Yes
• Discrete Power Amplifier: Yes
• Amplifier Topology: Class A/B
• Current Feedback Topology: Yes
• Bi-Amp Drive: Assignable

Multichannel Surround Technologies

• DTS: DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
• Dolby: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
• Other: IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Audyssey DSX, Multichannel Stereo2
• Max Number of Processing (Preamp) Channels: 11.4

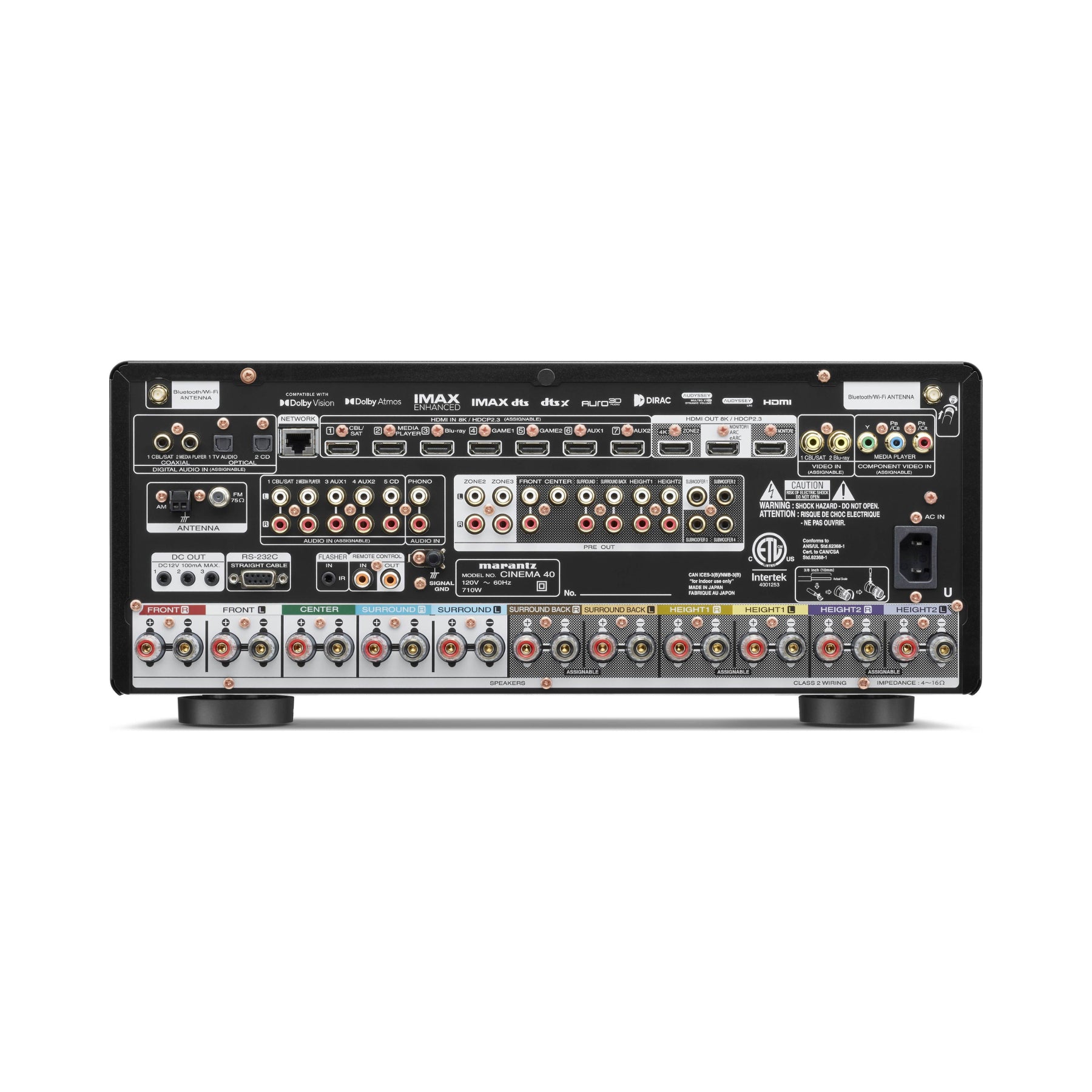

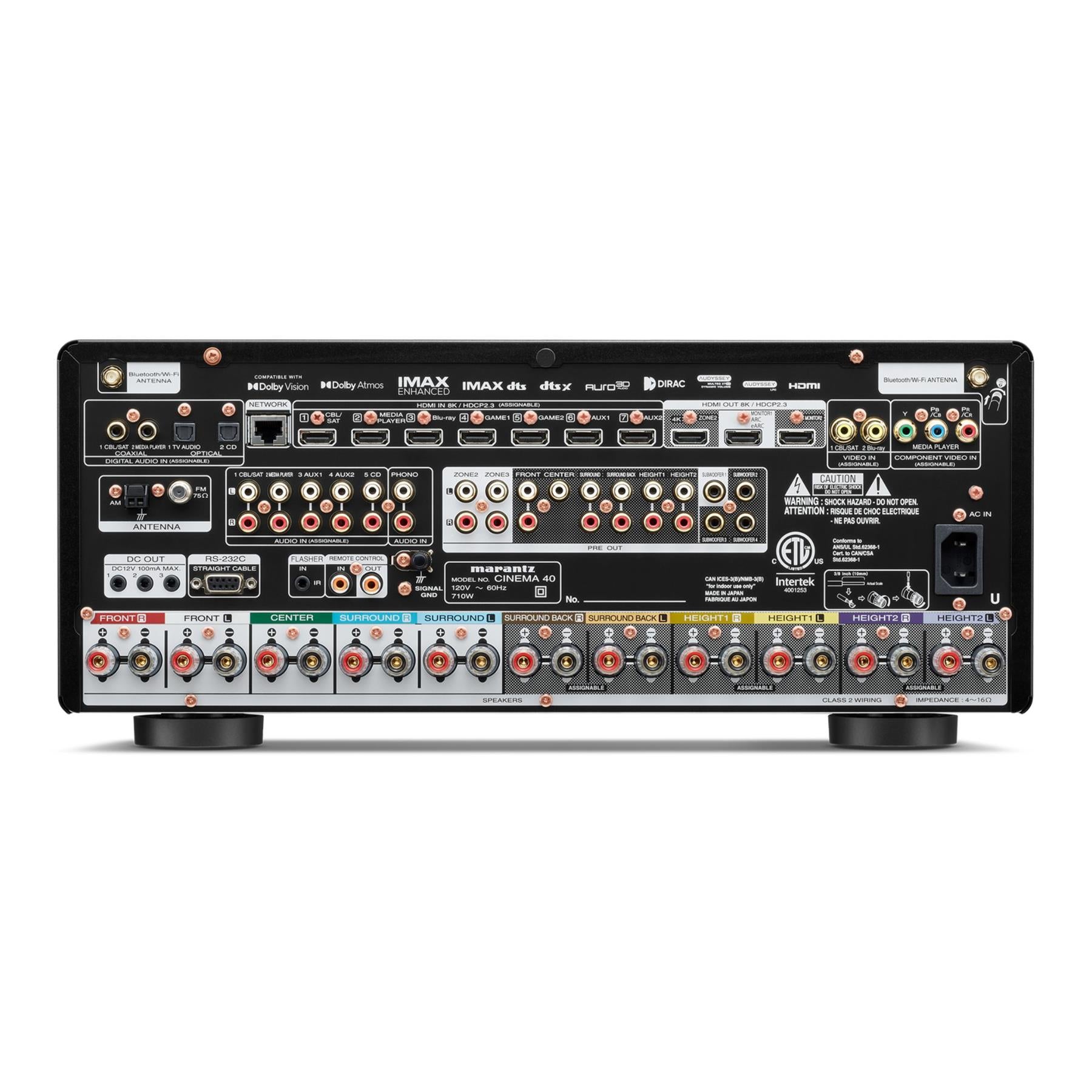

Inputs/Outputs

• Composite In/Out: 2/0
• Component In/Out: 1/0
• HDMI In/Out: 7/3
• Multi-Room Video Out via HDMI: Yes
• Analog In/Fixed Level Out: 5 in/0 out
• Phono (MM) In: Yes
• Digital In: Optical/Coaxial: 2/2
• Multi-Room Out: Analog/Digital: 2/0
• Multichannel Preamp Out: 11.4
• Subwoofer Out: 4 (Independent)
• 7.1 Multichannel Input: No
• Number of Speaker Terminals: 11
• Speaker A/B: Assignable
• Multi-Room Speaker Terminal: Assignable
• Front Inputs: USB-A
• USB Audio/Made for iPod/Made for iPhone: Yes/No/No
• AM/FM Tuner: Yes

HDMI

• Total HDMI Inputs/No. Support 8K: 7/7
• HDCP2.3 Support: Yes
• HDMI Outputs: Main/Zone: 2/1
• Analog to HDMI Video Conversion: Yes
• HDMI Upscaling: 1080P/4K to 8K
• Max Resolution @ Framerate: 8K @ 60Hz, 4K @ 120Hz
• Audio Return Channel: ARC, eARC
• Video Dynamic Range: HDR/HLG/Dolby Vision/HDR10+/Dynamic HDR
• ALLM (Auto Low Latency Mode) Pass-through for Gaming: Yes
• Variable Refresh Rate/Quick Frame Transport: Yes/Yes
• HDMI Pass-Through in Standby Mode: Yes
• CEC: Yes
• DSD Audio over HDMI: Yes
• Auto LipSync: Yes

Performance Technologies

• Copper Plated Chassis: No
• Toroidal Power Supply Transformer: No
• Hyper Dynamic Amplifier Modules (HDAM) (List Version): Yes
• Pure Direct Mode: Yes
• Gold Plated RCA Terminals: Yes
• Clock Jitter Reducer: Yes

Acoustic/Room Correction

• Audyssey: MultEQ XT32
• Audyssey Dynamic EQ/Dynamic Volume: Yes/Yes
• Audyssey LFC: Yes/Yes
• Dirac Live Upgradability: Yes
• Variable Crossover: Yes
• Optimized Bass Redirection: Yes
• Bass Sync: Yes

Music File Support

• Lossy Formats: MP3/WMA/AAC
• Lossless Formats: FLAC HD 192/24/WAV 192/24/ALAC 192/24
• DSD Audio: 2.8MHz/5.6MHz
• Gapless Playback: FLAC, WAV, ALAC, DSD
• Compressed Audio Enhancer: MDAX2: Yes

Network Audio Sharing

• Yes

Streaming Services

• HEOS Multi-room and Streaming: Yes
• AirPlay Audio Streaming: Airplay 2
• Internet Radio: TuneIn
• Spotify*: Spotify Connect
• Pandora: Yes
• SiriusXM: Yes
• Other Streaming Services*: Amazon Music HD/Amazon Music/TIDAL/Deezer/iHeart Radio/Napster/SoundCloud/Mood Mix
• Roon Tested: Yes

Network Connectivity

• Ethernet Ports: Yes
• Wi-Fi (Include Version/Band): Yes
• Bluetooth (Include Version): Yes
• Bluetooth Re-transmit for Bluetooth Headphones: Yes

Smart Home Integration and Control

• Voice Assistant Compatibility: Alexa/Google Voice Assistant/Apple HomePod
• App for Smartphones & Tablets (iOS & Android): Marantz AVR Remote App, HEOS
• HEOS Multi-Room Integrated: Yes
• HEOS Link Compatibility: IR/IP: Yes/Yes
• Multi-Room Zones: 3
• Zone Audio Source: HDMI/Opt, Coax/Network, USB/Analog: 2 Ch/2 Ch/Yes/Yes
• Zone Audio Output: Speaker/Preout: Yes/Yes
• Zone HDMI Output from HDMI Source: Yes
• Control Connectivity: IP Control/RS232 Control/Web Control/App Control
• IR Flasher In: Yes
• Marantz Remote Bus: Yes
• DC Trigger Output: 3
• HDMI Diagnostics: Yes

Others

• Front Display: 2 line FLD + port hole OLED
• GUI Languages: 9
• Setup Assistant: Yes
• Smart Select on Remote: Yes
• Firmware Update by Network/USB: Yes/Yes
• ECO Mode: Yes
• Auto Power Off: Yes
• Sleep Timer: Yes

General

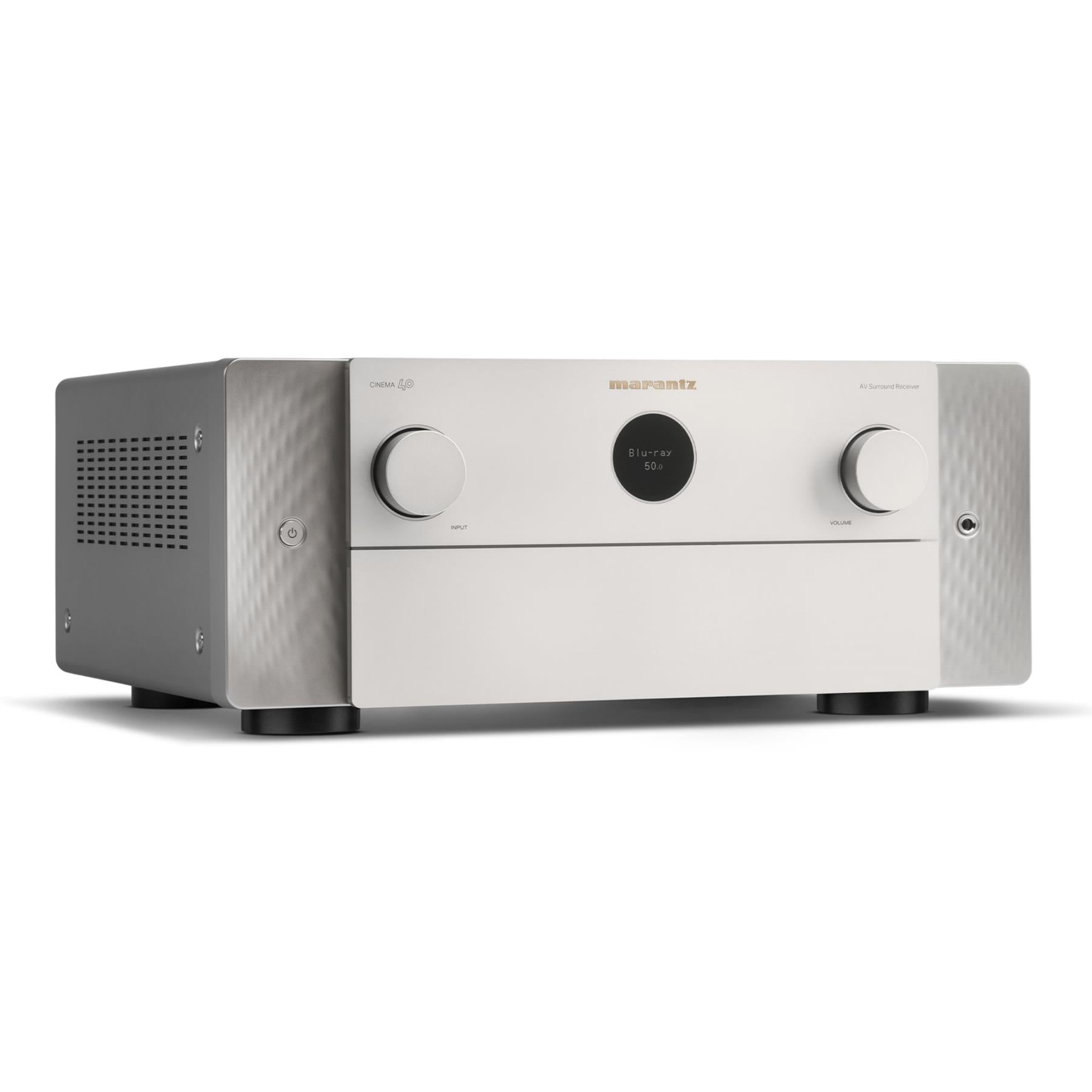

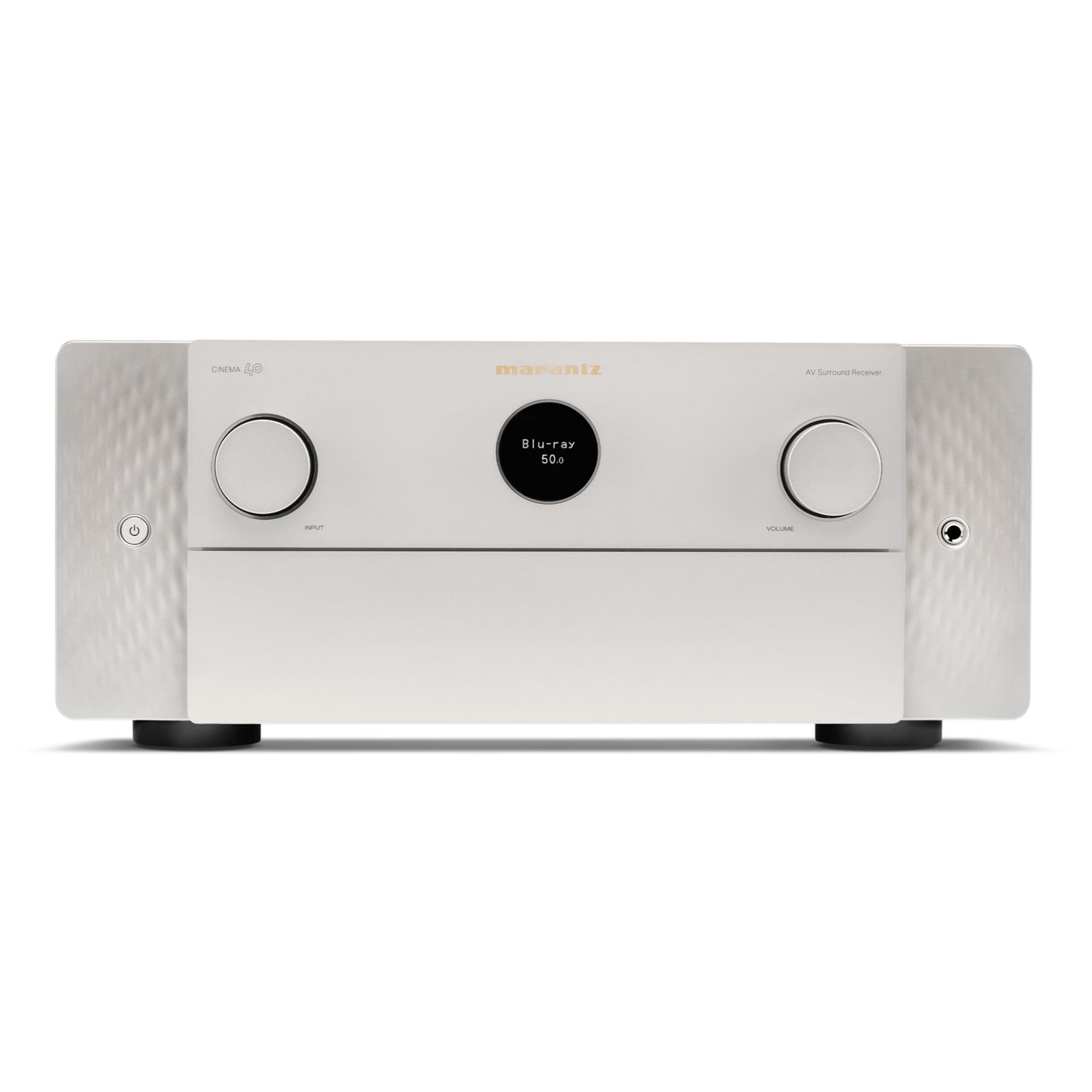

• Available Colors: Black/Silver-Gold
• Metal Front Panel: Yes
• System Remote Control: RC048SR
• Power Consumption in W: 710
• Power Consumption No-Sound (ECO on/off) in W: 65/110
• Standby Consumption in W: 0.2
• CEC Standby Consumption in W: 0.5
• Network Standby Consumption in W: Less than 2.0

Maximum Dimensions

• Antenna: Horizontal (W x D x H) in Inches: 17.3 x 16.2 x 7.3
• Antenna: Vertical (W x D x H) in Inches: 17.3 x 16.2 x 10
• W/o Antenna: (W x D x H) in Inches: 17.3 x 15.8 x 7.3

Weight in lbs.: 33.3

What's in the Box

• Main Unit
• Remote Control
• Batteries
• Wire Labels
• Quick Start Guide
• Audyssey Microphone
• Microphone Stand
• 2 External Detachable Antenna
• AC Cord
