Unlocking Musical Magic: The Marantz MODEL 40n

Discover a world where digital innovation seamlessly blends with analog warmth, creating a symphony of sound that resonates with your soul. The Marantz MODEL 40n is your ticket to audio excellence, unleashing the full potential of your favorite digital music streams and cherished music file libraries.

Streaming Brilliance

Enjoy the convenience of streaming from Spotify, Apple Music, Pandora, Tidal, and more. The MODEL 40n effortlessly connects via AirPlay, Bluetooth, and HEOS®, giving you access to a diverse range of music sources. Immerse yourself in the rich, warm tones of Marantz sound from any device.

Just Add Speakers – Everything's Inside

Experience The Most Musical Sound with a built-in design that eliminates the need for additional components. With 70 watts per channel, the MODEL 40n is ready to drive your favorite speakers, delivering audio clarity and depth that captivates.

Voice Control at Your Fingertips

Take command with ease using Amazon Alexa, Google Assistant, or Apple Siri. Your voice becomes the conductor, directing the MODEL 40n to play your favorite tunes with just a few words.

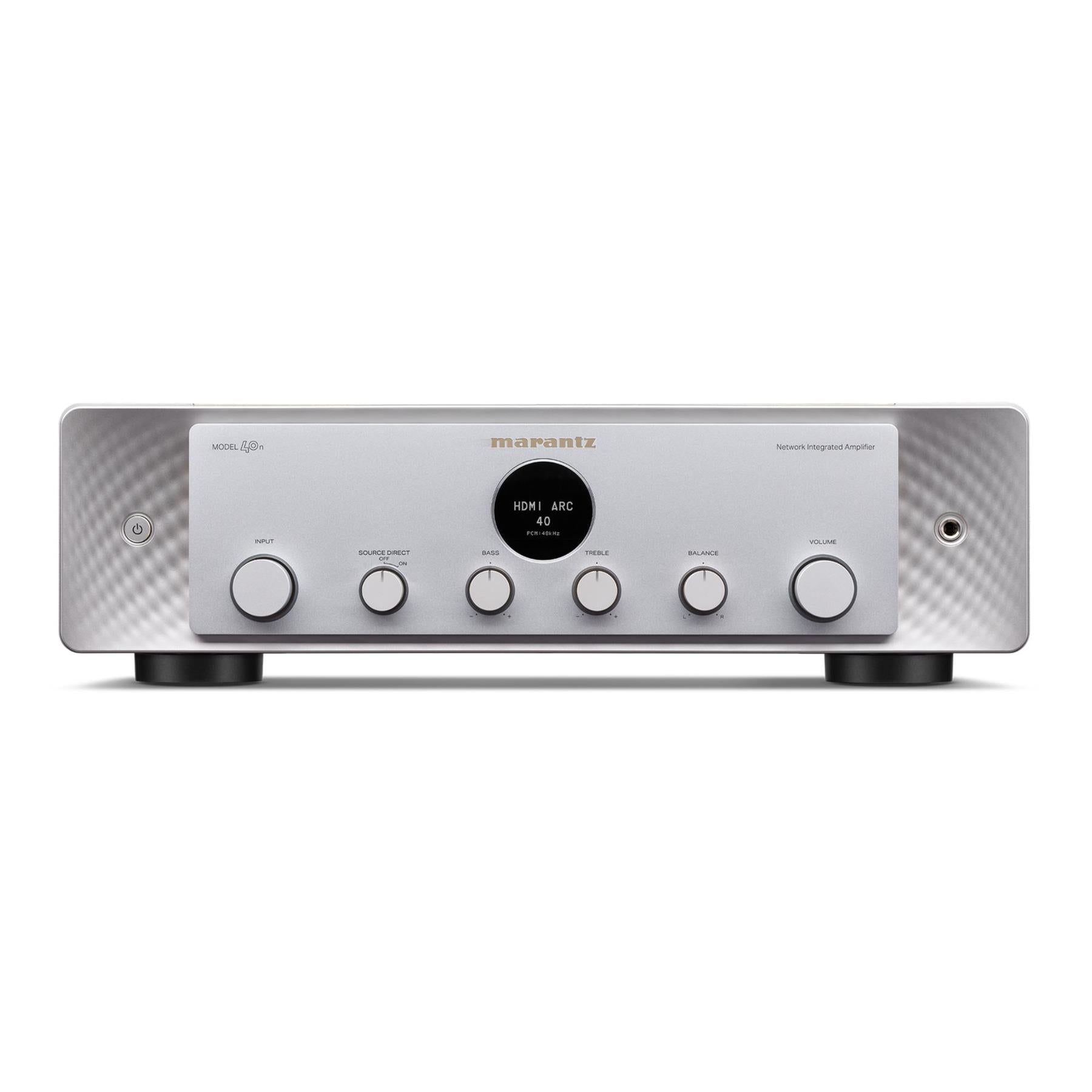

Luxurious Industrial Design

Not just an audio device – the MODEL 40n is a statement piece. Its sleek design adds a touch of class to any environment, seamlessly blending into your space while standing out as a beacon of sophistication.

Preserving Every Detail – HDAM Circuit

Our unique HDAM Circuit technology ensures that every nuance and detail in your favorite sounds is preserved. Immerse yourself in music as the artist intended, with uncompromising quality.

Rediscover Vinyl's Warmth

For vinyl enthusiasts, the Marantz Musical Phono EQ makes adding a turntable a breeze. Rediscover the warmth and authenticity of your vinyl collection with ease.

Whole-Home Hi-Fi with HEOS

Connect with HEOS for a complete audio experience. Built-in speakers allow you to create a whole-home system, giving you the flexibility to sync or separate streams in each room.

Elevate your listening experience with the Marantz MODEL 40n – where digital precision and analog soul unite for The Most Musical Sound. Your journey to musical bliss starts here.

Marantz Model 40n Specifications

Output Power:

• Rated Output Power: 70W + 70W (8 ohm), 100W + 100W (4 ohm)

Features:

• Power Amplifier Circuit: HDAM-SA3
• Power Transformer: Double Shielded Toroidal
• Volume: Electric
• Bass / Treble / Mid / Balance Control: Yes / Yes / - / Yes
• Source Direct: Yes
• Frequency Response: 5Hz - 50kHz
• Total Harmonic Distortion: 0.02% (20Hz - 20kHz, 8Ω)
• Dumping Factor: 100
• Input Sensitivity:
  • Phono input: 2 mV / 47 kohm
  • CD/Line/Recorder: 220 mV / 20 kohm
  • Power Amplifier input: 1.6 V / 15 kohm
• SN Ratio:
  • PHONO (MM): 87dB
  • CD: 106dB

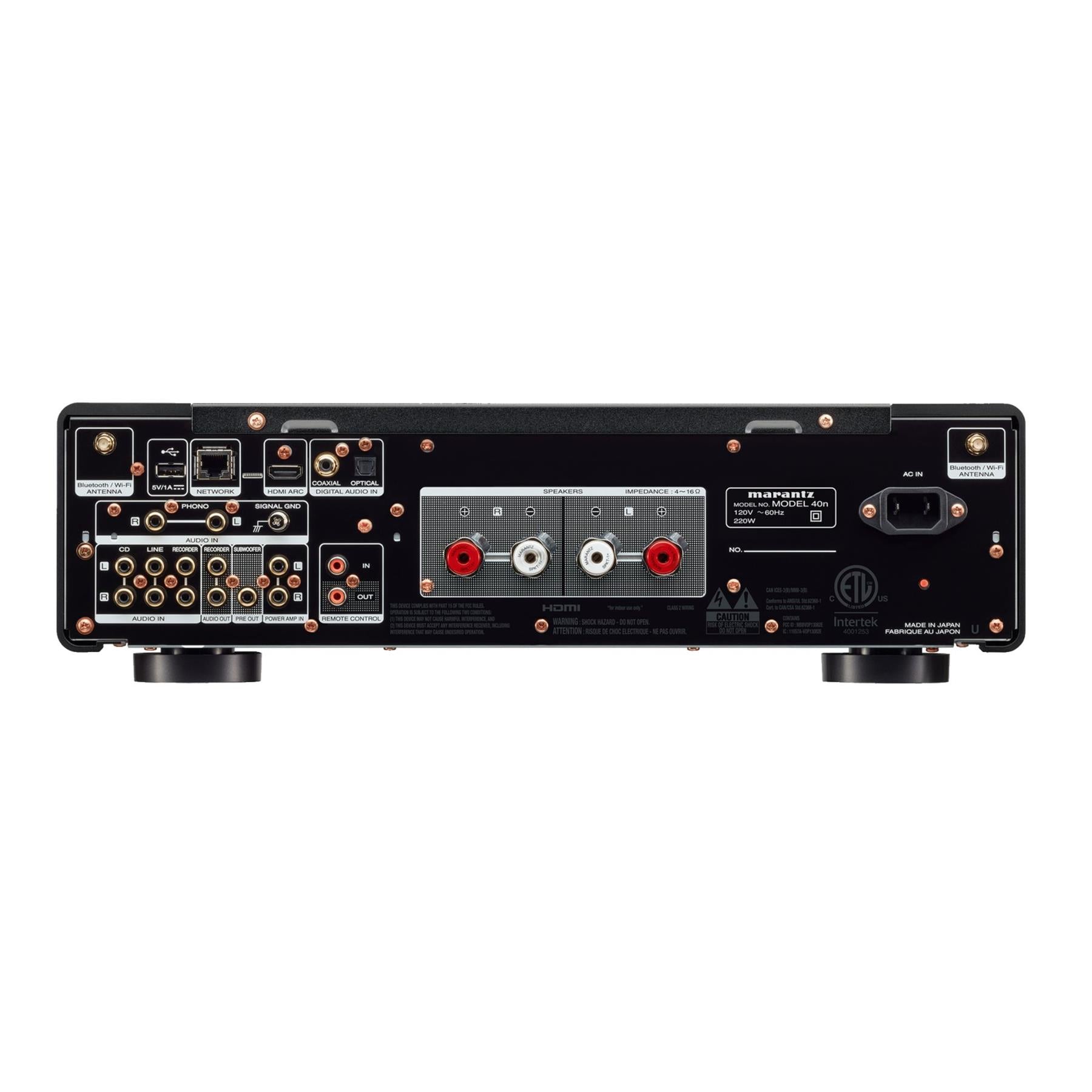

Terminal:

• Phono Input: Yes (MM)
• Marantz Musical Phono EQ
• Ext. Pre Input (Power Amp Direct): Yes
• Preout: No
• Analog Input (include Phono) / REC Out (RCA): 4 (PHONO, CD, LINE, RECORDER) / 1 (RECORDER)
• Optical Input: 1
• Coaxial Input: 1
• HDMI: 1 / 0 (ARC) PCM only
• USB A: 1 (Rear), Mass Storage Class 5V/1A
• Speaker Terminal: SPKT-1+
• Remote Control Bus Terminal: Yes (RC-5 In / Out)
• Subwoofer Pre-out Low Pass Filter: Selectable - 40 Hz / 60 Hz / 80 Hz / 100 Hz / 120 Hz

Control:

• App: HEOS App

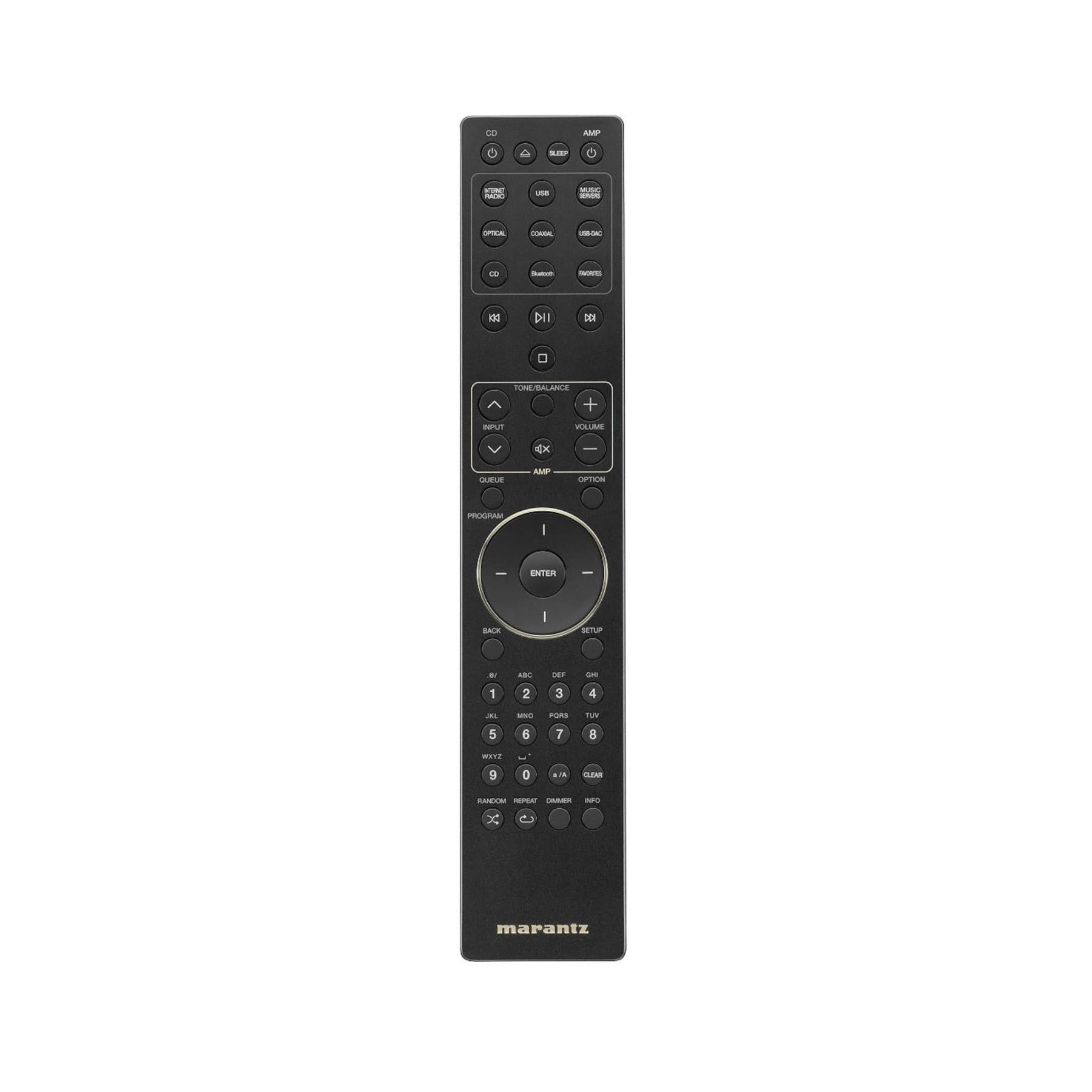

• Remote Controller: System Remote
• Features (Amp and CD Player Control)

Others:

• Power Consumption: 220W, 0.3W (Standby)
• AC Inlet: Yes
• Quick Start Guide: Included
• Packaging Dimensions (W x H x D in inches): 21" x 10" x 20.6"
• Product Dimensions (W x H x D in inches): 17.4" x 5.1" x 17"

Cosmetic:

• Panel Color: SG / BK
• Front Center Panel: Aluminum
• Top Cover: Steel
• Edge Lighting: Yes (Dimmer)
• Volume Knob: Aluminum
• Input Selector: Aluminum
• Bass/Treble/Balance/ REC Out Sel knobs: Aluminum
• Power Button: Aluminum
• Chassis Material: SECC
• Bottom Layer: Thicker double layer
