Product Description

Line Circle

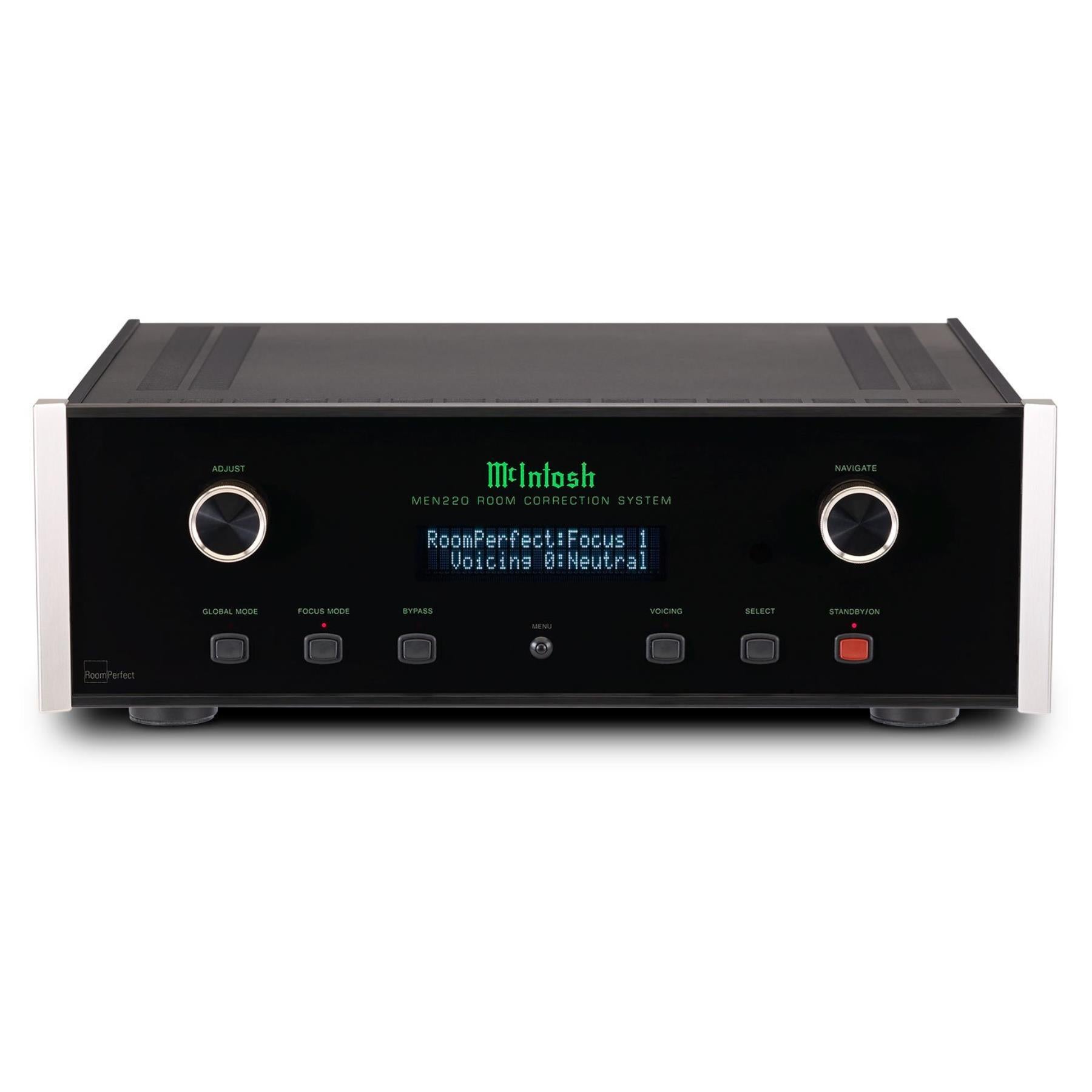

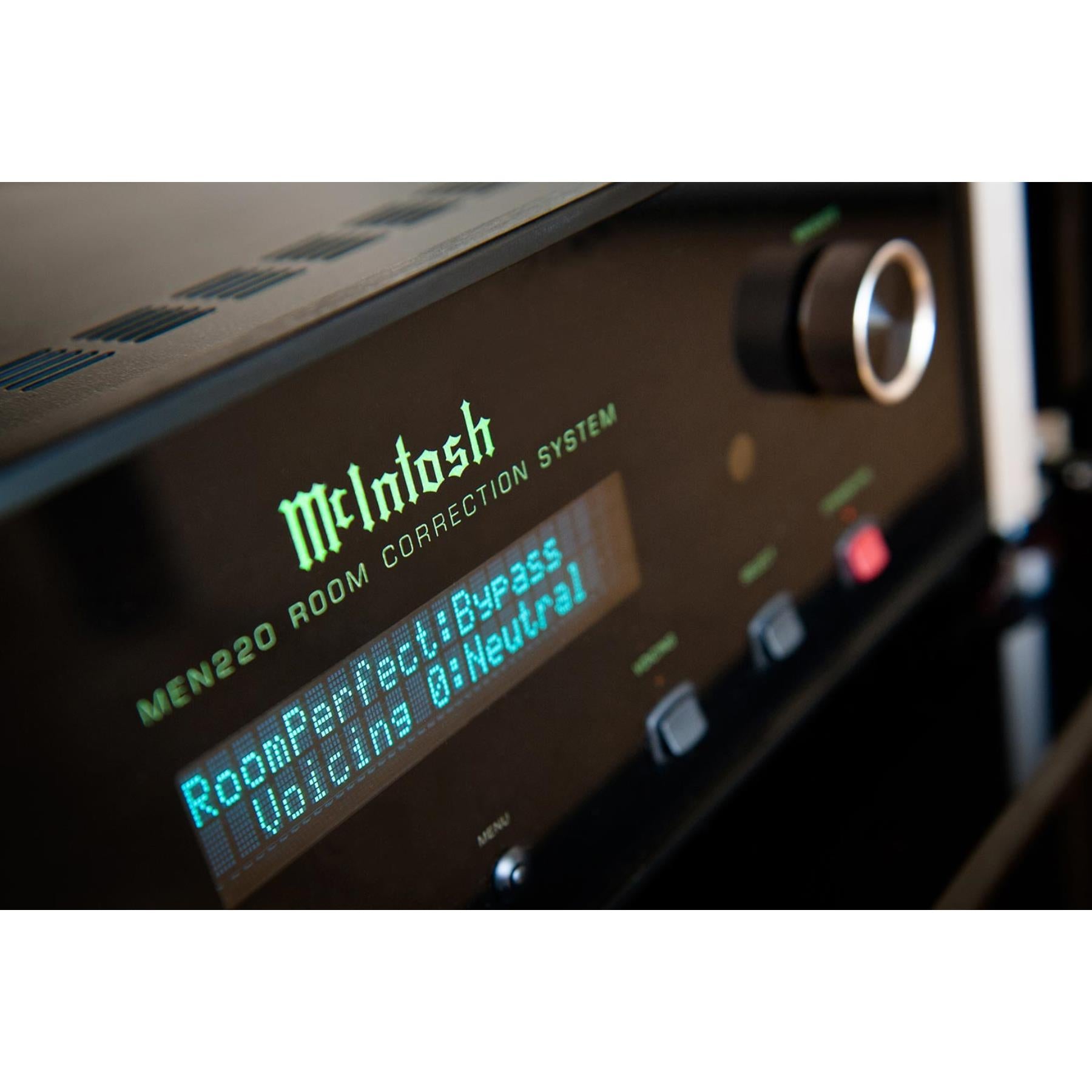

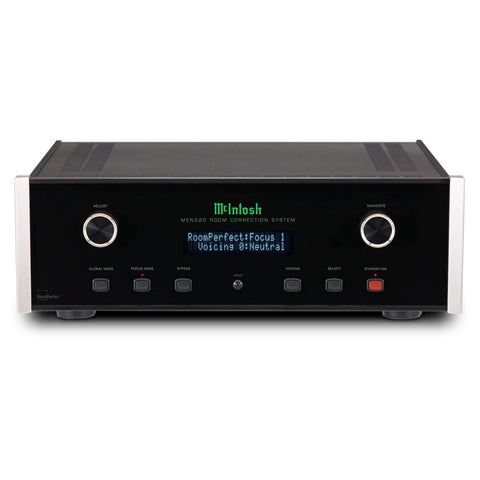

McIntosh MEN220 Room Correction System

  • Works on 1/12 Octaves
  • 2-Way Electronic Crossover for Bi-amping

The MEN220 delivers a potent suite of Room Correction, Custom-EQ and 2-Way Crossover capabilities in one easy-to-use stereo component. While any single feature of the MEN220 has the power to optimize the sonic characteristics of the highest quality audio systems, combining all the features can reveal a level of clarity and resolution unattainable by any other means.

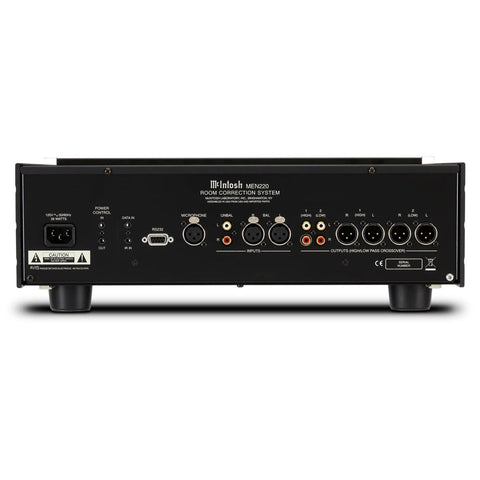

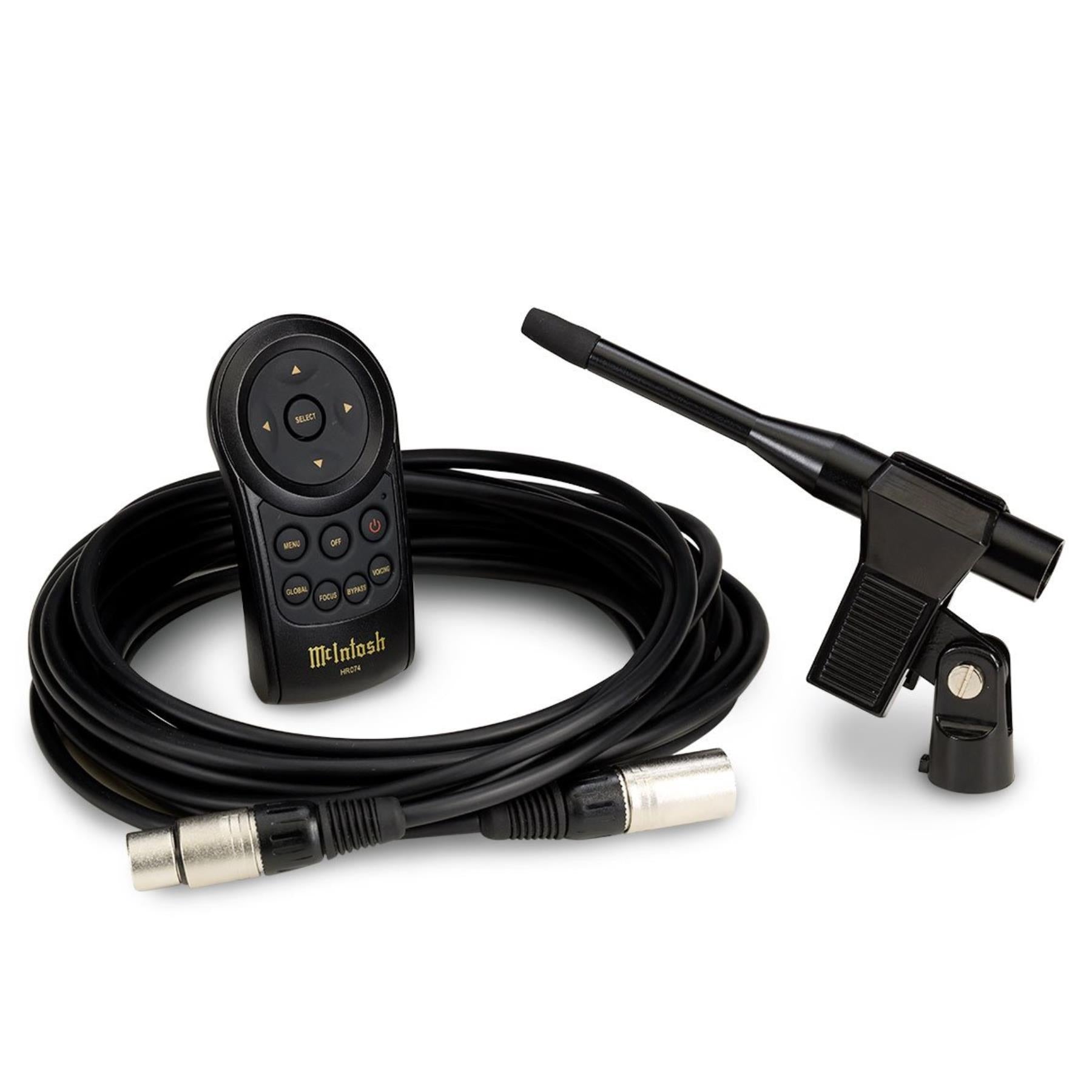

Full system control and PC link are provided via RS232 while McIntosh data, power control and IR inputs offer additional remote control flexibility. Both single-ended and balanced connections are supported; a hand-held, IR remote control is included.

ELECTRONIC SPECIFICATIONS

  • Frequency Response +0, -0.5dB from 20Hz to 20,000Hz
  • Total Harmonic Distortion 0.002% from 20Hz to 20,000Hz
  • Maximum Input Voltage
    • 4.5V Unbalanced and Balanced (Preamp-Power Amp)
    • 2.25V Unbalanced and Balanced (Processor Loop)
  • Maximum Output Voltage
    • 4.5V Unbalanced and Balanced (Preamp-Power Amp)
    • 2.25V Unbalanced and Balanced (Processor Loop)
  • Signal To Noise Ratio (A-Weighted) 100dB
  • Input Impedance 10K ohms Unbalanced and Balanced
  • Voltage Gain 0dB
  • Output Impedance 50 ohms
  • Crossover Filter Types, Order and Slope
    • Butterworth, 1st order, 6 dB/octave
    • Butterworth, 2nd order, 12 dB/octave
    • Butterworth, 4th order, 24 dB/octave
    • Linkwitz-Riley, 2nd order, 12 dB/octave
    • Linkwitz-Riley, 4th order, 24 dB/octave
    • Linkwitz-Riley, 8th order, 48 dB/octave

WEIGHTS & DIMENSIONS

  • Unit Dimensions (W x H x D) 17-1/2" (44.45cm) x 6" (15.24cm) x 18" (45.72cm) (including front panel, knobs and cables)
  • Unit Weight 25.5 lbs (11.6 kg)
  • Shipping Weight 41.9 lbs (19 kg)

Features & Specs Line Circle

Frequency Response
+0, -0.5dB from 20Hz to 20,000Hz
Voltage Gain
0dB
Total Harmonic Distortion
0.002% from 20Hz to 20,000Hz
Signal To Noise Ratio (A-Weighted)
100dB
Output Impedance
50 ohms
Unit Dimensions (W x H x D)
17-1/2" (44.45cm) x 6" (15.24cm) x 18" (45.72cm) (including front panel, knobs and cables)
Frequency Response
+0, -0.5dB from 20Hz to 20,000Hz
Voltage Gain
0dB
Total Harmonic Distortion
0.002% from 20Hz to 20,000Hz
Signal To Noise Ratio (A-Weighted)
100dB
Output Impedance
50 ohms
Unit Dimensions (W x H x D)
17-1/2" (44.45cm) x 6" (15.24cm) x 18" (45.72cm) (including front panel, knobs and cables)
