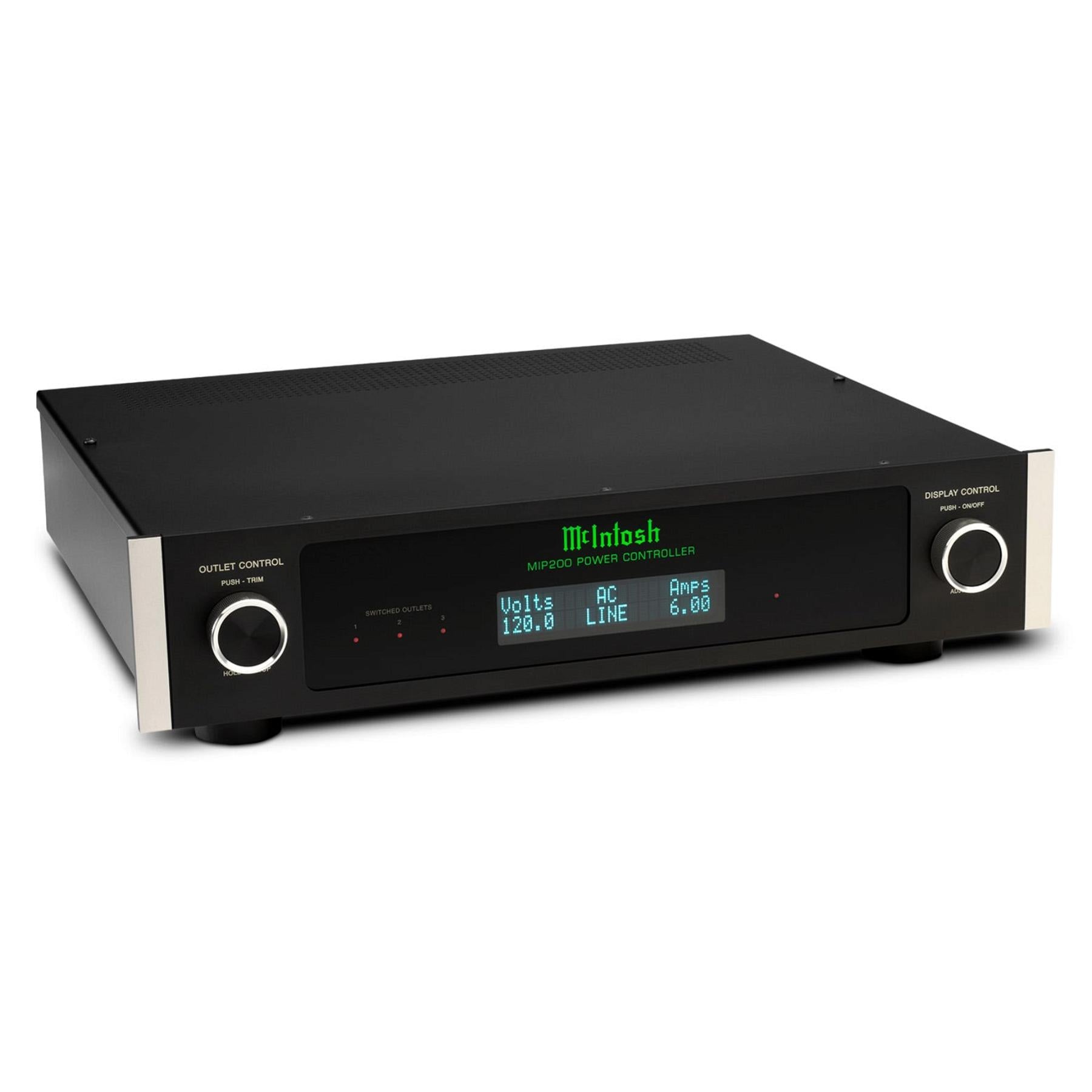

McIntosh MIP200 Power Controller
The McIntosh MIP200 Power Controller is a sophisticated solution for protecting your audio investment from unexpected electrical issues. It offers AC power line surge protection, electromagnetic interference (EMI) filtering, and programmable over/under voltage protection to ensure your premium audio system remains unscathed by power disturbances. With global power standard compatibility, this 2U rack-mounted unit delivers superior protection and precision control, seamlessly integrating into custom install home theater or whole-home audio systems. The front panel AC line monitor provides real-time data on voltage, current draw, and total apparent power, while the iconic McIntosh black glass design adds luxury to any setup.
Key Features:
-
AC Power Line Surge Protection: 50 kA - 8/20μs Line to Neutral for robust surge suppression.
-
Electromagnetic Interference (EMI) Filtering: Reduces electrical noise for cleaner audio performance.
-
Programmable Over/Under Voltage Protection: Automatically switches outlets when unsafe voltage levels are detected.
-

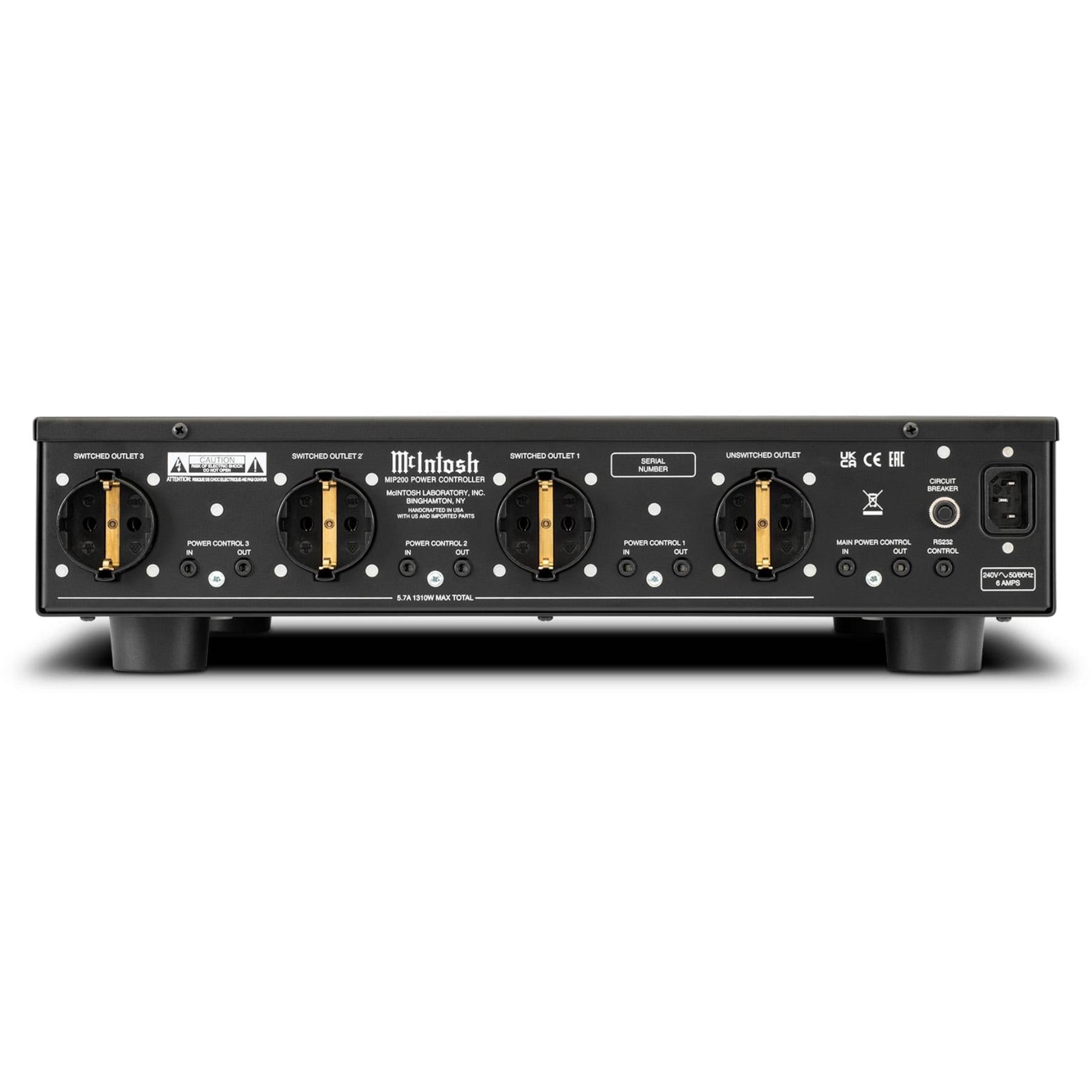

Global Power Standard Compatibility: Available with Type B (NEMA 5-15R) or Type F (CEE 7/3) outlets.
-
2U Rack-Mountable Design: Saves space and ensures organized system layout for custom installations.
-

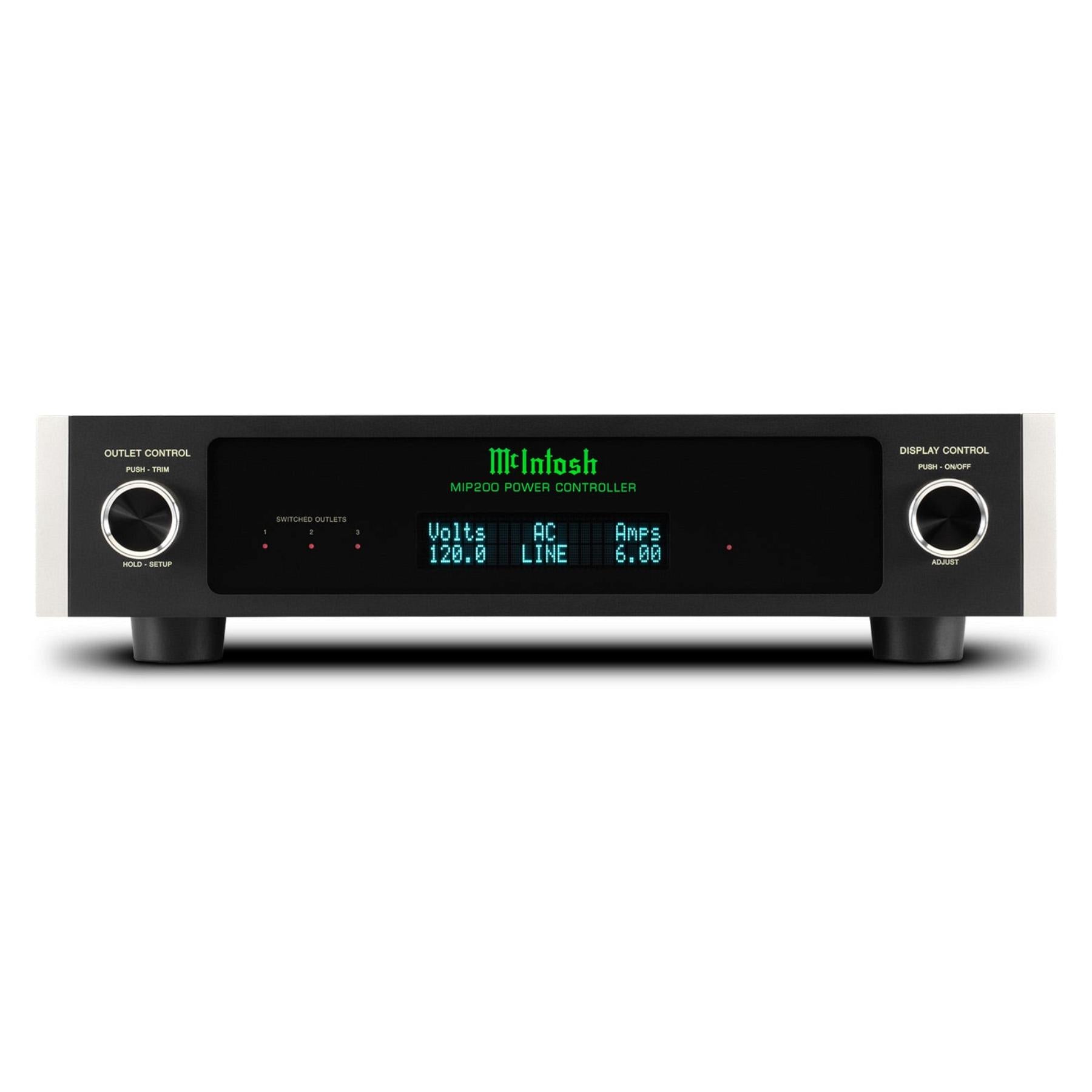

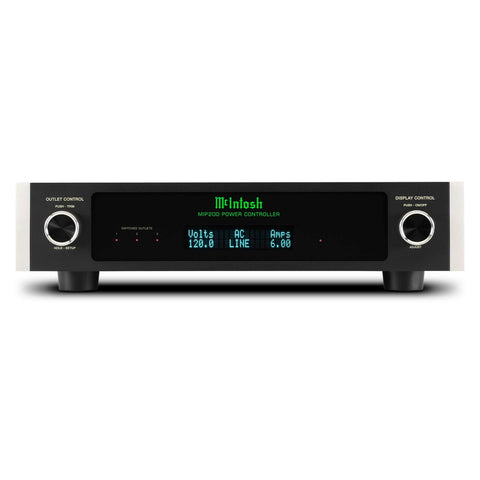

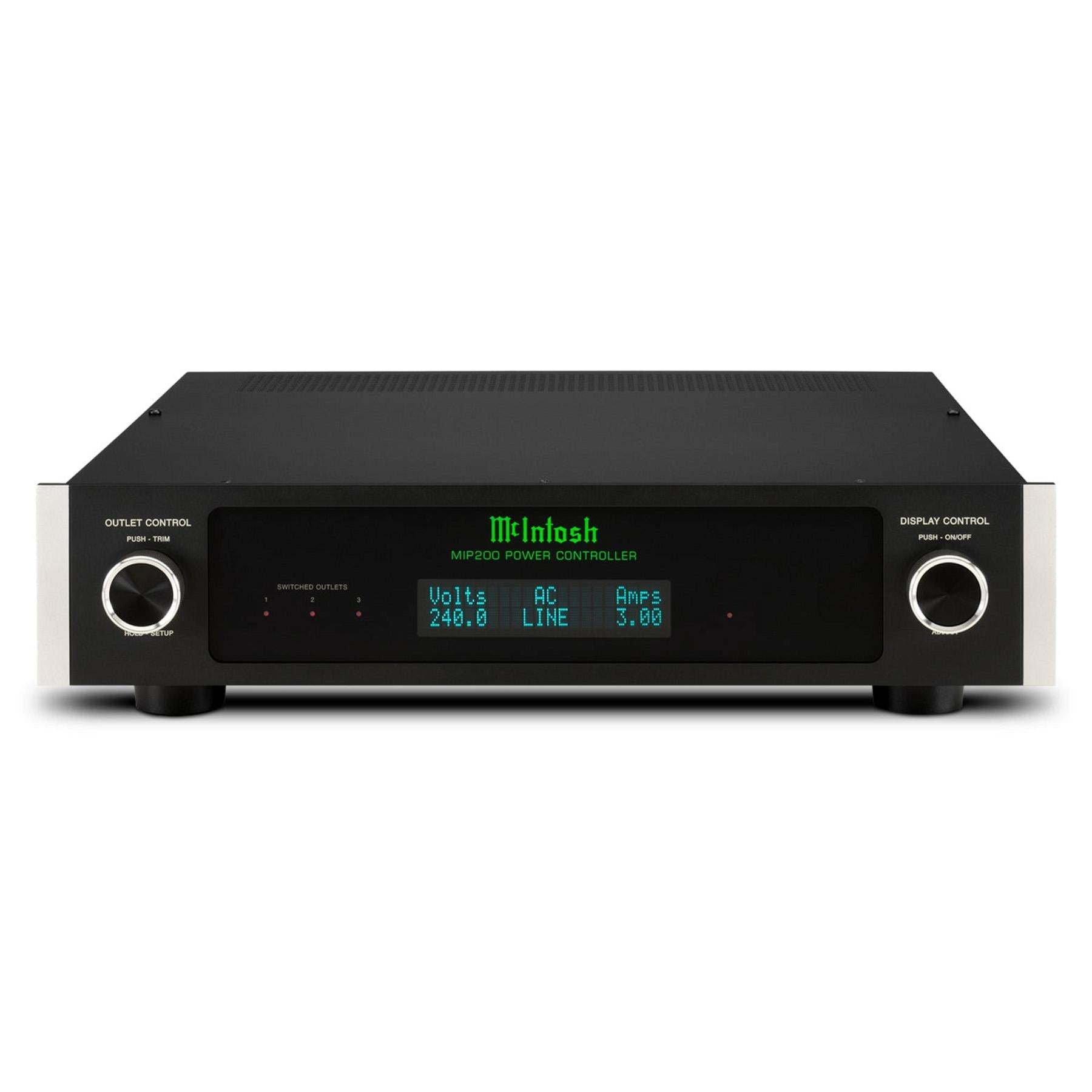

Front Panel AC Line Monitor: Displays real-time voltage, current draw, and total apparent power.
Product Specifications:
-
Input Rating: With Type B: 100 - 120V 50/60Hz 12A (Max); With Type F: 220 - 240V 50/60Hz 6A (Max).
-
Output Rating: With Type B: 11.6A (1160W); With Type F: 5.8A (1275W).
-
AC Surge Suppression: 50 kA - 8/20μs Line to Neutral.
-
AC Surge Suppression Type: Thermally protected metal-oxide varistor (TPMOV) for Line to Neutral protection.
-

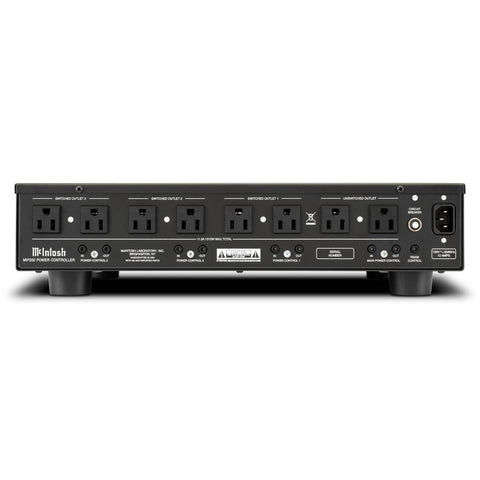

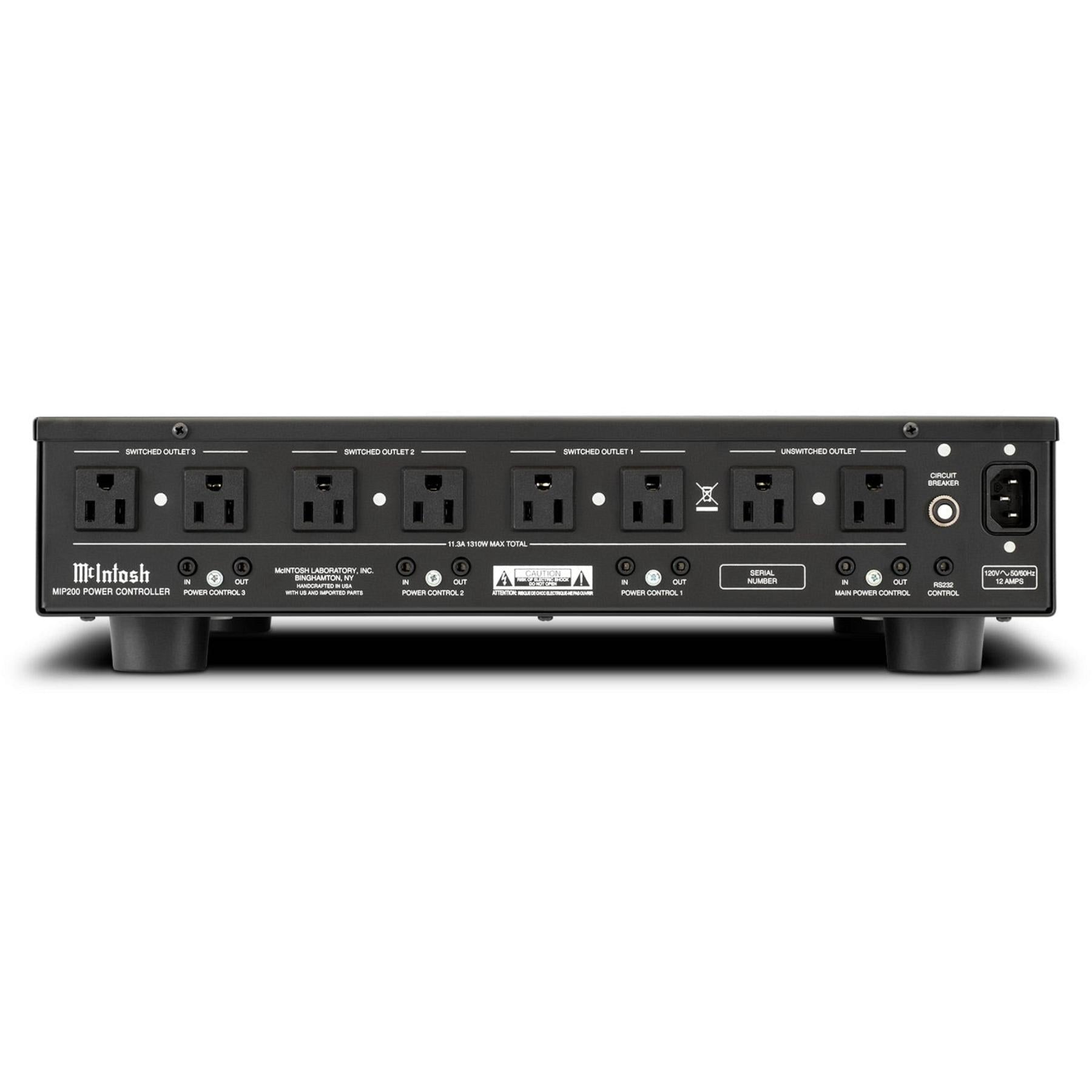

Number of Receptacles: With Type B: 8; With Type F: 4.
-
Number of Always ON Receptacles: With Type B: 2; With Type F: 1.
-
Number of Programmable Receptacles: With Type B: 6; With Type F: 3.
-
Unit Dimensions (W x H x D): With Type B: 17-1/2” (44.45cm) x 4-3/8” (11.1cm) x 15-9/16” (39.5cm); With Type F: 17-1/2” (44.45cm) x 4-3/8” (11.1cm) x 15-23/32” (39.9cm).
-
Unit Weight: 17 lbs (7.7 kg).
-
Shipping Weight: 33 lbs (15 kg).
Product Q&A:
- Q: What is the MIP200 Power Controller?
- A: The MIP200 is a 2U rack-mounted power controller that provides advanced surge protection, EMI filtering, and voltage regulation for audio systems.
- Q: What power standards does the MIP200 support?
- A: The MIP200 is available with Type B (NEMA 5-15R) or Type F (CEE 7/3) outlets, accommodating global power standards.
- Q: Can the MIP200 be installed in a home theater system?
- A: Yes, it is designed for seamless integration into custom install home theater and whole-home audio systems.
- Q: How does the MIP200 protect against voltage issues?
- A: It automatically switches outlets off when unsafe voltage levels are detected and turns them back on only when safe.
- Q: Does the MIP200 have programmable outlets?
- A: Yes, it features 6 or 3 programmable outlets (depending on outlet type) for flexible control.
- Q: How is the MIP200 designed for ease of use?
- A: It includes a front panel AC line monitor, remote operation via Power Control or RS232 ports, and programmable delays for safe device startup.
- Q: What is the weight of the MIP200?
- A: The unit weighs 17 lbs (7.7 kg) and is designed for easy installation in any rack system.
- Q: What type of outlets does the MIP200 offer?
- A: It is available with 8 Type B or 4 Type F outlets, allowing for flexible power distribution in any setup.
