McIntosh MPC1500 Power Controller

• Toroidal Isolation Transformer
• Quick-acting Surge Suppression Module
• Connect up to 12 components

Today’s AC power lines are littered with the byproduct from countless noise inducing devices. The MPC1500 Power Controller can shield your home audio components from this noise as well as protect it from power surges. With the MPC1500, you can provide clean, consistent power to your home audio system, enabling it to deliver its best possible sonic performance.

At the heart of the MPC1500 is a large but quiet toroidal isolation transformer that has been specially wound to act as a low pass filter to remove unwanted noise from the AC line. The MPC1500 also employs a quick-acting surge suppression module that activates when the voltage reaches approximately 2V above nominal operating levels. This excess voltage is slowly and harmlessly released to the circuit’s neutral wire rather than the ground wire, where it could still find its way to your audio components and cause damage. Unlike surge protection devices that use other suppression methods or “power conditioners,” the MPC1500’s suppression module is not sacrificial and will not need replacing after a surge event.

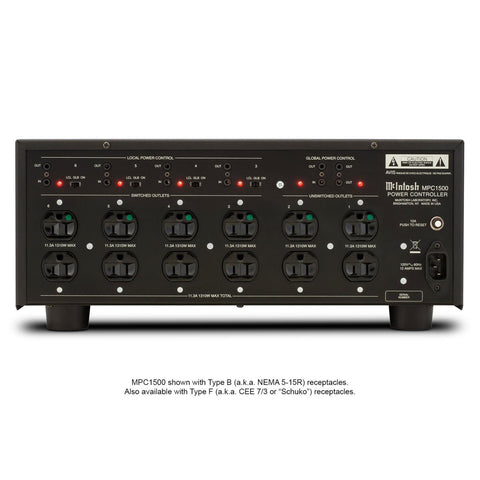

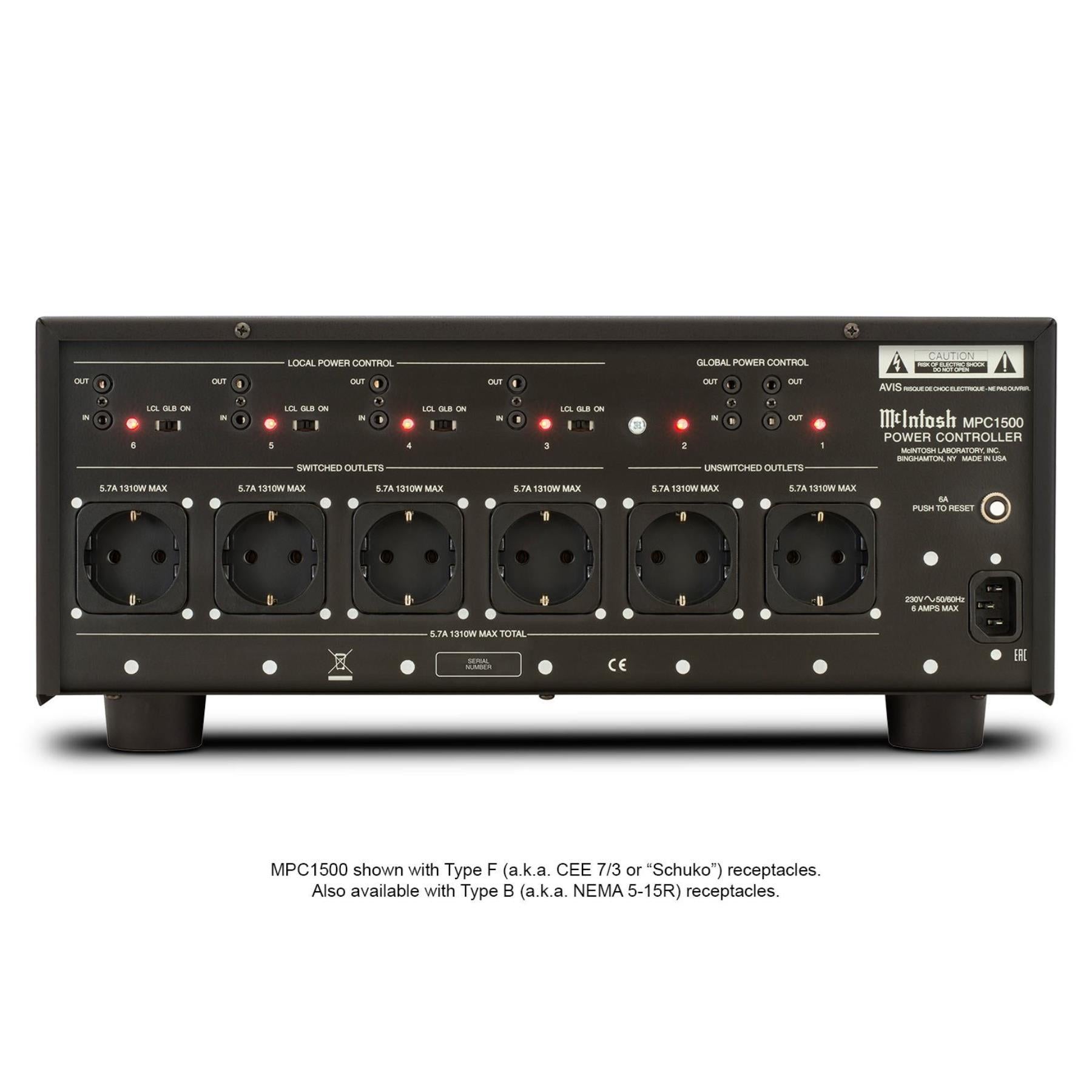

The MPC1500 comes with either 6 medical grade Type B1 (a.k.a. NEMA 5-15R) duplex receptacles, or 6 high quality Type F1 (a.k.a. CEE 7/3 or “Schuko”) single receptacles. Only the appropriate version is available in each individual country to ensure compatibility with local power systems. Two of the receptacles are always active when the MPC1500 is plugged in. Control of the other 4 receptacles can be configured to your preferences via the rear panel Power Control switches. LED indicators on both the front and back show the current in-use state of each receptacle.

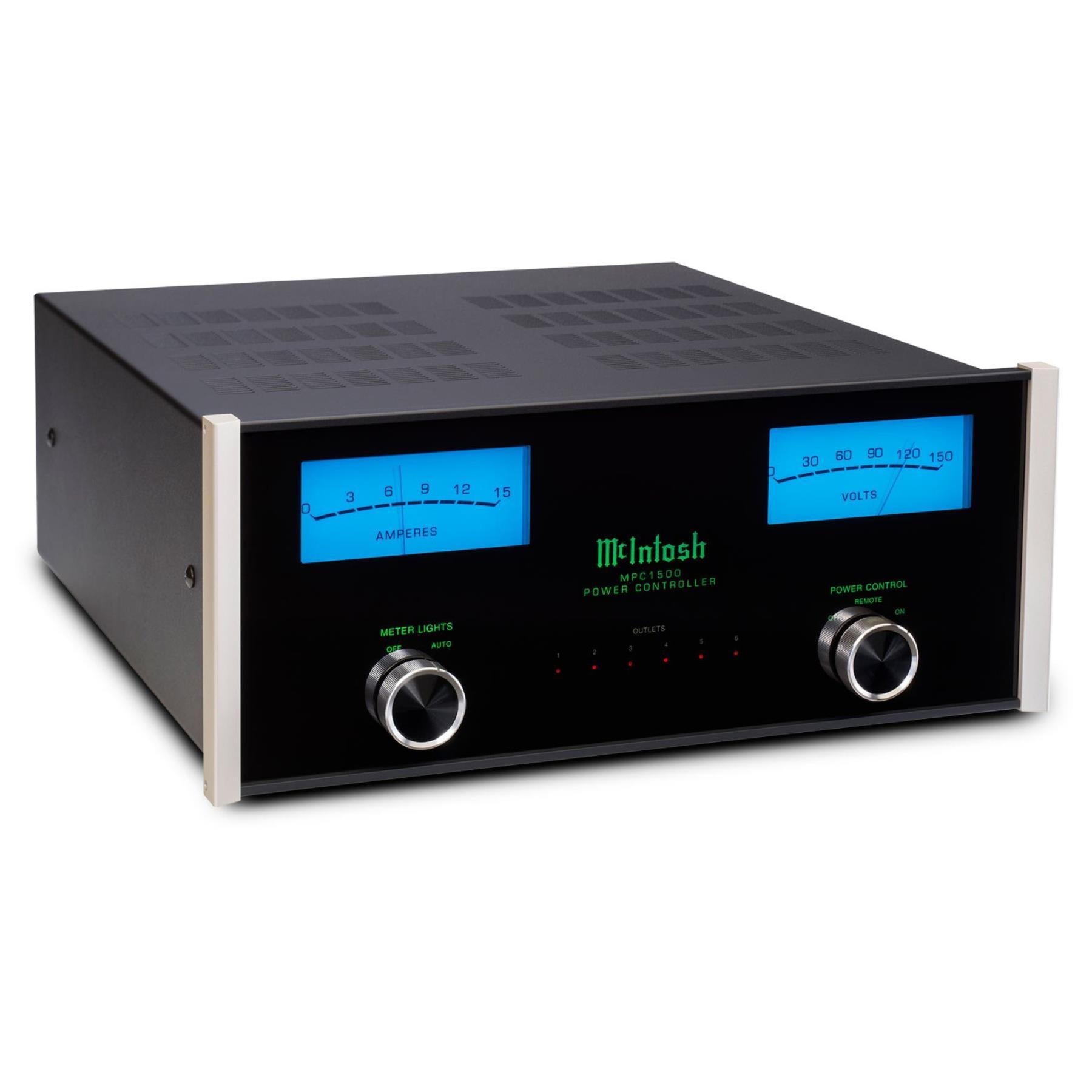

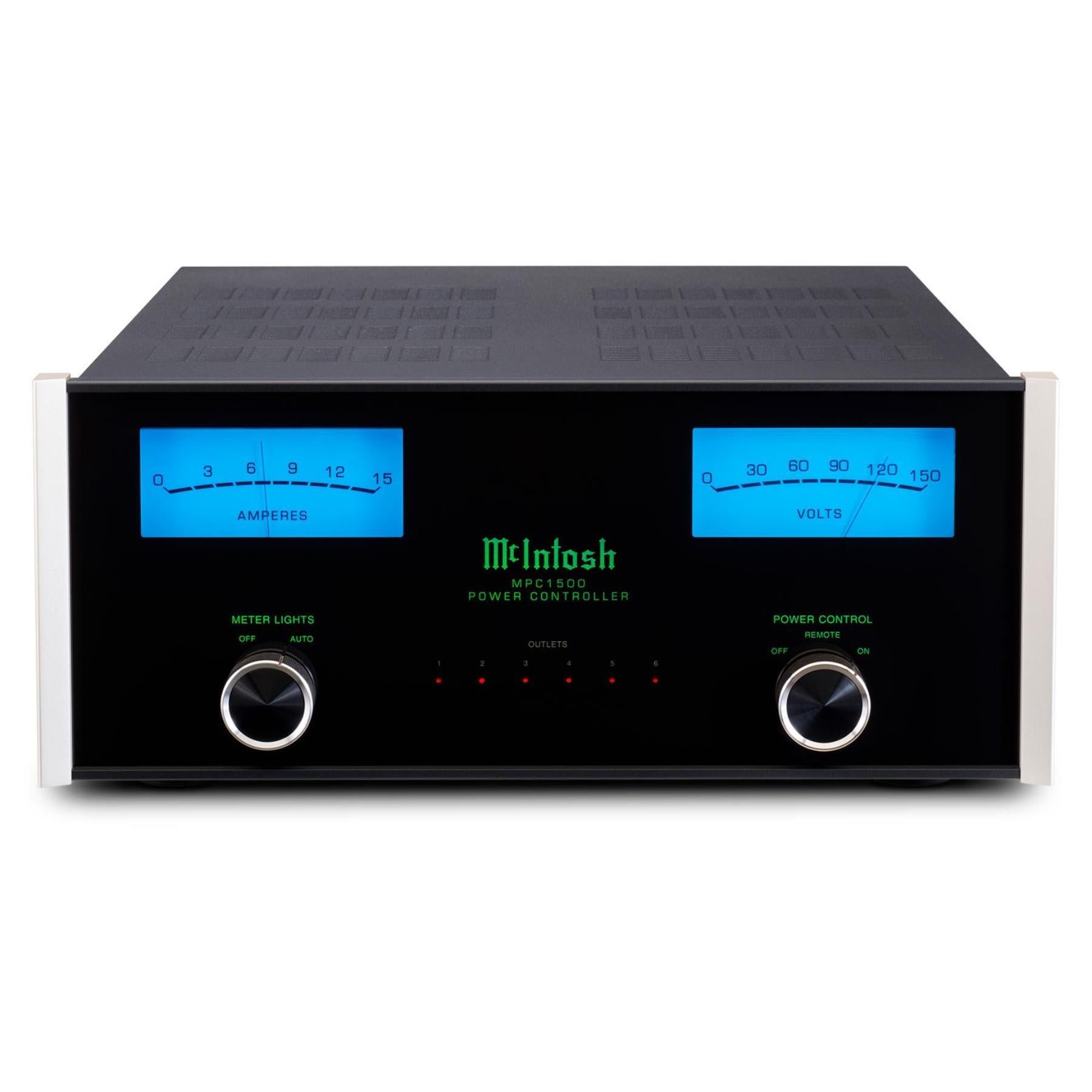

McIntosh's blue Watt meters have been repurposed to show the real time incoming voltage and the actual current draw of the connected devices. The meters will be scaled to the correct amperage and voltage based on the local country (e.g. the voltage meter will be scaled to 250 for countries that use the Type F receptacle). Regardless if the unit has Type B or Type F receptacles, all versions of the MPC1500 feature the timeless McIntosh black glass front panel with blue meters, an illuminated logo, control knobs, and aluminum end caps.

ELECTRONIC SPECIFICATIONS

• Load Regulation ± 2.5 %
• Output Voltage

  • With Type B (a.k.a. NEMA 5-15R) receptacles: 120 Volts AC Nominal (100 Volts AC Nominal for Japan only)
  • With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles: 230 Volts AC Nominal
• Power Requirement
  • With Type B (a.k.a. NEMA 5-15R) receptacles:
    • 120 Volts ~60Hz (100 Volts ~50/60Hz for Japan only)
    • 12.0 Amps (max)
    • 1440 Watts (max) (1200 Watts (max) for Japan only)
  • With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
    • 230 Volts ~50/60Hz
    • 6.0 Amps (max)
    • 1380 Watts (max)

GENERAL SPECIFICATIONS

• AC Power Line Protection Specially wound toroidal isolation transformer
• Surge Suppression Type Quick-acting surge suppression module
• Number of Receptacles

  • With Type B (a.k.a. NEMA 5-15R) receptacles:

    • 6 medical grade duplex receptacles
  • With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
    • 6 high quality single receptacles
• Number of Always ON Receptacles 2
• Number of Programmable Receptacles 4
• Meters 1 for Amps, 1 for Volts
• Meter Light Switch Yes

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D) 17-1/2" (44.45cm) x 7-5/8" (19.37cm) (including feet) x 22" (55.88cm) (including front panel, knobs and cables)
• Unit Weight 87 lbs (39.46 kg)
• Shipping Weight 105 lbs (47.63 kg)
