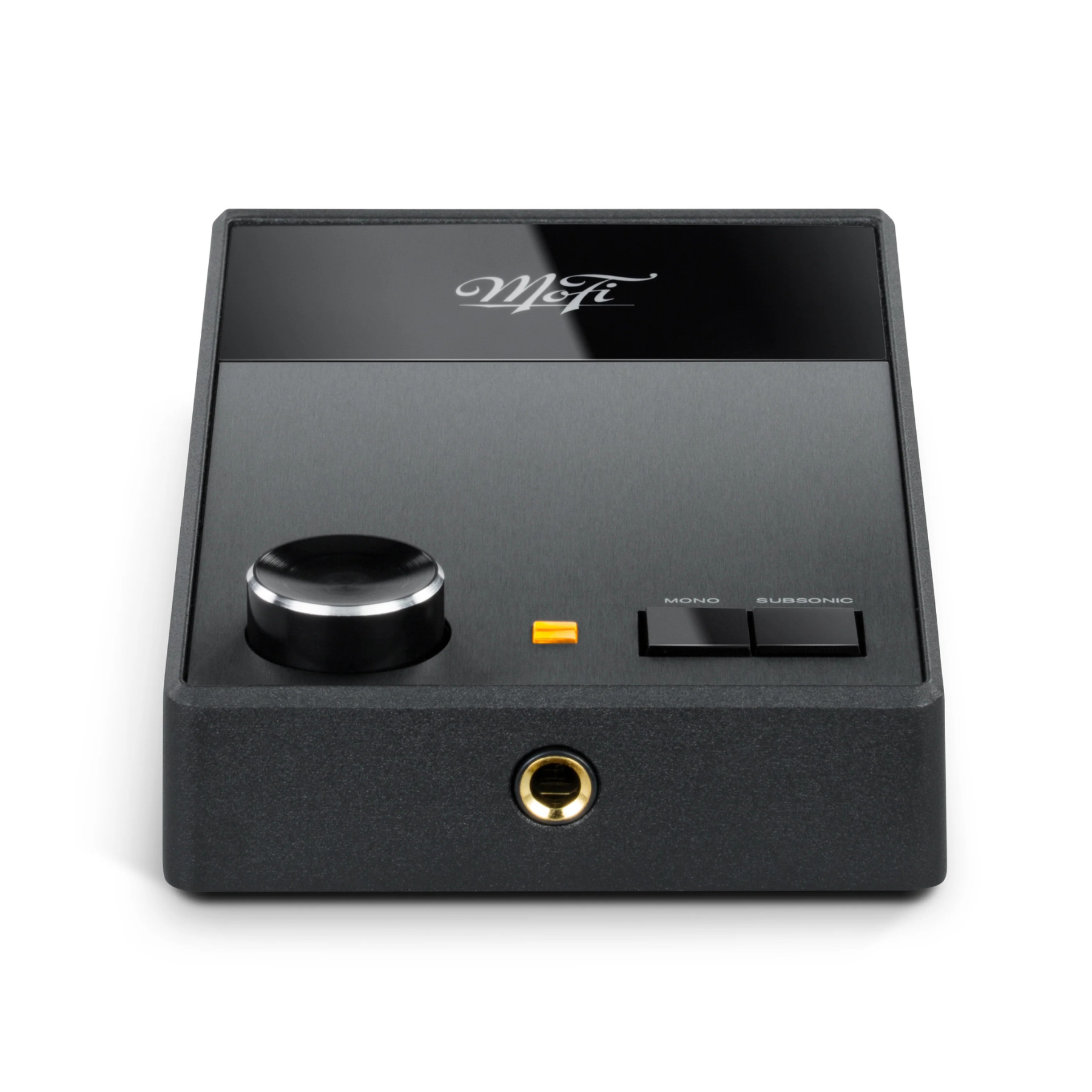

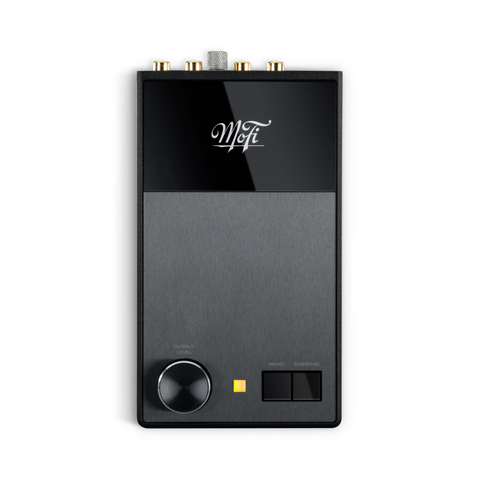

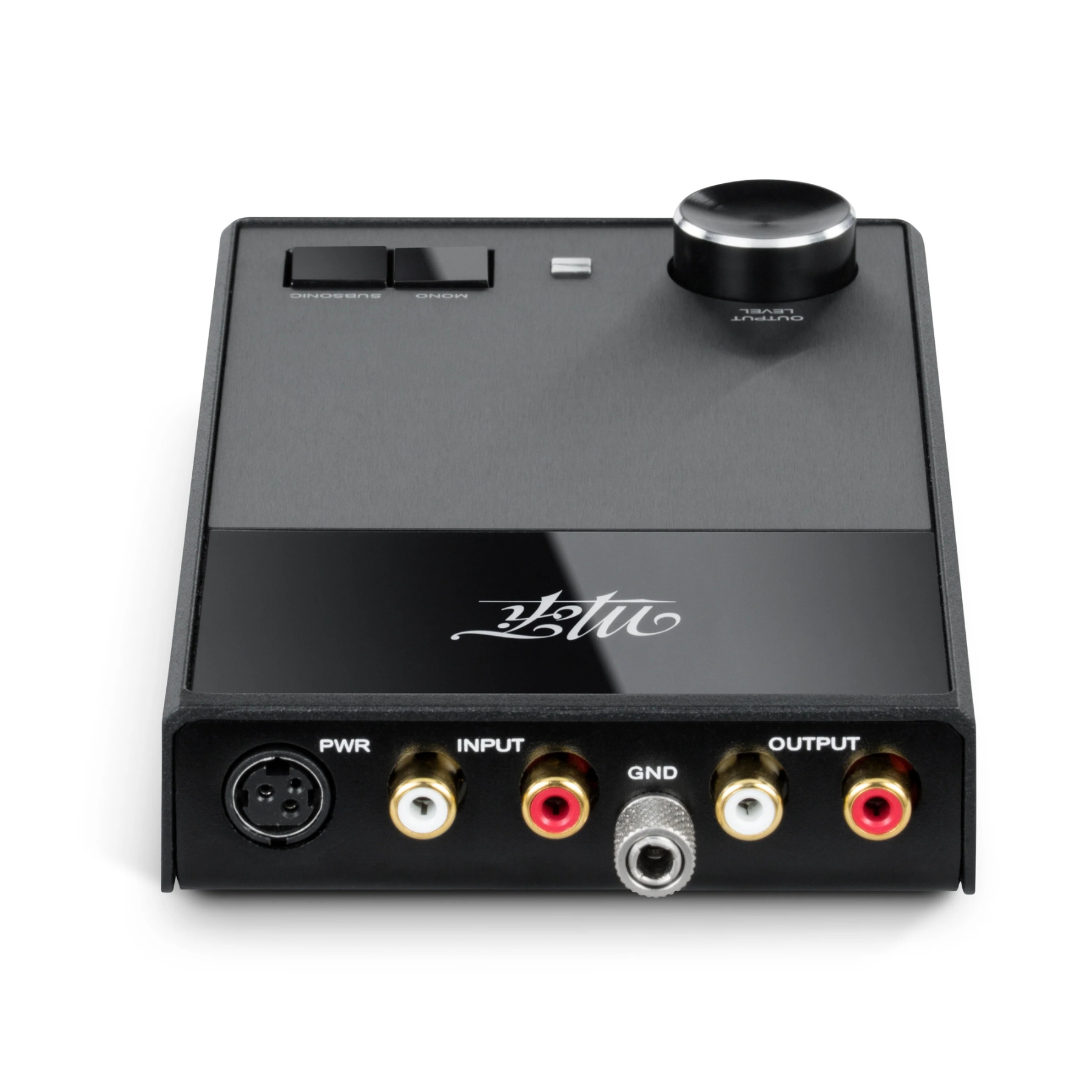

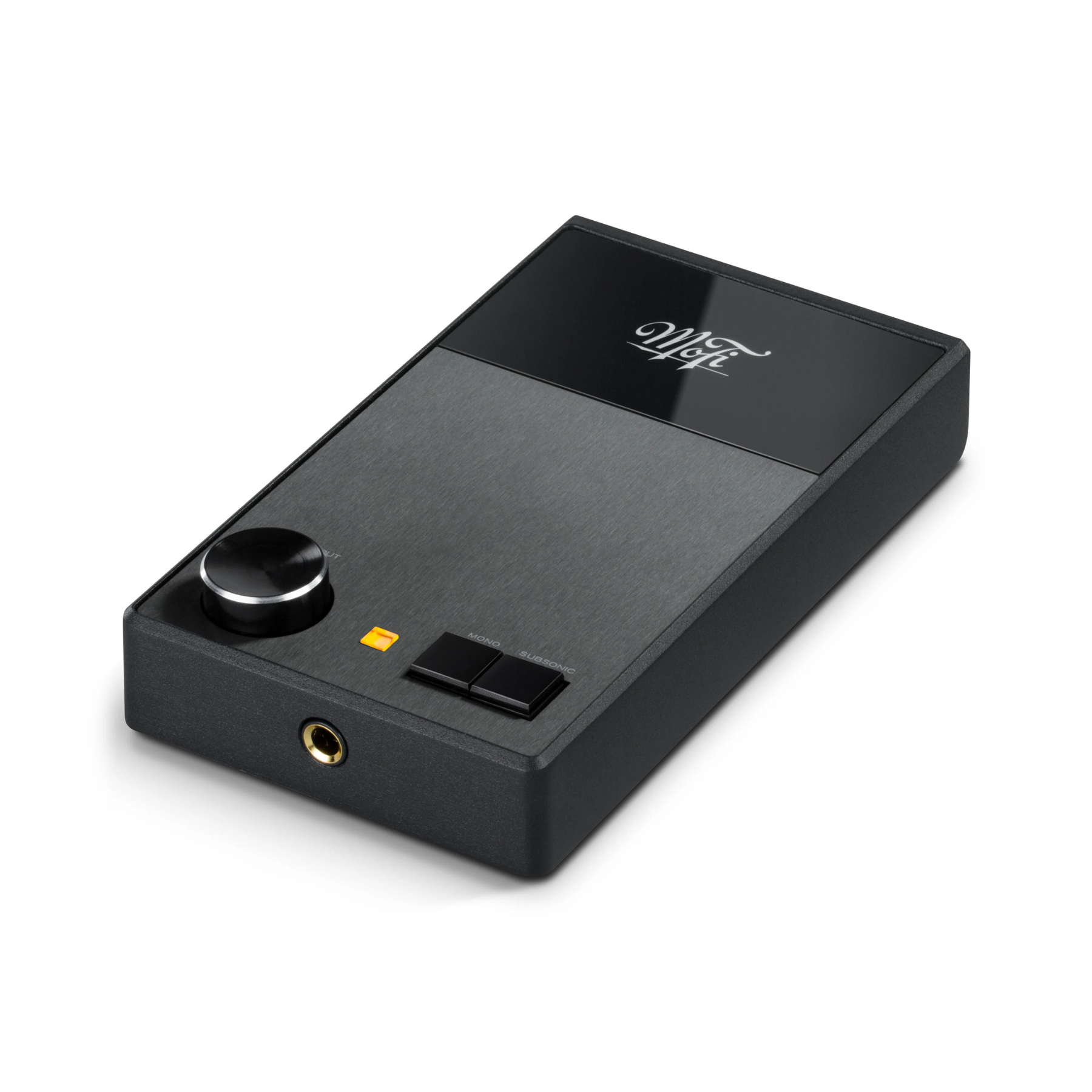

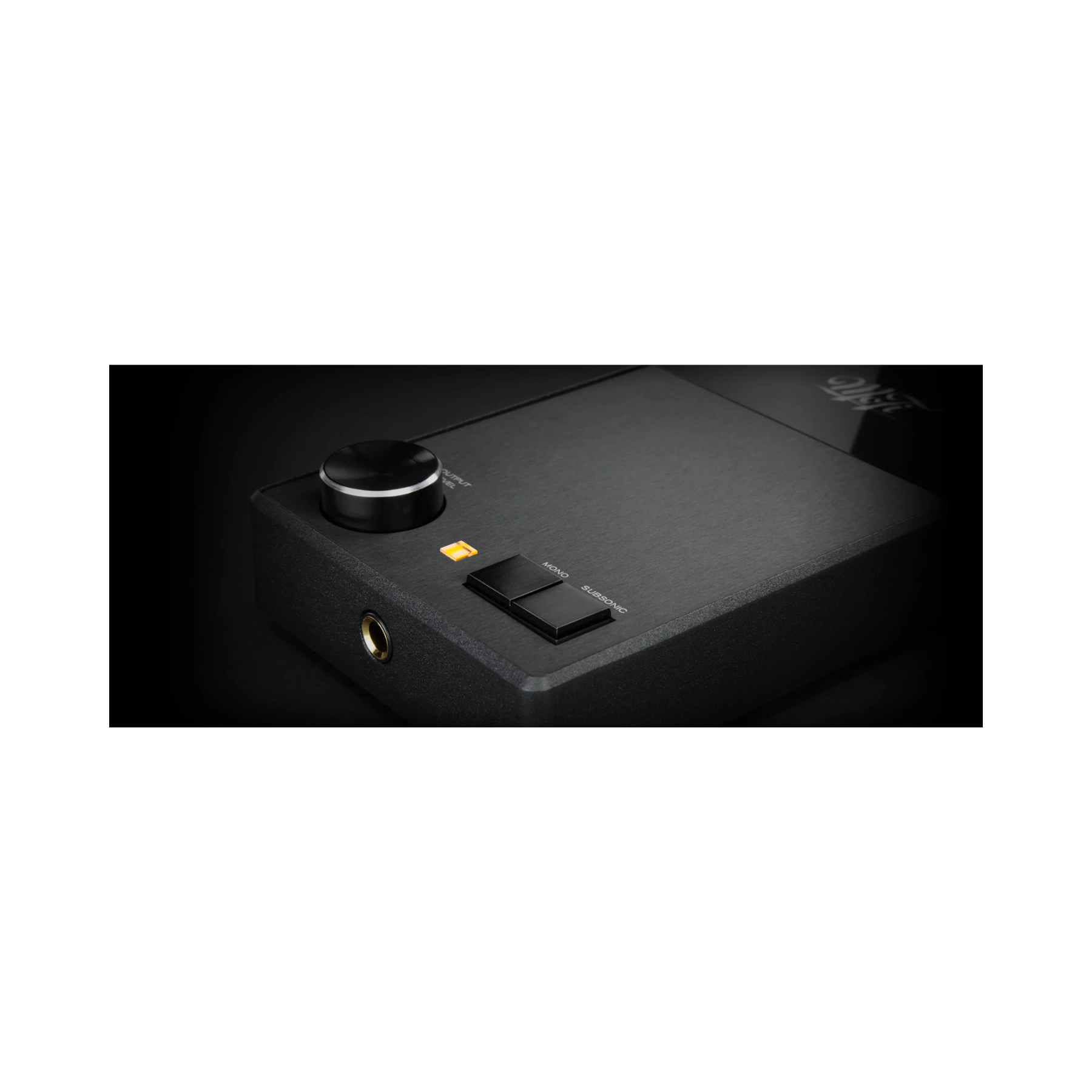

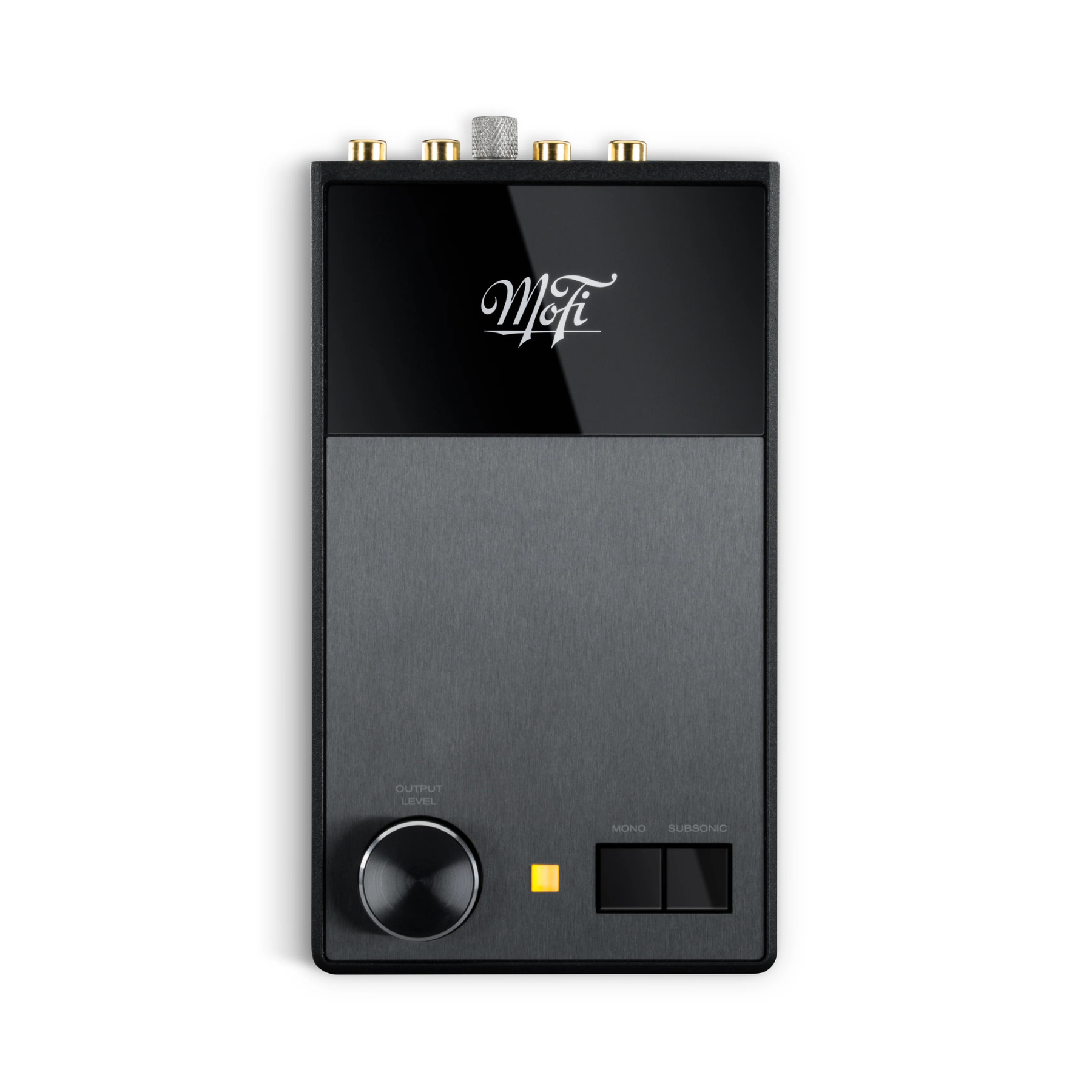

MoFi UltraPhono MM/MC Phono Preamplifier & Headphone Amp - Clearance / Open Box

MoFi

MoFi UltraPhono MM/MC Phono Preamplifier & Headphone Amp - Clearance / Open Box

$399.00
$499.00
HAVE SOMETHING TO TRADE? CLICK HERE
In Stock
In Stock
Back Order
Back Order
Back Order
Out of Stock
Delivery
Ships within 24 hours
Delivery
- +
Notify Me When Available
Buy now
Notify Me When In Stock

We’ll be happy to e-mail you when this item is available. Just fill in your name and e-mail address

View Products
Notify Me When In Stock

We’ll be happy to e-mail you when this item is available. Just fill in your name and e-mail address

Notify Me

Product Description

Line Circle
MoFi Electronics UltraPhono Phonostage & Headphone Amp comes with selectable gain and loading, enabling you to match it to the specifications of practically every MM and MC cartridge available.
Get the Details

Features & Specs Line Circle

COMPATIBILITIES
Moving Magnet (MM) or Moving Coil (MC)
SELECTABLE GAIN
40dB, 46dB, 60dB, 66dB
ADJUSTABLE LOADING
75Ω - 47kΩ
FILTER MODES
Mono or Subsonic
COMPATIBILITIES
Moving Magnet (MM) or Moving Coil (MC)
SELECTABLE GAIN
40dB, 46dB, 60dB, 66dB
ADJUSTABLE LOADING
75Ω - 47kΩ
FILTER MODES
Mono or Subsonic
Expert Insights Coming Soon
Line Circle

Details

Line Circle

UltraPhono - Phonostage & Headphone Amp

UltraPhono replicates the wide bandwidth transparency Mobile Fidelity Sound Lab mastering engineers demand. Tim De Paravicini, the designer responsible for the Mobile Fidelity Gain2™ Ultra Analog cutting system, assisted with the internal circuitry to ensure your analog system at home faithfully reproduces the music buried in the grooves of your LPs. UltraPhono also includes an audiophile-quality Class A headphone amplifier for intimate listening enjoyment.

Class-A Headphone Amplifier

UltraPhono includes a powerful Class A headphone amplifier perfect for quiet nights when you want to keep the records spinning in private. And with a 31-step volume control built into the unit, all you need to do is directly plug-in your headphones and turn it up! It's the easiest way to achieve high-fidelity vinyl playback without speakers and electronics.

Adjustable Gain and Loading

With selectable gain and loading, you will be able to tailor UltraPhono to match nearly any moving-magnet or moving-coil cartridge on the market. A readily accessible bank of toggle switches can be found on the unit’s underside to quickly make adjustments without the need for any tools.

Features

  • Selectable gain for MM or MC 40dB, 46dB, 60dB, 66dB

  • Adjustable loading 75Ω - 47kΩ

  • Class A Headphone Amplifier

  • Switchable Mono mode

  • Subsonic filter

  • External power supply

SPECIFICATIONS

 Gain:
Adjustable from 40dB - 66dB

THD:
< .006% (MM) / < .055% (MC)

Load Impedance (MM):
47,000 Ohms

Load Impedance (MC):
75, 100, 500, 1k, 10k, 47k Ohms

Input Capacitance:
100pF

HEADPHON AMPLIFIER SPECIFICATIONS

Headphone Output:
8V RMS Max, 62 Ohms, 1.5 w/ch

Volume Control:
31 steps, 2dB per/step, 62dB range

Mute Switch:
-90dB

Minimum Impedance:
> 10 Ohms

UltraPhono Manual
