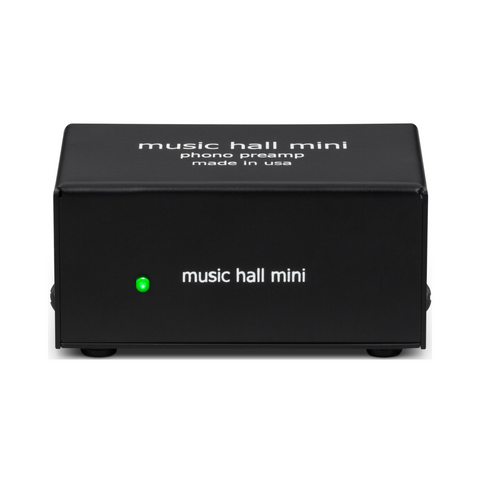

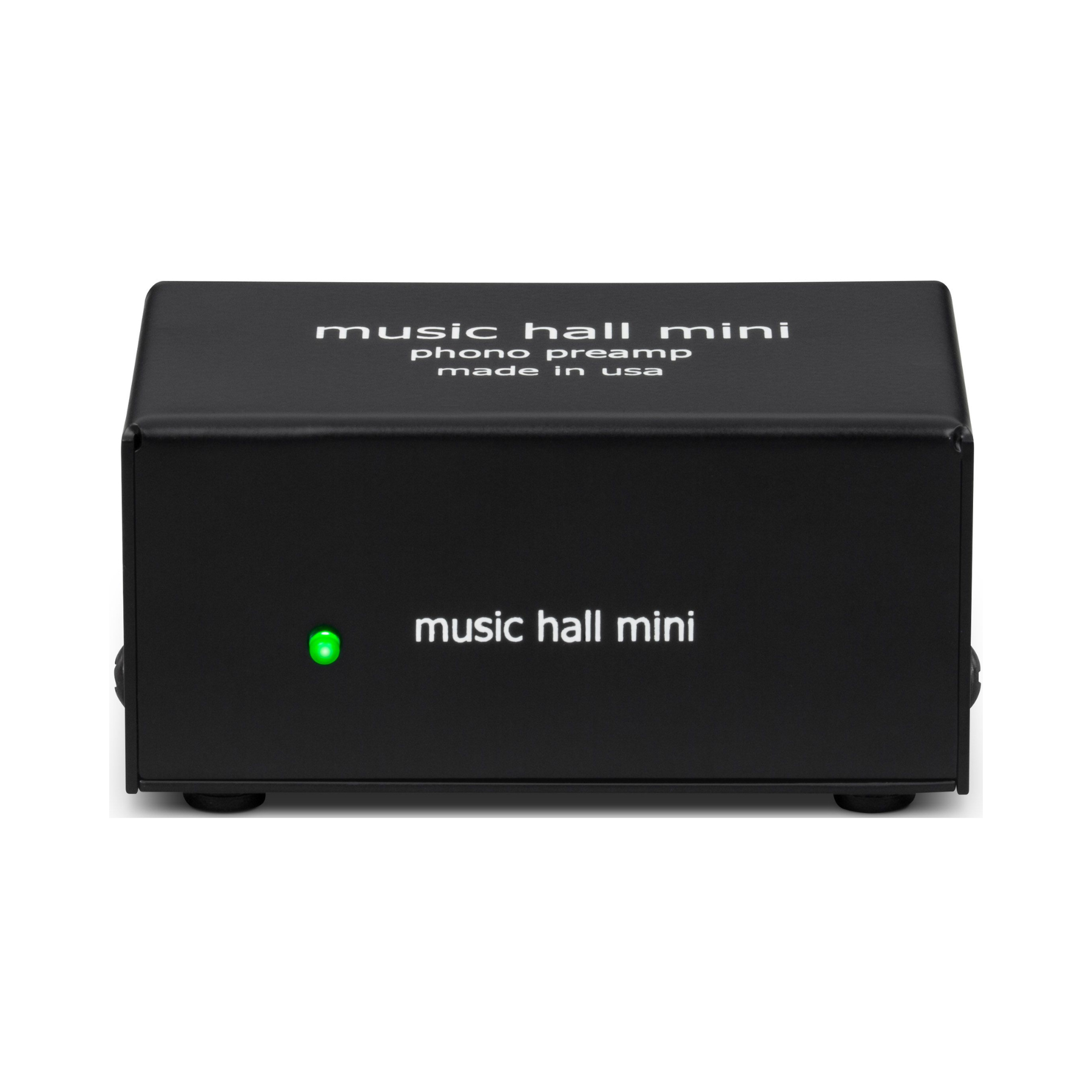

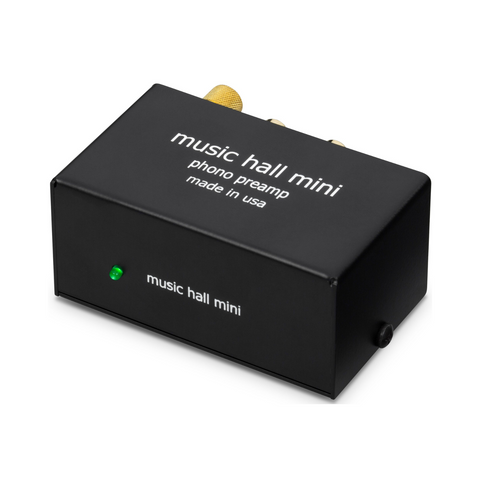

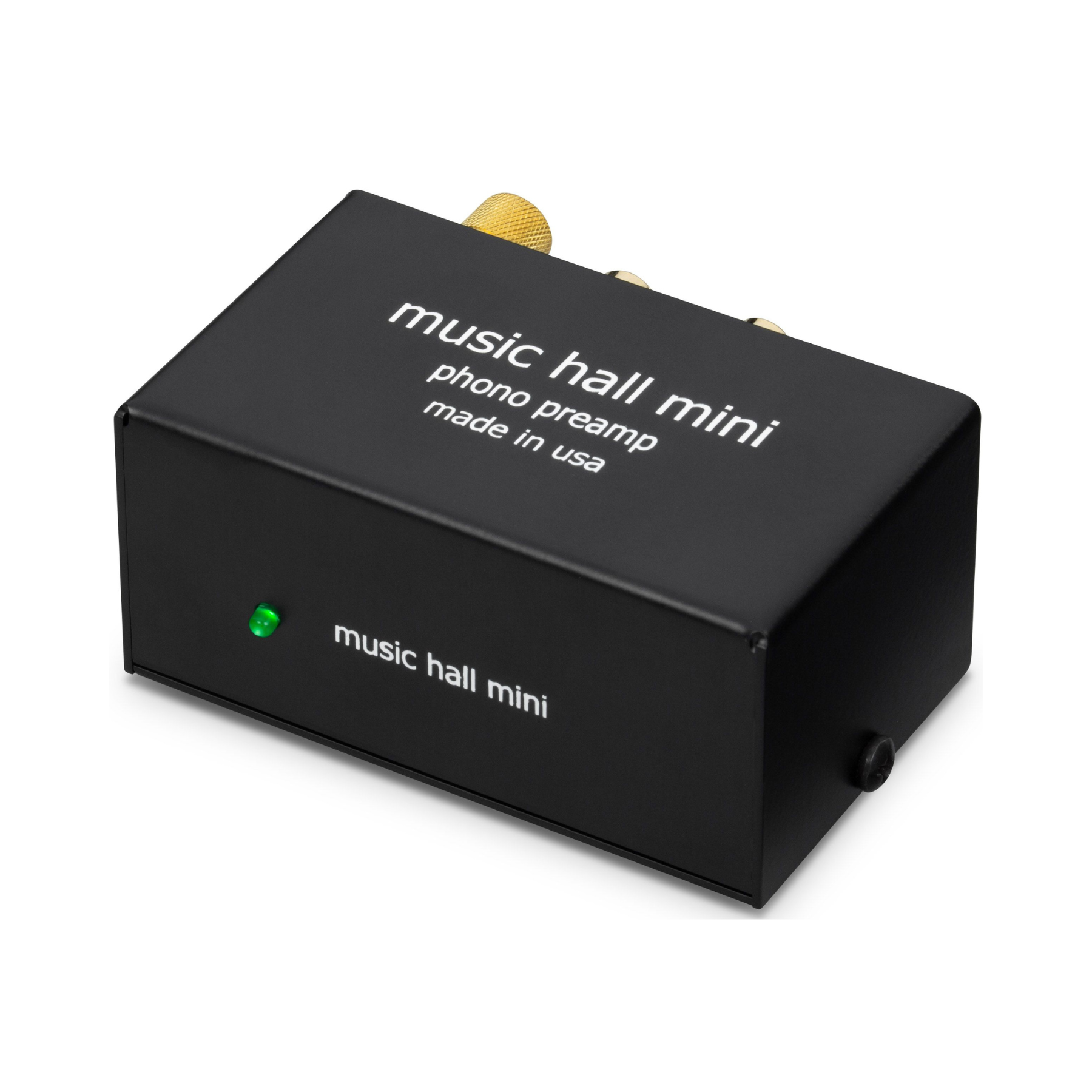

The Music Hall Mini Phono Preamp is a high-quality, budget-friendly solution for seamlessly connecting your turntable to a receiver or amplifier without a dedicated phono input.
Music Hall Mini – High-Quality Solid-State Phono Preamp on a Budget
If you're searching for an affordable yet high-performance solid-state phono preamp, the Music Hall Mini is the perfect choice. Designed to work seamlessly with both moving magnet (MM) and high-output moving coil (MC) cartridges, this compact powerhouse amplifies your phono signal to line level with precision and clarity—all while maintaining RIAA compliance for accurate sound reproduction.
Big Performance in a Compact Design

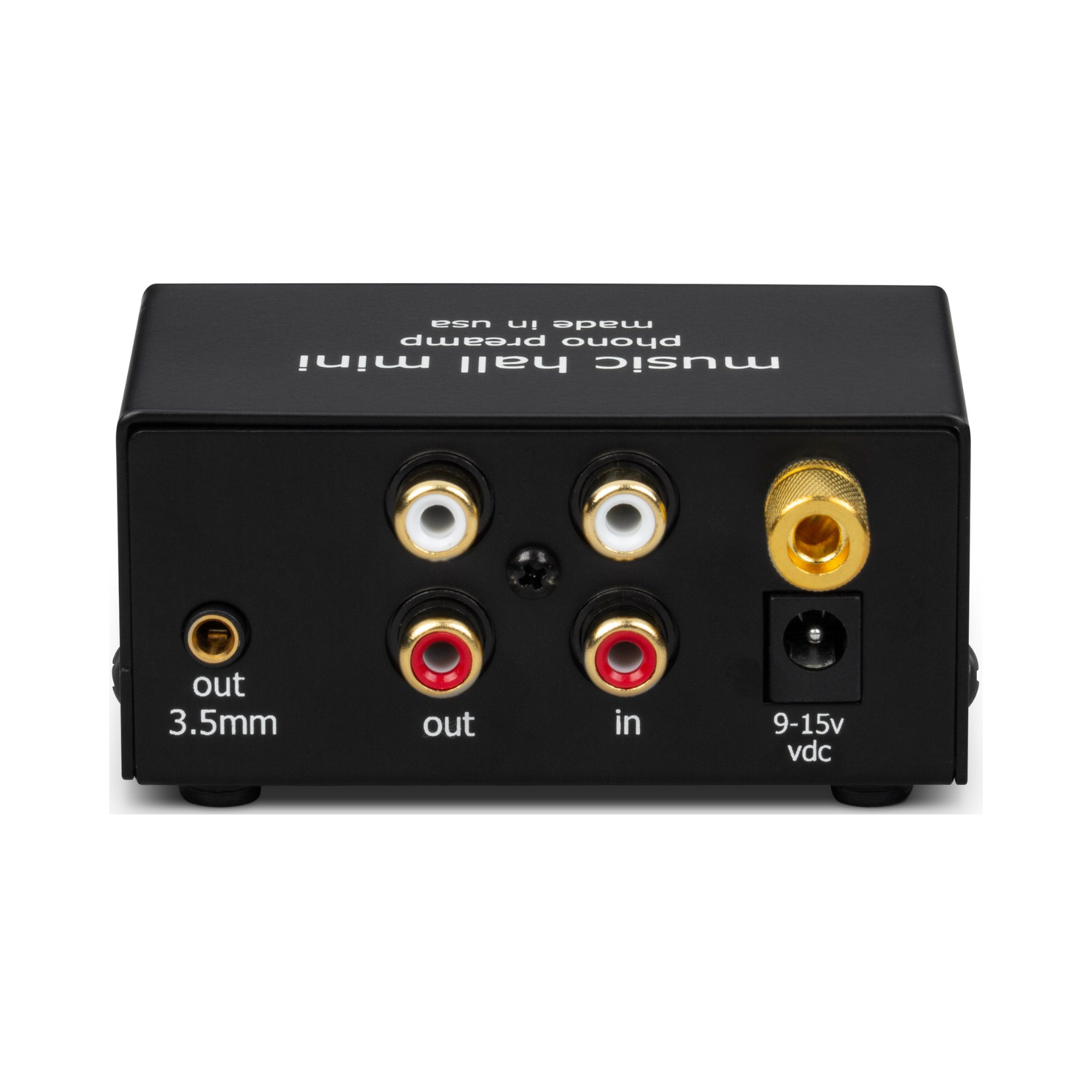

Input & Output Connectors: RCA, 1/8″ TRS Stereo
Input Sensitivity: 42 dB gain 1kHz, 47k Ohms
Input Capacitance: 120pf
Sensitivity: 5mV for 635mV output
Input Impedance: 50k Ohms
Output Impedance: 1K Ohms
Frequency Response: + / – .5 dB 20 Hz – 20 kHz
(Conforms to RIAA Equalization Curve)
THD: .01% @ 1 kHz
S/N Ratio: >83 dB unweighted
PWR: 9 – 15 VDC
Dimensions: 3.5"x 2" x 1.5"
Weight: 1 lbs.
Warranty: 1 year
The Music Hall Mini Phono Preamp is a high-quality, budget-friendly solution for seamlessly connecting your turntable to a receiver or amplifier without a dedicated phono input.
Music Hall Mini – High-Quality Solid-State Phono Preamp on a Budget
If you're searching for an affordable yet high-performance solid-state phono preamp, the Music Hall Mini is the perfect choice. Designed to work seamlessly with both moving magnet (MM) and high-output moving coil (MC) cartridges, this compact powerhouse amplifies your phono signal to line level with precision and clarity—all while maintaining RIAA compliance for accurate sound reproduction.
Big Performance in a Compact Design
Input & Output Connectors: RCA, 1/8″ TRS Stereo
Input Sensitivity: 42 dB gain 1kHz, 47k Ohms
Input Capacitance: 120pf
Sensitivity: 5mV for 635mV output
Input Impedance: 50k Ohms
Output Impedance: 1K Ohms
Frequency Response: + / – .5 dB 20 Hz – 20 kHz
(Conforms to RIAA Equalization Curve)
THD: .01% @ 1 kHz
S/N Ratio: >83 dB unweighted
PWR: 9 – 15 VDC
Dimensions: 3.5"x 2" x 1.5"
Weight: 1 lbs.
Warranty: 1 year
