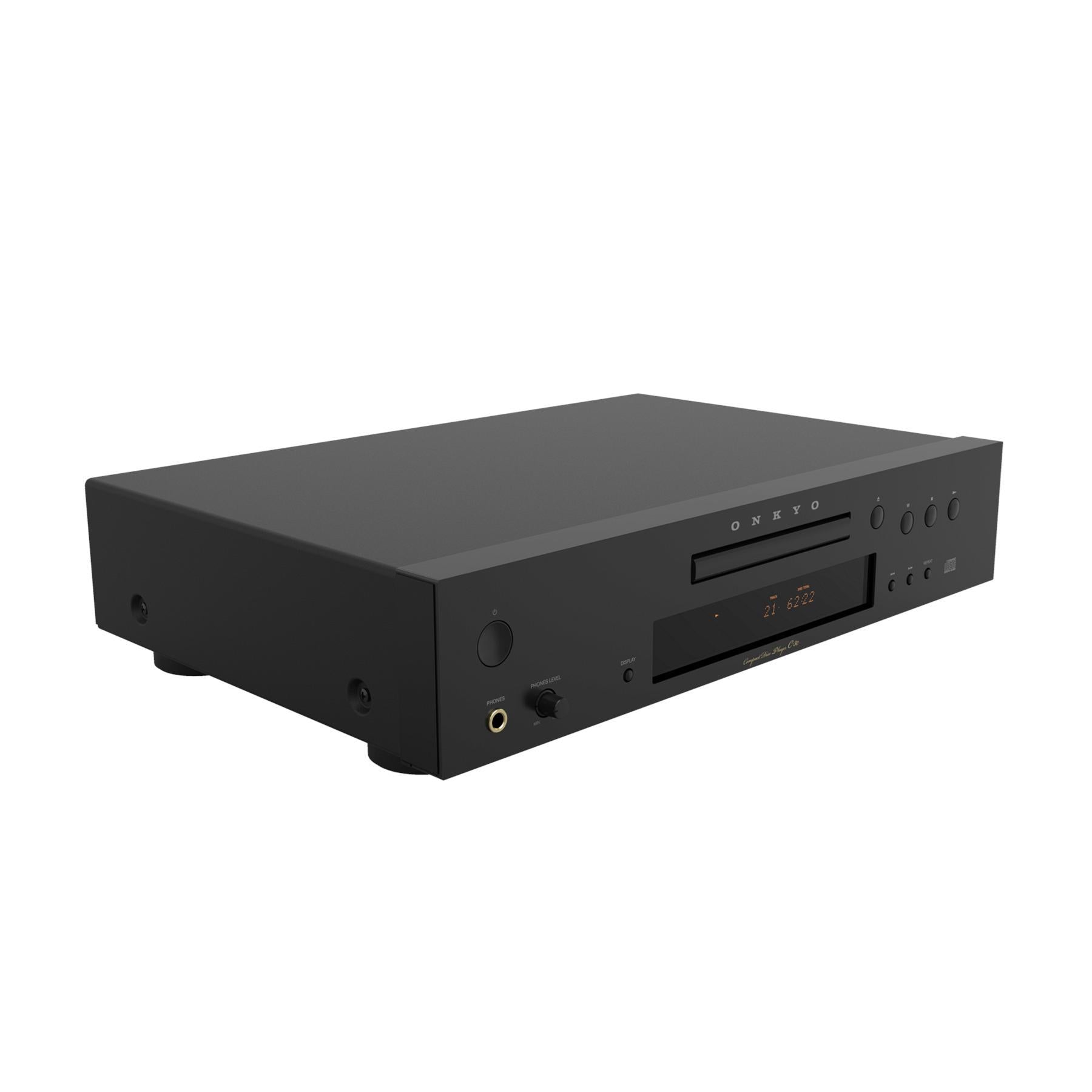

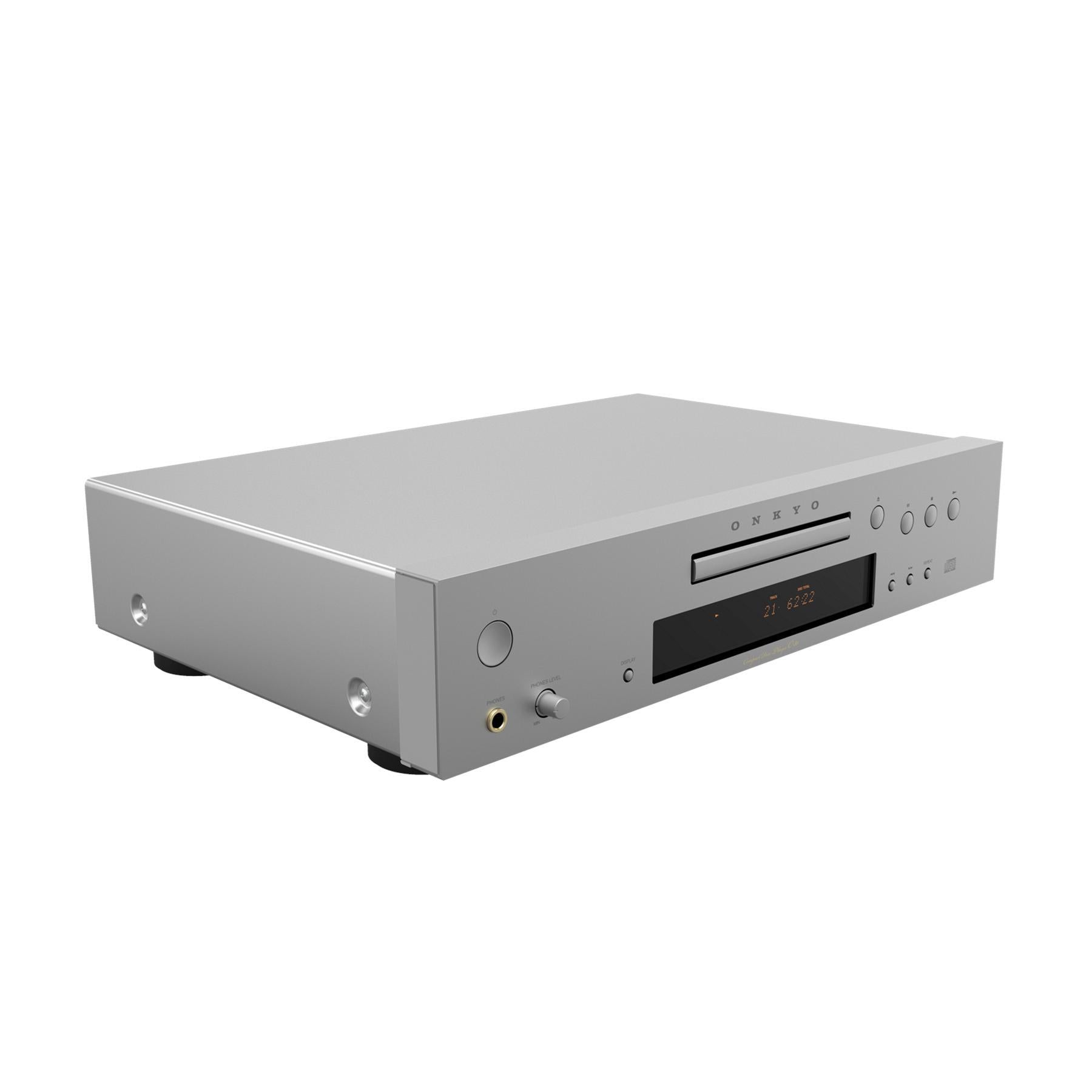

Onkyo C-30 Icon Series Hi-Fi CD Player
Meet the Onkyo C-30 - an audiophile-focused CD player that brings modern precision to a timeless format. Its exclusive VLSC (Vector Linear Shaping Circuit) filters pulse noise for a purer analog signal, while a high-precision ±10 ppm clock locks in stereo imaging and timing. A premium 32-bit/768 kHz stereo DAC, a fanless, vibration-resistant chassis with a blast-finished aluminum front panel, and gold-plated outputs round out a player built to reveal every nuance on your discs. Flexible connections (analog RCA, optical, and coaxial) and a front-panel headphone jack with level control make the C-30 effortless to integrate into any hi-fi system.
Onkyo C-30 Full Specifications:
-
Product: Onkyo C-30 CD Player (Icon Series)
-
Finishes & Model Nos.:

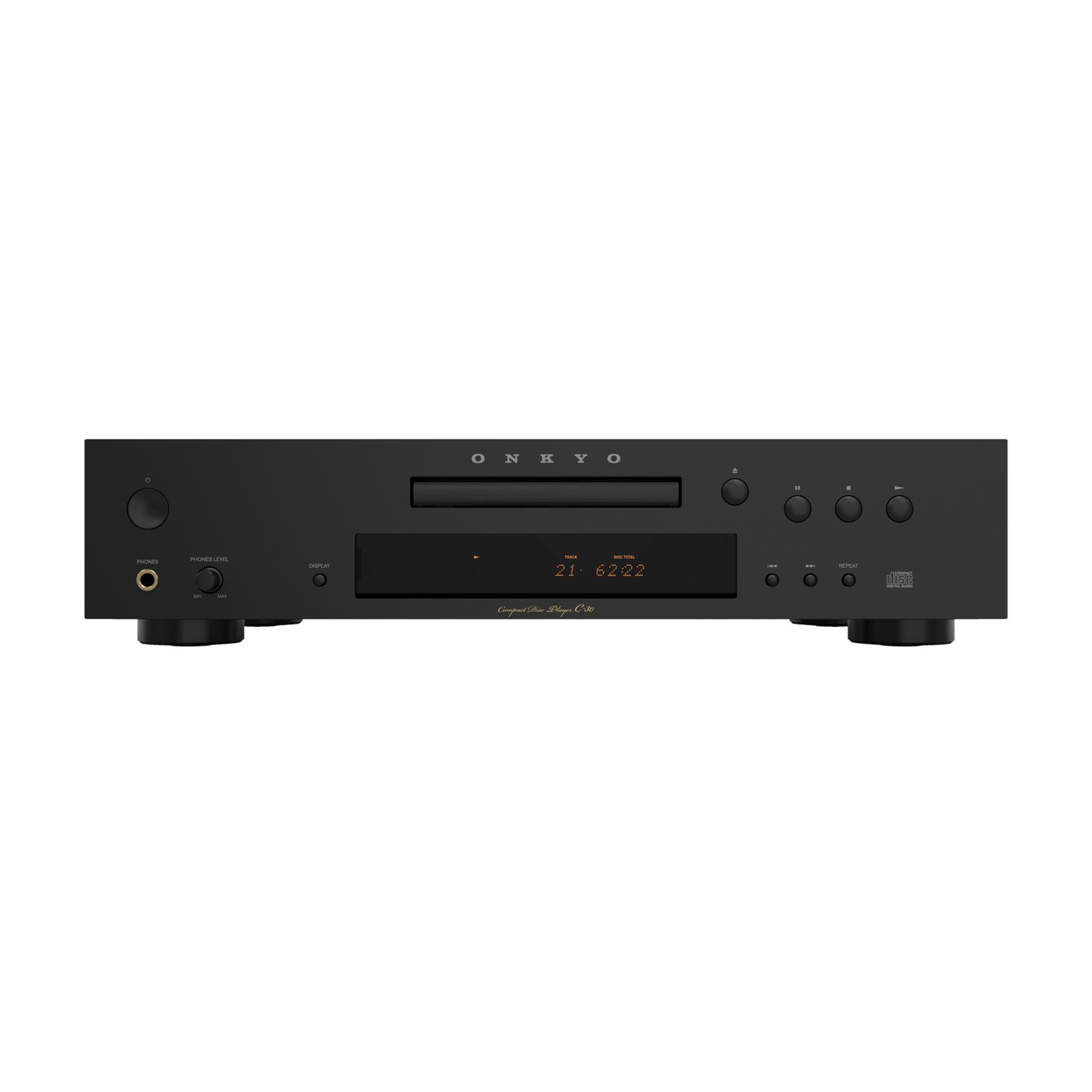

- Black: C30BMMP — EAN 4573211155921

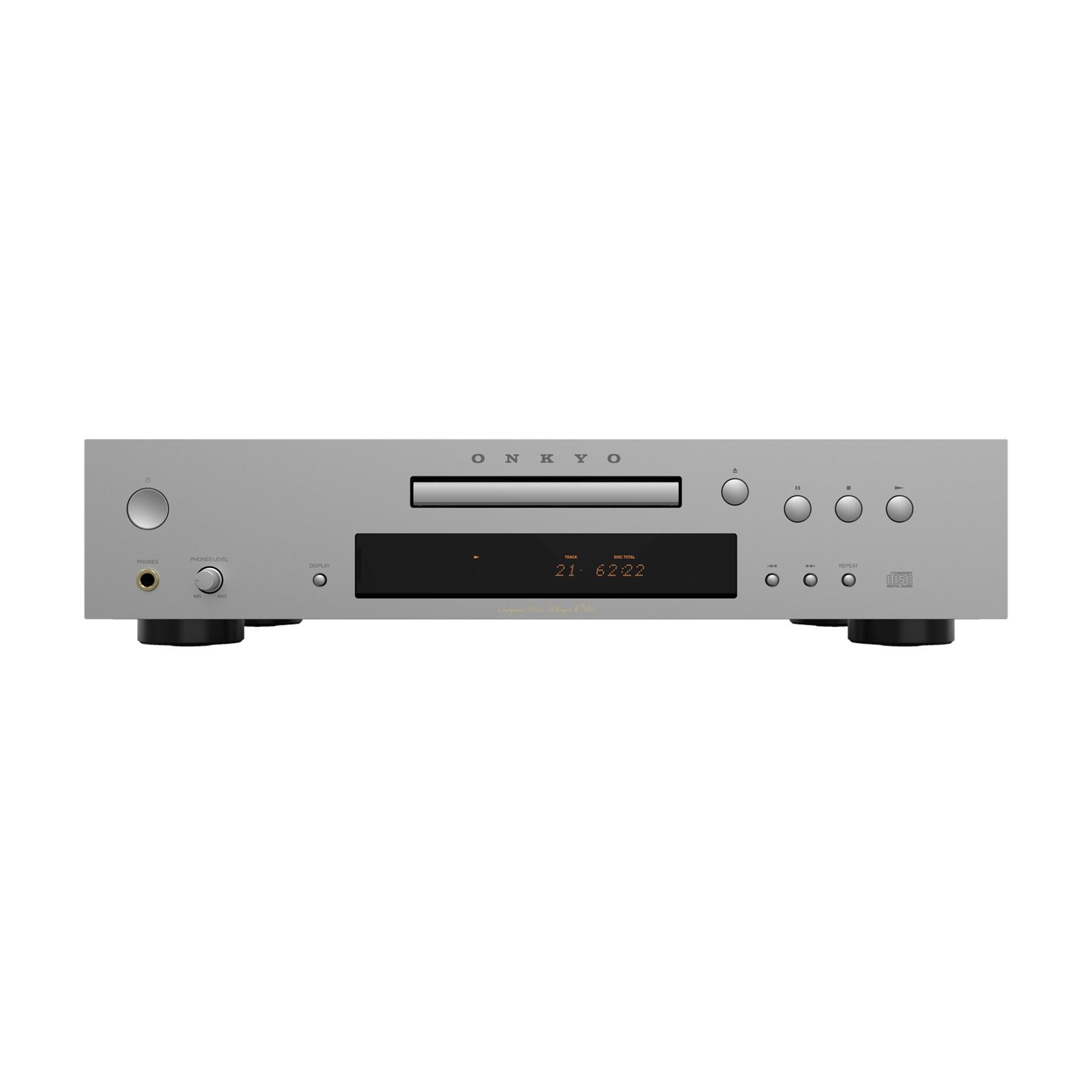

- Silver: C30SMMP — EAN 4573211155938
-
Core Technologies:
- VLSC (Vector Linear Shaping Circuit) digital noise reduction
- High-precision clock: ±10 ppm
- Premium stereo DAC: 32-bit / 768 kHz
- Fanless design; extruded aluminum heat sink for vibration suppression
- Flat, vibration-suppressing chassis; blast-finished aluminum front panel (sandblasted texture)
-
Disc & File Support:
- Discs: Audio CD, CD-R, CD-RW
- Files on CD-R/CD-RW: MP3, WMA
- MP3 disc structure: ISO9660 (Level 2), up to 99 folders (incl. root) and up to 499 files
-
Playback Modes:
- Random (shuffle)
- Memory playback (programmed order) for Audio CDs and MP3 CDs
- Repeat (all or one track)
- Random + Repeat combination
-

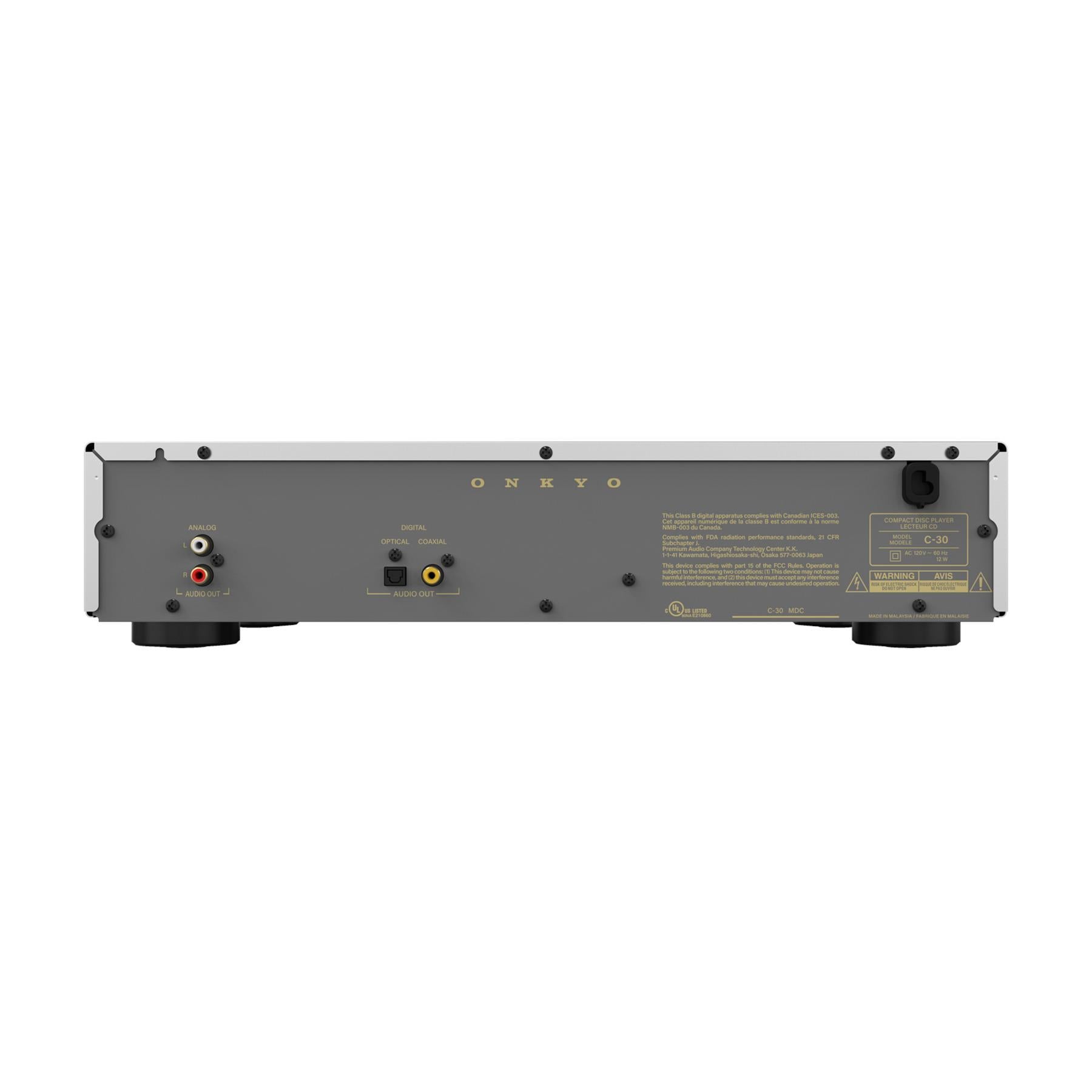

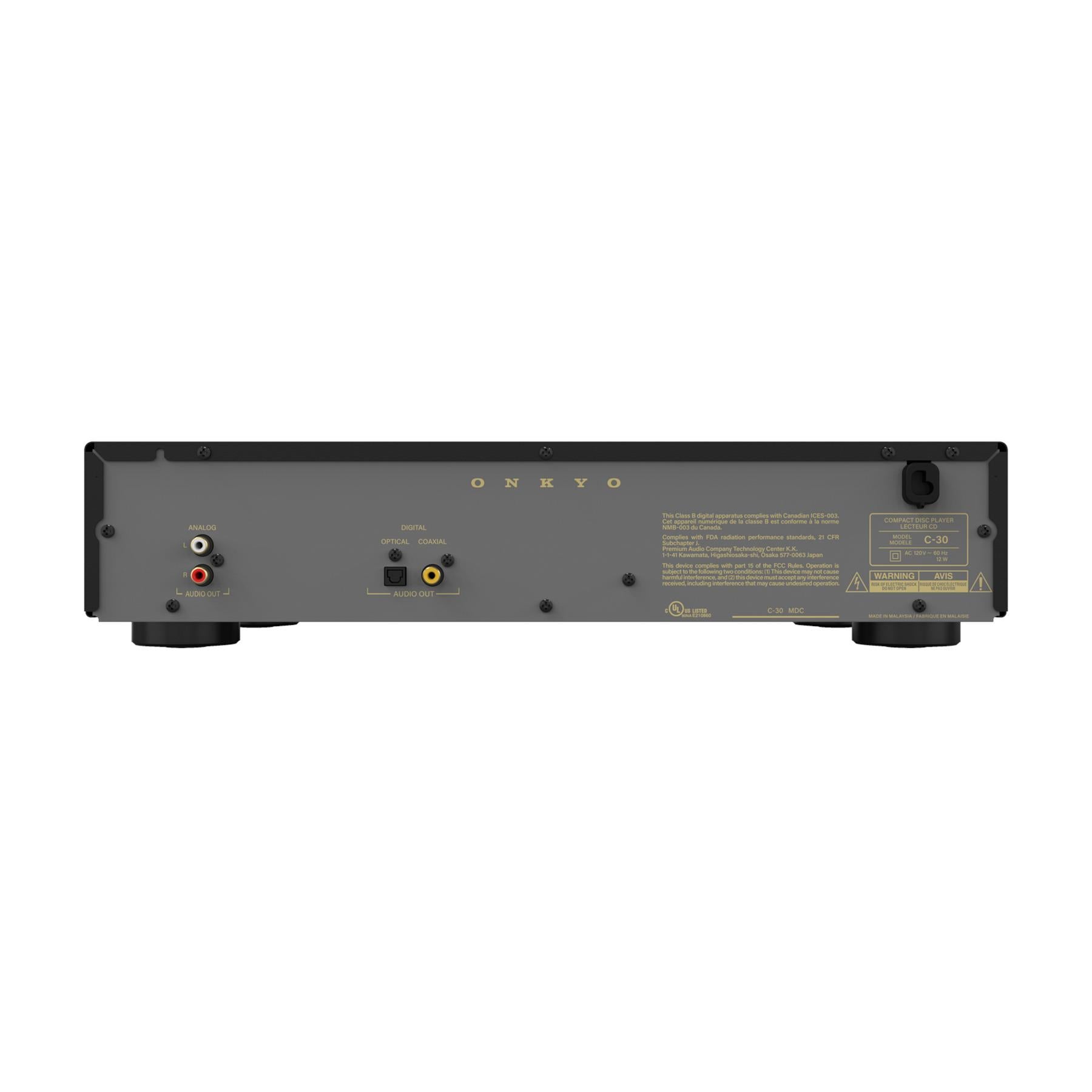

Outputs:
- Analog: Stereo RCA (gold-plated); Rated output 2.0 V (rms) / 540 Ω
- Digital: Optical (TOSLINK) and Coaxial (RCA); PCM 16-bit/44.1 kHz
- Digital output levels: Optical −22.5 dBm; Coaxial 0.5 Vp-p / 75 Ω
- Headphone: Front-panel PHONES jack with PHONES LEVEL knob (gold-plated)
-
Performance:
- Frequency response: 4 Hz – 20 kHz
- Dynamic range: 100 dB
- THD: 0.004%
- Signal-to-noise ratio: 103 dB
-
Display/Information:
- ID3 tag display for MP3 (TITLE/ARTIST/ALBUM)
- Indicators for MEMORY, RANDOM, REPEAT, REPEAT 1
- Display dimmer via remote
-
Power:
- North America: AC 120 V, 60 Hz — 12 W
- Standby power: 0.2 W
-
Environmental:
- Operating temperature: 5 °C – 35 °C
- Operating humidity: 5% – 85%
-
Dimensions & Weight:
- 435 × 100 × 305 mm (17 1/8 × 4 × 12 3/64 inches)
- 5.3 kg (11.7 lbs)
Onkyo C-30 Q&A:
- What disc formats and files does the C-30 support?
- Audio CD, CD-R, and CD-RW; MP3 and WMA files on CD-R/CD-RW.
- Can it play SACD or DVD-Audio discs?
- No. It is designed for standard CDs and compatible MP3/WMA data discs.
- What digital outputs are provided, and what signal do they carry?
- Optical (TOSLINK) and coaxial (RCA) outputs deliver 16-bit/44.1 kHz PCM to an external DAC or amplifier.
- Does it have a headphone output?
- Yes, the front-panel PHONES jack includes a dedicated PHONES LEVEL volume control.
- Which playback modes are available?
- Random (shuffle), Memory (program), and Repeat (all or one), with the option to combine Random and Repeat.
- What are the key audio performance specs?
- Frequency response 4 Hz–20 kHz, dynamic range 100 dB, THD 0.004%, S/N ratio 103 dB, RCA output 2.0 Vrms/540 Ω.
- What are the dimensions and weight?
- 435 × 100 × 305 mm (17 1/8 × 4 × 12 3/64 in); 5.3 kg (11.7 lb).
- What’s included in the box?
- Main unit, RC-995C remote, stereo audio cable, two AAA batteries (some models), and setup/safety documentation.
