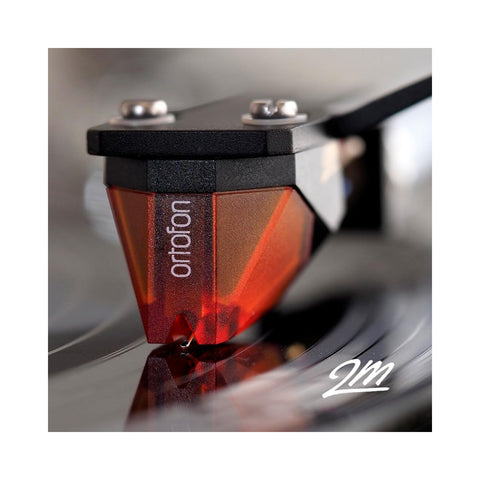

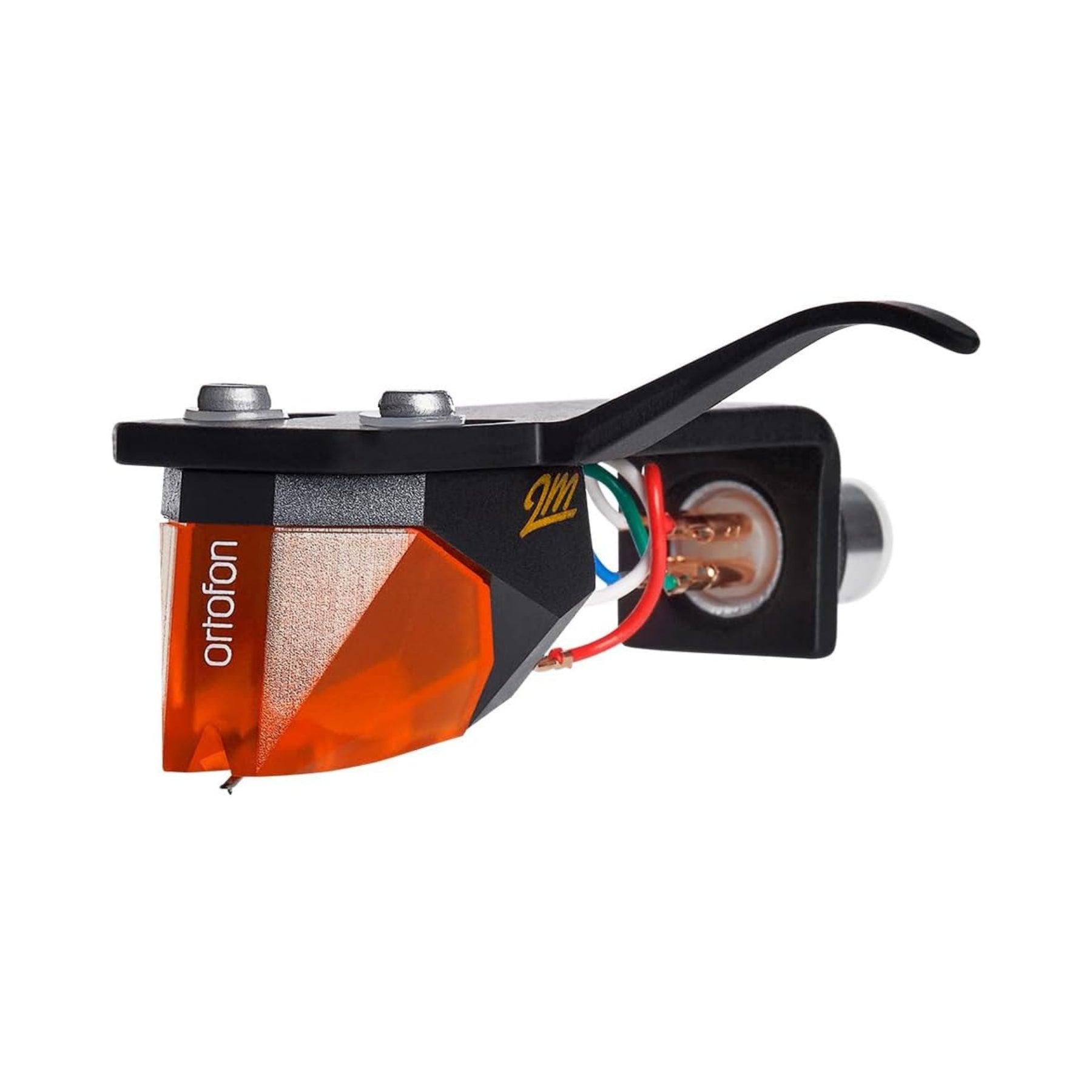

Ortofon 2M Bronze Cartridge Mounted on SH-4 Headshell

The 2M Bronze Premounted is mounted on Ortofon's classic SH-4 headshell. The sturdy, slim-designed SH-4 headshell offers strength and delicacy, complemented by an ergonomic, easy-to-lift finger grip. Simplify your setup while embracing quality.

• Features a Nude Fine Line diamond which is particularly suited for demanding applications
• The 2M Bronze uses a special upgraded engine, featuring split pole pins with a silver plated copper wire
• The cartridge body is manufactured from a newly-developed Lexan DMX Piano Black

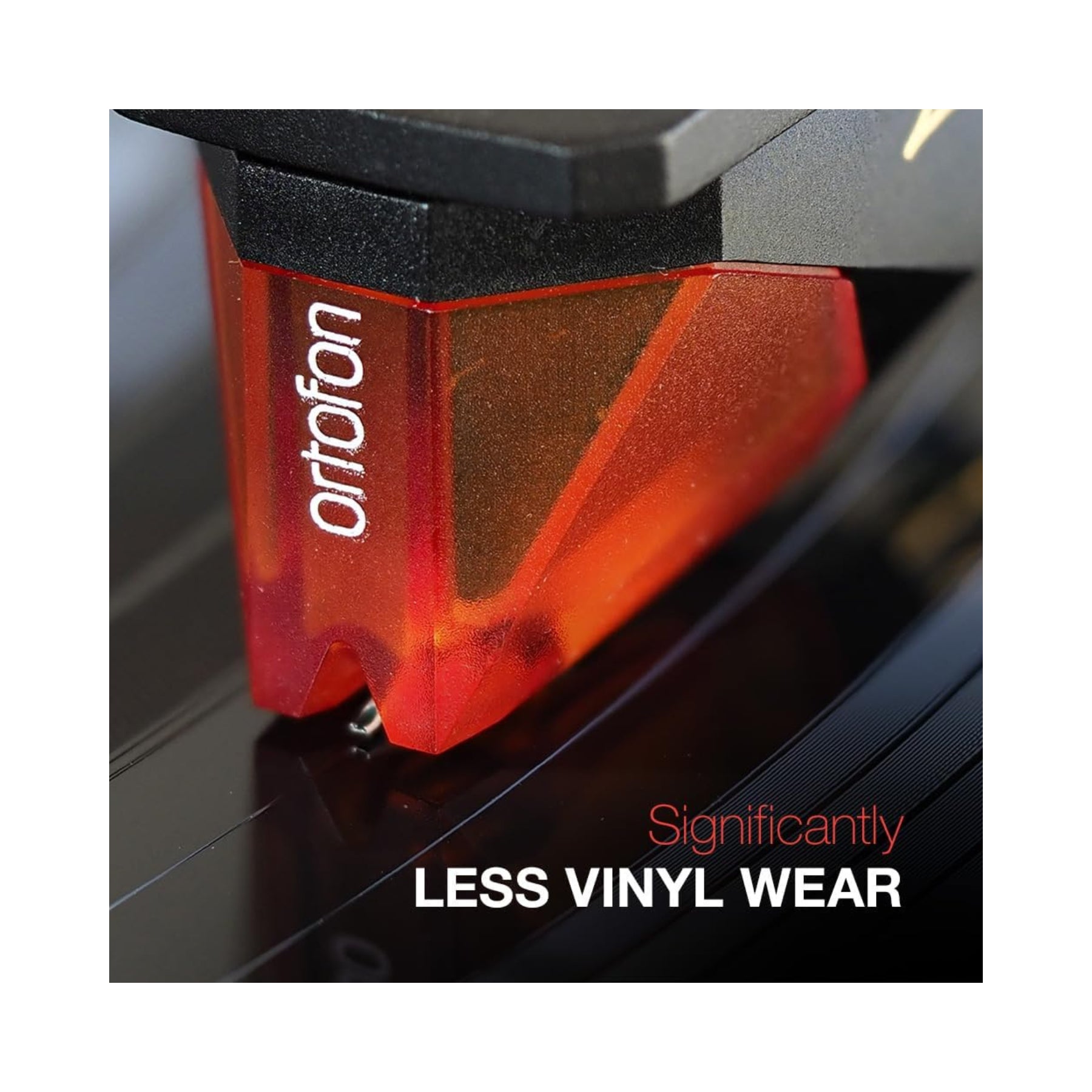

The 2M Bronze features a Nude Fine Line diamond, which is particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally, its larger footprint ensures reduced distortion and record wear.

The cartridge body used for the 2M Bronze is manufactured from a newly-developed Lexan DMX Piano Black, a revolutionary material which ensures high rigidity while eliminating unwanted resonances.

The 2M Bronze uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.

Ortofon has optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design - the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

The name 2M was selected from among several ideas. Ortofon wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

The 2M has been engineered to the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

The 2M series of cartridges features Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and OM Super series.

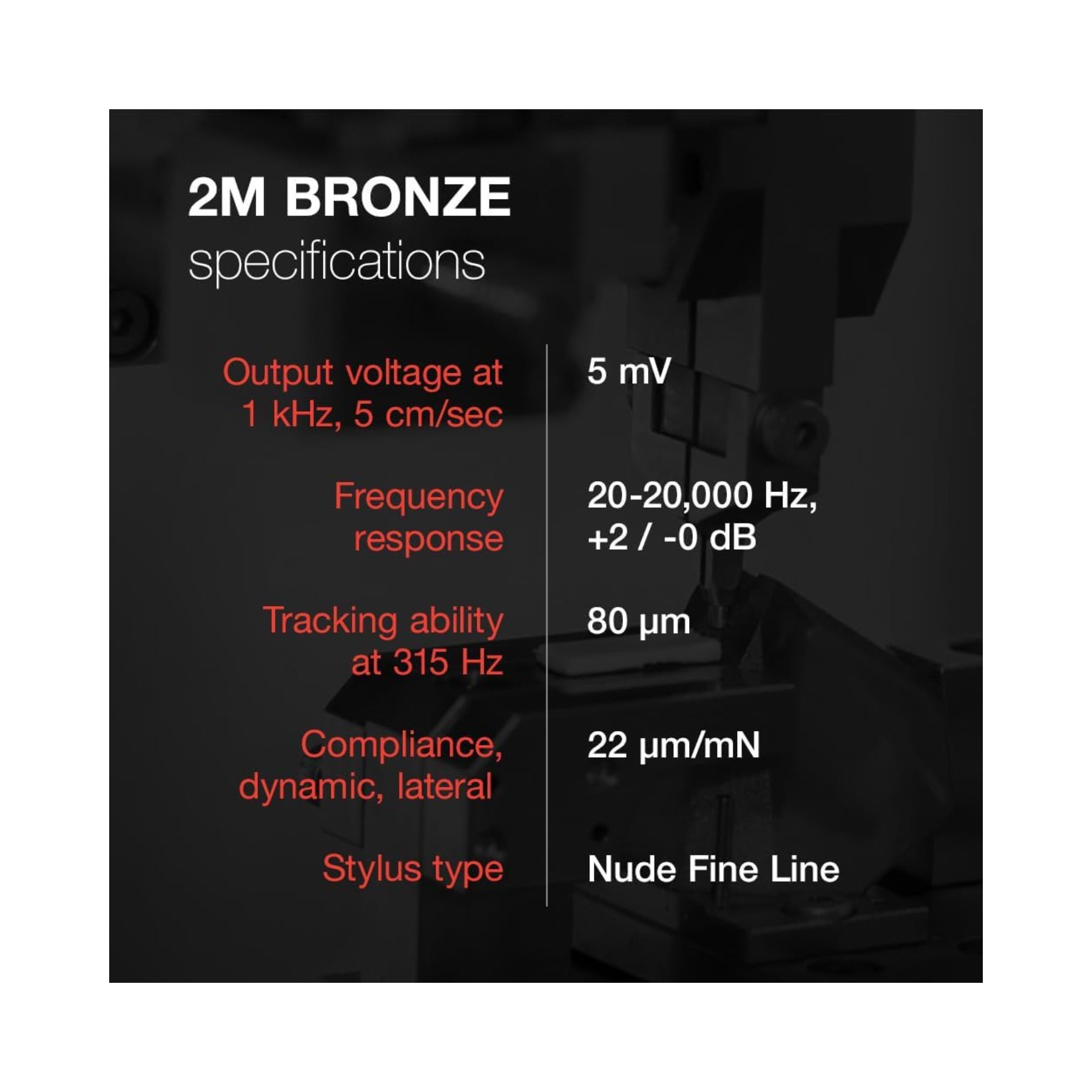

2M Bronze Technical data

Output voltage at 1000 Hz, 5cm/sec.  -  5 mV
Channel balance at 1 kHz  -  1 dB
Channel separation at 1 kHz  -  26 dB
Channel separation at 15 kHz  -  15 dB
Frequency response  -  20-20.000 + 2 / - 0 dB
Tracking ability at 315Hz at recommended tracking force  -  80 µm
Compliance, dynamic, lateral  -  22 µm/mN
Stylus type  -  Nude Fine Line
Stylus tip radius  -   r/R 8/40 µm
Tracking force range  -  1.4-1.7 g (14-17 mN)
Tracking force, recommended  -  1.5 g (15 mN)
Tracking angle  -  20°
Internal impedance, DC resistance  -  1.2 kOhm
Internal inductance  -  630 mH
Recommended load resistance  - 47 kOhm
Recommended load capacitance  -  150-300 pF
Cartridge colour, body/stylus  -  Black/Bronze
Cartridge weight  -   7.2 g
