SVS Prime Center Speaker

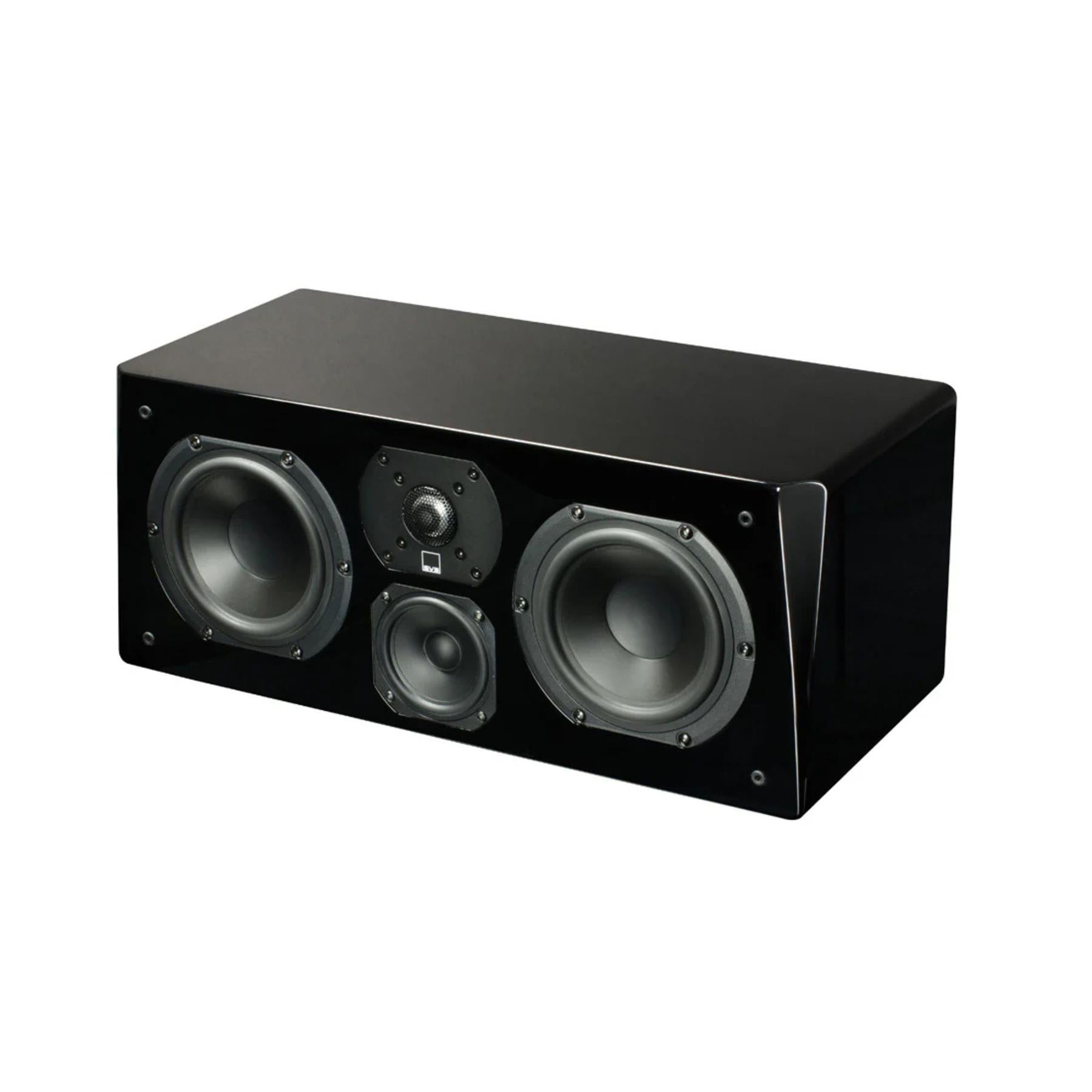

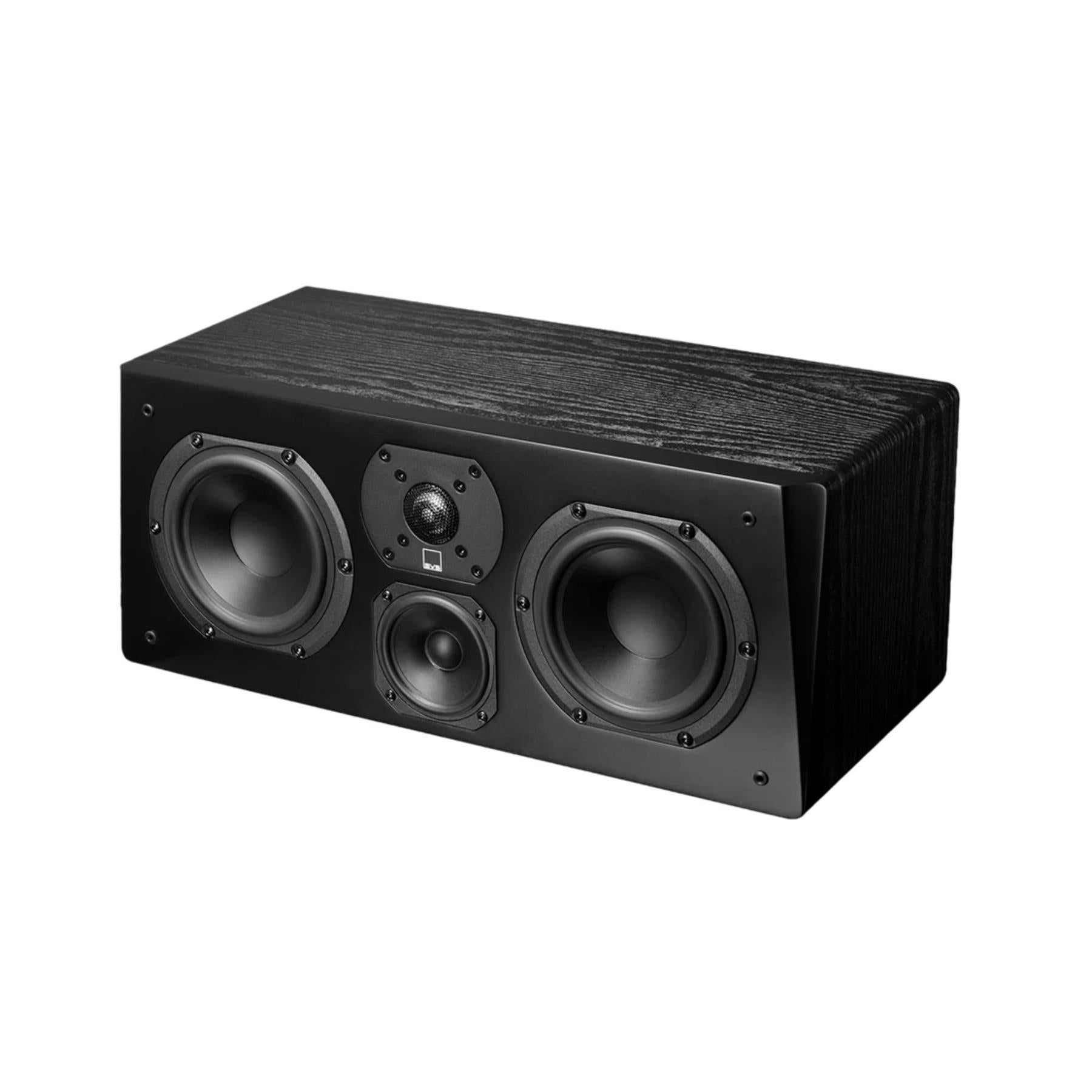

The SVS Prime Center is a true 3-way center channel speaker engineered to make dialogue sound natural, locked to the screen, and easy to understand at any volume. Built around a dedicated 3.5" midrange driver (housed in its own sealed sub-enclosure) plus a 1" aluminum dome tweeter and dual 5.25" woofers, it delivers a wide, consistent sweet spot with clear vocals and effortless dynamics for movies, TV, and gaming. A premium SoundMatch 3-way crossover blends the drivers seamlessly for precise imaging and balanced tone—so speech stays crisp, action hits with impact, and the front soundstage feels cohesive. Finished in Premium Black Ash or Piano Gloss Black, the Prime Center pairs modern styling with performance-minded construction, including a rigid braced cabinet, chamfered baffle, and dual rear-firing ports for confident low-end support. The SVS Prime Center is part of ListenUp's SVS Center Channel Speakers Collection.
What It's Good At:
- Producing crystal-clear dialogue and vocals that stay intelligible during loud action scenes
- Creating a wide listening “sweet spot” with consistent clarity across multiple seats
- Anchoring the front soundstage with seamless blending to left/right speakers
- Delivering clean dynamics and low distortion thanks to a premium 3-way crossover and optimized drivers
- Adding punch and weight to voices and effects with dual 5.25" woofers and tuned rear ports
- Fitting beautifully into modern home theater setups with premium finish options and a sleek grille design
SVS Prime Center Speaker Full Specifications:
-
Type: Center Channel Loudspeaker
-
Rated bandwidth: 48 Hz–25 kHz (±3 dB)
-
Nominal impedance: 8 ohms
-
Sensitivity: 86 dB (2.83V @ 1 meter full-space, 300–3kHz)
-
Recommended amplifier power: 20–200 watts
-
Tweeter: 1"
-
Midrange: 3.5"
-
Woofers: Dual 5.25"
-
Finish options: Black ash and piano gloss black
-
Binding posts: Single set of 5-way binding posts
-

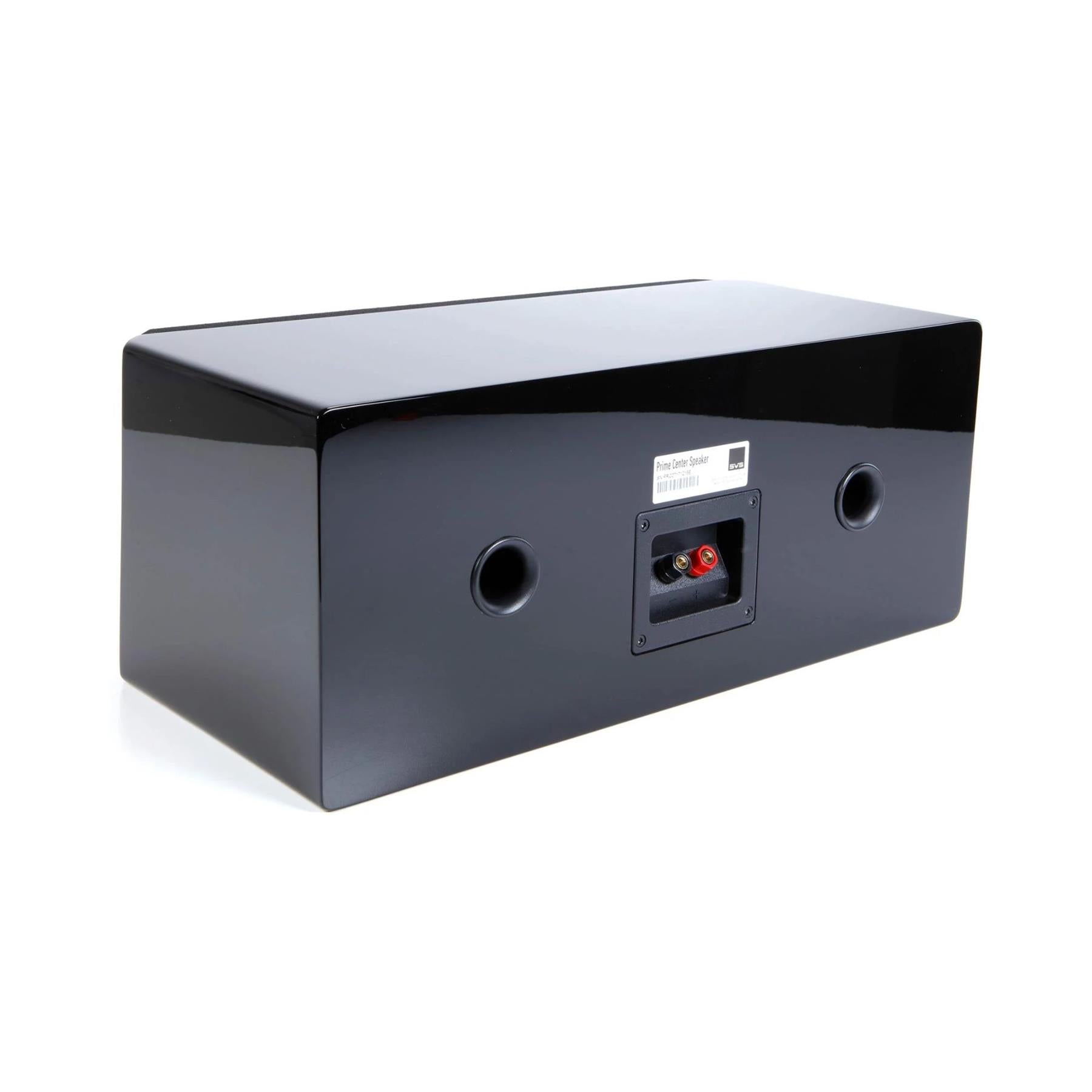

Ports: Dual 1" wide-flared rear-firing ports
-

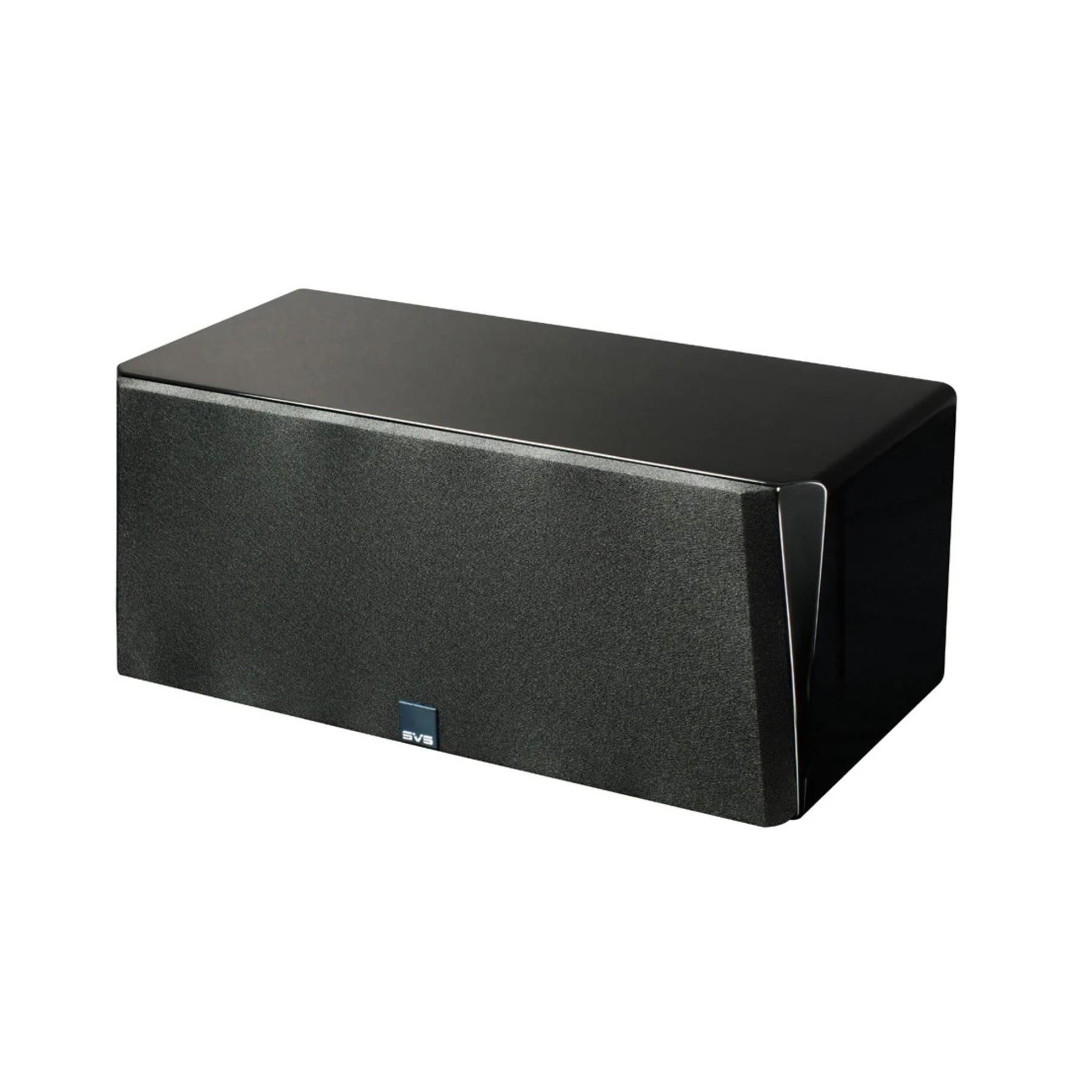

Grille: Cloth grille with pin/cup retention system
-
Bumper feet: Elastomer stick-on bumper feet (adds 3mm to height)
-
Cabinet Dimensions: 7.6" (H) × 18.6" (W) × 8.6" (D)
-
Overall Dimensions: 7.7" (H) × 18.6" (W) × 9.2" (D) (includes grille and bumper feet)
-
Shipped Dimensions: 12.2" (H) × 23" (W) × 13.4" (D)
-
Weight Unboxed: 20.2 pounds
-
Shipped Weight: 23.3 pounds
-
1" Aluminum Dome Tweeter:
- FEA-optimized diffuser for airy and unveiled presentation
- Aluminum dome for exceptional transient response
-
3.5" Midrange Driver:
- Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
- Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
- Vented voice coil former minimizes air compression artifacts
-
Dual 5.25" Woofers:
- Long stroke motor and suspension for high output
- Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
- Vented voice coil former minimizes air compression artifacts
-
Crossover:
- 3-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
- Midrange-to-tweeter crossover: 2.4 kHz (12 dB/octave slopes)
- Woofer-to-midrange crossover: 350 Hz (12 dB/octave slopes)
-
Cabinet:
- Separate sealed midrange enclosure shifts standing waves beyond the driver pass band, improving sound quality
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
- FEA-optimized cabinet and bracing eliminates resonances
SVS Prime Center Speaker Q&A:
- What makes the SVS Prime Center different from typical center channel speakers?
- It’s a true 3-way design with a dedicated 3.5" midrange driver for the vocal range, which improves dialogue clarity and keeps speech clean even during complex scenes.
- Will this speaker improve dialogue clarity for movies and TV?
- Yes. The dedicated midrange driver plus the 3-way crossover are specifically beneficial for clearer, more natural-sounding speech and better intelligibility at real-world listening levels.
- What amplifier or AV receiver power is recommended?
- SVS recommends 20–200 watts of amplifier power, which fits comfortably with most modern home theater receivers.
- What are the exact dimensions, and will it fit on my media console?
- The overall size is 7.7" (H) × 18.6" (W) × 9.2" (D) including the grille and bumper feet. The cabinet itself is 7.6" (H) × 18.6" (W) × 8.6" (D).
- Does it have rear ports, and does placement matter?
- Yes—there are dual rear-firing ports. Leaving a bit of breathing room behind the speaker helps the ports perform as intended and can improve bass balance.
- What finishes are available?
- The Prime Center is offered in Premium Black Ash and Piano Gloss Black.
- What speaker wire connections does it support?
- It uses a single set of 5-way binding posts, compatible with banana plugs, spades, pins, or bare wire.
- What crossover settings work well with a subwoofer?
- A common starting point is a crossover around 80 Hz, but you can fine-tune based on your room, subwoofer capability, and preferences.
SVS Prime Center Speaker Downloads:
SVS Prime Center Owner's Manual
