Rotel DX-5 Integrated Amplifier

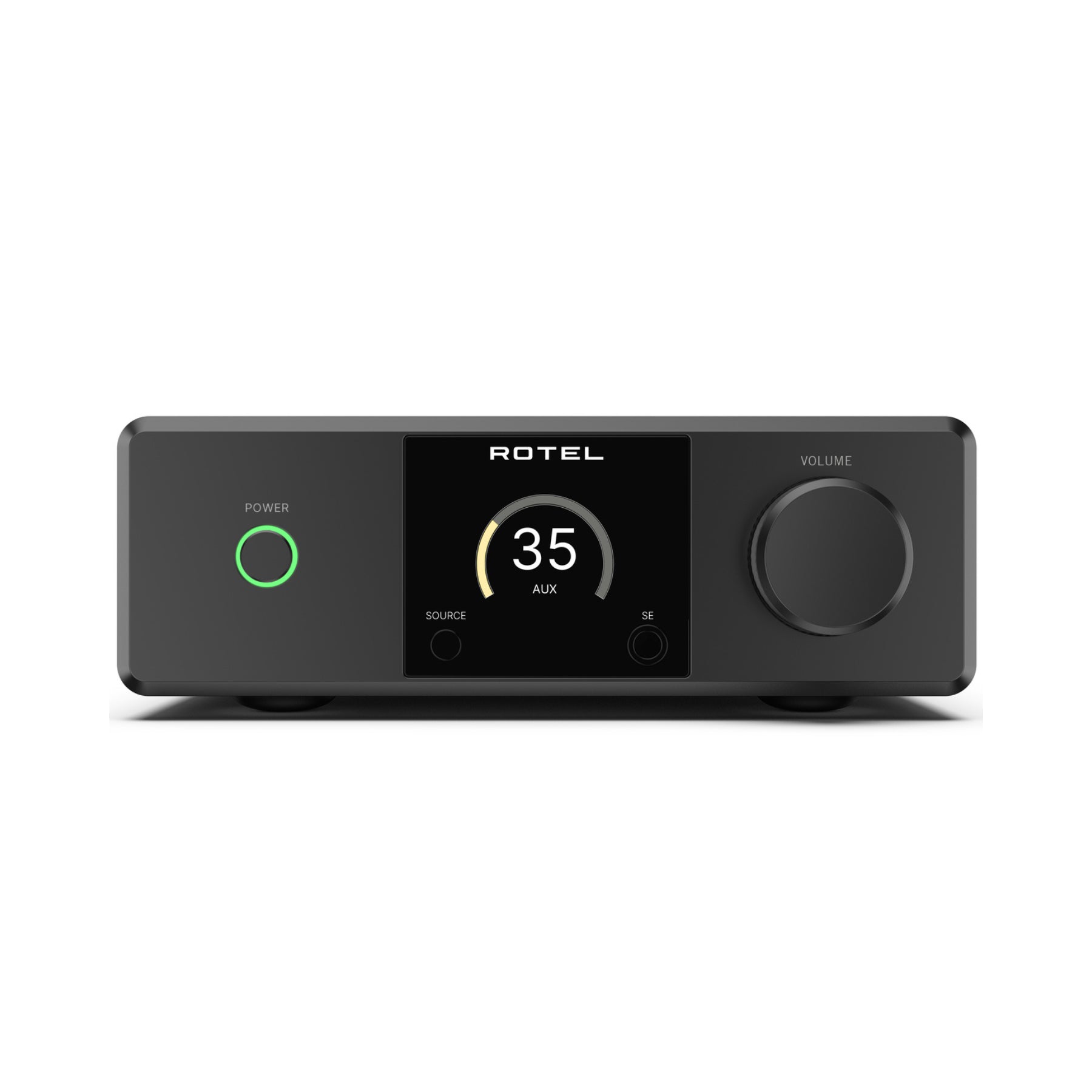

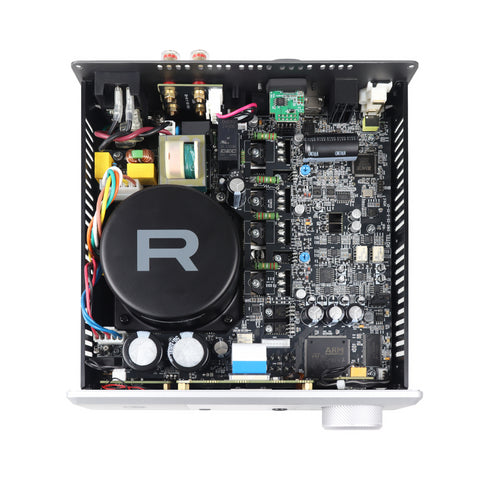

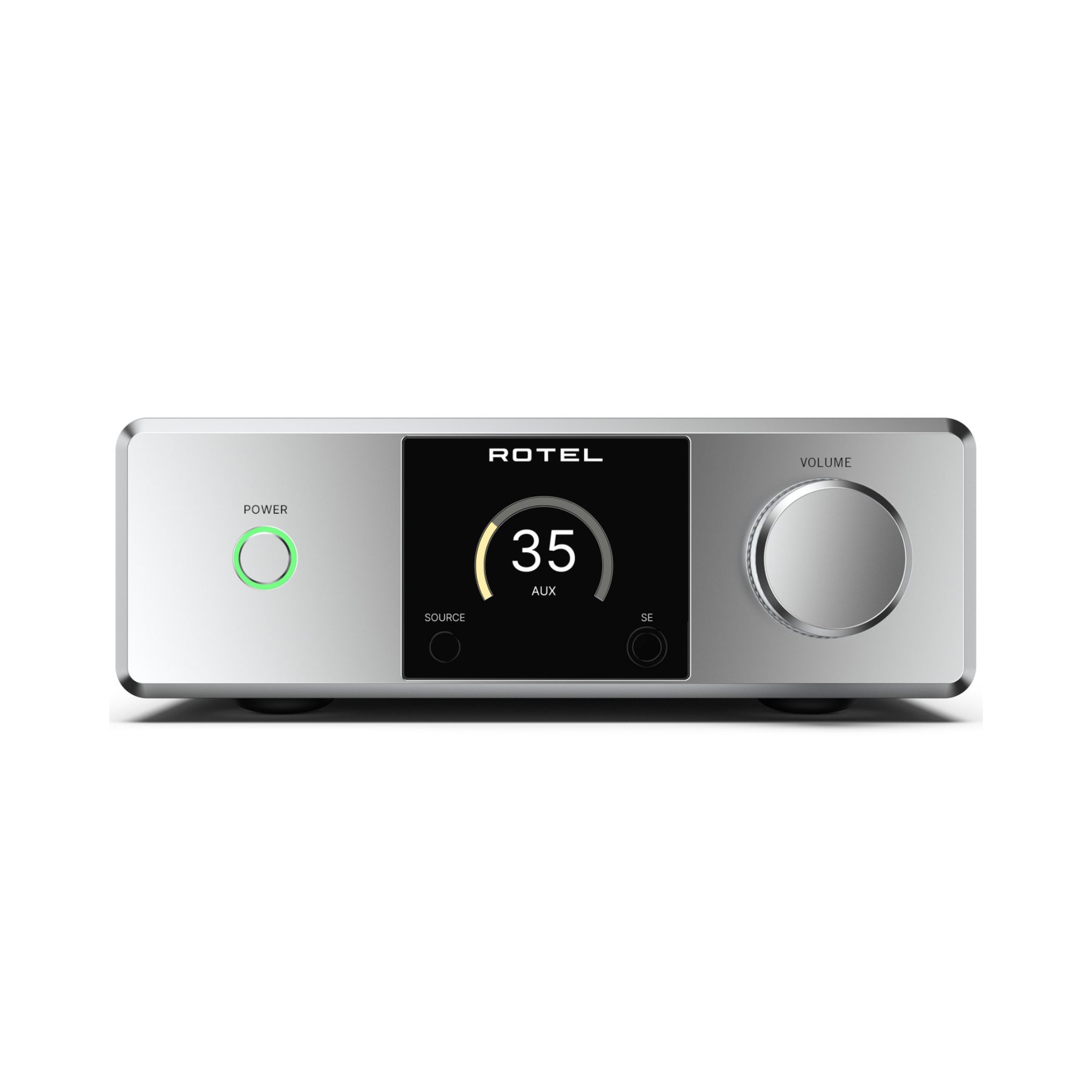

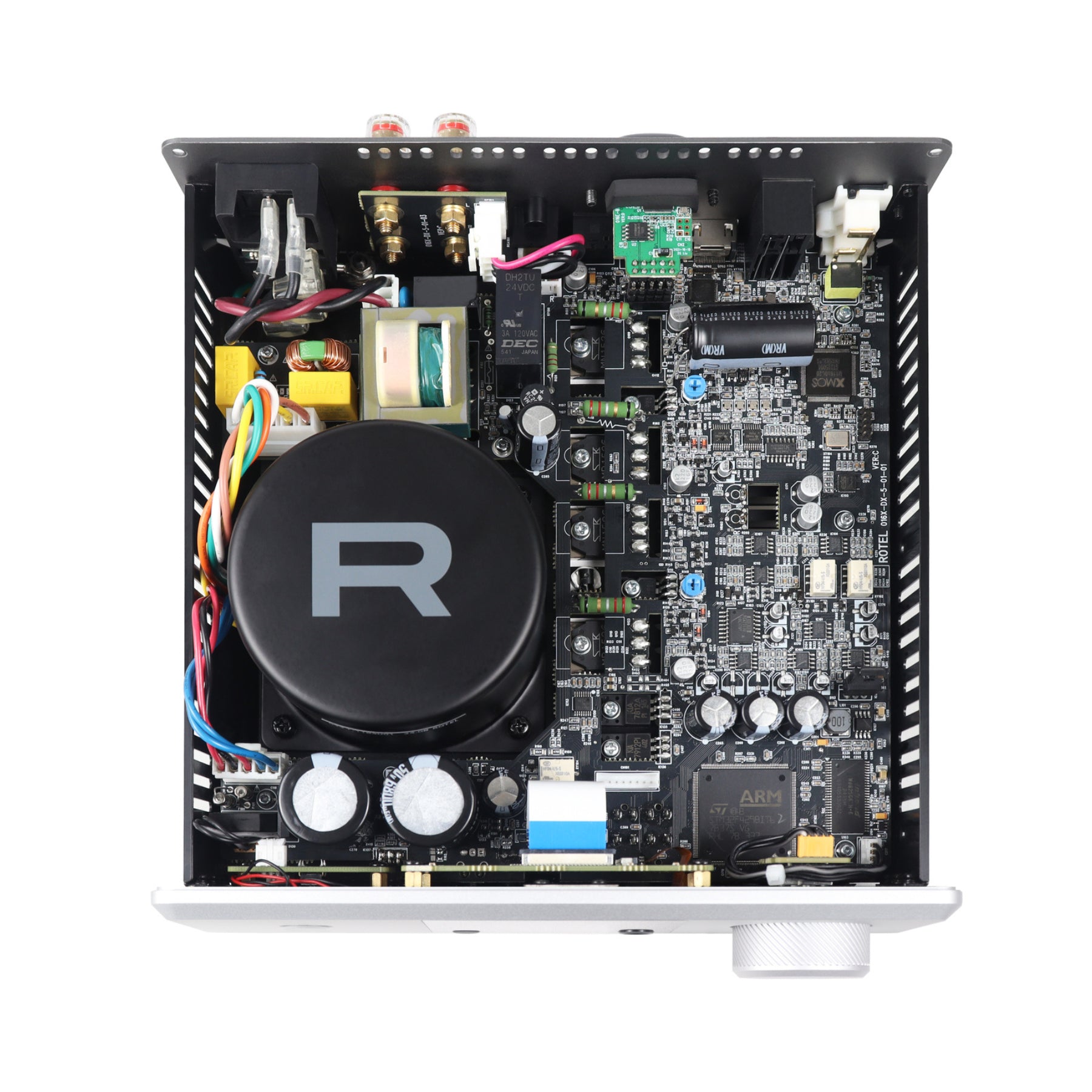

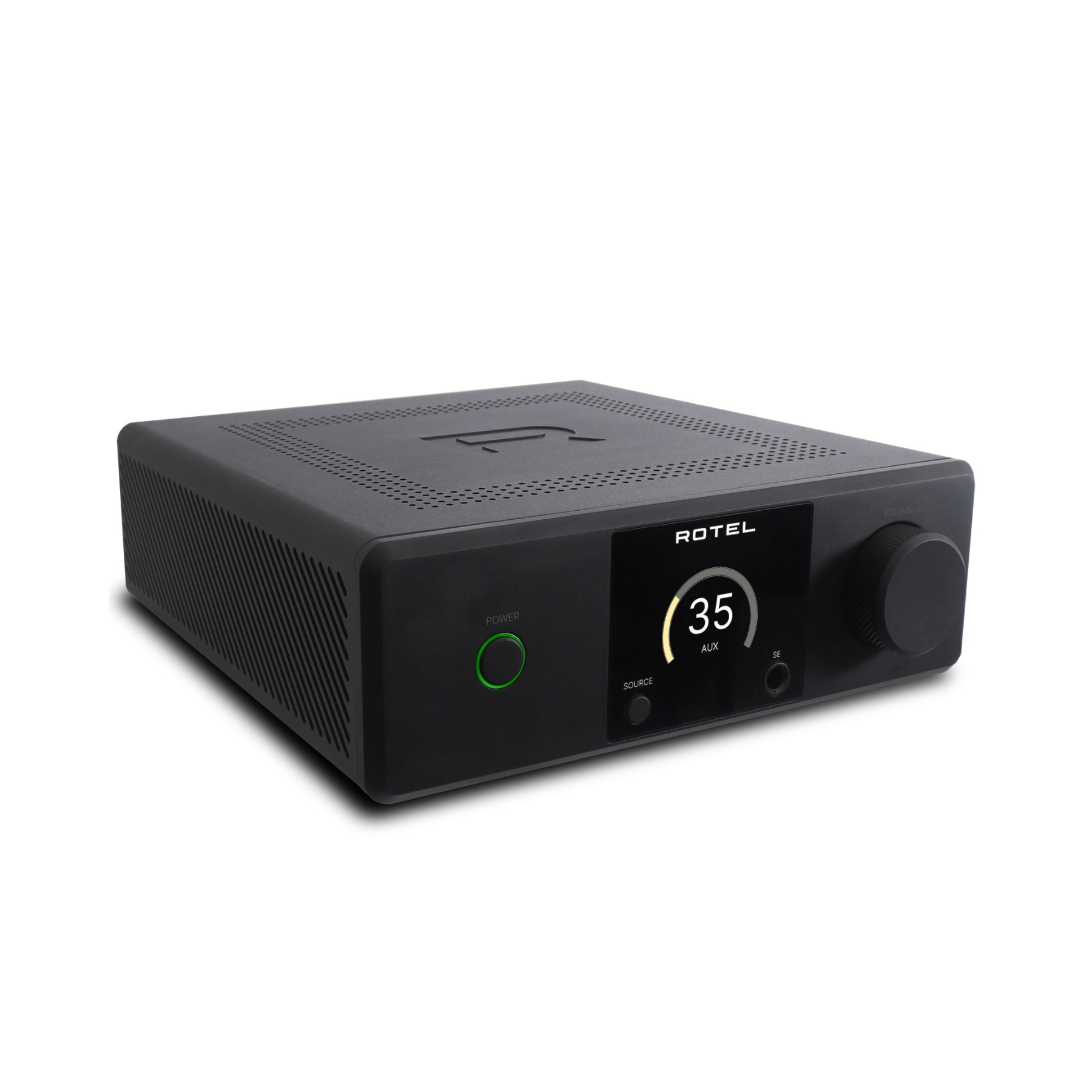

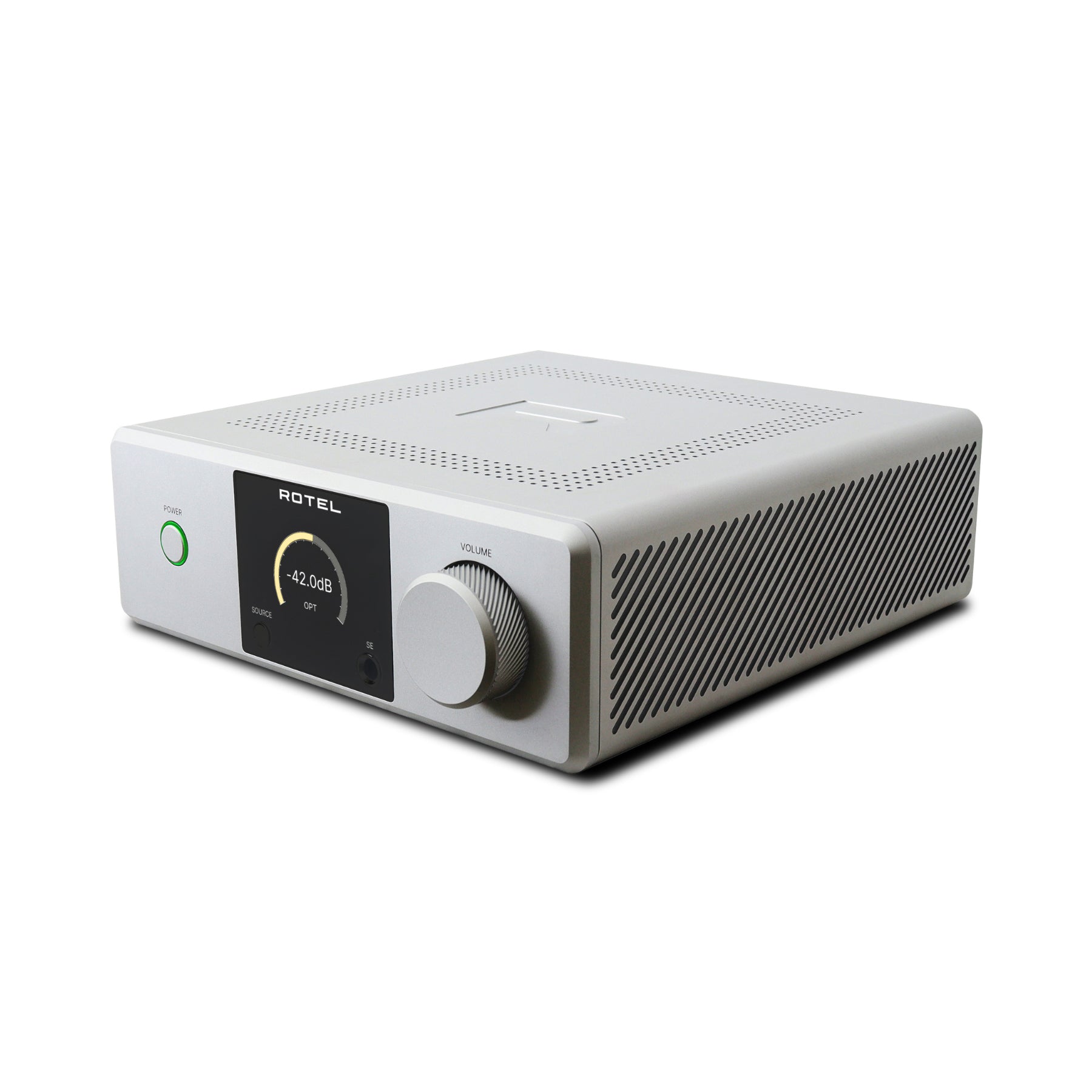

The Rotel DX-5 Personal Audio Integrated Amplifier delivers true hi-fi performance in a sleek, space-efficient chassis built for modern desktops, media consoles, and compact listening rooms. Inside, classic Rotel Class AB amplification is driven by an in-house wound, high-current toroidal transformer to produce clean, controlled power with wide soundstage imaging and confident bass authority. A premium ESS ES9039Q2M Sabre DAC elevates every digital source, while versatile connectivity makes the DX-5 equally at home powering a 2-channel music system, a 2.1 TV setup via HDMI ARC, or private listening through the front-panel 6.35mm headphone jack. With a full-color display, intuitive controls, Bluetooth streaming (including aptX HD and AAC), and an included remote, the DX-5 is a refined all-in-one solution for audiophiles, music lovers, and home entertainment enthusiasts.
The Rotel DX-5 is part of ListenUp's Rotel Integrated Amplifiers Collection.
What It's Good At:
- Delivering detailed, dynamic Class AB sound with strong control and low distortion
- Upgrading digital playback with an ESS ES9039Q2M Sabre DAC for clarity and spacious imaging
- Handling high-resolution audio via PC-USB (up to 32-bit/384kHz PCM, plus DSD)
- Creating a simple, great-sounding TV + speakers setup with HDMI ARC (and CEC support)
- Streaming wirelessly in higher quality with Bluetooth aptX HD and AAC support
- Building a compact 2.1 system with a dedicated subwoofer output and robust speaker drive
Rotel DX-5 Full Specifications:
-
Product type: Integrated Amplifier / Personal Audio Integrated Amplifier
-
Amplifier class: Class AB
-
DAC: ESS ES9039Q2M Sabre DAC (premium 32-bit)
-
Roon: Roon Tested (via PC-USB)
-
Analog Section — Power Output (FTC): 25 W/ch
-
Analog Section — Continuous Power Output (Non FTC): 25 W/ch (1k Hz, 8 ohms)
-
Analog Section — Maximum Power Output (Non FTC): 33 W/ch (1k Hz, 4 ohms)
-
Analog Section — Total Harmonic Distortion: < 0.03%
-
Analog Section — Intermodulation Distortion (60 Hz : 7k Hz, 4:1): < 0.03%
-
Analog Section — Frequency Response: 10 Hz – 100k Hz (0 ± 0.19 dB)
-
Analog Section — Damping Factor (20 Hz – 20k Hz, 8 ohms): 140
-
Analog Section — Input Sensitivity / Impedance: 680 mV / 100k ohms
-
Analog Section — Input Overload: 4.2 V
-
Analog Section — Signal to Noise Ratio (IHF “A” weighted): > 100 dB
-
Digital Section — Frequency Response: 10 Hz – 80k Hz (0 ± 2 dB, Max)
-
Digital Section — Input Sensitivity / Impedance: -10.3 dBFS / 75 ohms
-
Digital Section — Signal to Noise Ratio (IHF “A” weighted): > 100 dB
-
Digital Inputs: SPDIF LPCM (up to 24-bit / 192k Hz)
-
PC-USB: USB Audio Class 2.0 (up to 384k Hz / 32 bit)
-
PC-USB note: Driver installation required (Windows)
-
DSD Support: Up to 4X (11.2M Hz)
-
DoP Support: Up to 2X (5.6M Hz)
-
HDMI: Supports ARC function
-
Bluetooth audio: Traditional Bluetooth, AAC, aptX HD
-

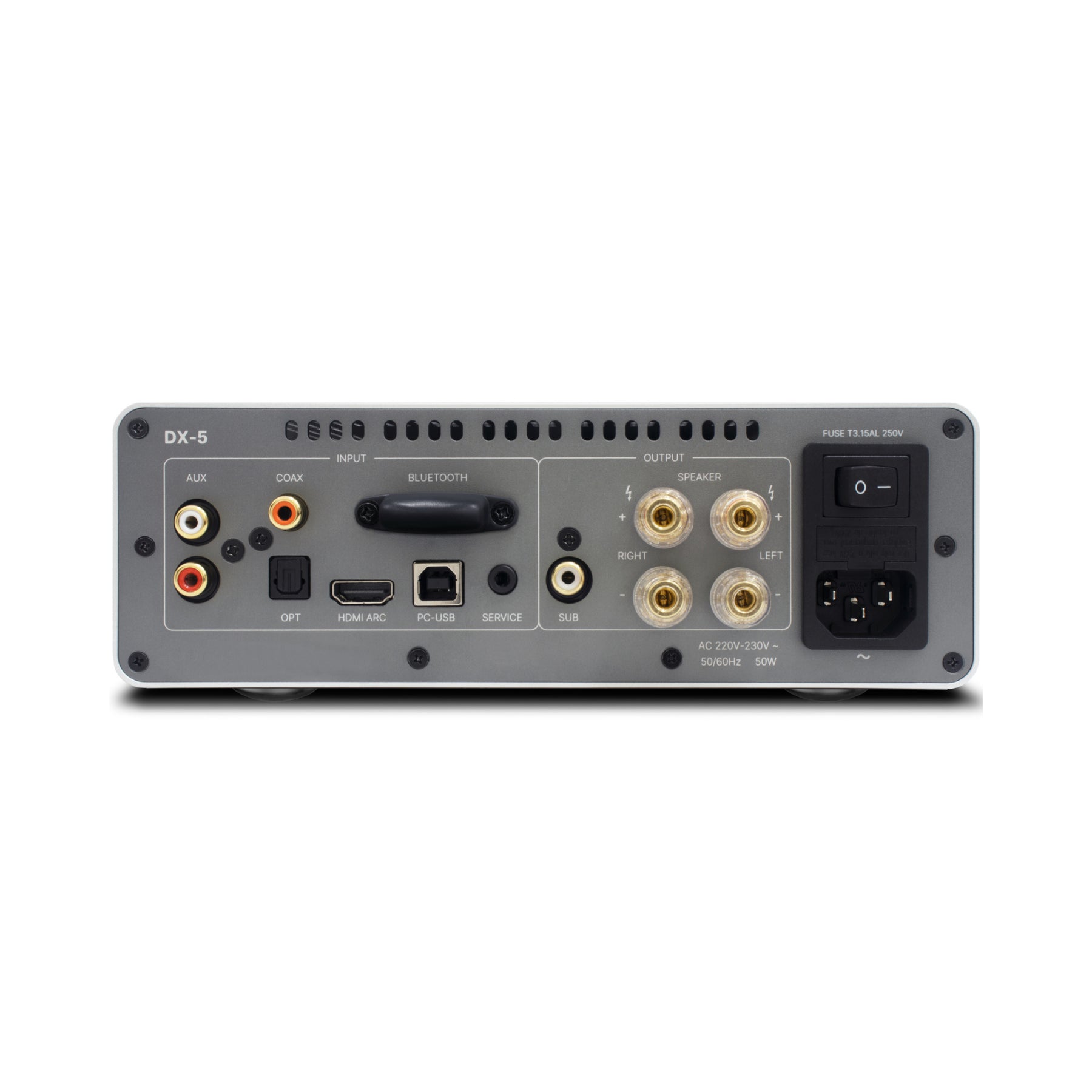

Connections — Analog input: AUX (RCA) “line level” input
-
Connections — Digital input: Coaxial (SPDIF)
-
Connections — Digital input: Optical (PCM)
-
Connections — HDMI: HDMI ARC input (for TV audio)
-
Connections — Computer input: PC-USB input
-
Connections — Bluetooth: Rear Bluetooth antenna connection
-
Connections — Subwoofer output: SUB output (summed L/R; full-range output)
-
Connections — Speaker outputs: Left/Right speaker connectors
-
Connections — Headphone output: Front-panel 6.35mm (1/4") single-ended headphone connector
-
Connections — Service: Service port (factory use only)
-
Connections — Power: AC power input
-
Connections — Master power: Rear master power switch
-
Connections — Main fuse: T3.15AL 250V
-
Power Requirements (USA): 120 V, 60 Hz
-
Power Requirements (EC/Europe): 230 V, 50 Hz
-
Power Consumption: 80 W
-
Standby Power Consumption: Normal < 0.5 W
-
BTU (4 ohms, 1/8 power): 241 BTU/h
-
Dimensions (W x H x D): 215 x 76 x 251 mm
-
Dimensions (inches): 8 1/2" x 3" x 10"
-
Front panel height: 70 mm / 2 3/4"
-
Net weight: 4.1 kg / 9.1 lbs
-
Finish: Black and Silver
-
Included accessory: Remote control (aluminum)
Rotel DX-5 Q&A:
- How much power does the Rotel DX-5 deliver per channel?
- The DX-5 delivers 25 watts per channel into 8 ohms (FTC rated) and up to 33 watts per channel into 4 ohms, providing robust Class AB performance in a compact chassis.
- What digital audio formats and resolutions does the DX-5 support over USB?
- Over PC-USB, it supports USB Audio Class 2.0 up to 32-bit/384kHz PCM, plus DSD up to 4X (11.2MHz) and DoP up to 2X (5.6MHz).
- Does the DX-5 work well with a TV?
- Yes. HDMI ARC support makes TV audio integration simple, and CEC support can enable convenient control depending on your TV’s features.
- What Bluetooth codecs are supported for wireless streaming?
- The DX-5 supports traditional Bluetooth, AAC, and aptX HD for improved wireless sound quality with compatible devices.
- Can I connect a subwoofer to build a 2.1 system?
- Yes. The DX-5 includes a dedicated SUB output designed for connecting an active subwoofer, ideal for compact 2.1 setups.
- What inputs does the DX-5 include for legacy and digital sources?
- It includes an RCA AUX line-level input plus coaxial and optical digital inputs, along with PC-USB and HDMI ARC for modern systems.
- Does the DX-5 have a headphone output for private listening?
- Yes. The front panel includes a standard 6.35mm (1/4") single-ended headphone connector.
- Is the DX-5 compatible with Roon?
- It is Roon Tested via PC-USB, designed to provide a reliable experience when used with Roon software.
Rotel DX-5 Downloads:
Rotel DX-5 Manual
Rotel DX-5 Specifications Sheet
Rotel DX-5 Drawing
