Rotel RA-1572MKII Integrated Amplifier

The Rotel RA-1572MKII Integrated Amplifier is an essential component for music lovers leveraging the best of Rotel’s analog and digital technologies bringing music to life with exceptional fidelity. The role of an integrated amplifier continues to evolve with the RA-1572MKII optimized in every aspect including the power amplifier delivering 120 Watts of robust Class AB output into 8 ohms, audio circuit design innovations, premium audiophile Digital to Analog Converter and a full complement of source inputs.

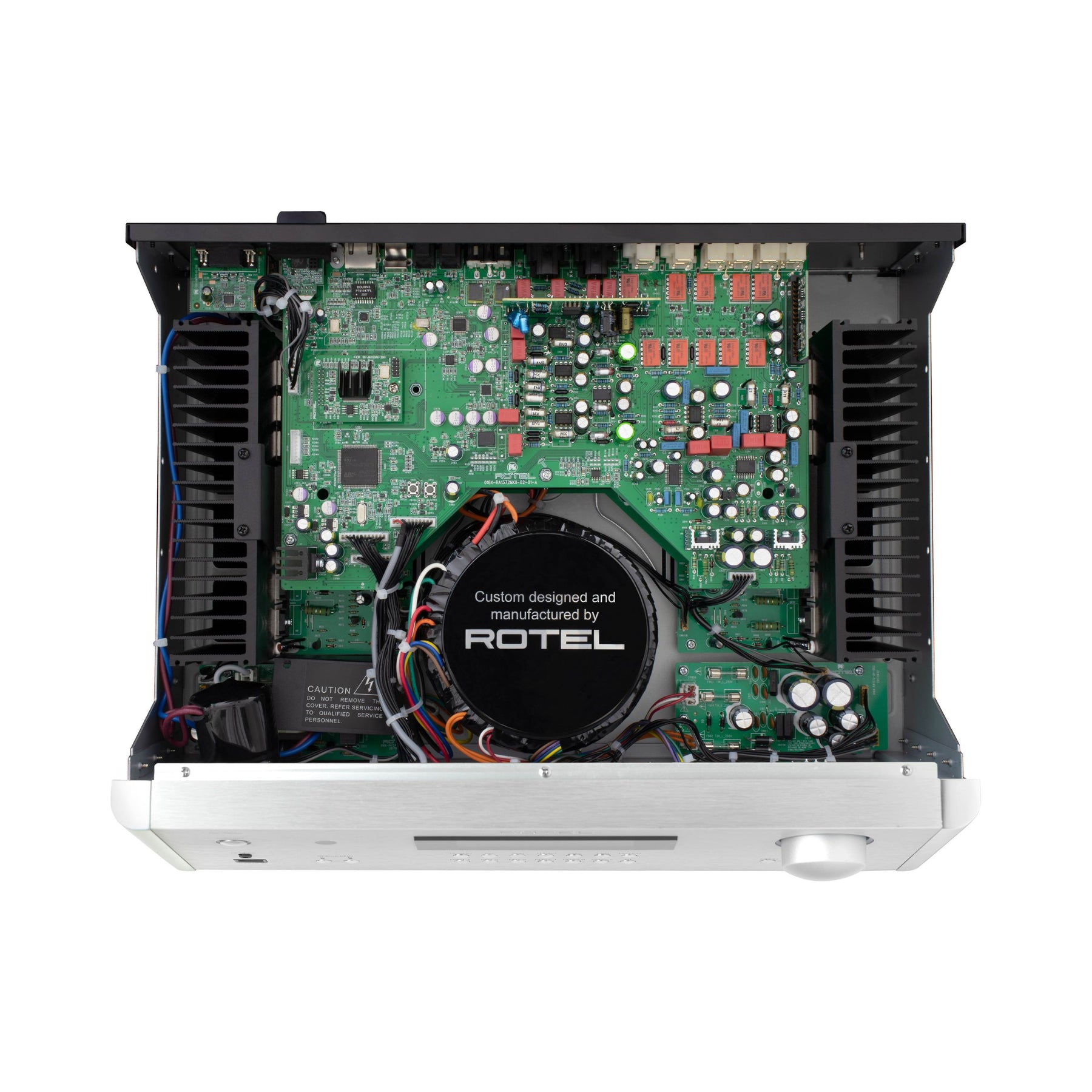

As typical of Rotel amplifiers, the RA-1572MKII utilizes anin-house manufactured oversized toroidal transformer. Thetoroidal transformer’s shape helps prevent stray radiationpatterns from corrupting audio signals as they pass throughadjacent circuits. The transformer feeds a bank of 4 low ESR,high efficiency, T-Network slit-foil storage capacitors for deep,controlled bass energy.

The RA-1572MKII support digital sources utilizing a TexasInstruments 32-bit/384kHz DAC with critically tuned output filtercircuits rendering even the most subtle detail. The preamplifiercircuits and linear amplifier gain stages have been customengineered ensuring natural detail, agility and an immersivesoundstage. Analog, digital, PC-USB supporting MQA, aptX™ andAAC wireless Bluetooth streaming, XLR Balanced and MovingMagnet Phono stage inputs ensures connection to your favoritesources.

The RA-1572MKII is certified Roon testeddelivering the bestexperience using Roon software so you can just enjoy the music.

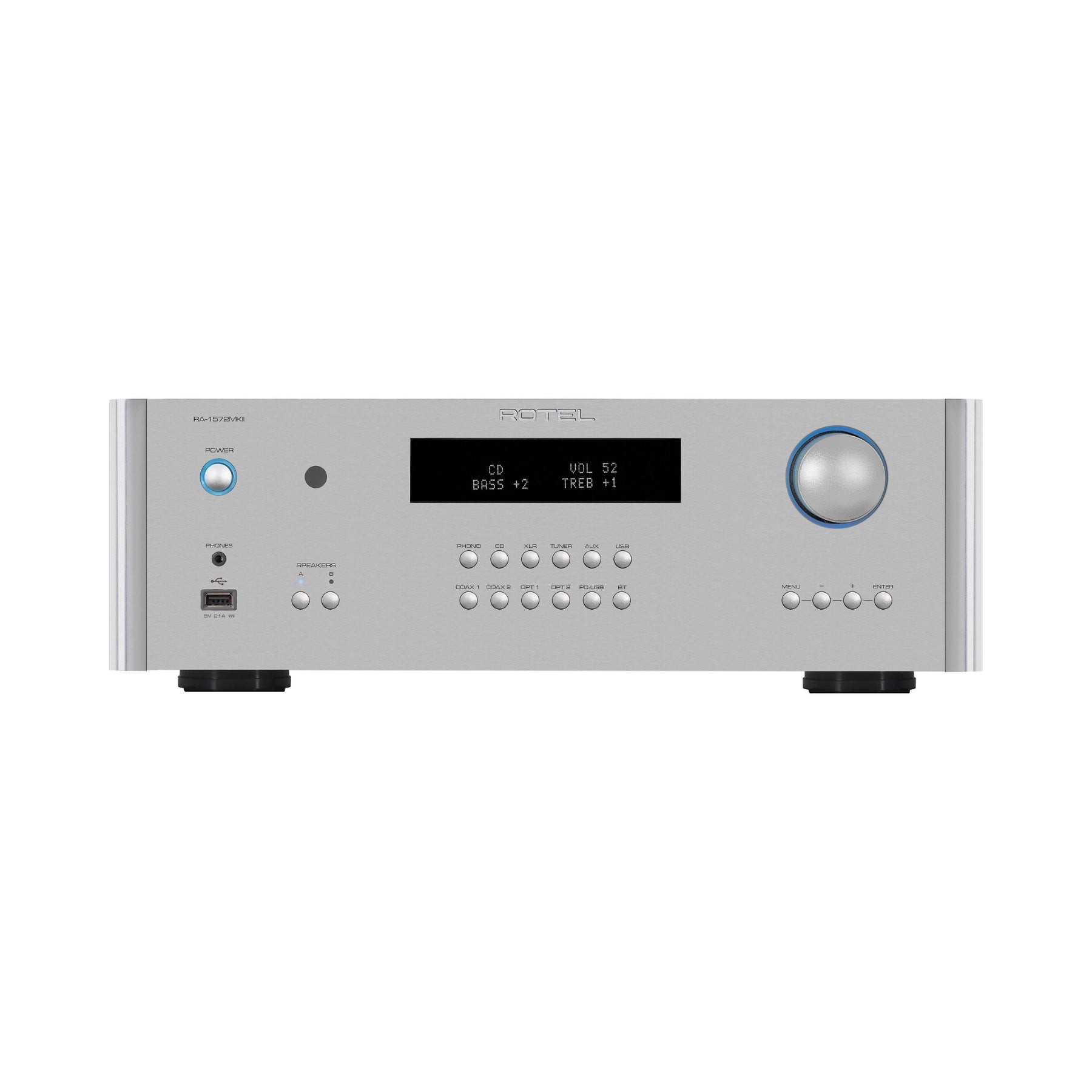

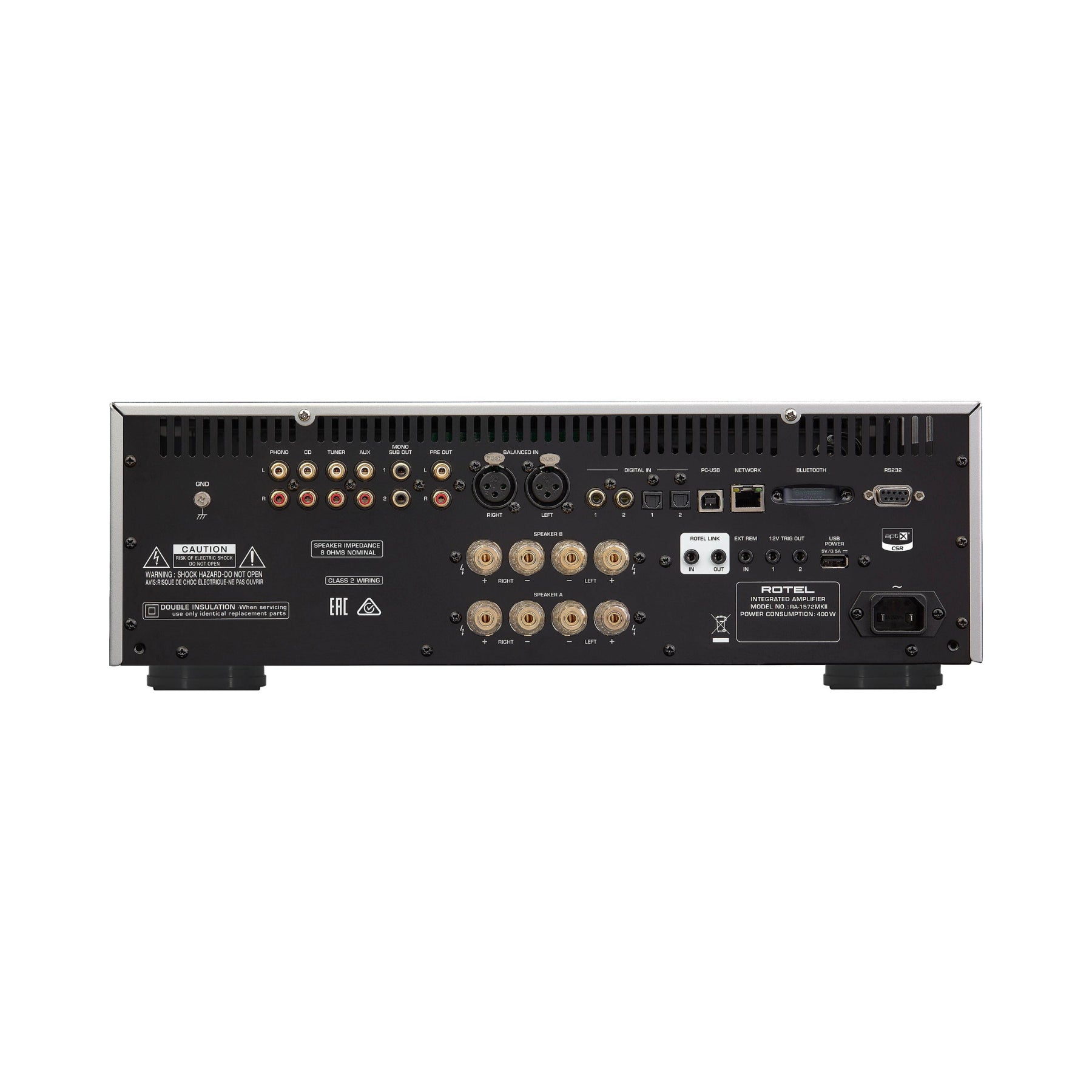

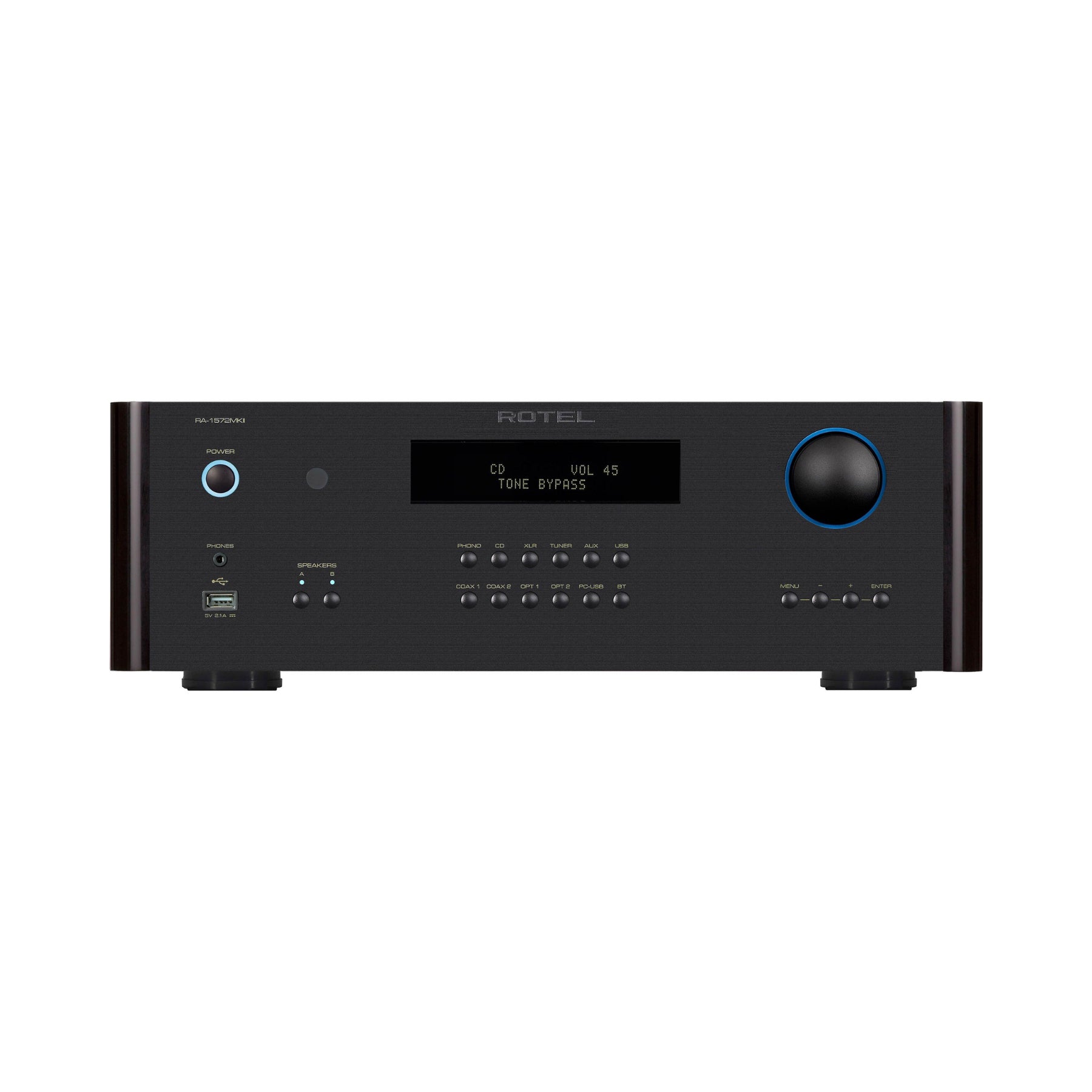

The front panel includes a status display, source and volumecontrols, Speaker A-B selection for Zone 2, and 3.5mmheadphone jack. Ethernet and RS232 connections allowseamless integration with control systems and softwareupdates.

The Rotel RA1572MK2 Integrated Amplifier Specifications:

• MAXIMUM POWER OUTPUT: 200W/Ch (4Ω)
• CONTINUOUS POWER OUTPUT: 120W/Ch (8Ω)
• TOTAL HARMONIC DISTORTION(THD): <0.018%
• FREQUENCY RESPONSES: Line Level Inputs: 10Hz - 100kHz, ±0.5dB | Digital Inputs: 10Hz - 90kHz, ±2dB Phono Input: 20Hz - 20kHz, ±0.5dB
• S/N RATIO (IHF "A" Weighted)
