Rotel RB1590 Amplifier - Clearance / Open Box

Rotel

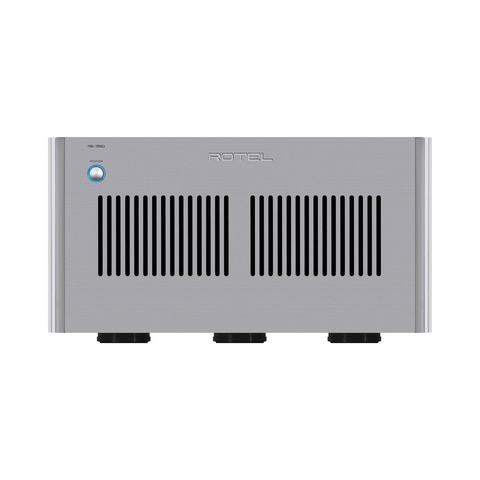

Rotel RB1590 Amplifier - Clearance / Open Box

$3,499.00
$4,599.00
HAVE SOMETHING TO TRADE? CLICK HERE
In Stock
In Stock
Back Order
Back Order
Back Order
Out of Stock
Delivery
Ships within 24 Hours
Delivery
- +
Notify Me When Available
Buy now
Notify Me When In Stock

We’ll be happy to e-mail you when this item is available. Just fill in your name and e-mail address

View Products
Notify Me When In Stock

We’ll be happy to e-mail you when this item is available. Just fill in your name and e-mail address

Notify Me

Product Description

Line Circle

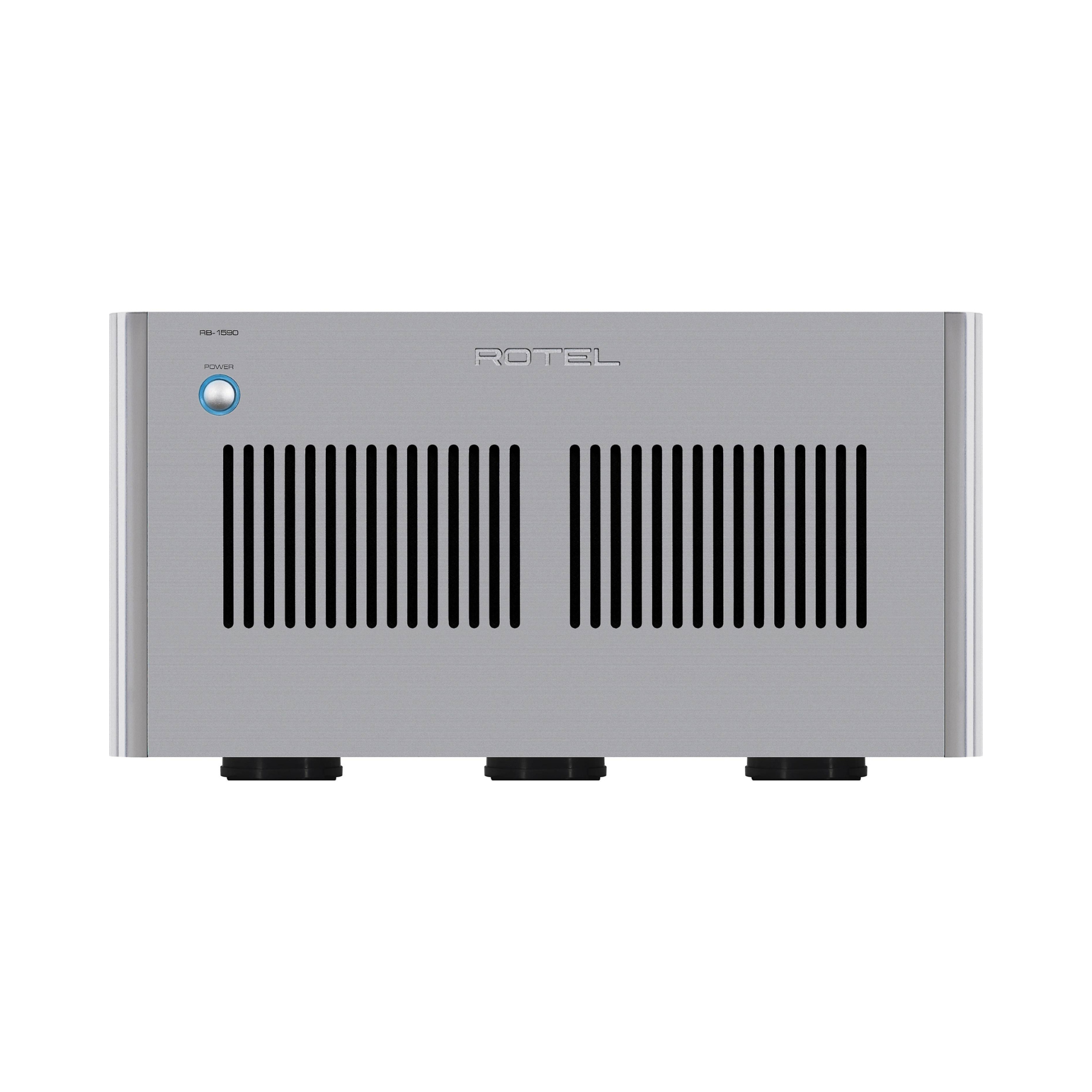

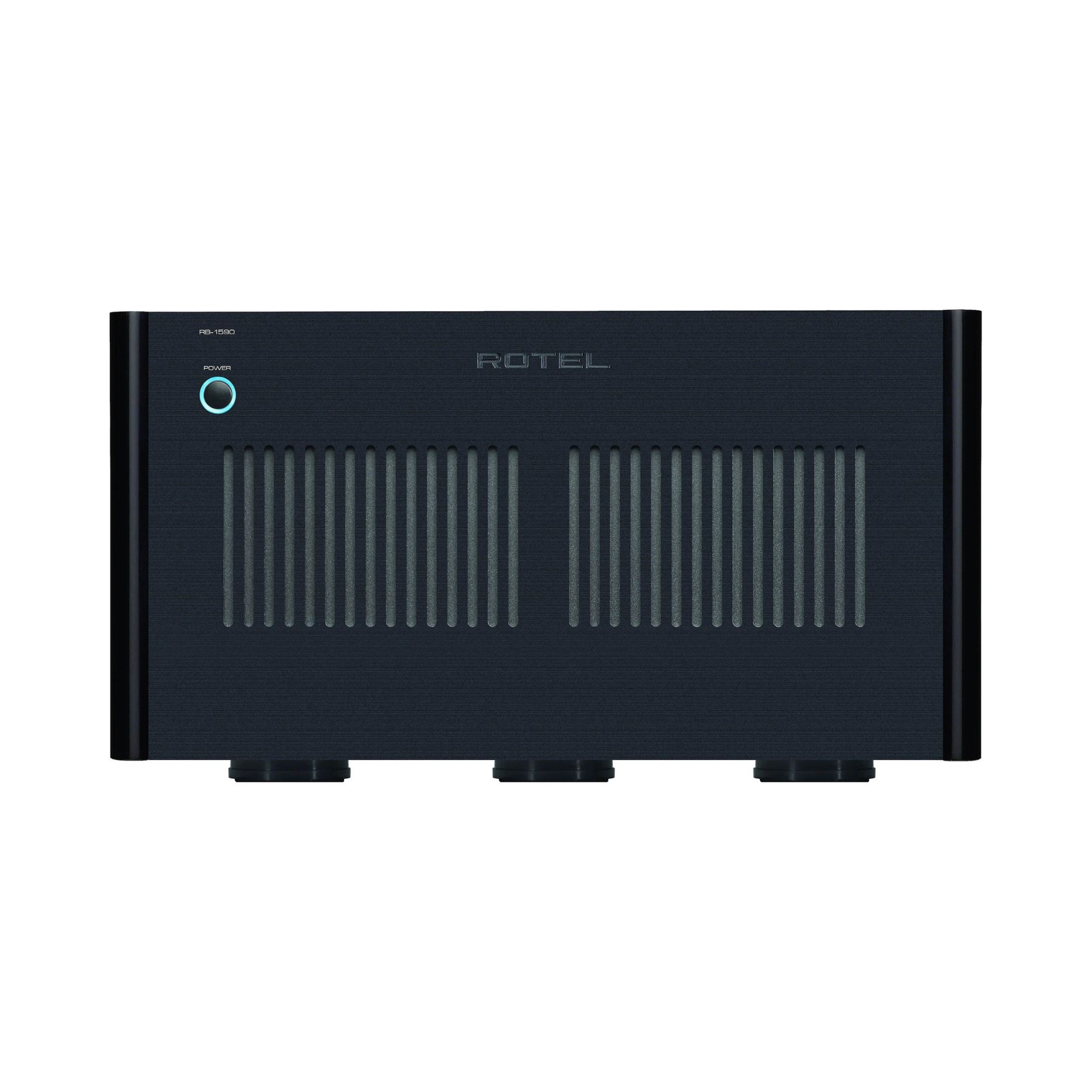

RB-1590 - STEREO AMPLIFIER

The RB-1590 is at the top of its class as a 2 x 350 Watts stereo amplifier with dual toroidal transformers and special slit foil capacitors.

  • 2 x 350 Watts of robust power
  • Class AB amplifier design

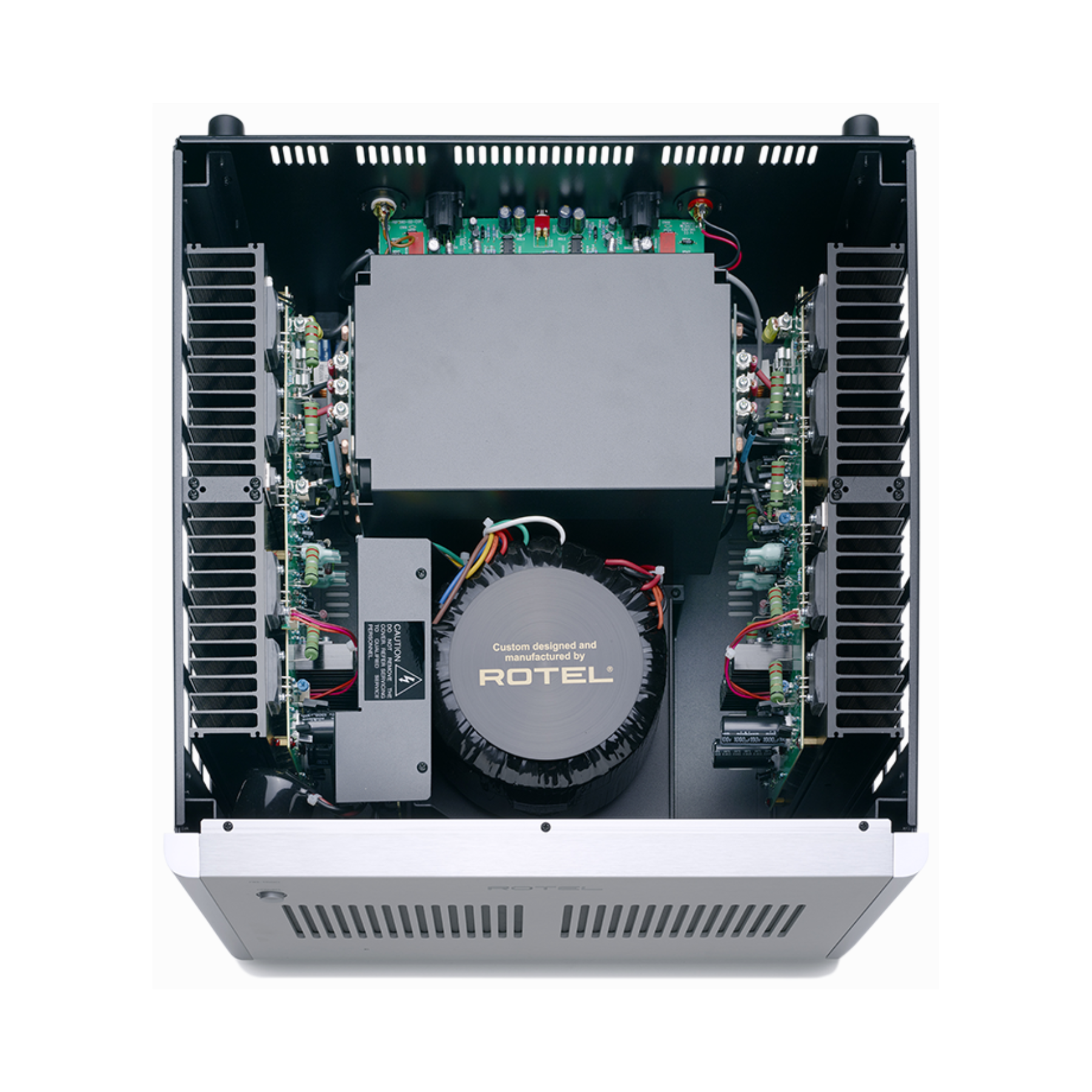

  • Massive power supply using Dual Toroidal Transformers
  • High quality slit foil capacitors made in Britain

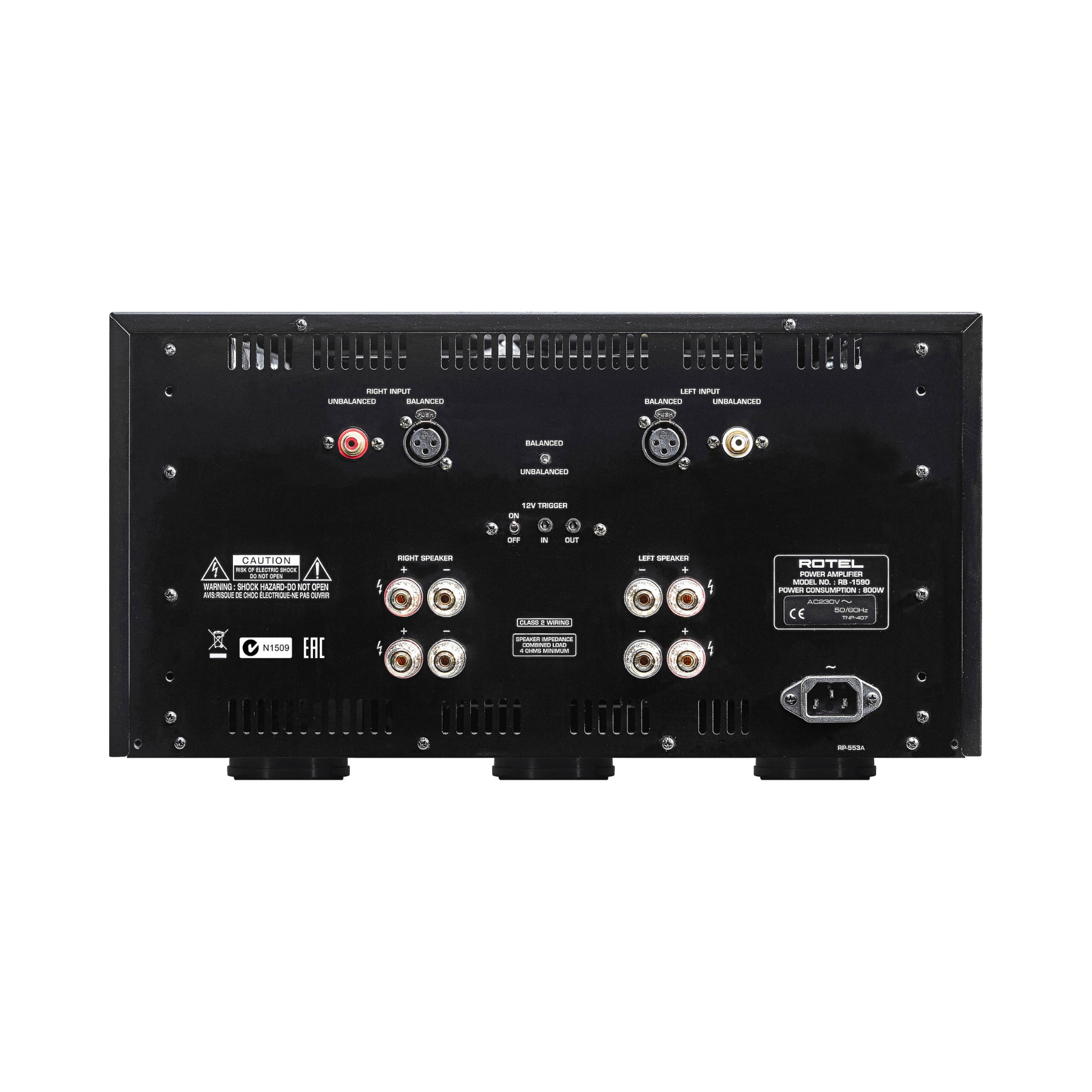

  • Balanced XLR inputs

SPECIFICATIONS:

DIMENSIONS (W × H × D)
431 × 237 × 454mm
17" × 9.75" × 17.9"

FRONT PANEL HEIGHT
5U / 221mm (8.75")

POWER REQUIREMENTS
120V, 60Hz

POWER CONSUMPTION
800W

STANDBY POWER CONSUMPTION
0.5W

NET WEIGHT
38.1kg (84lbs.)

BTU RATING (4Ω, 1/8th power)
2100 BTU/h

CONTINUOUS POWER OUTPUT
350W/Ch (All channels driven, 8Ω)

TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz) <0.03%

FREQUENCY RESPONSE
10Hz - 100kHz ±0.5dB

S/N RATIO (IHF "A" Weighted)
120dB

GAIN
RCA: 27.5dB
XLR: 23.5dB

Features & Specs Line Circle

NUMBER OF CHANNELS
Two
CONTINUOUS OUTPUT POWER
350 Watts Per Channel at 8-Ohms
HARMONIC DISTORTION
(20Hz–20kHz) <0.03%
FREQUENCY RESPONSE
10Hz - 100kHz ±0.5dB
INPUTS
RCA & XLR
NUMBER OF CHANNELS
Two
CONTINUOUS OUTPUT POWER
350 Watts Per Channel at 8-Ohms
HARMONIC DISTORTION
(20Hz–20kHz) <0.03%
FREQUENCY RESPONSE
10Hz - 100kHz ±0.5dB
INPUTS
RCA & XLR

Expert Insight

Line Circle

The massive RB-1590 power amplifier can deliver 350 WPC into an 8 ohm load, but still has plenty of ability to reveal fine detail and subtle tonal character.
