Sony BRAVIA Theater Sub 9 Wireless Subwoofer
Sony BRAVIA Theater Sub 9 Wireless Subwoofer delivers premium, room-shaking bass designed to reveal the ultra-low frequencies that standard audio systems often miss. Built with dual opposing 200 mm aluminum cone drivers in a sealed enclosure, this wireless subwoofer produces deep, clean, tightly controlled bass with reduced vibration, helping movies, shows, sports, and music sound more immersive and more precise. Its wireless design keeps setup cleaner and more flexible, while compatibility with select Sony BRAVIA Theater soundbars, home theater systems, and AV receivers makes it an easy upgrade for a more cinematic listening experience. For users who want even greater low-end impact, compatible systems can support two matching Sub 9 units for stronger, more balanced bass throughout the room.
Are you using a smaller space? Try the Sony BRAVIA Theater Sub 8 or Sub 7.
What It's Good At:
- Delivering ultra-low frequency bass that adds weight, depth, and realism to movies, TV, gaming, and music

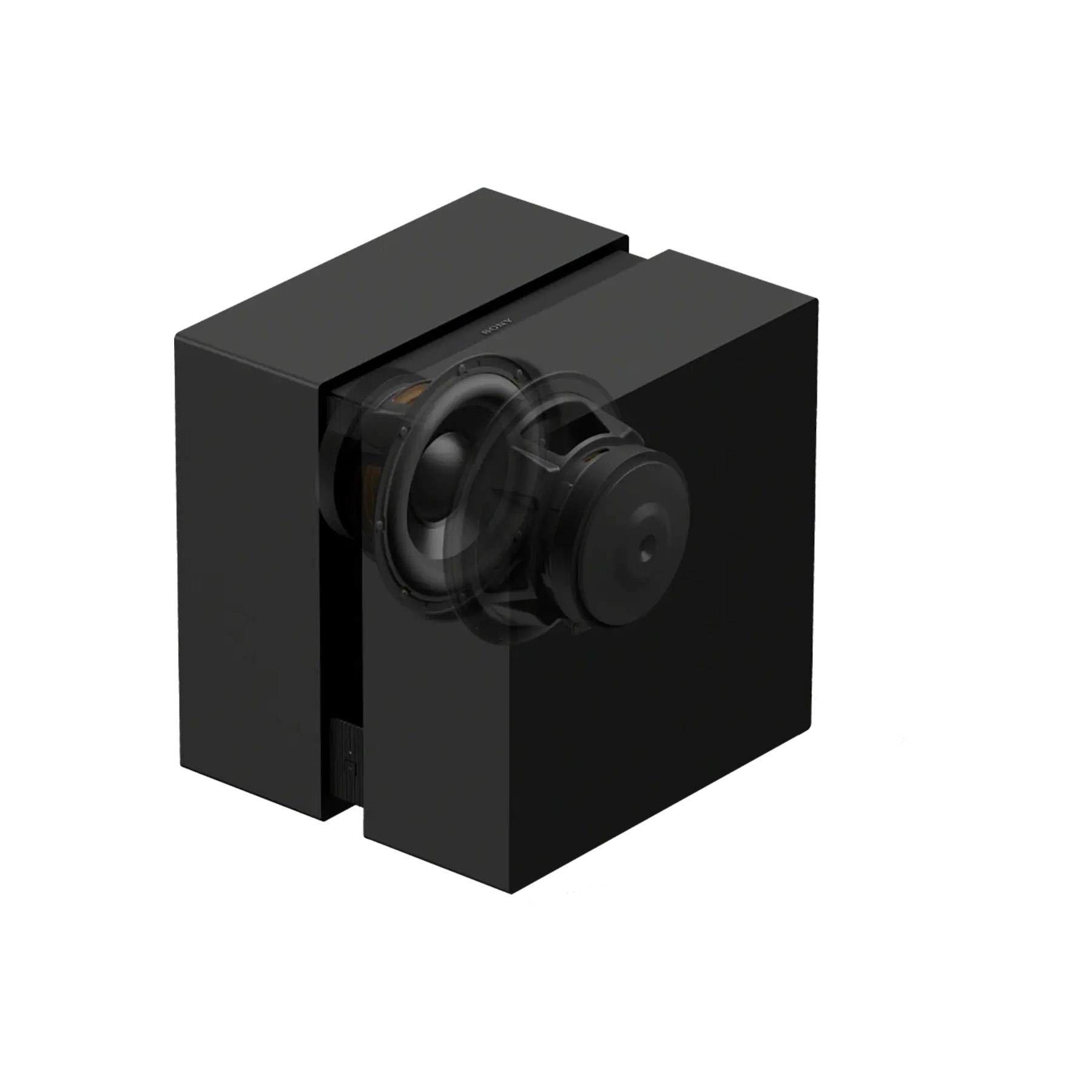

- Producing cleaner, more controlled low-end performance with dual opposing 200 mm aluminum drivers
- Reducing unwanted vibration through a sealed speaker design engineered for tighter bass response
- Expanding compatible Sony home theater and soundbar systems without adding speaker cable clutter
- Supporting dual-subwoofer setups on compatible Sony systems for more balanced, room-filling bass
- Fitting into premium entertainment spaces with a substantial build and flexible wireless integration
Sony BRAVIA Theater Sub 9 Wireless Subwoofer Full Specifications:
- Product name: Sony BRAVIA Theater Sub 9 Wireless Subwoofer
- Model: SA-SW9
- Support model code: YY2102C
- Product type: Additional wireless subwoofer
- Amplifier channels: 2 ch
- Amplifier type: Digital Amplifier, S-Master
- Speaker structure: Subwoofer
- Speaker configuration: Dual opposing drivers
- Speaker size: 200 mm (7 7/8 in) cone type x2
- Speaker system: Sealed type
- Wireless LAN communication system: IEEE 802.11 a/b/g/n/ac/ax
- Wireless LAN frequency bands: 2.4 GHz, 5 GHz, 6 GHz
- Bluetooth frequency band: 2.4 GHz band (2.400 0 GHz - 2.483 5 GHz)
- Bluetooth output: Bluetooth Specification Power Class 1.5
- Bluetooth maximum communication range: Line of sight approx. 30 m (98.4 ft)
- Wireless transmitter/receiver communication system: Wireless Sound Specification
- Wireless transmitter/receiver modulation method: OFDM
- Wireless transmitter/receiver frequency bands: 5 GHz, 6 GHz
- Dual subwoofer support: Yes, on compatible Sony systems using two matching subwoofers
- Power supply: AC 120 V, 60 Hz
- Power consumption: 100 W
- Network standby mode power consumption: 2.0 W or less
- Off mode power consumption: 0.3 W
- Auto standby activation: After about 20 minutes
- Networked standby mode activated: After 20 minutes (Bluetooth connection)
- Wireless network on/off switch method: Press the LINK button 5 times
- Dimensions (W x H x D): Approx. 390 mm x 400 mm x 350 mm
- Dimensions (W x H x D): Approx. 15 3/8 in x 15 3/4 in x 13 7/8 in
- Weight: Approx. 23.3 kg
- Weight: Approx. 51 lb 6 oz
- Exterior/control details: LINK button, power indicator, side opening, bottom AC inlet
- Included in the box: Subwoofer (1)
- Included in the box: AC power cord (mains lead) (1 or 2, depending on region)
- Included in the box: Documents (1 set)
- Included in the box per support page: AC cord, warranty card, reference guide
- Optional regional accessory: AC plug adaptor (1, some countries/regions only)
- Compatibility note: Works only with specific compatible Sony models
- Compatible families named on product page: BRAVIA Theater Quad, Bar 9, Bar 8, Bar 7, HT-A7000, HT-A5000, HT-A3000
Sony BRAVIA Theater Sub 9 Wireless Subwoofer Q&A:
- Which Sony systems are compatible with the BRAVIA Theater Sub 9?
- The Sub 9 is designed for select compatible Sony home audio products, including the families listed on the product page such as BRAVIA Theater Quad, Bar 9, Bar 8, Bar 7, HT-A7000, HT-A5000, and HT-A3000. Sony also notes that compatibility should be confirmed against its current compatibility list for supported main audio devices.
- Is the Sony SA-SW9 a wireless subwoofer?
- Yes. It is a wireless subwoofer that connects with compatible Sony audio systems, helping keep installation cleaner and reducing cable clutter in the room.
- Can two BRAVIA Theater Sub 9 subwoofers be used together?
- Yes, compatible Sony systems can support dual subwoofers, but both connected subwoofers must be the same model. Sony notes this can create stronger, more balanced room-filling bass.
- What kind of bass performance does the Sub 9 deliver?
- The Sub 9 is built for ultra-low frequency performance with deep, powerful, controlled bass. Its dual opposing 200 mm aluminum drivers and sealed design help deliver strong impact with reduced vibration and better low-end precision.
- What type of enclosure does the SA-SW9 use?
- The BRAVIA Theater Sub 9 uses a sealed speaker design, which supports tighter, cleaner bass response.
- How large and heavy is the Sub 9?
- The unit measures about 390 mm x 400 mm x 350 mm, or 15 3/8 in x 15 3/4 in x 13 7/8 in, and weighs about 23.3 kg, or 51 lb 6 oz.
- What comes in the box with the Sony Sub 9?
- The package includes the subwoofer, AC power cord, and documentation, with some regions also including an AC plug adaptor. Sony’s support specs page also lists the AC cord, warranty card, and reference guide.
- Is setup complicated?
- Setup is intended to be straightforward with compatible Sony systems. Sony provides connection guidance through its Help Guide, and some supported soundbars and systems use the Sony | BRAVIA Connect app during setup.
