SPAN Drive Level 2 EV Charger (1-01400) - Clearance / Open Box
SPAN Drive Level 2 EV Charger (1-01400) - Clearance / Open Box
$719.00
$750.00
In Stock
Back Order
Out of Stock
Ships within 24 hours
Notify Me When In Stock
We’ll be happy to e-mail you when this item is available. Just fill in your name and e-mail address
Notify Me When In Stock
We’ll be happy to e-mail you when this item is available. Just fill in your name and e-mail address
Product Description

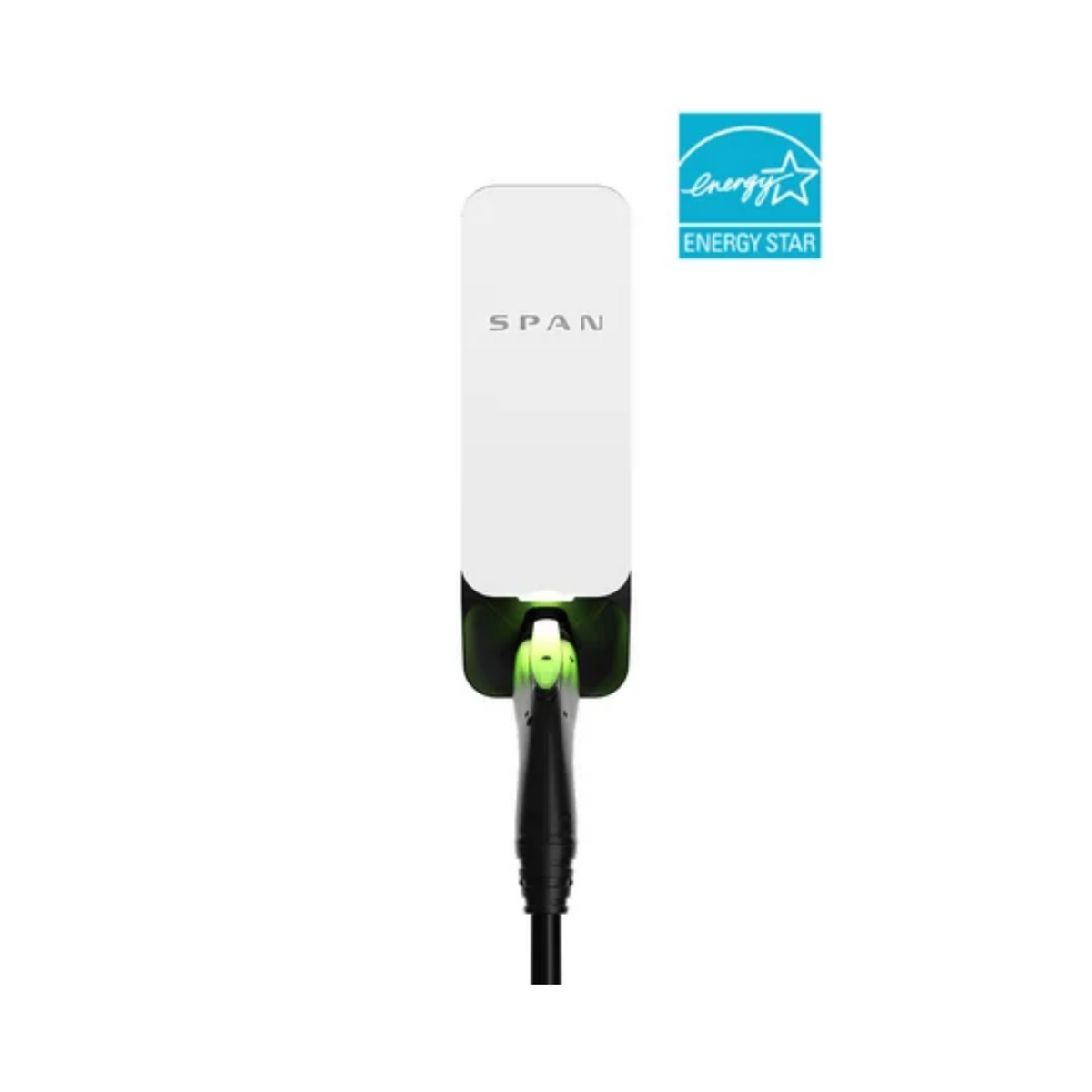

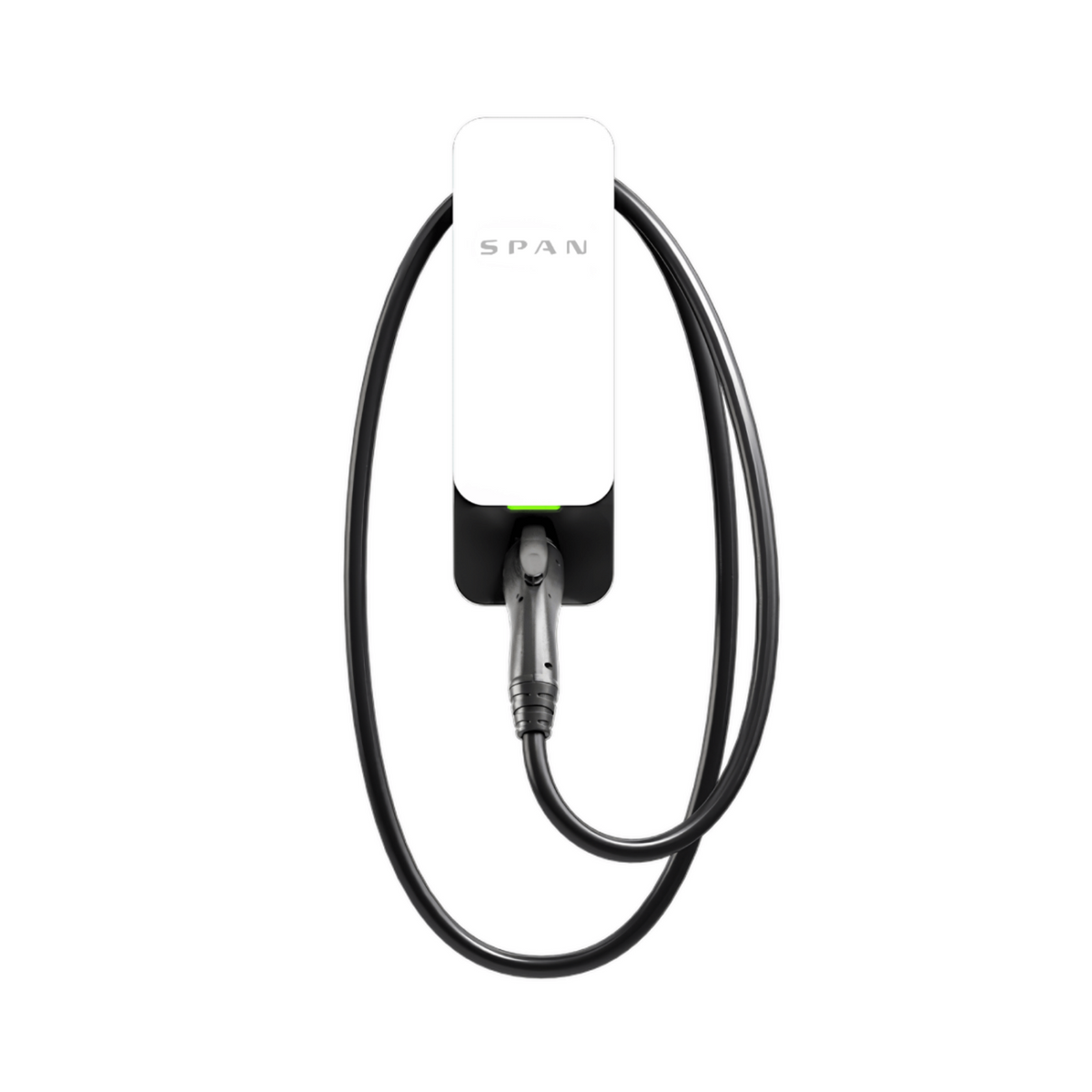

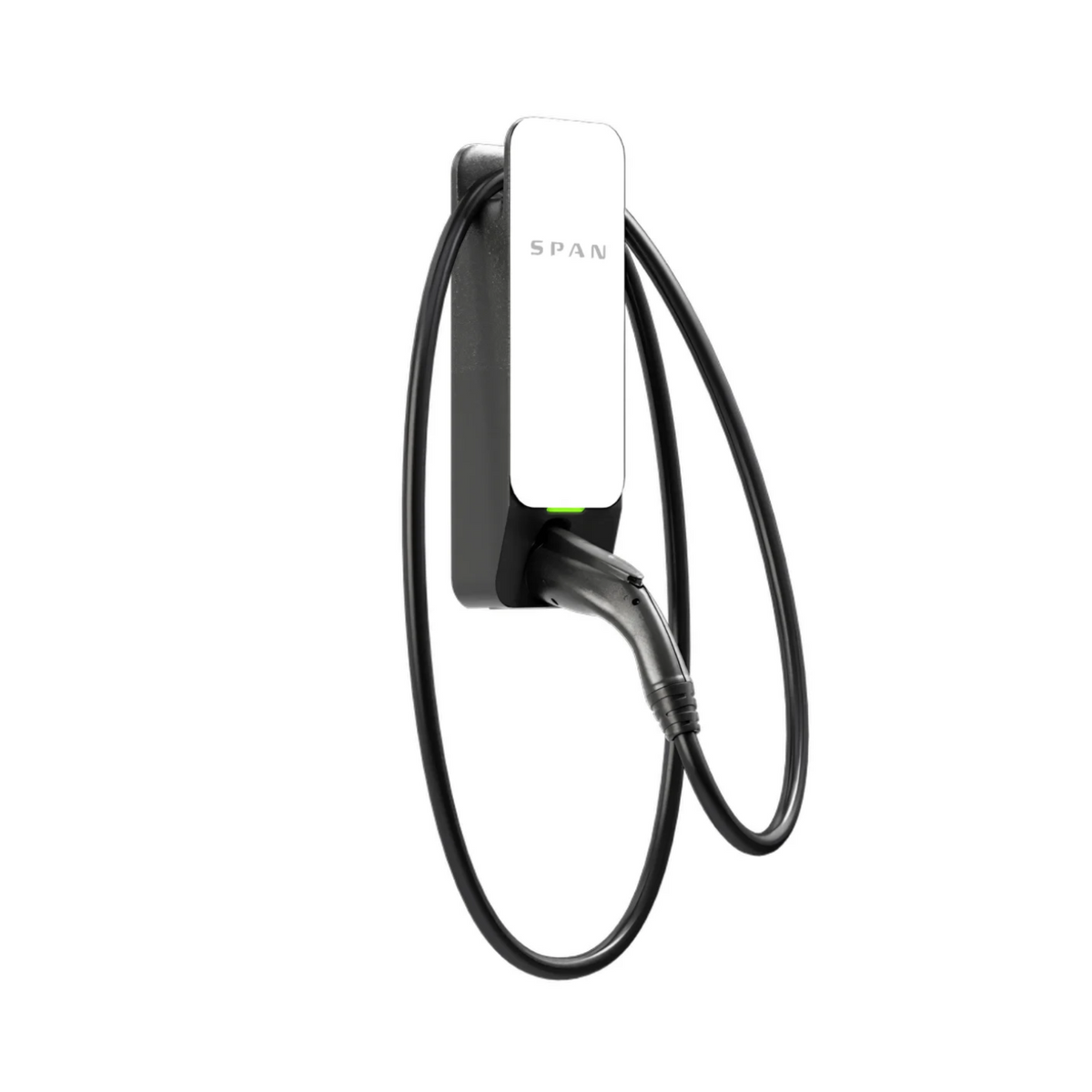

SPAN Drive Level 2 EV Charger is a powerful home electric vehicle charging station that delivers a high-speed charge while protecting smaller home electrical panels from overloading.
Get the Details
Get the Details
Features & Specs
First Level 2 electric vehicle charger designed for real time coordination with all home loads for maximum charging speeds at all times
Deliver 48A (11.5 kW) rate of charge - 1.5x the rate of typical Level 2 chargers - adding ~41 miles of range per hour of charge
Schedule charging windows to avoid peak time-of-use utility energy rates for cheaper charging
Avoid costly and time consuming electrical service upgrades when adding SPAN Drive to homes on lower service sizes
Expert Insights Coming Soon
Details
SPAN Drive EVSE
SPAN Drive is the first level 2 vehicle charger designed for real-time coordination with all home loads for max charging speeds and optimized energy usage without costly home electrical upgrades.
Features
- Pairs with your home to dynamically use as much energy as is available, delivering up to 48 amps (11.5 kW) — 1.5x the rate of typical Level 2 chargers
- Unlocks level 2 charging for any home without needing to make any expensive electrical service upgrades

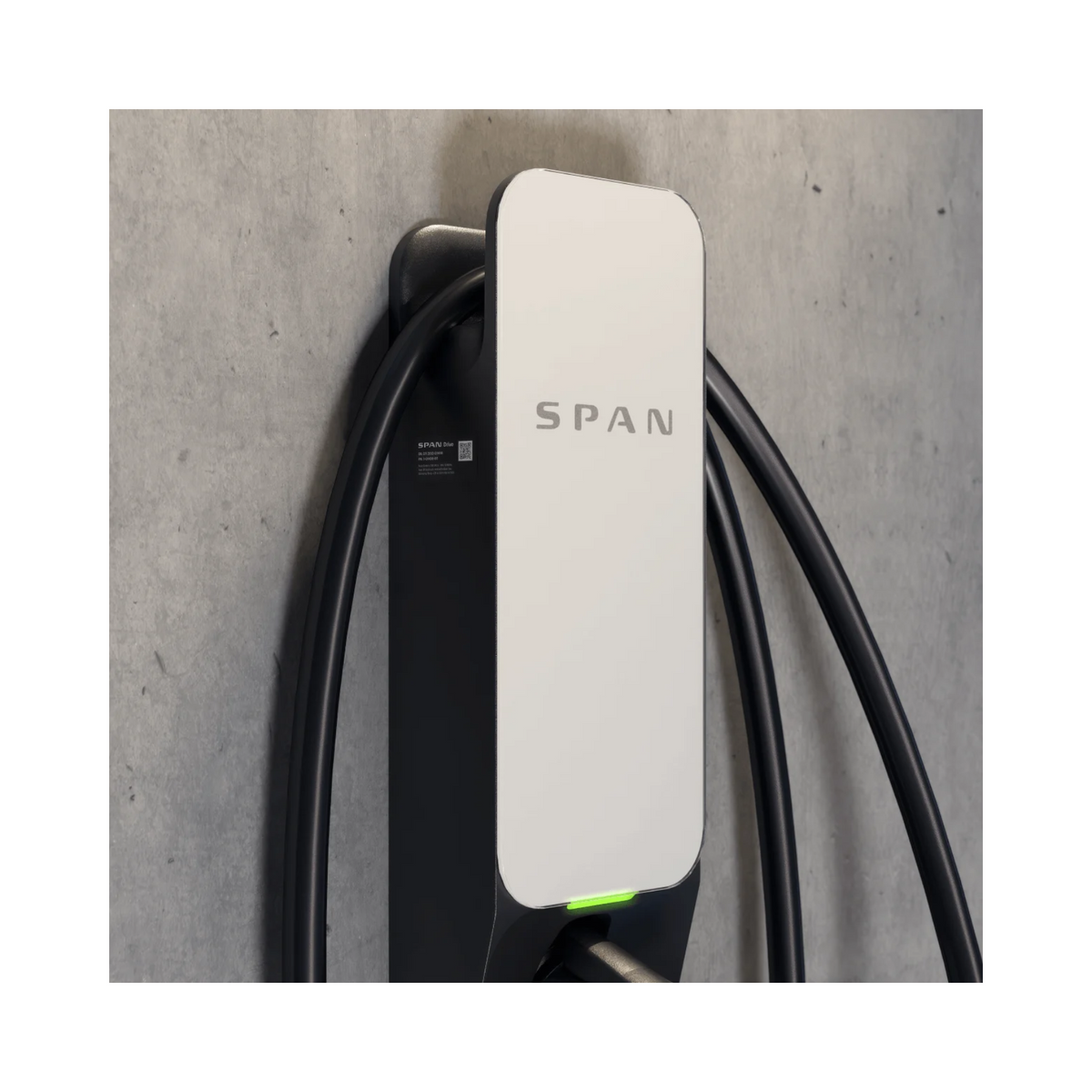

- Looks as good as it performs and blends effortlessly with indoor and outdoor spaces as a worthy companion to your sleek EV
- Dynamic charge management for service upgrade avoidance
- Charge on schedule
- Lock Drive to prevent unwanted charging sessions
Technical Specifications
- Max power: 11.52 kW (48A)
- Output current: 6 - 48A (configurable)
- Connectivity: RS485 connection to SPAN Panel
- Connector type: SAE J1772
- Certifications: UL 2594, UL 2231, ENERGY STAR®
- Cable length: 20 ft (6.1 m)
- Mounting options: Wall mounted
- Dimensions: 17.9 x 5.9 x 3.1 in (H x W x D)
- Enclosure rating: NEMA 3R (Indoor and outdoor)
- Ground fault circuit interrupter: Integrated (CCID20)
Mechanical Specifications
- Connector Type: SAE J1772
- Cable Length: 20 ft (6.1 m)
- Dimensions: 17.9 x 5.9 x 3.1 in (455 x 150 x 80 mm)
- Mounting Options: Wall mounted
- Weight: 16 lbs (7.2 kg)
Environmental Specifications
- Operating Temperature: -22 to 122oF (-30 to 50oC)
- Operating Humidity (RH): Up to 100% condensing
- Environment: Indoor and Outdoor (NEMA 3R)
- Maximum Elevation: 3000 m (9842 ft)
Compliance Information
- Certifications: UL 2594, UL 2231 ENERGY STAR® (PN 1-01400-04 and later)
- Emissions: FCC Part 15 Class B
- More: Meets NEC Art. 625 requirements
Compatibility

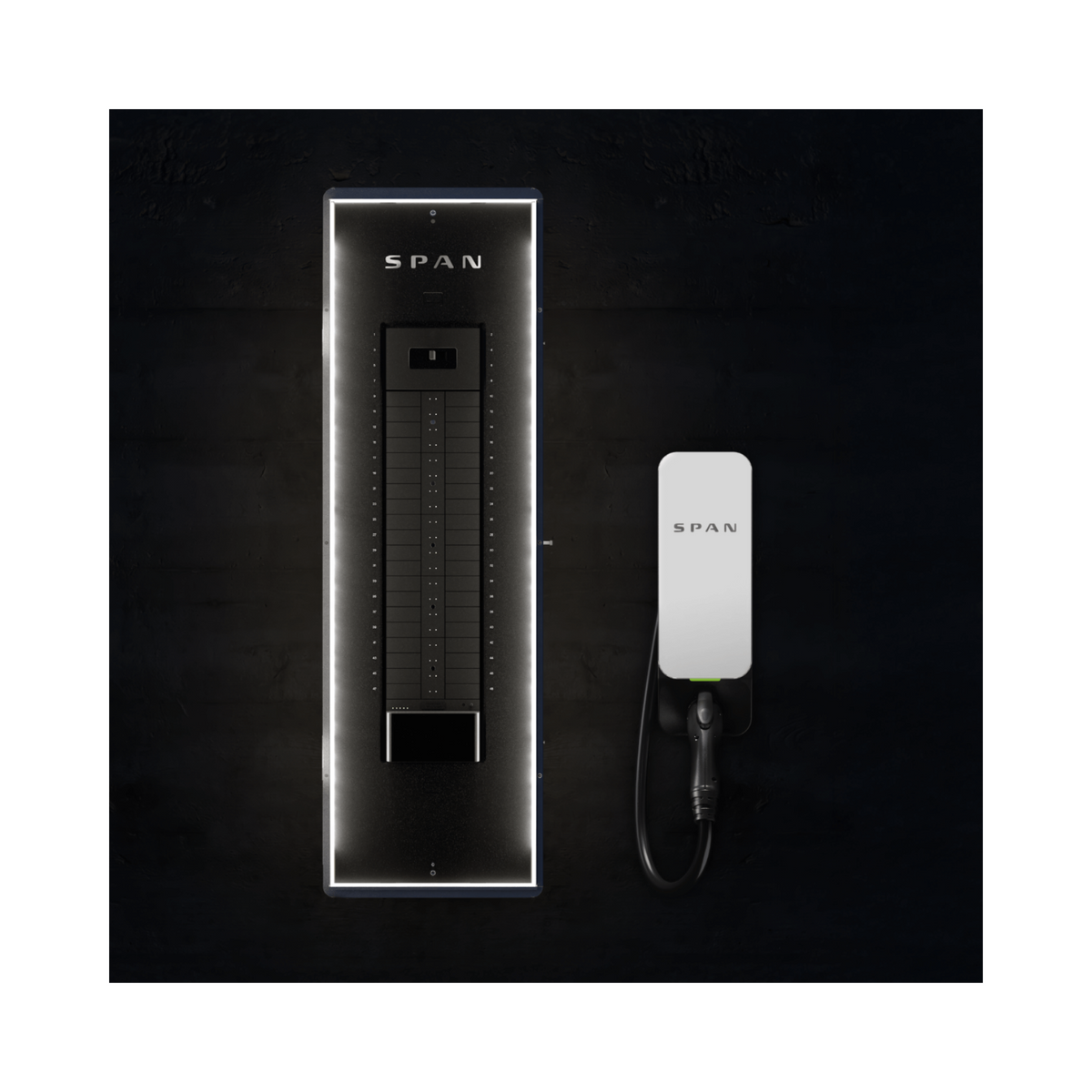

SPAN Drive is sold exclusively as an accessory to SPAN Panel and is not supported as a standalone charger. Drive can be
used with any Battery or Plug-In Hybrid Electric Vehicle (BEV/PHEV) that is compliant with SAE J1772 (including Tesla).
