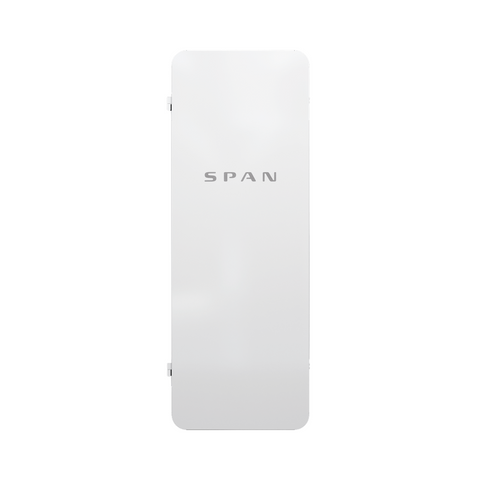

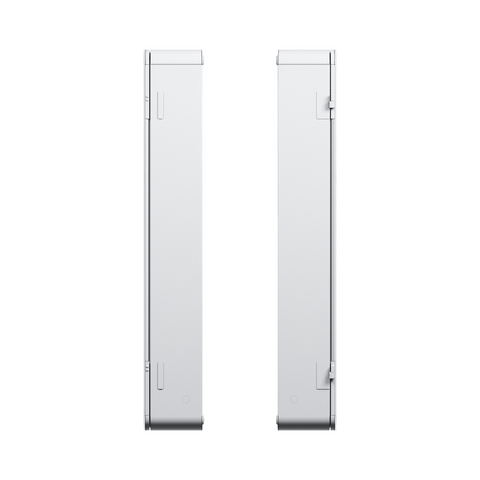

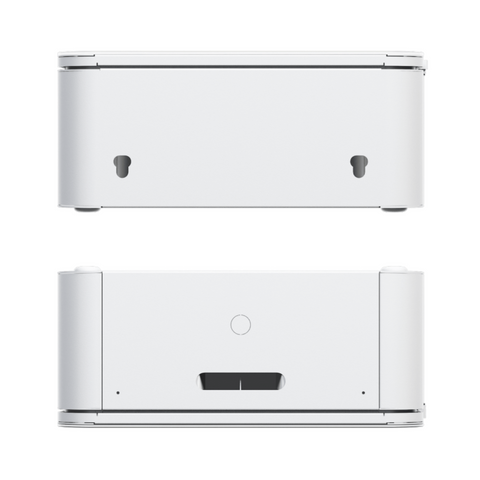

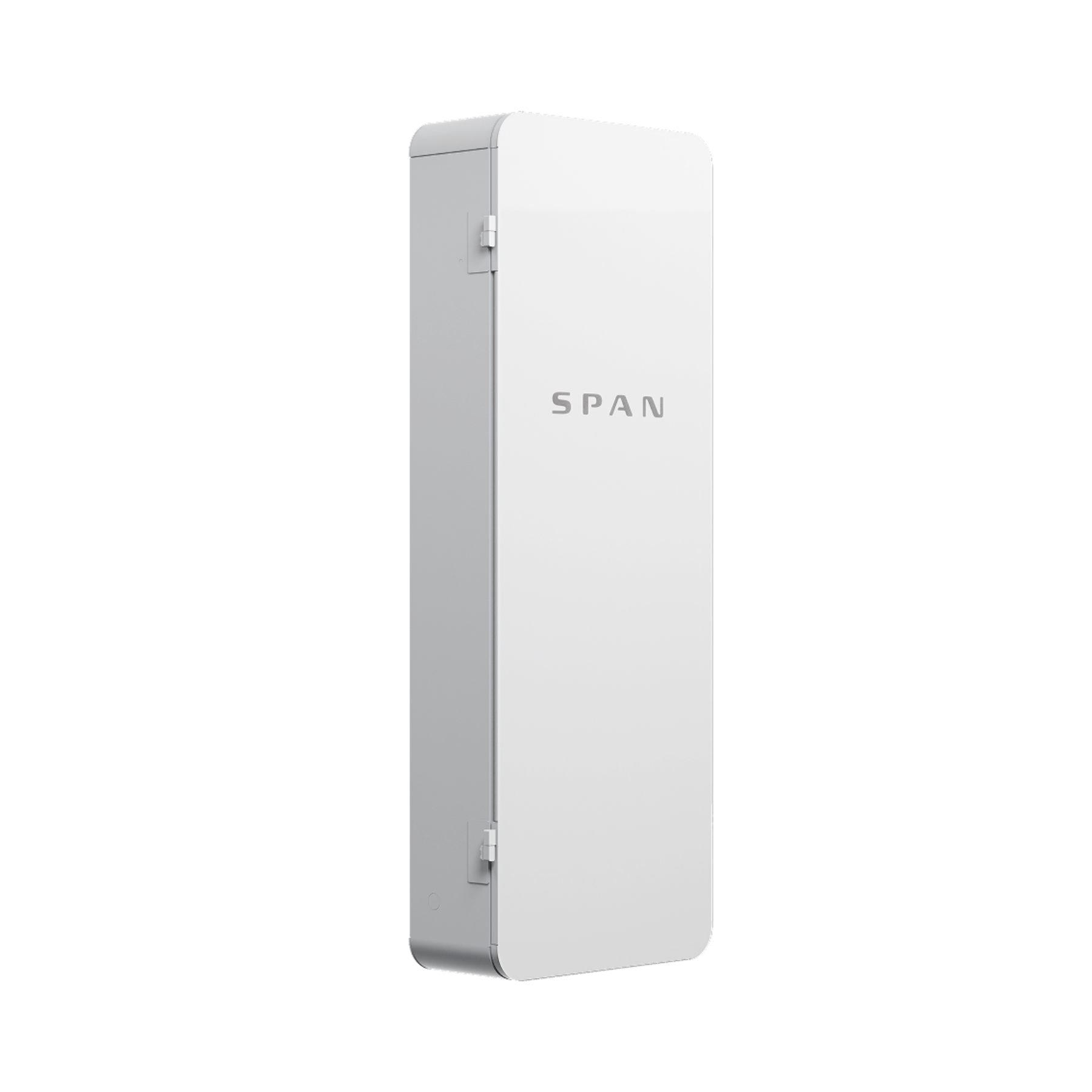

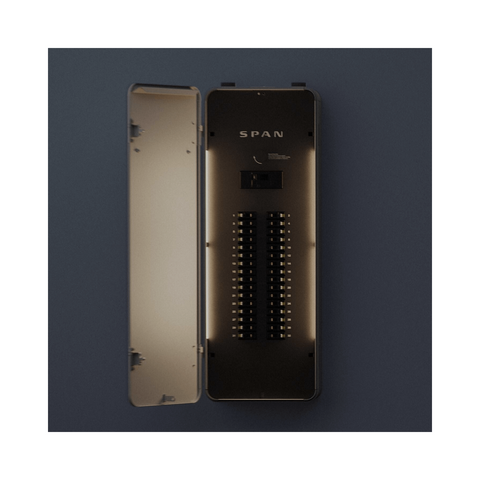

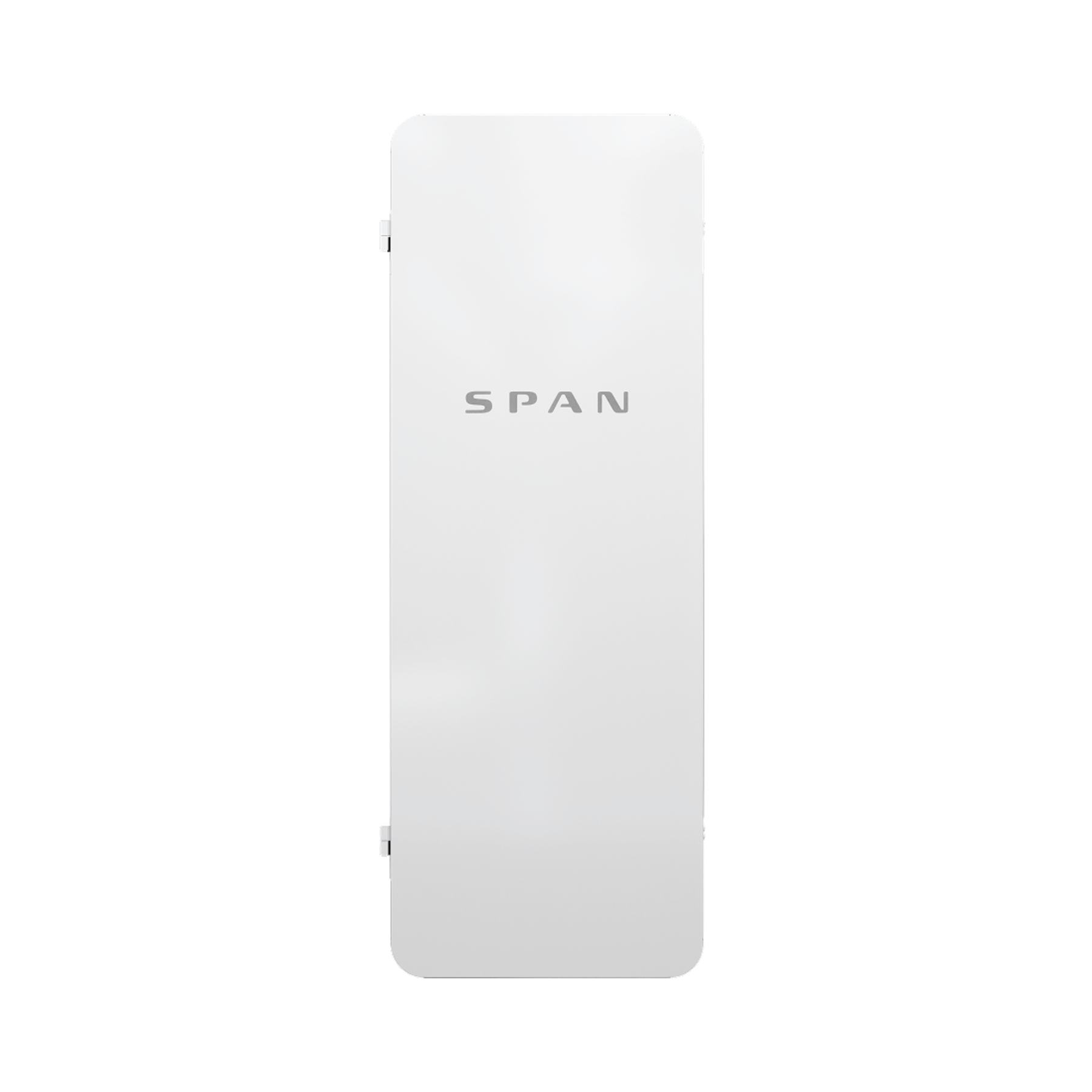

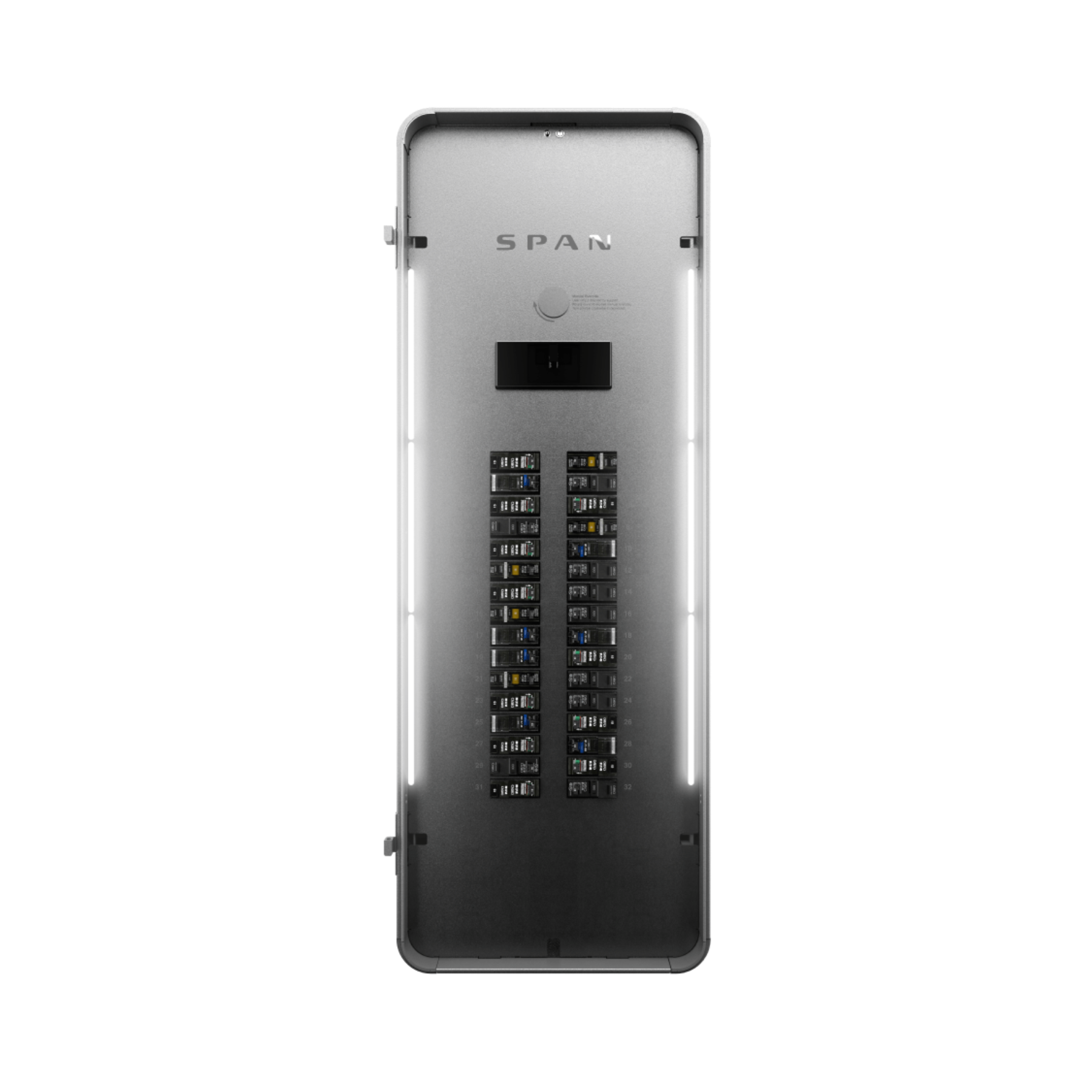

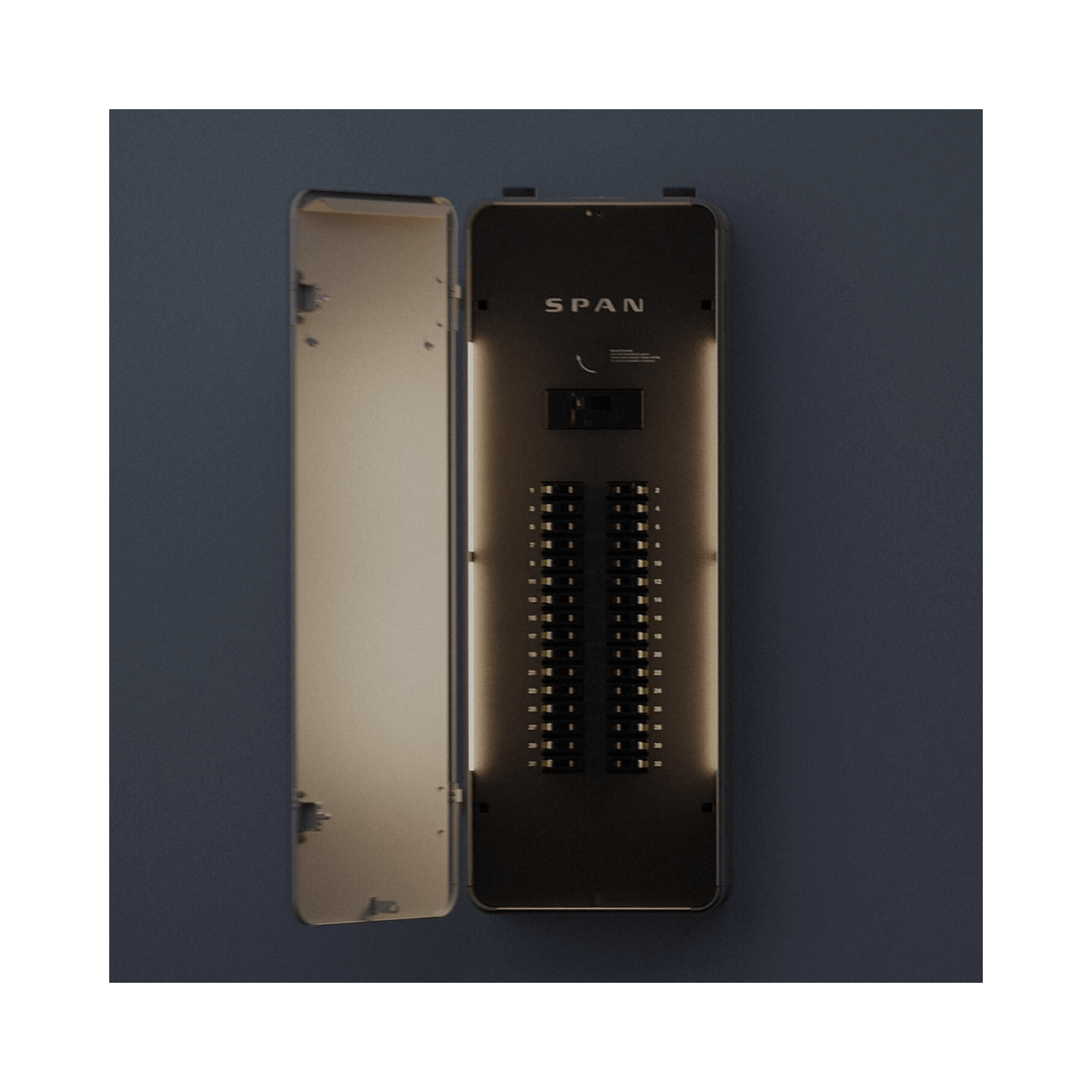

SPAN Panel MAIN 32

World's smartest electrical panel with circuit level energy monitoring and control offering unprecedented cost saving home energy insights.

• Customizable, flexible, whole-home backup when paired with battery storage - provide 40% longer backup duration
• Pre-installed energy management system (EMS) software, SPAN PowerUp, for avoiding electrical service upgrades
• Free over-the-air updates for an always improving homeowner experience
• Category defining safety as the only electrical panel with Power Control System (PCS) listing and certification

Electrical

• Integrated grid disconnect relay
• Revenue accurate energy monitoring
• 100 - 200A main breaker
• 225A bussing

Installation

• Indoor and outdoor rated
• Surface or flush-mount
• Compatible with standard 1 breakers

Connectivity

• Ethernet, WiFi, Cellular
• Free over-the-air updates

Intuitive Control

SPAN goes beyond monitoring with the SPAN Home app for real-time control and energy insights to bring your home energy to life. Combined with battery storage, SPAN gives homeowners the power to choose and change backup priorities whenever they want.

Compatibility

SPAN Panel MAIN 32 is only compatible with MAIN 32 Panels for multi-panel installations.

Energy Management System (EMS)

Every SPAN Panel comes pre-installed with PowerUp. PowerUp is an Energy Management System (EMS) that enables homeowners to install high-power electric upgrades like heat pumps, hot tubs, and EV chargers without exceeding their electrical service capacity.

Homeowners can set preferences for what PowerUp manages during peak-load events in the SPAN Home App, with minimal-to-no disruption experienced.

Technical Specifications:

Controllable circuit spaces: 32

Voltage: 120/240V split phase

Grid frequency: 60Hz

Main breaker rating: 100 - 200A

Bus bar rating: 225A

Max branch circuit size: 90A

Feed-thru lugs: Yes

AC metering: Revenue accurate

Max input short circuit current: 22kA

Energy management system: SPAN PowerUp capable, Backup overload protection

Certifications: UL 67, UL 916, UL 869A, UL 3141 [PCS]

Enclosure rating: NEMA 3R (Indoor and outdoor)
