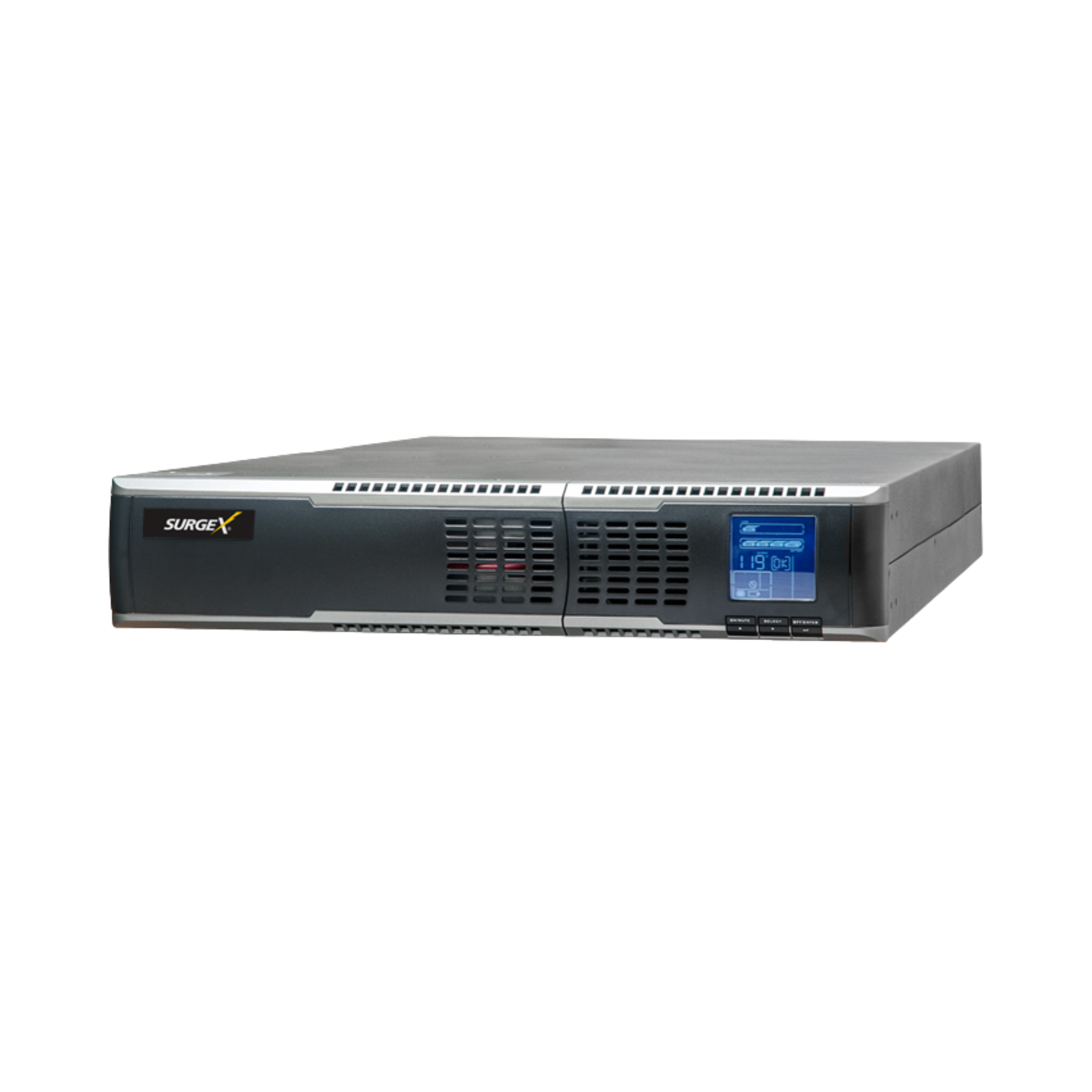

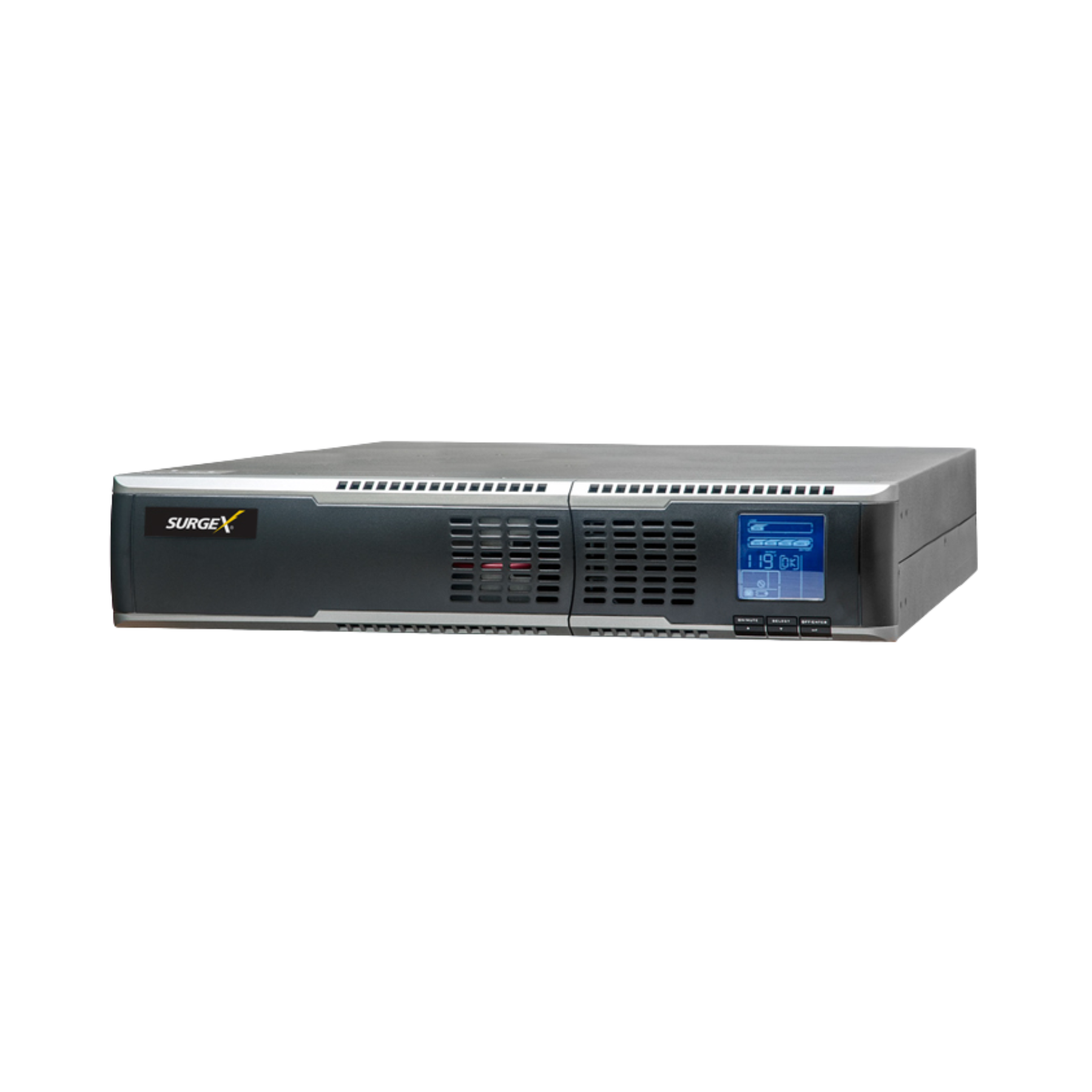

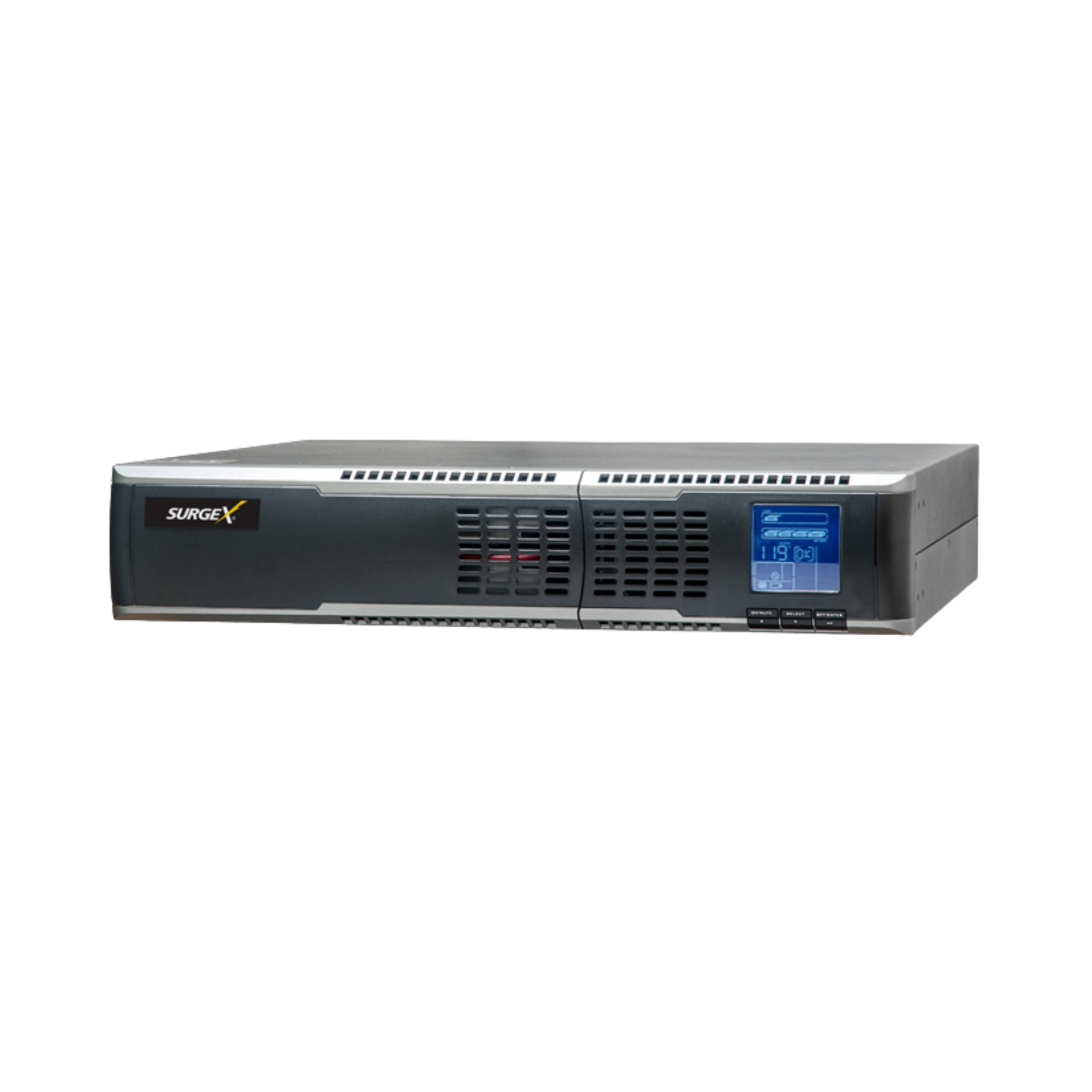

UPS-3000-OL

SurgeX online double conversion standalone UPS battery backup solutions deliver clean continuous power, via online double conversion technology, to ensure the safe shutdown of equipment in the event of an outage. All incoming power is converted from AC to DC and then back to AC. If the main power is interrupted, the batteries are still holding up the incoming DC supply to the inverter, so the load continues to be supplied with absolutely no interruption whatsoever. The zero transfer time guarantees mission critical equipment remains up and running.

The Standalone rack mount UPS backup power solutions in 3000 VA configuration with hot swappable internal batteries ensures maintenance can be performed without powering down connected equipment. The solution has extended scalable runtimes of up to 8 hours via self-charging extended battery packs.

• Online double conversion technology
• True sinewave output
• Controllable receptacles
• Hot swappable battery
• Configurable as tower or 19" rack
• Intuitive LCD screen
• Optional SNMP card to monitor and manage the UPS via the network

SPECIFICATIONS:

Load Rating: 25A

Voltage Rating: 120V

Power Requirement (No Load): 0

Input/Mains Plug Type: L5-30P

Input/Mains Cord Length: 5'6"

# of Receptacles: 5

Receptacle Type: (1) LF-30R

                              (4) 5-15/20R

Under-Voltage Auto Shutdown: Yes

Over-Voltage Auto Shutdown: Yes

Over-Current Auto Shutdown: Circuit Breaker

Over-Temperature Auto Shutdown: Internal Temperature Fault Shutdown

Network Port: Optional SNMP Card

Serial Port: RS-232 on Female 9-pin D-Subminiature

                     USB Type B

                     RJ-45 on Optional SNMP Card

Temprature Sensor Input: None

BTU/h Max: 1756 BTU/h

Auxiliary Relay Outputs: With optional relay card

Contact Closure Input: EPO and optional relay card

Dimensions: 17.24" W x 26.95" D x 3.39" H

Weight: 81 lbs

Temperature Range: 0C to 40C

Humidity Range: <90% non condensing

Agency Listings: UL 1778

                             CSA-C22.2 No. 107.1
